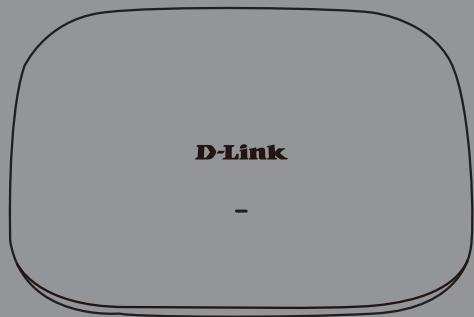

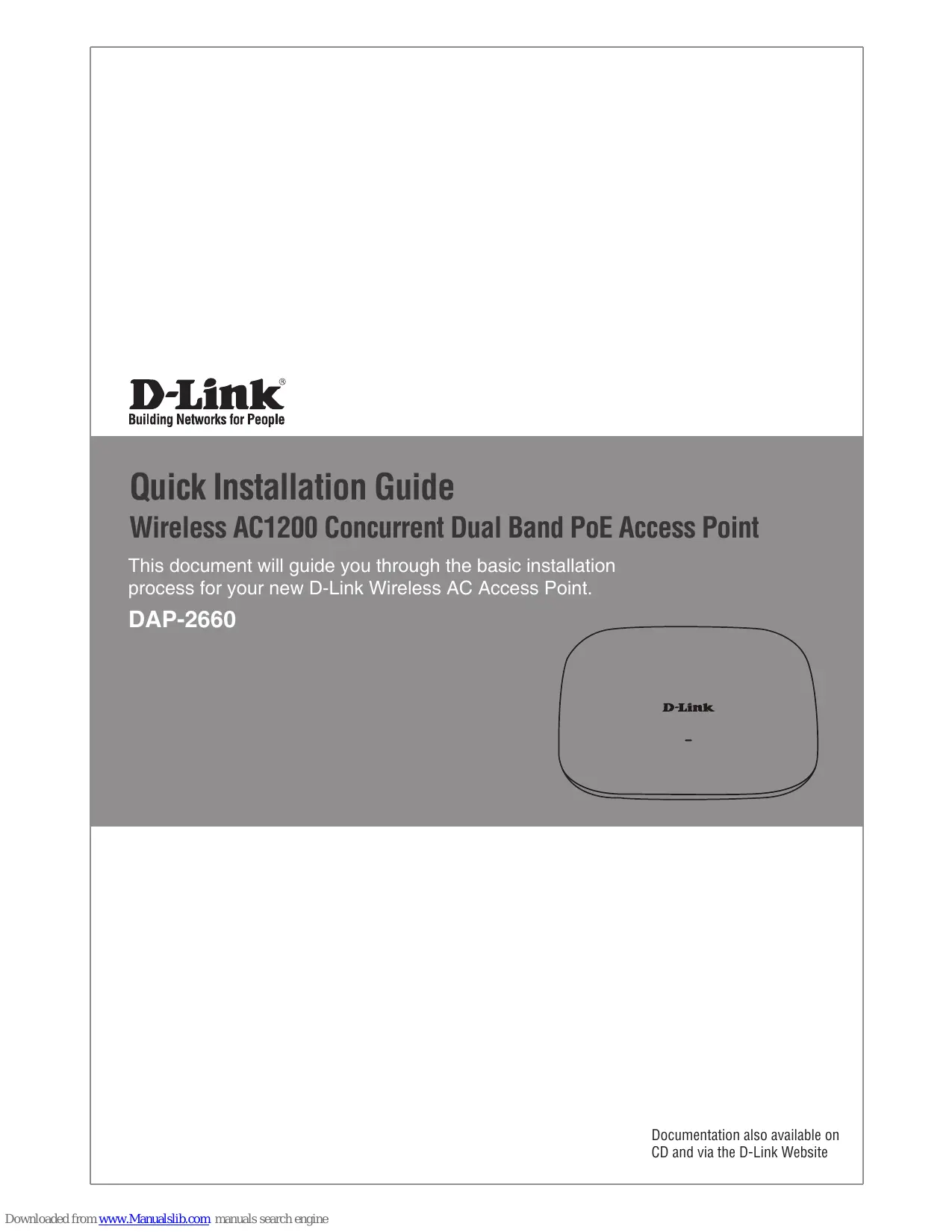

Quick Installation Guide Wireless AC1200 Concurrent Dual Band PoE Access Point This document will guide you through the basic installation process for your new D-Link Wireless AC Access Point. DAP-2660 Documentation also available on CD and via the D-Link Website Downloaded from www.Manualslib.com manuals search engine ENGLISH This installation guide provides basic instructions for installing the DAP-2660 Wireless Access Point on your network. For additional information about how to use the Access Point, please see the User’s Manual which is available on the CD included in this package or from the D-Link support website. System Requirements Minimum System Requirements:

• an Ethernet port, or an installed Ethernet adapter
• Internet Explorer 7.0, Safari 5.0, Firefox 3.5, Chrome 20 or later versions of these browsers DAP-2660 802.11ac Access Point Power Adapter Mounting Brackets Ethernet Cable CD-ROM If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage than the one included with the DAP-2660 will cause damage and void the warranty for this product.

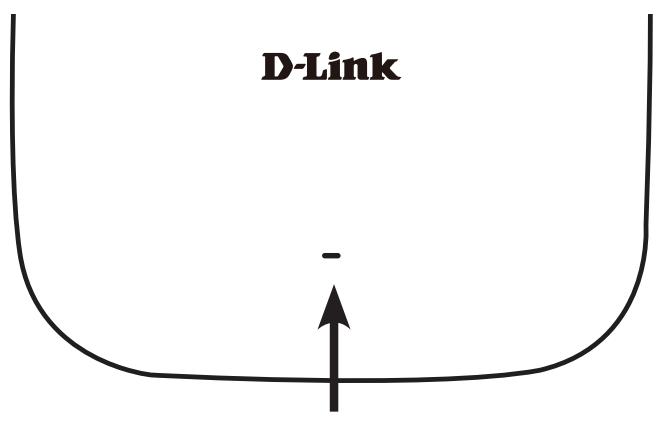

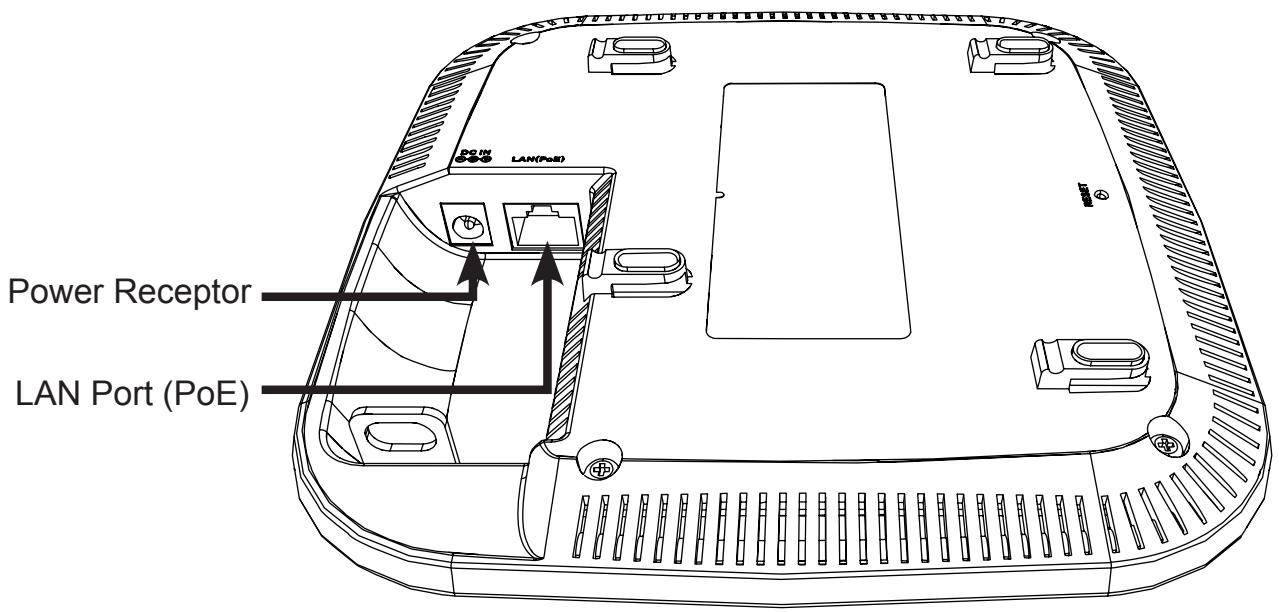

Downloaded from www.Manualslib.com manuals search engine Power/Status LED - Dual color (Red/green) . Flash Red during booting up or malfunction . Static Green while it’s ready/working . Solid Red while boot up fail . Flash Green while traffic is passing through. Interfaces Power Receptor LAN Port (PoE) D-Link DAP-2660 Quick Install Guide Downloaded from www.Manualslib.com manuals search engine

3. Installation

Power on the access point To power on the DAP-2660, you can use ONE of the following methods:

1. Connect the supplied power adapter, OR

2. Plug one end of your Ethernet cable into the LAN port of the DAP-2660, and the

other end into a port on a PoE switch. Configure the access point To set up and manage the DAP-2660, use one of the following methods:

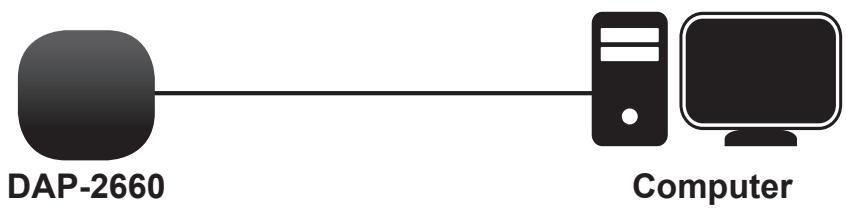

1. Connect the access point and your computer directly via a straight-through

Ethernet cable. Manage the access point from the computer. Ensure your computer is configured with a static IP address in 192.168.0.0/24 subnet. Launch a web browser, type the default IP address of the access point (http://192.168.0.50) and then press Enter. Log in to the Administration Web pages. The default login information is: Username: admin Password: (Leave the password field blank) DAP-2660 Computer

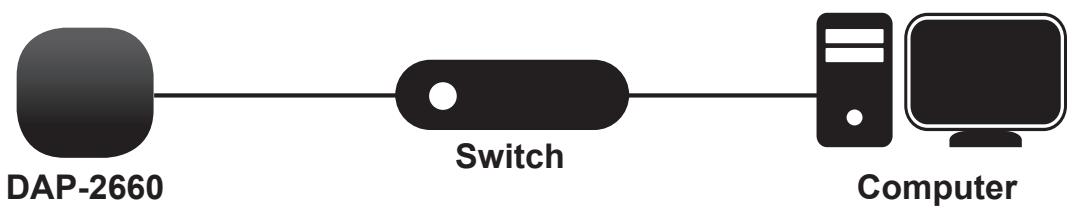

2. Connect the access point and your computer to the same switch. Manage the

access point from the computer. Enter 192.168.0.50 in the address field of your browser, which is the default IP address of the access point. Log in to the Administration Web pages. The default login information is: Username: admin Password: (Leave the password field blank) DAP-2660

Downloaded from www.Manualslib.com manuals search engine Switch Computer Installation

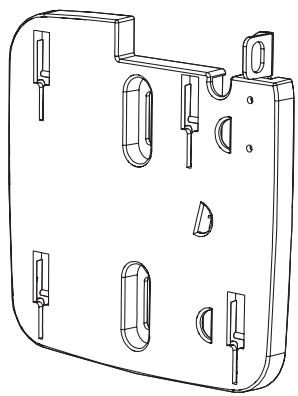

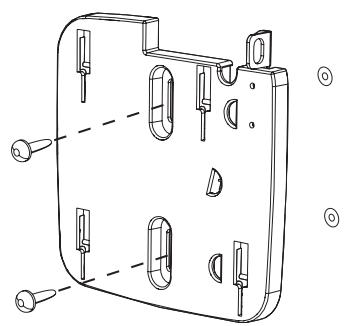

1. Place the mounting bracket on a wall or

4. Use the supplied screws to attach the

mounting ring to the wall.

2. Mark the points where you will insert the

screws. Take out the mounting ring.

5. Plug the Ethernet cable into the LAN

port on the access point.

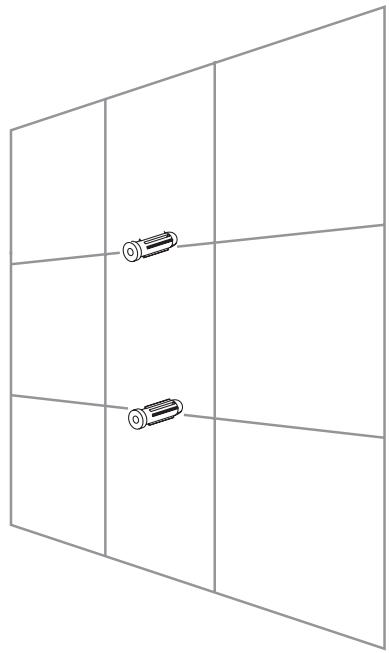

3. Drill holes in the marked points and

insert the plastic wall anchors.

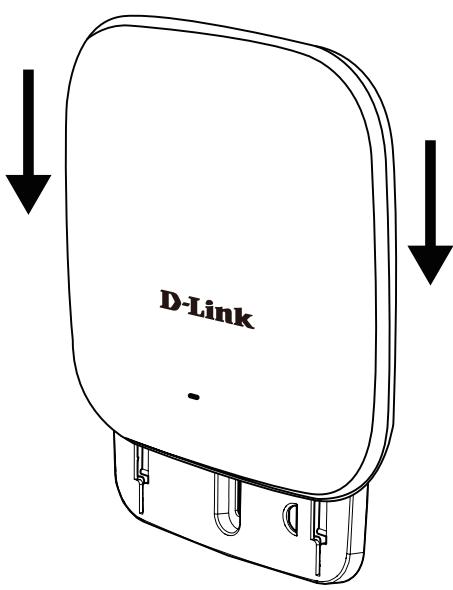

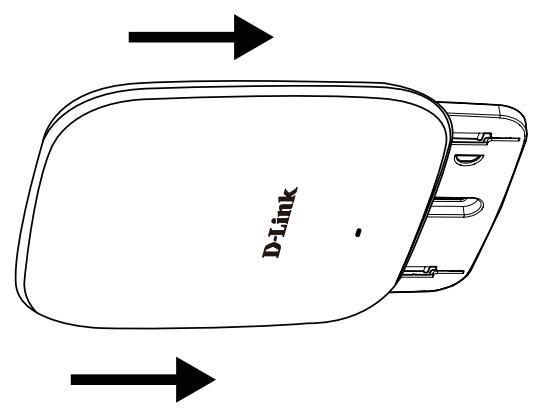

6. To attach the access point to the

mounting bracket. D-Link DAP-2660 Quick Install Guide Downloaded from www.Manualslib.com manuals search engine ENGLISH Solid wall or ceiling

ENGLISH Mounting with a ceiling bracket Installation

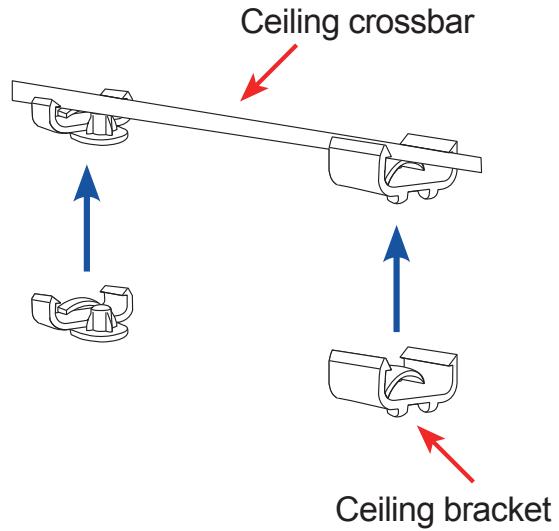

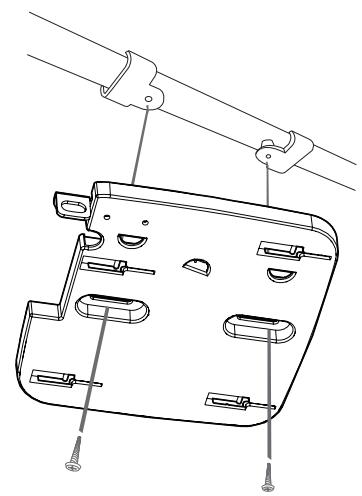

1. Clip two ceiling brackets onto the ceiling

panels. Make sure both brackets are in line with each other. Ceiling crossbar

3. Plug the Ethernet cable into the LAN

port on the access point.

4. Place the DAP-2660’s male bracket

in the mounting bracket’s female bracket. Click DAP-2660 and the mounting bracket to lock in position. Ceiling bracket

2. Use the provided screws to attach the

mounting ring to the ceiling bracket. TECHNICAL SUPPORT United Kingdom (Mon-Fri) , Website: http://www.dlink.com Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm) Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm) (BT 10ppm, other carriers may vary.) Ireland (Mon-Fri), Website: http://www.dlink.com All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm) Phone rates: €0.05ppm peak, €0.045ppm off peak times
