CLAIR-X1 - Air purifier AVIDSEN - Free user manual and instructions

Product type	Air purifier
Brand	AVIDSEN
Model	CLAIR-X1 (ref. 103690)
Filtration technology	e2f filter (static electricity + advanced filtration)
Filtered particles	Up to 0.1 μm (nanoparticles, allergens, VOCs, viruses, bacteria)
Maximum area	40 m²
Dimensions (L x D x H)	236 mm x 257.2 mm x 311.7 mm
Weight	2.2 kg
Power supply	AC adapter 100-240 Vac / 50-60 Hz, output 12 Vdc / 1.0 A
Power consumption	2.64 W (low mode), 3.96 W (normal), 5.28 W (turbo)
Noise level	42 dB maximum
Fan speeds	3 levels (low, normal, turbo)
Timer	Turbo mode automatically switches to low speed after 2 hours
Control	2 buttons: on/off and turbo
Filter maintenance	Vacuum to remove dust; cleaning with water not recommended
Filter lifespan	18 months maximum (depending on usage)
Replacement filter reference	103694
Warranty	2 years parts and labor
Country of origin	Not specified
Certifications	Not specified

Frequently Asked Questions - CLAIR-X1 AVIDSEN

How to install the CLAIR-X1 air purifier?

Place the device on a flat, horizontal surface, at least 20 cm away from other objects. Plug the AC adapter into the back of the purifier, then into a wall outlet. Press the on/off button to start.

What is the difference between the speed levels?

There are three modes: Level 1 (minimum speed), Level 2 (normal speed) and Turbo Mode (maximum speed, automatically returns to minimum speed after 2 hours). You switch between modes by pressing the on/off or turbo buttons.

How to clean the e2f filter?

Cut the power and unplug the adapter. Open the top cover by pressing on the "Push" mark. Gently vacuum dust from the filter surface with a vacuum cleaner. Do not clean the filter with water, as this reduces its effectiveness.

When to replace the filter?

The filter has a maximum lifespan of 18 months, depending on location and usage. Replacement filters are available under reference 103694.

Does the purifier consume a lot of electricity?

No, consumption is very low: from 2.64 W in low mode to 5.28 W in turbo mode. Even with continuous use, the impact on your bill is minimal.

Is the air purifier noisy?

The maximum noise level is 42 dB, equivalent to a whisper. It is designed to be discreet, suitable for a bedroom or office.

What pollutants does the e2f filter remove?

The filter captures nanoparticles (0.1 μm), allergens, CO, NOx, SOx, formaldehyde, toluene, viruses, bacteria and mold. It does not release ozone or harmful compounds.

Where can I use the purifier?

In any room up to 40 m²: bedroom, living room, office, classroom, waiting room, nursery, etc. Avoid damp, dusty areas or near heat sources.

How to reset or turn off the device?

To turn off, press the on/off button from level 2. For a complete shutdown, press and hold the on/off button for more than 2 seconds from any mode.

What to do in case of a problem?

Contact Avidsen after-sales service at 0 892 701 369 (€0.35/min + call price), Monday to Friday from 9am to 12pm and 2pm to 6pm. You can also track repair progress at http://sav.avidsen.com.

USER MANUAL CLAIR-X1 AVIDSEN

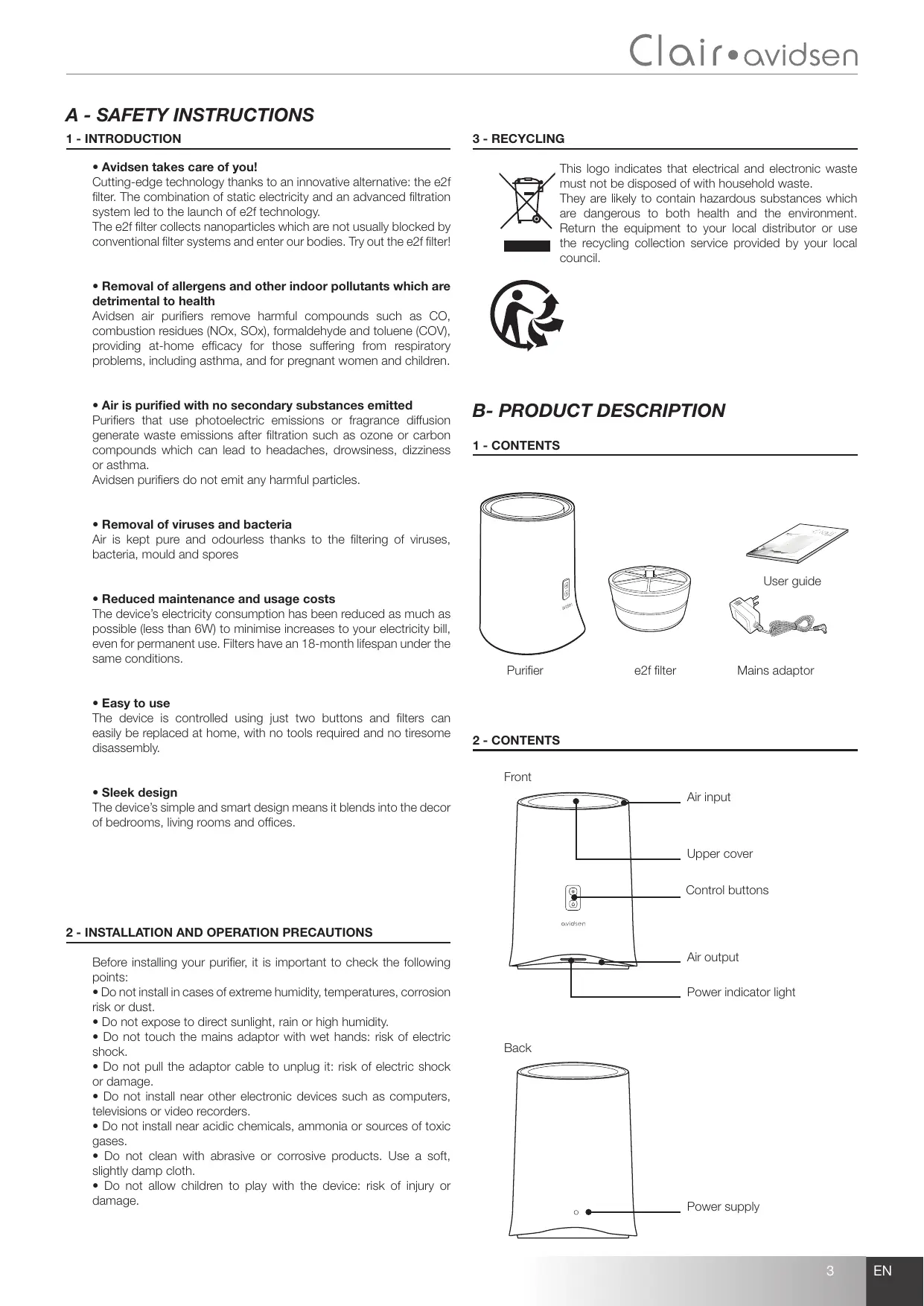

A - SAFETY INSTRUCTIONS

1 - INTRODUCTION

- Avidsen takes care of you!

Cutting-edge technology thanks to an innovative alternative: the e2f filter. The combination of static electricity and an advanced filtration system led to the launch of e2f technology.

The e2f filter collects nanoparticles which are not usually blocked by conventional filter systems and enter our bodies. Try out the e2f filter!

- Removal of allergens and other indoor pollutants which are detrimental to health

Avidsen air purifiers remove harmful compounds such as CO, combustion residues (NOx, SOx), formaldehyde and toluene (COV), providing at-home efficacy for those suffering from respiratory problems, including asthma, and for pregnant women and children.

Air is purified with no secondary substances emitted

Purifiers that use photoelectric emissions or fragrance diffusion generate waste emissions after filtration such as ozone or carbon compounds which can lead to headaches, drowsiness, dizziness or asthma.

Avidsen purifiers do not emit any harmful particles.

- Removal of viruses and bacteria

Air is kept pure and odourless thanks to the filtering of viruses, bacteria, mould and spores

- Reduced maintenance and usage costs

The device's electricity consumption has been reduced as much as possible (less than 6W) to minimise increases to your electricity bill, even for permanent use. Filters have an 18-month lifespan under the same conditions.

- Easy to use

The device is controlled using just two buttons and filters can easily be replaced at home, with no tools required and no tiresome disassembly.

- Sleek design

The device's simple and smart design means it blends into the decor of bedrooms, living rooms and offices.

2 - INSTALLATION AND OPERATION PRECAUTIONS

Before installing your purifier, it is important to check the following points:

• Do not install in cases of extreme humidity, temperatures, corrosion risk or dust.
• Do not expose to direct sunlight, rain or high humidity.
• Do not touch the mains adaptor with wet hands: risk of electric shock.
• Do not pull the adaptor cable to unplug it: risk of electric shock or damage.
• Do not install near other electronic devices such as computers, televisions or video recorders.
• Do not install near acidic chemicals, ammonia or sources of toxic gases.
• Do not clean with abrasive or corrosive products. Use a soft, slightly damp cloth.
• Do not allow children to play with the device: risk of injury or damage.

3-RECYCLING

This logo indicates that electrical and electronic waste must not be disposed of with household waste.

They are likely to contain hazardous substances which are dangerous to both health and the environment. Return the equipment to your local distributor or use the recycling collection service provided by your local council.

B- PRODUCT DESCRIPTION

1 - CONTENTS

Purifier

e2f filter

User guide
Mains adaptor

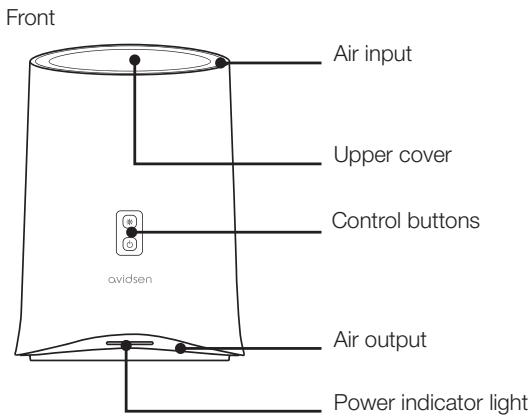

2 - CONTENTS

C - INSTALLATION

1. Check the kit's content before set-up.

Ensure you do not obstruct the upper openings so as not to obstruct the air intake.

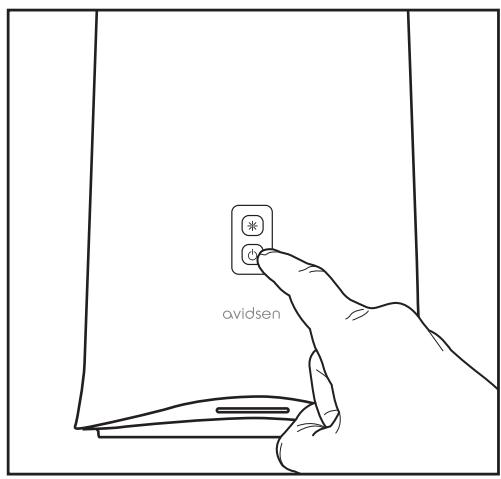

3. Press the on/off button to switch the product on

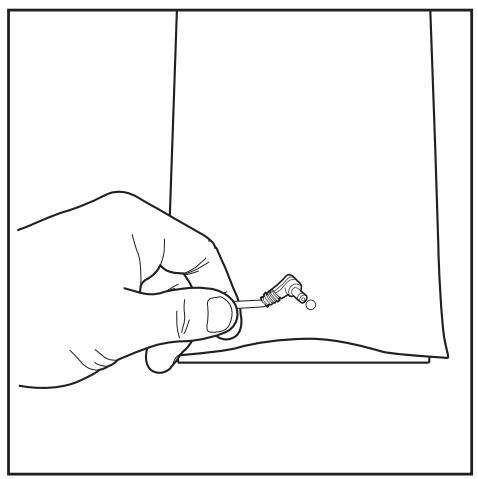

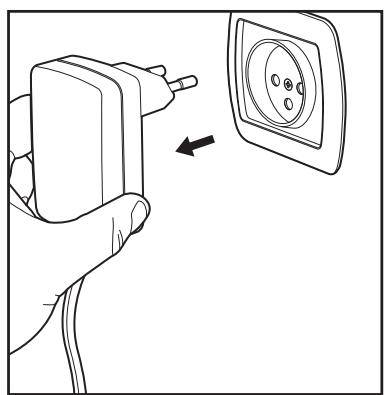

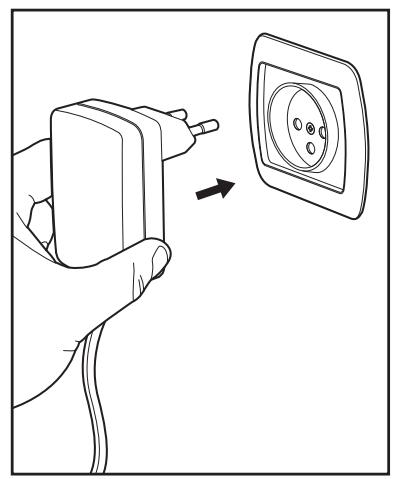

1. Connect the mains adaptor to the back of the purifier then to a wall socket.

Note

Connect the mains adaptor to the air purifier before plugging it into a wall socket.

D - USING THE PRODUCT

1 - FEATURES

Operating mode	Activation	Details	Corresponding button symbol
Level 1	Press the on/off button	Low speed
	Press the on/off button in turbo mode		*
	Press the turbo button in turbo mode
Level 2	Press the on/off button twice	Normal speed	*
Turbo mode	Press the turbo button	High speed Automatically changes to low speed after two hours	*
Stop	Press the on/off button in level 2	Stop ventilation
	Hold down the on/off button for longer than two seconds in any mode
ON/OFF	Hold down the turbo button for longer than two seconds in any mode	Indicator light on or off (does not affect filtration)	*

2 - RECOMMENDED INSTALLATION LOCATIONS

Can be used in all rooms up to a maximum of 40m^2 : bedrooms, living rooms, children's bedrooms, libraries, offices, kitchens, studios, hospital rooms, etc.

In adult bedrooms

In children's bedrooms

In lounges

At the office

In meeting rooms

In classrooms

In waiting rooms (doctors, vets)

In hospital rooms

In nurseries

In open spaces

3-CLEANING THE FILTER

Note

Disconnect the power supply before cleaning by unplugging the mains adaptor and check that the ventilation has stopped. Risk of injury or electric shock if the filter is changed while the purifier is still running.

We do not recommend cleaning the filter with water as it may reduce the purifier's performance and affect its filtering ability.

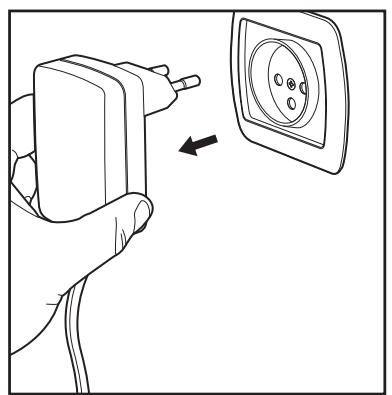

1. Disconnect the purifier's power supply and unplug the mains adaptor.

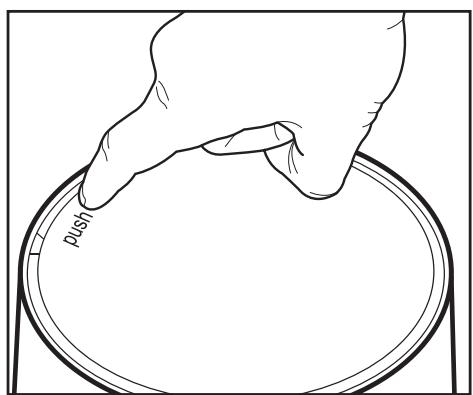

2. Press the "Push" area on the upper cover to access the air inlet and check the filter condition.

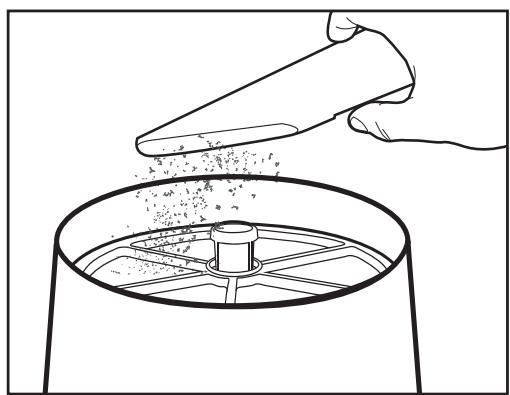

3. Remove dust from the surface of the e2f filter using a vacuum cleaner.

4 - REPLACING THE FILTER

Filters have a maximum lifespan of 18 months, which may be reduced depending on the filter's location and the room in which it is used.

Note

Disconnect the power supply before changing the filter by unplugging the mains adaptor and check that the ventilation has stopped. Risk of injury or electric shock if the filter is changed while the purifier is still running.

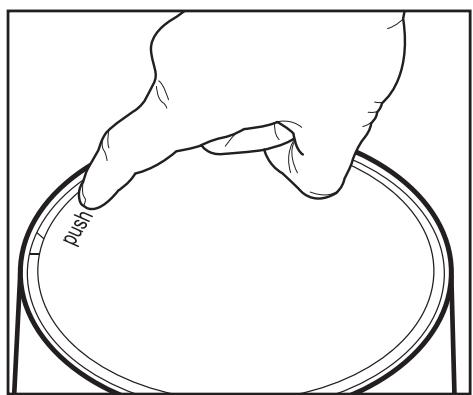

1. Press the "Push" area on the upper cover to access the filter.

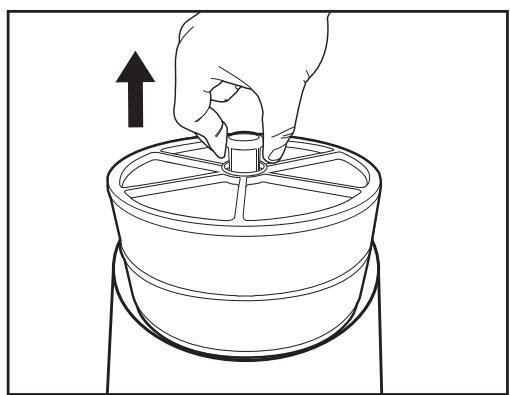

2. Pull the central handle on the filter and remove the e2f filter from the air purifier.
3. Replace it with a new, clean filter.

E - SECURITY WARNINGS

1 - ELECTRICAL SUPPLY

• Do not cut or extend the cable.
• Do not bend the cable to avoid damaging it.
• Do not pull on the cable.
• Do not use the device if the cable, wall socket or mains adaptor show obvious signs of wear.
• Do not daisy-chain extension cords and/or multi SOCKET adaptors.
• Do not place the mains adaptor near radiators.
• Only use the mains adaptor provided with the device.
• Disconnect from the mains before carrying out any maintenance.
• Do not touch the adaptor with wet hands.
• Do not allow children to play with the product.

Failure to comply with these instructions may lead to damage or injury.

• Do not use the device in areas susceptible to gas leaks.
• Do not use the device in areas subject to industrial fumes or sources of metal dust.
• Do not expose the device to direct sunlight or excessive heat or humidity.
• Do not place the device on uneven or sloped surfaces.
• Keep the device at least 20cm away from other objects.
• Regularly check the air inlets and outlets.
• Do not use the upper cover to move the device.
• Failure to comply with these instructions may reduce the product's efficacy, cause abnormal noises or functioning or lead to damage or injury.

3 - USE

• Only use the product if the adaptor is correctly connected and plugged in.
• Do not block or cover the air inlet or outlet.
• Do not use near heating or cooking appliances, or near any flame risks.
• Only use the device when it is vertical, with the air inlet facing upwards and unobstructed.
• Do not use the device if a filter is not fitted.
• Do not use abrasive or corrosive products to clean the surface of the device.

4-FILTER

• Avoid direct contact with the filter when it is in use.
• If the filter is clogged, open the upper cover and use a vacuum cleaner to remove the dust.

• We do not recommend cleaning the filter with water as it reduces its efficacy.

• If the product is not used for a significant period of time, it may unnecessarily capture harmful substances. Store the filter in a sealed, airtight bag if it will not be used for a long period of time.

• Failure to comply with these instructions may be harmful to health or reduce the filter's performance.

• To repair or replace your air purifier, contact your local dealer or our After Sales Service team.
• Replacement filters for your air purifier are available from your local dealer using the reference number 103694.

F - TECHNICAL AND LEGAL INFORMATION

1 - TECHNICAL CHARACTERISTICS

Model		Avidsen clair-X1
Reference		103690
Power supply	Input	100-240V A/C / 50/60Hz
	Output	12V DC/1.0A
Performance and electricity consumption	Speed	Reduced mode	Normal mode	High mode
	Consumption	2.64W	3.96W	5.28W
Sound level		42dB maximum
Filtered particle size limit		0.1μm
Recommended use		Private spaces and offices
Room size		Up to 40m²*
Replacement filter reference		103694
Filter lifespan		18 months**
Size		236mm x 257.2mm x 311.7mm
Weight		2.2kg

• for larger rooms, consider using the purifier for longer periods or at higher speeds, or using more than one purifier
  ** lifespan for information purposes only based on use 24/7 at low speed, depending on the degree of indoor pollution

2-WARRANTY

• This product is under warranty for parts and labour for 2 years from the date of purchase. Proof of purchase must be retained for the duration of the warranty period.
• The warranty does not cover damage caused by negligence, knocks or accidents.
• The parts of this product must not be opened or repaired by any persons not employed by Avidsen.
• The warranty will be void if the device is tampered with.
• Do not cut or shorten the wire of the mains adaptor or the warranty will be void.

3 - HELP AND ADVICE

• If, in spite of the care we have taken in designing our products and drafting these instructions, you do encounter difficulties when installing your product or you have any questions, we recommend you contact one of our specialists who will be glad to help.
• If you encounter operating problems during the installation or a few days afterwards, it is essential that you are in front of your installation when contacting us, so that one of our technicians can diagnose the source of the problem, as it will probably be the result of a setting that is incorrect or an installation that is not to specification.

Contact our After Sales Service team technicians on:

0 892 701 369

Monday to Friday, 9AM to 12PM and 2PM to 6PM.

4 - PRODUCT RETURNS / AFTER SALES SERVICE

If, despite the care we have taken in designing and manufacturing your product, it needs to be returned to our customer service centre, you can check the progress of the work on our website at the following address:

http://sav.avidsen.com

Avidsen undertakes to keep a stock of spare parts for this product throughout the contractual warranty period.
