USER MANUAL TN-200 - TN200 TEAC

TEAC TN-300 33° 45° RT STOP

ANALOG TURNTABLE

OWNER'S MANUAL

MODE D'EMPLOI

MANUAL DEL USUARIO

BEDIENUNGSANLEITUNG

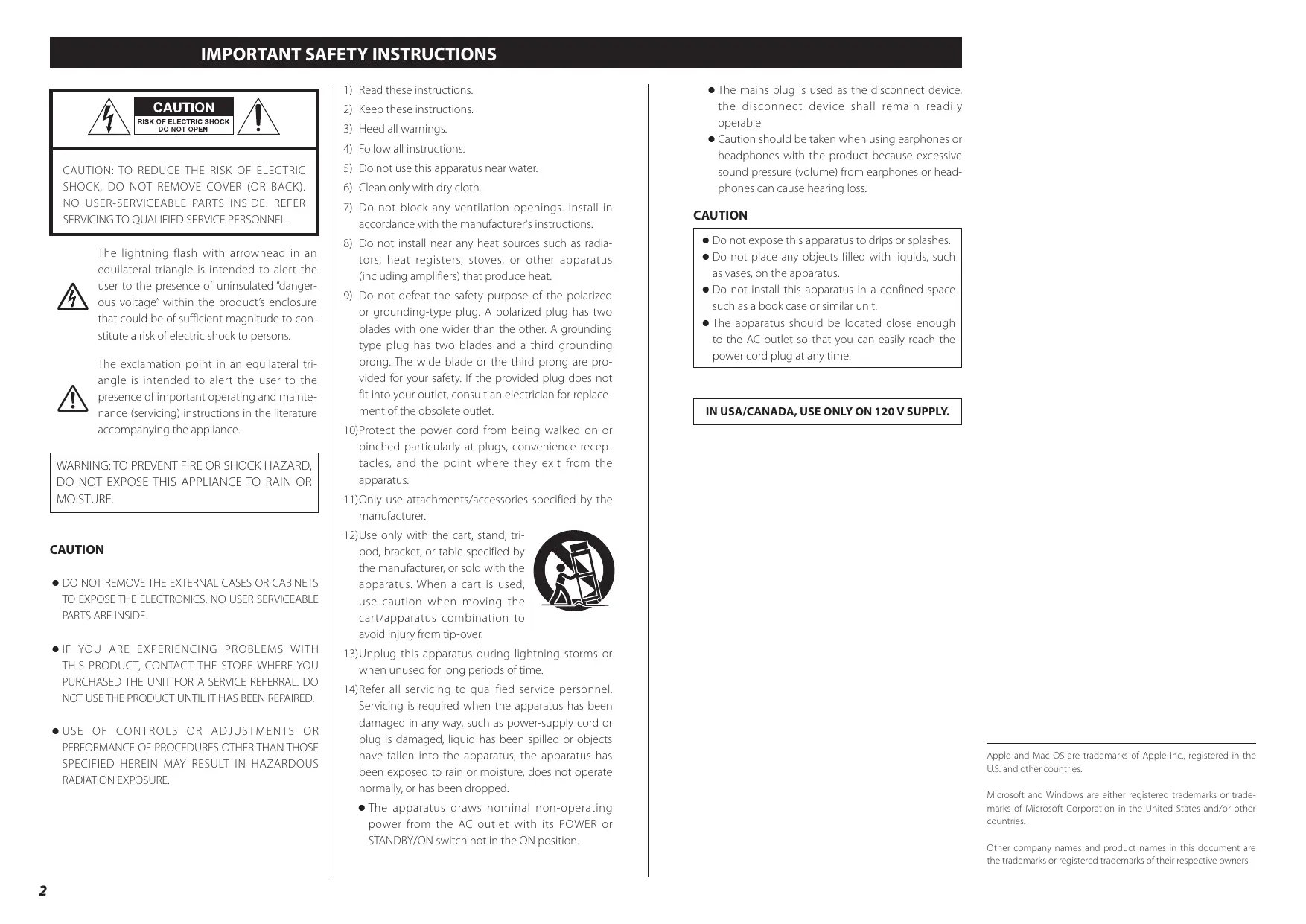

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead in an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that could be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point in an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.

• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.

IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

IMPORTANT SAFETY INSTRUCTIONS (continued)

Model for USA

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

Responsible party: TEAC AMERICA, INC.

Address: 1834 Gage Road, Montebello, California, U.S.A.

Telephone number : 1-323-726-0303

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Model for Canada

Industry Canada's Compliance Statement:

This Class B digital apparatus complies with Canadian ICES-003.

DECLARATION OF CONFORMITY

We, TEAC AUDIO EUROPE, Liegnitzer Straße 6, 82194 Gröbenzell, Germany declare in own responsibility, the TEAC product described in this manual is in compliance with the correspond standards.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance will void the user's warranty.

For European Customers

Disposal of electrical and electronic equipment

(a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste electrical and electronic equipment can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE) symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Disposal of batteries and/or accumulators

(a) Waste batteries and/or accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of waste batteries and/or accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste batteries and/or accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in them.
(d) The WEEE symbol, which shows a wheeled bin that has been crossed out, indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the Pb, Hg, Cd specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

(e) Return and collection systems are available to end users. For more detailed information about the disposal of waste batteries and/or accumulators, please contact your city office, waste disposal service or the shop where you purchased them.

Contents

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

IMPORTANT SAFETY INSTRUCTIONS....2
Before use....3
Preparing the record player ....4
Notes about record styluses....5
Connections 6
Names and functions of parts....6
Turntable cover....7
Handling records....7
Changing the cartridge....8
Basic operation 8
Recording with a computer....9
Troubleshooting....10
Specifications....10

Before use

Included items

Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.

Rubber mat × 1

45 RPM adapter × 1

Counterweight × 1

Headshell × 1

AT95E MM cartridge (made by Audio-Technica) preinstalled

Turntable × 1

Turntable cover × 1

Hinges × 2

Audio cable × 1

AC adapter × 1:

Model for USA/Canada: GPE053A-120050-1

Model for Europe: GPE053A-120050-Z

Owner's manual (this document) × 1

• Keep this manual in a safe place for future reference.
  Warranty card × 1 (for customers in the USA and Canada only)
• See the back of this document for information about the warranty in Europe and other countries or areas.

Before use (continued)

Precautions for use

• Do not place anything on the turntable cover. Objects on the cover might cause noise due to vibrations or fall off, especially during playback.
• Avoid placing the unit in direct sunlight, close to a source of heat or in other similar conditions. Do not place the unit on top of an amplifier or other equipment that might generate heat that exceeds the operating temperature range of this unit. Doing so could cause discoloration, deformation or malfunction.
• As the unit could become warm during operation, always leave sufficient space around it for ventilation. When installing this unit, leave a little space (at least 20 cm (8")) between it and other devices and walls to allow good heat dissipation.

When placing it in a rack, for example, leave at least 35 cm (13 3/4") open above it and 10 cm (4") open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.

• DO NOT MOVE THE UNIT DURING PLAYBACK. During playback, the record rotates. Do not lift or move the unit during playback. Doing so may damage the record, the stylus, the cartridge or the unit.
• Always remove the record before relocating or moving this unit. Moving the unit with a record on the turntable could damage the record, the stylus and the cartridge or could cause a malfunction.
• The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

Maintenance

If the surface of the unit gets dirty, wipe it with a soft cloth or use diluted mild liquid soap. Allow the surface of the unit to dry completely before using.

- Do not use chemical cleaning cloths, thinner or similar substances as they could damage the surface of the unit.

CAUTION

For safety, disconnect the power cord from the socket before cleaning.

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online.

http://audio.teac.com/support/registration/

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:

http://teac-global.com/

1) Open the TEAC Global Site.
2) In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

3) Click the "Search by Model Name" section to open the Downloads page for that product. (Users in Europe should click the product name in the "Products" section instead.)
4) Select and download any updates that are needed.

Preparing the record player

Keep the unit in standby while setting it up (E on page 6).

1 Place it on a flat surface.

Since the heights of this unit's feet cannot be adjusted, be sure to place it on a flat surface.

2 Install the turntable.

Align the turntable with the center shaft and install it.

Center shaft Turntable

3 Loop the belt around the motor pulley.

Use a finger to pull the rubber belt that is wrapped around the sub-platter through the round opening and loop it around the motor pulley.

• Be careful not to let the rubber become twisted.
• Rotate the turntable several times to make sure that it is secure.

Round opening Motor pulley Rubber belt

4 Place the rubber mat.

Place the protective rubber mat that is included with the turntable on it before use.

Top

- The rubber mat has a top and a bottom. As shown in the illustration, the side with the ridged concentric circles should be placed down.

5 Install the counterweight.

Place the counterweight over the end of the tone arm and turn it clockwise to tighten it.

Counterweight

6 Install the headshell.

Insert the headshell on the end of the tone arm and turn the nut to secure it in place.

Nut Headshell

Balancing the tone arm and adjusting the stylus pressure

Counterweight Stylus pressure Center line Anti-skating Cue lever

1 Set the anti-skating dial to zero.

2 Move the tone arm clasp to the right to release the tone arm.

Clasp

3 Lift the cue lever and shift the tone arm to the left slightly.

4 Lower the cue lever.

5 Turn the counterweight and adjust so that the tone arm is level.

• Remove the cartridge stylus protection cover before making adjustments.
• Be careful not to let the cartridge stylus touch the unit.

6 Return the tone arm to its original position, and move the tone arm clasp to the left to lock it in place.

7 Turn the stylus pressure adjustment ring so that the center line aligns with 0 on the scale.

Technical diagram showing a mechanical component with a magnified view of its internal structure, including labeled dimensions and reference lines.

- Be careful not to let the counterweight turn.

8 Turn the counterweight so that the stylus pressure adjustment ring scale matches the stylus pressure specified for the cartridge.

- The stylus pressure of the included cartridge is 2.0 g. So, turn it to 2 on the counterweight scale when using the included cartridge.

Technical diagram showing a valve mechanism with labeled components and directional arrow indicating rotation or movement.

9 Adjust the anti-skating dial.

Start with it set at 2 and adjust it during record play-back (page 8) to the position where the left and right volumes are balanced.

Notes about record styluses

• Record styluses are precision parts, so handle them carefully to avoid bending or damaging their tips. If a stylus becomes bent or damaged, it might not be able to follow the audio groove precisely and could damage records or cause other malfunction.
• If a stylus becomes dirty, use a commercially available stylus cleaner or similar product to clean it.
• Do not rub the stylus tip forcefully with anything hard. Do not wipe the stylus with thinner or other chemicals. Doing so could harm it.

Replacing the stylus

The included cartridge is an Audio-Technica AT95E.

Purchase a replacement stylus for the AT95E cartridge at the retailer where you purchased this unit, for example.

Follow the replacement instructions in the manual of the replacement stylus.

CAUTION

• Since loud noises could suddenly occur, put the unit into standby before changing the stylus.
• Be careful not to hurt your hand or the equipment.
• Be careful not to allow small children to accidentally swallow styluses.

Connections

When PHONO EQ is ON Connect to audio input jacks of amplifier, etc. When PHONO EQ is THRU Connect to PHONO inputs of amplifier, etc. Amplifier A B C E D Included AC adapter Precautions when making connections • Do not plug the unit in until after making all connections. • Carefully read the manuals of the devices that you conclusions and follow the instructions and the connection.

A Analog audio output jacks (L/R)

These output analog audio signals.

The PHONO EQ switch setting changes the type of output signal.

Use the included audio cable (or commercially-available ones) to connect other equipment to the output jacks of this unit.

White (L)

Red (R)

White (L)

Red (R)

B PHONO EQ (audio output setting) switch

ON

Signals that have been amplified by the built-in equalizer amp are output from the analog audio output jacks (L/R).

THRU

The MM cartridge signal is output directly through the analog audio output jacks (L/R).

Use this when connecting to equipment that has PHONO inputs.

- When shipped new from the factory, this is set to ON.

CAUTION

When set to ON, if connected to the PHONO inputs of an amplifier, for example, the output from speakers and headphones will be very loud, which could damage equipment or harm hearing.

USB port (USB B type)

Connect this to the USB port of a computer to convert the audio signal from this unit to digital and output it to the computer (page 9).

D DC input connector

After completing all other connections, connect the included AC adapter to this jack.

Confirm that the power plug of the AC adapter is plugged into a power outlet.

• Unplug the power cord from the outlet when you are not planning to use the unit for an extended period of time.
• Do not use any AC adapter other than the one included.

⚠️ Be sure to connect the power cord to an AC outlet that supplies the correct voltage.

Connection to an outlet that supplies incorrect voltage could cause fire or electric shock. Hold the power plug when plugging it into an outlet or unplugging it. Never pull or yank on the power cord.

Unplug the power cord from the outlet when you are not planning to use the unit for an extended period of time.

E STANDBY/ON button

Press the STANDBY/ON button to turn the unit on or put it in standby.

Names and functions of parts

a b c d e f g h i j

a Turntable

Place records centered on the turntable.

b Counterweight

Stylus pressure adjustment ring

d Anti-skating dial

e Cue lever

Use this lever to lift the tone arm and to lower it to the record.

f Tone arm holder

This is a rest for the tone arm. Gently push the clasp to the right to release the tone arm before playing a record.

g Tone arm

h Rotation speed setting knob

Set the rotation speed (RPM) suitable for the record.

i START/STOP turntable rotation knob

j Headshell

Turntable cover

Attaching the turntable cover

Turntable cover Main unit Hinge

1 Insert the hinges completely into the hinge holders at the left and right ends of the back of the main unit.
2 Align the tops of the hinges with the turntable cover hinge holders and insert them.

Removing the turntable cover

Hold both edges of the turntable cover and lift it slowly to remove it along with the hinges from the unit. Then, remove the hinges from the turntable cover.

Opening and closing the turntable cover

Open

Opening

Hold the front edge of the turntable cover and gently lift it open completely until it stops.

The turntable cover will stay open in this position.

Closing

Gently lower the turntable cover until it is closed.

⚠️ Be careful not to pinch your hand, for example, when opening and closing the turntable cover.

Handling records

Holding records

When holding a record or removing it from its sleeve, avoid touching the grooves by holding the record by its label and edge with one hand or by holding it by its edge with both hands.

Label Grooves Outer edge

Cleaning

● Fingerprints and dust on a record can cause noise and the sound to skip, as well as damage the record itself and the stylus. Use a commercially available record cleaner to clean records. Do not use thinner or anything other than a record cleaner. Such chemicals could harm the surface of the record.
- When using a record cleaner, wipe the surface of the record in a circular motion, following the grooves.

Precautions

• Do not leave records in places that are exposed to direct sunlight or are very hot or very humid. Leaving a record in such a condition for a long time could result in warping or other damage.
• Do not stack multiple records or place heavy objects on top of them. Do not leave records at an angle for long amounts of time either. Doing so could result in warping or other damage.
• Do not allow hard objects to directly touch the audio grooves. Doing so could cause scratches.
• After you finish playing a record, always put it back into its sleeve for storage. Leaving a record unprotected could result in warping or scratching.
• Do not use cracked records.

Changing the cartridge

To change the cartridge, first remove the headshell from the tone arm.

- We recommend that you keep the cartridge needle protective cap on while changing the cartridge.

Headshell Screws Nuts Shell leads Cartridge

1 Disconnect the shell lead terminals from the cartridge.
2 Loosen the screws and remove the cartridge.
3 Attach the new cartridge and tighten the screws.

See the illustration below for the position of the screws when attached.

Line drawing of a mechanical device with ports and a vertical rod (no text or symbols)

2.0 ± 0.5 mm

4 Connect the shell lead terminals to the cartridge.

● The signals and colors of the shell leads are shown below.

Signal	Color
Left channel +	White
Left channel –	Blue
Right channel +	Red
Right channel –	Green

5 Balance the tone arm and adjust the stylus pressure.

Follow the procedures in "Balancing the tone arm and adjusting the stylus pressure" on page 5.

Basic operation

Playing records

1 Press the STANDBY/ON button on the back of the unit to turn it on.

2 Open the turntable cover slowly.

Diagram of a hand operating a CD or DVD disc with a rotating arrow indicating rotation (no text or symbols present)

⚠️ Be careful not to pinch your hand, for example, when opening and closing the turntable cover.

3 Place a record on the turntable.

When playing a 45 RPM large-hole single record, use the included adapter.

Line drawing of a vintage radio with two hands holding a circular device (no text or symbols)

4 Set according to the rotation speed (RPM) of the record.

The rotation speed can be set to 33 1/3 or 45 RPM.

Diagram of a CD or vinyl record with labeled parts and a hand holding a circular component, showing measurement annotations.

5 Turn the START/STOP rotation knob to START to start the turntable.

START STOP

- When the START/STOP rotation knob is set to START, the turntable will start rotating and the blue LED will light.

6 Move the tone arm clasp to the right to release the tone arm.

Clasp

7 Lift the cue lever.

Cue lever Tone arm

- You can also leave the cue lever down and move the raised tone arm over the record and then lower the tone arm slowly to start playback.

8 Move the tone arm to the edge of the record or the track where you want to start playback.

Diagram showing a hand holding a connector with labeled ports and a magnified view of the connector's internal structure.

9 Lower the cue lever.

Lower the tone arm slowly until the stylus touches the record and playback begins.

- We recommend that you close the turntable cover during record playback to avoid dust.

Do not place anything on the turntable cover. Objects on the cover might cause noise due to vibrations or fall off, especially during playback.

CAUTION

- During playback, do not touch the tone arm or the rotating record.

- Do not stop turntable rotation during playback.

During record playback, feedback could occur if the volume is too loud. If this happens, lower the volume of the amplifier.

When playback finishes

1 Slightly lift the cue lever or the head-shell hook and return the tone arm to its resting position.

Cue lever Tone arm

2 Turn the START/STOP rotation knob to STOP to stop the turntable.

START STOP

- When the turntable stops, the blue LED will also become unlit.

Recording with a computer

Connect this record player to a computer using a commercially-available USB cable to convert audio signals from a record to digital data and send them to the computer.

Supported operating systems

Computers running the following operating systems can be connected by USB to this unit.

Windows OS

Windows 7 (32-bit, 64-bit)

Windows 8 (32-bit, 64-bit)

Windows 8.1 (32-bit, 64-bit)

Windows 10 (32-bit, 64-bit)

(as of October 2015)

Mac OS X

OS X Lion 10.7

OS X Mountain Lion 10.8

OS X Mavericks 10.9

(as of September 2014)

Use with operating systems other than these is not guaranteed.

- This unit will run with the standard OS driver, so there is no need to install a special driver.

Connecting with a computer

1 Turn the computer on.

Confirm that the operating system is working correctly.

2 Use the USB cable to connect the computer and this unit.

Line drawing of a mechanical device connected to a laptop via cable (no text or symbols)

- Use a USB cable with a ferrite core when connecting the unit to a computer.

3 Press this unit's STANDBY/ON button to turn it on.

When they are connected, the computer will automatically detect this unit's USB port and identify it as "USB Audio CODEC".

- To record audio from this record player using a computer, you must first install software that can be used for audio recording on the computer. You may purchase the audio recording software that you prefer separately or download free software, such as Audacity (http://audacity.sourceforge.net/), from the Internet. As free software, Audacity is not supported by TEAC.

- When connected to a computer by USB and recording audio, do not do any of the following. Doing so could cause the computer to malfunction. Always quit the computer recording software before doing the following.

- Disconnect the USB cable

- Put the unit into standby

Computer settings

The following example explains the settings to make using Windows 7.

1 From the Start menu, select Control Panel.

2 Click "Sound".

3 Click the "Recording" tab, and confirm that "USB Audio CODEC" is set as the "Default Device".

4 Select "Microphone USB Audio CODEC", and click the Properties button.

5 Click the "Advanced" tab.

6 From the "Default Format" pull-down menu, select the audio quality (format) that you want to use for recording.

NOTE

"2 channel, 16 bit, 48000 Hz (DVD quality)" provides high audio quality but also requires more file space. Recording with a lower sampling frequency reduces the audio quality but also uses less file space.

7 Click "OK".

Troubleshooting

If you experience a problem with this unit, please check the following items before requesting service. Something other than this unit could also be the cause of the problem. Please also check that the connected devices are also being used properly.

If it still does not operate correctly, contact the retailer where you purchased the unit.

No power.

→ Confirm that the AC adapter is plugged into an outlet. Then, press the STANDBY/ON button to turn the unit on (page 6).

There is no sound.

When connecting this unit's analog audio output jacks to the audio input jacks of an amplifier or other equipment, set the PHONO EQ (audio output setting) switch to ON (page 6).

Playback is not possible; there is noise.

→ Confirm that the stylus cover (made of white plastic) has been removed.
→ Clean the stylus (page 5).
→ If the stylus is worn-out, replace it (page 5).
→ Place the unit as far away as possible from TVs, microwave ovens and other devices that emit electromagnetic waves.

Noise occurs when a record is playing

→ Noise could occur if the stylus pressure is higher than cartridge's specified value. Readjust the stylus pressure so that it is the specified value (page 5).

The pitch is wrong.

→ Set the rotation speed (RPM) to match the record (page 8).

The sound is skipping.

→ Vibrations will cause skipping. Place this unit in a stable location.
→ If the record is dirty, wipe it clean.
→ Do not use scratched records.
→ Balance the tone arm and readjust the stylus pressure (page 5).
If the stylus pressure is lower than the value designated by the cartridge, skipping is more likely to occur.

Specifications

Turntable

Drive system..... Belt drive
Motor ....DC motor
Rotation speed 33 1/3 rpm, 45 rpm
Rotation speed variation....±2%
Wow and flutter 0.2%
SN ratio.....67 dB or higher (A-weighted, 20 kHz LPF)
Turntable.... Aluminum die-cast 30cm (12") diameter

Tone arm

Arm type

Static-balanced straight-pipe tone arm

Effective arm length 223 mm

Stylus pressure variation range....0–5 g

Acceptable cartridge weight.... 3.5–6.5 g

Cartridge

Type..... MM
Output voltage 2.5 mV ±3 dB
Stylus pressure 2.0 ±0.5 g
Cartridge weight 5.7 ±0.5 g
Included headshell weight.... 10 g
(including screws, nuts and wires)

Output voltage

PHONO EQ THRU 2.5 mV ±3 dB
PHONO EQ ON 155 mV (-16 dBV)
Output jacks.... RCA

USB port

USB port that can receive power from computer USB buses (Full Speed) ....USB connector type B USB bus power support ....5 V, 500 mA

• Use a commercially-available USB cable connect the unit to a computer to receive power from it.
  Sampling frequency .... 8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
  Quantization bit depth 16-bit

General

AC adapter power
Input ...... AC 100 V–AC 240 V, 50-60 Hz
Output..... 12 V, 500 mA

Power consumption

Standby.... 0.5 W or less
On (START).... 1.5 W or less

Weight 4.9 kg (10 7/8 lb)

Operating temperature range .... 5°C to 35°C

Dimensions (W × H × D) (including protrusions) 420 × 117 × 356 mm (16 5/8" × 4 5/8" × 14 1/8")

● Performance data is specified at 20^ C.

Included accessories

Rubber mat × 1

45 RPM adapter × 1

Counterweight × 1

Headshell × 1

AT95E MM cartridge (made by Audio-Technica) preinstalled

Turntable × 1

Turntable cover × 1

Hinges × 2

Audio cable × 1

AC adapter × 1:

Model for USA/Canada: GPE053A-120050-1

Model for Europe: GPE053A-120050-Z

Owner's manual (this document) × 1

Warranty card × 1 (for customers in the USA and Canada only)

• Specifications and appearance are subject to change without notice.
  ● Weight and dimensions are approximate.
• Illustrations in this owner's manual might differ slightly from production models.

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

DÉCLARATION DE CONFORMITÉ

Axe central Plateau

5 Installez le contrepoids.

Contrepoids

Technical line drawing of a mechanical component with a dial and pointer (no text or symbols)

Technical diagram showing mechanical component and dial indicator with directional arrows and scale markings

Line drawing of a mechanical device with ports and a vertical rod (no text or symbols)

2,0 ± 0,5 mm

Diagram of a hand operating a CD or DVD disc with a rotating arrow indicating rotation (no text or symbols present)

Illustration of a vintage scientific instrument with concentric rings and a control panel (no text or symbols)

Diagram of a CD/DVD machine with labeled parts and a close-up view showing hand holding a button

Diagram showing a hand holding a connector with labeled ports and a magnified view of the connector's internal structure.

START STOP

Windows 7 (32 bits, 64 bits)

Windows 8 (32 bits, 64 bits)

Windows 8.1 (32 bits, 64 bits)

Windows 10 (32 bits, 64 bits)

Line drawing of a laptop connected to a mechanical device (no text or symbols present)

http://audio.teac.com/support/registration/

Web global de TEAC

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram showing a mechanical component with labeled parts and a circular dial indicator.

Technical diagram showing a valve mechanism with labeled components and directional arrow indicating rotation or movement.

Diagram of a hand operating a disc with rotating components, no text or symbols present

Line drawing of a vintage radio receiver with a speaker and control panel (no text or symbols)

Technical diagram of a CD or DVD scanner with labeled components and a magnified inset showing a hand holding a slot.

Diagram of a CD or DVD scanner with labeled START and STOP buttons and a hand gesture

Diagram showing cable connection with labeled ports and directional arrow, likely illustrating cable routing or installation.

START STOP

Line drawing of a laptop connected to a mechanical device (no text or symbols present)

Single-Puck (45 UpM Adapter) × 1

Gegengewicht × 1

Tonabnehmerkopf × 1

Technical diagram showing mechanical components with labeled parts and a dial gauge indicating 0 to 5 degrees.

Technical diagram showing a mechanical device with labeled components and an arrow indicating rotation or adjustment.

Label Rille Kante

Reinigungshinweise

Technical line drawing of a handheld device with two ports and a side view showing internal components (no text or symbols)

2,0 ± 0,5 mm

Diagram of a hand operating a CD or DVD disc with a rotating arrow indicating rotation (no text or symbols present)

Illustration of a vintage scientific instrument with concentric rings and a handle (no text or symbols)

Diagram of a CD or vinyl record with labeled parts and a magnified view showing a hand holding a button.

START STOP

Tonarmlift Tonarm

Diagram showing a hand holding a connector with labeled dimensions and directional arrow indicating motion or change.

Tonarmlift Tonarm

START STOP

(Stand: September 2014)

Line drawing of a laptop connected to a mechanical device (no text or symbols present)

PHONO EQ THRU 2,5 mV ±3 dB PHONO EQ ON 155 mV (-16 dBV) Anschlüsse RCA (Cinch)

USB-Port

Technical diagram showing a mechanical component with labeled parts and a close-up view of its top dial.

Technical diagram showing a mechanical device with labeled components and an arrow indicating rotation or adjustment.

d Selettore anti-skating

e Levetta

Conchiglia Viti Dadi

Line drawing of a mechanical device with ports and a vertical rod (no text or symbols)

2,0 ± 0,5 mm

Diagram of a disc disc being placed on top of a base, showing mechanical components and an arrow indicating rotation (no text or symbols present)

Line drawing of a vintage radio receiver with a speaker and control panel (no text or symbols)

Technical diagram of a CD or DVD scanner with labeled components and a magnified inset showing a hand holding a slot.

START STOP

Diagram showing a hand holding a connector with labeled ports and a magnified view of the connector's internal structure.

START STOP

Line drawing of a laptop connected to a mechanical device (no text or symbols present)

Technical diagram showing mechanical components with labeled parts and a circular dial indicating angular measurements.

Technical diagram showing a mechanical device with labeled components and an arrow indicating rotation or adjustment.

Als PHONO EQ is THRU

Line drawing of a mechanical device with ports and a vertical rod (no text or symbols)

2,0 ±0,5 mm

Diagram of a hand operating a disc with rotating components, no text or symbols present

Line drawing of a vintage radio receiver with two hands operating the dish (no text or symbols)

Diagram of a CD or vinyl record with labeled parts and a magnified inset showing a hand holding a ring.

START STOP

Diagram showing a hand holding a connector with labeled ports and a magnified view of the connector's internal structure.

9 Breng de armlift omlaag.

START STOP

Windows 7 (32-bit, 64-bit)

Windows 8 (32-bit, 64-bit)

Windows 8.1 (32-bit, 64-bit)

Windows 10 (32-bit, 64-bit)

1 Schakel de computer in.

Line drawing of a mechanical device connected to a laptop, showing ports and wiring (no text or symbols)

Samplingfrequentie ....8 kHz, 11,025 kHz, 16 kHz, 22,05 kHz, 32 kHz, 44,1 kHz, 48 kHz

Technical diagram showing a mechanical component with labeled parts and a close-up view of its top dial.

Technical diagram showing a mechanical device with labeled components and an arrow indicating rotation or adjustment.

9 Justera anti-skak-ratten.

Technical line drawing of a mechanical device with two ports and a base plate, showing top and side views (no text or symbols)

4 Anslut skalkopplingens styrterminal till patronen.

Diagram of a hand operating a CD or vinyl record with a rotating arrow indicating rotation (no text or symbols present)

Line drawing of a vintage radio receiver with concentric rings and a dial (no text or symbols)

Diagram of a CD/DVD machine with labeled parts and a close-up view showing hand holding a button

START STOP

Diagram showing a hand holding a connector with labeled parts and an arrow indicating direction, alongside a circular symbol.

9 Sänk tonarmen.

START STOP

Line drawing of a laptop connected to a mechanical device (no text or symbols present)

Samplingsfrekvens.....8 kHz, 11,025 kHz, 16 kHz,

22,05 kHz, 32 kHz, 44,1 kHz, 48 kHz

Kvantisering bitdjup 16 bitars

Allmänt

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

In countries/regions other than the USA, Canada and Europe

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.

If you have a warranty claim or request, please contact the dealer where you bought the product.

This device has a serial number located on its rear panel. Please record the serial number and retain it for your records.

Model name: TN-300 Serial number:
