Product type	Automatic coffee machine with grinder
Brand	KRUPS
Model	BEAN TO CUP EA8258 (Espresseria Automatic Premium)
Dimensions (H x W x D)	24.5 x 36.5 x 33.0 cm
Weight	7.2 kg (without accessories)
Power supply	220-240 V~ / 50 Hz, 1450 W (operation), < 1 W (standby)
Pump pressure	15 bars
Water tank capacity	1.8 L
Bean hopper capacity	275 g
Heating system type	Thermo-block System
Grinder	Conical steel, adjustable grind (fine, medium, coarse)
Preparable beverages	Espresso, strong espresso, coffee, long coffee, cappuccino, caffe latte, hot water, steam
Special functions	2-cup function, automatic shut-off, programmable preheating, demo mode
Display	LCD screen, intuitive menus with rotary knob and buttons
Maintenance programs	Rinsing, cleaning (XS 3000 tablets), descaling (F 054 descaler)
Compatible water filter	Claris Aqua Filter System cartridge (ref. F088)
Safety	Adjustable automatic shut-off, overflow protection, automatic power-off
Included accessories	Filter cartridge, descaler, 2 cleaning tablets, water hardness test strip, cleaning wire, auto-cappuccino accessory (depending on model)
Warranty	According to national legislation, max 3000 cycles/year, household use only
After-sales service	KRUPS hotline, authorized service centers for repairs

Frequently Asked Questions - BEAN TO CUP EA8258 KRUPS

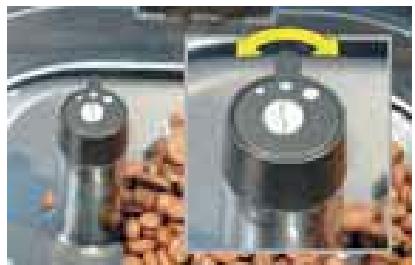

How to adjust the grind fineness?

Turn the adjustment knob (13) only during grinding to avoid damaging the grinder. Possible positions are: finer, medium, or coarser grind.

What to do if the coffee is too light or not strong enough?

Check that the bean hopper contains enough coffee. Set the grinder to a finer grind. You can also reduce the water amount per cup using the rotary knob.

How to prepare a cappuccino?

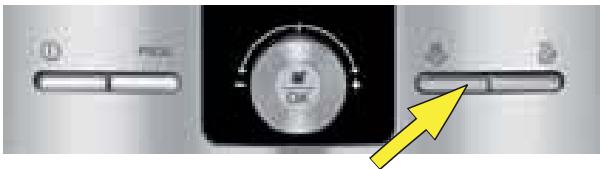

Press the Steam button (5), place a container of cold milk under the steam wand and press Steam again. Adjust the frothing time. Remove the wand, clean it, then prepare an espresso over the foam.

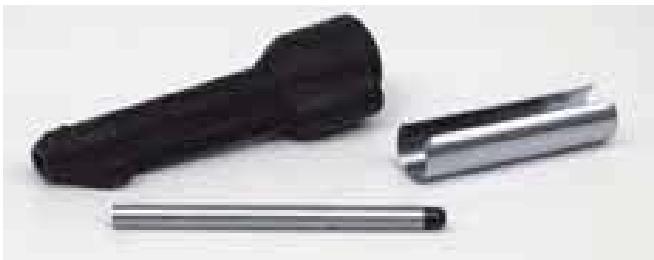

How to clean the steam wand?

After each use, remove the steam wand and clean it with a brush and a little dish soap. Use the provided cleaning wire to unclog the air holes if necessary.

When to descale?

The appliance displays a message when descaling is necessary (approximately every 360 cycles or depending on water hardness). Use only KRUPS descaler F054. The program takes about 22 minutes.

What to do if the appliance does not turn on?

Check the fuses and power outlet. Make sure the plug is fully inserted. If the problem persists, contact an authorized KRUPS service center.

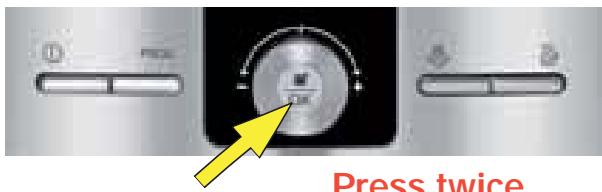

How to use the 2-cup function?

Place two cups under the coffee spout. Select your beverage with the rotary knob, then press the OK button twice quickly to start two successive preparations.

Why is the coffee flowing too slowly?

This generally indicates a grind that is too fine. Turn the grinder adjustment knob towards a coarser grind during the next grinding.

How to install the Claris filter cartridge?

Remove the cartridge from its packaging, screw it onto the bottom of the water tank using the screwing accessory. Set the installation month on the ring. In the 'Product Info / Filter' menu, indicate that you have installed a filter.

How to stop the flow during preparation?

Press any button on the control panel to immediately stop the flow of coffee or hot water.

USER MANUAL BEAN TO CUP EA8258 KRUPS

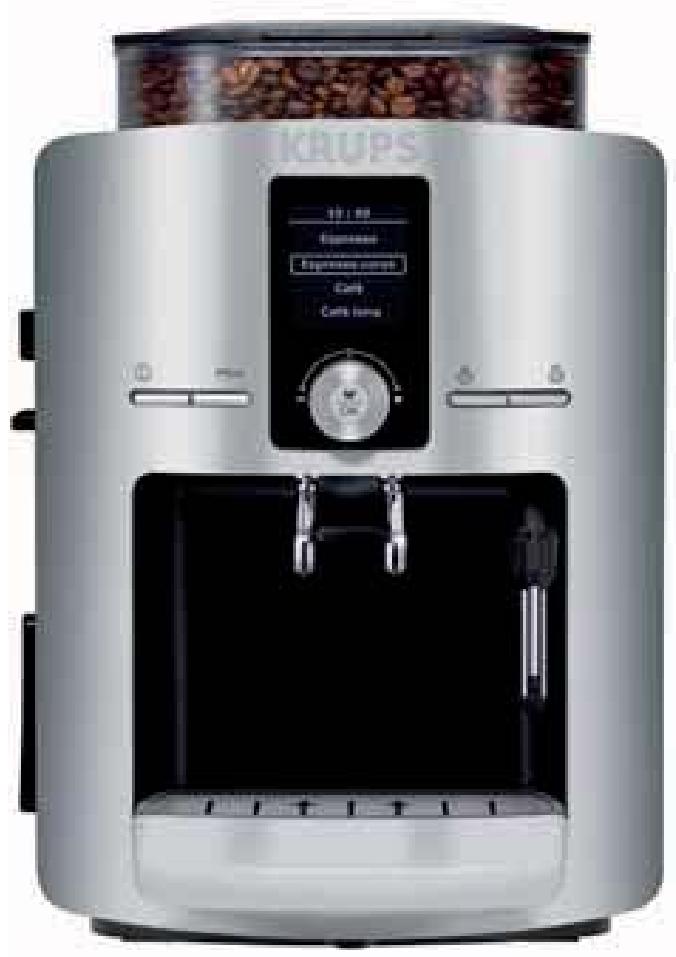

Exterior view of a modern coffee maker with digital display and open chamber (no visible text or symbols)

Exterior view of a KRUPS coffee maker with open door and control panel (no visible text or symbols on main body)

www.krups.com

KRUPS

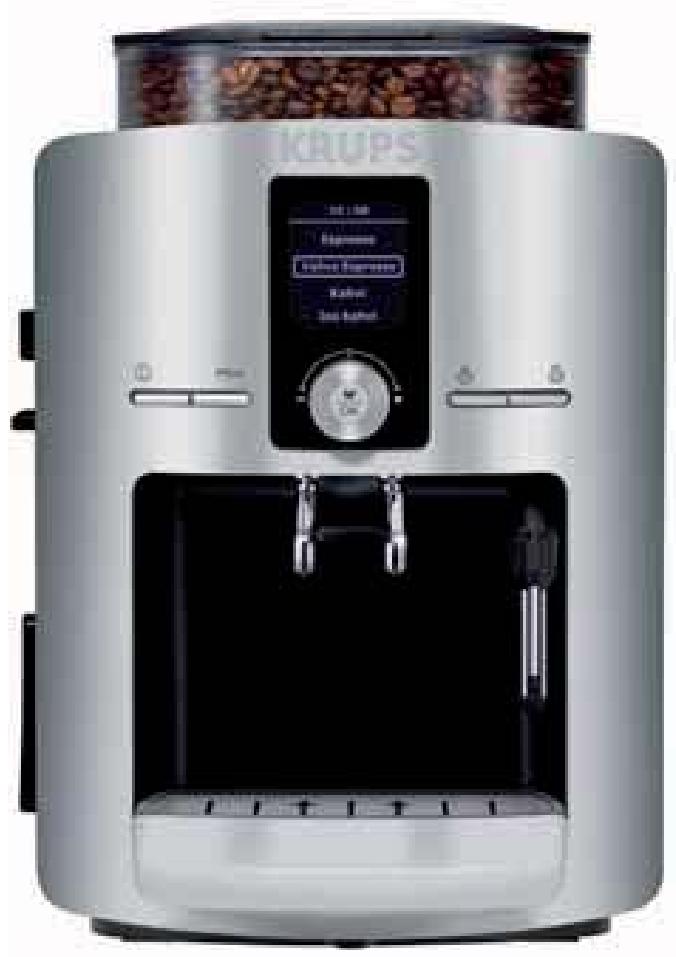

ESPRESSERIA AUTOMATIC PREMIUM

SERIE EA 82xx

Exterior view of a modern KRUPS coffee maker with open door and digital display (no visible text or symbols on device body)

Exterior view of a KRUPS coffee griller with open door and control panel (no visible text or symbols on main body)

Close-up of two mechanical components with textured surfaces, one showing a yellow circular component (no visible text or symbols)

3.6 Die Menüs

Close-up of a device control panel with a circular dial indicator and yellow arrow pointing to it (no readable text or symbols)

Three metallic mechanical components: a black grip, a metallic bracket, and a cylindrical rod (no text or symbols visible)

Exterior view of a modern KRUPS coffee maker with open door and digital display (no visible text or symbols on main body)

Use and maintenance

Important

Read these instructions carefully and keep them.

Please follow the safety guidelines.

Manufacturer

SAS GSM

Rue Saint-Léonard

53104 Mayenne

France

The length of the guarantee depends on the legislation in your country with a maximum of 3000 cycles a year. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

The guarantee does not apply to damage and faults resulting from careless use, repair by unauthorised persons nor non-observance of the instructions for use. The Guarantee will be invalidated if the Krups maintenance or operation instructions have not been followed; if cleaning or descaling agents are used which do not comply with the original Krups specifications and if the Claris Aqua Filter System water filter is not used in accordance with Krups instructions. Abnormal wear and tear of parts (grinding disks, valves, seals) is exempted from the guarantee, as well as damages caused by foreign objects in the grinding mill (e.g. wood, stones, plastic parts etc.).

Contents

1 Important information on the appliance and instructions .....5

1.1 Your Automatic Espresseria Premium ....5
1.2 Guide to the symbols used in the instructions ....5
1.3 Safety guidelines ....6
1.4 Correct use 8
1.5 Products supplied with your machine ....8
1.6 Factory check....8

2 Overall view and its operation ....9

2.1 Controls of the appliance ....9
2.2 Screen and operation ....10

3 First use ....11

3.1 Before first use (optional) .....11
3.2 Preparing the appliance ....13
3.3 Initial settings ....14

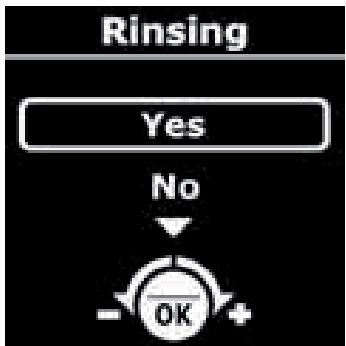

3.4 Rinsing the coffee circuit ....15
3.5 Setting the grinder ....16
3.6 The menus ....16

4 Use 20

4.1 Switching on the appliance ....20
4.2 Preparing an espresso or a coffee .....21
4.3 2-cup function .....22
4.4 Preparing a cappuccino ....23

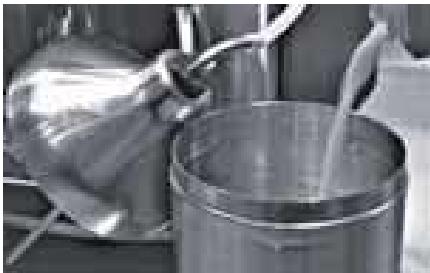

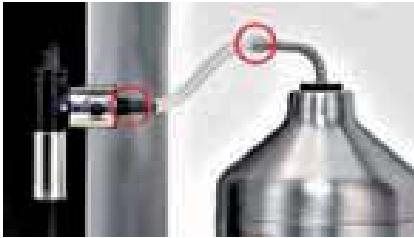

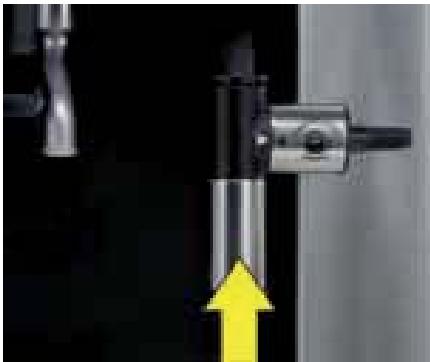

4.5 Using the auto-cappuccino accessory (optional) .....25
4.6 Preparation of hot water 26

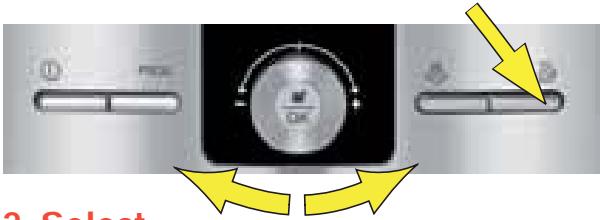

5 Maintenance and cleaning ....27

5.1 Regular maintenance ....27

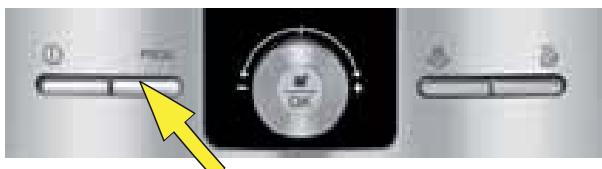

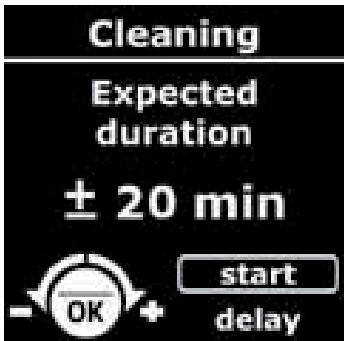

5.2 The cleaning programme .....28

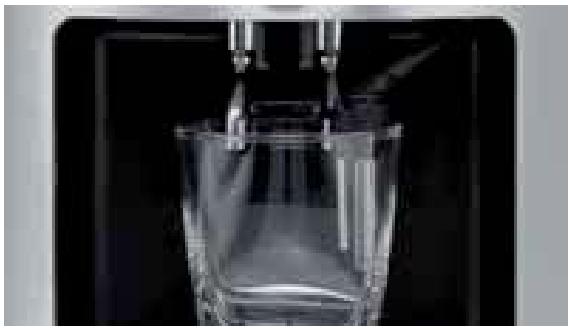

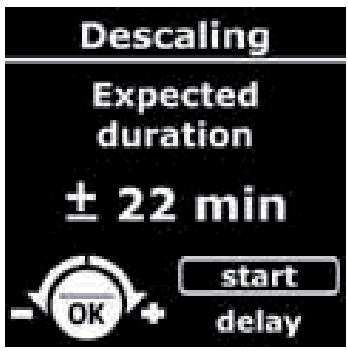

5.3 The descaling programme ....30
6 Troubleshooting ....32
7 Technical data ....35
8 Transport ....35
9 Disposal of waste 35
10 Service ....36
11 Index ....36

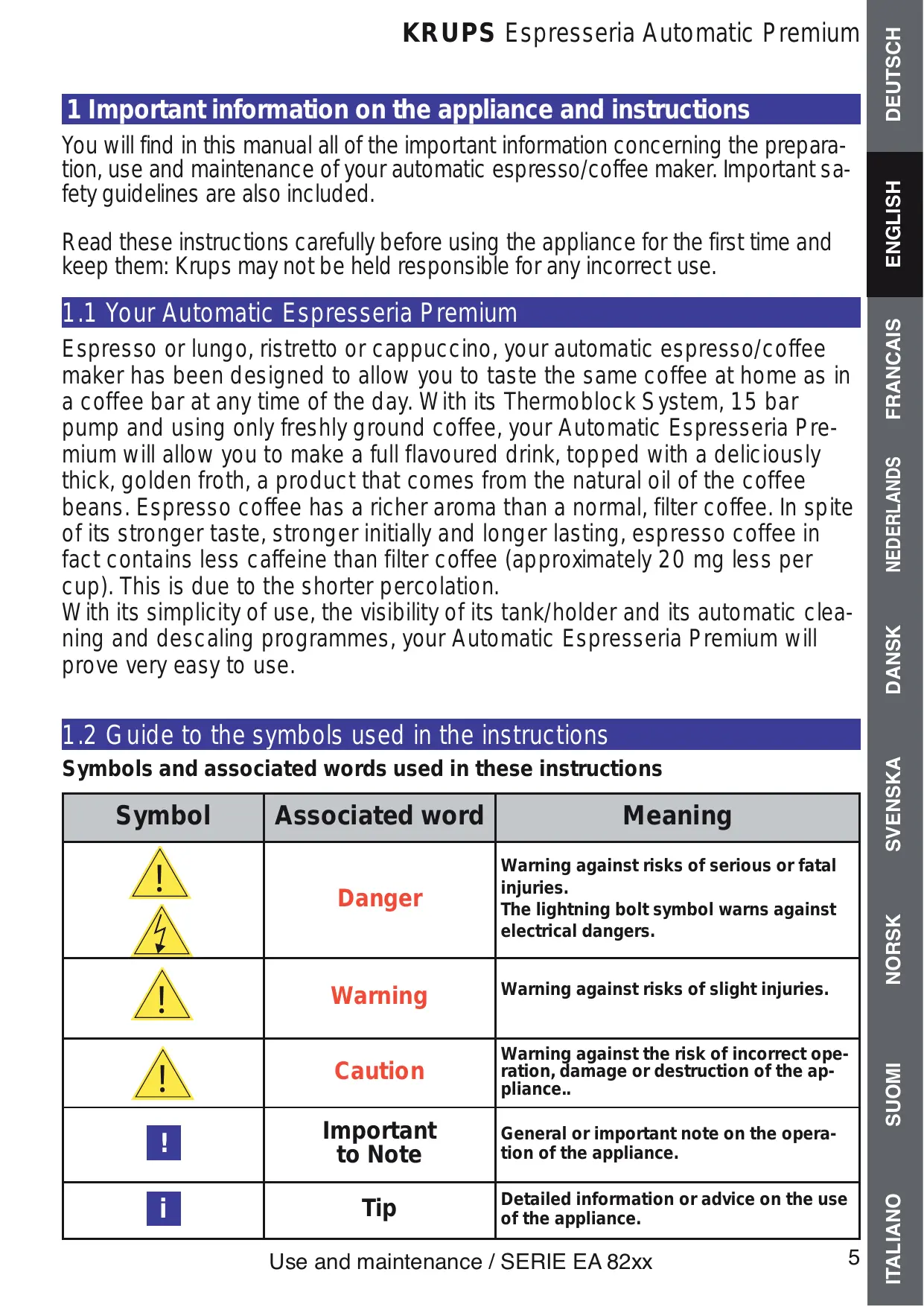

1 Important information on the appliance and instructions

You will find in this manual all of the important information concerning the preparation, use and maintenance of your automatic espresso/coffee maker. Important safety guidelines are also included.

Read these instructions carefully before using the appliance for the first time and keep them: Krups may not be held responsible for any incorrect use.

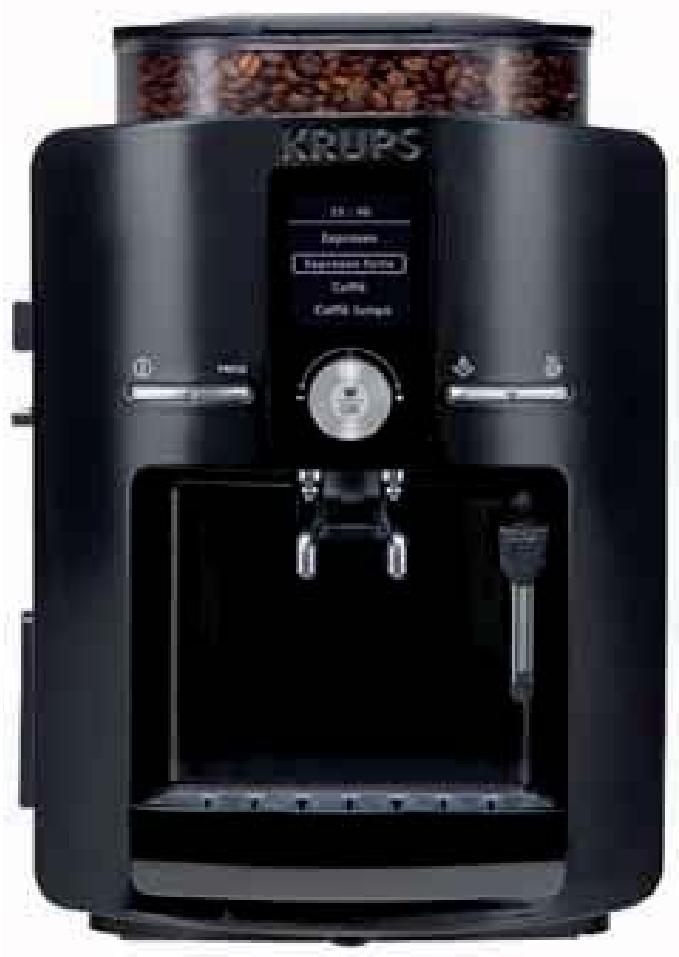

1.1 Your Automatic Espresseria Premium

Espresso or lungo, ristretto or cappuccino, your automatic espresso/coffee maker has been designed to allow you to taste the same coffee at home as in a coffee bar at any time of the day. With its Thermoblock System, 15 bar pump and using only freshly ground coffee, your Automatic Espresseria Premium will allow you to make a full flavoured drink, topped with a deliciously thick, golden froth, a product that comes from the natural oil of the coffee beans. Espresso coffee has a richer aroma than a normal, filter coffee. In spite of its stronger taste, stronger initially and longer lasting, espresso coffee in fact contains less caffeine than filter coffee (approximately 20 mg less per cup). This is due to the shorter percolation.

With its simplicity of use, the visibility of its tank/holder and its automatic cleaning and descaling programmes, your Automatic Espresseria Premium will prove very easy to use.

1.2 Guide to the symbols used in the instructions

Symbols and associated words used in these instructions

Symbol	Associated word	Meaning
	Danger	Warning against risks of serious or fatal injuries.The lightning bolt symbol warns against electrical dangers.
	Warning	Warning against risks of slight injuries.
	Caution	Warning against the risk of incorrect operation, damage or destruction of the appliance..
	Important to Note	General or important note on the operation of the appliance.
	Tip	Detailed information or advice on the use of the appliance.

1.3 Safety guidelines

Danger : These safety guidelines are intended to protect you and other persons and the appliance. They must therefore be respected.

Conditions of use

• The appliance, the power cord and the mains plug must not be brought into contact with humidity or liquids. Any contact of the conductive parts of the appliance with humidity or water may lead to fatal injuries due to the presence of electricity! This appliance must only be used indoors in dry areas.
• In the case of a change in the ambient temperature, from cold to hot, wait for a

few hours before using your machine so that it is not damaged by condensation.

• Avoid leaving the appliance in direct sunlight, exposed to heat, cold, frost or humidity.
• Do not place the appliance on a hot surface such as a hob or close to a naked flame, in order to avoid any risks of fire!

Electrical power supply

Danger : Failing to respect these guidelines may lead to fatal injuries due to electricity !

- Check that the supply voltage marked on the rating plate of the appliance is the same as that of your electrical supply. Only connect the appliance to an earthed mains socket.

Voltage : 220-240V\~/50 Hz.

- Ensure that the mains socket is easily accessible so that the appliance may be unplugged easily in the event of any failure or a thunderstorm for example. For the safety of the appliance, unplug it from the socket during thunderstorms. Do not pull the power cord but the plug itself to unplug it

- Unplug it from the mains socket immediately if any operational failure occurs or if there is a problem with the percolation.

Unplug the appliance when it is not to be used for a long period.

- Do not use the appliance if the power cord is damaged. Using a damaged power cord or having your appliance repaired incorrectly means that there is a risk of electrical shock, fire or short-circuit. Furthermore, the guarantee on the appliance will be invalidated in such conditions. The power cord must be replaced by a Krups' Approved After-Sales Service Centre.

- Do not let the power cord dangle over the edge of a table or a work top. Do not leave the power cord close to or in contact with the hot parts of the appliance.

• We do not recommend the use of extensions or multi-adapter plugs.
• Any incorrect connection invalidates the guarantee.

Children

• Keep the appliance out of the reach of children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

The appliance

• Do not pour water into the coffee bean holder and/or under the maintenance cover, as this may cause overflows.
• Except for cleaning and descaling as described in the procedures in the instructions for the appliance, all work on the appliance must be carried out by a KRUPS' Approved After-Sales Service Centre.
• For your safety, only use KRUPS approved accessories and consumables for your appliance.
• Unplug the appliance when leaving the room or the home for prolonged periods, as in the event of a failure the appliance may overheat and cause a fire.
• WARNING - Do not open the appliance as there is a high risk of fatal injury due to electricity! Any unauthorised

opening of the appliance invalidates the guarantee. Do not use the appliance if it is not operating correctly, if it has been dropped, if it is leaking or if it has been damaged. In this case, we recommend having the appliance checked by a KRUPS' Approved After-Sales Service Centre (see list in the KRUPS service handbook).

- For safety and approval (CE) reasons, any transformation or modification of the appliance, carried out by an individual, is prohibited as only tested appliances have been approved and the manufacturer is absolved of all responsibility in the event of damage.

Use and maintenance

• In the event of a problem or incorrect operation, check the appliance and try to resolve the problem (see chapter 6 Troubleshooting) or have the appliance repaired if the problem persists. When the appliance cannot operate without risk of danger, unplug it from the mains socket.
  • Always refer to the instructions in this manual for the descaling of the

appliance. Unplug from the socket before any cleaning or maintenance operation.

- In the case of descaling, cleaning or regular maintenance not being carried out or if there is a foreign particle in the grinder, this is not covered by the product guarantee (see separate document).

1.4 Correct use

This Automatic Espresseria Premium espresso/coffee machine is only to be used to prepare espresso or coffee, to froth milk and heat liquids.

This appliance may be used in environments similar to the household (maximum of 3000 cycles a year) such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environnements;
• bed and breakfast type environments. However, if used in the above types of

environments the product will not be covered by the manufacturer's guarantee.

This product has been designed only for domestic use in the home. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Any use other than that described in this manual does not comply with these recommendations and may lead to injuries and damage to equipment as well as damage or destruction of the appliance (see point 1.3 "Safety guidelines").

1.5 Products supplied with the machine

Check the products supplied with the machine. If any parts are missing, contact our hotline (see chapter 10).

Parts supplied :

• Automatic Espresseria Premium
- XS 6000 auto-cappuccino accessory (optional, depending on models), including :
- Milk jug
- Special nozzle
- Connector tube
- Stainless steel tube
- Claris – Aqua Filter System cartridge (Krups – ref F088 – optional)

Starter set, including :

• Filter cartridge
• Cartridge fitting accessory

- Maintenance kit, including :

- 1 descaling sachet (KRUPS – ref F054)

- 2 cleaning tablets (KRUPS – ref XS3000)

- Stick for testing the water hardness

- Cleaning wire for the steam nozzle

- Directory of KRUPS' Approved After-Sales Service Centres

- Guarantee document

- Instructions for use

1.6 Factory check

All of the appliances are subjected to strict quality control. Random operating

tests are carried out on appliances, which may leave traces of use.

2 Overall view and its operation

All of the controls and displays of your Automatic Espresseria Premium are presented below.

Each function is briefly described, to help you understand the instructions and familiarise yourself with the appliance. The controls of the machine are

associated to numbers referred to in these instructions. The corresponding references in brackets refer to the fold-out page.

We recommend that you fold out this page so that you have the picture of the appliance in front of you at all times.

2.1 The controls of the appliance

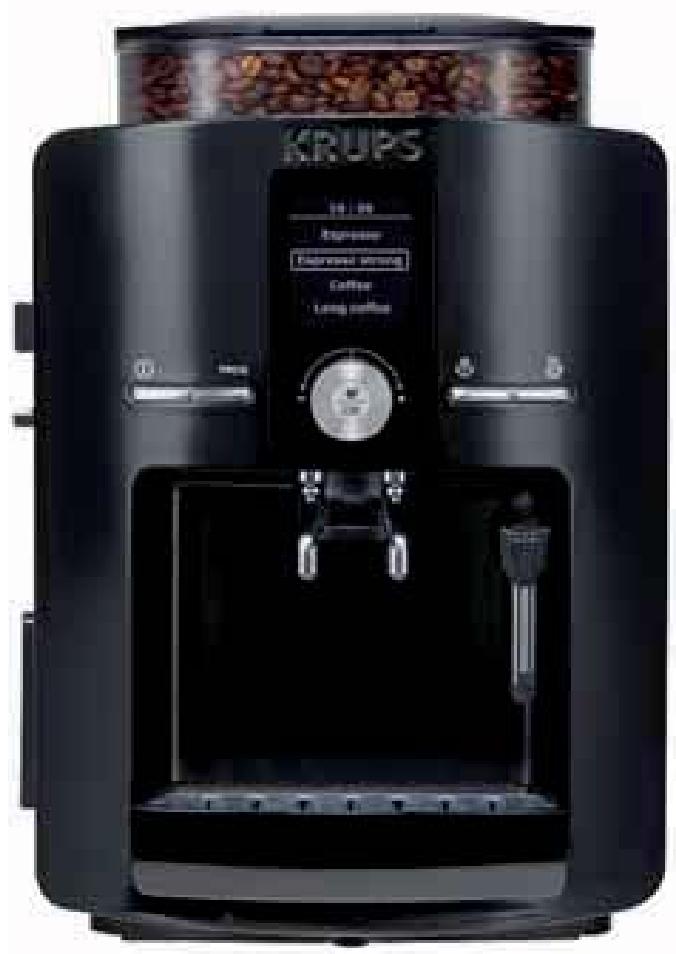

The fold-out page shows a photo of the appliance. Fold out this page. The various controls of the appliance are listed below along with a brief description of them :

N°	Identification	Function

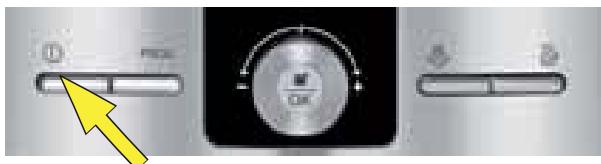

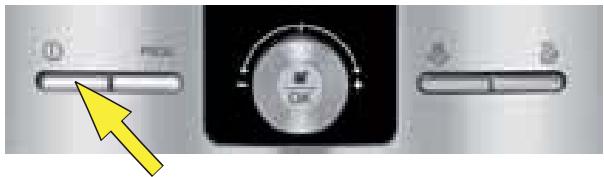

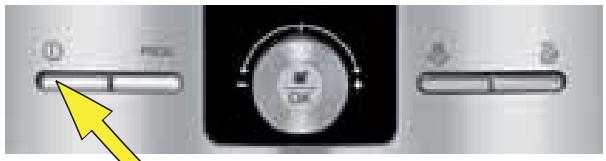

1	ON/OFF button	Switches the appliance on and off.

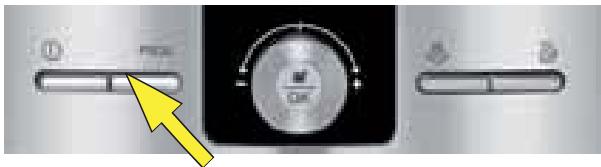

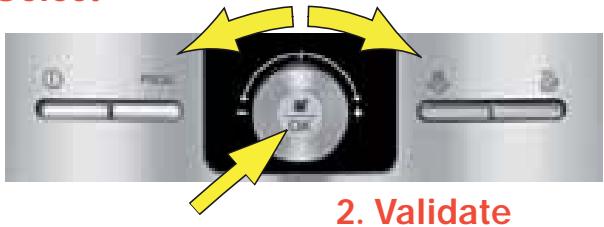

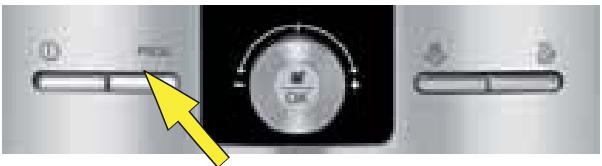

2	Programme button	Used to display the menu selection page/from the menu, to return to the drink selection menu.
3	Knob	Used to select a menu and increase or reduce values.
4	OK button	Used to validate a choice of menu or start a function or procedure.

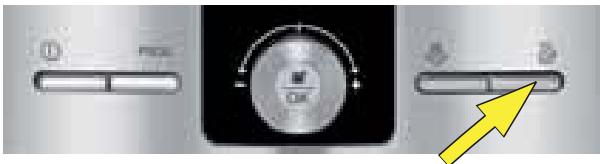

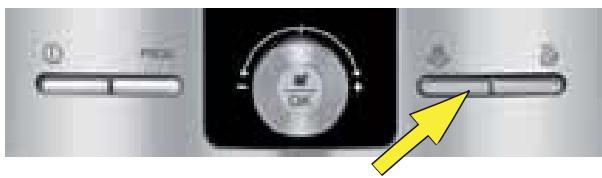

5	Steam button	Used to activate or deactivate steam production.
6	Hot water button	Used to activate or deactivate hot water production.
7	Used coffee collector	Collects the used coffee.
8	Cleaning drawer	Used to get rid of any used coffee deposits from inside the appliance.
9	"Service Guide" maintenance instructions	Brief description for the maintenance of the machine and a list of the hotline numbers worldwide.
10	Water tank	Contains the water used to make drinks and rinse.
11	Water tank cover handle	Used to remove the water tank.
12	Coffee bean holder lid	Holds the coffee beans.
13	Setting button	Used to set the grinding fineness of the coffee beans: fine, medium or coarse grind.
14	Grinder	Grinds the coffee beans.
15	Coffee bean holder	Holds the coffee beans (max. 275 g).
16	Cleaning tablet opening	Holds the cleaning tablet.

N°	Identification	Function
17	Maintenance cover with cup grid	Cover open: to receive the cleaning tablets.Cover closed: warms the cups stood on it.
18	Screen	Displays the menus, commands and maintenance instructions.
19	Control panel	Includes the setting button and knob
20	Coffee tube and handle	The drink flows from here.
21	Steam nozzle	Production of hot water or steam to froth milk.
22	Water level gauges	Mechanical device to prevent overflows.
23	Grid and drip tray	Collects the water from the appliance and drips during preparations.

Table 1: The control panel and the coffee bean holder of the Automatic Espresseria Premium

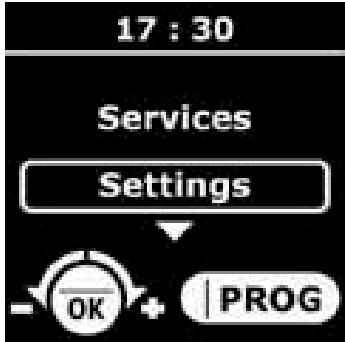

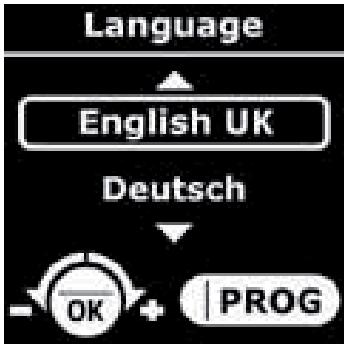

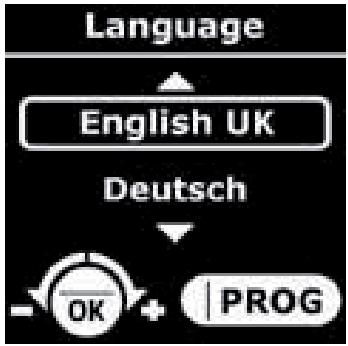

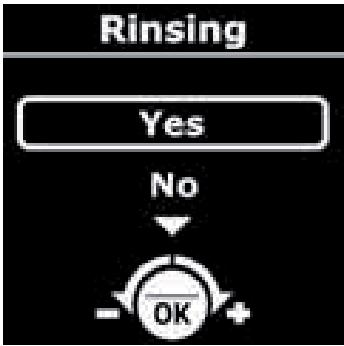

2.2 Screen display and operation

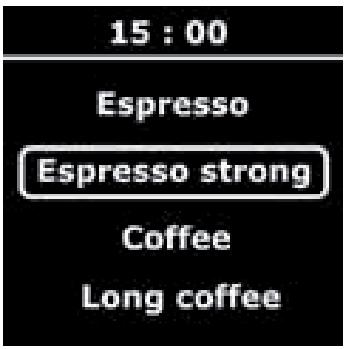

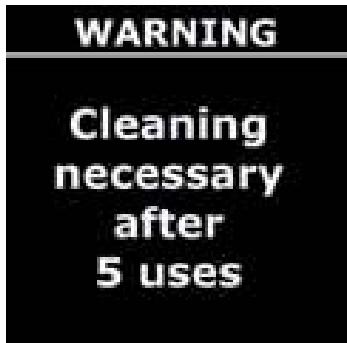

The screen displays the menus and the options and messages of the appliance. For the various functions, the steps are shown in images on the screen, for

example having to place a recipient under the coffee tube when rinsing. The menus are defined in point 3.6. The use of the menus is described below.

→The functions and/or values that can be modified are displayed in the text zones.→An arrow above or below a text zone indicates in which direction the knob (3) may be turned to select other options :Arrow pointing downwards : turn the knob to the right.Arrow pointing upwards : turn the knob to the left→The selected zone appears with a circle around it.
Using the knob, select the chosen function (= the text zone appears with a circle around it).Press the OK button (4) to validate the function and/or start.The flashing values may be set using the knob and then validated using the OK button.

Important : Pay attention to the screen display, especially before pressing the OK button and/or starting operations!

3 First use

Danger : Connect the appliance to a mains socket of 230 V that is earthed.

Failure to do so means that you run the risk of fatal injury due to electricity!

Respect the safety guidelines (see point 1.3).

Installing the appliance

Place your machine on a stable, flat, heat-resistant surface. Ensure that the location

chosen is sufficiently ventilated as the appliance gives off heat.

3.1 Before using for the first time

Before using the appliance for the first time, check the hardness of your water so that you can adapt the appliance to suit. This operation is also to be carried out when you use your machine in a place where the hardness of the water is

different or if you notice a difference in the hardness of the water.

To check the water hardness, use the stick supplied with your machine or contact your local water authority.

Measuring the water hardness

Fill a glass of water and immerse the stick in it for several seconds.Wait for a minute before reading the water hardness.The red zones on the stick indicate the degree of hardness: no red zone = class 0, One red zone = class 1, etc. (see illustration).
The hardness class observed (from 0 to 4) will be requested during the initial set up of the machine described in point 3.3 in the "water hardness" sub-menu. Use the data in the table below for this purpose :

Degree of hardness	Class 0	Class 1	Class 2	Class 3	Class 4
° dH	< 3°	>4°	>7°	>14°	>21°
° e	< 3,75°	>5°	>8,75°	>17,5°	>26,25°
° f	< 5,4°	>7,2°	>12,6°	>25,2°	>37,8°
Setting the appliance	0	1	2	3	4

Table 2: The water hardness classes for the initial setting of the appliance (point 3.3).

Installing the filter cartridge (optional)

The Krups Aqua Filter System F088 cartridge improves the taste of your water. It is made of an anti-scale substance like activated carbon, which reduces chlorine, impurities, lead, copper, pesticides, etc. present in water (Reduction of the carbonate hardness of up to 75%*, chlorine up

to 85%*, lead up to 90%*, copper up to 95%*, aluminium up to 67%*). Minerals and trace elements are conserved.

* Measures provided by the manufacturer

Remove the filter cartridge and the cartridge fitting accessory from the packaging and assemble the cartridge fitting accessory as illustrated.
Set the month when the cartridge is fitted (position 1 on the illustration, left side figure in the opening) by turning the grey ring located on the upper end of the filter.The month that the filter is to be replaced is indicated on the right side in the opening (position 2 on the illustration).
Attach the cartridge fitting accessory to the filter cartridge as shown in the illustration.
Screw the filter cartridge into the screw thread at the bottom of the water tank:1. Place the filter cartridge into the thread.2. Screw in the cartridge.Remove the cartridge fitting accessory from the filter cartridge.Note: the filter cartridge has to be replaced approximately every 50 litres of water or at least every 2 months.Your machine tells you how many days or litres before you need to change the cartridge: go to the "Product information/Filter" menu, then select "Replacement".

Programme settings when using the filter cartridge

If you use a filter cartridge, in the "Filter" settings menu, answer the question with "Yes" or "OK". This programme can also be accessed by going to "Product Info" then selecting "Filter" and "Installer" or by going to "Maintenance / Filter / Exit". Place a recipient with a capacity of around 0.5 litres under the steam nozzle

as the programme fills the water filter cartridge and a greater quantity of water is therefore dispensed from the steam nozzle. 1 message on the screen then invites you to set the date that the filter is fitted so that the programme can advise when to change the filter (in 2 months or after 50 litres of water).

3.2 Preparing the appliance

Before switching on the appliance, carry out the following steps.

Caution : Water tank (10) : Do not fill the tank with hot water, mineral water, milk or any other liquid as this could damage the appliance.

Coffee bean holder (15) : Do not put ground coffee or water into the coffee bean holder as the grinder could be da-

maged. Ensure that no foreign particles (e.g. small stones in the coffee beans) get into the holder as they could damage the grinder (not covered by the guarantee!).

Drip tray (23) : To avoid the risk of burns due to hot water splashing, check that the drip tray is fitted correctly!

Remove the water tank (10) and fill it with cold water. i Tip: You can fill the tank without removing it: open the lid and pour in the water using a suitable recipient.	Important: Respect the maximum filling level (reference "Max") of the water tank.
Fit it and close the lid.	Note: If, when the appliance is switched on, the water tank is missing or does not contain enough water (under the reference "Calc"), the message "Fill the tank" will be displayed and it will not be possible to prepare espresso or coffee.
Open the lid (12) of the coffee bean holder (15) and fill it with coffee beans (max. 275 g).
Close the lid of the coffee bean holder.

3.3 Initial settings

When using the machine for the first time, you will be asked to confirm several

settings. Follow the instructions displayed on the screen.

Confirming the settings

Switch on the appliance by pressing the ON/OFF button (1).→ A welcome message is displayed on the screen, followed by the "Language" setting menu.
Using the knob, select a language for the display and validate your choice by pressing the OK button.
Make the other settings by following the indications on the screen. For the parameters, follow the explanations provided in point 3.6, "Settings" menu.

! Note : If you unplug your appliance or following a power cut, you will be asked to save certain parameters again, such as the time and the date or to confirm settings. The appliance will then run an automatic test.

Important : Ensure that all of the lids and the maintenance flap are closed and that all parts of the machine are fitted correctly before starting to prepare a drink.

3.4 Rinsing the coffee circuit

After several days without being used, you need to rinse the coffee circuit. Once the appliance has been switched on, you can rinse at any time via the

menu "Servicing" using the PROG key and by selecting "Rinsing".

Press the ON/OFF button (1).
→A welcome message is displayed on the screen, then another warning that the appliance is preheating. A few seconds later, a question will appear on the screen asking if the appliance needs to be rinsed or not.
Place a sufficiently large recipient under the coffee tubes, then select "Yes" with the knob and confirm by pressing OK.→The rinsing procedure starts and stops automatically, after around 40 ml have passed through.
The drink selection menu is then displayed on the screen.

3.5 Setting the grinder

You can set the grinding fineness of the grinder. The finer the grinder setting for the coffee, the stronger the aroma of the coffee will be, and the coffee will also be creamier.

Caution : Only turn the knob (13) during grinding so as to avoid damaging the grinder.

Do not force the grinder setting knob! Set the grinding fineness for the next drink preparation, while the coffee beans are being ground.

Meaning of the setting knob positions

• Fine grind
  ● Medium grind
  Coarse grind

Two industrial mechanical components with textured surfaces, one emitting powder and the other showing a yellow circular component (no visible text or symbols)

3.6 The menus

The menus of your Automatic Espresseria Premium contain a number of different functions and settings, with which you can set your appliance for optimum performance.

Press the Programme button (2) to display the menus preview on the screen or to return to the drink selection menu. The operating principle is explained in point 2.2 of these instructions.

Operation of menu selection

When you are in the drink selection menu, press the Programme button (2)

Close-up of a control panel with a yellow arrow pointing to a circular dial indicator (no text or symbols visible)

The menu preview is displayed on the screen.

i Info : Pressing the Programme button several times allows you to change from the drink selection menu to the menu preview. When you press the programme button in a menu or a sub -menu, the menu function is interrupted and you return to the drink selection menu.

Here are the menus proposed at the main level :

Menu	Function
Services	Cleaning and maintenance functions.
Settings	Initial settings of the appliance.
Machine Info	Provides access to information on the procedures carried out.Can be used to start various programmes.
Demo mode	Activates or deactivates the presentation mode.
Exit	End of the menu preview.

The settings and functions of the sub-menus are detailed below.

"Services" Menu

Sub-menu	Function
Rinsing	Allows a rinsing cycle to be launched. ! Important : Position the cups before pressing the OK button !
Cleaning	Allows the cleaning programme to be launched.
Water filter	Access to the filter mode.
Exit	End of the preview of the sub-menus.

"Settings" Menu

Sub-menu	Function
Language	Allows the display language to be selected.
Display contrast	Set the optimum screen contrast with the knob and validate by pressing the OK button.
Date	Allows the date to be set, i.e. day, month, year (2 figures for each).! Important: If you use an anti-scale filter cartridge, you must set the date.
Time	1st step: select the clock format: 24 hour or 12 hour display (AM/PM).2nd step: Set the time.
Auto-off	You can select the length of time after which your appliance switches off automatically. From 30 min. to 4 hours, in steps of 30 minutes.
Auto-on	You can automatically start the preheating of your appliance at a given time.
Volume unit	You can select the unit of measurement for the drinks made: ml or oz.
Water hardness	You can set the hardness of your water between 0 and 4 (point 3.1).
Coffee temperature	You can adjust the temperature of your coffee or espresso to 3 levels, where level 3 is the hottest temperature.
Exit	End of the preview of the sub-menus.

Menu "Machine info"

Sub-menu	Function
Coffee cycles	Displays the total number of coffee cycles carried out by the machine.
Water cycles	Displays the total number of hot water cycles carried out by the machine.
Steam cycles	Displays the total number of steam cycles carried out by the machine.
Rinsing	Displays the total number of rinsing operations carried out by the machine.
Cleaning	Access to the following sub-menus.
- Last	Number of coffees prepared since the last cleaning.
- Next	Number of coffees that can be made before next cleaning.
- Clean	Starts the cleaning programme.
- Exit	End of Cleaning menu.
Descaling	Access to the following sub-menus.
- Last	Number of hot water or steam cycles made since the last descaling.
- Next	Number of hot water or steam cycles that can be made before next descaling.
- Exit	End of the Descaling menu.
Water filter	Access to the following sub-menus.
Note: The "Last" and "Next" options are only accessible if you have fitted a filter beforehand, accessible via Product info/Filter/Install.
- Last	Displays the date when the filter was last changed and the quantity of water filtered since then.
- Next	Displays the date when the filter needs to be changed and the quantity of water that may be filtered until then.
- Install	Starts the filter replacement procedure.
- Exit	End of the Filter menu.
Exit	End of the preview of the sub-menus.

"Demo mode" Menu

Sub-menu	Function
Activate	Allows the presentation mode to be launched.When this mode is activated, the various menus and their access are automatically displayed in the drink selection menu.
Cancel	Allows the presentation mode to be deactivated..
Exit	End of the preview of the sub-menus.

Drink selection menu

Sub-menu	Function
Espresso	Prepares a normal espresso.
Espresso strong	Prepares a strong espresso.
Coffee	Prepares a normal coffee.
Long coffee	Prepares a long coffee.

4 Use

Respecting the instructions below will ensure good results. Several tests will probably be required to find the mix and roasting of the coffee beans to your taste.

The quality of the water used is also a factor in the taste of your coffee. Ensure that the water is fresh from the tap, that it is cold and that it does not smell of chlorine.

Do not use stagnant water.

Caution : Your appliance is only designed to use coffee beans. When preparing your first coffee, after several days without using the machine or after carrying out maintenance, a little steam or hot water will come out of the steam nozzle. Keep at a safe distance from the steam nozzle and place a cup underneath the outlets to avoid any risk of burns or splashes with the steam or hot water. The main commands are described below :

The coffee outlet

The height of the coffee outlet is adjustable. Raise it to fit or remove taller

cups more easily.

The steam nozzle

The steam nozzle can be moved to the left or right and tilted forward slightly,

which allows the cup underneath to be removed more easily.

The drip tray

This tray collects the water used by the appliance or spilled during preparation. The machine warns against this by means

of a mechanical float system (22) when the tray needs to be emptied.

4.1 Switching on the appliance

Press the ON/OFF button (1).

→ A welcome message is displayed on the screen, then another warning that the appliance is preheating. Next a question will appear on the screen asking if the appliance needs to be rinsed or not.If required, rinse it (see point 3.4) or validate the "No" proposition by pressing "OK".→The screen then displays the drink selection menu.If you want to prepare an espresso or a coffee, read the instructions in point 4.2. To prepare a cappuccino, refer to point 4.4.

! Note : If the machine has not been used for several days, it must be rinsed.

4.2 Preparation of an espresso or a coffee

You can set the quantity of water required for an espresso between 20 and 70 ml, for a coffee between 80 and 160 ml and for a large coffee between 120 (2x60) ml and 240 (2x120) ml.

To set the water temperature as desired, go to the "Settings" menu and select "Coffee temperature". For the espresso function, you can choose between two strengths: "standard" or "strong".

Preparation of an espresso or a coffee

Place a cup underneath the coffee tube (20). You can raise or lower the coffee tube to suit the cup.
Select your drink using the knob and validate with the "OK" button.The screen displays the last volume of water selected during the grinding or heating procedure.	1. Select
Check the volume of water saved and modify if required using the knob (3).Once the heating cycle is complete, the machine starts to pour the drink.	! Note: To stop the drink being dispensed, because the cup is full or any other reason, press the button of your choice. To stop the drink being dispensed, because the cup is full or any other reason by turning the knob.
Wait for the end of the dispensing and the message "Drink ready" to be displayed on the screen before removing the cup.

Caution: DO NOT REMOVE THE HOLDER BEFORE THE END OF THE CYCLE (i.e. 15 seconds after the coffee has started to be dispensed).

4.3 Two cup function

Your appliance allows you to prepare 2 cups, which is to say twice the quantity of the selected drink.

The machine automatically continues with a second coffee preparation cycle.

Place two cups underneath the coffee tubes and adjust their height to suit the cups.
Select your drink with the knob (3). Then validate by pressing the OK button twice quickly.
→A message indicates that you have asked for two cups. ! Note: You may interrupt the function by pressing any button while the coffee is being poured.
Wait until the two percolation cycles are complete before removing the cups.

! Note : When using the 2-cup function, at the start of the cycle, the used coffee collector may need to be emptied. Once the necessary actions have been carried out, the 2-cup cycle is carried out automatically.

i Info : For "Large coffee" drinks, the 2-cup function is not available.

4.4 Preparation of a cappuccino

Cappuccino is a drink prepared with an espresso and frothed milk. Cappuccino lovers prepare the frothed milk first and then add the espresso as the espresso loses its exceptional aroma very quickly. The proportion of frothed milk to the espresso is the same but of course you can adapt it to your own taste. We

recommend that you use very fresh semi-skimmed milk.

! Tip : Preferably use a cappuccino cup as it is not as high and can contain a large volume; it is therefore easier to remove it from the steam nozzle.

Preparation of frothed milk with steam

Press the Steam button (5).→ The machine preheats. A message then invites you to place a recipient under the steam nozzle.
Place a recipient or a cappuccino cup filled halfway with fresh cold milk (6 to 10°C) underneath the steam nozzle (21) and press the Steam button.	! Note: If the end of the steam nozzle does not reach the milk, raise the cup until the frothing is complete.
As soon as steam production is started, the remaining production time is displayed in seconds on the screen. Two options are available:A) You can increase or reduce the time displayed with the knob and wait until the steam production stops automatically.B) You can stop the steam production at any time by pressing the Steam button.	! Important: the production of steam does not stop immediately after pressing the Steam button.Press the button early enough to avoid overflows.
Remove the cappuccino cup and place it underneath the coffee tube (20).	! Important: Remove the nozzle and pass it underneath running water immediately (see point 5.1). Fit it again and place a recipient underneath and press the Steam button in order to remove any residues of milk from the inside. Let the steam flow for at least 10 seconds.
Add an espresso or a coffee depending on the drink you wish to prepare following the instructions described in point 4.2.
Remove the cup and add a little sugar or chocolate shavings to your taste.

4.5 Using the auto-cappuccino accessory (optional)

The XS 6000 auto-cappuccino accessory facilitates the preparation of a cappuccino or caffe latte (white coffee) with your Automatic Espresseria

Premium. The accessory includes a brushed stainless steel milk jug, a riser tube and a connector tube, and a special nozzle.

Assembly and fitting of the auto-cappuccino accessory

Insert the stainless steel tube into the rubber seal of the milk jug. It should reach down almost to the bottom of the jug.
Set the special nozzle as follows for each drink :Turn the central section 180° so that the drink symbol chosen is at the front.
	Cappuccino	Caffe Latte
Fit the special nozzle :A) remove the steam nozzle (21) andB) replace it with the special nozzle.
Fill the milk jug with cold milk (6 – 10°C).
Connect the special nozzle and the stain-less steel tube using the connector tube.Note: the tube must not be twisted to ensure that the selector button is in the correct position.

Preparation of a cappuccino or a caffe latte with the auto-cappuccino accessory

Press the Steam button (5).→ The machine preheats. A message invites you to place a recipient underneath the steam nozzle.
Place a cappuccino cup underneath the special nozzle and press the Steam button.
As soon as steam production is started, the remaining production time is displayed in seconds on the screen. Two options are available:A) You can increase or reduce the time displayed with the knob and wait until the steam production stops automatically.B) You can stop the steam production at any time by pressing the Steam button.	Important: the production of steam does not stop immediately after pressing the Steam button.Press the button early enough to avoid overflows.
Remove the cappuccino cup and place it underneath coffee outlet.
Add an espresso following the instructions described in point 4.2.
Remove the cup and add a little sugar or chocolate shavings to your taste.
We recommend cleaning the special nozzle immediately after every use to avoid milk drying inside.Remove the nozzle (see illustration) and clean the parts with a small brush and washing up liquid if required.If required, unblock the small opening (circled on the illustration) with the cleaning wire (supplied with your machine).

4.6 Preparation of hot water

With your machine, you can also prepare hot water, for example to dilute coffee that is too strong. The maximum quantity

of hot water per cycle is limited to 300 ml.

When the screen displays the drink selection menu, press the Hot water button (6).
A message will invite you to place a recipient underneath the steam nozzle. Place a recipient underneath the steam nozzle.
Press the hot water button again and select the quantity of hot water desired using the knob. ! Note: You may interrupt the hot water production at any time by pressing any button.	1. Press 2. Select

5 Maintenance and cleaning

Danger : Any contact of the conductive parts of the appliance with humidity or water may lead to fatal injuries due to the presence of electricity!

Before cleaning your machine, unplug it from the mains socket and leave it to cool down.

Before moving or tilting the appliance,

ensure that the drip tray is empty to avoid water or the cleaning or descaling product from being spilt.

i Tip : When cleaning or descaling the steam nozzle, water may be splashed quite forcefully. Place a paper towel on your work top.

5.1 Regular maintenance

Certain parts of your machine require regular maintenance :

The used coffee collector (7) : the used coffee collector collects the used coffee. On the screen, a message indicates when the collector needs to be emptied. In general it needs to be emptied after preparing 9 coffees. From time to time, pass the collector under running water to clean it. Dry it thoroughly.

Important : Ensure that the used coffee collector is completely emptied to avoid any overflow. If the collector is not fitted correctly, the warning message will remain on the screen. If the used coffee collector is fitted in less than 6 seconds, the appliance will ask for confirmation, using the OK button, that it has been emptied. No preparations can be made until the message is cleared.

The cleaning drawer (8) : this drawer is used to eliminate any deposits of used coffee from the appliance. Remove the cleaning drawer before emptying the used coffee collector. If the drawer is very dirty, pass it under running water then dry it.

The drip tray (23) : the drip tray collects the used water as well as water spilt du-

ring preparations. A message on the screen indicates when the tray needs to be emptied. The appliance also has a mechanical water gauge (22). If the tray is dirty, clean it by passing it under running water.

Coffee circuit : the coffee circuit pipes must be rinsed if the appliance has not been used for several days.

Every time that the appliance is switched on, a message on the screen asks if you wish to rinse it (rinsing procedure, see point 3.4).

Ensure that the steam nozzle (21) is cleaned thoroughly after several uses: remove it and pass it under running water. It may be removed for cleaning (see illustration). Use a rinsing brush and a little washing up liquid. Dry all parts thoroughly and ensure that the air inlets are not blocked. Use the cleaning wire supplied with your machine to unblock the holes if necessary.

Three mechanical components: a black tool, a metallic tool, and a cylindrical rod (no text or symbols visible)

5.2 The cleaning programme

A message on the screen indicates when a cleaning programme needs to be carried out on the appliance. Cleaning is required around every 360 preparations. To run this cleaning programme, you will need a recipient with a capacity of at least 0.6 litres and that can fit underneath the coffee tube, and a KRUPS cleaning tablet (XS 3000).

The automatic cleaning programme has 3 phases: one cleaning cycle and two rinsing cycles. The programme lasts around 20 minutes.

i Info : You may run this programme at any time and independently of the warning message via the "Maintenance" menu and by selecting "Cleaning".

Caution : To respect the guarantee conditions, the cleaning cycle must be carried out when the appliance requests it.

Caution : You are not obliged to carry out the cleaning programme immediately when the appliance requests it, but it must be carried out reasonably soon. Only use KRUPS cleaning tablets (XS 3000) otherwise the guarantee will not cover any material damaged caused by the use of other brands of tablets. Cleaning tablets are available from your KRUPS After Sales Service Centre.

Running the cleaning programme

Ensure you have a recipient with a minimum capacity of 0.6 litres. Caution : Protect your work tops from any splashes of cleaning solution, especially if they are made of marble, stone or wood.
When the message "Cleaning required" is displayed on the screen, press the Programme button (2), to display the Cleaning menu.
To run the cleaning programme, select the "Start" option and validate with the OK button. Then follow the instructions on the screen. A message will invite you to open the "cover". Open the maintenance cover (17). Insert the cleaning tablet into the opening (16).
Important: Run the cleaning programme right to the end.
! Note : the cleaning programme operates discontinuously. It is essential that you wait until it is completely finished (after around 20 min.).	⚠ Warning : Avoid any contact with the cleaning liquid that runs from the machine, as it contains substances that are bad for your health.Keep the tablets out of the reach of children !
A message on the screen indicates when the programme is finished.

Caution : If the cleaning programme is interrupted by a power cut or accidental unplugging of the machine, it must be started again from the beginning. A new

cleaning tablet will be required in this case. The programme must be started again completely in order to rinse the water circuit and eliminate any traces of harmful cleaning products.

5.3 The descaling programme

A message on the screen will indicate when a descaling programme needs to be run for the appliance. The frequency of this programme depends on the quality of the water used, the harder the water, the more often the appliance has to be descaled.

To run the descaling programme, you will need a recipient with a capacity of at least 0.6 litres that may be placed underneath the coffee tube and the steam nozzle, and a KRUPS descaling sachet (F 054) (40 g).

The automatic descaling programme has 3 phases: one descaling cycle and two rinsing cycles. The programme lasts approximately 22 minutes.

Caution : To respect the guarantee conditions, the descaling cycle must be run when the appliance requests it.

Caution : You are not obliged to carry out the descaling programme immediately when the appliance requests it, but it must be carried out reasonably soon. Only use KRUPS descaler (F 054) otherwise the guarantee will not cover any material damaged caused by the use of other brands of tablets. Descaling products are available from your KRUPS After Sales Service Centre. Under no circumstances must traditional amidosulphonic acid or other products containing this acid be used.

Running the descaling programme

If you use the Krups Aqua Filter System F088 filter cartridge, remove it before the descaling operation and fill the water tank up to the Calc line (0.5 l) with warm water.To run the descaling programme, select the "Start" option and validate with the OK button. Then follow the instructions on the screen.
Place a recipient with a capacity of at least 0.6 litres underneath the coffee tube and the steam nozzle.Caution: Protect your work tops from any splashes of descaling solution, especially if they are made of marble, stone or wood. Protect the surface of your work top, for example with a paper towel.
When the message "Descaling required" is displayed on the screen, press the Pro-gramme button (2), to display the Descaling menu.
→ A message will invite you to pour the contents of the descaling sachet into the water tank.⇨ Use a large spoon with a long handle to mix the water in the tank or remove the water tank and carefully shake it from left to right until the descaler is dissolved.
⇨ Run the descaling programme right to the end. ! Note : The pump operates intermittently. It is essential that you wait until the descaling programme is completely finished (after around 22 min).	⚠ Warning : Avoid any contact with the descaling liquid that runs from the machine, as it contains substances that are bad for your health.Keep the descaler out of the reach of children!
A message on the screen will indicate when the programme is finished.

⚠ Warning : If the descaling programme is interrupted by a power cut or accidental unplugging of the machine, it must be started again from the begin-

ning. A new descaling sachet will be required in this case. The programme must be started again completely in order to rinse the water circuit and eliminate any traces of harmful descaling products.

General maintenance guidelines

Rinse the cleaning drawer (8), the drip tray (23) and the used coffee collector (7) under running water. Use washing up liquid if required.

Rinse the water tank (10) in clean water.

Clean the body of the appliance and its

parts and accessories with a damp cloth. Do not use corrosive or abrasive cleaning products.

Caution : these accessories are not dishwasher proof.

6 Troubleshooting

If your machine is not operating correctly, try to resolve it by referring to this troubleshooting guide. If the problems persist in spite of this, contact our hotline (see chapter 10).

Danger : Only a qualified technician is authorised to carry out repairs on the power cord and the 230 V electrical system. Failure to respect this exposes you to fatal injuries due to the presence of electricity!

Do not use an appliance that is visibly damaged!

Problem	Probable causes	Corrective actions
The appliance does not switch on when the ON/OFF button is pressed.	● Power failure or blown fuse.● The mains plug is not pushed into the mains socket correctly or the mains socket is faulty.● The appliance is faulty.	✕ Check the fuses of your electrical installation.✕ Check that the plug is correctly inserted into the socket or have the socket repaired.✕ Have the appliance checked by a qualified technician.
The espresso or coffee is not hot enough.	● The temperature of the coffee is not set high enough.● The coffee cup is cold.	✕ Check the temperature of the coffee in the "Settings" menu.✕ Warm the cup by rinsing it with hot water before starting the preparation.
The coffee is too lightly coloured or too weak.	● There is not enough coffee in the coffee bean holder (15).● The coffee is too coarse.● Too much coffee is prepared.	✕ Add coffee beans to the holder.✕ Use the grinder setting button (13) to obtain a finer grind.✕ Reduce the quantity of coffee using the knob (3).
The coffee dispenses too slowly.	● The coffee is too fine.	✕ Use the grinder setting button (13) to obtain a coarser grind.
The coffee is not creamy.	● The coffee is too coarse.● The coffee is not fresh.	✕ Use the grinder setting button (13) to obtain a finer grind. Use fresher coffee beans.
You have accidentally used ground coffee instead of coffee beans.		✕ Suck out the coffee in the coffee bean holder with your vacuum cleaner.
The coffee grinder makes a strange noise.	● Foreign particles are inside the grinder.	✕ Contact KRUPS Customer Service.
The grinder setting button (13) is difficult to turn.	● Has the grinder setting button been moved when grinding was not taking place ?	✕ Only turn the setting button during grinding.
No steam comes out of the steam nozzle (21).	● The nozzle or the nozzle support is blocked.● The type of water used may not be suitable initially for making steam (a higher calcium content may be needed).	✕ Remove the steam nozzle from its support and unblock these two parts using the cleaning wire.✕ Empty the tank and remove the Claris filter.✕ Fill the tank with mineral water high in calcium (> 100 mg/litre), it may take as many as 5 to 10 cycles of steam to achieve a continuous jet of steam. Once you have a continuous jet of steam you should not have to use this particular type of water again.
There is not enough frothed milk.	● Check that steam is coming out of the nozzle.●Check if the small air inlet in the upper part of the nozzle is blocked.	✕ Unblock the steam nozzle with the cleaning wire.✕ Unblock the inlet, dry it and if necessary rinse it with water.✕ We recommend using very fresh pasteurised or UHT milk.
The frothed milk is not thick enough.	● Check if the two ends of the small stainless steel tube are connected to the steam nozzle.	✕ Correct the position of the stainless steel tube.
The auto-cappuccino accessory (optional) does not suck up the milk.	● Check that the accessories are connected correctly to one another and that they are not blocked.	✕ Connect the accessories correctly to one another and un-block them if needed.
After filling the water tank (10), the warning message remains displayed on the screen.	● The water tank is not fitted correctly.● The float at the bottom of the tank does not move freely.● The water tank is scaled.	✕ Fit the water tank correctly.✕ Rinse the water tank under water and descale if required.
The cleaning or descaling programme will not start.	● Programme error.	✕ Unplug the appliance then plug it back in and switch it on. Restart the programme.
After emptying the used coffee collector (7), the warning message remains displayed on the screen.	● The used coffee collector is not fitted correctly.● The used coffee collector has been refitted too quickly.	✕ Refit the used coffee collector correctly.✕ In general wait for at least 6 seconds before refitting the empty collector.
After cleaning the cleaning drawer (8), the warning message remains displayed on the screen.	● The cleaning drawer is not fitted correctly.● The cleaning drawer has been refitted too quickly.	✕ Refit the cleaning drawer correctly.✕ In general wait for at least 6 seconds before refitting the drawer.
A power cut occurs during the cycle.		✕ The appliance is automatically reinitialised when it is switched back on.
There is water underneath the appliance.	● The drip tray (23) is not correctly fitted or is overflowing.	✕ Check that the drip tray has been fitted correctly and empty it if required.
A "Fault n° xxx" message appears on the screen.	● Programme error.	✕ Unplug the appliance for 20 seconds. Remove the tank and take out the Claris cartridge if fitted (do not remove the tank too soon). Plug in the appliance and refit the tank.If the message is still displayed, write down the fault number and contact the KRUPS Customer Service.
Tip: Programming problems are often resolved by unplugging the appliance for about one minute and then plugging it in again.

Caution : Do not carry out any work yourself on the appliance !

7 Technical data

Appliance : Automatic Espresseria Premium

Electrical power supply :	220-240V~ / 50 Hz
Energy consumption :	In operation : 1450 W
	In stand-by : < 1 W
Capacity :	Water tank : 1,8 l
	Coffee bean holder : 275 g
Pump pressure :	15 bar
Storage and use :	indoors, in a dry place (free from frost)
Dimensions :	24,5 x 36,5 x 33,0 cm
Weight EA82xx METAL: :	7, 6 kg
Weight EA82xx:	7, 2 kg

Under reserve of technical modifications.

8 Transport

Keep the original packaging to transport the appliance. Empty the drip tray (23), when moving the appliance and empty all tanks when packing the appliance for transport.

Caution : If the appliance is dropped without its packaging during transport, it is preferable to take it to an After Sales Service centre to have it checked and avoid any risk of fire or electrical danger.

9 Disposal of waste

The symbol on the appliance or its packaging indicates that this product may not be processed as household waste. Therefore it must be taken to a waste collection centre for the recycling of ele and electronic equipment.

By sorting waste and disposing of old equipment correctly, you are helping to preserve the natural resources and preventing damaging consequences for the environment and people's health.

To obtain more information on the waste collection site, please contact your local council, local waste collection authorities or your retailer.

i Info : Your appliance contains many materials that may be recycled or recovered.

10 Service

For all questions or problems, please contact our hotline on the following numbers :

DE : Tél. 0800 - 980 00 00

Times : Monday to Friday from 8 am to 6 pm and Saturday from 9 am to 2 pm

A : Tel. 0800 - 225 225

Times : Monday to Friday from 8 am to 6 pm and Saturday from 9 am to 2 pm

BE : Tel. 070 - 233 159

Times : Monday to Thursday: 9-12:30 am and 1-5 pm and Friday from 9-12 am

FR : Tel. [phone]

Times : Monday to Thursday from 8:30 to 18:30 and Friday from 8:30 to 5 pm

CH : Tel. 0800 - 37 77 37

Times : Monday to Friday from 8-12 am and from 1-5 pm

GB : Tel. [phone]

ROI : Tel. [phone]

Times : Monday to Thursday from 8:30 am to 4:30 pm and Friday from 8:30 to 4 pm

Times : Monday to Thursday from 8:30 am to 4:30 pm and Friday from 8:30 to 4 pm

NO : Tel. [phone]

Times : Monday to Thursday from 8:30 am to 4:30 pm and Friday from 8:30 to 4 pm

FI : Tel. [phone]

Times : Monday to Friday from 8 am to 6:30pm

11 Index

Auto-cappuccino accessory ......23

Choice of menus ....16

Controls 9

Cleaning 27, 31

Cleaning programme 28

Cleaning the steam nozzle......22, 27

Cleaning the special nozzle 24

Correct use......8

Display 10

Descaling programme ....30

Disposal of waste 35

Drink selection menu....19

Demo Mode menu....19

First use....11

Fitting the filter cartridge ....12

Guide 5

Initial settings....14

Maintenance....27

Maintenance menu....17

Operation....10

Overall view of operation......9

Overall view of the appliance ......9

Products supplied with the appliance ..8

Product info ....5

Product Info menu....18

Preparation of the appliance ....13

Preparation of a coffee ....21

Preparation of an espresso ....21

Preparation of a caffe latte....24

Preparation of a cappuccino......22

Preparation of hot water ......26

Rinsing....15

Safety guidelines ......6

Steam nozzle 20, 22

Special nozzle ......23

Setting the grinder ....16

Settings menu......17

Service 36

Symbols ....5

Switching on the appliance......20

Technical data....35

Troubleshooting....32

Transport 35

Use 20

Warning words......5

Water hardness ....11

2-cup function....22

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM

SERIE EA 82xx

Exterior view of a modern KRUPS coffee maker with open door and digital display (no visible text or symbols on main body)

Exterior view of a KRUPS coffee maker with digital display and control panel (no visible text or symbols on main body)

Two industrial mechanical components with textured surfaces, one showing a circular component and the other a cylindrical device (no visible text or symbols)

3.6 Les menus

Three mechanical components: a black tool, a metallic bracket, and a cylindrical rod (no text or symbols visible)

Exterior view of a modern KRUPS brand coffee maker with open door and digital display (no visible text or symbols on main body)

Exterior view of a KRUPS coffee maker with visible branding and control panel (no text or symbols on the device itself)

- bed & breakfast locaties.

Two industrial machinery components with visible internal parts and a yellow warning symbol (no text or labels)

3.6 De menu's

Close-up of a mechanical component with a yellow arrow pointing to a circular component (no visible text or symbols)

Three mechanical components: a black tool, a metallic bracket, and a cylindrical rod (no text or symbols visible)

Auto-cappuccino accessoire .....23

Bedieningselementen......9

Exterior view of a modern KRUPS coffee maker with digital display and open vent (no visible text or symbols on the device itself)

Exterior view of a KRUPS coffee maker with digital display and control panel (no visible text or symbols on main body)

Two industrial mechanical components with textured surfaces, one showing a circular component and the other a cylindrical device (no visible text or symbols)

3.6 Menuerne

Three mechanical components: a black cylindrical tool, a metallic bracket, and a cylindrical rod (no text or symbols visible)

Exterior view of a modern KRUPS water grater with open door and digital display (no visible text or symbols on the device itself)

Exterior view of a KRUPS coffee griller with digital display and control panel (no visible text or symbols on the device itself)

Two industrial machinery components with a yellow control knob, shown from different angles (no visible text or symbols)

3.6 Menyerna

Three mechanical components: a black tool, a metallic tool, and a cylindrical rod (no text or symbols visible)

5.2 Rengöringsprogrammet

Exterior view of a modern KRUPS coffee maker with open door and digital display (no visible text or symbols on main body)

Exterior view of a KRUPS coffee maker with open door and control panel (no visible text or symbols on main body)

Bruk og vedlikehold

Viktig

- 2 rengjøringstabletter (KRUPS – ref XS3000)

Two industrial mechanical components with textured surfaces, one emitting powder and the other showing a yellow circular component (no visible text or symbols)

3.6 Menyene

Three mechanical components: a black grip, a metallic tool, and a cylindrical part (no text or symbols visible)

Vannets hardhetsgrad .....11

Varselinfo ....5

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM

SERIE EA 82xx

Exterior view of a modern KRUPS brand coffee maker with digital display and open vent (no visible text or symbols on main body)

Exterior view of a KRUPS coffee griller with visible branding and control panel (no text or symbols on the device itself)

Käyttö ja huolto

Tärkeää

Two industrial machinery components with visible internal parts and a yellow warning symbol (no text or labels)

3.6 Valikot

Close-up of a control panel with a circular dial indicator and directional arrow (no readable text or symbols)

Three mechanical components: a black grip, a metallic tool, and a flat pin (no text or symbols visible)

Exterior view of a modern KRUPS brand coffee maker with digital display and open vent (no visible text or symbols on main body)

Exterior view of a KRUPS coffee griller with visible branding and control panel (no text or symbols on the device itself)

Two industrial mechanical components with textured surfaces, one showing a circular component and the other a cylindrical device (no visible text or symbols)

3.6 Menu

Three mechanical components: a black cylindrical tool, a metallic cutting tool, and a cylindrical rod (no text or symbols visible)
