Nescafé Dolce Gusto Picoolo KP1009 - Coffee machine KRUPS - Free user manual and instructions

Product Type	Capsule coffee machine
Brand	Krups
Model	Nescafé Dolce Gusto Picoolo KP1009
Dimensions (W x D x H)	34.6 x 22.9 x 29.7 cm
Weight	2.9 kg
Power	1600 W
Voltage	220-240 V, 50/60 Hz
Water Tank Capacity	1.0 L
Pump Pressure	15 bar
Capsule System	Nescafé Dolce Gusto
Hot Water Function	Yes
Auto Shut-Off	Yes, after 5 minutes
Descaling Indicator	Yes
Drip Tray	Adjustable height
Capsule Container Capacity	Up to 10 used capsules
Maintenance	Regular descaling and cleaning of removable parts
Safety Features	Auto shut-off, overheat protection
Spare Parts	Drip tray, capsule container, water tank
Repairability	Modular design; parts replaceable
Energy Efficiency	Class A

Frequently Asked Questions - Nescafé Dolce Gusto Picoolo KP1009 KRUPS

How do I descale the Nescafé Dolce Gusto Picoolo KP1009?

To descale, prepare a descaling solution (e.g., Krups descaling product or vinegar). Fill the water tank, run a descaling cycle, then rinse with fresh water. Refer to the manual for exact procedure.

Can I use any coffee capsules?

This machine is designed for Nescafé Dolce Gusto capsules only. Using other capsules may damage the machine or produce poor results.

How do I clean the drip tray?

Remove the drip tray and rinse with warm water. Dry before reinserting. The grid can be removed for thorough cleaning.

What does the blinking light mean?

A blinking red light typically indicates the need for descaling. A blinking orange light may signal a low water level. Check the manual for specific patterns.

How much water does the tank hold?

The water tank capacity is 1.0 liter, enough for several cups before refilling.

Can I make tea with this machine?

Yes, the machine has a hot water function for tea or other hot beverages. Simply place a cup and use hot water setting without a capsule.

How do I adjust the cup size?

After inserting a capsule, move the lever to adjust water volume. The machine allows customization for small, medium, or large cups.

Is the machine safe to leave on?

It has an auto shut-off feature that turns off after 5 minutes of inactivity, saving energy and ensuring safety.

Where can I purchase spare parts?

Spare parts like drip trays and water tanks are available on the Krups website or authorized dealers. Check the manual for part numbers.

Why is my coffee not hot enough?

Ensure the machine is preheated. Run a rinse cycle to warm the system. If still cold, descale the machine, as scale buildup can affect heating.

USER MANUAL Nescafé Dolce Gusto Picoolo KP1009 KRUPS

KRUPS

PICCOLO

USER MANUAL

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS...3.....
2. MACHINE OVERVIEW 5
3. BEVERAGE EXAMPLES 6
4. RECOMMENDATIONS FOR SAFE USE 7
5. FIRST USE 8
6. PREPARING A BEVERAGE 9
7. 1 ONE CAPSULE (E. G. LUNGO) 9
8. 2 TWO CAPSULES (E. G. CAPPUCCINO) 10
9. CLEANING 12
10. DESCALING AT LEAST EVERY 3-4 MONTHS
11. TROUBLESHOOTING....15
12. 1 ON / OFF ICON TURNED TO ORANGE...COLOUR.....
13. 2 NO LIQUID COMES OUT - NO...WATER?
14. 3 NO LIQUID COMES OUT - CAPSULE / INJECTOR...BLOCKED?
15. 4 VARIOUS.... 17

1. SAFETY PRECAUTIONS

1. Read all instructions and keep these safety instructions. Misuse of the appliance may result in a potential hazard.
2. Connect the appliance to a mains power socket with proper connection only. Mains voltage must be the same as that indicated on the rating plate. The use of incorrect connection will void the guarantee and may be hazardous.
3. This appliance is intended to be used in household and similar applications, such as:
4. staff kitchen areas in shops, offices and other working environments;
5. farm houses;
6. by clients in hotels, motels and other residential environments; — bed and breakfast type environments;
7. Your appliance is intended for domestic use inside an altitude below 3400 m.
8. In case of any inappropriate use or failure to comply with instructions, the manufacturer accepts no responsibility and the guarantee may not apply.
9. We recommend using the NESCAFÉ Dolce Gusto capsules designed and tested for the Dolce Gusto machine. They were designed to interact together - the interaction price quality that NESCAFÉ Dolce Gusto is known for. Each capsule is designed to prepare a perfect cup, and
10. Do not remove hot capsules by hand. Always use a handle to dispose of used capsules.
11. Always use the appliance on a flat, stable surface, away from sources of heat or water splashes. This appliance is not to be placed in a cabinet when in use.
12. To protect against fire, electric shock and injury, do not immerse the power cord, plugs or the appliance in liquid. Avoid spillage on the plug. Never touch the plug with wet hands. Do not overfill the water tank.
13. In case of an emergency, remove the plug from the socket immediately.
14. Close supervision is necessary when the appliance is used near children. Keep the appliance, power cord, and capsules out of reach of children. Children should be supervised to ensure they do not play with the appliance. Never leave the appliance unattended while making a beverage.
15. This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Persons who have a limited understanding of the operation and use of this appliance should

read and fully understand the contents of the user manual.

where appropriate, seek additional guidance on its use from the person responsible for their safety. Do not operate the appliance without the drip tray except when a very tall mug is used. Do not use for hot water preparation.

For the head and tail seasons, always fill the water tank with drinking water. 15. After use of the appliance, always remove the cap and clean the capsule holder. Empty and clean the drip tray. Users allergic to dairy products: clean the appliance according to the cleaning procedure. 16. Working heating element surface is subject to residual heat and plastic housings may feel warm to the touch minutes upon use. 17. Unplug from the mains power socket when not in use. 18. Unplug from the mains power socket before cleaning, and allow to cool before putting on or taking off parts, before cleaning the appliance. Never clean wet or immerse the appliance. For home use only. Never clean the appliance with running water. Never use detergent to clean the appliance. Clean the appliance with soft sponges/brushes. The water tank should be cleaned using a clean food-safe brush. 19. Never turn the machine upside down. 20. If away for prolonged periods, on holiday, etc., ensure the product is emptied, cleaned, and unplugged. Rinse by operating the rinse cycle before re-using your appliance. 21. Do not turn off the appliance during the descaling cycle. Empty the water tank and clean the appliance to remove residual descaling agent. 22. Any operation, cleaning, and care other than normal should be undertaken by after-sales service centres designated by the NESCAFÉ® Dolce Gusto® hotline. Do not dismantle the appliance and do not put anything into openings. 23. In case of intensive use without allowing sufficient water, the appliance will stop functioning temporarily, with the power cord and red indicator light blinking. This is to protect you from overheating. Switch the appliance off for 20 minutes and allow it to cool down. 24. Do not operate any appliance with a damaged cord or plug. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Do not operate any appliance that malfunctions or has been damaged in any manner. Return the damaged appliance to the nearest authorised service facility designated by the NESCAFÉ® Dolce Gusto® hotline. 25. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons. 26. Do not let the cord hang over the edge of a table or counter.

Touch hot surfaces or sharp edges. Do not allow the cord to touch hot surfaces. EUROPEAN MARKETS ONLY:

(risk of tripping up). Never touch the cord with wet hands. Protect the environment!

1. Do not place on or near a hot gas or electric burner, or in a heated

oven.

1. To disconnect, turn the machine off, then remove the plug from the mains power socket. Do not unplug by pulling the cord. The appliance contains valuable materials that can be recovered or recycled.
2. Always insert the capsule holder in the machine to prepare the beverage. Do not pull out the capsule holder before the indicator stops blinking. The appliance will not work if the capsule holder is not inserted. At the end of its life, take the appliance to a local civic waste collection point. European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) requires that used household appliances be collected separately.
3. Machines equipped with a locking handle: Scalding may occur if the locking handle is opened during the brewing cycles. Do not open the locking handle before the lights on the machine stop blinking. Used household appliances must not be disposed of in normal unsorted municipal waste; they must be collected separately.
4. Do not put fingers under the outlet during beverage preparation. For proper sorting and recycling of parts, follow local regulations.
5. Do not touch the injector of the machine head. This may impact human health and the environment.
6. Never carry the appliance by the machine head.
7. The capsule holder is equipped with a permanent magnet. Avoid placing the capsule holder near appliances and objects that can be damaged by magnetism, e.g., credit cards, USB drives and other data devices, video tapes, television and computer monitors with picture tubes, mechanical clocks, hearing aids, and loudspeakers.
8. Patients with pacemakers or defibrillators: Do not hold the capsule holder directly over the pacemaker or defibrillator.
9. If the mains power socket does not match the plug on the appliance, have the plug replaced with a suitable type by aftersales service centres designated by the NESCAFÉ® Gusto® hotline.
10. Packaging is made of recyclable materials. Contact your local council / authority for further information on recycling programs. Your appliance contains valuable materials which can be recovered or recycled.
11. For additional guidance on how to use the appliance, refer to the user manual on www.dolce-gusto.com or call NESCAFÉ Dolce Gusto® hotline number.
12. Please be aware that the appliance is still using electricity whilst in eco-mode (0.4 W/hour).
13. Keep the appliance and its cord out of reach of children aged less than 8 years. Children shall not play with the appliance.
14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
15. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised by an adult.

To reduce the risk of fire or electric shock, do not remove the cover. No user serviceable parts inside. Repair should be done by authorized service personnel only!

2. MACHINE OVERVIEW

1. Water tank
2. Selection lever
3. Cold
4. Stop
5. Hot
6. Locking handle
7. Rinsing tool
8. Capsule holder
9. Cleaning needle
10. Power button / Descaling signal / Error signal
11. Injector
12. Drip tray
13. Drip grid

ECONOMY MODE:

After 5 minutes of non-usage.

TECHNICAL DATA

GB/IE/SG

220-240 V, 50/60 Hz, 1340-1600 W

max. 15 bar

0.6 L

~2.4 kg

5-45 °C

41-113 °F

A = 15.9 cm

B = 28.7 cm

C = 22 cm

3. BEVERAGE EXAMPLES

ESPRESSO CAPPUCCINO CHOCOCINO CAPPUCCINO ICE

4. RECOMMENDATIONS FOR SAFE USE

Never add hot water to the water

For rinsing and beverage preparation only use drinking water.

tank Always keep the machine upright!

(1)

-

-

red for about 5 seconds. During that time open locking handle!

Do not touch plug with wet hands. Do not touch machine with wet hands!

Do not use a wet sponge. Only use a soft cloth to clean the top of the machine.

Do not touch used capsule after beverage preparation! Hot surface, risk of burns!

Never touch injector with surface of finger!

Do not use the rinsing tool for tea preparation.

If you pray for more than 2 days (on holidays etc.), the machine must be emptied, cleaned, and unplugged. Before reuse, rinse the machine according to the instructions in section 7. "Cleaning" on page 12, starting with step 4 to step 8.

5. FIRST USE

Rinse the water tank manually with fresh drinking water. Fill the water tank with fresh drinking water. Insert the water tank into the machine.

Open the locking handle. Make sure that the rinsing tool is in the capsule holder and the capsule holder is in the machine. Close the locking handle. Place an empty large container underneath the coffee outlet.

Switch on the machine. The power button starts blinking red while the machine is heating up for approximately 40 seconds. Afterwards, the power button lights steady green. The machine is ready to use.

Make sure that the selection lever is in the "STOP" position. Ensure to use the correct mains voltage as given in section 2. "MACHINE OVERVIEW" on page 5. Connect the power plug to the mains power socket.

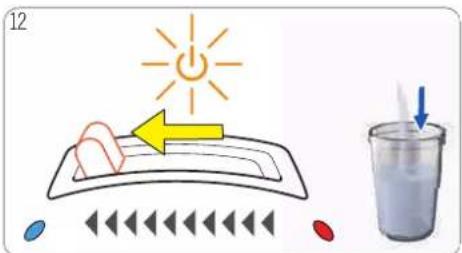

Push the selection lever to the "COLD" position. The machine starts rinsing.

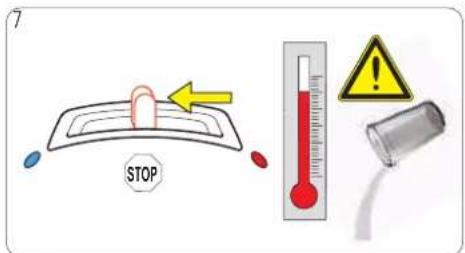

After approximately 60 seconds, push the selection lever to the "STOP" position. The machine stops rinsing. The power button blinks red for about 5 seconds.

Push the selection lever to the "HOT" position. The machine starts rinsing.

After approximately 60 seconds, push the selection lever to the "STOP" position. Open the locking handle. Pull out the capsule holder. Remove the rinsing tool. Reinsert the capsule holder.

Empty the container. Fill the water tank with fresh drinking water. Insert the water tank into the machine. Place the drip grid on the drip tray. Then insert the drip tray at the desired position.

6. PREPARING A BEVERAGE

6.1 ONE CAPSULE (E.G. LUNGO)

Check if the water tank contains enough fresh water. Adjust the tray position. Place the cup with the correct opening lock size handle. Pull out the capsule holder. Make sure the opening lock tool is not inside. Insert the capsule in the capsule holder. Insert it back into the machine. Close the locking handle. Switch on the machine. The power button starts blinking red while the machine is heating up for approximately 40 seconds. Afterwards, the power button lights steady green. The machine is ready to use.

Push the selection lever to the "HOT" or "COLD" position. Stay close to the machine throughout the preparation. After finishing preparation, the power button blinks. The recommended beverage preparation time is indicated on the capsule packs. To prepare the desired level, push the selection lever about the seconds. During that time, do not operate the handle. When the desired level is reached, push the selection lever to the "STOP" position. The machine stops preparation.

After extraction is finished, remove the cup from the machine. Open the locking handle. Pull out the capsule holder. Rinse the used capsule holder with fresh drinking water. Put the used capsule in the dustbin. Dry the capsule holder. Insert it back into the machine. Close the locking handle. Enjoy your beverage!

1. PREPARING A BEVERAGE

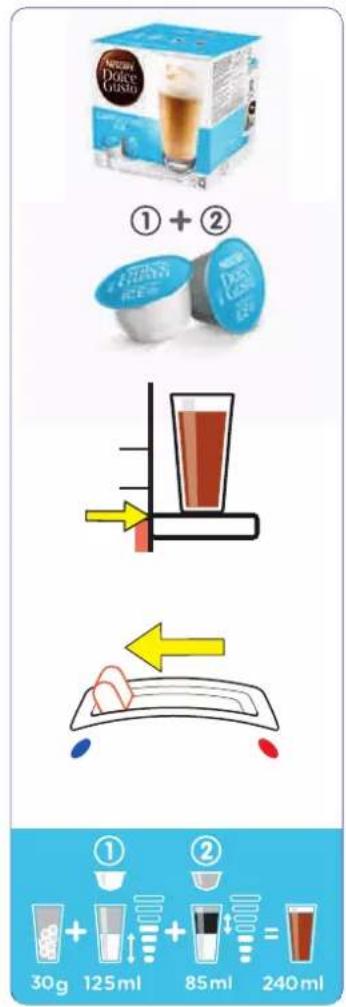

2. 2 TWO CAPSULES (E.G. CAPPUCCINO)

Check if the water tank contains enough fresh water. Adjust the tray position. Place the cup with the correct opening. Lock the size handle. Pull out the capsule holder. Make sure the opening lock tool is not inside. Insert the first capsule in the capsule holder. Switch on the machine. The power button starts blinking red. See 3. "BEVERAGE EXAMPLES" or the recommended capsule packs. While the machine is heating up for approximately 40 seconds, afterwards the power button lights steady green. The machine is ready to use.

Push the selection lever to the "HOT" or "COLD" position as recommended on the capsule packs. Stay beside the machine throughout the preparation. After the preparation, the power button blinks. Beverage preparation starts. To stop at the desired level, push the selection lever to the "STOP" position. The machine stops preparation. Do not open the locking handle!

Open the locking handle. Pull out the capsule holder. Remove the used capsule. Put the used capsule in the dustbin.

Insert the second capsule in the capsule holder. Insert the capsule holder back into the machine. Close the locking handle.

Push the selection lever to the "HOT" or "COLD" position as recommended on the capsule packs. Beverage preparation starts.

6. PREPARING A BEVERAGE

6.2 TWO CAPSULES (E.G. CAPPUCCINO)

Stay beside the machine throughout the preparation. To stop at the desired level, push the selection lever to the "STOP" position. The machine stops preparation.

After finishing the preparation, the power button blinks for about 5 seconds. During that time, do not open the locking handle!

Open the locking handle. Pull out the capsule holder. Remove the used capsule. Put the used capsule in the dustbin.

Remove capsule holder and rinse it with fresh drinking water from both sides. Dry the capsule holder. Insert it back into the machine. Enjoy your beverage!

7. CLEANING

Rinse and clean the water tank. Use a clean cloth and washing-up liquid as needed. Afterward, fill with fresh drinking water and insert it into the machine. The water tank is not dishwasher proof!

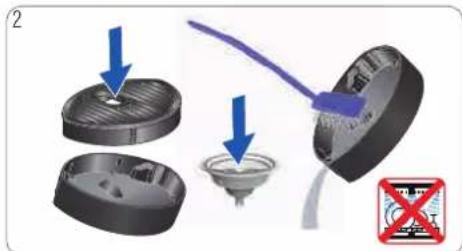

Clean the drip tray with a clean food-safe brush and fresh drinking water. The drip tray is not dishwasher proof!

Clean the water tank with a soft cloth, washing-up liquid, and fresh drinking water. Rinse both sides of the drip tray holder. Alternatively, wash it in the dishwasher. Dry it afterward.

Open the locking handle. Put the rinsing tool into the capsule holder. Insert the capsule holder into the machine. Close the locking handle. Place an empty large container underneath.

Insert the capsule holder into the machine. The power button starts blinking. Push the electrical lever to lock the machine and it will heat up for approximately 40 seconds. Afterwards, the power output button lights steady green. The machine is ready to use.

Move the selection lever to the "HOT" position. Machine

After approx. 10 seconds, push the selection lever. Open the locking handle. Pull out the capsule holder. Remove the capsule from the machine. Unplug the power plug! Clean the machine. Remove and empty the container. Warning: hot water. Insert the capsule holder. Place a drip tray on a soft cloth. Dry it afterward with a soft cloth. Handle with care! Insert the drip tray at the desired position. If any, remove water from the water tank.

Remove water from the water tank.

8. DESCALING AT LEAST EVERY 3–4 MONTHS

Use NESCAFÉ Dolce Gusto® liquid descaler. To order, call the NESCAFÉ® Dolce Gusto® hotline or visit the NESCAFÉ Dolce Gusto® website.

Do not use vinegar for descaling!

Avoid contact of descaling liquid with any part of the machine.

Do not push the power button during the descaling cycle.

If the beverage comes out slower than usual, switch off the machine. If any, remove water droplets, or if it is cooler than usual, or if the power button is steady orange (descaling signal), the machine has to be descaled.

Switch off the machine. If any, remove water droplets. If the power button is steady orange, the machine has to be descaled.

Fill the water tank with fresh drinking water and add descaler. Pour descaling solution into the water tank. Insert the water tank into the machine.

Open the locking handle. Put the rinsing tool into the capsule holder and hold the power button for at least 3 seconds. Insert the capsule holder into the machine. Close the locking handle. The power button starts blinking orange. The machine enters descaling mode. Place an empty large container underneath the coffee outlet.

Hold the power button for at least 3 seconds. The power button starts blinking orange. The machine enters descaling mode. Place an empty large container underneath the coffee outlet.

Push the selection lever to the "HOT" position. The machine descales. The power button blinks orange.

8. DESCALING AT LEAST EVERY 3–4 MONTHS

Check visually when the water tank is empty. Push the selection lever to the "STOP" position.

For the best effect of the descaler, wait for the descaler to work.

Empty the container. Rinse and clean the water tank with a clean food-safe brush and washing-up liquid. Afterwards, refill with fresh drinking water and insert the water tank into the machine.

Push the selection lever to the "HOT" position. The machine rinses. The power button blinks orange.

Check visually when the water tank is half full. Push the selection lever to the "STOP" position.

Push the selection lever to the "COLD" position. The machine rinses. The power button blinks orange.

Check visually when the water tank is empty. Push the selection lever to the "STOP" position.

Open the locking handle. Pull out the capsule holder. Remove the rinsing tool. Rinse the capsule holder with fresh drinking water. Rinse and clean the water tank. Refill the water tank with fresh drinking water. Insert it back. Clean the machine with a soft damp cloth. Dry it afterwards. Empty the container. Place the drip grid on the drip tray. Insert the strip dry cloth at the desired position.

9. TROUBLESHOOTING

9.1 ON / OFF ICON TURNED TO ORANGE COLOUR

ON / OFF ICON TURNED TO ORANGE COLOUR This means that the machine needs to be descaled. Follow instructions in 8. "Descaling at least every 3-4 months" on page 13.

9.2 NO LIQUID COMES OUT - NO WATER?

No liquid comes out and the machine makes a noise. Turn the selection lever to the "STOP" position.

Make sure the machine is not making a noise. Turn the selection lever to the "STOP" position.

Check if the water tank contains enough fresh water. If not, refill with fresh drinking water. Turn the selection lever to the "HOT" position respectively "COLD" to continue preparation. If the water tank is full, proceed as described in "NO LIQUID COMES OUT - CAPSULE INJECTOR BLOCKED?" on page 16.

9. TROUBLESHOOTING

1. 9.3 NO LIQUID COMES OUT - CAPSULE / INJECTOR BLOCKED?

No liquid comes out: The capsule may be under pressure.

Always keep the machine upright! To stop, turn the selection lever to the "STOP" position. Do not handle by force. The machine releases pressure. Wait a few minutes to reduce the pressure.

To prepare coffee: Lift the locking handle. Remove the used capsule and dispose of it in the capsule bin. Wait for 20 minutes.

Rinse the machine: Follow instructions in 5. Close the locking handle. Clean with washing-up liquid and fresh drinking water. Clean the needle. Clean the sides of the capsule holder. Rinse the drip tray with fresh drinking water and clean it with a clean food-safe brush.

Unplug the machine! Remove the drip grid and drip tray. To access the injector, tilt the machine. Never touch with fingers! Clean the injector with the cleaning needle. Follow instructions in 8. "Descaling at least every 3-4 months" on page 13.

9. TROUBLESHOOTING

9.4 VARIOUS

Machine cannot be switched on.

Check if the power plug is correctly plugged into the power socket. If yes, check your electricity. If the machine still cannot be switched on, call the NESCAFÉ® Dolce Gusto® hotline. For hotline numbers see "Machine Hotlines".

If the machine still cannot be switched on, call the NESCAFÉ® Dolce Gusto® hotline. For hotline numbers see "Machine Hotlines".

Beverage is splashing out of coffee outlet.

Push selection lever to the "STOP" position. Remove the capsule holder. Put used capsule in dustbin.

Insert a new capsule in capsule holder and insert into machine.

If the beverage comes out slower than usual (e.g., droplets), or if it is cooler than usual, descale the machine using NESCAFÉ® Dolce Gusto® liquid descaler. To order, call the NESCAFÉ® Dolce Gusto® hotline or go on the website.

9. TROUBLESHOOTING

9.4 VARIOUS

Power button flashes red fast.

Switch off machine. Check if capsule is blocked. If power button still flashes red, call the NESCAFÉ® Dolce Gusto® hotline. For hotline numbers see page 16. Unplug power plug and wait 20 minutes. Then plug power plug into mains power socket and switch machine on.

Call the NESCAFÉ® Dolce Gusto® hotline or go on the NESCAFÉ® Dolce Gusto® website. For hotline numbers see last page.

Water accumulates underneath or around machine. Clean water plug! Water leaks around capsule holder during beverage preparation.

Clean water plug! Clean water plug!

Water is splashing out of the coffee outlet while inserting the capsule holder into the machine. Insert the capsule holder for descaling.

KRUPS

HOTLINES

AE 800348786

AL 0842 640 10

AR 0800 999 81 00

AT 0800 365 23 48

AU 1800 466 975

BA 0800 202 42

BE 0800 93217

BG 080016666

BR 0800 7762233

CA 18888099267

CH 0800 86 00 85

CL 800 800 711

CO 01800-05-15566

CN 400 630 4868

CR 0800-507-4000

CZ 800 135 135

DE 0800 365 23 48

DK 80 300 100

DO [phone]

EC 1800 637-853 (1800 NESTLE)

EE 6177441

ES 900 10 21 21

FI 0800 06161

FR 0800970780

GB 0800 707 6066

GR 800 11 68068

GT 1-800-299-0019

HK (852) 21798999

HN 800-2220-6666

HR 0800 600 604

HU 06 40 214 200

ID 0800 182 1028

IE 0080063785385

IL 1-700-50-20-54

IT 800365234

JO [phone]

JP 0120-879-816

KR 080-234-0070

KW [phone]

KZ 8-800-080-2880

LB [phone]

LU 80023183

LT 870055200

LV 67508056

MA 080 100 52 54

ME 020 269 902

Middle East: [phone]

MX 01800 365 2348

MK 0800 00 200

MT 80074114

MY 1800 88 3633

NI 1-800-4000

NL 0800-3652348

NO 800 80 730

NZ 0800 365 234

PA 800-0000

PE 80010210

PH 898-0061

PK 0800-62282

PL 0800 174 902

PT 800 200 153

PY 0800-112121

QA [phone]

RO 08008637853

RU 8-800-700-79-79

SA 8008971971

SE 020-299200

SG 18008367009

SI 080 45 05

SK 0800 135 135

SR 0800 000 100

SV 800-6179

TH 1-800-295588

0-2657-8601

TR 0800 211 02 18

4 44 31 60

TT [phone]

TW 0800-000-338

UA 0800503010

US 1-800-745-3391

UY 0800-2122

VN 1800 6699

ZA [phone]
