Product type	Automatic coffee machine
Brand	KRUPS
Model	EA 817810
Water tank capacity	1.7 L
Pump	15 bars
Heating system	Compact Thermoblock System with integrated percolation chamber
Grinder	Metal burr grinder with fineness adjustment
Display	Graphic LCD screen
Preparable beverages	Ristretto, Espresso, Coffee, Cappuccino, Caffè latte, steam
Two-cup function	Yes (automatic cycles)
Adjustments	Volume (ml), strength (grains), temperature (3 levels), automatic shut-off duration (15 to 120 min)
Maintenance programs	Automatic cleaning (tablet), automatic descaling (sachet), automatic rinsing
Included accessories	Steam nozzle, cleaning needle
Optional accessories	Claris filter cartridge - Aqua Filter System, auto-cappuccino set XS 6000, cleaning tablets, descaler
Safety	Adjustable automatic shut-off, water tank and coffee grounds collection detection
After-sales service	KRUPS Consumer Service

Frequently Asked Questions - EA 817810 KRUPS

How to adjust the grind fineness?

Turn the grind fineness adjustment knob located in the bean hopper, preferably while grinding, step by step. Turn left for finer grind, right for coarser. The effect is noticeable after 3 preparations.

How to prepare a cappuccino?

Press the steam button, immerse the steam nozzle in cold milk, then press START. Follow the steps: immerse the nozzle 2 cm, slightly lift, then gradually lower. Stop with STOP when foam is sufficient. You can use the optional auto-cappuccino accessory.

What to do if coffee flows too slowly?

Turn the grind fineness knob to the right for a coarser grind. Perform one or more rinse cycles. Run a cleaning program. If the problem persists, replace the Claris filter cartridge.

How to start the descaling program?

When the descaling pictogram is displayed, press the maintenance button, select the descaling pictogram, remove the Claris cartridge if present, fill the water tank to the CALC mark with a sachet of KRUPS descaler, place a 0.6 L container under the nozzles, then press START. Follow the phases indicated on the screen.

How to clean the steam nozzle?

The steam nozzle is removable. Wash it with water and a mild non-abrasive detergent using a brush. Rinse and dry. To unblock the air holes, use the provided needle. You can also run a steam cycle with hot water for internal cleaning.

Why does the message 'empty the container' appear?

The coffee grounds container and drip tray must be emptied and cleaned. The pictogram flashes. Empty them completely and reinstall them correctly. As long as the message remains, coffee preparation is impossible.

How to program automatic rinsing at startup?

Press the maintenance button, navigate to the automatic rinsing programming pictogram, then press the button to select ON. Rinsing will be performed at each machine startup.

What is the capacity of the water tank?

The water tank has a maximum capacity of 1.7 liters. It is recommended to fill it with fresh cold tap water.

How to install the Claris filter cartridge?

Remove the cartridge from its packaging, set the slider to the month of installation, insert it into the water tank. In the maintenance menu, select the cartridge installation pictogram, place a 0.6 L container under the steam nozzle, then press START to start the cycle.

What to do in case of malfunction with an error pictogram?

Turn off and unplug the machine, remove the filter cartridge, wait a minute, then plug back in and turn on. If the problem persists, contact KRUPS Consumer Service.

USER MANUAL EA 817810 KRUPS

FR HOTLINE:BE:3270233159-FR:0974501061-CH:0800377737 DE HOTLINE:DE:08009800000-AT:0800225225-CH:0800377737 EN HOTLINE:UK:0345 3306460-ROI:[phone] NL HOTLINE:NL:0318582424 IT SERVIZIO CONSUMATORI: IT: 199 207701 - CH: 0800 37 77 37 ES HOTLINE:ES:902312300 PT CENTRO DE CONTACTO DO CONSUMIDOR: PT : 808 284 735 EL EANAA:GR:2106371251 RU TOPRAJAJINHNA:RU:4952133228 UK yKPAIHA:UK:0443001304 PL INFOLINIA:PL:0801300420 CS HOTLINE: CZ:731010111 SK ZAKAZNLCKA LINKA:SK:233595224 HU ÜGYFÉLSZOLGÁLAT: HU : (1) 8018434 567

www.krups.com

8080014573-04 03/2018

KRUPS

EA815 - EA816 - EA817

www.krups.com

1

2

3

4

25

26

27

28

5

7

8

29

3C

31

32

9

.

1.

11

15

1

1

13

18

19

21 2 23

2

33

34

KRUPS INTERNATIONAL GUARANTEE: COUNTRY LIST SMALL HOUSEHOLD APPLIANCES www.krups.com
ARGENTINA	0800-122-2732	香港 HONG KONG	852-8137 0128	PORTUGAL	808 284 735
RUSSUISTU ARMENIA	010 55-76-07	MAGYARORSZAG HUNGARY	06 1 801 8434	QATAR	44600002
AUSTRALIA	1 300 307 824	INDONESIA	[phone]	REPUBLIC OF IRELAND	01 677 4003
ÖSTERREICHE AUSTRIA	01 890 3476	ITALIA ITALY	1 99 207 701	ROMANIA	0 21 316 87 84
اللهutron BAHRAIN	17291537	日本 JAPAN	0570-07772	POCCN RUSSIA	495 213 32 28
БЕЛAPСВ BELARUS	017 2239290	اللهutron JORDAN	4629700	اللهسيرة الحرفية الحرفية SAUDI ARABIA	920023701
BELGIQUE BELGIE BELGIUM	070 23 31 59	КAZAKCTAH KAZAKHSTAN	727 378 39 39	SRIJI SERBIA	060 0 732 000
BOSNA I HERCEGOVINA	Info-linja za potrošače 033 551 220	Hangover KOREA	080-733-7878	SINGAPORE	6550 8900
BRASIL BRAZIL	0800-7257877	الله UT KUWAIT	1807777 Ext :2104	SLOVENSKO SLOVAKIA	232 199 930
Бълтаги BULGARIA	0700 10 330	LATVIJA LATVIA	6 616 3403	SLOVENIA SLOVENIA	02 234 94 90
CANADA	1-800-418-3325	LEBANON	1364392 Ext: 189-182	ESPAÑA SPAIN	933 06 37 59
CHILE	02 2 884 46 06	LIETUVA LITHUANIA	5 214 0057	SVERIGE SWEDEN	08 629 25 00
COLOMBIA	018000520022	LUXEMBOURG	0032 70 23 31 59	SUISSE SCHWEIZ SWITZERLAND	044 837 18 40
HRVATSKACROATIA	01 30 15 294	MAKEDONJA MACEDONIA	(02) 20 50 319	Татулич THAILAND	02 765 6565
ČESKA REPUBLIKACZECH REPUBLIC	731 010 111	MALAYSIA	603 7802 3000	ТURKIYE TURKEY	444 40 50
DANMARKDENMARK	44 66 31 55	MEXICO	[phone]	اللهسيرة الحرفية الحرفية UAE	8002272
EGYPT	16622	MOLDOVA	22 224035	Украши UKRAINE	044 300 13 04
EESTIONIA	668 1286	NEDERLAND The Netherlands	0318 58 24 24	UNITED KINGDOM	0345 330 6460
SUOMIFINLAND	9 8946 150	NEW ZEALAND	0800 700 711	U.S.A.	800-526-5377
FRANCE Continentale + Guadeloupe, Martinique, Réunion, St-Martin	09 74 50 10 61	NORGE NORWAY	22 96 39 30	VIETNAM	1800-555521
DEUTSCHLAND GERMANY	0212 387 400	Großes Salzpflanz OMAN	80075000	17/01/2018
ELLADA GREECE	2106371251	POLSKAPOLAND	801 300 420 koszt jak za polączenersi lkalne

KRUPS INTERNATIONAL GUARANTEE

Date of purchase

Product reference

Retailer name and address

Distributor stamp

Dear Customer,

Congratulations! You are now the proud owner of an Espresso Automatic EA815-EA816-EA817 Series. With your machine, you can make a wide range of drinks: espressos, coffees or ristrettos, completely automatically. You can also make milk-based drinks such as cappuccinos. It has been designed so that you can enjoy restaurant quality coffee at home, whatever the time of the day and every day of the week. You will appreciate its ease-of-use and the quality of your cup of coffee. You can set the amount, strength and temperature of your drinks.

Thanks to its Compact Thermoblock System with built-in percolation chamber, its 15 bar pump, and because it uses coffee beans which have been freshly ground just before making the coffee, your machine will give you hot ristrettos, espressos and coffees from the first cup with maximum aroma and a creamy golden-brown froth.

To give the drink maximum flavour, an espresso is traditionally served in a small, flared porcelain cup. For an optimum temperature espresso and a dense creamy froth, we recommend that you pre-heat your cup.

You will probably need to try several types of coffee before you find the one that suits you.

By experimenting with the blend and/or roast, you will eventually arrive at the ideal result.

Espresso coffee has a richer aroma than classic filter coffee. Despite its stronger taste which remains longer on the palate, an espresso contains less caffeine than filter coffee (around 60 to 80 mg per cup compared to 80 to 100 mg per cup) due to its shorter percolation period.

The quality of water used is another determining factor which affects the overall quality of the brewed coffee. You should ideally use water which is fresh from the tap (so that it hasn't had time to stagnate due to air contact), which is cold and which does not smell of chlorine.

The ergonomic, compact LCD display makes the machine easy to use. It will guide you through each step, from preparing your drink to servicing your machine.

We wish you many years of enjoyment with your Krups machine.

The Krups team

Buttons and knobs
"On-off" button	→	Navigation button (cursor key)
Favourite coffee type button A or press B Save favourite button A or press and hold B	- +	To adjust selected settings
Steam drink button	START STOP	Start or stop equipment
Maintenance and settings button		To adjust how finely ground you would like the coffee beans.

Symbols	Constant	Flashing	Meaning
	●		The coffee grounds collector is missing or improperly positioned
		●	Empty the coffee grounds collector + empty the drip tray
		●	Refill the water tank The water tank is not properly in place
		●	Place a container (0.6 L minimum) under the steam and coffee jets
	●		Maintenance cycle in progress
		●	Malfunction: unplug the machine for ten seconds then plug it back in
	●		Install filter cartridge
	●		Rinsing cycle in progress
	●	●	Clean machine with KRUPS cleaning tablet
		●	Cleaning cycle interrupted
	●	●	Descale machine with KRUPS descaling sachet
		●	Descaling cycle interrupted
	●		Adjust the water hardness
	●		Enable automatic rinsing of the coffee circuit when the machine starts.
	●		Program the length of time after which your machine switches off automatically (standby)
	●	●	Adjust the coffee temperature/Pre-heating indicator
	●		Favourite A or B - 2 drinks can be saved in memory
		●	Registering favourite A or B
	●	●	Preparation progress indicator
PRESS START	●		Press the START-STOP button
	●		Coffee strength indicator
			Volume or time indicator
	●		Number of cups (1 or 2)
			Active use indicator
			Maintenance or settings selection

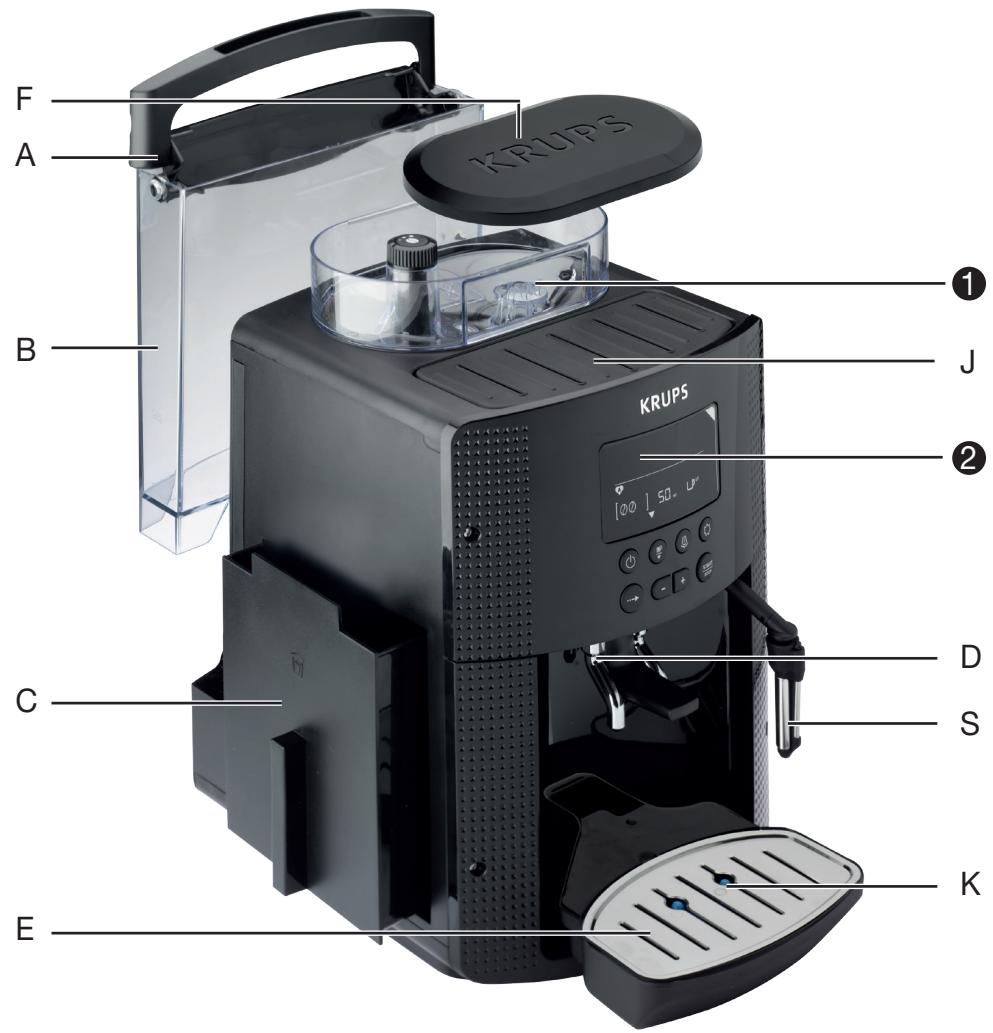

APPLIANCE DESCRIPTION

A. Water tank lid B. Water tank C. Used grounds collector D. Coffee outlet and height-adjustable handle E. Grid and removable drip tray F. Coffee bean container lid ① Coffee bean container G. Coffee grounds fineness adjustment knob H. Metal grinder I. Cleaning tablet funnel J. Cup grid (may vary according to model)

K. Water level float 2 Graphic screen L. On/off button M. Coffee and favourites button N. Steam button 0. Settings button P. Navigation button Q. + or - button R. Start/stop button S. Steam nozzle

BEVERAGE PREPARATION

TYPES OF COFFEE	Number of possible cups	Possible settings Volume (ml)	Possible settings Strength
RISTRETTO	1	20 to 30 ml (per 10 ml)	1 to 3 beans
	2 x 1	2 x 20 to 30 ml (per 10 ml) In two cycles
ESPRESSO	1	30 to 70 ml (per 10 ml)	1 to 3 beans
	2 x 1	2 x 30 to 70 ml (per 10 ml) In two cycles
COFFEE	1	80 to 180 ml (per 10 ml)	1 to 3 beans
	2 x 1	2 x 80 to 180 ml (per 10 ml) In two cycles

BEVERAGE PREPARATION

Appliance preparation

To prevent used water spillage from making your work surface dirty and to avoid burning yourself, don't forget to attach the drip tray. Remove and refill the water tank (1-2). ■ Refill the coffee bean container (3).

First use

Turn on the appliance by plugging it in then pressing the on/off button (4). The machine pre-heats. At the end of the cycle, the symbols and start button start to flash. Put a 0.6L container underneath the two coffee and steam nozzles. Press the start/stop button (5). The machine starts and rinses the hydraulic circuits (coffee and steam) for around 2 minutes. At the end of the initialisation cycle, the coffee types menu appears. (6) ■ You are advised to rinse the circuit if you have not used your machine for several days (see the chapter on Maintaining Your Appliance).

Preparing the grinder

You can adjust the strength of your coffee by adjusting how finely the coffee beans are ground.

Generally, the finer the coffee is ground, the stronger and creamier the coffee will be, but this also depends on the type of coffee used.

Adjust the fineness of grinding by turning the coffee grounds fineness adjustment knob 0 which is located in the coffee bean container. It is advised that you do this during grinding, one notch at a time.

After 3 rounds, you will notice a pronounced difference in taste. To the left, the grounds are finer. To the right, the grounds are coarser. (7)

Claris F 088 - Aqua Filter System cartridge (Sold separately)

To optimise the taste of your drinks and the lifespan of your appliance, you are advised to only use a Claris - Aqua Filter System cartridge with your machine (see the chapter OTHER FUNCTIONS - Installing the filter).

Every time you place a Claris-Aqua Filter into the machine you must prime the filter before using the machine by activating the "install filter cartridge" program.

MAKING AN ESPRESSO AND A COFFEE

Note:

The amount of water for making an espresso is between 30 and 70 ml.

The amount of water for making a coffee is between 80 and 180 ml.

Starting preparation (with 1 or 2 cups)

Press the on-off button, and wait for the appliance to finish heating up. The coffee types menu is displayed. The function indicator ▸ is shown above the coffee types button (6). Place one or two cups under the coffee jets. You can lower or raise the coffee jets according to the size of your cup (8). Select the coffee strength (shown coffee beans displayed on the screen in brackets) with the + button to increase or the - button to decrease. (9). Press the navigation button to set the volume: select the volume of water displayed on the screen between brackets using the + or - buttons (10). - Press the navigation button to set the number of cups: select 1 or 2 cups, displayed on the screen between brackets using the + or - buttons. Press the START button (11). ■ You can set the water volume at any time using the + or - buttons To stop the flow into your cup, press the STOP button ■ You can also adjust the temperature of your coffee (see the chapter OTHER functions - Settings).

Two cup function

The appliance will automatically carry out 2 full cycles of coffee preparation.

MAKING DRINKS USING STEAM

Steam is used to froth the milk, for example when preparing a cappuccino or caffe latte, and also to heat up liquids. As a higher temperature is required when producing steam than when making an espresso, the appliance will launch an additional pre-heating phase.

Frothing milk

■ For best results, you are advised to use very fresh, very cold pasteurised or UHT milk, recently opened. Unpasteurised milk does not produce the best results. Check that the steam nozzle is correctly positioned. Pour the milk into a milk jug which has a handle or into a cappuccino cup. Only fill it half way. ■ When the screen displays the drink selection menu, press the steam button (12). The function indicator is located above the steam button. Insert the steam nozzle into the milk.

A screen indicates that the appliance is heating up. Once the appliance has finished heating up, you can begin to make steam by pressing START , and following these steps (13):

Step 1: holding the milk jug in place, insert the steam nozzle approximately 2 cm into the milk and wait for it to start frothing.

Step 2: raise the container slightly (approximately 1 cm ). Do not completely submerge the metal tube.

Step 3: gradually lower the container as the froth accumulates. (14)

When you have frothed the milk enough, press the STOP button to stop the cycle. Warning: the cycle does not stop immediately. To remove any milk traces from the steam nozzle, place a container under the nozzle and start the steam function again (approximately 10 seconds). The steam nozzle is removable in order to allow for deep cleaning. Wash it with water and a little non-abrasive detergent using a brush. Rinse and dry (15-16). Before replacing, make sure that the air holes are not clogged with milk residue. Unclog the holes with the needle supplied with your appliance if necessary (17). To stop the steam, press the STOP button.

WARNING: THE CYCLE DOES NOT STOP IMMEDIATELY.

Steam can be produced for a maximum of 2 minutes per cycle.

Auto-cappuccino XS 6000 set (sold separately)

This auto-cappuccino accessory enables you to make cappuccinos or lattes (18). Connect the different parts to each other. Ensure that the pipe is not pierced by keeping the knob in the correct place. After removing the lid, fill the jug with milk (19) and place a cup or glass under the auto-cappuccino nozzle (20). Select cappuccino or latte on the special nozzle (21). Start steam, as indicated in the chapter Making drinks with steam. Once you have made the milk froth, place your cup under the coffee jets and start a coffee cycle (22).

To prevent the milk from drying on the auto-cappuccino accessory, ensure that you clean it thoroughly. You are advised to wash it immediately by running a steam cycle with the accessory jug filled with water in order to clean the inside of the nozzle. For this you can use the KRUPS liquid detergent available separately.

MAINTAINING YOUR APPLIANCE

Emptying the coffee grounds collector and the drip tray

■ If the symbol starts flashing, empty and clean the drip tray (the drip tray may contain coffee grains) and the coffee grounds collector (23-25). The drip tray is fitted with floats which indicate when it needs to be emptied (26). Once you have removed the coffee grounds collector, you should empty it completely in order to avoid any overflow. The warning message will continue to be displayed if the coffee grounds collector is not pushed in or inserted correctly (24). You cannot make an espresso or a coffee while the warning message is shown.

Rinsing the circuits :

Press the maintenance and settings button (27). The function indicator is shown above the maintenance button.

If necessary, using the navigation button, select the rinse symbol

Press START, rinsing starts and finishes when the coffee menu appears.

Automatic rinsing of the circuits when the machine starts.

You can choose to program the machine to be rinsed automatically each time it is turned on. To do this, press the maintenance and settings button (27). Using the navigation button, select the automatic rinsing programming symbol. Press the button to choose ON, which confirms this program. If you press the button again, automatic rinsing is disabled. You can return to the coffee types menu by pressing the button.

Warning: after this rinsing process, hot water will be released from the coffee jet. Ensure that the drip tray is in place even when the machine is not being used. The cycle lasts only a few seconds and stops automatically.

Cleaning program - total duration: approximately 13 minutes

You do not have to run the cleaning program as soon as the appliance requests it, but it must be done reasonably soon after. If cleaning is postponed, the alert message will remain illuminated until the process is carried out.

• When the symbol lights up, you can run the automatic cleaning program by pressing the maintenance and settings button. The symbol is selected. The function indicator is shown above the maintenance button. The automatic cleaning program is divided into 2 stages: the cleaning cycle itself, followed by the rinse cycle. You can clean the machine at any time by pressing the maintenance and settings button, then, using the navigation button, select the cleaning symbol. To run this cleaning program, you will need a container which holds at least 0.6 L and which can be placed beneath the coffee jets and the steam nozzle. The symbol flashes. Lift the cup grid (28). Insert the KRUPS cleaning tablet (29). Fill the water container to its maximum level of 1.7 L (2). Empty the coffee grounds collector and the drip tray (23-25). Put a 0.6 L container under the coffee and steam jets (30). Press START. The symbol becomes constant. The first phase (approximately 10 minutes) begins. When this phase has finished, empty the container and the drip tray. The symbol flashes. Put the parts back in place. Press START. The symbol becomes constant, the final phase (approximately 3 minutes) begins. When this phase has finished, empty the container and the drip tray. The cycle has finished, the coffee types menu appears.

Note: if you turn off or unplug your machine during cleaning or if there is a power failure, the cleaning program will start from the beginning of the program once the power is restored to the appliance. It is not possible to postpone this process. It is obligatory in order to rinse the water circuit. In this case, a new cleaning tablet may be necessary. It is best to run the full cleaning program in order to avoid any risk of poisoning. The cleaning cycle is irregular: do not put your hands under the coffee jets while the cycle is running.

Descaling program - duration: approximately 20 minutes

You do not have to run the descaling program as soon as the appliance requests it, but it must be done reasonably soon after. If descaling is postponed, the alert message will remain illuminated until the process is carried out.

The amount of limescale collected depends on the hardness of your water.

Warning: if your product is fitted with our Claris - Aqua Filter System cartridge, remove the cartridge before descaling.

• When the 串 symbol lights up, you can run the automatic descaling program by pressing the maintenance and settings button (27). If necessary, using the navigation button, select the 串 symbol. The 串 symbol flashes and the function indicator is located above the maintenance button. ■ To run the descaling program, you will need a container which holds at least 0.6 L and a sachet of KRUPS descaler. ■ Fill the water tank up to the CALC mark then pour in the contents of one sachet (31). Put a 0.6 L container under the coffee and steam nozzles. Press START to begin the first phase (approximately 8 min). The symbol becomes constant. When this phase has finished, empty the container and the drip tray. The and symbols flash. Remove and clean the water tank using a sponge. Once clean, refill your water tank and replace all parts. The symbol disappears. Press START to begin the second phase (approximately 6 min). The symbol becomes constant. When this phase has finished, empty the container and the drip tray. The symbol flashes.

Press START to begin the final phase (approximately 6 min). The symbol becomes constant. When this phase has finished, empty the container and the drip tray. Descaling is complete.

Note: if you turn off or unplug your machine during descaling or if there is a power failure, the cleaning program will start from the beginning of the program once the appliance is restarted. It is not possible to postpone this process. It is obligatory in order to rinse the water circuit. Running the descaling program is advisable. The descaling cycle is irregular: do not put your hands under the steam jet.

Once the cycle has finished, the coffee types menu appears.

OTHER FUNCTIONS

■ You can access the appliance's OTHER FUNCTIONS menu by pressing the maintenance and settings button. For all settings, use the navigation button and + or - for the values. To come out of the maintenance and settings menu, press the button.

MAINTENANCE

All of the following options allow you to run the selected programs:

MAINTENANCE		Allows you to access rinsing.
	K	Allows you to access cleaning.
		Allows you to access descaling when the appliance requests it.
		Allows you to prime the filter (Claris cartridge).
		Return to coffee types menu.

TURNING OFF YOUR APPLIANCE

You can turn off your appliance at any time. When stopped, the machine emits a double beep and OFF is displayed on the screen. The appliance has registered your request and will stop as soon as possible.

SETTINGS

All of the following options allow you to run the selected programs:

SETTINS		You can set your water hardness between 0 and 4 by pressing the + or - buttons . See “Measuring water hardness” (below)
		You can program automatic rinsing each time the appliance is turned on by pressing the buttons and selecting ON.
		You can choose the period after which your appliance will turn off automatically (between 15 and 120 minutes by pressing the buttons).
		You can adjust the temperature of your coffee to three different levels by pressing the buttons.
		Return to coffee types menu.

Measuring water hardness

It is advisable to adjust the appliance according to the hardness of the water used. To check the water hardness, use the stick supplied with your machine or contact your local water authority.

Degree of hardness	Class 0 Very soft	Class 1 Soft	Class 2 Average hardness	Class 3 Hard	Class 4 Very hard
° dH	< 3°	> 4°	> 7°	> 14°	> 21°
° e	< 3,75°	> 5°	> 8,75°	> 17,5°	> 26,25°
° f	< 5,4°	> 7,2°	> 12,6°	> 25,2°	> 37,8°
Appliance settings	0	1	2	3	4

Installing the filter (Claris - Aqua Filter System cartridge) (32)

Note: To correctly install your cartridge, ensure that you follow the installation procedure each time you replace it. (33) A mechanism which memorises the month in which the cartridge was changed and replaced (after a maximum of 2 months): set the date using the cartridge cursor. Fit the cartridge in the tank (34). In the maintenance and settings menu, the function indicator is located above the maintenance button. Using the navigation button, select the filter cartridge installation symbol. The symbols and the start button start to flash. Place a 0.6 L container under the steam nozzle.

Press start. The start-up cycle begins and finishes when the coffee types menu appears.

TROUBLESHOOTING

If one of the problems described in the table persists, contact KRUPS customer service.

PROBLEM MALFUNCTION	CORRECTIVE ACTION
Your machine detects a fault: a symbol appears.	Switch off and disconnect the machine, remove the filter cartridge, wait for a minute and restart the machine.
The appliance does not turn on when the button is pressed.	Check your fuses and plug sockets. Check that the two power plugs are pushed in properly both on the appliance and at the socket.
The coffee grinder makes a strange noise.	There is a foreign body in the grinder. Disconnect the machine before investigating. See if you can extract the foreign body using your vacuum cleaner.
The steam nozzle makes a noise.	Check that the steam nozzle is correctly attached to its corresponding end piece.
The steam nozzle on your machine seems partially or completely clogged.	Ensure that the opening in the end piece is not obstructed by milk residue or limescale. Unclog the holes with the needle supplied with your appliance.
The steam nozzle makes little or no milk froth.	For milk-based drinks, you use very fresh, very cold pasteurised or UHT milk. It is also advisable to use a cold container. If the results do not improve, try changing the brand of milk.
No steam comes out of the nozzle.	Empty the tank and temporarily remove the filter cartridge. Fill the water tank with mineral water which is high in calcium (>100 mg/l) and run successive steam cycles.
The auto-cappuccino setting makes little or no froth. The auto-cappuccino setting does not take in milk.	Check that the accessory is correctly attached to the appliance, remove it then replace it. Check that the flexible tube is not obstructed or pierced and that it is correctly attached to the accessory so as to make it airtight. Rinse and clean the accessory (refer to the "Auto-cappuccino accessory" chapter).
There is water underneath the appliance.	Before removing the water tank, wait for 15 seconds after the coffee has fini-shed flowing so that the machine finishes its cycle properly. Check that the drip tray is correctly positioned on the machine; it should always be in place, even when the appliance is not in use. Check that the drip tray is not full. The drip tray should not be removed during a cycle.
After emptying the coffee grounds collector, the warning message is still displayed on the screen.	Correctly replace the coffee grounds collector and follow the instructions on the screen. Wait at least 8 seconds before replacing them.
The coffee dispenses too slowly.	Turn the coffee fineness knob to the right to make the grounds courser (this could also depend on the type of coffee used).Run one or several rinsing cycles. Run a machine clean (see “Cleaning program”). Change the Claris Aqua Filter System cartridge (see “Installing the filter”).
Water or steam comes out abnormally from the steam nozzle.	At the beginning or end of making a drink, the steam nozzle may drip slightly.
The coffee fineness knob is difficult to turn.	Only change the grinder setting when it is running.
The espresso or coffee is not hot enough.	Increase the coffee temperature in the Maintenance and settings menu ❶. Warm the cup by rinsing it with hot water before making the drink.
The coffee is too lightly coloured or too weak.	Avoid using oily, caramelised or flavoured coffee. Check that the coffee bean container has coffee in it and that it is dispensing correctly. Decrease the drink volume, increase the drink strength. Turn the coffee fineness knob to the left to make the grounds finer. Make the drink in two cycles by using the 2 cups function.
The appliance is not producing coffee.	A problem has been detected during preparation of the drink. The appliance has restarted automatically and is ready for a new cycle.
Why can I not run descending/why does my machine not request a descending cycle?	The machine only requests a descending cycle once it has made a certain number of drinks using steam.
A power failure occurs during a cycle.	The appliance is automatically restarted when power is switched back on.
The appliance is working but no liquid is coming out.	Check that the water container is in the correct position and that the cord is not jammed between the appliance itself and the water container.
Coffee grains have found their way into the drip tray.	This happens if coffee grains fall outside the percolation tank; this keeps the machine clean.

Danger: Only a qualified technician is authorised to carry out repairs on electrical wiring and carry out work on the electrical grid. If you do not follow these instructions, you risk death by electrocution! Do not use an appliance that is visibly damaged!

DESCRIPTION OF THE APPLIANCE

Dear customer, we hope you get much pleasure from your Krups machine.

The Krups team

Коньки Фуннцли
Klonka «ВКлочпь-выклочпь»	Habirационая Конька (népeмшение курсopa)
Конька р ecentра лобиморо кофe A иri B КорOTКоe Нжатime Коньka запис лобимьх р ecENTВО A иri B п探测импелhoe Нжатime	PergunpoBaHne ВыбразныnapametroB
Коньka вынска пара	START STOP	Вкlioquеніе ппь выкlioquеніе Функции
Коньka облухиевая и konфиогураціи	PergunpoBaHne TohKocStn Помona кофeйых зерн
Пиктогамы	Горит постotingн	Miraet	Заночenie
	●		Контунер ддя оtrapobotанноу кофe отсутстуET пп уstановlen ненравиьно
		●	ОпuctошITE контунер ддя оtrapobotанноу кофe + опuctошITE поок ддя собра калель
		●	Налочite р ecERByAPВODоI РесERByAPДЯ ВODыннравиьно установlen
		●	Посавиь р ecERByAP(0,6л мини) по паровoe conлLO u yстюсТВО падч Кофe
	●		БыночЯется сикл ооблухиевая
		●	Сбий в pa紹fte: откlioquite устюстvo на 10 секунд, заlem с choва Вкlioquite
	●		Устовka с Pilь trуюцero зелем enta
	●		Быночяется сикл прмьВКИ
	●	●	Треуется очирсту c помошьTO tabлЕтki ддя очирсту KRUPS
		●	Сикл очирсту перван
	●	●	Треуется очирсту c помошьTO credSTBA ддя удаленян有很大и римп KRUPS
		●	Сикл устанения有很大и перван
	●		PergunpoBaHne JeztcKostn Вды
	●		ПрогамmarpoBaHne АВТOMATИЧESКОй рcompьВКИ устюства有很大и кофe пrim ВКlioquени машни
	●		ПрогамmarpoBaHne有很大и лесп кOTOPORO устюстBO AVTOMATИЧESКI ВыночиТСС(T спп He Испьз汞ся)
	●	●	PergunpoBaHne Temmepatурblу кофe/Ykazанie有很大и р dedвапгел�ынго有很大и рогревa
	●		В有很大у можно Вьcent DA влбимьх р eceNTA A иri B
		●	Вьod в有很大у льбимьх р eceNTВО A иri B
PRESS START	●	●	Индikatop有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大�� <|im_start|>assistant [020]
[888m]	●		Индikatop有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и有很大и很大и有很大и有很大и有很大�

LIST OF BUTTON AND FUNCTION SYMBOLS

A. Handle/lid of the water tank B. Water tank C. Coffee bean container D. Height-adjustable coffee outlets, handle E. Drip tray with removable grid F. Lid of the coffee bean container 1 Coffee bean container G. Button for adjusting the fineness of the grind H. Coffee grinder with metal blades I. Steam nozzle for cleaning

J. Cup tray (depending on model) K. Water level floats 2 Graphic display L. On/Off button M. Coffee button and long coffee N. Steam button O. Settings button P. Navigation button Q. Plus and minus buttons R. Start/Stop button S. Steam nozzle

PREPARATION OF DRINKS

Preparing the device.

To prevent the working surface of the press from becoming dirty due to water splashes, do not forget to place a tray underneath. Remove the water reservoir and fill it (1-2). Fill the container for ground coffee beans (3).

First use

Turn on the machine by connecting it to the power supply and pressing the On/Off switch (4). The machine performs a preheating cycle. At the end of the cycle, the start button indicator will light up. Place a container with a capacity of 0.6 L under the coffee spouts.

Press the start/stop button (5). The machine is in the rinsing cycle for the hydraulic systems (coffee and steam) for about 2 minutes. At the end of the cycle, the default position is displayed on the display with the coffee recipes. (6) It is recommended to rinse the system a few days after use (see the device maintenance section).

Preparing the coffee grinder

You can adjust the strength of your coffee by setting the grinding level of the coffee beans. In general, the finer the coffee bean grind, the stronger and more flavorful the coffee. The quality of the drink also depends on the type of coffee used.

Set the grinding level by turning the grinder adjustment knob, located in the container for coffee beans. It is recommended to perform this operation while the grinder is running, gradually moving the recommendations. By trying coffee with different grinds, you will clearly notice the differences in taste. Turning clockwise sets a finer grind. Turning counterclockwise sets a coarser grind.

Starting preparation (1 or 2 cups)

Press the On/Off button and wait for the end of the preheating cycle. The display shows the coffee recipe. The function indicator is located on the coffee recipe selection button (6). Place one or two cups under the coffee spouts. You can lower or raise the coffee spouts according to the size of your cups. (8). Select the coffee strength (indicated by coffee beans on the display in brackets) using the + button to increase and the - button to decrease. (9). Press the navigation button to enter the water volume menu: select the water volume, displayed on the screen in brackets, using the + and - buttons (10). Then press the navigation button to enter the number of cups setting menu: select 1 or 2 cups, displayed on the screen in brackets, using the + and - buttons. Press the START button (11). At any time, you can adjust the water volume with the + and - buttons. To stop the coffee flow into the cup, press the STOP button. You can also adjust the temperature of your coffee (see the OTHER FUNCTIONS - Settings section).

Two cups function

The machine automatically produces 2 full coffee preparation cycles.

AUTOMATIC RINSING OF THE SYSTEM AFTER MACHINE STARTUP

You can select an automatic rinsing program during each start. To do this, press the maintenance and configuration button (27). Using the navigation buttons, select the automatic rinsing program. Press the selection button to confirm the input and activate the program. If you press the button, the automatic rinsing is cancelled. You can return to the recipe menu by pressing the button.

Warning! During the rinsing operation, hot water flows out of the coffee outlet. Make sure that the jug is in its place, even when the machine is not in use. The cycle lasts only a few seconds and stops automatically.

Cleaning program - total duration: about 13 minutes

You are not obliged to start the cleaning program immediately after the machine prompts you.

However, try to carry out this procedure as quickly as possible. If the cleaning process is postponed, a warning message will be displayed until the cleaning is carried out.

During the program display, you can start the automatic cleaning program by pressing the maintenance and configuration button. Select the program. The function indicator and the position of the maintenance button are shown. The automatic cleaning program consists of two parts: the cleaning cycle itself, and then the rinsing cycle. At any moment you can start the cleaning procedure by pressing the maintenance and configuration button, then using the navigation buttons select the cleaning program. For the procedure level, you need a container with a capacity of at least 0.6 l, which must be placed under the coffee outlets and the steam nozzle. The program starts. Lower the grate for the cups (28). Insert the KRUPS cleaning tablet into its housing (29). Fill the water reservoir to the maximum level of 1.7 l (2). Empty the container for used coffee and the drip tray (23-25). Place a container with a capacity of 0.6 l under the coffee and steam nozzles (30). Press the START button. The program starts. The first phase (about 10 min) starts. At the end of this phase, empty the container and the drip tray. The symbol flashes. Put the elements back in place. Press the START button. When the symbol stops flashing, the final phase starts (about 3 min). At the end of this phase, empty the container and the drip tray. At the end of the cycle, the coffee recipe menu is displayed.

Note: If you unplug the machine during the cleaning process, or if there is a power failure, the cleaning program will start again when power is restored. It is not possible to postpone this operation, as it is mandatory for the start of the rinsing procedure of the system. In this case, the use of a new cleaning tablet may be necessary. It is important to carry out the cleaning procedure correctly and completely to avoid the risk of poisoning. The cleaning cycles are carried out with interruptions; do not put your hands under the coffee outlets during the cycle.

Descaling program - duration: about 20 minutes

The machine will prompt you to run the descaling program immediately after it informs you of the need to descale. But try to perform this descaling procedure as quickly as possible. If the descaling procedure is delayed, a warning message will be displayed until it is carried out.

The amount of scale formed depends on the hardness of the water used.

Warning! If your machine is equipped with the original Claris - Aqua Filter System, remove it before starting the descaling operation.

When the program is displayed, you can start the automatic descaling program by pressing the service button (27). If necessary, use the navigation button to select the program. The program indicator is located next to the service button. To perform descaling, you will need a container of at least 0.6 L, as well as KRUPS descaling agent. Fill the water reservoir up to the CALC mark, then add the agent (31). Place a container with a capacity of 0.6 L under the coffee spout and the steam wand. Press the START button to start the first stage (about 8 min). The program runs continuously. At the end of this stage, empty the container and the drip tray. The program indicator is off. Rinse the water reservoir with a sponge. Fill the reservoir if it is empty, and put all elements back in place. The program is not running. Press the START button to start the second stage (about 6 min). The program runs continuously. At the end of this stage, empty the container and the drip tray. The indicator is off. Press START to start the final stage (about 6 min). The program runs continuously. At the end of this stage, empty the container and the drip tray. The descaling procedure is complete.

Note: If you switch off the machine during the cleaning process, or if there is a power failure, the descaling program will restart from the beginning when power is restored. It is impossible to postpone this operation, as it is mandatory for the proper functioning of the system. For the correct execution of the descaling procedure, the descaling cycle is performed in stages. It is forbidden to insert hands into the outlet opening.

At the end of the cycle, the coffee recipes menu is displayed.

OTHER FUNCTIONS

Access to the other functions menu of the device is done using the service button. For navigation, use the navigation button and the + or - buttons to set or change values. To exit the service menu, press the button.

MAINTENANCE

All these operations allow you to start the selected programs:

PABOTPOVXYOу	ПОЗВOLЯЕТ ПОЛУЧИТ ДОСТУР K Фун的游戏 К ровьага.
	ПОЗВOLЯЕТ ПОЛУCHИТ ДОСТУР K Фун的游戏 К ровьага.
	ПОЗВOLЯЕТ ПОЛУCHИТ ДОСТУР K Фун的游戏 К ровьага.
	ПОЗВOLЯЕТ ПОЛУCHИТ ДОСТУР K Фун的游戏 К ровьага.
	ПОЗВILDAТ ПОЛУCHI T B DEICTBVE Фильчр (патрон Clearis).
	ВOSTВРАТ В MEHLO C REÇENTAMN KOФe.

SWITCHING OFF

You can interrupt the operation of the device at any time. During shutdown, a double acoustic signal is emitted, and the message OFF appears on the display. The device will stop quickly and perform a rapid stop.

SETTINGS

All these operations allow you to start the selected programs:

Automatic rinsing of the system before starting the device

You can program automatic rinsing after each appliance use. Press the

SERVICE button (27). Using the navigation buttons, select the automatic rinse program. Press the SELECT button to confirm the program. Then press the START button; the automatic rinse will begin.

You can return to the recipe selection menu by pressing the EXIT button. During rinsing, hot water flows through the outlet opening. Make sure the drip tray is in place; otherwise, the appliance may not work correctly. If this happens, the appliance will stop automatically after a few seconds.

Cleaning program - duration: approximately 13 minutes

It is not mandatory to perform the appliance cleaning immediately after receiving a notification, but it should be done as soon as possible. If the cleaning is not performed, the notification will remain on the appliance display until you perform this operation.

When the cleaning program is selected, you can start the automatic cleaning program by pressing the SERVICE and SETTINGS buttons. The selected program is indicated by the function indicator. The automatic cleaning program includes 2 stages: 1 cleaning cycle and 2 rinsing cycles. You can perform the cleaning at any time by pressing the SERVICE and SETTINGS buttons, then using the navigation buttons to select the cleaning program. For cleaning, you will need a container with a capacity of at least 0.6 liters, which must be placed under the water inlet and steam nozzle. The program will start. Remove the cup holder (28). Insert the cleaning tablet into the holder (29). Fill the reservoir with water to the maximum level (1.7 L) (2). Empty the coffee grounds container and the drip tray (23-25). Place the container with a capacity of 0.6 L under the water inlet and steam nozzle (30). Press the START button. The program will start. The first phase begins (duration approximately 10 minutes). After this phase, empty the container and place it back for collecting drops. The program will continue. Collect all parts and put them back in place. Press the START button. The program will continue, and the final stage will begin (duration approximately 3 minutes). After this phase, empty the container and place it back. When finished, the recipe selection menu will appear.

Attention. If you turn off the appliance during cleaning or it turns off due to a power outage, the program will restart after the appliance is turned on. This operation is not dangerous, as it is a mandatory part of the correct rinsing of the system. In this case, a new cleaning tablet may be needed. To avoid the risk of burns, it is necessary to correctly perform the full rinsing cycle of the appliance. This rinsing is continuous, and during the entire operation, the outlet opening must not be blocked.

Cleaning program for scale - duration: approximately 20 minutes

It is not mandatory to perform the descaling cleaning immediately after receiving a notification, but it should be done as soon as possible. If the descaling cleaning is not performed, the notification will remain on the appliance display until you perform this operation.

The thickness and density of the scale depend on the hardness of the water.

Attention! Before using your appliance with the descaling cartridge Claris - Aqua Filter System, or before descaling, you must remove the filter.

When the descaling indicator lights up, you can start the automatic descaling program by pressing the service and settings button (27). If necessary, use the navigation button to select the program. The program will start, and the function indicator will light up above the service button. During the descaling cycle, the appliance will remind you to empty the container with the descaling solution. Fill the reservoir with water up to the CALC mark, then insert the descaling tablet (31). Place a container with a capacity of 0.6 liters under the steam nozzle. Press the START button to begin the first phase (duration approximately 8 minutes). The program

will stop. After the first phase, empty the container and place it back under the steam nozzle. The program will resume. Remove and rinse the water reservoir with a sponge.

Fill the reservoir and put it back in place. The program will continue. Press the START button to begin the second phase (duration approximately 6 minutes). The program will stop. After the second phase, empty the container and place it back under the steam nozzle. The program will resume. Press the START button to begin the final phase (duration approximately 6 minutes). The program will stop. After the final phase, empty the container and place it back under the steam nozzle. The descaling cycle is complete.

Note: If the appliance is unplugged during the descaling cycle or if there is a power outage, the program will restart when the appliance is plugged back in. This operation cannot be skipped, as it is mandatory for the proper functioning of the system. Do not interrupt the descaling cycle. The descaling cycle is continuous, so do not touch the steam nozzle during it.

Once completed, the menu for selecting the coffee recipe will be displayed.

SETTINGS

The settings menu is accessed through the service and settings button. For all settings, use the navigation button and the «+» or «-» buttons to change values. To exit the service and settings menu, press the

SERVICE

The following items will allow you to start the selected programs.

PREPARING ESPRESSO AND COFFEE

Warning:

The amount of water for espresso is 30-70 ml.

PROBLEMS AND THEIR SOLUTIONS
