CG7212 - Coffee maker UFESA - Free user manual and instructions

Product type	Drip coffee maker
Brand	UFESA
Model	CG7212
Power supply	220-240 V, 50/60 Hz
Power	1000 W
Water tank capacity	1.2 L (about 8 cups)
Carafe	Glass with graduations, matching capacity
Filter	Permanent, reusable
Anti-drip system	Yes, stops flow if carafe is removed (max 30 seconds)
Automatic shut-off	Yes, after 30-40 minutes of inactivity
Hot plate	Yes, keeps coffee warm
Visible water level	Yes, on the tank
Filter holder	Swivel, easy access
Included accessories	Measuring spoon, permanent filter
Dimensions (approx.)	25 x 20 x 30 cm
Weight (approx.)	1.5 kg
Care and cleaning	Wipe exterior with a soft cloth; removable parts washable in soapy water, do not put in dishwasher
Safety	Do not immerse; damaged cord must be replaced by a professional; fill tank before switching on; hot surfaces after use
Spare parts and repairability	Standard parts (filter, carafe, etc.) available; repair by authorized service center
Warranty	2 years, subject to proper use

Frequently Asked Questions - CG7212 UFESA

How to clean the UFESA CG7212 coffee maker?

Unplug the appliance. Clean the exterior with a soft dry cloth. Wash the removable parts (filter, carafe, holder) in warm soapy water, rinse and dry them. Do not put these parts in the dishwasher and never immerse the base in water.

Can I reheat coffee in the microwave with the carafe?

No, never place the carafe on a stove or in a microwave. Use the coffee maker's hot plate to keep the coffee warm.

What to do if coffee does not flow or flows slowly?

Check that the permanent filter is not clogged and is properly installed. Make sure the carafe is correctly positioned. The anti-drip system may block if the carafe is removed for more than 30 seconds. Clean the filter and filter holder regularly.

How to descale the coffee maker?

The manual does not specify descaling. Use a mild coffee maker descaling product following the instructions. Then rinse by running two cycles with plain water only.

What is the water tank capacity?

The tank has a capacity of about 1.2 liters, which allows preparing about 8 cups of coffee. Observe the indicated MAX and MIN levels.

Does the automatic shut-off work even if the hot plate is on?

Yes, the appliance turns off automatically 30 to 40 minutes after the brewing process ends if no action is taken. To restart, simply press the ON/OFF switch.

Can I use ground coffee other than recommended?

Yes, you can use standard ground coffee. Fill the filter up to 3/4 of its maximum capacity. Use the provided measuring spoon.

How to properly install the permanent filter?

Open the swivel filter holder, remove the holder, insert the permanent filter into the holder, then place everything back in the machine. Make sure it is properly seated to avoid leaks.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any risk. Do not use the appliance.

Where to find spare parts like the filter or carafe?

Contact the authorized after-sales service or the store where you purchased the appliance. Parts like the permanent filter and carafe are available. Refer to the list of authorized centers in the manual.

USER MANUAL CG7212 UFESA

• staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Never immerse the appliance in water or any other liquid.

During brewing and after use due to residual heat some parts of the machine are hot (filter holder, hotplate, jug filled with coffee).

The deposit must be filled with water before turning the appliance on.

Lift the lid

Fill the compartment with cold water.

Open the filter holder.

Remove the filter holder.

Fill the removable filter with ground coffee. Não exceeda os 3/4 da capacidade.

Check that the removable filter is perfectly fitted into the filter holder.

Fit the filter holder in the appliance once more.

You can use the measuring spoon to add coffee.

Utilização

To return to normal operation, simply press the ON/OFF switch.

MANUTENÇÂO E LIMPEZA

1. Do not forget to remove the plug from the socket before cleaning the appliance.
2. Limpe a parte externa com um pano suave e seco, nunca use material para polir metal.
3. The removable items should be washed in hot soapy water. Enxague-os antes de os voltar a colocar.
4. Wash the filter and cups.
5. Never use a dishwasher to clean any parts from the machine.
6. Put the coffee maker in a dry and not very hot place.

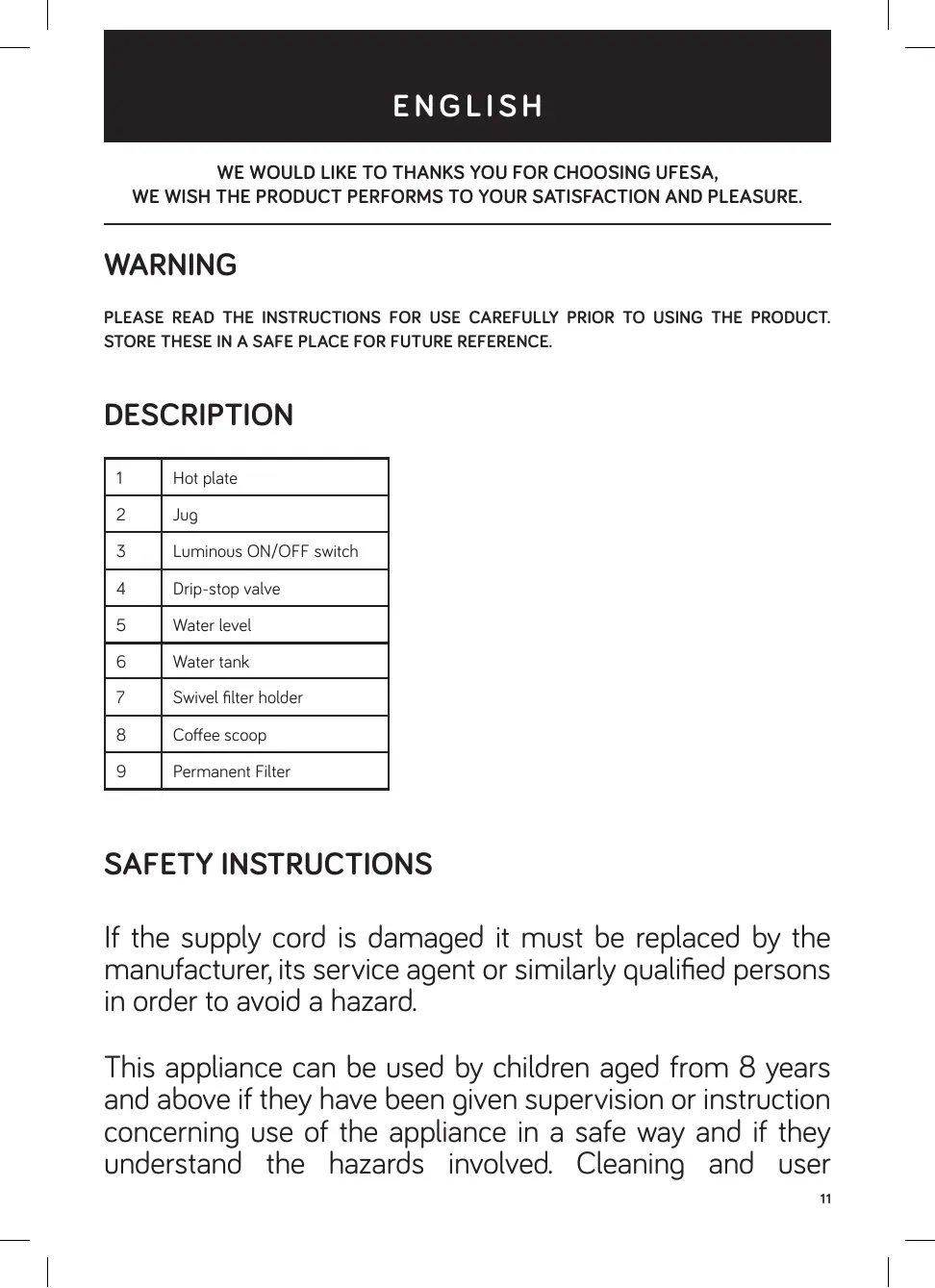

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1	Hot plate
2	Jug
3	Luminous ON/OFF switch
4	Drip-stop valve
5	Water level
6	Water tank
7	Swivel filter holder
8	Coffee scoop
9	Permanent Filter

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user

maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord our of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

This appliance is intended to be used in household. It is not intended to be use in applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Never immerse the appliance in water or any other liquid.

During brewing and after use due to residual heat some parts of the machine are hot (filter holder, hotplate, jug filled with coffee).

Warning: potential injury from misuse!

IMPORTANT WARNINGS

Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Never use your coffee machine without water in it.

Do not put the jug on a stove or in a microwave for re-heating of coffee.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDSL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

INSTRUCTIONS FOR USE

Before use

Make sure that all the product's packaging has been removed.

Before making coffee for the first time, we recommend using the coffee maker twice with water only, in order to clean the system.

Use

The deposit must be filled with water before turning the appliance on.

Lift the lid

Fill the compartment with cold water.

Fill the tank observing the MAX and MIN levels according to the number of cups of coffee to be made. Close the lid.

Filling with coffee

Open the filter holder.

Remove the filter holder.

Fill the removable filter with ground coffee. Not exceed 3/4 of the capacity

Check that the removable filter is perfectly fitted into the filter holder.

Fit the filter holder in the appliance once more.

You can use the measuring spoon to add coffee.

Use

The anti-drip system prevents the coffee from spilling when the jar is not in its position. However, if the jar is kept out of its position for over 30 seconds, before all the water has passed through the filter, the filter may overflow.

If you want to keep the coffee hot, place the jar on the heating plate without switching off the coffee maker

Auto-disconnection function

For the purpose of saving energy, the appliance goes to self-disconnection mode 30-40 minutes after the coffee-making process has finished if during the user has not performed any action with it during this period.

To return to normal operation, simply press the ON/OFF switch.

MAINTENANCE AND CLEANING

1. Do not forget to remove the plug from the socket before cleaning the appliance.
2. Wipe outside with soft dry cloth when coffee machine is wet, never use metal polish.
3. The removable items should be washed in hot soapy water. Rinse them before fixing.
4. Wash the filter and cups.
5. Never use a dishwasher to clean any parts from the machine.
6. Put the coffee maker in a dry and not very hot place..

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS TENONS À VOUS REMERCIER D'AVoir CHOISI UFESA. NOUS ESPÉRONS QUE VOUS SEREZ PLEINEMENT SATISFAIT DE CE PRODUIT ET QU'IL RÉPONDRA À VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÜR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

ÉLIMINATION DU PRODUIT

B&B TRENDs, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDs, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights

under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.
