6721 QUICK - Food processor OBH NORDICA - Free user manual and instructions

Product type	Mini chopper / Mini chopper
Brand	OBH Nordica
Model	6721 QUICK
Power supply	230 V~, 50 Hz
Power	150 W
Rotation speed	4500 - 5000 rpm
Blade material	Nickel-free stainless steel
Capacity (maximum quantities)	Parsley: 20 g, Onion: 100 g, Garlic: 5 cloves, Carrot: 150 g, Meat: 100 g, Hazelnuts: 100 g, Chocolate: 40 g
Safety	Integrated safety lock (appliance only starts when lid is properly closed)
Maximum continuous use time	1 minute
Recommended pause time	At least 3 minutes between uses
Cleaning	Bowl, lid and blade are dishwasher safe (top rack) or wash with warm soapy water. Wipe motor with a damp cloth. Never immerse the motor.
Included accessories	Bowl, lid, blade, motor
Usage	Household use only
Main functions	Chopping, mixing small quantities of ingredients
Recommended ingredients	Parsley, onion, garlic, raw carrots, meat, hazelnuts, chocolate
Prohibited ingredients	Grains, rice, ice, frozen foods, horseradish, spices, coffee beans
Warranty	Statutory warranty, keep the receipt
Customer service	OBH Nordica (see corresponding country)

Frequently Asked Questions - 6721 QUICK OBH NORDICA

How to use the OBH Nordica 6721 QUICK mini chopper?

Place the motor on a flat surface. Attach the bowl by turning counterclockwise. Put the blade on the central shaft. Add the ingredients, close the lid and turn it until it locks. Plug in and press the button to chop. Release to stop. Do not exceed 1 minute of continuous use.

What ingredients can I chop with this appliance?

You can chop parsley, onion, garlic, raw carrots, meat, hazelnuts and chocolate. Refer to the maximum quantities table in the manual. For optimal results, follow the indicated times.

Which ingredients should not be chopped?

Do not use grains, rice, ice, frozen foods, horseradish, spices or coffee beans. These ingredients can damage the blade and bowl and are not covered by the warranty.

How long can I run the appliance continuously?

The mini chopper must not run for more than 1 minute continuously. After each use, let the appliance cool down for at least 3 minutes before reusing.

How to clean the mini chopper?

Wash the bowl, lid and blade in warm soapy water or in the dishwasher (place them in the top rack). Wipe the motor with a damp cloth. Never immerse the motor in water.

Can I wash the parts in the dishwasher?

Yes, the bowl, lid and blade are dishwasher safe. Make sure to place them on the top rack to avoid deformation from intense heat. The motor is not dishwasher safe.

Is the motor removable for cleaning?

No, the motor is fixed. It should never be immersed in water or any other liquid. Clean it only with a damp cloth.

What to do if the appliance does not start?

Check that the lid is properly closed and locked. The safety lock prevents starting if the lid is not in place. Also ensure the plug is connected and the button is pressed.

Can I chop frozen foods?

No, frozen foods (ice, frozen meat) are prohibited. They can damage the blade and bowl. Use only room temperature or refrigerated ingredients (e.g. cold chocolate).

What is the power of the appliance?

The OBH Nordica 6721 QUICK mini chopper has a power of 150 W and operates at a speed of 4500 to 5000 rpm.

USER MANUAL 6721 QUICK OBH NORDICA

For easy and quick chopping

Making good!

Bruksanvising -SVENSKA.sida 3-6

Brugsanvising - dansk......side 7 - 10

Bruksanvisning - nordisk......side 11 - 14

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

TIf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6720, 6721

230 volt \~

150 watt

4.500 - 5.000 omdr./min.

Sikkerhedslås

Kniv i rustfrit, nikkelfrit stål

Korttidsdrift max. 1 min. (kontinuerligt)

C E

OBH Nordica Norway AS

Maridalsveien 15 E

0178 Oslo

TIf. 08-629 25 00

www.obhnordica.no

Tekniske data

OBH Nordica 6720, 6721

230V~

150 W

4.500-5.000omdr/min.

Sikkerhetslås

Kniv i rustfritt, nikkelfritt stål

Korttidsdrift. max. 1 min. (kontinuerlig).

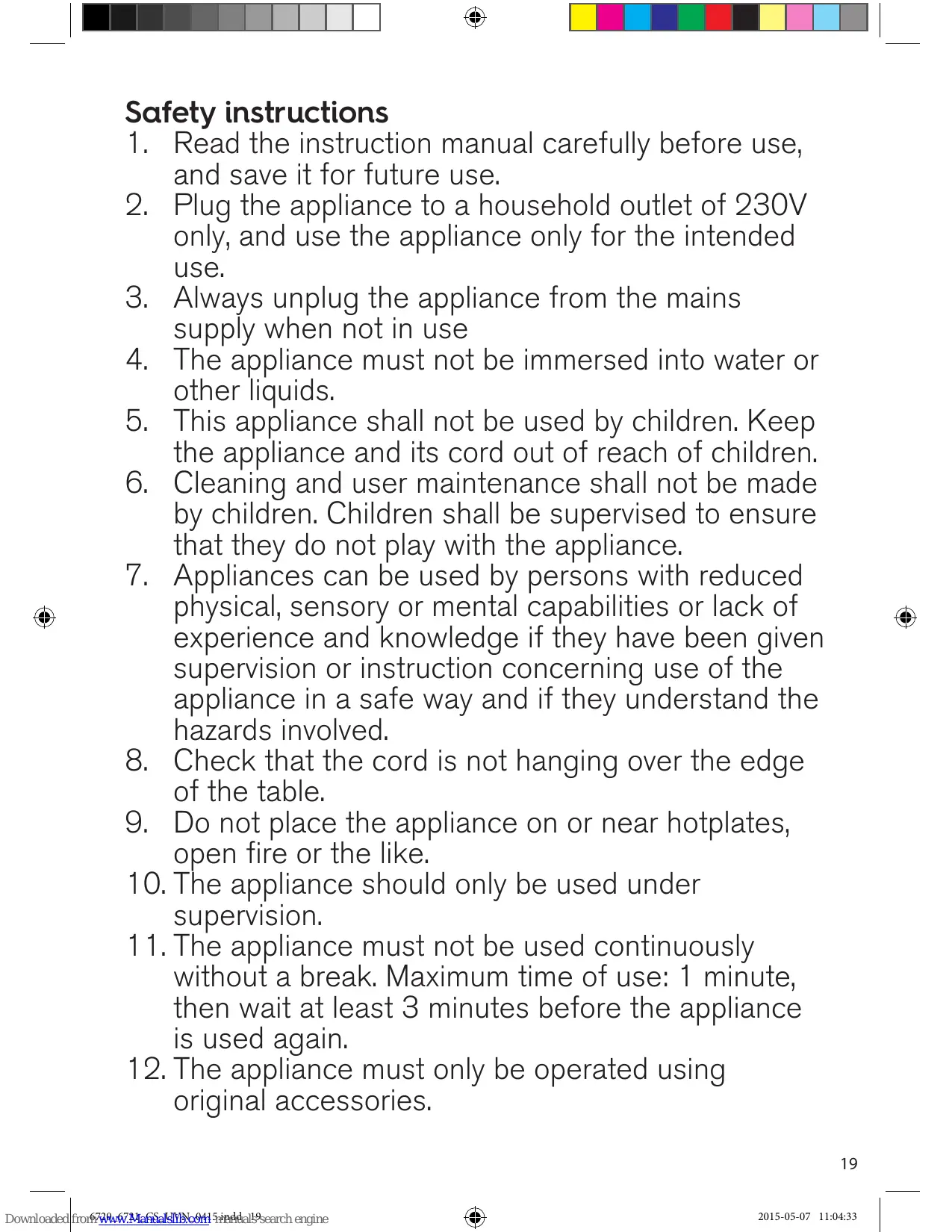

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 230V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when not in use
4. The appliance must not be immersed into water or other liquids.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. The appliance must not be used continuously without a break. Maximum time of use: 1 minute, then wait at least 3 minutes before the appliance is used again.

12. The appliance must only be operated using original accessories.

13. The appliance should be handled with care, as the knife is very sharp! Do not touch the knife while it is operating. Be careful that neither fingers nor accessories get into contact with the knife!

14. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
15. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 ~mA is recommended. Ask your installer for advice.
16. The appliance is for domestic use only.
17. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Clean the mini chopper (see section Cleaning) before you use it for the first time.

Use

Position the motor part on an even surface. Put the bowl on the motor part and turn anticlockwise until the bowl engages on the motor part. Position the knife on the shaft in the centre of the bowl.

Add the ingredients to be chopped. Put on the lid and turn anticlockwise until it engages. The built-in safety lock makes sure that the appliance cannot be activated if the lid is not correctly positioned (which means that the lock on the back of the lid is completely engaged in the groove under the switch button).

The mini chopper is only for small portions as shown in the table below in order to get the best result and to make sure that the appliance is not overcharged:

Ingredient	Preparation	Max amount	Approximate time
Parsley	Rinse and let drain	20 g	10 sec.
Onion	Peel and cut in bites of 2-3 cm	100 g	10-15 short pressings
Garlic	Peel and separate	5 cloves	5 sec.
Carrot, raw	Peel and cut in bites of 1 cm	150 g	5 short pressings and 15 sec.
Meat	Cut in bites of 2 cm	100 g	10 -20 sec.
Hazelnuts	Only the seed, not the shell	100 g	30 sec.
Chocolate	Refrigerator temperature, cut in bites of 1 cm	40 g	5 short pressings and 30 sec.

IMPORTANT!

In order not to damage the knife and the container, the following ingredients should not be used in the mini chopper: Cereals, rice, ice cream, frozen raw materials, horseradish, spices, and coffee beans. Any consequential damages are not covered by the warranty!

Plug the switch to a wall outlet. The appliance is activated by pressing the button, and it will be on as long as the button is pressed (see printing on the appliance). Start with short pressings on the button and then let the appliance work continuously until the wanted result been reached. Please note that the mini chopper should run no more than max 1 minute at a time, after which it should cool for 3 minutes before you use it again.

It is possible to add further liquid directly through the inlet hole of the lid during use.

IMPORTANT!

The knife is extremely sharp and should be handled with care. Never take off the lid of the container and never remove it until the knife has come to a complete standstill!

Cleaning

Wash the bowl, the lid and the knife in warm washing-up liquid or in a dishwasher. If washed in a dishwasher, put the parts in the upper basket and never at the

bottom, where the heavy building-up of heat in certain cases may deform the plastic parts. Wipe the motor part with a soft, damp cloth or paper towel. Wipe the motor part with a damp cloth.

IMPORTANT!

Never rinse the motor part under running water or immerse it in water or any other liquid.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.se

Technical data

OBH Nordica 6720, 6721

230V~

150W

4500- 5000 rotations a minute

Safety lock

Knife of stainless, nickel free steel

Max 1 minute operation time (continuous)

C

These instructions are subject to alterations or improvements.

SE/CS/6720_6721/UVN/070515
