Delightful 6783 - Food processor OBH NORDICA - Free user manual and instructions

Product Type	Food Processor
Brand	OBH Nordica
Model	Delightful 6783
Dimensions (approx.)	30 x 20 x 25 cm
Weight	4.0 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	800 W
Bowl Capacity	2.5 L
Main Functions	Chopping, slicing, shredding, mixing, kneading, blending
Number of Speed Settings	2 speeds + pulse
Material	Plastic housing, stainless steel blades
Safety Features	Safety lock on bowl and lid, non-slip feet
Cleaning	Detachable parts dishwasher safe (except motor unit)
Maintenance	Wipe motor unit with damp cloth; dry thoroughly
Accessories Included	Stainless steel chopping blade, slicing disc, shredding disc, kneading hook, spatula
Spare Parts Availability	Replacement blades and discs available from OBH Nordica
Repairability	Authorized service centers; spare parts for 5 years
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - Delightful 6783 OBH NORDICA

How do I assemble the food processor?

Place the bowl on the motor unit, align the handle with the arrow, and turn clockwise until it clicks. Install the desired disc or blade on the central shaft, then secure the lid by aligning the marks and turning clockwise until locked.

Can I put the bowl and accessories in the dishwasher?

Yes, the bowl, lid, and most accessories are dishwasher safe. However, the motor unit should never be immersed in water; wipe it with a damp cloth only.

What is the maximum operating time?

For continuous operation, do not exceed 1 minute for heavy dough and 3 minutes for lighter mixtures. Allow the motor to cool for at least 2 minutes between cycles.

How do I clean the blades safely?

Handle blades with care; they are very sharp. Wash them separately under running water or in the dishwasher. Use a brush to remove food residues. Store blades in the provided protective cover if available.

Why does the machine stop during operation?

The device has an overload protection that shuts it off if it overheats. Unplug and let it cool for 15-20 minutes. Reduce the load or use pulse mode for tough tasks.

Can I crush ice with this food processor?

This model is not designed for ice crushing. Using it for ice may damage the blades or motor. For cold beverages, use pre-crushed ice or a blender.

What spare parts are available?

You can order replacement cutting blades, slicing discs, shredding discs, kneading hooks, bowls, and lids from OBH Nordica customer service or authorized dealers.

How do I store the accessories?

Keep the discs and blades in their original packaging or a dedicated storage box. Ensure they are dry before storing. The bowl and lid can be stacked inside each other.

Is the appliance safe for children?

This appliance is not a toy. Keep it out of reach of children during operation. Young children should not use or play with the device. Always supervise children near the appliance.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by selecting your language and providing your email.

USER MANUAL Delightful 6783 OBH NORDICA

DESIGNING GOOD LIFE

Hand Mixer DELIGHTFUL 400 W

Effortless whipped cream and fluffy meringue in an instant

Making good!

Bruksanvisning - svenska ......sida 4 - 8

OBH Nordica Denmark A/S

2750 Ballerup

Visiting address: Tempovej 27

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 6783, 6791

220-240V\~, 50 Hz

400 W

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The appliance must not be immersed into water or other liquids.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. The appliance should only be used for preparation of food.
12. The appliance must not be used continuously without a break. Maximum time of use: 10 minutes, then wait at least 30 minutes before the

appliance is used again.

1. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
2. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
3. The appliance is for domestic use only.
4. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Wash the mixer's loose parts (whisks and dough hooks) and bowl in accordance with the instructions under "Cleaning and maintenance".

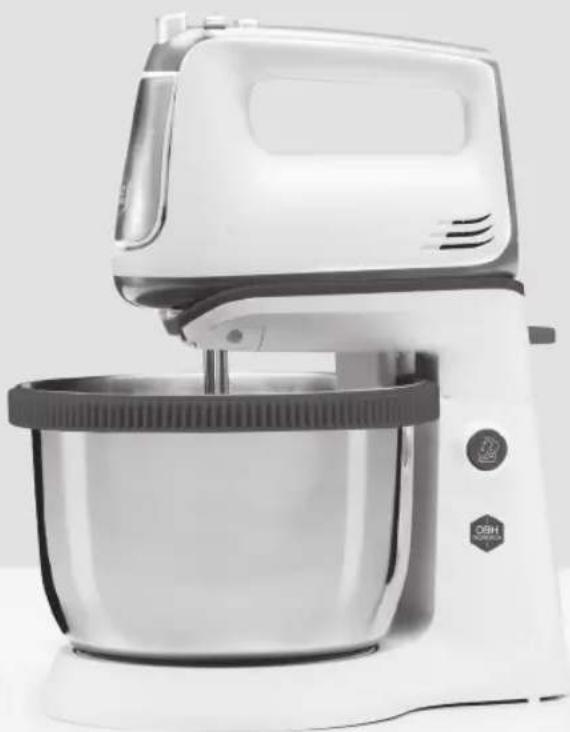

Main components

1. Eject button for removing whisks and dough hooks from the mixer
2. Speed selector 0-5
3. Turbo button
4. Whisks
5. Dough hooks
6. Whisk holder
7. Release button - mixer
8. Holder for bowl
9. Button for raising and lowering the whisk holder
10. 3.4 litre bowl

How to use the mixer

Use with whisks

Use with whisks

Fit the whisks to the underside of the mixer. Insert the whisk with the plastic marking into the small hole. Insert the whisk with a metal ring into the large hole. Press the button (9) with the symbol and angle the whisk holder upwards.

Then place the mixer in the whisk holder by inserting the whisk shaft into the holes and then pushing the rear section of the mixer until it clicks into place. Make sure the mixer is firmly positioned in the whisk holder.

Pour the ingredients into the bowl. To achieve the best results, begin with the liquid ingredients and then the dry ingredients. Place the bowl in the holder and press the button as the whisk holder is lowered into the horizontal position.

Set the speed selector to 0 and plug in the mixer; it is now ready for use.

Always start on speed 1. The bowl will rotate during use to ensure all the ingredients in the bowl are mixed evenly.

Use with dough hooks

Fit the dough hooks to the underside of the mixer. Insert the dough hook with the plastic marking into the small hole. Insert the whisk with a metal ring into the large hole. Press the button (9) with the symbol and angle the whisk holder upwards. Then place the mixer in the whisk holder by inserting the shaft into the holes and then pushing the rear section of the mixer until it clicks into place. Make sure the mixer is firmly positioned in the whisk holder.

It is important that they are placed in the correct holes so that the dough does not work its way up the shaft during use.

Do not use the mixer for more than 10 minutes at a time and then allow it to rest for around 30 minutes before using it again.

If the mixer is used without the accompanying console, hold the mixer handle when lowering the whisks/dough hooks into the ingredients to be mixed/ whisked. You can now use your thumb to change the speed by pushing the button left or right, even during whisking. Move the whisks/dough hooks around the bowl to ensure all the ingredients are whisked/mixed evenly.

To avoid splashes, always keep the whisks down within the contents of the bowl. Switch off the mixer before removing the whisks from the contents.

NOTE! The whisks and dough hooks must be able to run unhindered in the ingredients being whisked/mixed, otherwise the motor will overheat.

What speed?

Speed 1-4: Mixing dry ingredients with liquids. Whisking sauces and creams and mashing vegetables. Cake batters or heavier doughs can be mixed using the dough hooks. Whisking butter and sugar.

Speed 3-5: Whipping cream, beating whole eggs and egg whites and for mixing minced meat and light doughs.

Turbo: For extra quick whisking in short bursts. The turbo function temporarily increases the speed of the selected setting.

After use

Set the speed selector to 0 and unplug. Press the button (9) with the symbol at the same time as raising the whisk holder to a 45° position. Then press the eject button on the mixer to release the whisks/dough hooks. Be aware that the eject button can only be activated when the speed selector is in position 0.

Remove the mixer from the whisk holder by pressing down the release button at the rear of the whisk holder and then lifting the mixer off the holder. Remove the bowl from the holder. The parts can now be cleaned.

Cleaning and maintenance

Wash the whisks, dough hooks and bowl in hot, soapy water or in a dishwasher. The actual mixer and console can be wiped with a cloth, moistened with a little water and washing-up liquid, if necessary. Wipe dry with a dry cloth or a piece of kitchen roll. Do not use abrasive cleaners and tools that may scratch or dull the surface.

Disposing of the appliance

By law, electrical and electronic equipment must be collected for the recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification

or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone.: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 6783, 6791

220-240V \~, 50 Hz

400 W

5 speed settings and turbo function

Stainless steel whisks and dough hooks

Bowl and stand

CE

We reserve the right to make changes without notice.

SE / JG / 6783_6791 /260118
