USER MANUAL TAS1103---B - TAS1103C3-B BOSCH

Table of contents Safety 26 General information 26 Intended use 26 Restriction on user group 26 Safety information 27 Familiarising yourself with your appliance 30 Appliance 30 Controls 30 Before using for the first time 30 Performing initial start-up 30 General information 30 Accessories 30 Basic operation 31 To prepare a drink 31 Cleaning and servicing 31 Dishwasher-safe components 31 Cleaning the appliance 31 Descale the appliance 31 Troubleshooting 32 Malfunctions 32 Information on display panel 34 Problem with results 35 Disposal 36 Disposing of old appliance 36 Customer Service 36 Product number (E-Nr.) and production number (FD) 36 Warranty conditions 36 Technical specifications 36

Safety Please read the safety information to ensure that you use the appliance safely. General information You can find general information for this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡ This manual is intended for the user of the appliance. ¡ Follow the safety instructions and warnings. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit. Intended use Please read the information on intended use to ensure that you use the appliance correctly and safely. Only use this appliance: ¡ As specified in this instruction manual. ¡ for preparing hot drinks. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 2000 m above sea level. Restriction on user group Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised. 26

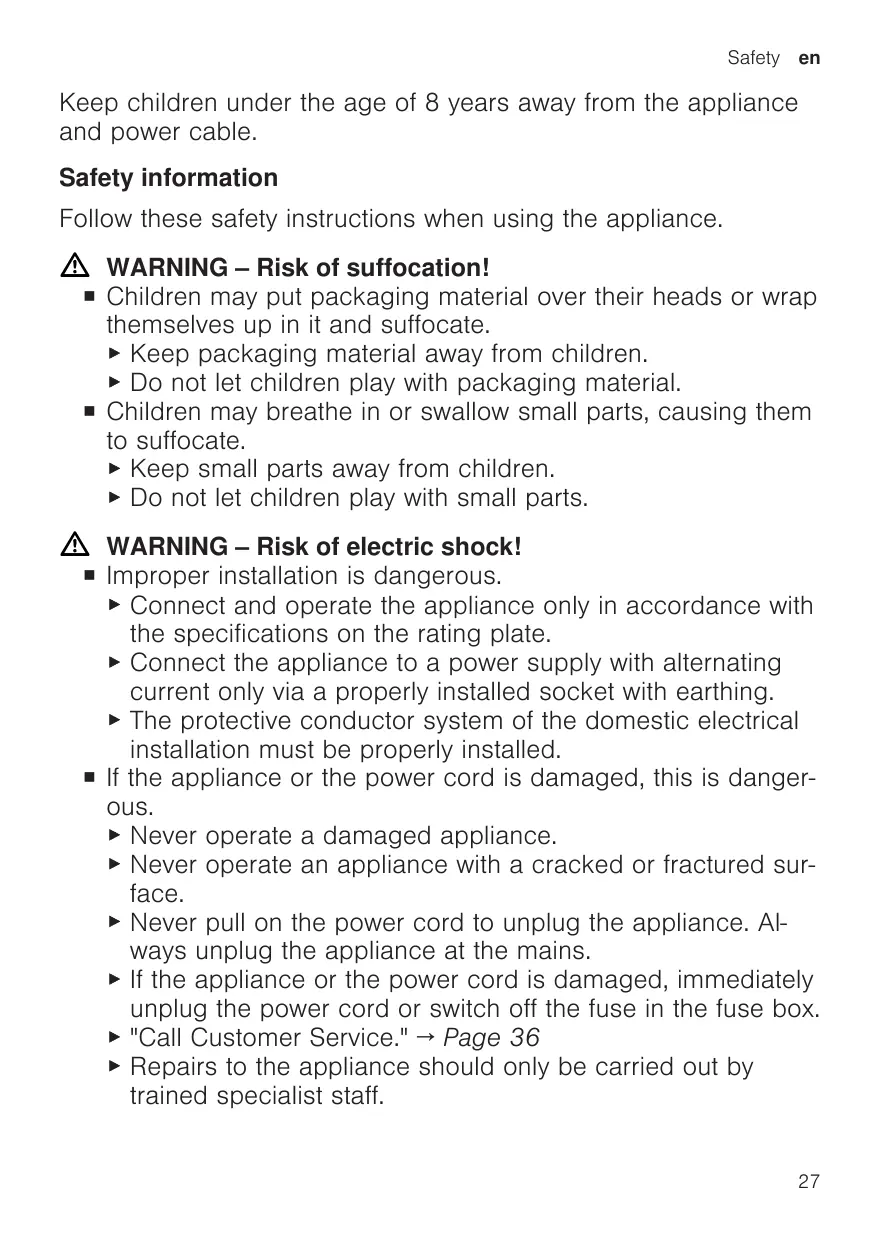

Keep children under the age of 8 years away from the appliance and power cable. Safety information Follow these safety instructions when using the appliance. WARNING ‒ Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. ¡ Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. WARNING ‒ Risk of electric shock! ¡ Improper installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical installation must be properly installed. ¡ If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box. ▶ "Call Customer Service." → Page 36 ▶ Repairs to the appliance should only be carried out by trained specialist staff. 27

¡ Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. ¡ An ingress of moisture can cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appliance. WARNING ‒ Risk of fire! ¡ The appliance will become hot. ▶ Ventilate the appliance adequately. ▶ Never operate the appliance in a cupboard. ▶ Never leave the appliance unattended while it is switched on. ¡ It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer. WARNING ‒ Risk of burns! Some parts of the appliance become very hot. ▶ Never open the brewing system during operation. ▶ Never use a damaged T DISC. ▶ Never use a drinks T DISC more than once. ▶ Never touch hot appliance parts. ▶ Allow hot appliance parts to cool down before touching them. 28

WARNING ‒ Risk of scalding! Freshly prepared drinks are very hot. ▶ Leave drinks to cool down if necessary. ▶ Do not let escaping liquids or steam come into contact with your skin. WARNING ‒ Risk of injury! Improper use of the appliance may endanger the user. ▶ Use the appliance only for its intended purpose. WARNING ‒ Danger: Magnetism! The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps. ▶ People with electronic implants must stand at least 10 cm away from the appliance. ▶ This minimum distance of 10 cm must also be observed for the water tank when removed. WARNING ‒ Risk of harm to health! Dirt on the appliance may be dangerous to health. ▶ Follow the cleaning instructions for the appliance.

en Familiarising yourself with your appliance

¡ Activate the appliance. ¡ Start, stop and prolong dispensing of drinks. ¡ Start service programme. Fill water tank. Display status. Descale the appliance.

Familiarising yourself with your appliance Fa m ilia ris ing y ours e lf with y our a pplia nc e

Familiarise yourself with the parts of your appliance. Fa m ilia ris ing y ours e lf with y our a pplia nc e

Appliance You can find an overview of the parts of your appliance here. Note: Individual details and colours may differ, depending on the appliance model. → Fig. 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Clean the appliance and individual parts. Be fore us ing for the firs t tim e

Performing initial start-up

Follow the pictorial instructions at the start of these instructions. → Fig. 2 - 14

T DISC reading window

T DISC piercing unit

Please bear this information in mind so that you can get the best out of your appliance. Note: The appliance has been programmed at the factory with standard settings for optimum operation.

T DISC holder Lock Brewing unit Control panel

Accessories Ac c e s s orie s

Storage compartment Brief cleaning / descaling instructions Service T DISC Bowl Cup stand Drip grate

Controls You can find an overview of the symbols on your appliance here. 30

Before using for the first time Be fore us ing for the firs t tim e

Only use original accessories. These have been made especially for your appliance. Here, you can find an overview of your appliance's accessories. Note: Bosch is the manufacturer of the TASSIMO appliance. Therefore Bosch cannot provide any delivery guarantee for the TASSIMO T DISCs. Ac c e s s orie s

accessories Descaling tablets

Service T DISC Order number / Web shop TCZ6004 / 00311909 www.tassimo.com www.boschhome.com 17001491 www.boschhome.com

Basic operation Ba s ic ope ra tion

You can find out everything you need to know about operating your appliance here. Ba s ic ope ra tion

To prepare a drink Find out how to prepare a drink of your choice. Follow the pictorial instructions at the start of these instructions. Tips ¡ Fill the water tank each day with fresh, cold, non-carbonated water. ¡ Do not use chemically decalcified water. ¡ To interrupt the dispensing process, briefly press ⁠. → Fig. 15 - 27

ATTENTION! Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher. ▶ Follow the operating instructions of the dishwasher. ▶ Only put dishwasher-safe components in the dishwasher. ▶ Only use programmes that do not heat the water above 60 °C. Dishwasher-safe components: ¡ T DISC holder ¡ T DISC piercing unit ¡ Drip grate ¡ Bowl Components that are not dishwasher-safe: ¡ Water tank

¡ Service T DISC Cleaning the appliance Follow the pictorial instructions at the start of these instructions. → Fig. 28 - 43

Descale the appliance If lights up, run the descaling programme. Follow the pictorial instructions at the start of these instructions.

Dishwasher-safe components

ATTENTION! Improper cleaning and descaling or a delay in doing so may damage the appliance. ▶ Immediately perform the descaling process in accordance with the instructions. ▶ Do not use descaling agent with phosphoric acid.

Find out which components can be cleaned in the dishwasher.

Cleaning and servicing Cle a ning a nd s e rv ic ing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Cle a ning a nd s e rv ic ing

Troubleshooting Trouble s hooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. Trouble s hooting

WARNING Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Malfunctions Fault The appliance is not working. LEDs do not light up. Brewing process starts, drink is not dispensed.

Brewing process does not start. Status display lights up red.

Cause troubleshooting The appliance has no power ▶ Check to see whether the appliance supply. is connected to the mains. Water tank is wrongly inserted.

1. Insert the water tank correctly. 2. Push the water tank into the appli-

The water tank was removed during the brewing stage or there is air in the system.

▶ Start the cleaning process with the

Float is stuck in the water tank.

1. Remove the water tank. 2. Descale the appliance.

T DISC has not been inserted.

▶ Check whether the T DISC is inser-

The T DISC bar code is not recognised.

▶ Clean the T DISC reading window

ance until it clicks into place.

T DISC. → "Performing initial start-up", Page 30

→ "Descale the appliance", Page 31 3. Reach into the water tank and move the float up and down. ted.

with a soft, damp cloth.

▶ Smooth out the film of the T DISC. ▶ Use a new T DISC.

Fault Brewing process does not start. Status display lights up red.

Brewing unit cannot be closed.

troubleshooting ▶ Contact the TASSIMO careline if the problem persists.

Brewing unit is not closed properly.

1. Clean the brewing unit with a soft,

The appliance not connected to the power supply when the T DISC was inserted. T DISC holder or piercing unit has not been correctly inserted.

▶ Connect the appliance to the power

T DISC has not been correctly inserted.

1. Insert the T DISC with the printed

damp cloth, particularly in the area of the lock. 2. Close the brewing unit. supply before inserting the T DISC.

1. Press the piercing unit into the

holder using both thumbs until it clicks audibly into place. 2. Check the position of the T DISC holder. side facing downwards.

2. Check whether the tab of the T DISC is in the recess.

Brewing unit cannot be opened.

Brewing unit is soiled.

1. Clean the brewing unit with a soft,

Lock does not engage.

▶ Press the lock down until it audibly

Brewing unit is locked.

▶ Only open the brewing unit when

damp cloth, particularly in the area of the lock. 2. Close the brewing unit. clicks into place.

the status display remains lit continuously.

1. Unplug the mains plug. 2. Contact the TASSIMO careline if

the brewing unit remains locked.

Fault Water is dripping from the brewing unit.

Cause T DISC is damaged, leaking or not correctly pierced.

troubleshooting ▶ Use a new T DISC. ▶ Only use T DISCs once. 1. Wait until the brewing process has

come to an end and the appliance has cooled down. 2. Remove the T DISC. 3. Clean the brewing unit. → "Cleaning the appliance", Page 31 The piercing unit is not inser- ▶ Press the piercing unit into the ted correctly. holder using both thumbs until it clicks audibly into place. There is water under the cup Condensation has formed stand. due to technical reasons.

▶ Remove excess water with a soft

Information on display panel Fault No LED is lit.

Cause Appliance is in idle mode.

Voltage in the house system 1. Pull out the mains plug and re-insert is incorrect. it. 2. If the problem persists for a longer period, have the voltage of your property checked by an electrician.

LED Water tank has not been suf- 1. Fill the water tank with fresh, cold ficiently filled. water up to the mark ⁠. 2. Insert the water tank.

LED lights up even though there is enough water in the water tank.

troubleshooting ▶ Press .

Float is stuck in the water tank.

1. Descale the appliance.

Water tank is wrongly inserted.

1. Insert the water tank correctly. 2. Push the water tank into the appli-

Build-up of limescale in the appliance.

▶ Descale the appliance.

→ "Descale the appliance", Page 31 2. Reach into the water tank and move the float up and down.

ance until it clicks into place. → "Descale the appliance", Page 31

Cause Heavy build-up of limescale in the appliance.

Decalcified water still conLED lights up even though decalcified water has tains small amounts of lime. been used. LED and LED are Appliance has a fault. simultaneously lit and the brewing process is not possible. LED and LED flash Descaling process is running. simultaneously.

troubleshooting ▶ Descale the appliance. → "Descale the appliance", Page 31 ▶ Descale the appliance.

→ "Descale the appliance", Page 31

▶ Wait until the descaling process is

Problem with results Fault Crema has deteriorated.

Cause Beverage outlet is soiled.

troubleshooting ▶ Clean the beverage outlet. → "Cleaning and servicing", Page 31 ▶ Clean the brewing unit with the

T DISC. → "Cleaning and servicing", Page 31

Build-up of limescale in the appliance.

▶ Descale the appliance.

Drink volume has changed.

Build-up of limescale in the appliance.

▶ Descale the appliance.

Drink volume has reduced. Drink dispensing halts.

Water tank has not been suf- 1. Fill the water tank with fresh, cold ficiently filled. water up to the mark ⁠. pressed until the desired 2. Keep fill volume is reached.

→ "Descale the appliance", Page 31 → "Descale the appliance", Page 31

Disposal Dis pos a l

Find out here how to dispose of old appliances correctly. Dis pos a l

Disposing of old appliance Valuable raw materials can be reused by recycling. 1. Unplug the appliance from the mains. 2. Cut through the power cord. 3. Dispose of the appliance in an environmentally friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service Cus tom e r Se rv ic e

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. You can solve many problems yourself by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service. We always find an appropriate solution. With any warranty claims, we will make sure that your appliance is repaired by trained after-sales technicians using genuine spare parts, including after the manufacturer's warranty has expired. Cus tom e r Se rv ic e

Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the Customer Service directory at the end of the manual or on our website.

Product number (E-Nr.) and production number (FD) You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Warranty conditions You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Technical specifications Te c hnic a l s pe c ific a tions

Facts and figures for your appliance can be found here. Te c hnic a l s pe c ific a tions
