EOF4P46X - EOF4P46BX - EOF4P46X - EOF4P46H - Built-in oven ELECTROLUX - Free user manual and instructions

Product type	Built-in oven
Brand	Electrolux
Models	EOF4P46X, EOF4P46BX, EOF4P46H
Capacity	72 L
Energy class	A+
Energy consumption (convection)	0.69 kWh/cycle
Energy consumption (conventional)	0.93 kWh/cycle
Dimensions (H x W x D)	589 x 595 x 569 mm
Niche dimensions (H x W x D)	589 x 560 x 548 mm
Weight	29.5 kg
Power supply	230 V / 400 V, 50 Hz, 16 A (depending on model)
Maximum power	3680 W
Installation type	Built-in
Cooking modes	Convection, Top/Bottom heat, Frozen dishes, Pizza function, Bottom heat, Defrost, Moist air circulation, Grill, Turbo grill
Assisted cooking	45 programs with automatic weight for meat, fish, cakes, vegetables
Cleaning	Pyrolytic (3 levels: light 1h, normal 1h30, complete 2h30)
Lighting	Halogen, efficiency class G
Safety	Key lock (Key Lock), Automatic shut-off, Child safety
Included accessories	Wire shelf, Baking tray, Roasting pan
Number of shelf levels	5
Maintenance	Clean after each use; door disassembly for glass cleaning

Frequently Asked Questions - EOF4P46X - EOF4P46BX - EOF4P46X - EOF4P46H ELECTROLUX

How to turn the oven on and off?

To turn on, turn the cooking modes knob to a position other than Off. To turn off, turn the knob back to Off. The knobs are retractable: press them to pop out.

How to use the Assisted cooking function?

Access the menu, select Assisted cooking, choose the dish (P1 to P45) and confirm with OK. For dishes with automatic weight, enter the weight. The oven sets the duration and temperature.

What to do if the oven does not heat?

Check that the oven is properly plugged in, the door is closed, automatic shut-off is not activated, the fuse has not blown, and child lock is disabled. If the problem persists, contact customer service.

How to clean the oven with pyrolytic cleaning?

Remove all accessories and residues. Select Menu > Cleaning, choose C1 (1h), C2 (1h30) or C3 (2h30). Confirm. The door locks. After cooling, wipe the ashes with a damp cloth.

How to disassemble the oven door for cleaning?

Open the door completely, lift the hinge latches, close halfway then remove the door. Remove the top frame, then the glass panels one by one. Clean with soapy water and reassemble in reverse order.

How to set the timer?

Press the Timer button, set the time with the knob, then press OK. The countdown starts immediately and a beep sounds at the end.

What accessories are supplied with the oven?

The oven comes with a wire shelf, a baking tray and a roasting pan. They are removable and should be washed by hand.

How to use the Moist air circulation function to save energy?

This function is designed for energy-efficient cooking. The actual temperature may differ from the displayed temperature. The door must remain closed. The lighting turns off automatically after 30 seconds. Use it for dishes like rolls, fish or vegetables.

What to do if the screen shows an error code (e.g., Err C3)?

Err C3 indicates a door closure problem. Check that the door is properly closed. Err F102: door open or lock defective. For 00:00, a power cut occurred; set the time. If the code persists, disconnect the fuse then contact customer service.

What are the required niche dimensions?

Minimum cabinet height: 580 mm (600 mm with worktop). Cabinet width: 560 mm. Cabinet depth: 550 mm. A ventilation opening of 560x20 mm is required at the bottom.

USER MANUAL EOF4P46X - EOF4P46BX - EOF4P46X - EOF4P46H ELECTROLUX

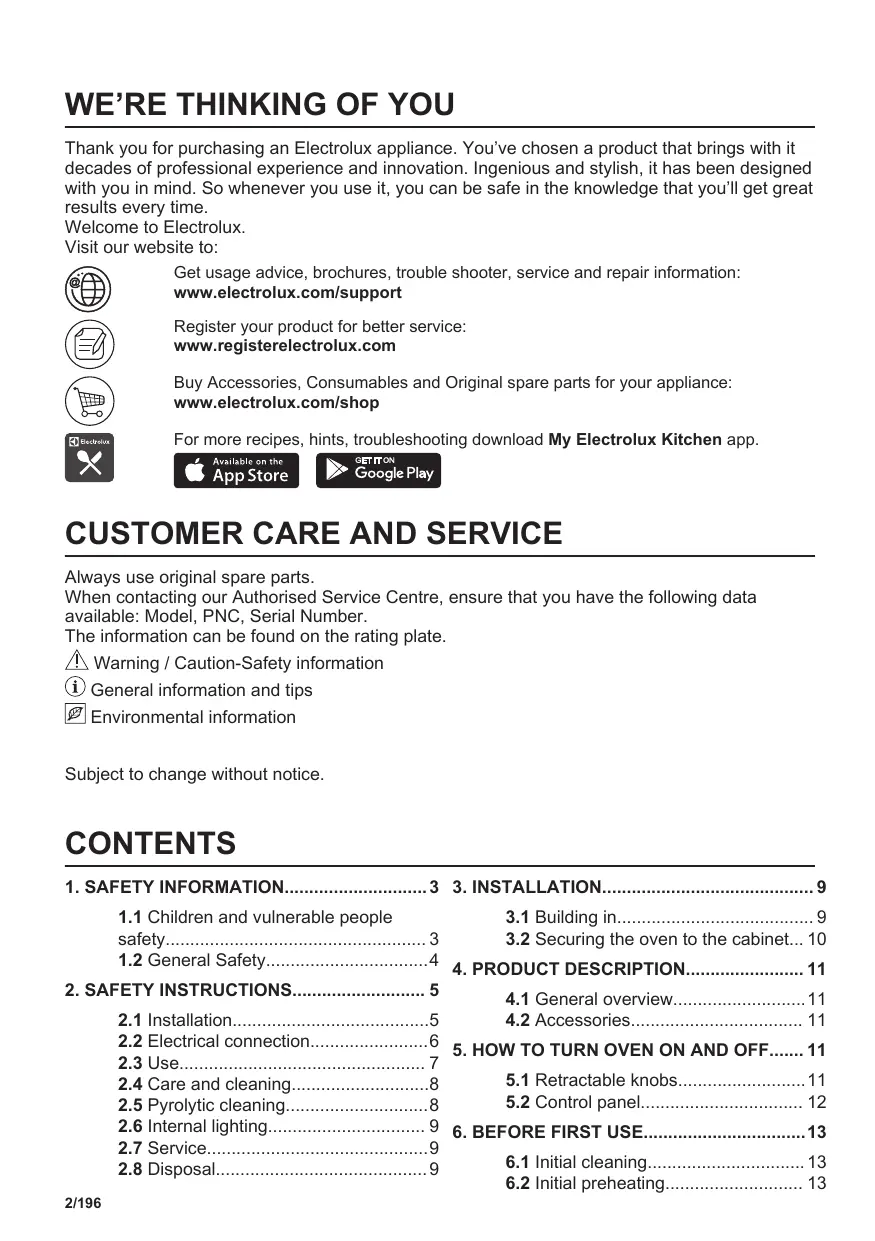

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

For more recipes, hints, troubleshooting download My Electrolux Kitchen app.

Available on the

AppStore

GETITON

Google Play

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information
① General information and tips
Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION 3

1.1 Children and vulnerable people
safety 3
1.2 General Safety. 4

2.SAFETYINSTRUCTIONS. 5

2.1 Installation 5
2.2 Electrical connection.. 6
2.3 Use 7
2.4 Care and cleaning.. 8
2.5 Pyrolytic cleaning.. 8
2.6 Internal lighting 9
2.7 Service 9
2.8 Disposal.. 9

1. INSTALLATION 9

3.1 Building in. 9

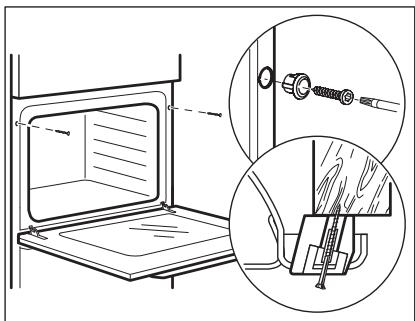

3.2 Securing the oven to the cabinet... 10

4.PRODUCT DESCRIPTION. 11

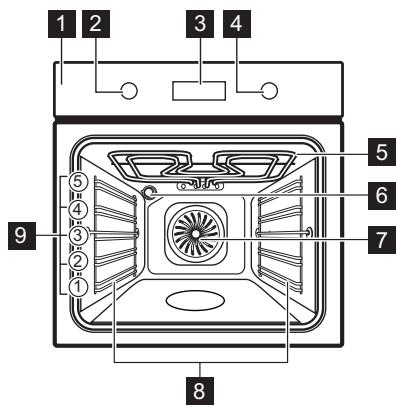

4.1 General overview 11
4.2 Accessories.. 11

1. HOW TO TURN OVEN ON AND OFF...... 11

5.1 Retractable knobs.. 11
5.2 Control panel. 12

1. BEFORE FIRST USE 13

6.1 Initial cleaning 13
6.2 Initial preheating 13

7.DAILYUSE. 13

7.1 How to set: Heating functions.... 13
7.2 Heating functions 14
7.3 Notes on: Moist Fan Baking... 15
7.4 How to set: Assisted Cooking.... 15
7.5 Assisted Cooking 16

8. CLOCK FUNCTIONS 21

8.1 Clock functions 21
8.2 How to set: Clock functions.. 21

9. HOW TO USE: ACCESSORIES 23

9.1 Inserting accessories.. 23

10. ADDITIONAL FUNCTIONS 24

10.1 Lock 24
10.2 Automatic switch-off 24
10.3 Cooling fan. 24

11. HINTS AND TIPS 24

11.1 Moist Fan Baking 24
11.2 Moist Fan Baking -

recommended accessories. 26

11.3 Cooking tables for test institutes..26

12. CARE AND CLEANING 28

12.1 Notes on cleaning 28
12.2 How to remove: Shelf supports ...29
12.3 How to use: Pyrolytic Cleaning....29
12.4 Cleaning Reminder 31
12.5 How to remove and install: Door..31
12.6 How to replace: Lamp.. 33

13. TROUBLESHOOTING 33

13.1 What to do if 33
13.2 Service data.. 34

14. ENERGY EFFICIENCY 35

14.1 Product Information and Product Information Sheet* 35
14.2 Energy saving 35

15.MENUSTRUCTURE. 36

15.1 Menu 36

16. ENVIRONMENTAL CONCERNS... 37

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Only a qualified person must install this appliance and replace the cable.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or insert accessories or ovenware.

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Before pyrolytic cleaning, remove all accessories and excessive deposits/spills from the oven cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

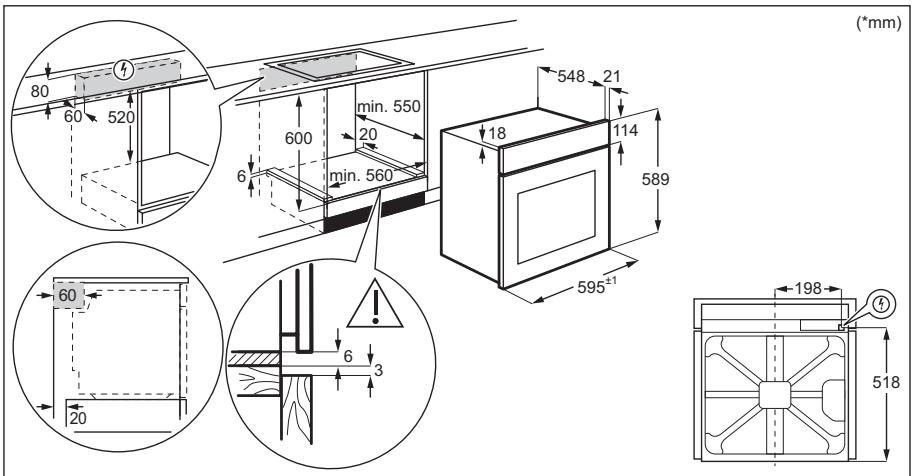

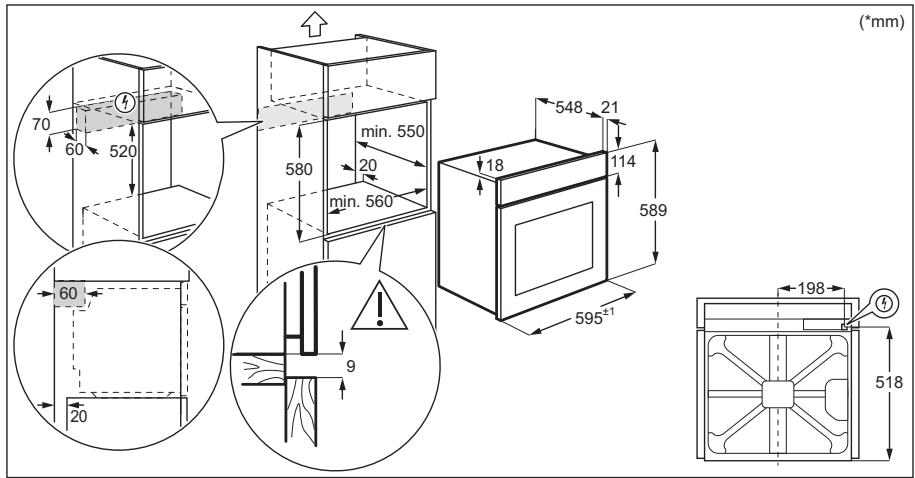

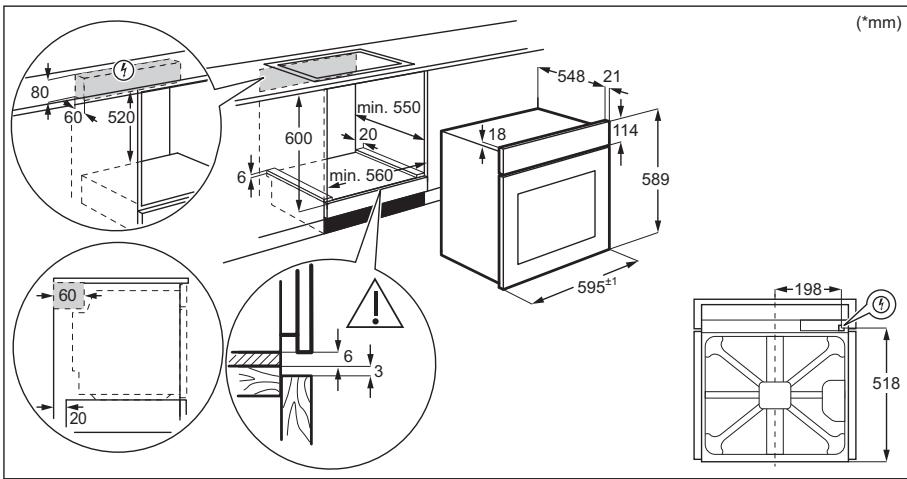

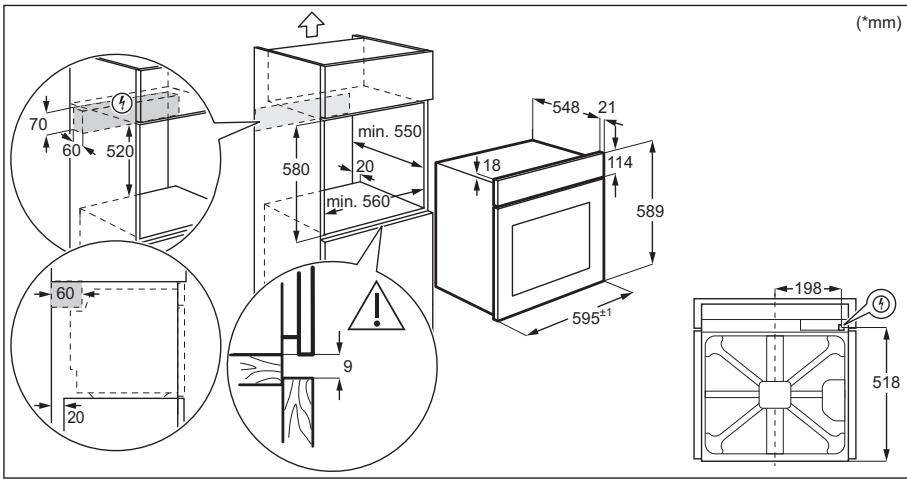

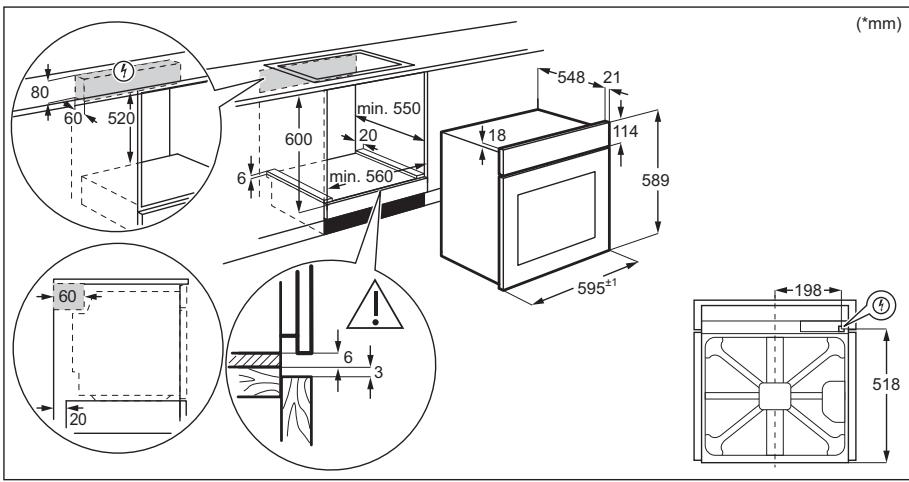

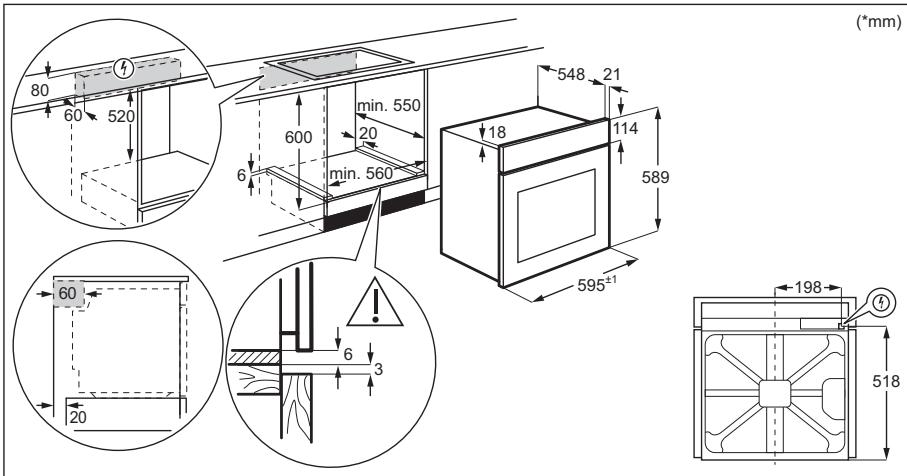

Cabinet minimum height (Cabinet under the work-top minimum height)	580 (600) mm
Cabinet width	560 mm
Cabinet depth	550 (550) mm
Height of the front of the appliance	589 mm
Height of the back of the appliance	571 mm
Width of the front of the appliance	595 mm
Width of the back of the appliance	559 mm
Depth of the appliance	569 mm
Built in depth of the appliance	548 mm
Depth with open door	1022 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws	4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W)	Section of the cable (mm2)
maximum 1380	3 x 0.75
maximum 2300	3 x 1
maximum 3680	3 x 1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.

• do not put aluminium foil directly on the bottom of cavity of the appliance.
• do not put water directly into the hot appliance.
• do not keep moist dishes and food in the appliance after you finish the cooking.

• be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
  If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

• Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the oven cavity:

• any excess food residues, oil or grease spills / deposits.

• any removable objects (including shelves, side rails etc., provided with the product) particularly any non-stick pots, pans, trays, utensils etc.

• Read carefully all the instructions for Pyrolytic cleaning.

• Keep children away from the appliance while the Pyrolytic cleaning operates.

The appliance becomes very hot and hot air is released from the front cooling vents.

• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are strongly advised to:

• provide good ventilation during and after each Pyrolytic cleaning.

• provide good ventilation during and after the first use at maximum temperature operation.

• Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes emitted during the cleaning process of all Pyrolytic Ovens.

• Remove any pets (especially birds) from the vicinity of the appliance location during and after the Pyrolytic cleaning and first use maximum temperature operation to a well ventilated area.

• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.

• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes.

• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to humans, including children, or persons with medical conditions.

2.6 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
  This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
  Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Building in

YouTube

www.youtube.com/electrolux

www.youtube.com/aeg

How to install your AEG/Electrolux

Oven - Column installation

3.2 Securing the oven to the cabinet

4. PRODUCT DESCRIPTION

4.1 General overview

1 Control panel
2 Knob for the heating functions
3 Display
4 Control knob
5 Heating element
6 Lamp
7 Fan
8 Shelf support, removable
9 Shelf positions

4.2 Accessories

• Wire shelf
  For cookware, cake tins, roasts.
  Baking tray
  For cakes and biscuits.
• Grill-/ Roasting pan
  To bake and roast or as pan to collect fat.

5. HOW TO TURN OVEN ON AND OFF

5.1 Retractable knobs

To use the appliance press the knob. The knob comes out.

5.2 Control panel

Control panel sensor fields					Press	Turn the knob
Timer	Fast Heat Up	Light	Lock	OK
Select a heating function to turn on the oven.
Turn the knob for the heating functions to the off position to turn the oven off.

12:34	When the knob for the heating functions is in the off position, the display goes to standby.
12:40 120°	When you cook, the display shows the set temperature, time of day and other available options.
88:88:88:8888g h:min:s STOP	The display with the maximum number of functions set.

Display indicators
Lock	Assisted Cooking	Cleaning	Settings	Fast Heat Up
Timer indicators:	STOP

Progress bar - for temperature or time.

6. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

6.1 Initial cleaning

Before the first use clean the empty oven and set the time:
			00:00 Set the time. Press OK.

6.2 Initial preheating

Preheat the empty oven before the first use.
Step 1	Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function: □. Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function: □. Let the oven operate for 15 min.
iThe oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

7. DAILY USE

WARNING!

Refer to Safety chapters.

7.1 How to set: Heating functions

Start cooking
Step 1	Step 2
	℃
Set a heating function.	Set the temperature.

7.2 Heating functions

Standard heating functions

Heating function	Application
True Fan Cooking	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Conventional Cooking	To bake and roast food on one shelf position.
Frozen Foods	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Pizza Function	To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Defrost	To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
Moist Fan Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Bak-ing.
Grill	To grill thin pieces of food and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.
Menu	To enter the Menu: Assisted Cooking, Cleaning, Settings.

7.3 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

7.4 How to set: Assisted Cooking

Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature during cooking.

For some of the dishes you can also cook with:

• Weight Automatic

Assisted Cooking - use it to prepare a dish quickly with default settings:
Step 1	Step 2	Step 3	Step 4
=	×	P1 - P45	OK
Enter the menu.	Select Assisted Cooking. Press OK.	Select the dish. Press OK.	Insert the dish to the oven. Confirm setting.

7.5 Assisted Cooking

Legend
	Weight Automatic available.
	Preheat the oven before you start cooking.
	Shelf level.

When the function ends check if the food is ready.

	Dish	Weight	Shelf level / Accessory	Duration time
Beef
P1	Roast Beef, rare	1 - 1,5 kg; 4 - 5 cm thick pieces	2; baking trayFry the meat for a few minutes on a hot pan. Insert to the oven.	40 min
P2	Roast Beef, medium			50 min
P3	Roast Beef, well done			60 min
P4	Steak, medium	180 - 220 g per piece; 3 cm thick slices	3; roasting dish on wire shelfFry the meat for a few minutes on a hot pan. Insert to the oven.	15 min
P5	Beef roast / braised (prime rib, top round, thick flank)	1,5 - 2 kg	2; roasting dish on wire shelfFry the meat for a few minutes on a hot pan. Add liquid. Insert to the oven.	120 min
P6	Roast Beef, rare (slow cooking)	1 - 1,5 kg; 4 - 5 cm thick pieces	2: baking tray Use your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	75 min
P7	Roast Beef, medium (slow cooking)			85 min
P8	Roast Beef, well done (slow cooking)			130 min
P9	Fillet, rare (slow cooking)	0,5 - 1,5 kg; 5 - 6 cm thick pieces	2: baking tray Use your favourite spices or simply salt and fresh grounded pepper. Fry the meat for a few minutes on a hot pan. Insert to the oven.	75 min
P10	Fillet, medium (slow cooking)			90 min
P11	Fillet, done (slow cooking)			120 min
Veal
P12	Veal roast (e.g. shoulder)	0,8 - 1,5 kg; 4 cm thick pieces	2: roasting dish on wire shelf Use your favourite spices. Add liquid. Roast covered.	80 min
Pork
P13	Pork roast neck or shoulder	1,5 - 2 kg	2: roasting dish on wire shelf Turn the meat after half of the cooking time.	120 min
P14	Pulled pork (slow cooking)	1,5 - 2 kg	2: baking tray Use your favourite spices. Turn the meat after half of the cooking time to get an even browning.	215 min
P15	Loin, fresh	1 - 1,5 kg; 5 - 6 cm thick pieces	2: roasting dish on wire shelf Use your favourite spices.	55 min
P16	Spare Ribs	2 - 3 kg; use raw, 2 - 3 cm thin spare ribs	3; deep pan Add liquid to cover the bottom of a dish. Turn the meat after half of the cooking time.	90 min
Lamb
P17	Lamb leg with bones	1,5 - 2 kg; 7 - 9 cm thick pieces	2; roasting dish on baking tray Add liquid. Turn the meat after half of the cooking time.	130 min
Poultry
P18	Whole chick- en	1 - 1,5 kg; fresh	2; casserole dish on baking tray Use your favourite spices. Turn the chicken after half of the cooking time to get an even browning.	60 min
P19	Half chicken	0,5 - 0,8 kg	3; baking tray Use your favourite spices.	40 min
P20	Chicken breast	180 - 200 g per piece	2; casserole dish on wire shelf Use your favourite spices. Fry the meat for a few minutes on a hot pan.	25 min
P21	Chicken legs, fresh	-	3; baking tray If you marinated chicken legs first, set lower temperature and cook them longer.	30 min
P22	Duck, whole	2 - 3 kg	2; roasting dish on wire shelf Use your favourite spices. Put the meat on roasting dish. Turn the duck after half of the cooking time.	100 min
P23	Goose, whole	4 - 5 kg	2; deep pan Use your favourite spices. Put the meat on deep baking tray. Turn the goose af- ter half of the cooking time.	110 min
Other
P24	Meat loaf	1 kg	2; wire shelf Use your favourite spices.	60 min
Fish
P25	Whole fish, grilled	0,5 - 1 kg per fish	2; baking tray Fill the fish with butter and use your favourite spices and herbs.	30 min
P26	Fish fillet	-	3; casserole dish on wire shelf Use your favourite spices.	20 min
Sweet baking / desserts
P27	Cheesecake	-	2; 28 cm springform tin on wire shelf	90 min
P28	Apple cake	-	3; baking tray	45 min
P29	Apple tart	-	2; pie form on wire shelf	40 min
P30	Apple pie	-	1; 22 cm pie form on wire shelf	60 min
P31	Brownies	2 kg	3; deep pan	30 min
P32	Chocolate muffins	-	3; muffin tray on wire shelf	25 min
P33	Loaf cake	-	2; loaf pan on wire shelf	50 min
Vegetable / Side dishes
P34	Baked pota-oes	1 kg	2; baking tray Put the whole potatoes with skin on bak-ing tray.	50 min
P35	Wegdes	1 kg	3; baking tray lined with baking paper Use your favourite spices. Cut potatoes into pieces.	35 min
P36	Grilled mixed vegetables	1 - 1,5 kg	3; baking tray lined with baking paper Use your favourite spices. Cut the vegetables into pieces.	30 min
P37	Croquets, frozen	0,5 kg	3; baking tray	25 min
P38	Pommes, frozen	0,75 kg	3; baking tray	25 min
Gratins, bread and pizza
P39	Meat / vegetable lasagna with dry noodle plates	1 - 1,5 kg	2; casserole dish on wire shelf	45 min
P40	Potato gratin (raw potatoes)	1 - 1,5 kg	1; casserole dish on wire shelf Rotate the dish after half of the cooking time.	50 min
P41	Pizza fresh, thin	-	2; baking tray lined with baking paper	15 min
P42	Pizza fresh, thick	-	2; baking tray lined with baking paper	25 min
P43	Quiche	-	2; baking tin on wire shelf	45 min
P44	Baguette / Ciabatta / White bread	0,8 kg	3; baking tray lined with baking paper More time needed for white bread.	30 min
P45	All grain / rye / dark bread all grain in loaf pan	1 kg	2; baking tray lined with baking paper / wire shelf	60 min

8. CLOCK FUNCTIONS

8.1 Clock functions

Clock Function	Application
	Minute minder. When the timer ends, the signal sounds.
	Cooking time. When the timer ends, the signal sounds and the heating function stops.
	Time Delay. To postpone the start and / or end of cooking.
	Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven. To turn on and off the Uptimer select: Menu, Settings.

8.2 How to set: Clock functions

How to set: Time of day
Step 1	Step 2	Step 3
To change the time of day enter the menu and select Settings, Time of day.	Set the clock.	Press: OK.

How to set: Minute minder
Step 1	The display shows:0:00	Step 2	Step 3
Press:		Set the Minute minder	Press: OK.
① Timer starts counting down immediately.

How to set: Cooking time
Step 1	Step 2	The display shows:0:00STOP	Step 3	Step 4
Choose a heating function and set the temperature.	Press repeated-ly:		Set the cooking time.	Press: OK.
i Timer starts counting down immediately.

How to set: Time Delay
Step 1	Step 2	The dis-play shows: the time of day ① START	Step 3	Step 4	The dis-play shows: STOP	Step 5	Step 6
Select the heating function.	Press repeatedly: ②		Set the start time.	Press: OK.		Set the end time.	Press: OK.
① Timer starts counting down at a set start time.

9. HOW TO USE: ACCESSORIES

9.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down.
Baking tray / Deep pan: Push the tray between the guide bars of the shelf support.
Wire shelf, Baking tray / Deep pan: Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

10. ADDITIONAL FUNCTIONS

10.1 Lock

This function prevents an accidental change of the oven function.
Turn it on when the oven works - the set cooking continues, the control panel is locked. Turn it on when the oven is off - the oven cannot be turned on, the control panel is locked.
	- press and hold to turn on the function. A signal sounds.	- press and hold to turn it off.
3 x 3 - flashes when the lock is turned on.

10.2 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

(℃)	(h)
30 - 115	12.5
120 - 195	8.5
200 - 245	5.5
250 - maximum	3

The Automatic switch-off does not work with the functions: Light, Time Delay.

10.3 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

11. HINTS AND TIPS

11.1 Moist Fan Baking

For the best results follow suggestions listed in the table below.

	(℃)		(min)
Sweet rolls, 16 pieces	baking tray or dripping pan	180	2
Rolls, 9 pieces	baking tray or dripping pan	180	2
Pizza, frozen, 0.35 kg	wire shelf	220	2
Swiss Roll	baking tray or dripping pan	170	2
Brownie	baking tray or dripping pan	175	3
Souffle, 6 pieces	ceramic ramekins on wire shelf	200	3
Sponge flan base	flan base tin on wire shelf	180	2
Victoria sandwich	baking dish on wire shelf	170	2
Poached fish, 0.3 kg	baking tray or dripping pan	180	3
Whole fish, 0.2 kg	baking tray or dripping pan	180	3
Fish fillet, 0.3 kg	pizza pan on wire shelf	180	3
Poached meat, 0.25 kg	baking tray or dripping pan	200	3
Shashlik, 0.5 kg	baking tray or dripping pan	200	3
Cookies, 16 pieces	baking tray or dripping pan	180	2
Macaroons, 24 pieces	baking tray or dripping pan	180	2

	UNITS (℃)
Muffins, 12 pieces	baking tray or dripping pan	170	2	30 - 40
Savory pastry, 20 pieces	baking tray or dripping pan	180	2	25 - 30
Short crust biscuits, 20 pieces	baking tray or dripping pan	150	2	25 - 35
Tartlets, 8 pieces	baking tray or dripping pan	170	2	20 - 30
Vegetables, poached, 0.4 kg	baking tray or dripping pan	180	3	35 - 45
Vegetarian omelette	pizza pan on wire shelf	200	3	25 - 30
Mediterranean vegetables, 0.7 kg	baking tray or dripping pan	180	4	25 - 30

11.2 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Pizza pan	Baking dish	Ramekins	Flan base tin
Dark, non-reflective 28 cm diameter	Dark, non-reflective 26 cm diameter	Ceramic 8 cm diameter, 5 cm height	Dark, non-reflective 28 cm diameter

11.3 Cooking tables for test institutes

Information for test institutes

Tests according to IEC 60350-1.

				(℃)	(min)
Small cakes, 20 per tray	Conventional Cooking	Baking tray	3	170	20 - 30	-
Small cakes, 20 per tray	True Fan Cooking	Baking tray	3	150 - 160	20 - 35	-
Small cakes, 20 per tray	True Fan Cooking	Baking tray	2 and 4	150 - 160	20 - 35	-
Apple pie, 2 tins Ø20 cm	Conventional Cooking	Wire shelf	2	180	70 - 90	-
Apple pie, 2 tins Ø20 cm	True Fan Cooking	Wire shelf	2	160	70 - 90	-
Sponge cake, cake mould Ø26 cm	Conventional Cooking	Wire shelf	2	170	40 - 50	Preheat the oven for 10 minutes.
Sponge cake, cake mould Ø26 cm	True Fan Cooking	Wire shelf	2	160	40 - 50	Preheat the oven for 10 minutes.
Sponge cake, cake mould Ø26 cm	True Fan Cooking	Wire shelf	2 and 4	160	40 - 60	Preheat the oven for 10 minutes.
Short bread	True Fan Cooking	Baking tray	3	140 - 150	20 - 40	-
Short bread	True Fan Cooking	Baking tray	2 and 4	140 - 150	25 - 45	-
Short bread	Conven-tional Cooking	Baking tray	3	140 - 150	25 - 45	-
Toast, 4 - 6 pieces	Grill	Wire shelf	4	max.	2 - 3 minutes first side; 2 - 3 minutes second side	Preheat the oven for 3 minutes.
Beef burger, 6 pieces, 0.6 kg	Grill	Wire shelf and drip-ping pan	4	max.	20 - 30	Put the wire shelf on the fourth level and the dripping pan on the third level of the oven. Turn the food half-way through the cooking time. Preheat the oven for 3 minutes.

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 Notes on cleaning

Cleaning Agents	Clean the front of the oven with a soft cloth with warm water and a mild detergent.
	Use a cleaning solution to clean metal surfaces.
	Clean stains with a mild detergent.
Everyday Use	Clean the cavity after each use. Fat accumulation or other residue may cause fire.
	Moisture can condense in the oven or on the door glass panels. To decrease the condensation, let the oven work for 10 minutes before cooking. Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.

Accessories	Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
	Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

12.2 How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1	Turn off the oven and wait until it is cold.
Step 2	Pull the front of the shelf support away from the side wall.
Step 3	Pull the rear end of the shelf support away from the side wall and remove it.
Step 4	Install the shelf supports in the opposite sequence.

12.3 How to use: Pyrolytic Cleaning

Clean the oven with Pyrolytic Cleaning.

WARNING!

There is a risk of burns.

CAUTION!

If there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Before the Pyrolytic Cleaning:
Turn off the oven and wait until it is cold.	Remove all accessories.	Clean the oven floor and the inner door glass with warm water, a soft cloth and a mild detergent.

Pyrolytic Cleaning
Step 1	Enter menu: Cleaning mm/.
Option		Duration
C1 - Light cleaning		1 h
C2 - Normal cleaning		1 h 30 min
C3 - Thorough cleaning		2 h 30 min
Step 2	OK - press to select the cleaning programme.
Step 3	OK - press to start the cleaning.
Step 4	After cleaning, turn the knob for the heating functions to the off position.
During the cleaning the oven lamp is off.
When the oven is at the set temperature, the door locks. Until the door unlocks the display shows:

When the cleaning ends:
Turn off the oven and wait until it is cold.	Clean the cavity with a soft cloth.	Remove the residue from the bottom of the cavity.

12.4 Cleaning Reminder

The oven reminds you when to clean it with pyrolytic cleaning.
flashes in the display for 5 sec after each cooking session.	To turn off the reminder enter the Menu and select Settings, Cleaning Reminder.

12.5 How to remove and install: Door

The oven door has three glass panels. You can remove the oven door and the internal glass panels to clean them. Read the whole "Removing and installing door" instruction before you remove the glass panels.

CAUTION!

Do not use the oven without the glass panels.

Step 1	Open the door fully and hold both hinges.
Step 2	Lift and pull the latches until they click.
Step 3	Close the oven door halfway to the first opening position. Then lift and pull to remove the door from its seat.
Step 4	Put the door on a soft cloth on a stable surface.
Step 5	Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.	2 B 1
Step 6	Pull the door trim to the front to remove it.
Step 7	Hold the door glass panels by their top edge and carefully pull them out one by one. Start from the top panel. Make sure the glass slides out of the supports completely.
Step 8	Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.
Step 9	After cleaning, install the glass panels and the oven door.
If the door is installed correctly, you will hear a click when closing the latches.

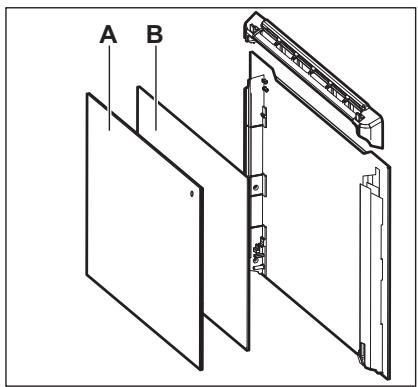

Make sure that you put the glass panels (A and B) back in the correct sequence. Check for the symbol / printing on the side of the glass panel, each of the glass panels looks different to make the disassembly and assembly easier.

When installed correctly the door trim clicks.
Make sure that you install the middle panel of glass in the seats correctly.

12.6 How to replace: Lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

Before you replace the lamp:
Step 1	Step 2	Step 3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Back lamp

Step 1	Turn the glass cover to remove it.
Step 2	Clean the glass cover.
Step 3	Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4	Install the glass cover.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

The oven does not turn on or does not heat up
Problem	Check if...
You cannot activate or operate the oven.	The oven is correctly connected to an electrical supply.
The oven does not heat up.	The automatic switch-off is deactivated.
The oven does not heat up.	The oven door is closed.
The oven does not heat up.	The fuse is not blown.
The oven does not heat up.	The Child Lock is off.

Components
Problem	Check if...
The lamp is turned off.	Moist Fan Baking - is turned on.
The lamp does not work.	The lamp is burnt out.

Error codes
The display shows...	Check if...
Err C3	The oven door is closed or the door lock is not broken.
Err F102	The oven door is closed.
Err F102	The door lock is not broken.
00:00	There was a power cut. Set the time of day.
If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

13.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:
Model (MOD.)	..................
Product number (PNC)	..................
Serial number (S.N.)	..................

14. ENERGY EFFICIENCY

14.1 Product Information and Product Information Sheet*

Supplier's name	Electrolux
Model identification	EOF4P46X 949498237 EOF6P46X 949498239
Energy Efficiency Index	81.2
Energy efficiency class	A+
Energy consumption with a standard load, conventional mode	0.93 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.69 kWh/cycle
Number of cavities	1
Heat source	Electricity
Volume	72 l
Type of oven	Built-In Oven
Mass	EOF4P46X	29.5 kg
	EOF6P46X	31.6 kg

• For European Union according to EU Regulations 65/2014 and 66/2014.

For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.

For Ukraine according to 568/32020.

Energy efficiency class is not applicable for Russia.

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

14.2 Energy saving

The oven has features which help you save energy during everyday cooking.

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the oven before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

The fan and lamp continue to operate. When you turn off the oven, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30min , reduce the oven temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

15. MENU STRUCTURE

15.1 Menu

- select to enter the Menu.

Menu structure
Assisted Cooking	Cleaning mm	Settings

Step 1	Step 2	Step 3	Step 4	Step 5
OK	01 - 011	OK	OK	OK
Select the Menu, Settings.	Confirm setting.	Select the setting.	Confirm setting.	Adjust the value and press OK.

Settings
O1	Time of day	Change	O2	Display brightness	1 - 5
O3	Key tones	1 - Beep 2 - Click 3 - Sound off	O4	Buzzer volume	1 - 4
O5	Uptimer	On / Off	O6	Light	On / Off
O7	Fast Heat Up	On / Off	O8	Cleaning Reminder	On / Off
O9	Demo mode	Activation code: 2468	O10	Software version	Check
O11	Reset all settings	Yes / No

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

NOUS PENSES À VOUS

How to install your AEG/Electrolux Oven - Column installation

How to install your AEG/Electrolux Oven - Column installation

How to install your AEG/Electrolux Oven - Column installation

How to install your AEG/Electrolux Oven - Column installation

12.5 Como guitar e instalar: Puerta

12.6 Comoonian: Bombilla

ADVERTENCIA!
