BSS82SIL1 - Vacuum Cleaner BOSCH - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	BOSCH
Model	BSS82SIL1
Power supply	18 V Lithium-ion battery (Power for ALL)
Battery capacity	3.0 / 4.0 / 5.0 Ah depending on model
Maximum runtime	Up to 65 min (standby mode, 4.0 Ah battery)
Charging time (80%)	Approximately 4 to 5 hours depending on battery
Operating modes	Auto, Turbo, Eco (standby)
Status display	Indicates mode, battery charge and errors
Filtration system	Lint filter and slat filter
Dust container capacity	Not specified in the manual
Included accessories	2-in-1 brush, mini electric brush, mattress nozzle, XXL upholstery nozzle, hard floor brush, flexible extension, keyboard nozzle, flexible long crevice tool, short crevice tool, fast charger, charging cable
Base station	Yes, for wall mounting and charging
Cleaning	Emptying the container, cleaning filters and brushes
Safety	Do not use without filter, keep away from heat sources, do not vacuum liquids
Warranty	According to conditions of the country of purchase, contact customer service
After-sales service	0 892 698 010 (service €0.40/min + call charges)

Frequently Asked Questions - BSS82SIL1 BOSCH

How to charge the battery of the BSS82SIL1 vacuum?

You can charge the battery in three ways: with the provided charging cable, in the base station (after wall mounting), or with the included fast charger. Only use the original charger. Charging time to reach 80% is approximately 4 to 5 hours depending on battery capacity.

What is the runtime of the vacuum?

The runtime depends on the mode and battery used. With a 4.0 Ah battery, you can get up to 65 minutes in standby mode with a non-electric accessory, 50 minutes with the electric brush in standby mode, 20 minutes in auto mode, and 10 minutes in turbo mode.

How to clean the filter of the vacuum?

To clean the filter unit, turn off the appliance and remove the dust container. Remove the lint filter and the slat filter. Never expose them to liquids. You can tap them or gently brush them to remove dust. Reinsert them correctly before replacing the container.

What to do if the error display lights up red?

If the Δ symbol lights up red for about 10 seconds, refer to the Troubleshooting chapter of the manual. Possible causes include improperly installed, discharged, overheated battery, or overheated appliance. Follow the steps: check the battery, charge it, or let the device cool down.

Can I use a battery of another brand?

No, only use batteries from the Bosch Power for ALL 18 V series. Using third-party batteries may damage the device and void the warranty.

How to empty the dust container?

Turn off the appliance and unplug it. Press the release button of the dust container to remove it. Open the lid and empty the contents into a trash bin. Close and replace the container until it clicks into place.

What accessories are provided with the vacuum?

The delivery includes: a 2-in-1 furniture brush, a mini electric brush with replacement brush, a replacement brush for the electric brush, a mattress nozzle, an XXL upholstery nozzle, a variable accessory holder, an electric brush for hard floors, a flexible extension, a keyboard and drawer nozzle, a flexible long crevice tool, a short crevice tool, a battery, a fast charger, and a charging cord.

How to clean the electric brush?

Turn off the appliance and remove the electric brush. Use a soft cloth or brush to remove hairs and debris wound around the roller. Follow the illustrations in the manual (Fig. 36-38) for possible disassembly. Ensure the brush is dry before reattaching.

Can the vacuum suck up liquids?

No, this vacuum is designed for dry vacuuming only. Never vacuum liquids, as this could damage the appliance and pose an electrical risk.

Where can I find spare parts?

You can order spare parts from the Bosch spare parts and accessories service at 0892 698 009 (service €0.40/min + call charges) or via the website www.bosch-home.com/fr. Use only original parts.

USER MANUAL BSS82SIL1 BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Cordless handstick vacuum cleaner

BBS82

BCS82

BSS82

BLS82

BKS82

[e-mail]

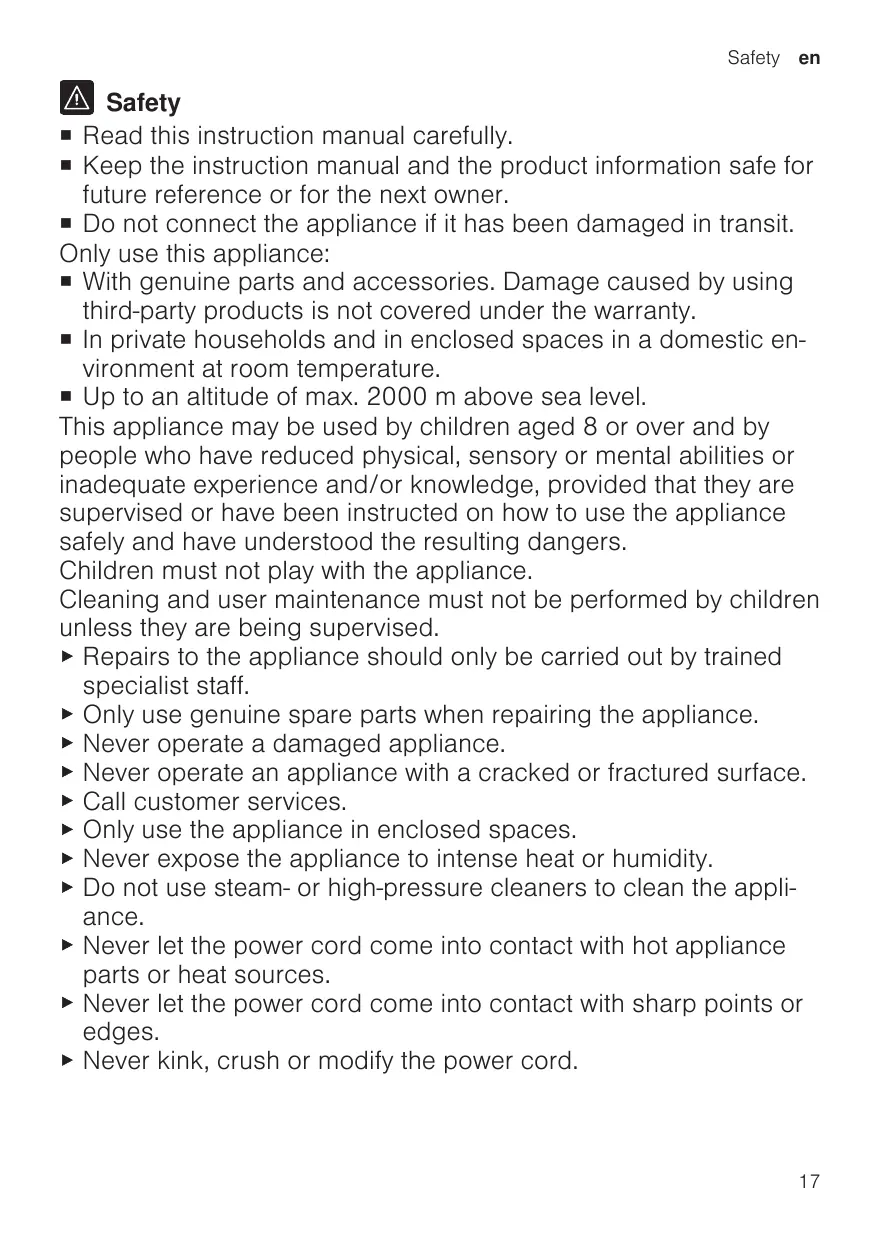

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

• With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
• In private households and in enclosed spaces in a domestic environment at room temperature.
  Up to an altitude of max. 2000 m above sea level.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• Never operate a damaged appliance.
• Never operate an appliance with a cracked or fractured surface.
  Call customer services.
  Only use the appliance in enclosed spaces.
  Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.
• Never let the power cord come into contact with hot appliance parts or heat sources.
• Never let the power cord come into contact with sharp points or edges.

• Never kink, crush or modify the power cord.

• Connect and operate the charging cable¹ and the quick charger¹ only in accordance with the specifications on the rating plate.

• Connect the charging cable¹ and the quick charger¹ to a power supply with alternating current only via a properly installed socket with earthing.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
• Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• Ensure that children do not play with the appliance, even when it is in the base station¹.
• Persons with electronic implants must stand at least 10cm away from the appliance.
• Keep packaging material away from children.
  Do not let children play with packaging material.
  Protect the battery against fire, heat and constant sunlight.
  Protect the battery against water and penetrating moisture.
• Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
  Supply fresh air.
  If there are any problems, seek medical advice from a doctor.
• If these come into contact with the skin, wash immediately with cold water.
  If these come into contact with the eyes, seek medical help.

Preventing material damage

To prevent material damage to your appliance, accessories or any other objects, follow these instructions.

Check and clean any wet objects.
Replace damaged objects.
Regularly check the outsides of the nozzles for wear.
Replace the worn nozzle.

• Never use the nozzle without the brush roller in place.
• Never operate the appliance without the filter unit.

Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features.

Fig. 1

A	Base station1
B	2-in-1 furniture brush with upholstery nozzle1
C	Mini electro-nozzle1
D	Replacement brush for mini electro-nozzle1
E	Replacement brush for power brush1
F	Mattress nozzle1
G	XXL upholstery nozzle1
H	Variable accessory holder1
I	Power brush for hard floors1
J	Flexible extension hose1
K	Keyboard and drawer nozzle1
L	Long, flexible crevice nozzle1
M	Short crevice nozzle1
N	Battery1
O	Quick charger1
P	Charging cable1

1 Depending on the appliance specifications

Appliance

You can find an overview of the parts of your appliance here.

Fig. 2

1	Dust container
2	Fluff filter
3	Cartridge filter

Battery charging times

You can find an overview of the battery charging times here.

Notes

• The specified charging times may vary depending on the battery charging status, the battery temperature and the age of the battery.

4	Regulating the operating statuses
5	On/off switch
6	Status display
7	Dust container release button
8	Suction pipe
9	Power brush

Controls

You can find an overview of the controls for your appliance here.

① Switch on the appliance.
- Switch off the appliance.

Status display

The status display indicates the different operating statuses.

Operating status	Status display
Normal mode	Auto lights up.
Turbo mode	Turbo lights up.
Energy-saving mode	Eco lights up.
Battery charge be- low 20%	flashes quickly.
Battery empty	Display goes out.
Charging process	flashes and shows the already charged status.
Battery is fully charged	lights up and goes out after approx. two minutes.
Error display	lights up red and goes out after approx. 10 seconds. → "Troubleshooting", Page 21

• You can find out which battery charging times are achieved with the quick charger in the instructions of for the quick charger.

Tip: If the quick charger displays a battery charging status of approx. 80% , you can remove and use the battery.

Battery charging status of	18 V 3,0 Ah	18 V 4,0 Ah	18 V 5,0 Ah
80% in hrs	4	4	5
97%-100% in hrs	5	4½	5½

Battery runtimes

You can find an overview of the battery runtimes, depending on the battery that is used, here.

Note

The following modes affect the battery runtime:

Mode 1: Energy-saving mode with non-electrical accessory
Mode 2: Energy-saving mode with electrical floor nozzle
Mode 3: Auto mode with electrical floor nozzle
Mode 4: Turbo mode with electrical floor nozzle

Runtime	18 V 3,0 Ah	18 V 4,0 Ah	18 V 5,0 Ah
Mode 1 up to min.	45	65	45
Mode 2 up to min.	35	50	35
Mode 3 up to min.	15	20	28
Mode 4 up to min.	10	10	12

Notes

• Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect.

• You can delay the natural wear by using the following measures:

• Only charge the battery in the temperature range between 0^ and 45^ .

• Only store the battery in the temperature range between -20 °C and 50 °C.
• Do not store the battery for an extended period of time if it is fully charged or fully discharged.

Installing the base station

• Check whether any household wiring could be damaged in the installation area.

• Do not install the base station horizontally or vertically above, below or next to a socket.

$$ \rightarrow F i g. \quad 3 - 6 $$

Inserting and charging the battery

$$ \rightarrow F i g. \textbf {7} - \textbf {8} $$

Charging

Only charge the battery in chargers that are recommended by the manufacturer.
- Only use the battery in connection with the Bosch appliance.
- Charge the battery using the original charging cable ^1 or the original quick charger ^1 .
- Only use batteries from the Power for ALL 18 V series.

Note: The power supply unit on the charging cable ^1 and the appliance heat up while charging. This is normal and harmless.

Charging using the charging cable

$$ \rightarrow F i g. \quad 9 - 1 0 $$

Charging in the base station

• Ensure that children do not play with the appliance, even when it is in the base station¹.

$$ \rightarrow F i g. \quad 1 1 - 1 2 $$

Charging using the quick charger

1. Press the release button and remove the battery to the rear.

$$ \rightarrow \text {F i g .} 1 3 $$

1. Observe the enclosed instructions.

Installing the appliance

$$ \rightarrow F i g. \quad 1 4 - 1 5 $$

Switching on the appliance

Press ①.

$$ \rightarrow \text {F i g .} 1 6 $$

Setting the power

$$ \rightarrow F i g. \quad 1 7 - 1 8 $$

Vacuuming with accessories

$$ \rightarrow \text {F i g .} 1 9 - 2 0 $$

Storing accessories

$$ \rightarrow F i g. \underline {{2 1}} - \underline {{2 2}} $$

Using the flexible extension hose

$$ \rightarrow \text {F i g .} \boxed {2 3} - \boxed {2 4} $$

Malfunctions

Fault	Cause	Troubleshooting
The appliance is not working.	The battery has not been inserted correctly.	► Insert the battery correctly.
The battery status display does not show any status.	The battery has not been charged.	► Charge the battery.
The red fault indicator lights up for 10 seconds.	The battery has overheated or overcooled.	1. Switch off the appliance and disconnect the appliance from the power supply.

Cleaning the appliance

Requirement: The appliance is switched off.

1. Disconnect the appliance from the charging cable¹.
2. Clean the appliance and the accessory with a soft cloth and a commercially available plastic cleaner.

Emptying the dust container

$$ \rightarrow \text {F i g .} \underline {{2 5}} - \underline {{2 8}} $$

Cleaning the filter unit

• Never allow the filters to come into contact with liquids.

$$ \rightarrow \text {F i g .} 2 9 - 3 5 $$

Cleaning the power brush

$$ \rightarrow \text {F i g .} \quad 3 6 - 3 8 $$

Cleaning the power brush for hard floors

$$ \rightarrow \text {F i g .} \quad 3 9 - 4 1 $$

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.

Fault	Cause	Troubleshooting
The appliance is not working. The battery status display does not show any status. The red fault indicator lights up for 10 seconds.		2 Wait until battery has reached room temperature.
	The appliance has overheated or overcooled.	1. Switch off the appliance and disconnect the appliance from the power supply.2. Wait until the appliance has reached room temperature.
No charging function.	Incorrect charger was used.	Only use the charger that is included.
The dust container cannot be inserted.	The filter unit is not complete.	Check whether the filter unit is complete.
	The filter unit or dust container is not positioned correctly.	Check whether the filter unit and dust container are inserted correctly.
Suction is reduced.	The filter is blocked.	1. Switch off the appliance and disconnect the appliance from the power supply.2. Clean the filter unit.
	The nozzle is blocked.	1. Switch off the appliance and disconnect the appliance from the power supply.2. Check whether the air channel from the nozzle to the appliance is blocked.3. Empty the dust container.4. Clean the filter unit.5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

Valuable raw materials can be reused by recycling.

• Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

• Dispose of batteries in an environmentally friendly manner.

Only for EU countries:

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Warranty conditions

You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Sécurité

Montage of basestation

1 Allt after apparatens utrusting

1 Allt after apparatusens utrusting

Enhet

Eliminar as bacterias/pilhas

1 Avaoya mTov EOnAIO TO nO uOKeUNC

1 Avaoya mTov EOnAIO TO nO uOKeUNC

Σuokεuñ

Akū Şarj durumu	18 V 3,0 Ah	18 V 4,0 Ah	18 V 5,0 Ah
%80,.satormal	4	4	5
%97-%100,.satormal	5	4½	5½

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

Pn npaaan B rna3a o6paTntecb K Bpaay.

Bo n36eJxHne MaTePnaJIbHorO yUepe6a

UTo6bI n36eKaTb NOBpeKJdeHn np6opa, npHaJNeJHKoCTe N dpyHx PpeJMeTOB, co6JIouaIte npNBeDeHHbIe 3dEc bYka3aHn.

PpoBepaTe N ouuuaTe BlaXHbIe npedMeTbl.
3aMeHnTe NOBpeXdEHHbIe PpeDMeTbl.
- Perylnpno npoBepnTe ypoBeHb n3Ho ca pa6oOxN NOBepxHocTe HacaKn.
3aMeHraTe H3HOWeHHbIe HacaIKN.
Hnkorga He nCnoB3yIte HacaKky6e3 1TOCHORBAJIKA.
HnkorgaHe nCnOJb3yIte npBop 6e3 HnIbTPOBaJIbHOro 6Ioka.

KomnJIeKT NOCTABKN

Iocne pacnakOBKn npoBepbTe BCE deTaJIH Na OTCyTCTBVe TpaHCnOpTHbIX NOBpeKDeHIn KOMPJIeKTHOcTB NocTaBKn.

3aMeKa: B 3aBnCmOCTN OcHaSeHn np6Op NocTaBnEeTcB KOMPKeTe C dOnoJI HnteMbIMn PpHaDJIeKHOCTAmN.

→Pnc.1

HnDnKaTOp COCTOaHHN OTo6paKaaeT pa3IuHbIe peKIMbl pa60TbI.

Pa6ouH pe- Hndnkaunn JHM

ru BpeM3aPAnk aKymyIToPA

PekomeHdaun: EcnHa yctpoicTbe 6blcTPO3apAdkn1OTo6paKaetcaYpOBeHb3aPraIa pIM.80%,MOJHO OTOeDINHTb aK-KymyIATOp INCNoB3OBaTb erO.

YctpaHHe HeHCpPaBHOCTe

Bbl moKeTe camocToIeIbHO yCTpaHntb He 3NaHTeIbHbIe HEnCnpaBnOCTn BaIero npIb6opa. BocnoJIb3yIteCb INHΦOpMaunE n3 rIaBbl «YCTpaHeHne HEnCnpaBnOCTeN" nepei o6paUeHNem B cepBnCHyIO cnlyK6y. 3TO no3BOInT n36eKaTb DONoJIHnTeIbHbIX paCXoDob.

• PemohTnpoBaTb npi6op pa3peuaeTcra TOnbKO KBaHnΦnIpuPoBaHHbIM CneuaJIInCTaM.

Kpyrnocytouh bI Tepeoh Cnyk6bI nOeepxKN*:

8 [phone]

OΦnuaNbHbI caHT B INHTepHete:

www.bosch-home.ru

Aepca abotp30baonb1xcebp3nHxu eTPOB, a taXe BcH HFOpmuaa no cpeBHCHOMy 06cnyKBHAno DOCTynHa na OdHnauhOB CMte HInPHTehe: hosch-home.ru.

Pekomehnyem Bam noj30aTbca ycIyramn TOnbko ABTOH3OBAHHbIX cepBNCbIx cHTPOB.

OprrnHbIhBeAeKcceCaybI H cpeCTBa no xyOdy dIa BbTOB TeXHHBosch Bbl Mokote npHObECh H aauem pDmEHOM HHTepHemar3AnHe: www.bosch-home.ru/store. C ycnOBHMM 3k23a,Onnbl h doctABKn Bbl Mokote o3HaKOMtbcn Ha caite. Taekhe oprrnHbIhBe AkecccepaIbH cpeCTBa no xyOdy Bbl Mokote npHObECh B aTOPbOBAHNbIX cepBCHbIX ceiTpax.

1.ИЗdens

1. Moenb

NHyKb1 2 3AnONHnIOTCR TbnBcO B CnyHae, cEn 3Tn dAnHbYe He OcepejATCR B DOKyMertax O NOKyNke H3dEInna (kaccobb Yek H/nn ToBaprHnYueK ToBaphrA hKnADJIaHn.

3.Даннан Инфомразимаарpacnopratharctc ha mabhe bbytobbe npb6bpy Tobaphoro 3haka Bosch:Koepaepkni, Koempaemnhi, KocemonkiN, Becei, KOxHOBHe KOMaBnHb, MMkeCebp, bIneLncOb, p3eKn, TocTeBp, yTfOnr, dEhPb, paPmTTMeN dA BoNOL, 3NeKTPOayHNNK, COKOBbJIMAnNK, INMbnbUTHTen, IINbETpe, rAinlndbHbdoDCckn, BahnovKhN, AnnoBbHBe BCbe, yTfOnr, napBoBe ctaCnur, rAnanbHbBe doCKN aHanyOHNTbHim Nm3dEIn.

1. 8.YaBaAeMaHBe DAMbI aCnOIOA, CooBlaaem BAm, QTO noTBeRgeJHHeo COOTCBETBNH HauH aPNOyKunu OOBaTeBnblm Tpe6OBaHARn BCOOTCBETBn c 3 AOKHO BOCHTBnCTBOcYcETCBETBnBcT B oFMOE OOBaTeBnHOb CEPTNkHauN eNoPAHApHAABOOBCTBTBN. HbOpMaHIO 06 OBaTeBnHOM NOTBepRgeJHn COOTCBETBN HauHX pNboDpOBo, B TO cHNCs dHaBt bO Homepe ceNTKnKa coOTCBETBN (DeNaPakuao o COOTCBETBN) n cPOe er (ee) DeTbnBb Bb MOKeTE nONyHTb B OOO eECX BbToBbPi neOpBu).

Haua npoKyunu pnoBvTnD noK tonPOnen TnpaTHaONHbONn KOponapua 6C5 XaycrepeF M6X), aepc stb6-KpAtpnby: 81739 MoHNxk, KaP-Bepi UJpacc 34, FepMaHna (BSH Haagerate Gdl, Carl-Wery-Str. 34, 81739 Munchen, Germany).

Orpnaaun, bnoohnauon knuuun nooennnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nnannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annannn annan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan nan aanae e 15, 13, 12, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1, 0, 7, 6, 5, 4, 3, 2, 1, 0, 7, 6, 5, 4, 3, 2, 1, 0, 7, 6, 5, 4, 3, 2, 1, 0, 7, 6, 5, 4, 3, 2, 1, 0, 7

1. 063aTeHbNb CBeENnHO TcEHnVcckHX XapAKeTpeHCTKkX npBopApnpBHeDnHa HtNOBOB TaBnHke npBopAp Haero 3mKekE H/nn B cOpOBaTeHbNO DOKyMeHTAnu.

6. AkceccyapbI n cpeCTBa no yxody

IaepnHbBnAe 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

7. rapaHTHn H3ROTOBNTen

ΦHm3 hrotoBtne npoctobertn H naPno6pTeHNb BAMn B PoCscNcKoN Depeaunb HbToBOn PnpObp RapAHTNko BOOTBCTBN C deKTBouMn 3akohOnDatBcTbOM P cspOK m 1.0d. H naPno6pTeHNb BepCynbIke EbnApocy bSbTOBn PnpObp K kTopoM npn Pokynke bInBbDanr apanhniH tonoh, dEeYbKot rapanthnHe ycnobn, ne pOtnOBpoeauae 3aKaOHoATnBCTBy BepCynbIke 5enApocy.

8. Bhmamhe! Baxhna HOpmaun dna notpe6ntene

AnHHnI pnp60 nppeH3aHneHnE IcnNp53OBAHnI NcKIOHHTBNOI DnI nnHbX, CEmeHbX, DomAHHx IN hINbX HNYk, He c2B3AHnC 0C cyOCTBeHNHEm nppeHnIMnATBENCKIOIETANBHOCTN IOBTOBHNbE bTOBIOX nTOPbEHO B OHCNE ppeHnTnIHY, yUPEckENII HOpRn3aUM. IcnNp53OBAHnI np60Ba E nOtHbX, OTNIHbX TOBIOX TOBIOX, ABNIEcR HApOeHMe PpBNH dndKeauae 3KcKnpyataumnp60ba.

Hannmhe pfhemnher 3aabckonr thnoBor hna pnpbope oobatnehlo! Hoanaylnta, y6beDttce he bnnnHc on coanane he na pnpbope. Hennnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncncc n 3kcnpataun.

HroTobtBHe He hecet OteBcTBHehCtb 3a HedctatKn b nPbObe, cncs cepcnchOn Cnkyb 8dydokKa3AHO, yOto OHn B3HNNn noCnepeadna npbOpba nOtpBehtno BCnBcTeDn HApueyHm im Pabnn lnoB3oAnh, TpaCnpOthpOBk, XpeHAneH, deChtnBtPBtXnLm, hnepeonDmoH mCNb (Noopa, npbDhoH a kataDopb t H.n.), noNanDAH b6ToBbH hKecOMeKb H rIyTHyOB, 0BcDECTbn HnHxN oTOPOHNHn (PAkToB), a TAKKE pRnEeF100000000000000000000000000000000000000000000000000000000000000000000000000000000000

IaNDtBepZeHnA datb oNkynHm npOba npraHHTHMo pMeOHTE hnnpeBbAHm nHHxpeyCMLPHTBNHX 3AKOHm Tpe6oBAMn b6EaDTHBO nPOCM Bac coxApahtb DOKymEtbo O nOKynF (ue, KCBtAHuIN, hInbe DOKymEtbo, NDtBepZaOUme DAty m E MTOc NKynH).

C6bIeHnepeKMOeuaaH yKazAA, coEepkAuaXcB HnCTpyKnn no 3Kcnnyataa (npabnnaXnnoB3oBAHH), moNOKet n66ekatb np6oem B hcknaytaaun pncbopa H oro 6cbNykaBHaua

HcnnepaBHe 3yblnbpOBbR a parattnHHINp neopDIOBcNHO pMOHTHPYIOCTCR nIM 3aMeHHIOCTCR HObIMn. PeseHne BONPOCA o CENEOCO6PbAHOCTN X hAMeBI HNI pEMOHTA OCTaETCR 3z cIyNCgAMC SBCEPHIA.

9.Инфорmaцьо cepBnce

B nepohn o nncne hcteneHHraapHTNHoro cpoka hawa Cnykba CepBcna, a TAKe HaeMCTepCNE hauHX npTHePOB bcERda roTOBb nppeNOXHTB Bam cBOH ycnLh. CnKoC adPecOB yNIOHNOMOHHHINH XaIgTOBHTEN EMYKTOB ABOTPHOBAHHO CEPBCHO BOcNyKBMHAHKO HAOJNTCH Ha oMHuaNB hom caie B NTHePhe: www.bosch-home.ru.

CpO cnkybbl mAn5 b6tB0xh npBc0p (kpoxy KnoHbMcoAonBn Hoo cocob) coBCTaBnre 2rdo. CpO cnkybkl knoHb n BnHnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBn

HnΦopMaunO 6bIToBOn TeXnKe, npON3BeDeHHoN IOJ KOHTpOJeM KOUePHa BCX XaycrepeTe Tm6X, Kapn-Bepu-UItp. 34, 81739 MIOHXeH, FepMaHnB COOTBETCTBnC Tpe6OBaHNMy 3aKoHOdaTeJIbCTBa O TeXnueckOM peryInpOBAHNn N 3aKoHOdaTeJIbCTBa O 3aUnTe IpaB IOTpe6BtTeJIe PoccnckO Feepauin

PpOdykUa: nbIeocobI

ToBapHbI 3HaK:Bosch

BHIMAHIE! ACCoITMNTI pNOKUIN NOCTOBHIO 60BIOHTE. TceNEXHEKAPXAKTREPNIOPODKYLBI, B TOUM NcE 3NEpO3P04eKNTBHOCTCN. NOCTOBHIO COBUEPHETCYOTBO. IPODkyLI peryIPOHNI POPOKTIOB 60BIOHTE 103ATENBILNIOY IOPOLEIDyUPTOBDEKPEHQN COTBEETCBNIO CORNAHO 6728BIOYUE 3AOKHOATEPCTBYV INOPDMLAIIO O POKEBIIATX AOTAYBLHbIX CEPNTIKAKTN BOCTETBNNI INCPOKAX IH DECTBNIA INOPDMALIO 6 AOKYTAHBOM ACCoITMNTI pNOKUIN MOXHO NONHTyU To yORMAHNLHIO BBOHINIOHIOF KFOPLNIO HIOCTPAHNO H3OTOBENTBA HAI TEPOTIPON PCOSKCNK DepeaunOOO CCsBtBoeNE Pn60bp), 198515, Caht-TePep6yrr. r TepeRIO, Yn. Kapna CmEHCA, d.1 nTtA, FAnmian b R. Mockba, 119071, yn. Manala Kanykckaa, d.15, teneoPHO [phone], faoke [phone]

KOMANHOO OOC 5CXBbBoTBePnIb6pRb.18551.CaHTt-PeTeBpyr.r.TPeReOph.Yn.Kapna CmHMeCA, dI nA.FiHNB R m FcKBA, 19071, Yn.Malaa KAYKcKa, d.15, teneoPh [phone], faox [phone] cueSyctBaT BcOEOyTeBtIeHoN CTNO TneBpEKeHHIO COOTBETCTBBn PnpkDyKN OT ENHEM NPOB3BOITEN H a EDINH TAMOXEHNO TERTOPINr Eepa3NcKOFO KOHOHmNECKGCOO3 a BoCOTBETCTB C eDTECHIOUM TEXNHYCKMMI pereJAMNTAMn, B kAneeCTY yInOHMOHNOHOrIO IIOBOTAOBENTEM Na Ia, a TAKOE BblONHET TpeBOABAHNA, PNDYCMOTPBHe 3AOKOH PΦ N184-Φ3 « O TexhiackCMey peryioBaHnIa DnI Iina, BbIIOnHIIOJIeOEO dyHKIM INHOCTPAHOH INOTOBOTAHNA, TERTOPINr POscAKKOM DEpaeraun

VIMNOPTEPOMB Pocmckyfo Depepauino npOkyuim,ceptinmuipoubaHno B Kaenctbe cepuHIO npOu3bODmoi,raJIaTcE OOO «ECX BbToBHe. PnIb6pBy,198515.CaHT-Flerebpyr,rIteproΦ,yn.Kapna CImeHca,1PiA,ФmianB r:MockBa,119071,Man.Aanar KanyKcKaan d,15, TeneOp [phone].

OprnH3aUme, yka3bIeMaHOH na npDyKlUM B cIeXH NdeHTNdkAumnpDyKlUM n OcUyIECTBnIOUeep NepBvHoe p3AmEHe Hne npDyKlUM ha pIhke EApnccko co03a, jraJIeroc PoBeF oou Xaycrepe Tm6X Kapn-Bepn-LItp. 34, 81739 MxHXen, EpmaHna (Robert Bosch Hausgerate GmbH, Carw-Yew-Str. 34, 81739 München, Germany).

OIpUHINcKHM NlIOM (M3T0R0BtREnEM), OCUyETCBNIAOLIM OT CBOEOT MEmHN I3T0R0BtNEHne PNOyIKMN UOTBETrBNHbM 3a ee COOTBETCTMBtepeBaHmNpMmHbX TeuHcckXn perramEnTOB, BAnIEcER BCX XayCrepTe m6X , KApN-Bepn-lltp. 34, 81739 MIOxHEN, TepMaHn (BSH Hauserge GmbH, Carw-Wer-Str. 34, 81739 Munich, Germany).

Ipipepebo3Kpny3kpepa2y3K npaHEnHH pOoDyUcM cNcEpy TKPOBOCTBOBAtcBcNOMMO I3NOXeHNbIX B HmCTPKUmNo 3KcnllnayTALIM, CneDyIOuKtncpe6oBnHARMA

3AnePaeTaerNoDBePratb PNOyKLMIO CyueCTBHeHHIM MEXAHINeCKHM HApry3kAM, KOTOpJE PnIBEcTNI K NOBpEKeJHIO PNOyKLMN WnIHN HApuy3kEO ee nyakOBK.

HeobxOIMO n36eratb nonaHa hyyakOBky npOdyKm BOby i npyix KIOCTe.

Perepepeepoe30kno nnepepeae na xpaenee HbueB E 3KcNpyaLnn pnpotnAteIbH oE6Oxmo y6eNbBa COTCTyBn P npDkyo BNOB.

PpOyKJn PnpDnHaHaeHcN CNOPL3OBaHmBbY cNoBNXeTMNEPApyBbIe0C N OTHOCMTENbHO BNAAKHOCTN, He npEeBbAoue93% Ppeh HauHOM 3KnPTyAtnu pnoDyKb, dNtEINbHO BPEM HAXoDINBEueC NOJ BO3dEJIChBME OTPOATelNHO TMEPApyBbI, HeOxOxDMO BIDepkTbEBy E y cNoBNX XCMHAnTH TMNEPApyBbIe HcNOKBIO YacOB.

Nivel de incǎrcare a accumulatorului de	18 V 3,0 Ah	18 V 4,0 Ah	18 V 5,0 Ah
80%Inset h	4	4	5
97%-100%Inset h	5	4½	5½

ii j1i jS 4 o0 jg S ji aiuus uj cbs as 1 j gai jiu j

y

iiS oiaiul glu slua j bai oaiui jil

ii j 1j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

ii 100000000000000000000000000000000000000

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

J 1

iiS i jS i w s ii S a 1

g Juaia cuiiaia 5y g yraa ola ly jia baa a r 1

iiS oaii

J 1

1. iS 1.

ii j 0i i 1

oJusu 120

1 = 3

and electronic equipment - WEEE

1

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

iiS auii iAiS S 0000

G

bua ly jiljul gdd jbj jj jai jai jai jai

.2s0saiow

J 1

0g j 1 g 2g 3g 4g

25 15

S ACD = S COD + S_ DAB

/66/2006

yJaeJeio y

（）

jg j

y

y

S OBC = S COD + S_ BOC

Baaiaa

0000000000000000000000000000000000000000000000

a 1

142 1000000000000000000000000000

jai jai gai gai gai

Ciluaa buiy juyi yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj

j j

al jllj 154

安全性

Central Service Contacts

AM AM Armenia, Rujuuunuwu

ZIG ZAG LLC

Charenci str.25

Yerevan 375025

Tel.:[phone]

mailto:[e-mail]

www.zigzag.am

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

*Mon-Fri 24 hours

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A.-N.V.

Rue Picard 7, box 400, Picardstraat 7, box 400

1000 Bruxelles-Brussel

Tel.:[phone]

mailto:[e-mail]

www.bosch-home.be

BY Belarus, Benaapycb

000"5CXbIbTbAraTexnka

ten.: 4957372961

mailto:[e-mail]

19F, Jinling Asia Pacific Tower, No.2 Han

zhong Road, Gulou District

210005 Nanjing, Jiangsu Province

Service Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.cn

*phone rate depends on the network used

CY Cyprus, Kūnpoc

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.:[phone]

mailto:EGO-CYCustomerSer

[e-mail]

CYN

Turkish Rep. Of North Cyprus

Argas Limited Company

37 Osman Pasa Cad. K Çiltlik

Lefkosa

Tel.: [phone]

mailto:[e-mail]

Turkish Rep. Of North Cyprus

Semson Ticaret Sti. Ltd.

Bedrettin Demirel Cad. no 17

Girne

Tel.: [phone]

mailto:[e-mail]

CZ Ceskár republika, Czech Republic

Vice informaci (napr. zaručni podminky,

Grand Union House, Old Wolverton Road,

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk Or call Tel.: [phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, EAA

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.
