Product type	Cordless vacuum cleaner
Brand	Bosch
Model	BSS71125AH / BSS71125AHB
Power supply	18 V lithium-ion battery (Power for ALL series)
Charger	Original fast charger (recommended)
Dust container	With estimated 0.5 L capacity
Filters	Lint filter and lamella filter
Floor brush	Universal with free parking function
Power selector	Integrated into the on/off switch
Status display	LED indicator
Container unlocking	By dedicated button
Storage hook	For base station
Suction hose	Angled
Foot unlocking system	Allows detaching the device
Base station	For charging and storage
Use	Domestic use, hard floors and carpets
Maintenance	Regular cleaning of the filter and container
Safety	Do not vacuum liquids, hot substances, ashes
Warranty	According to distributor's conditions

Frequently Asked Questions - BSS71125AH - BSS71125AHB BOSCH

How to charge the vacuum cleaner?

Place the device in the base station or connect the supplied fast charger. Use only an original Bosch charger. The status light indicates progress.

How to clean the filter?

Remove the dust container and take out the filter unit. Gently tap the lint filter and lamella filter to remove dust. Never clean them with liquids. Reassemble everything.

What to do if the vacuum cleaner does not turn on?

Check that the battery is correctly inserted and charged. If the red error light flashes, the battery or device may be overheated: turn off and let it cool down to room temperature.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry cleaning. Never vacuum liquids, wet or hot substances, as this would damage the device.

How to empty the dust container?

Press the unlock button of the dust container to remove it. Open the lid and empty the contents into a trash bin. For thorough cleaning, you can wash the container with water (without the filters).

What accessories are included?

The vacuum cleaner comes with a universal floor brush, an angled hose, a base station and a fast charger. Additional accessories can be purchased separately.

How to maintain the floor brush?

Remove the brush from the device. Use a tool to cut hair or threads wound around the roller. Clean it with a damp cloth. Regularly check for wear and replace if necessary.

Which battery to use?

Use only batteries from the Power for ALL 18 V series by Bosch. Do not use other batteries. The battery can be recharged in the device or separately with the appropriate charger.

How to store the device?

After use, place the vacuum cleaner in the base station attached to the wall. Use the storage hook to hold the device in place. Store the accessories nearby.

What to do if the suction power decreases?

Check that the dust container is not full and that the filter is not clogged. Clean the filter and empty the container. Make sure the air duct between the nozzle and the device is not blocked.

USER MANUAL BSS71125AH - BSS71125AHB BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Cordless handstick vacuum cleaner

BBS71

BCS71

BKS71

BSS71

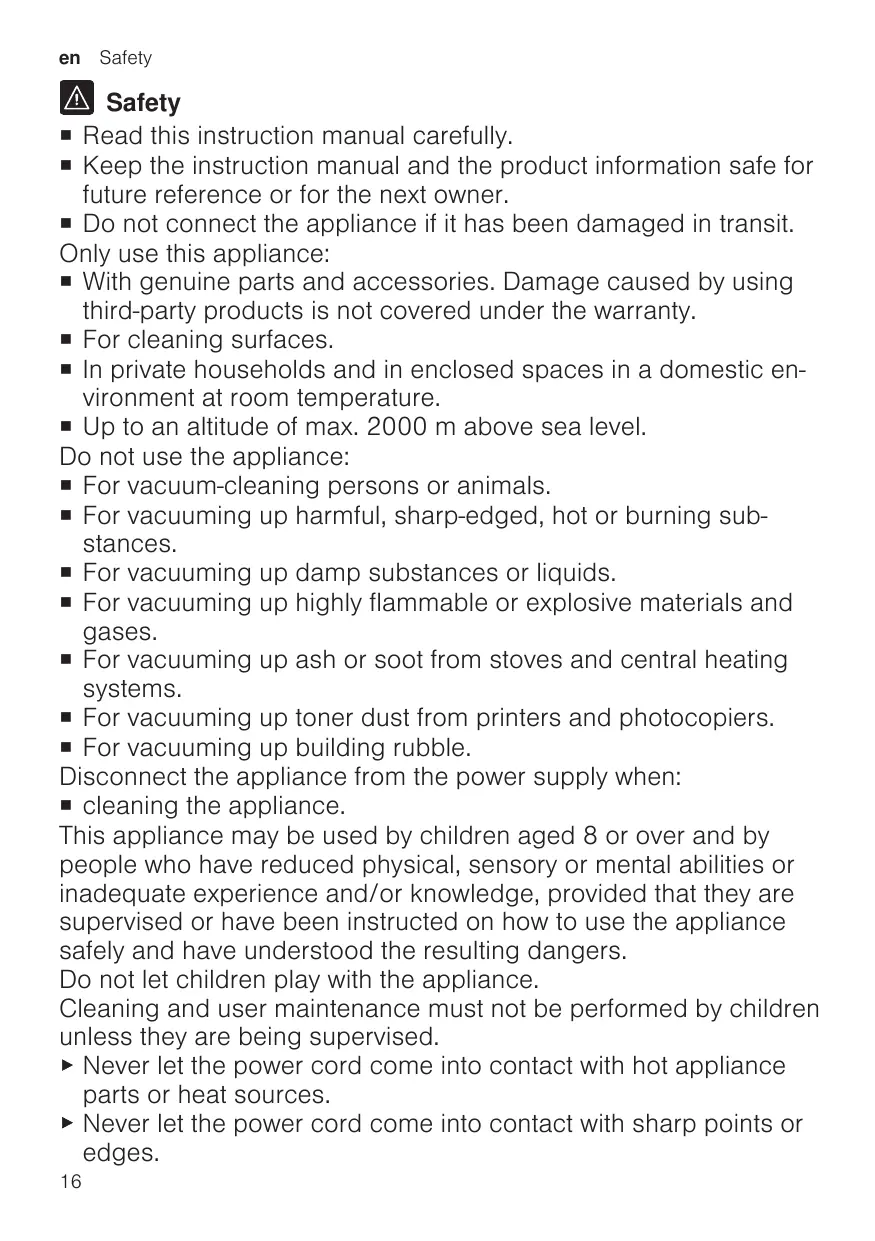

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

• With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
  For cleaning surfaces.
• In private households and in enclosed spaces in a domestic environment at room temperature.
  Up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

For vacuum-cleaning persons or animals.
- For vacuuming up harmful, sharp-edged, hot or burning substances.
For vacuuming up damp substances or liquids.
- For vacuuming up highly flammable or explosive materials and gases.
- For vacuuming up ash or soot from stoves and central heating systems.
- For vacuuming up toner dust from printers and photocopiers.
For vacuuming up building rubble.

Disconnect the appliance from the power supply when:

• cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Never let the power cord come into contact with hot appliance parts or heat sources.

• Never let the power cord come into contact with sharp points or edges.

• Never kink, crush or modify the power cord.

• Connect and operate the charging cable¹ and the quick charger¹ only in accordance with the specifications on the rating plate.
• Connect the charging cable¹ and the quick charger¹ to a power supply with alternating current only via a properly installed socket with earthing.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
• Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• Ensure that children do not play with the appliance, even when it is in the base station¹.
• Persons with electronic implants must stand at least 10~cm away from the appliance.
• Keep packaging material away from children.
  Do not let children play with packaging material.
  Protect the battery against fire, heat and constant sunlight.
  Protect the battery against water and penetrating moisture.
• Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
  Supply fresh air.
  If there are any problems, seek medical advice from a doctor.
• If these come into contact with the skin, wash immediately with cold water.
  If these come into contact with the eyes, seek medical help.

Preventing material damage

Check and clean any wet objects.
Replace damaged objects.
Regularly check the running surfaces of the nozzles for wear.
Replace worn nozzles.
- Never use the nozzle without the brush roller in place.

• Never operate the appliance without the filter unit.

Overview

You can find an overview of the parts of your appliance here.

Fig. 1

1

Dust container

2	Fluff filter
3	Cartridge filter
4	Power control and on/off switch
5	Status display
6	Dust container release button
7	Storage hook
8	Flexible suction pipe
9	Foot release
10	Universal floor nozzle with free-standing function

Operating the appliance

Follow the illustrated instructions.

Installing the base station

• Check whether any household wiring could be damaged in the installation area.
• Do not install the base station horizontally or vertically above, below or next to a socket.

$$ \rightarrow \text {F i g .} 2 - 3 $$

Installing the appliance

$$ \rightarrow \text {F i g .} 4 - 5 $$

Charging the appliance

Only charge the battery in chargers that are recommended by the manufacturer.
- Only use the battery in connection with the Bosch appliance.
- Charge the battery using the original charging cable ^1 or the original quick charger ^1 .
- Only use batteries from the Power for ALL 18 V series.
- Ensure that children do not play with the appliance, even when it is in the base station¹.

$$ \rightarrow \text {F i g .} 6 - 1 0 $$

Operating the appliance

$$ \rightarrow \text {F i g .} \quad 1 1 1 - 2 5 $$

Removing the appliance

$$ \rightarrow \text {F i g .} \quad 2 6 - 2 8 $$

Cleaning and servicing

Follow the illustrated instructions.

Note: It is recommended cleaning the filter of the dust container whenever you empty the container. It should however be done at least once a month.

Cleaning the appliance

$$ \rightarrow \text {F i g .} 2 9 - 2 9 $$

Emptying the dust container

$$ \rightarrow \text {F i g .} \quad 3 0 - 3 3 $$

Cleaning the filter unit

• Never allow the filters to come into contact with liquids.

$$ \rightarrow \text {F i g .} \quad 3 4 - 4 0 $$

Cleaning the floor nozzle

$$ \rightarrow \text {F i g .} \quad 4 1 - 4 1 $$

Troubleshooting

Fault	Cause and troubleshooting
The appliance is not working.	The battery has not been inserted correctly.
The battery status display does not show any status.	Insert the battery correctly. Inserting and charging the battery
The red fault indicator lights up for 10 seconds.	The battery has not been charged. Charge the battery.
	The battery has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until battery has reached room temperature.
	The appliance has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until the appliance has reached room temperature.
No charging function.	Incorrect charger was used. Only use the charger that is included.
The dust container cannot be inserted.	The filter unit is not complete. Check whether the filter unit is complete.
	The filter unit or dust container is not positioned correctly. Check whether the filter unit and dust container are inserted correctly.
Suction is reduced.	The filter is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Clean the filter unit.
	The nozzle is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Check whether the air channel from the nozzle to the appliance is blocked. 3. Empty the dust container. 4. Clean the filter unit. 5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

• Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Warranty conditions

You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
