USER MANUAL AKR749NB - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX WHIRLPOOL

natural_image Line drawing of a kitchen air conditioner unit with ventilation grilles and ventilation duct (no text or symbols)

GB User and maintenance manual

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

a b c d

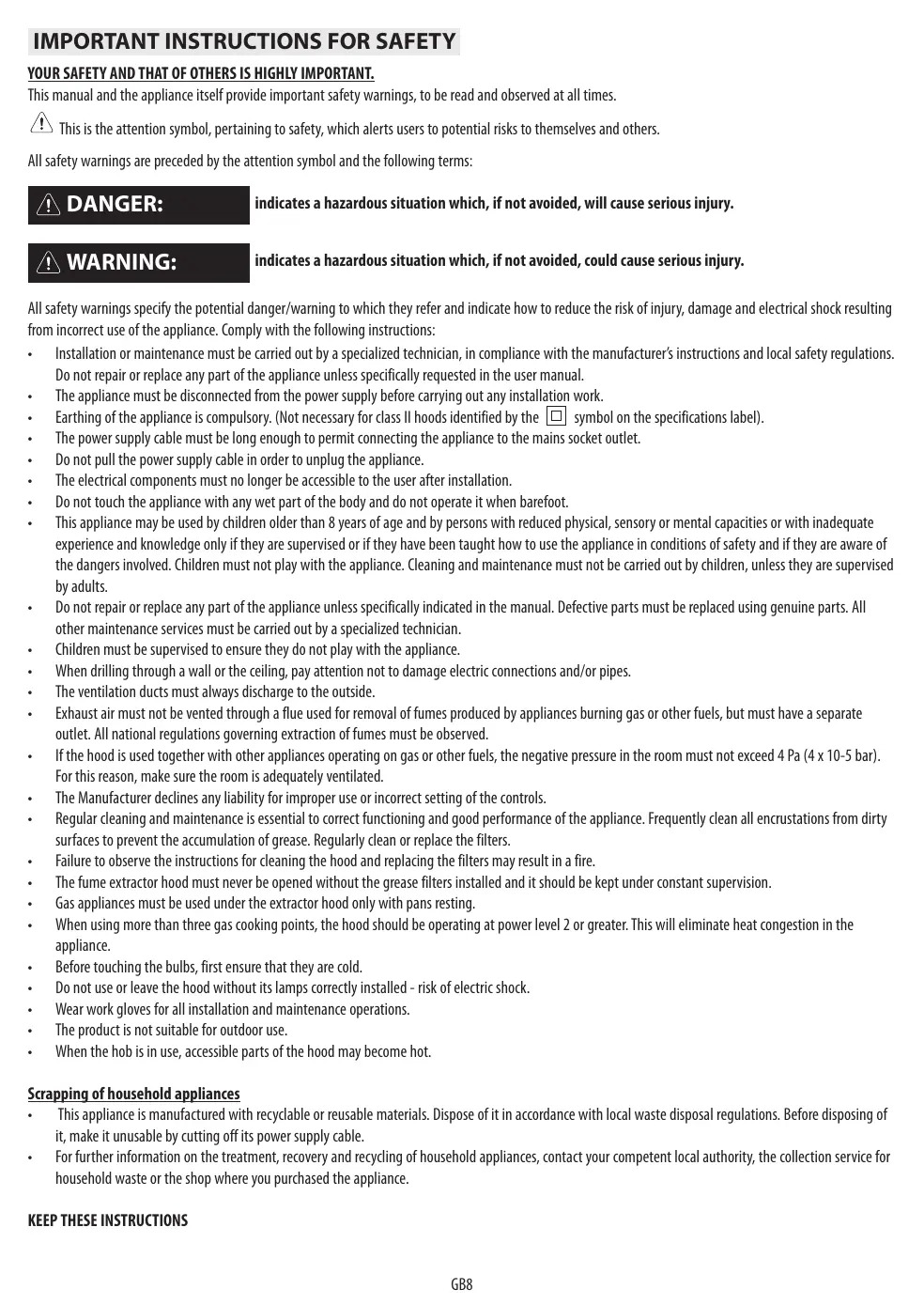

IMPORTANT INSTRUCTIONS FOR SAFETY

YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT.

This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT. - 1

This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others.

All safety warnings are preceded by the attention symbol and the following terms:

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT. - 2

DANGER:

indicates a hazardous situation which, if not avoided, will cause serious injury.

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - DANGER: - 1

WARNING:

indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety warnings specify the potential danger/warning to which they refer and indicate how to reduce the risk of injury, damage and electrical shock resulting from incorrect use of the appliance. Comply with the following instructions:

  • Installation or maintenance must be carried out by a specialized technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically requested in the user manual.
    • The appliance must be disconnected from the power supply before carrying out any installation work.
    • Earthing of the appliance is compulsory. (Not necessary for class II hoods identified by the □ symbol on the specifications label).
    • The power supply cable must be long enough to permit connecting the appliance to the mains socket outlet.
  • Do not pull the power supply cable in order to unplug the appliance.
    • The electrical components must no longer be accessible to the user after installation.
  • Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
  • This appliance may be used by children older than 8 years of age and by persons with reduced physical, sensory or mental capacities or with inadequate experience and knowledge only if they are supervised or if they have been taught how to use the appliance in conditions of safety and if they are aware of the dangers involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children, unless they are supervised by adults.
  • Do not repair or replace any part of the appliance unless specifically indicated in the manual. Defective parts must be replaced using genuine parts. All other maintenance services must be carried out by a specialized technician.
    • Children must be supervised to ensure they do not play with the appliance.
  • When drilling through a wall or the ceiling, pay attention not to damage electric connections and/or pipes.
    • The ventilation ducts must always discharge to the outside.
  • Exhaust air must not be vented through a flue used for removal of fumes produced by appliances burning gas or other fuels, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.
  • If the hood is used together with other appliances operating on gas or other fuels, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). For this reason, make sure the room is adequately ventilated.
    • The Manufacturer declines any liability for improper use or incorrect setting of the controls.
  • Regular cleaning and maintenance is essential to correct functioning and good performance of the appliance. Frequently clean all encrustations from dirty surfaces to prevent the accumulation of grease. Regularly clean or replace the filters.
    • Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.
  • The fume extractor hood must never be opened without the grease filters installed and it should be kept under constant supervision.
    • Gas appliances must be used under the extractor hood only with pans resting.
  • When using more than three gas cooking points, the hood should be operating at power level 2 or greater. This will eliminate heat congestion in the appliance.
    • Before touching the bulbs, first ensure that they are cold.
  • Do not use or leave the hood without its lamps correctly installed - risk of electric shock.
  • Wear work gloves for all installation and maintenance operations.
    • The product is not suitable for outdoor use.
  • When the hob is in use, accessible parts of the hood may become hot.

Scrapping of household appliances

  • This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before disposing of it, make it unusable by cutting off its power supply cable.
  • For further information on the treatment, recovery and recycling of household appliances, contact your competent local authority, the collection service for household waste or the shop where you purchased the appliance.

KEEP THESE INSTRUCTIONS

INSTALLATION

After unpacking the appliance, check for any damage caused during transport. In case of problems, contact the dealer or the After-Sales Service. To avoid any damage, it is advisable to only remove the appliance from the polystyrene base just before installation.

PREPARATION FOR INSTALLATION

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - PREPARATION FOR INSTALLATION - 1

WARNING:

this appliance is heavy; the hood should only be lifted and installed by two or more people.

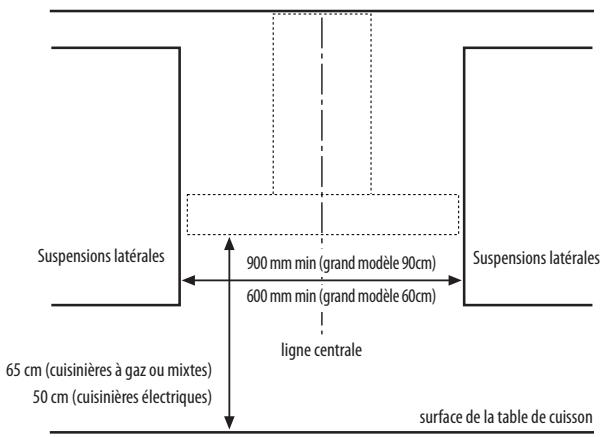

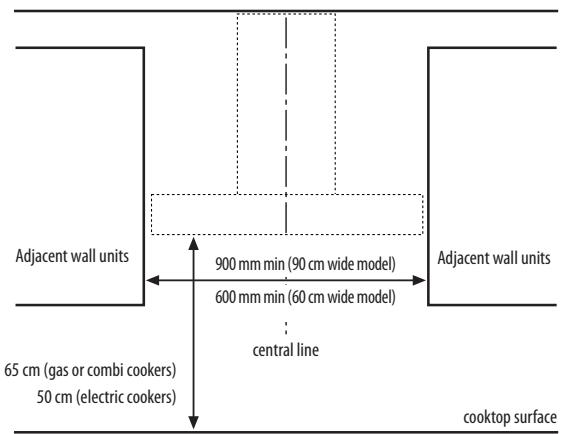

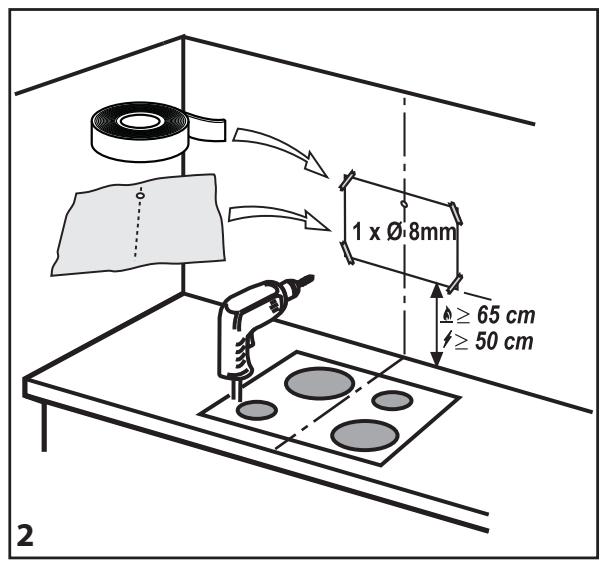

The minimum distance between the cooking pan support on top of the cooker and the bottom of the hood must not be less than 50 cm for electric cookers and 65 cm for gas or mixed cookers.

Before installation also check the minimum distances stated in the manual of the cooker.

If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed.

ELECTRICAL CONNECTIONS

Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage.

This information may be found on the inside of the hood, under the grease filter.

Power cable replacement (type H05 VV-F 3 x 0.75 mm ^2 ) must be carried out by a qualified electrician. Contact an authorized service centre.

If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place. If no plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, install a standardized double pole power switch that will enable complete isolation from the mains in case of category III overvoltage conditions, in accordance with wiring rules.

GENERAL RECOMMENDATIONS

Before use

Remove cardboard protection pieces, transparent film and adhesive labels from accessories.

Make sure the appliance has not been damaged during transport.

During use

Do not place weights on the appliance, as they could damage it.

Do not expose the appliance to atmospheric agents.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing

The packing material is 100% recyclable and is marked with the recycle symbol ⬆. The various parts of the packing must be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Disposal of the appliance

  • This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
  • By ensuring that this appliance is disposed of correctly, you can help prevent potentially damaging consequences for the environment and health.
  • The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

TROUBLESHOOTING GUIDE

The appliance does not work:

  • Check the domestic power supply and ensure the appliance is connected to the mains properly.
  • Switch the hood off and then on again to see if the problem has been resolved.

The hood is not extracting satisfactorily:

• Check the extraction speed is set to the desired level;
• Check the filters are clean;
• Check the air vents are not blocked;

The light does not work:

• Check to see if the lamp needs replacing;
• Check to see if the lamp has been fitted properly;

AFTER-SALES SERVICE

Before calling the After-sales Service:

  1. See if you can solve the problem yourself with the help of the "Troubleshooting guide".
  2. Switch the hood off and then on again to see if the problem has been resolved.

If, after the above checks, the problem persists, contact your nearest After-sales Service.

Always provide:

• a brief description of the problem;
• the type and specific model of the appliance;
- the Service number (this is the number which follows the word SERVICE on the dataplate), inside the appliance. The Service number is also printed on the warranty booklet;
- your full address;
- your telephone number;

SERVICE

0000 000 00000

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - If, after the above checks, the problem persists, contact your nearest After-sales Service. - 1

If any repairs are needed, contact an authorized Service Centre (to ensure that only original spare parts are used and that repairs are made correctly).

CLEANING

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - CLEANING - 1

  • Do not use steam cleaners.
  • Disconnect the appliance from the power supply.

IMPORTANT: Do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean it immediately with a damp cloth.

• Clean the surfaces with a damp cloth. If very dirty, add a few drops of washing up detergent to the water. Dry with a dry cloth.

IMPORTANT: Do not use abrasive sponges or metallic scrapers or scouring pads. Their use could eventually ruin the enamelled surfaces.

- Use specific detergents to clean the appliance and follow the manufacturer's instructions

IMPORTANT: Clean the filters at least once a month to remove built-up oil and grease.

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - CLEANING - 2

CAUTION:

  • use protective gloves.
  • disconnect the appliance from the mains power supply.

GREASE FILTERS

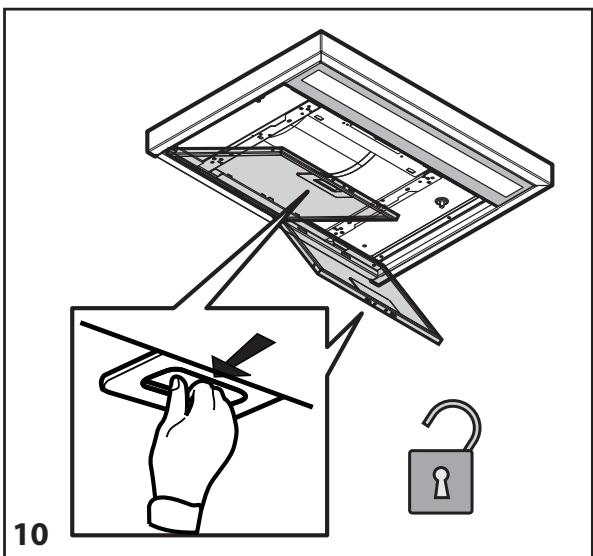

Metal grease filters have an unlimited life and should be washed once a month either by hand or in a dishwasher at a low temperature and with a short cycle. Washing in a dishwasher can cause grease filters to turn white, but this in no way affects efficiency.

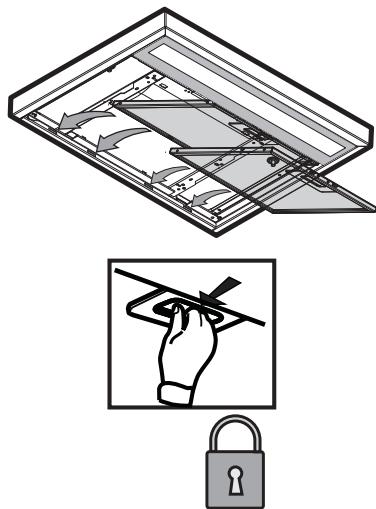

Pull out the handle to remove the filter.

Wash the filter and leave it to dry, proceeding in reverse order to refit it.

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - GREASE FILTERS - 1

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

REPLACING THE FLUORESCENT LAMP

Contact the technical support service for replacements.

Note:

Should the fluorescent lamp suddenly switch off:

Press the Lights ON/OFF button, wait a few seconds and then press again.

ACTIVE CARBON FILTER

(filter hoods only):

The carbon filter must be cleaned once a month in a dishwasher at the highest temperature, using a normal dishwasher detergent. Wash the filters on their own.

After washing, reactivate the carbon filter by drying it in the oven at 100^ C for 10 minutes.

Change the carbon filter every 3 years.

Fitting the carbon filter:

  1. Remove the grease filter.

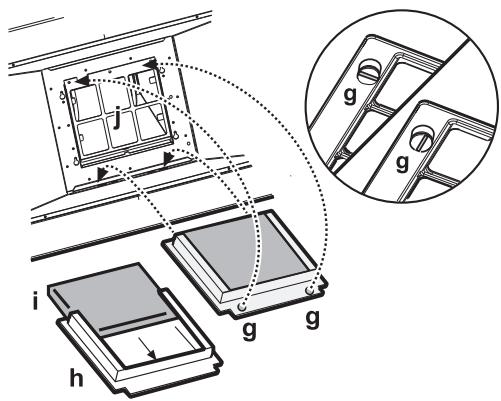

  2. Turn the side knobs 90^ and then remove the filter holder "g".
  3. Fit the carbon filter "i" in the filter holder "h".
    Reverse the above procedure to refit the filter holder and grease filter.

i h g g g

MATERIAL SUPPLIED

Remove all the components from the packets. Check that all the components are included.

  • 1 collar
    • 1 electrical cable
    • 1 Assembly template
    • 6 wall plugs ∅ 8 mm
  • 6 screws ∅ 5 x 45
  • 1 cable clamp
    • 1 screw ∅ 3.5 x 9.5

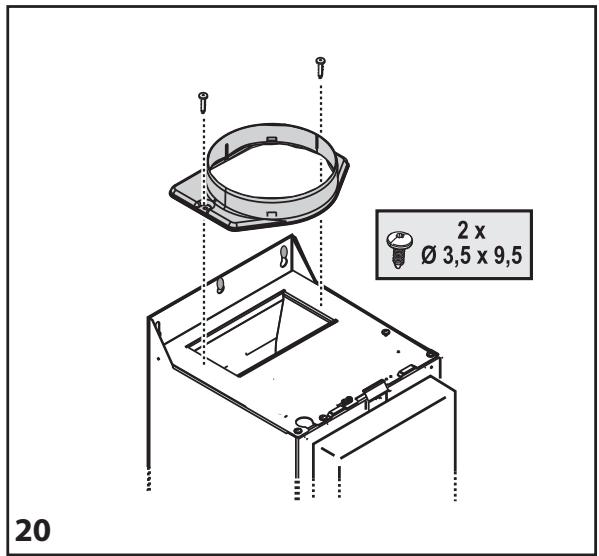

    1 Flue support bracket
    1 deflector

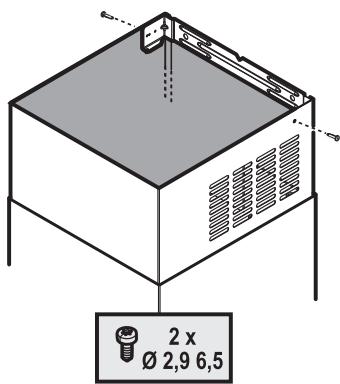

    2 screws ∅ 2.9 x 6.5
    2 screws ∅ 3 x 9

- Hood assembled with motor, lamps and grease filters installed.

• Instructions for assembly and use

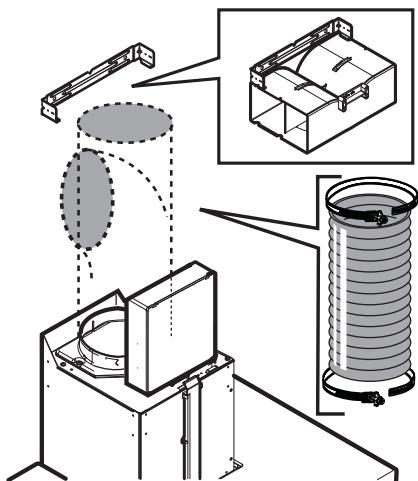

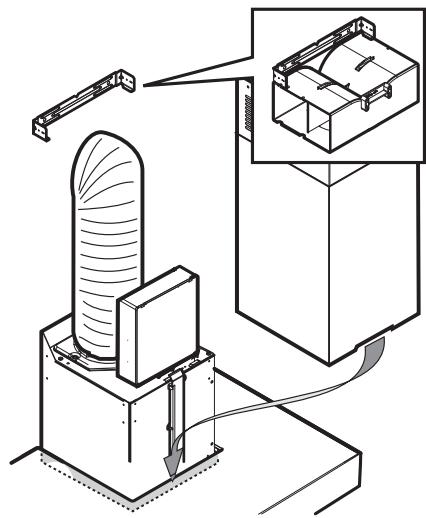

INSTALLATION - PRELIMINARY ASSEMBLY INSTRUCTIONS

The hood is designed for installation and use in "Extractor version" or in "Filter version".

Note: The model with electric shutter can only be used in "Extractor version" and the exhaust pipe must be connected to a peripheral extraction unit.

Extractor Version

Fumes are extracted and expelled to the outside through an exhaust pipe (not supplied) fixed to the hood exhaust pipe connector. Depending on the exhaust pipe purchased, provide for suitable fixing to the exhaust pipe connector.

IMPORTANT: If already installed, remove the carbon filter/s.

Filter Version

Air is filtered through the carbon filter/s and recycled into the surrounding environment.

IMPORTANT: check that air recirculation is facilitated.

If the hood does not have a carbon filter/s, order one/them and fit it/them before use.

Install the hood away from very dirty locations, windows, doors and sources of heat.

The hood comes supplied with all the materials required for installation on most walls/ceilings. However, a qualified technician is needed to make sure that the plugs are suitable for your ceiling.

INSTALLATION DIMENSIONS

Adjacent wall units 65 cm (gas or combi cookers) 50 cm (electric cookers) 900 mm min (90 cm wide model) 600 mm min (60 cm wide model) ... central line Adjacent wall units cooktop surface

INSTALLATION - ASSEMBLY INSTRUCTIONS

The instructions below, to be carried out in the order in which they are numbered, refer to the figures (with the same step numbers) given on the last pages of this manual.

Note: Some instructions differ depending on the hood body width and height, in which case installation differences are described both in the text and in the figures.

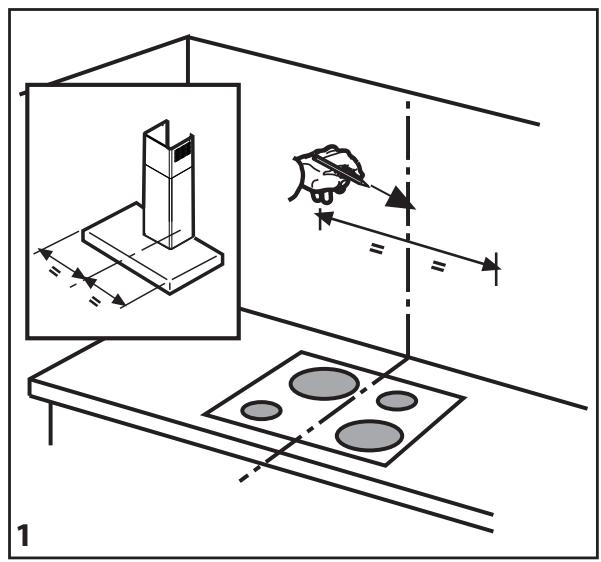

  1. Mark a line on the wall right up to the ceiling, corresponding to the centre-line of the hood.
  2. Cut the template along the line H6 or H10 (depending on whether the body of the hood you have purchased is 6 cm or 10 cm high) and attach the hole diagram to the wall (using adhesive tape): the vertical centre line printed on the hole diagram must match the centre line drawn on the wall, and the lower horizontal edge of the hole diagram must match the lower edge of the hood.

Drill a hole.

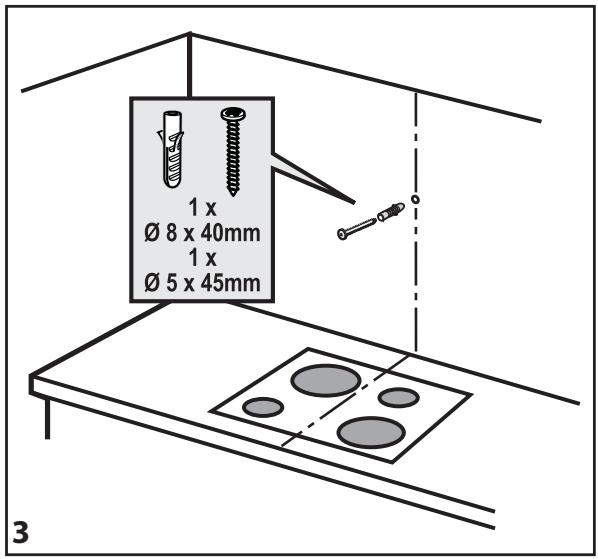

  1. Remove the hole diagram, and insert plugs and screws as shown.

  2. Partially tighten the screws

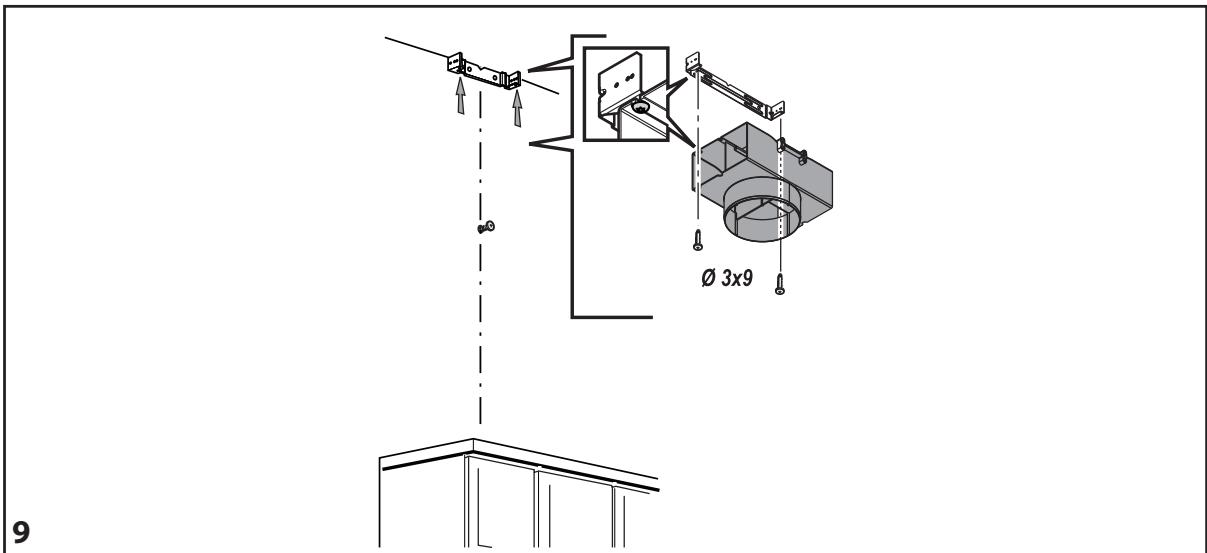

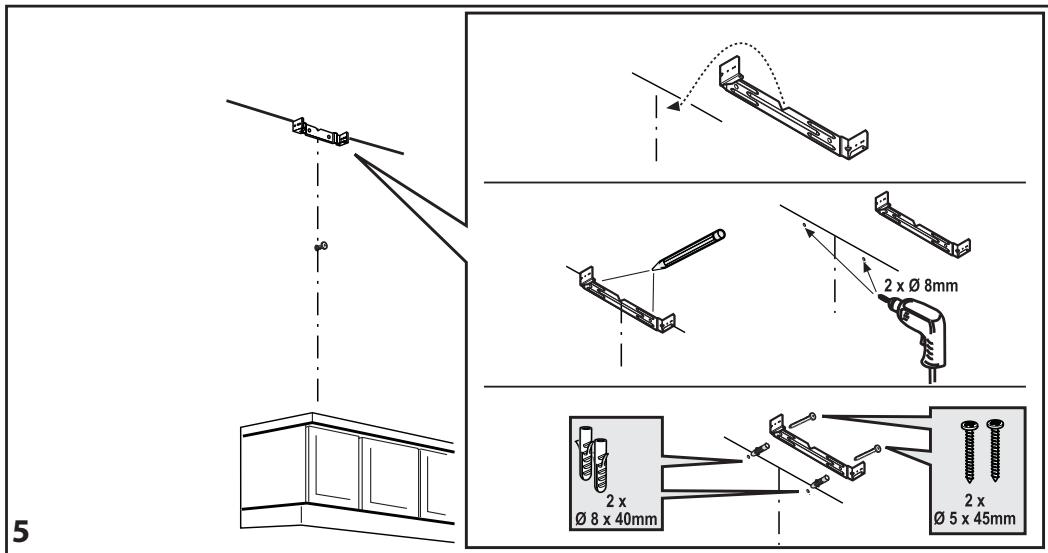

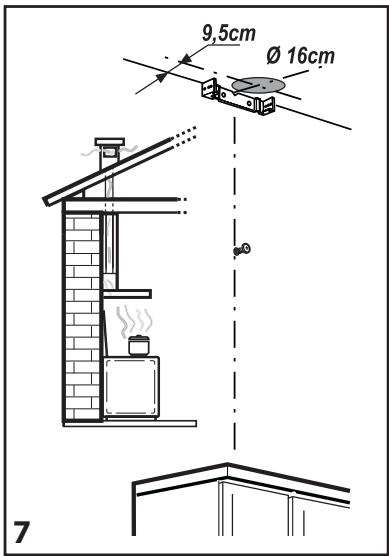

  3. Place the flue support bracket on the wall, against the ceiling. Drill and insert the wall plugs as indicated. Fix the bracket.

  4. For Extractor Version only - rear exhaust outlet: Make an opening on the wall for the exhaust pipe.

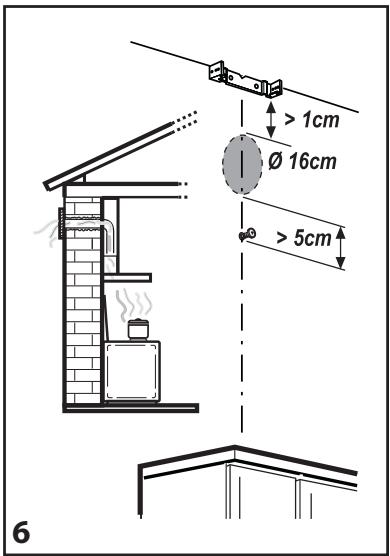

  5. For Extractor Version only - ceiling exhaust outlet: Make an opening in the ceiling for the exhaust pipe.

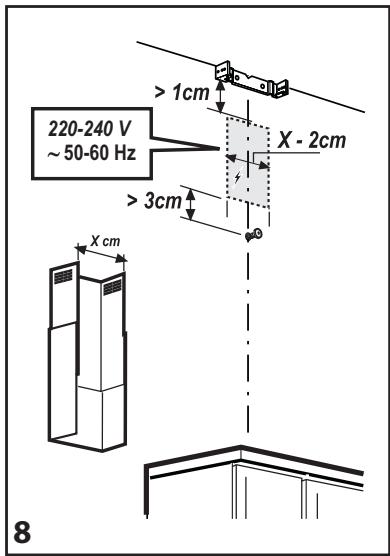

  6. Prepare the electrical connection to the mains power supply.

  7. For Filter Version only: Fix the deflector to the flue support bracket.

  8. Remove the grease filter/s.

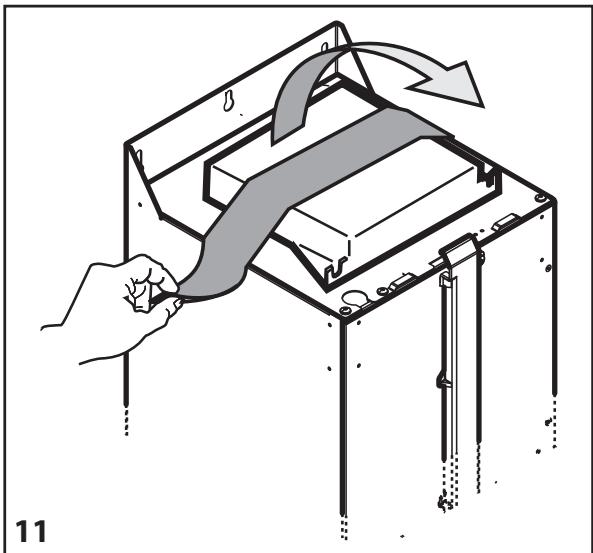

  9. Remove the adhesive tape holding the control electronics box to the motor body.

Note: the figure is indicative only, the box may be temporarily fixed to other sides of the motor body.

  1. Hook the hood to the wall.

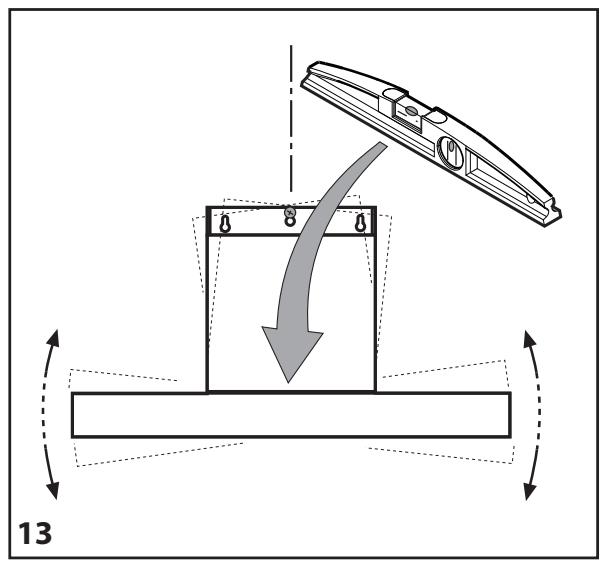

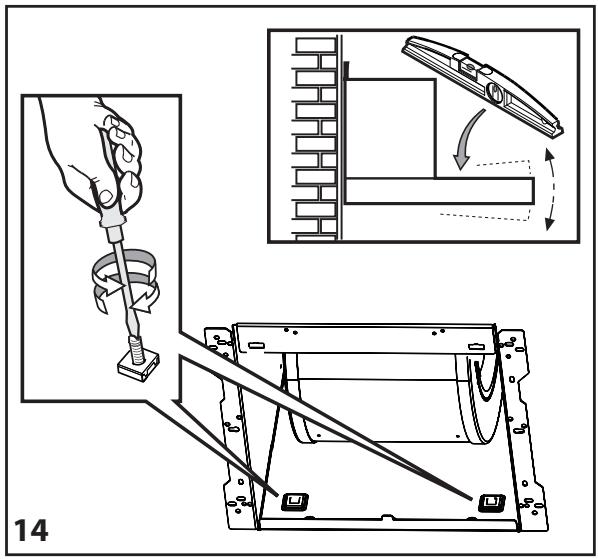

  2. Adjust the hood horizontally.

  3. Adjust the distance between the hood and the wall.

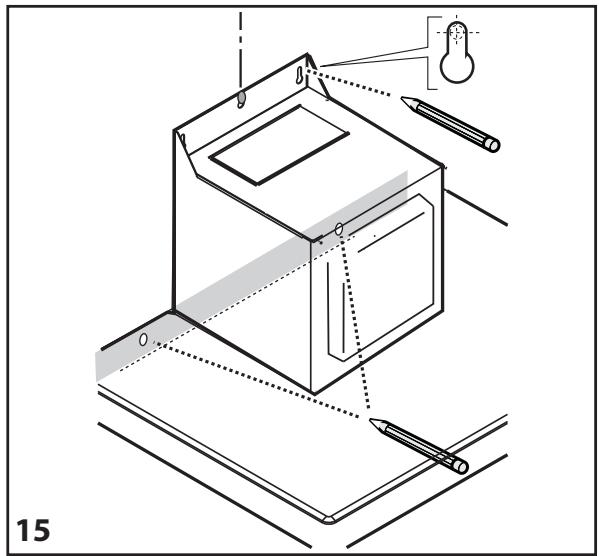

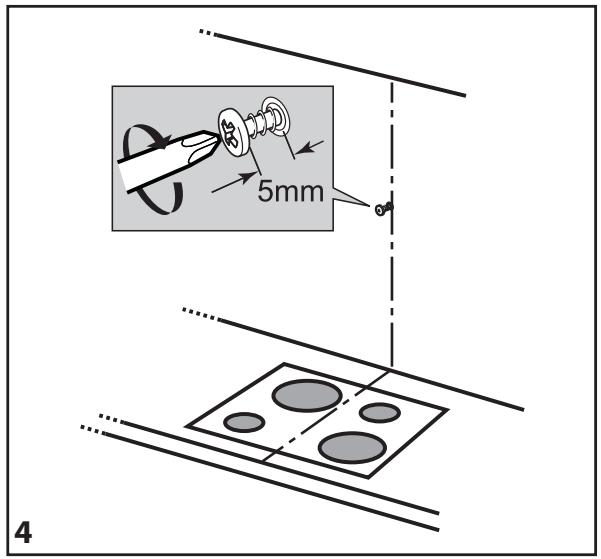

  4. Mark the hole/s for the final fixing of the hood as shown.

  5. Remove the hood from the wall.

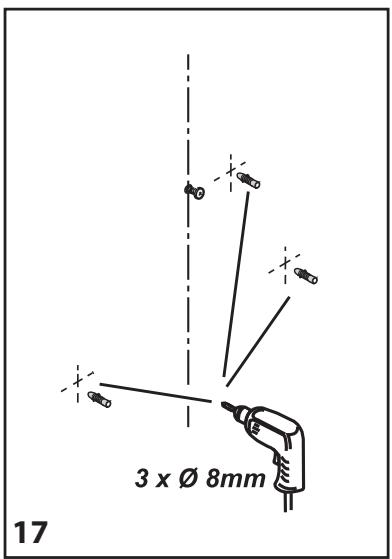

  6. Drill and insert the wall plugs as shown.

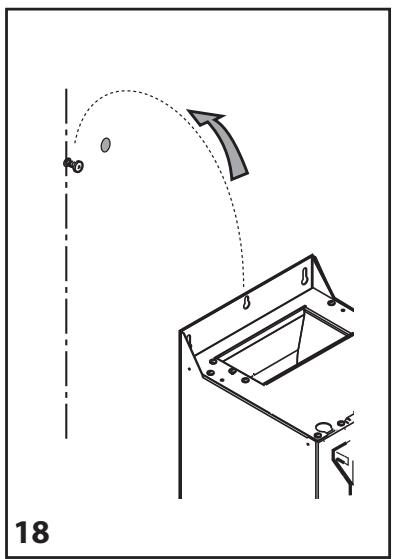

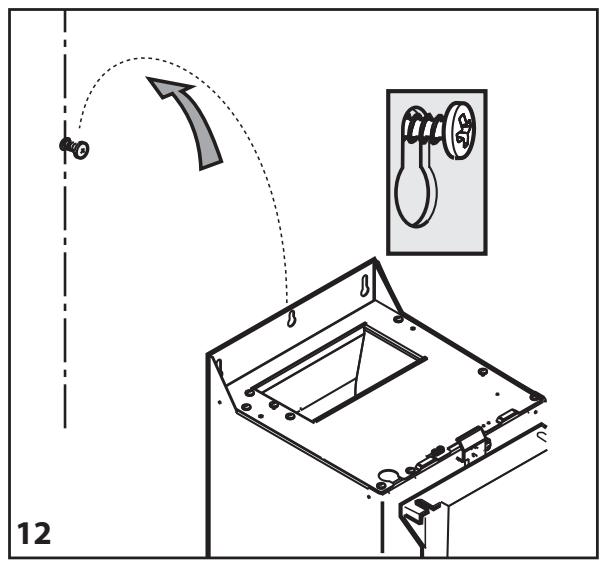

  7. Rehook the hood to the wall.

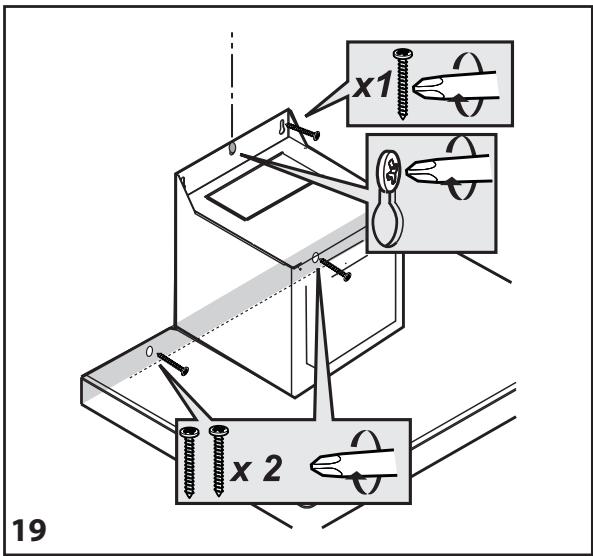

  8. Fix the hood to the wall with screws as shown.

  9. Fix the collar to the exhaust outlet.

  10. Fully tighten the screws fixing the box to the motor body.

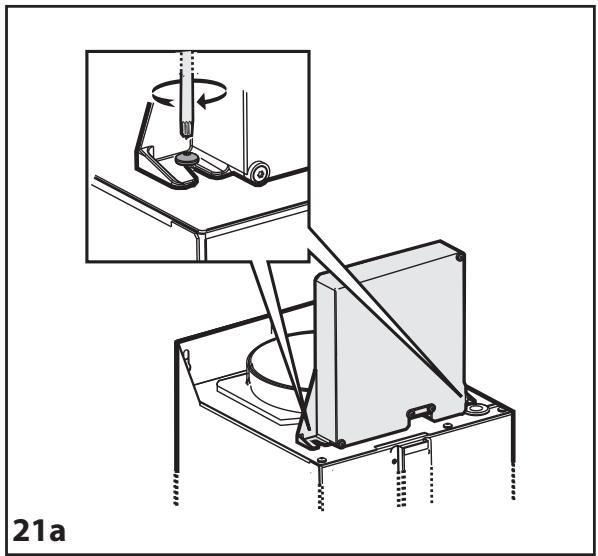

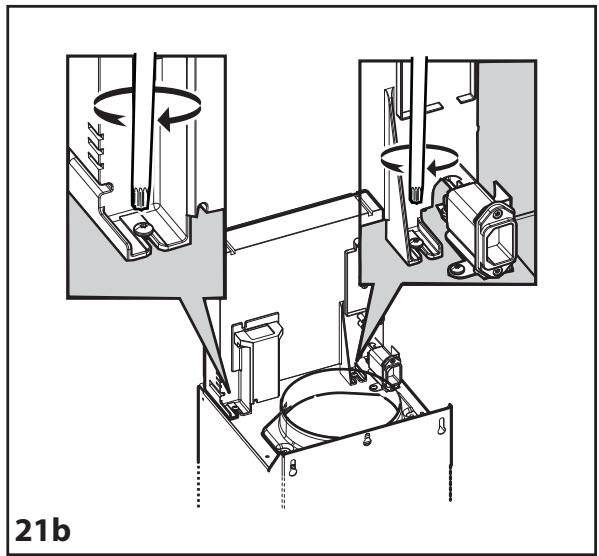

Note: the box is of two types, either front fixing or rear fixing. Follow the instructions in the figures (21a and 21b) depending on the model you have purchased).

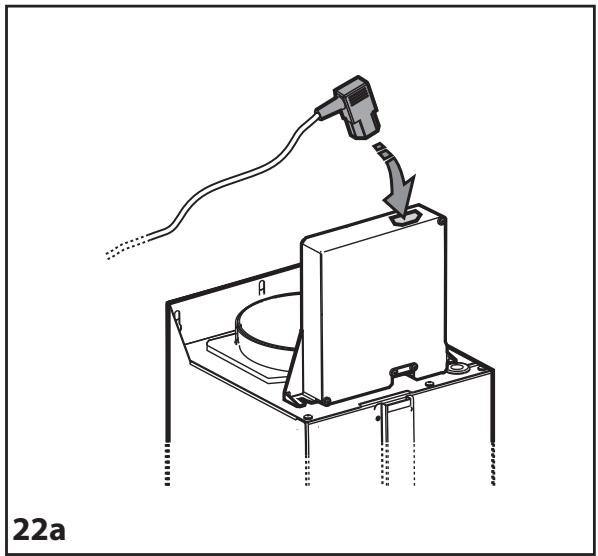

  1. Slide the power supply cable into its housing.

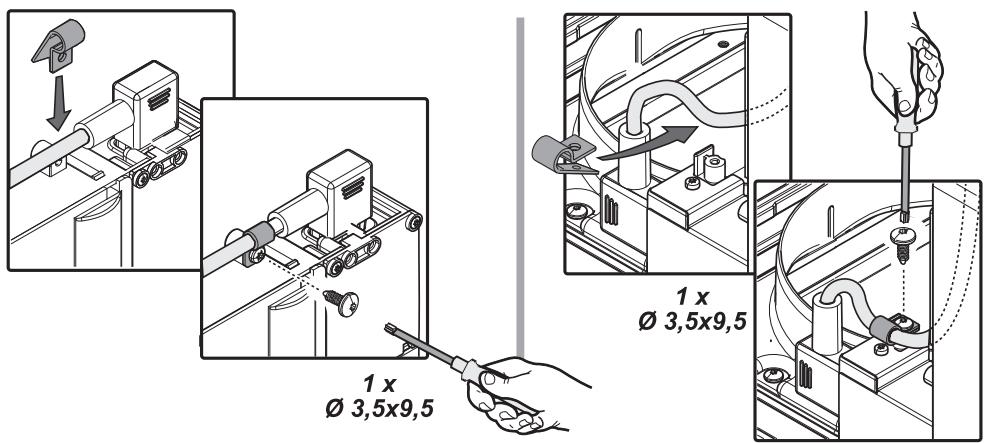

  2. Secure the cable with a cable clamp.

IMPORTANT: It is essential to carry out this operation in order to avoid accidental disconnection of the cable.

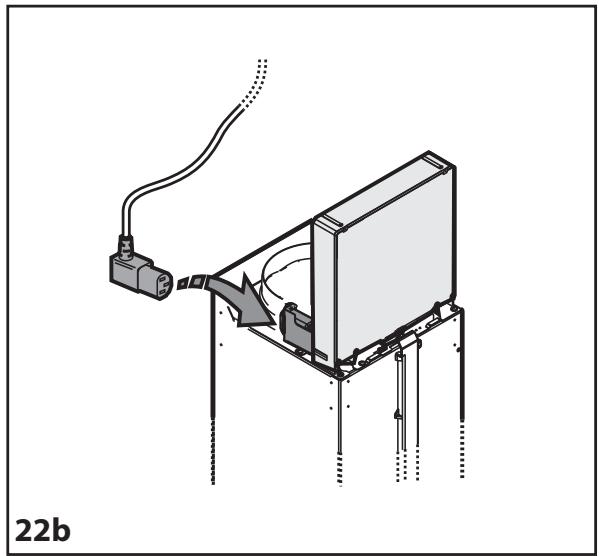

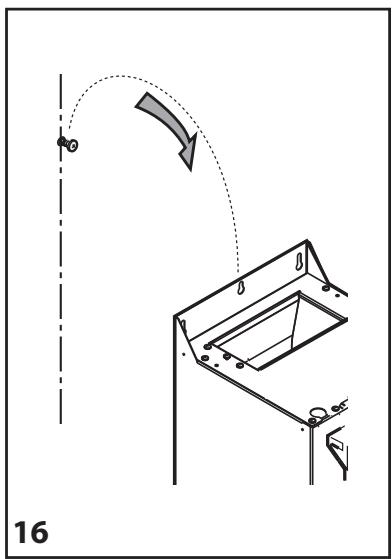

Carry out the electrical connection to the mains power supply.

  1. Connect an exhaust pipe to the collar; the fumes must be ducted to the outside (extractor version) or towards the deflector (filter version).

  2. Fit the flues over the extractor unit, engaging them in their seat above the hood.

  3. Slide the top section upwards and fix the flues with the screws as shown.

  4. Fit the carbon filter (Filter Version only) and refit the grease filter/s.

Check for correct hood operation, referring to the hood description and use section.

DESCRIPTION AND USE OF HOOD

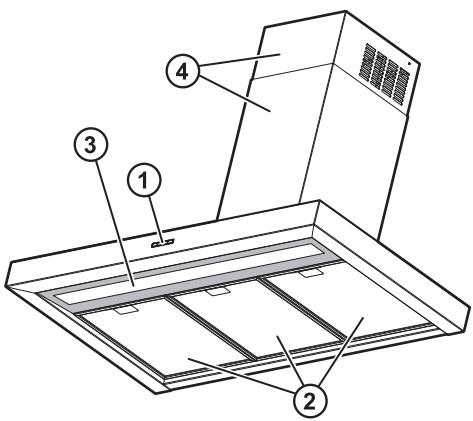

  1. Control panel.
  2. Grease filters.
  3. Fluorescent lamp.
  4. Telescopic flue.

Control panel

a. Lights ON/OFF button
b. Motor ON/OFF and minimum speed (extraction power) selection button
c. Medium speed (extraction power) selection button
d. Maximum speed (extraction power) selection button

Technical diagram of a kitchen ventilation system with numbered components for identification

a b c d

CONSIGNES IMPORTANTES POUR LA SÉCURITÉ DES PERSONNES

VOTRE SÉCURITÉ ET CELLE DES AUTRES EST UNE PRIORITÉ

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

REMPLACEMENT DE LA LAMPE FLUORESCENTE

DIMENSIONS D'INSTALLATION

Technical diagram of a kitchen ventilation system with numbered components for identification

a b c d

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

UW VEILIGHEID EN DIE VAN ANDEREN IS HEEL BELANGRIJK.

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

HET FLUORESCENTIELAMPJE VERVANGEN

a b c d

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

a b c d

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

a b c d

ISTRUZIONI IMPORTANTI PER LA SICUREZZA

GUIDA RICERCA GUASTI

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

a b c d

natural_image Pure diagram of a mechanical or electrical component with downward arrows, no text or symbols present

a b c d

VIKTIG SÄKERHETSINFORMATION

DIN OCH ANDRAS SÄKERHET ÄR MYCKET VIKTIG

FÖRBEREDA INSTALLATIONEN

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - FÖRBEREDA INSTALLATIONEN - 1

WARNING:

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

BYTE AV LYSRÖRSLAMPA

a b c d

VIKTIGE SIKKERHETSINSTRUKSJONER

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

UTSKFTING AV DEN FLUORESCERENDE LYSPÄREN

Kontakt serviceavdelingen for utskifting.

Merk:

Dersom den fluorescerende lyspæren slukker plutselig:

a b c d

VIGTIGE SIKKERHEDSANVISNINGER

DIN OG ANDRES SIKKERHED ER MEGET VIGTIG.

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

UDSKIFTNING AF LYSSTOFR∅RET

a b c d

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

LOISTEPUTKEN VAIHTAMINEN

a b c d

WAŻNE INSTRUKCJE BEZPIECZEŃSTWA

BEZPIECZEŃSTWO WASZE I INNYCH OSÓB JEST BARDZO WAŻNE.

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

WYMIANA ŚWIETLÓWKI

MATERIAL WCHODZACY W SKŁAD ZESTAWU

a b c d

DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY

VAŠE BEZPEČNOST I BEZPEČNOST DALŠÍCH OSOB JE VELMI DŮLEŽITÁ.

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

VÝMĚNA ZÁŘIVKY

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

VAŠA BEZPEČNOST AJ BEZPEČNOST INÝCH OSÔB JE VEĽMI DÔLEŽITÁ

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

VÝMENA ŽIARIVKY

a b c d

FONTOS BIZTONSÁGI ELŐÍRÁSOK

NAGYON FONTOS AZ ÖN ÉS MÁSOK BIZTONSÁGA.

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

A FLUORESZKÁLÓ FÉNYCSŐ CSERÉJE

a b c d

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

ЗАМЕНА ФЛУОРЕСЦЕНТНОЙ ЛАМПЫ

a b c d

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

ЗАМЯНА НА ФЛУОРЕСЦЕНТНАТА ЛАМПА

a b c d

INSTRUCTIUNI IMPORTANTE PRIVIND SIGURANTA

SIGURANTA DV. ŞI A CELORLALTI ESTE FOARTE IMPORTANTĂ.

natural_image Pure diagram of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

ÎNLOCUIREA BECULUI FLUORESCENT

a b c d

Technical diagram showing a mechanical assembly with dimension annotations and a magnified view of a component.

1 x Ø 8mm ≥ 65 cm ≥ 50 cm 2

1 x Ø 8 x 40mm 1 x Ø 5 x 45mm 3

5mm 4

5 2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm

6 > 1cm Ø 16cm > 5cm

9,5cm Ø 16cm 7

220-240 V ~ 50-60 Hz > 1cm X - 2cm > 3cm X cm 8

Ø 3x9 9

Diagram illustrating a hand holding a key inserted into a device, with an inset showing the close-up of the component being locked.

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - ÎNLOCUIREA BECULUI FLUORESCENT - 12

natural_image Illustration of a hand holding a cable or tape device with a curved arrow indicating motion (no text or symbols)

12

13

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

15

16

3 x Ø 8mm 17

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - ÎNLOCUIREA BECULUI FLUORESCENT - 19

natural_image Diagram showing a basketball court with an arrow indicating motion, no text or symbols present

x1 x 2 19

2 x Ø 3,5 x 9,5 20

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - ÎNLOCUIREA BECULUI FLUORESCENT - 22

natural_image Technical illustration of a mechanical device with a rotating tool and assembly, showing no text or symbols.

21b

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - ÎNLOCUIREA BECULUI FLUORESCENT - 24

natural_image Technical line drawing of a mechanical device with a connector and base plate (no text or symbols)

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - ÎNLOCUIREA BECULUI FLUORESCENT - 25

natural_image Diagram of a device with an attached sensor and cable, showing airflow or movement (no text or symbols)

23
1 x Ø 3,5x9,5 1 x Ø 3,5x9,5

24
Technical diagram illustrating a mechanical assembly with labeled components and cross-sectional views

26

WHIRLPOOL AKR749NB  - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX - ÎNLOCUIREA BECULUI FLUORESCENT - 28

natural_image Technical line drawing of a mechanical assembly with a cylindrical component and a box, showing internal components and motion arrows (no text or symbols)

25

2 x Ø 2,9 6,5

27
Diagram illustrating a hand holding a tool to clean a device, with an inset showing the lock mechanism.

Printed in Italy

02/2014

5019 300 02560

D GB F NL E P I GR S N DK FIN PL CZ SK H RUS BG RO

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : WHIRLPOOL

Model : AKR749NB - AKR749WH - AKR749/1IX - AKR689/1BK - AKR689/1IX - AKR558/3IX

Category : Basket
