USER MANUAL HP6425/20 SATINELLE ESSENTIAL PHILIPS

Register your product and get support at www.philips.com/welcome HP6540

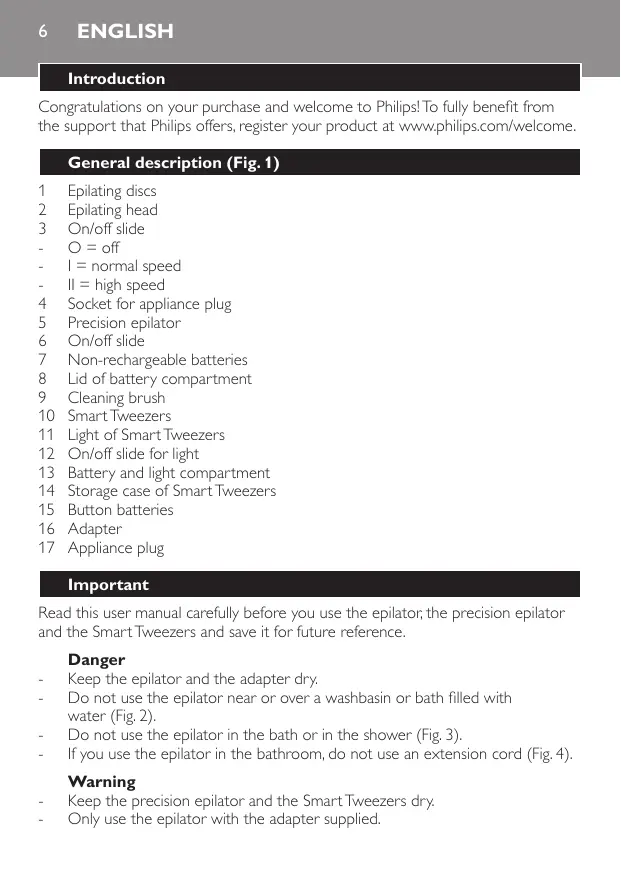

HP6540 Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. General description (Fig. 1)

Epilating discs Epilating head On/off slide O = off I = normal speed II = high speed Socket for appliance plug Precision epilator On/off slide Non-rechargeable batteries Lid of battery compartment Cleaning brush Smart Tweezers Light of Smart Tweezers On/off slide for light Battery and light compartment Storage case of Smart Tweezers Button batteries Adapter Appliance plug Important Read this user manual carefully before you use the epilator, the precision epilator and the Smart Tweezers and save it for future reference.

Danger Keep the epilator and the adapter dry. Do not use the epilator near or over a washbasin or bath filled with water (Fig. 2). Do not use the epilator in the bath or in the shower (Fig. 3). If you use the epilator in the bathroom, do not use an extension cord (Fig. 4).

Warning Keep the precision epilator and the Smart Tweezers dry. Only use the epilator with the adapter supplied.

Do not use the epilator, precision epilator, Smart Tweezers and the adapter if they are damaged. If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard. Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the epilator. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. The epilator, precision epilator and Smart Tweezers are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the epilator, precision epilator and Smart Tweezers. Keep the button batteries of the Smart Tweezers out of the reach of children and pets. Button batteries are a potential choking hazard. Caution The epilator is only intended for removing women’s body hair from the legs. The precision epilator is intended for epilating women’s body hair in the bikini and underarm area and on hard-to-reach areas such as knee and ankle. Do not use the appliances for any other purpose. For hygienic reasons, the epilator, precision epilator and Smart Tweezers should only be used by one person. To prevent damage and injuries, keep operating appliances away from scalp hair, eyebrows, eyelashes, clothes, threads, cords, brushes etc. Do not use the appliances and the Smart Tweezers on irritated skin or skin with varicose veins, rashes, spots, moles (with hairs) or wounds without consulting your doctor first. People with a reduced immune response or people who suffer from diabetes mellitus, haemophilia or immunodeficiency should also consult their doctor first. Your skin may become a little red and irritated the first few times you use the epilator or precision epilator. This phenomenon is absolutely normal and quickly disappears. As you epilate more often, your skin gets used to epilation, skin irritation decreases and regrowth becomes thinner and softer. If the irritation has not disappeared within three days, we advise you to consult a doctor. Do not use the epilating heads if they are damaged or broken, as this may cause injury.

English Do not expose the epilator to temperatures lower than 5°C or higher than 35°C. Only use the precision epilator on non-rechargeable AA 1.5V alkaline batteries. Only use the Smart Tweezers on alkaline button batteries type L736H or AG3 (dia. 7.8 x 3.4mm). The sound power level of the epilator (Lw) is 72B(A). The sound power level of the precision epilator (Lw) is 75dB(A). Electromagnetic fields (EMF) The Philips epilator and precision epilator comply with all standards regarding electromagnetic fields (EMF). Epilation tips Note: Always clean the epilating head of the epilator and the precision epilator before first use. -- We advise you to epilate before going to bed at night, as skin irritation usually disappears overnight. -- Epilation is easier just after taking a bath or shower. Make sure your skin is completely dry when you start epilating. -- Make sure your skin is clean, entirely dry and free from grease. Do not use any cream before you start epilating. -- Epilation is easier and more comfortable when the hair has the optimum length of 3–4 mm. If the hairs are longer, we recommend that you shave first and epilate the shorter regrowing hairs after 1 or 2 weeks. Using the epilator Connecting the appliance 1 Insert the appliance plug into the appliance (Fig. 5). 2 Insert the adapter into the wall socket. Epilating the legs 1 Select the desired speed to switch on the appliance (Fig. 6). Preferably use speed II. Switch to speed I for areas with little hair growth, for hard-to-reach areas and for areas where bones are located directly beneath the skin, such as knees and ankles. 2 Stretch the skin with your free hand to make the hairs stand upright. English

3 Place the epilator perpendicularly onto the skin with the on/off slide pointing in the direction in which you are going to move the appliance (Fig. 7). 4 Move the appliance slowly over the skin, against the direction of hair growth. (Fig. 8) Press the appliance lightly onto the skin. Using the precision epilator Inserting the batteries 1 Remove the lid of the battery compartment by sliding it down (Fig. 9). 2 Insert two AA 1.5V alkaline batteries into the battery compartment (Fig. 10). Note: Make sure the + and - poles of the batteries point in the direction indicated in the battery compartment. Note: New batteries offer an operating time of up to 40 minutes. 3 Slide the lid of the battery compartment back onto the appliance. Do not let metal objects come into contact with the battery terminals and do not short-circuit the batteries. Epilating with the precision epilator Use the precision epilator to epilate the underarms, the bikini line and hard-toreach areas. 1 Thoroughly clean the area to be epilated. Remove any residues of deodorant, cream etc. Then dab the skin dry. 2 Switch on the appliance. 3 Place the epilating head at an angle of 90° onto the skin with the on/off slide pointing in the direction in which you are going to move the appliance. Note: Always stretch the skin with your free hand. 4 To epilate the bikini line or underarms, move the appliance slowly over the skin, against the direction of the hair growth. -- Epilate your bikini line as shown in the figure (Fig. 11). -- Epilate your underarms as shown in the figure. Raise your arm to stretch the skin. Move the appliance in different directions to catch all hairs (Fig. 12).

English Do not use this appliance to remove hairs that grow out of moles. Do not use this appliance to epilate eyebrows or eyelashes. Using the Smart Tweezers Your epilator comes with Smart Tweezers with integrated light for the easy removal of facial hair such as your eyebrows. The Smart Tweezers are protected by a case with integrated mirror which allows you to depilate wherever and whenever you want. The Smart Tweezers are supplied ready for use with 3 button batteries in the battery compartment. Using the Smart tweezers 1 Use an eye pencil to mark the desired shape of your eyebrows. Remove any hairs outside the marked shape. 2 Switch on the light by moving the on/off slide upwards. 3 Always pull out the hair in the direction of hair growth. Do not use the Smart Tweezers to remove hairs that grow out of moles. Do not point the light of the Smart Tweezers directly at your or somebody else’s eyes. Replacing the batteries 1 Open the battery and light compartment by turning the bottom anticlockwise with a coin (Fig. 13). 2 Remove the old button batteries (Fig. 14). Keep the button batteries out of the reach of children and pets. Button batteries present a potential choking hazard. 3 Insert the new button batteries with the negative side pointing forward into the battery and light compartment (Fig. 15). Note:The Smart Tweezers work on three alkaline button batteries type L736H or AG3 (dia. 7.8 x 3.4mm). 4 Screw the bottom back onto the battery and light compartment by turning it clockwise with a coin (Fig. 16). English 11 Cleaning and maintenance Cleaning the epilator Note: Clean the epilator after every use. Note: Make sure the epilator is switched off and unplugged before you start to clean it. Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the epilator. Never rinse the epilator or the adapter under the tap (Fig. 17). Keep the epilator and the adapter dry (Fig. 18). Cleaning the epilating head 1 Push the epilating head in the direction of the arrows on the back of the appliance (1) and remove it (2) (Fig. 19). 2 Rinse the epilating head under the tap for 5-10 seconds while turning it. 3 Shake the epilating head firmly (Fig. 20). Note: Make sure the epilating head is completely dry before you place it back onto the appliance. Note:You can also clean the epilating head with the brush supplied. Turn the epilating discs with your finger while you brush them (Fig. 21). Cleaning the precision epilator Never immerse the precision epilator in water or any other liquid, nor rinse it under the tap (Fig. 22). 1 Clean the precision epilator regularly by removing loose hairs with the cleaning brush. Do not switch on the appliance while brushing (Fig. 23). 2 Clean the appliance with a dry cloth. Ordering accessories To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

Do not throw away the appliances with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 24). Precision epilator and Smart Tweezers Non-rechargeable batteries contain substances that may pollute the environment. Do not throw away non-rechargeable batteries with the normal household waste, but dispose of them at an official collection point for batteries. Always remove the non-rechargeable batteries before you discard and hand in the appliance at an official collection point (precision epilator) or dispose of it with the normal household waste (Smart Tweezers) (Fig. 25). Guarantee and service If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/support or contact the Philips Consumer Care Centre in your country. You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.
