Product type	Universal remote control
Brand	Philips
Model	SBC RU 252/00
Power supply	2 AAA batteries (LR03/UM4) 1.5 V
Dimensions (approx.)	20 cm x 5 cm x 2.5 cm
Weight (with batteries)	Approximately 120 g
Number of controllable devices	Up to 3 devices
Compatible device types	TV, VCR, satellite (SAT), etc.
Infrared range	Up to 10 meters
Programming methods	By 3-digit code or auto search
Shift key	Yes, for secondary functions
Indicator light	Yes, to confirm actions
Main TV functions	Volume, channels, menu, teletext, standby
Main VCR functions	Play, stop, pause, fast forward, rewind
Care and cleaning	Clean with a dry, soft cloth
Safety	Do not expose to moisture or shocks
Recommended batteries	AAA alkaline, replace once a year
Telephone support	0800-904-013 (France), toll-free

Frequently Asked Questions - SBC RU 252/00 UNIVERSAL REMOTE CONTROL

How to program the remote with a specific code?

Press the device key (TV, VCR or AUX), then hold down the 1 and 3 keys simultaneously for 3 seconds. The indicator lights up. Enter the three-digit code for the brand. The indicator flashes twice to confirm.

How to use auto search if no code works?

Make sure the device is turned on. Press the device key, then hold 1 and 3 (3 sec). Press Power to start the search. As soon as the device turns off (TV) or stops (VCR), press Power twice to lock the code.

Where to find the list of codes for brands?

The code list is in the manual pages 37-? (depending on model). Some codes are: Philips 108, Samsung 459, Sony 059, etc.

How to read the programmed code after auto search?

Press the device key, then hold 1 and 6 (3 sec). The indicator lights up. Press -/- (indicator turns off), then press 1: count the flashes for the first digit. Repeat with 2 and 3 for the following digits.

How to use the AUX key to control a second TV?

Press 1 and 6 (3 sec), enter 992, press TV, then press AUX. Then program the code of the second TV as described in the code installation.

What to do if the remote does not respond after programming?

Check the batteries, distance (max 10 m), no obstacles. Try again with another code from the list or use auto search.

How to use the Shift key?

The Shift key allows access to secondary functions. Press simultaneously Shift and another key, for example Shift + +/- to adjust color or brightness.

What type of batteries to use and how often to replace them?

Use AAA batteries (LR03/UM4). Replace them at least once a year or as soon as the range decreases.

How to clean the remote?

Disconnect the batteries. Clean with a soft, dry cloth. Do not use liquid or abrasive products.

Where to find telephone support?

For France, dial 0800-904-013 (toll-free). Have the brand and model of your devices ready.

USER MANUAL SBC RU 252/00 UNIVERSAL REMOTE CONTROL

Instructions for Use + code list

Telecommande universelle

Instructions for use.. 4
Codelist . Page 37
Illustration.

Français

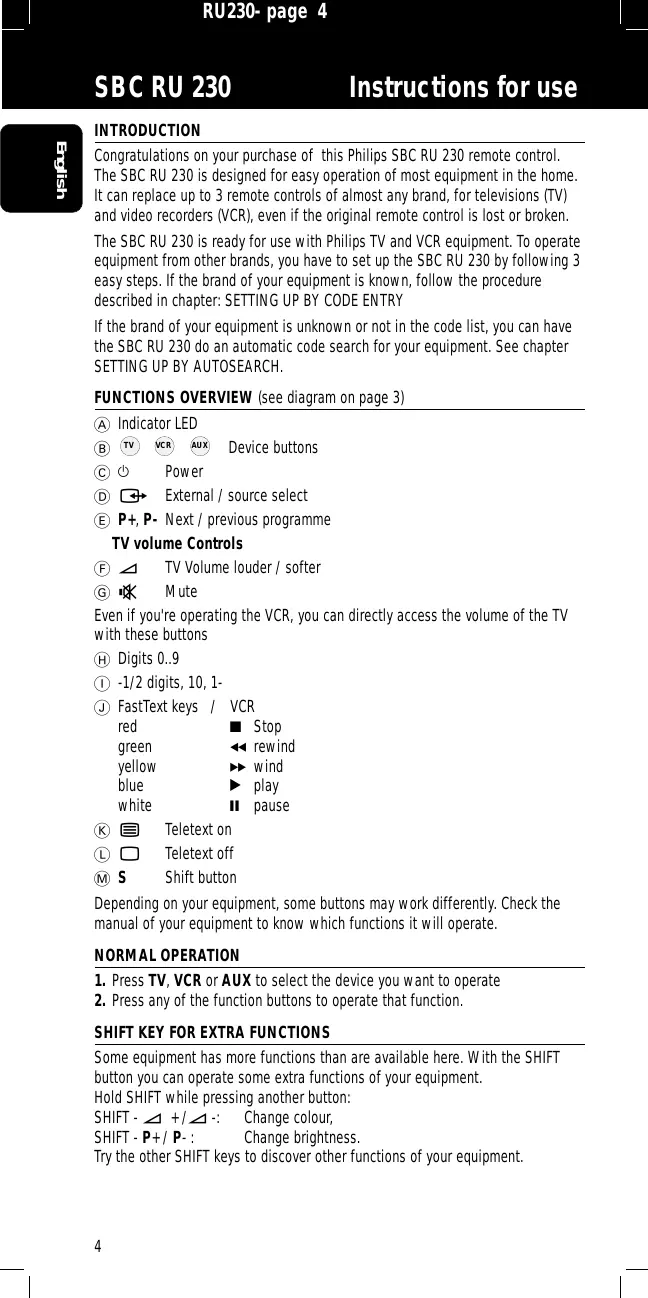

Congratulations on your purchase of this Philips SBC RU 230 remote control. The SBC RU 230 is designed for easy operation of most equipment in the home. It can replace up to 3 remote controls of almost any brand, for televisions (TV) and video recorders (VCR), even if the original remote control is lost or broken.

The SBC RU 230 is ready for use with Philips TV and VCR equipment. To operate equipment from other brands, you have to set up the SBC RU 230 by following 3 easy steps. If the brand of your equipment is known, follow the procedure described in chapter: SETTING UP BY CODE ENTRY

If the brand of your equipment is unknown or not in the code list, you can have the SBC RU 230 do an automatic code search for your equipment. See chapter SETTING UP BY AUTOSEARCH.

FUNCTIONS OVERVIEW (see diagram on page 3)

(A) Indicator LED
B TV VCR AUX Device buttons
C) Power
(6) External / source select
E + , -Next/previousprogramme

TV volume Controls

F TV Volume louder / softer
Mute

Even if you're operating the VCR, you can directly access the volume of the TV with these buttons

H Digits 0..9
① -1/2 digits, 10, 1-
FastText keys / VCR

red	■ Stop
green	▲ rewind
yellow	▶ wind
blue	▶ play
white	■ pause

Teletext on
Teletext off
M S Shift button

Depending on your equipment, some buttons may work differently. Check the manual of your equipment to know which functions it will operate.

NORMAL OPERATION

1. Press TV, VCR or AUX to select the device you want to operate
2. Press any of the function buttons to operate that function.

SHIFT KEY FOR EXTRA FUNCTIONS

Some equipment has more functions than are available here. With the SHIFT button you can operate some extra functions of your equipment.

Hold SHIFT while pressing another button:

SHIFT - + / : Change colour,

SHIFT - P+ / P- : Change brightness.

Try the other SHIFT keys to discover other functions of your equipment.

BATTERIES

Insert the batteries as indicated in the battery compartment (rear of remote). Only use batteries of type R03, UM4 or AAA. Replace the batteries when required, or at least once a year.

SETTING UP BY CODE ENTRY

Before you set up the SBC RU 230 to operate your equipment, look up the first code for your equipment in the brands list on page 37.

1. Press TV, VCR or AUX to select the device.

2. Press and hold 1 and 3 at the same time for 3 seconds.

3. The indicator LED lights up.

4. Enter the 3-digit code for your brand with the numerical keys.

5. The indicator LED blinks twice to indicate successful set-up.

6. Press buttons on the SBC RU 230 to check that the code works on your equipment. If it does, write down this code inside the SBC RU 230's battery lid.

7. If the equipment does not respond correctly, try the next code from the code list until the equipment works properly.
8. If none of the listed codes work, go to Chapter SETTING UP BY AUTOSEARCH
9. Repeat steps 1 to 3 for every piece of equipment you want to operate.

SETTING UP BY AUTOSEARCH

Before you start, make sure the equipment is ready to receive infra-red signals. The equipment must be switched on, there should be no obstacles between you and the equipment, and you should be right in front of the equipment. Before setting up a VCR, insert a tape and start Playback.

1. Press TV, VCR or AUX to select the device.

2. Press and hold 1 and 3 at the same time for 3 seconds.

3. The indicator LED lights up.

4. Press Power to start the search.

5. Every time the LED lights, another code is tested. When the right code for your device is found, the equipment (TV) switches off, or the VCR stops playing. Immediately proceed with step 4.

6. Press Power twice to lock the code.

7. The indicator LED blinks twice to indicate successful set-up.

Notes

• Turn on the equipment again and press the SBC RU 230's buttons to see if they are working as expected. Some codes are quite similar. If your equipment does not respond correctly, repeat steps 1 to 4 to find a better code.
  Maximum search time is 8 minutes for TV and 4 minutes for VCR.

READING OUT THE 3-DIGIT BRAND CODE

After using autosearch to set up the SBC RU 230, note the 3-digit code for future use.

1. Press the button of the device [TV, VCR or AUX] you want to read the code from.
2. Press and hold 1 and 6 at the same time for 3 seconds.

The indicator LED lights up.

1. Press - / -

2. The LED indicator goes out.

3. Press 1:

4. the indicator starts to blink; Count the number of blinks for the first digit. Note: if the indicator does not blink, the digit is 0.

5. Press 2:

6. the indicator starts to blink; Count the number of blinks for the second digit.

7. Press 3:

8. the indicator starts to blink; Count the number of blinks for the third digit.

9. Write down the code inside the SBC RU 230's battery lid.

USING THE AUX BUTTON

The AUX button can be used to control a second TV or VCR receiver. The AUX button is pre-installed for a second video recorder. If you want to operate a second TV instead, proceed as follows:

1. Press and hold 1 and 6 at the same time for 3 seconds.
2. The indicator LED lights up.
3. Enter 9, 9, 2
4. Press TV,

5. Press AUX

6. Now follow the procedures in the Chapter SETTING UP BY CODE ENTRY to enter the code for your second TV.

FREE-PHONE HELP-LINE

If you have any problems with your Philips Universal remote control, please ring our free-phone help-line.

United Kingdom: 0800-968-118

Before calling, note the data of your equipment in the table below.

This makes it easier and faster for us to help you.

Type-numbers can usually be found in the original manual, or on the factory plate on the back of the equipment.

Device	Brand	Model nr.	RC model nr.	Used code
TV
VCR
AUX

INTRODUCTION

F Volume TV +/
Sourdine

K Teletext an
Teletext aus
M S SHIFT-Taste

SHIFT - P + / P- = Åndra ljuststyrlka

K Eμφáviŋ tou Teletext
1 2netao tou Teletext
M S PAnjKtpo Shift

Avaloya Tc oukeuec aoc, opiaeva nhtpa mnpoei va aeitoupyoiv diaopotika. Suubouleutee to exyepio tnc oukeunc oac yia va maote noic aeitoupyie ctheta eaeyovtai.

KANONIKOZ XEIPIZMOZ

1 Plntotv, VCR n AUX yia va eun eet en oouekun nou thelte va leitoupetyiE.
2 Pntote oioohtnote nktpo aeitoupyia yia va eEyEeT n ouykekmuevn aeitoupyia.

IIAHKTPO SHIFT IIA IEPIIZOTEPEZ AEITOYPRIEZ

Opioue c oukeue diaotuv npiaooTepec aeitoupie c ano ooe ppoepovtai e6w. Me to niktpo SHIFT mnpoeite va eEyEe opiaoue c enpnooTEc aeitoupyic mcoukeunocac.

KpatnoTe to nAnktpo SHIFT natnuevo kal natnoTe kantoio ao lo nAnktpo:

SHIFT- + / - AlambdaynxpawatoC,

SHIFT-P+P:AAaynΦwTeivotntac.

White Westinghouse 064243347

Y Yokoo 064244291

Z

Zanussi 233

SETUP CODES FOR VCR

A

Aiwa 027 375 379

Akai 342 133 068

Akiba 099

Alba .099 047 305 236 342 379

Ambassador 047

Amstrad 027 359

Anitech 099

ASA 064 108

Asuka 064

B

Baird 027 068 131

Basic Line. 099 047 305
