INCA LUX GLASS - Range hood FABER - Free user manual and instructions

Product type	Range hood
Brand	FABER
Model	INCA LUX GLASS
Dimensions (W x D x H)	898 x 339 x 330-590 mm
Power supply	220-240 V ~ 50 Hz
Motor power	Not specified
Number of speeds	4 speeds + intensive
Intensive function	Yes, timed 10 min
Delay function (delayed shut-off)	Yes, 30 min
24H function	Yes, 100 m³/h for 10 min/h
Lighting	LED, variable intensity
Remote control	Yes (battery CR2032 not included)
Grease filters	Metal, dishwasher-safe
Activated carbon filter	Replaceable (optional for recirculation version)
Filter saturation alarm	Yes (100 h grease, 200 h carbon)
Min. distance from cooking surface	650 mm
Air outlet diameter	150 mm or 120 mm (with reducer)
Installation version	Extraction or recirculation (carbon kit required)
Safety	Panel blockage protection, automatic shut-off
Protection rating	Class I
Net weight	Not specified

Frequently Asked Questions - INCA LUX GLASS FABER

How to open the hood panel?

To open the panel, press button A for about 2 seconds. The motor starts automatically at the last set speed.

What to do if the hood panel locks during opening or closing?

Remove the obstacle and press button L for 2 seconds. The panel will make up to 6 attempts. If the blockage persists, contact after-sales service.

How to activate the intensive function?

Press button D to activate the intensive speed timed at 10 minutes. The I indicator flashes. This function is not available if the 24H mode is active.

When should I replace the activated carbon filters?

Replace them every 4 months or when the C symbol appears. This filter is not washable or regenerable.

How to clean the metal filters?

Wash them in the dishwasher or by hand without bending. Replace them once dry. A color change does not affect their efficiency.

How to enable or disable the carbon filter alarm?

Turn off the light and motor. Press button D for 5 seconds: 2 flashes of the C symbol to activate, 1 flash to deactivate.

What does the droplet symbol mean when displayed?

The droplet symbol indicates that the metal filters are saturated after 100 hours of operation. Clean them and reset the alarm by pressing button G for 3 seconds.

Can I use the hood with a remote control?

Yes, the remote control is optional (not included). To activate it, press button E for 5 seconds. Use a CR2032 battery.

What is the minimum distance between the hood and the cooktop?

The minimum safety distance is 650 mm. If your gas cooktop requires a greater distance, respect that one.

How to install the hood in recirculation version?

Purchase the activated carbon kit (optional). Remove the grease filters, place the carbon cartridges, then reassemble the filters. Activate the carbon filter alarm via button D.

USER MANUAL INCA LUX GLASS FABER

Technical line drawing of a cabinet or duct assembly with no visible text or symbols

Instructions Manual

SAFETY INFORMATION......4

CHARACTERISTICS 7

INSTALLATION....9

USE 12

CARE AND CLEANING 14

SOMMAIRE

FR

CONSIGNES DE SÉCURITÉ....16

CARACTERISTIQUES....19

INSTALLATION....21

UTILISATION 24

NETTOYAGE ET ENTRETIEN 26

INHALTSVERZEICHNIS

DE

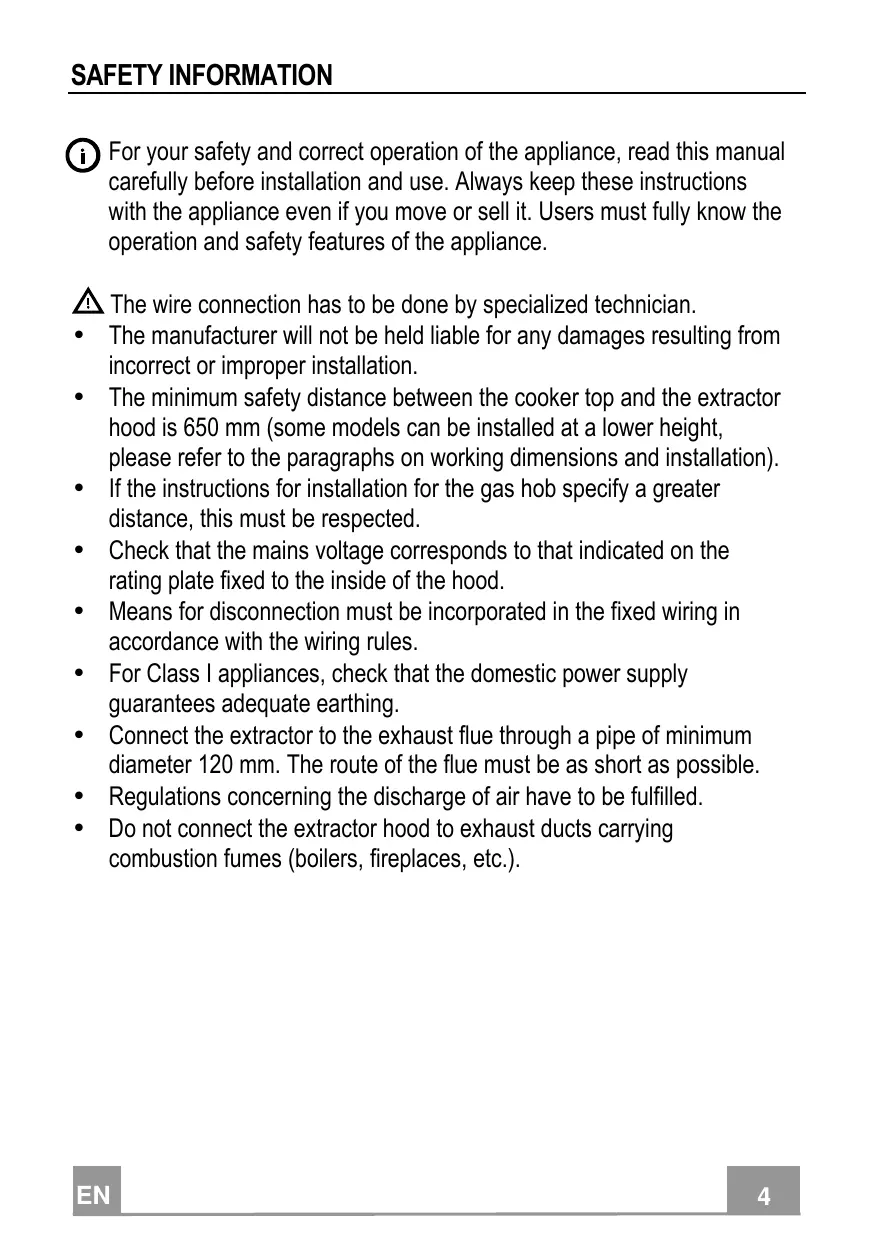

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

⚠ The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

⚠ WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

⚠ WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

⚠️ Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol 📁 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

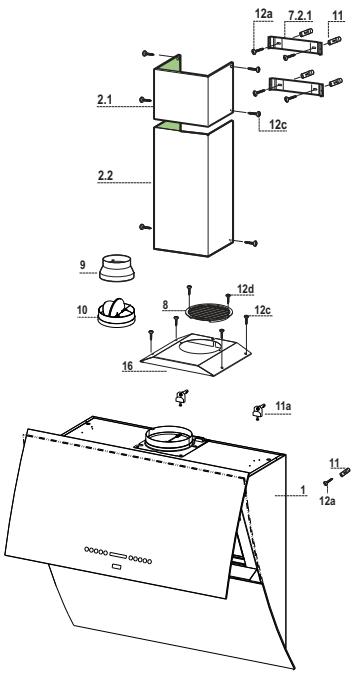

Components

Ref.	Q.ty	Product components
1	1	Cooker hood with control unit, lights, blower unit, filters
2.1	1	Upper chimney
2.2	1	Lower chimney
8	1	Air outlet grid
9	1	Reducer flange ∅ 150-120
10	1	Damper (Optional)
16	1	Cover for recycling version

Ref.	Q.ty	Installation components
7.2.1	2	Fixing brackets for upper chimney
11	5	Plugs
11a	2	Plugs SB 12/10
12a	5	Screws 4,2 x 44,4
12c	10	Screws 2,9 x 6,5
12e	2	Screws 2,9 x 9,5

Q.ty	Documentation
1	Instruction booklet

Technical diagram of a refrigerator with labeled parts and exploded view, showing internal components and part numbers.

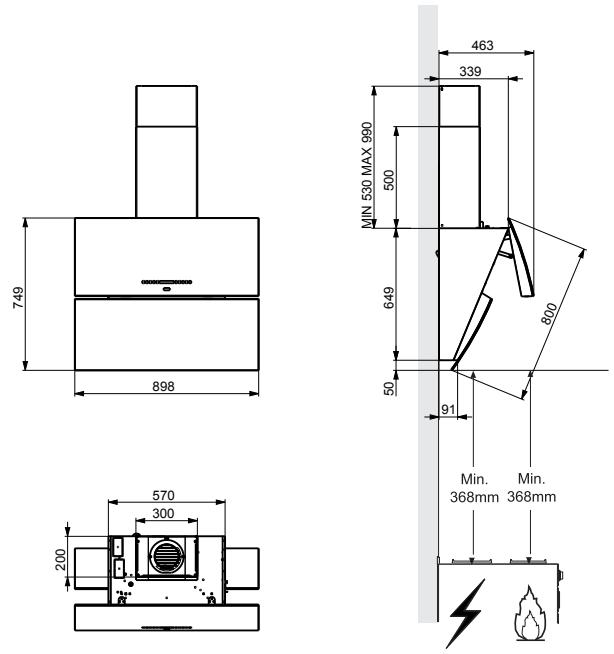

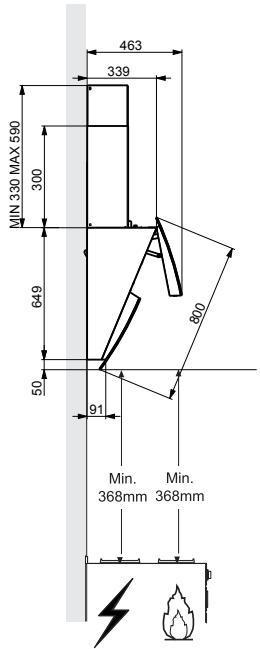

The dimensions depend on the chosen version

749 898

570 300 200

463 339 MIN 330 MAX 590 300 649 50 800 91 Min. 368mm Min. 368mm

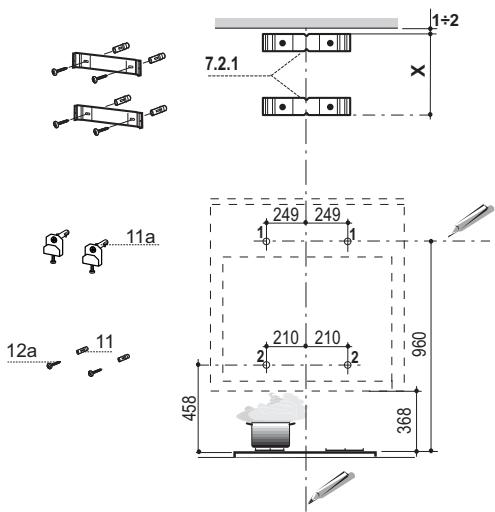

Wall drilling and bracket fixing

7.2.1 1÷2 X 11a 249 249 1 12a 11 210 210 2 960 458 368

As a first step, proceed with the following drawings:

• a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;
• a horizontal line at a minimum 960 mm above the cooker top.
• Mark a point (1) on the horizontal line, 249 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Mark a reference point (2) as indicated at 210 mm from the vertical reference line and 458 mm above the cooker top.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Drill at the marked points (1), using a 12 mm drill bit.
• Drill at the marked point (2), using a 8 mm drill bit.
• Insert the bracket plugs 11a into the holes (1) and tighten the screws.
• Insert plug 11 into hole (2).
• Place bracket 7.2.1 on the wall, about 1-2 mm from the ceiling or from the upper limit, aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the bracket holes.
• Place the bracket 7.2.1 on the wall at X mm below the first bracket (X = height of the upper chimney section), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the bracket holes.
• Drill 8 mm holes at all the marked centre points.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a screws (4,2 x 44,4) supplied with the hood.

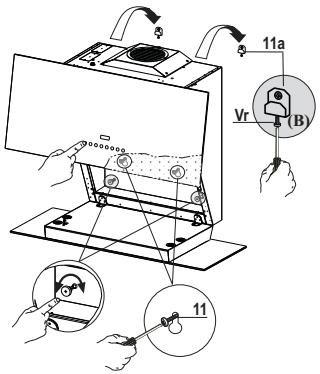

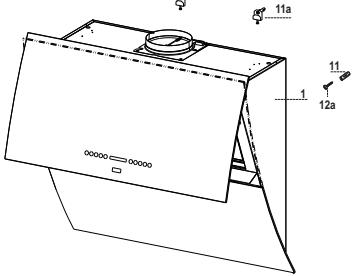

Fitting the Hood canopy

• Adjust the two screws Vr, in the brackets 11a, so that they are at start of their travel (B).
• Hook the hood body to the two brackets 11a.
• Connect the Hood to the Mains Power Supply, inserting a bip switch with a contact aperture of at least 3mm.

- Open the top panel. (See the paragraph on USE)

- Open the Bottom Door by pulling it downwards with your hands

- Remove the Metal Grease Filters using the handles provided.

- From the inside of the hood body, turn screws Vr to level the h body itself.

Warning: should the rear wall not be completely flat and ca the two glass panels not to be aligned, pls turn on the two knob the lower part inside the hood body until you reach the per alignment of the two glass panels.

- Fasten the safety screw 11.

- Replace the Metal Grease Filters, then shut the top panel. (See paragraph on USE)

- Disconnect the hood from the mains power supply.

Warning: Should the door encounter an obstacle while open or closing it will block. When the obstacle is removed and button is pressed again the door will open.

Warning: In the event of a malfunction, check the fuse.

11a Vr (B) 11

Replacing the fuser

- The fuser is placed up on the left side. Turn the fuser holder indicated. Replace the fuser with one having the same features.

Illustration of a hand using a screwdriver to press or install a component on a workbench (no text or symbols)

Connections

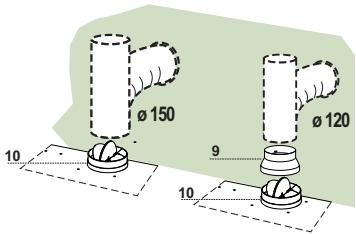

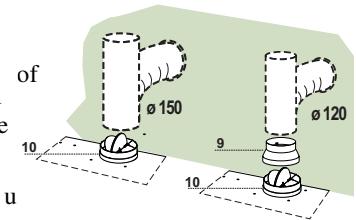

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chim using either a flexible or rigid pipe 150 or 120mm, the choice which is left to the installer.

of ø 150 ø 120 10 9 10 u

To install a ∅ 150 pipe

• To install the dumper 10
- Fix the pipe in position using sufficient pipe clamps (not s plied).

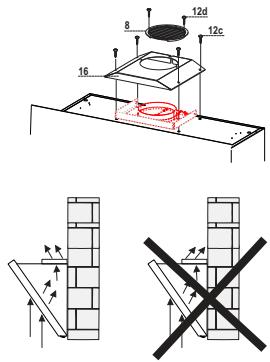

To install a ∅ 120 pipe

• To install a 120 mm air exhaust connection, insert the redu _u flange 9 on the dumper 10.
• Fix the pipe in position using sufficient pipe clamps (not s plied).
• Remove any activated charcoal filters.

cer

To install the hood in recycling version, the optional charcoal filter kit must be purchased.

• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5).
• Fix the air outlet grid 8 on the recirculation air outlet using the 2 screws 12d (2,9 x 9,5) provided.

ELECTRICAL CONNECTION

• Connect the hood to the mains supply.
• Open the upper panel by pressing the A-key (See Part “USE”) for at least 2 seconds.
• Remove the metal filters (See Part “MAINTENANCE”) and make sure that the connector piece of the supply cable is correctly inside the hood socket.

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

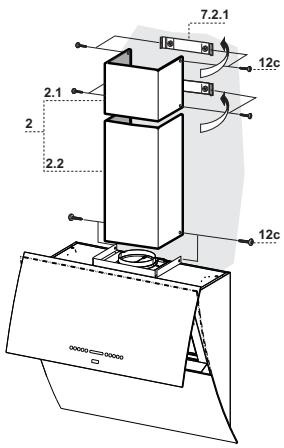

Chimney assembly

Upper exhaust Chimney

• Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

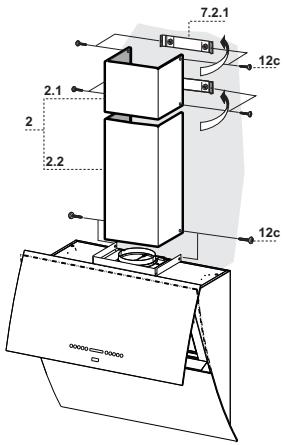

Lower exhaust Chimney

• Slightly widen the two sides of the chimney and hook them between the upper chimney and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.

7.2.1 12c 2.1 2 2.2 12c 00000=00000

Control panel

A	B	C	D	E
○	-	+	i	24

Button	Function	Display
A	Door Closed: Press and hold for approximately 2 Seconds to open the door and turn the motor on at the last speed set. Door Open: Press briefly to turn the motor Off or On.	Displays the set speed.
B	Decreases the working speed.	The number of lighted segments decreases.
C	Increases the working speed.	The number of lighted segments increases.
D	Activates/Deactivates Intensive speed. This speed is timed to run for 10 minutes. At the end of this time the system will automatically return to the speed set before. Suitable to deal with maximum levels of cooking fumes. Cannot be activated when in 24H mode.	The indicator I flashes and all the segments on the Display are lit.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights) and no alarms in progress, to turn the Activated Charcoal Filter Alarm On / Off.	Button "C" flashes twice – Alarm On. Button "C" flashes once – Alarm Off.
E	Activates/Deactivates 24H speed. This starts the motor at a speed that allows suction of 100 m3/h for 10 minutes every hour. This mode cannot be activated if Intensive or Delay modes are active.	Displays 24 and the segments on the Display light up in cycle.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights) and no alarms triggered, to turn the Remote control On / Off.	(Motor LED bar flashes twice) - Remote control On. (Motor LED bar flashes once) - Remote control Off.
F	Activate / Deactivate Delay. Can be activated with motor on (except for Intensive and 24H mode). Activates automatic shutdown of the Motor and the Lighting with a 30' delay.	Displays a Clock symbol.
	Press and hold for 5 Seconds to Activate / Deactivate Lock Keyboard mode for example in order to clean the Glass.	The Leds light up and run a start-up sequence.
G	Performs a Reset of the Filter saturation alarm when the button is pressed for approximately 3 seconds when all the users (motor + lights) are turned off	After 100 hours in operation the Drop symbol is displayed to indicate saturation of the Metal Grease Filters. After 200 hours in operation the letter C is displayed to indicate saturation of the Activated Charcoal filters.
H	Modifies the intensity of the Lighting each time the Button is pressed, in cycle.	-
I	Door Closed: When pressed and held for approximately 2 seconds opens the door half way and turns the lighting on to maximum intensity. The intensity can be modified using button H.- When the button is pressed again, the lighting turns off and the door closes.- When button A is pressed, the Lights turn off and the motor only works at the first two speeds. Door Open: Press briefly to turn the lighting On or Off.	-
L	Door Closed: Press and hold for approximately 2 Seconds to open the door, turn the motor on at speed three and turn the lighting on at maximum intensity. Door Open: When pressed and held for approximately 2 seconds turns off the motor and the lighting, cancelling any function that may be active and closing the door.	-

Warning:

During the Opening and Closing phase the panel has a guard device that reverses the direction of movement in the event of blockage during the movement itself. It performs a maximum of 6 attempts before the “☐” icon flashes to indicate actual blockage. At this point, remove the obstacle preventing movement if possible, then press and hold button L for 2 seconds. The panel will once again make a maximum of 6 attempts to close or open before reverting to blocked status if movement is not successful. In this case it will be necessary to call the Technical Service Department.

REMOTE CONTROL

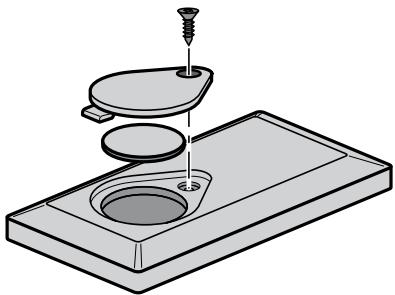

This appliance can be commanded using a remote control, powered by a CR2032 type 3 V battery (not supplied).

• Do not place the remote control near heat sources.
• Do not discard the batteries with normal waste, they must be put into the specific containers.

3D diagram of a mechanical assembly with two components and a screw, no text or symbols present

Remote control panel

Mobile phone control panel with icons for battery, alarm, and function buttons

		Motor	Door Closed: Opens the door and turns the motor on at the last speed set.
			Door Open: Motor On / Off
			Pressed for 2 Seconds:a) If the door is open, Motor + Lights Off.b) If the door is closed, Opens the door and Lights + Motor On.
	↓↑	-	-
	%6	-	-
Drawed		Light	Door Closed: Opens the door half way and turns the Lights on a Maxi-mum Intensity.
			Door open half way: Turns lights off and closes the door.
			Door Open: Lights On / Off.
Drawed	[7-4+1]	Intensive	Activates the Intensive function.
[8-25+1]	[9-64+1]	Delay	Activates the Delay function.
			Pressed for 2 Seconds: Activates / Deactivates the 24H function.
Drawed		-	Increases the working speed each time it is pressed.
Drawed		-	Decreases the working speed each time it is pressed.

Metal grease filters

Filters can be washed in the dish machine. They need to be washed when Drop-sign appears on the display or in any case every 2 months, or even more frequently in case of particularly intensive use of the hood.

Alarm reset

- Press the G-key for at least 2 seconds.

Cleaning the filters

- Open the upper panel by pressing the A-key for 1 second (see Part USE).

- Open the Bottom Door by pulling it downwards with your hands.

- Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.

- Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).

- When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

This cannot be washed or regenerated, and must be changed when the C symbol on the display appears, or at least once every 4 months. The Alarm signal must be activated in advance.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press and hold button D for approximately 5 seconds to enable / disable the A.C. Filters
• Symbol C flashes twice, A.C. Filter saturation alarm ACTIVATED
• Symbol C flashes once, A.C. Filter Saturation alarm DEACTIVATED

REPLACING THE CHARCOAL FILTER

Alarm reset

- Press the G-key for at least 2 seconds.

Replacing the filter

• Open the upper panel by pressing the A-key for about a second (see Part USE).
• Remove the metal filters.
• Remove the saturated charcoal filter as indicated (A).
  • Fit the new filters as indicated (B).
• Put the metal grease filters in their seats.

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotating components and green directional arrows indicating motion (no text or symbols)

Lighting unit

- For replacement contact technical support ("To purchase contact technical support").

Technical diagram of a refrigerator with labeled parts and exploded view, showing internal components and part numbers.

Technical diagram showing mechanical assembly with labeled parts and numbered annotations

Line drawing of a hand inserting a plug into a device with a screw and socket (no text or symbols)

Branchements

SORTIE AIR VERSION ASPIRANTE

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

Montage Cheminée

Cheminée supérieure

3D diagram of a mechanical assembly with two components and a screw, no text or symbols present

Mobile phone control panel with icons for battery, alarm, and function buttons

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating rotation (no text or symbols)

Diagram of a mechanical or fluidic device with green arrows indicating flow direction (no text or symbols)

Éclairage

Technical diagram of a refrigerator with labeled parts and exploded view, showing internal components and part numbers.

Line drawing of a hand inserting into a device into a tray with a vent (no text or symbols)

Anschluss

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

Kaminmontage

Oberer Kaminteil

3D diagram of a mechanical assembly with screw and base components (no text or symbols)

Mobile phone control panel with icons for battery, alarm, and function buttons

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Diagram of a mechanical device with rotating wheels and green arrows indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with green arrows indicating direction, no text or symbols present

Beleuchtung

LED-Strahler

Technical diagram of a refrigerator with labeled parts and exploded view, showing internal components and part numbers.

Line drawing of a hand inserting a small component into a device with a vent (no text or symbols)

Conexiones

SALIDA DEL AIRE VERSION ASPIRANTE

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

3D diagram of a mechanical assembly with a screw and two circular components on a base plate (no text or symbols)

Tablero de mandos

Mobile phone control panel with icons for battery, alarm, and function buttons

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Diagram of a mechanical device with rotating wheels and green arrows indicating motion (no text or symbols)

Diagram of a mechanical or fluidic system with rotating components and directional arrows indicating flow (no text or symbols)

Iluminación

Line drawing of a hand inserting a plug into a device with a vent, mounted on a base (no text or symbols)

ø 150 ø 120 9 10 10

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

3D diagram of a mechanical assembly with a screw inserted into a component, showing internal components and mounting base (no text or symbols)

Mobile phone control panel with eight function icons including power, sun, clock, and plus/minus buttons

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

Φωτισμός

Technical diagram of a refrigerator with labeled parts and exploded view, showing internal components and part numbers.

Line drawing of a hand inserting a plug into a device with a vent and base (no text or symbols)

Ø 150 Ø 120 9 10 10

8 12d 12c 16

Diagram showing two methods of building wall corner installation with directional arrows and a crossed-out black X symbol indicating prohibition or restriction.

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

Установка дымохода

Верхний дымоход

3D diagram of a mechanical assembly with a screw inserted into a plate and a sink, no text or symbols present

Панель пульта ДУ

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

Освещение

Technical diagram of a refrigerator with labeled parts and exploded view, showing internal components and part numbers.

Line drawing of a hand inserting a plug into a device with a vent, no text or symbols present

Bekötések

LEVEGŐKIMENET (KIVEZETÉSES VÁLTOZAT)

8 12d 12c 16

Diagram showing two structural beam cross-sections with directional arrows and a crossed-out black X symbol indicating restriction or reinforcement.

Elektromos bekötés

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

7.2.1 12c 2.1 2 2.2 12c 00000=00000

Kezelőlap

A	B	C	D	E
○	-	+	i	24

3D diagram of a mechanical assembly with a screw and two circular components mounted on a base plate (no text or symbols)

Mobile phone control panel with icons for alarm, power, sun, battery, and function buttons

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Diagram of a mechanical or fluidic device with rotating wheels and green directional arrows indicating flow (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

Világítás

Technical diagram of a device with labeled components and numbered parts, likely for assembly or manufacturing documentation.

11a 1 12a

Line drawing of a hand inserting into a component into a tray with a vent (no text or symbols)

عملية التوصيل

8 12d 12c 16

Diagram of a construction or scaffolding structure with no visible text, numbers, or symbols

توصيل الكهرباء

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

اجزاء المدخنة

الجزء العلوي :

F G H I L

3D diagram of a mechanical assembly with a screw inserted into a component, showing internal cavities and a base plate (no text or symbols)

Mobile phone control panel with eight function icons including power, sun, alarm, and minus signs

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Diagram of a mechanical device with rotating wheels and green arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

إدارة
