Product type	Reversible stroller
Brand	JANE
Model	CROSSWALK MATRIX
Recommended age	From 6 months (up to 15 kg)
Maximum child weight	15 kg
Stroller weight	Approximately 11 kg
Dimensions (unfolded)	Approximately 100 x 60 x 105 cm
Dimensions (folded)	Compact, dimensions not specified
Power supply	None (manual)
Recline positions of the seat	3 positions + folding position (P)
Leg rest positions	5 positions
Handlebar positions	7 positions
Brake type	Handlebar parking brake
Front wheel lock	Yes, rotating on each wheel
Car seat attachment system	Pro-Fix (compatible with Nano, Transporter, Matrix Light, Koos)
Child restraint system	Adjustable 5-point harness
Canopy	Yes, with zipper
Bumper bar	Removable and articulated
Storage basket	Yes, max load 4 kg
Rain cover	Included
Maintenance	Clean with warm water and soap; do not expose to sunlight for long periods
Spare parts	Only supplied by JANE
Warranty	In accordance with law 23/2003 (proof of purchase required)

Frequently Asked Questions - CROSSWALK MATRIX JANE

How to unfold the CROSSWALK MATRIX stroller?

To unfold, hold the handlebar with one hand and press the unlocking pedal located on the lower right side with your foot. Pull the handlebar up until it clicks into place.

How to fold the stroller?

Place the seat in folding position (P), then pull both side triggers and push the handlebar forward until the stroller is completely folded.

How to install the wheels?

Press the center button on the wheel and insert the axle into the rear wheel mount. Push fully to lock. To remove, press the same button and pull the wheel off.

How to adjust the seat recline?

Pull the handle located on the upper part of the seat and choose among 3 positions. Note: Position P is for folding only, do not use for transport.

How to use the parking brake?

To brake, push the lever on the right of the handlebar downward. To release, press the unlock button and push the lever upward. Make sure the stroller is completely immobilized.

How to install a car seat on the chassis?

The Pro-Fix system allows attaching compatible car seats (Nano, Transporter, Matrix Light, Koos). First remove the seat, then click the car seat onto the chassis.

What is the maximum weight supported by the stroller?

The child must not exceed 15 kg. The basket supports up to 4 kg.

How to maintain the stroller?

Wash plastic parts with warm water and soap. Do not expose the cover to sunlight for long periods. Regularly check brakes, harness, and attachments.

Can I jog with this stroller?

No, this product is not suitable for jogging or rollerblading.

Where to find spare parts?

Use only parts supplied or ordered from JANE. Contact customer service or an authorized dealer.

USER MANUAL CROSSWALK MATRIX JANE

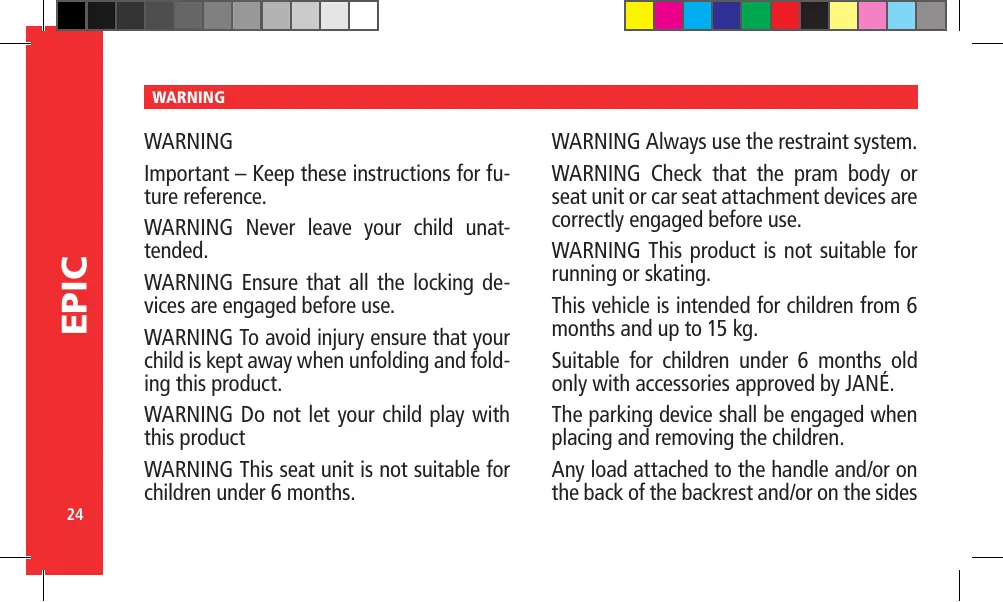

Important - Keep these instructions for future reference.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

This vehicle is intended for children from 6 months and up to 15kg

Suitable for children under 6 months old only with accessories approved by JANE.

The parking device shall be engaged when placing and removing the children.

Any load attached to the handle and/or on the back of the backrest and/or on the sides

of the vehicle will affect the stability of the vehicle.

This vehicle has been designed to be used by one child. Do not use it with more children at the same time.

Never use accessories that have not been approved by JANE, S.A.

For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Only replacement parts supplied or recommended by JANE shall be used.

The maximum amount carried in the basket must never exceed the weight indicated on the basket (4 kg).

1.- FITTING AND REMOVIDING THE WHEELS

Before using the EPIC pushchair for the first time it is necessary to fit the rear wheels. To fit the wheels press the button on the middle of the wheel and insert the axle into the rear wheel bearer and push until it slots firmly into place. If you need to remove the wheels, press the central button and take the wheel off.

2.- FOLDING AND UNFOLDING

To unfold your EPIC, hold the handlebar with one hand while you press the locking pedal at the bottom on the right. 3 Pull the handlebar and unfold until it clicks and locks into place. 4

To fold your EPIC place the hammock in the folding position (P) (see ADJUSTING THE ANGLE OF THE SEAT).5 Then pull the two slide catches on the sides and push the handlebar forwards until the pushchair is completely folded. 6-7

When folding the pushchair it is useful to place the hammock facing forwards as this makes it fold up more compactly.

WARNING: You must make sure that the child is kept away from the pushchair while it is being folded or unfolded. During these operations the appearance of sharp points and compression areas are inevitable.

3.- PRO-FIX SYSTEM

The chassis of your pushchair is fitted with the PRO-FIX system, making it ready for the following baby carriers and child Restraint Systems to be attached: Nano, Transporter, Matrix Light and Koos. 3-8a The PRO-FIX system makes it easier to attach and remove these accessories to and from the chassis, securing them to the chassis in a quick, simple and safe way. To do this follow the instructions for these accessories carefully.

WARNING: It is necessary to remove the hammock from the pushchair to attach any of the auto accessories.

4.- FITTING AND REMOVING THE HAMMOCK

Your EPIC is fitted with the pro-fix system. With this system, the EPIC hammock can be attached perfectly to the chassis. What's more, the hammock is reversible so it can be positioned facing you or facing forwards. 8-8a To take the hammock off, simultaneously pull the unlocking levers situated on both sides of the hammock. 9

The hammock can be reclined so your baby can travel in the most comfortable position possible at all times. Pull the lever on the upper part of the hammock and tilt it to one of the 3 possible positions. 10

WARNING: Position P is only to be used when folding the pushchair, you must not use this position when your baby is in the hammock. 11

6.- USING THE SAFETY ARMREST

The safety armrest is designed to fit into the slots on the hammock.

If required it is possible to release one side of the armrest and it will still be completely articulated by the other side. There are buttons on the lower part to do this. 12-12a

WARNING: The child should be kept away from the mobile parts when the responsible adult is handling these. The appearance of cutting, compression and pinch points are inevitable during these operations.

7. USING THE HOOD

To fasten the hood onto the frame of the hammock, slide it from the top down to the corresponding slots on the central part. Use the zip on the hood to attach it to the frame. 13-13a Follow the same steps in reverse order to take the hood off.

8.- ADJUSTING THE HANDLEBAR

The handlebar can be set to 7 different positions. Simultaneously press the buttons on both sides of the handlebar.14

9.-SEAT BELT

Your pushchair has a safety harness to keep your child safe at all times. Fit the belt onto the child whenever he is using the pushchair. 15

15a. To open the belts, press the button in the middle of the harness.
15b-c. To fasten it, bring the two side straps together and then insert them into the harness until they click into place.
15d. Adjust the belts so that they fit the child correctly with the right tension. To adjust the length of the belts, slide the buckles up or down. Make sure that the belts are not twisted.

10.- ADJUSTING THE FOOTREST

The footrest can be adjusted to 5 different positions. Use your thumb to simultaneously press the two buttons on the lower part of the hammock.[16]

PUTTING THE BRAKE ON: Push the operating lever on the right of the handlebar down to activate the parking brake of your stroller. 17

TAKING THE BRAKE OFF: Press the release button and move the operating lever on the right of the handle bar upward to release the parking brake. 17a

To adjust the brake:

If you need a more precise adjustment follow the indications in figure. 18

WARNING: When the brake is on make sure that the pushchair has braked correctly. It may be necessary to push the pushchair slightly for the brake to be fully activated.

12.- LOCKING THE FRONT WHEELS

To lock the front wheels, turn the button found on the top of each front wheel bearer. 19

13.- MAINTENANCE

Do not expose the upholstery to the sun for prolonged periods of time. Wash the plastic parts with soap and warm water, then dry all the parts thoroughly.

Regularly check the brakes, harnesses and fastening elements that may suffer wear and tear through use.

Remember to adjust the brake from time to time using the method explained in figure.18

For your safety and the good conservation of this product, it is important to bring it to one of our official workshops for regular inspections.

14.-RAIN COVER

The rain cover of your EPIC is very easy to fit, simply cover the hammock and fit the hooks onto the chassis to secure it. The rain cover has a small window which can be rolled up and held with Velcro so the child is free to investigate his surroundings. 20

INFORMATION ABOUT THE GUARANTEE

This article comes with a guarantee in accordance with the provisions of law 23 / 2003 of 10th July. Keep your receipt as proof of purchase, it is essential to present the receipt in the shop where you bought the product to confirm validity of the guarantee in the event of any problems.

This guarantee excludes any defects or breakages caused by inappropriate use of the article or inobservance of the safety and maintenance rules listed in the instruction pages and on the care labels, as well as faults caused by wear and tear through normal use and daily handling.

The label displaying the chassis number of the model should never be taken off, it contains important information.

Notice:

For the maximum safety and care of your new JANE product, it is very important that you complete the registration card found on the web page www.jane.es

This registration means we can inform you, if necessary, of the evolution and maintenance of your product. Additionally, if you would like, we can also inform you about new models or news that we think may be useful for you.

EPIC

epic

TABLE OF CONTENTS

32

1.MONTAGE ET DEMONTAGE DES ROUES 34
2.PLIAGE ET DEPLIAGE 34
3.SYSTEMEPRO-FIX 34
4.MONTAGE ET DEMONTAGE DU HAMAC 34
5. RÉGLAGE DE L'ANGLE D'INCLINAISON DU HAMAC 35
6. UTILISATION DU GARDE-CORPS 35
7. UTILISATION DE LA CAPOTE 35
8. RÉGLAGE DU GUIDON 35
9. RÉGLAGE DU REPOSE-JAMBES 35
10. UTILISATION DE LA CEINTURE 36
11. UTILISATION DU FREIN DE STATIONNEMENT 36
12. BLOCAGE DES ROUES AVANT 36
13. ENTRETIEN 36
14.HABILLAGE DE PLUIE 36

INFORMATIONS SUR LA GARANTIE 37

AVERTISSEMENT

AVERTISSEMENT

INFORMATIONS SUR LA GARANTIE

11.-NcNoJIb3OBAHNECTOraHOuHOroTOPMO3A

PINBECTN B DECTBME TOPMO3: YTO6bI pINBECTN B DECTBME CTaHOHbT Topm03 Bauei KOANCKn, ToKHNTE BnH3 pUar, HaxOAnJnCn cnpaba OtpyKn.17

PA35JOKIPOBATB TOPMO:3:U06bl pa36bIpa36bIKOPoBaTB cToHOnHnB TopMO,HaKONtHa KHOKNy pa36bIKOpOBaHNu nToKHNBe BBEpx bpuar, HAOJNcMcS cPABA O tPyck.173

TtO6bI OTperynipOBaTb TOpMo3:

EcnHn Heo6xoDMIO otpyerNiporabt TOPMO3 0oJee TOOHO, cneJeTy kyaAazamn ha PocNHe.18

PNEyIYPEKJEHHE:3aIeIcTBOBABTOPM3,y6eIITcB,yTO KONJIckhaIeXHO CTMT Ha TOPMOE.MoXET,6yET Heo6OxIMIO pOKaTbCnERKa KONJIcky,YTObbl Topm03 6bl 3aIeIcTBOBAH ONTMANbHO.

12.-ФИКСИРОВАНЕ ПЕДнХKOЛЕC

MHΦOPMALIQR O TAPAHTN

DAnHoe n3dene IMeET rapaHTNo, pnpcymoTpeHNyU 3aKohom 23 / 2003 ot 10 mJOL Coxpanhe TObapbHn Yek, He6oxdmbI dnn ppeBraENHeN B MaraznE, rge Bbl npio6bepn i3dene, IIN POITBepkDEHn IopuInneckO cnbl b cnyae liob6 peKnaamaun.

Даннага раразпострангетс на Deфкъи NOLOMKN, KOTOPBYEBAHIOCTe pe3yIbTaOM HnepaBInbHOH 3KcNYaTayuNTU INN HApuySeHNA HOpM 6e3OpaNCHOnTO YXDOA, ONCAHbIX B INCTCPKUn NHa 3TNKETKe NO npBaUNAM CTIPKN, KAK Na Ha 3IeMENTbECTeBHNOHO H3OCA, NOBUBUmeC pINHOPMAhOB EJekDEHBOM NOP3OBAHIN.

Hn B Koem Cnyahe Cpe bBaIae 3NTkETKY C homePom waccn Bawei moDnei, Hon cOePADKHT BaXHyIO INHFOpmAuHO.

BHHMaHHe:

INFORMACJA GWARANCYJNA

please contact our export department

[e-mail]

local commercial N 2

Tel.[phone]

JANE, S.A. Pol. Industrial Riera de Caldes

C/Mercaders, 34-08184 Palau Solita Plegamans (BARCELONA) SPAIN

Telf. [phone] - Fax: [phone] - email: [e-mail] - www.jane.es

IM-01600.01
