USER MANUAL DCS-942L D-LINK

This product works with the following operating system software: Windows XP/2000/ME/98SE

DSB-C120

D-Link 100K Pixel USB PC Camera

Before You Begin

You must have at least the following:

• Pentium III 500 MHz, Celeron, AMD Athlon processor, or higher
• 64MB RAM (or minimum OS requirement whichever is higher)
  Microsoft Windows XP/2000/ME/98SE
  Microsoft DirectX 8.1b or higher
• Update Service Pack
  200MB free hard drive space
  CD-ROM drive
• USB Port (USB specifications version 1.1)
  24Bit color display adapter
• Windows compatible sound card and speakers (full duplex sound card recommended)

Check Your Package Contents

These are the items included with your purchase: If any of the below items are missing, please contact your reseller.

DSB-C120 USB PC CAMERA

CD-ROM(containing Drivers, Application Software, PDF Installation Guide, PDF Manual, and Warranty)

USB 1.1 Cable

Run the Driver CD before you install Camera.The Driver obtains an option program that ties your option process.

1

DSB-C120 Driver Installation

Please bring out the attached CD-ROM and follow the steps listed below carefully to insure the installation of DSB-C120 will be complete.

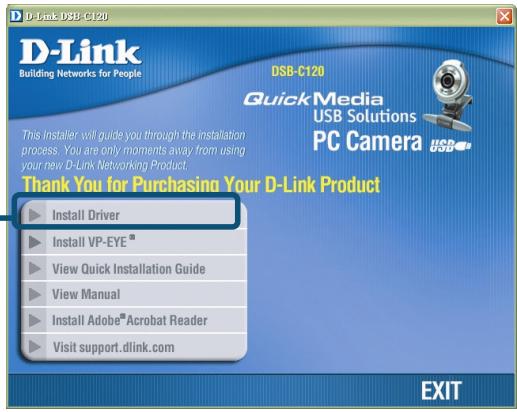

Insert the software CD into CD-ROM. As you can see the below picture,D-Link DSB-C120 startup window will be displayed.

Click Install DSB-C120 Driver

If the Autorun screen does not automatically start, click on Start > Run, enter "D:\Autorun.exe" and click OK. "D" represents the letter of your CD-ROM drive. Replace it if your CD-ROM drive is a different letter.

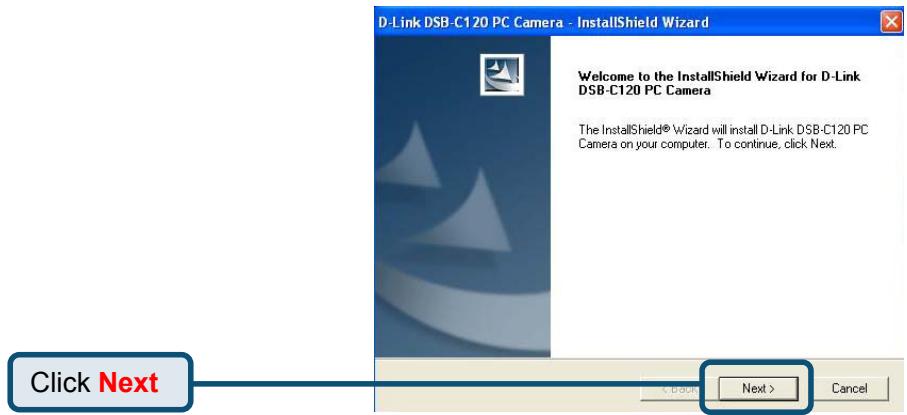

Windows XP Users

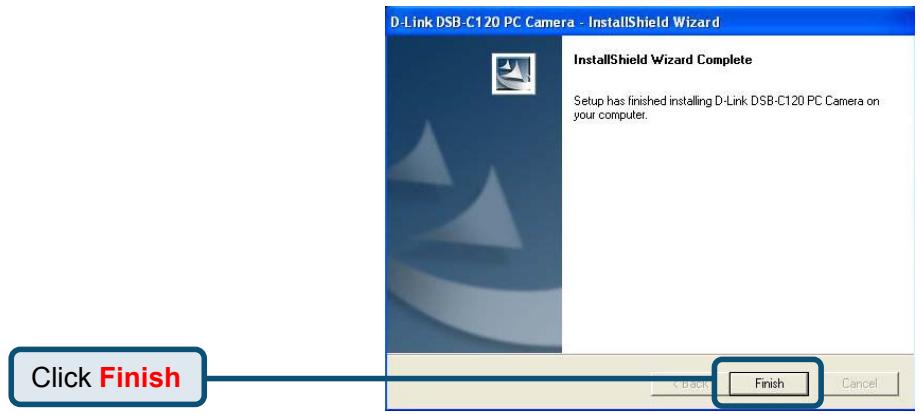

Windows XP Users (Continued)

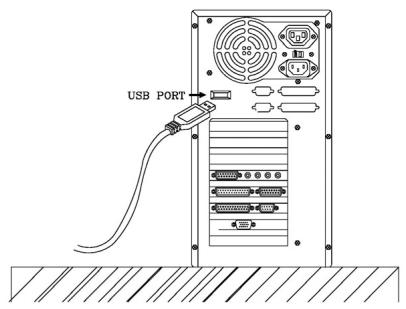

Plug the USB cable into camera and USB port on the PC directly.

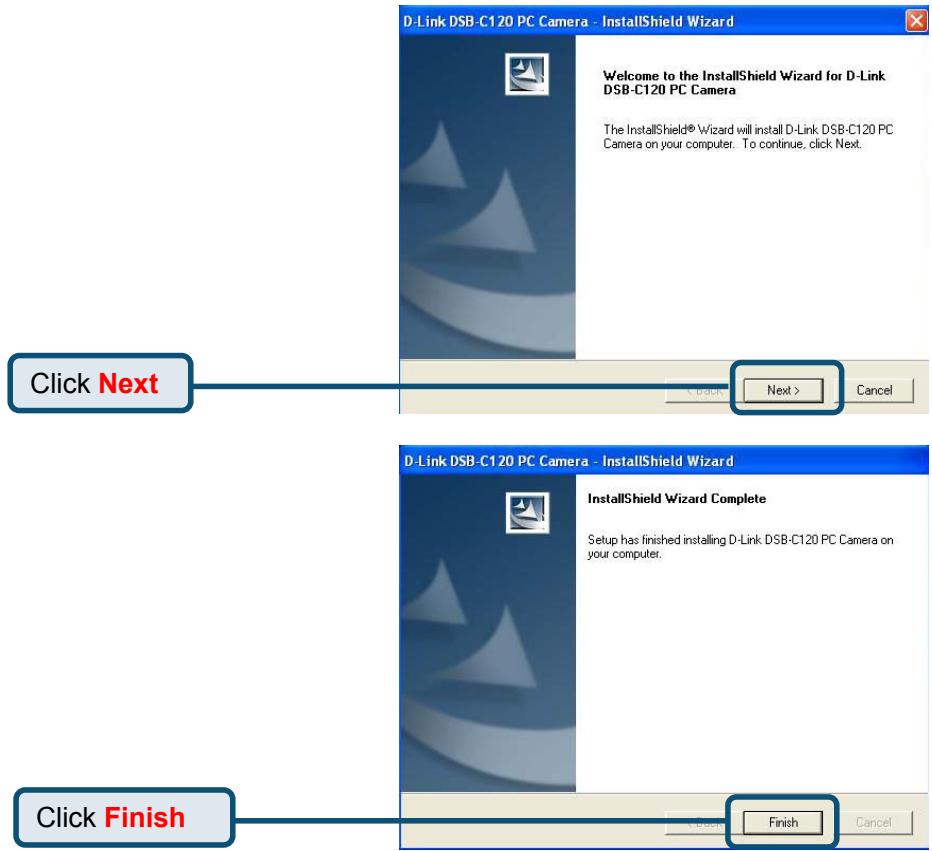

Windows 2000 Users

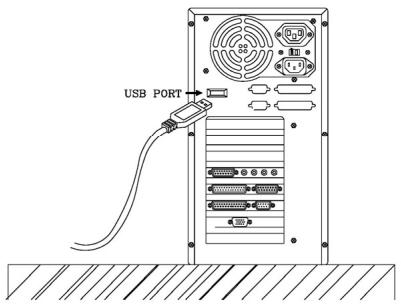

Plug the USB cable into camera and USB port on the PC directly.

Windows 2000 Users (Continued)

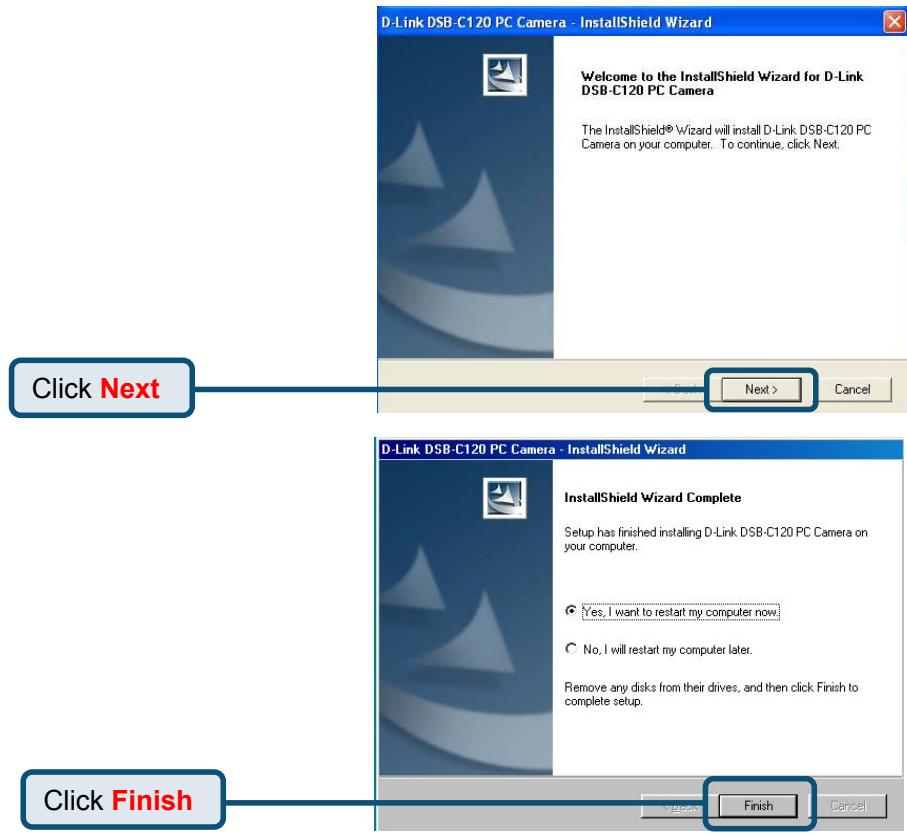

Windows ME & 98 Users

The DSB-C120 driver installation will proceed automatically for Windows ME & 98SE users.

Windows ME & 98 Users(Continued)

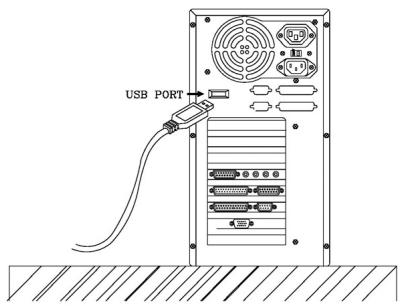

Plug the USB cable into camera and USB port on the PC directly.

After the DSB-C120 is connected to your router and all set up, sedures are completed, MUST restart the eating system manually.

Driver Installation is Completed!

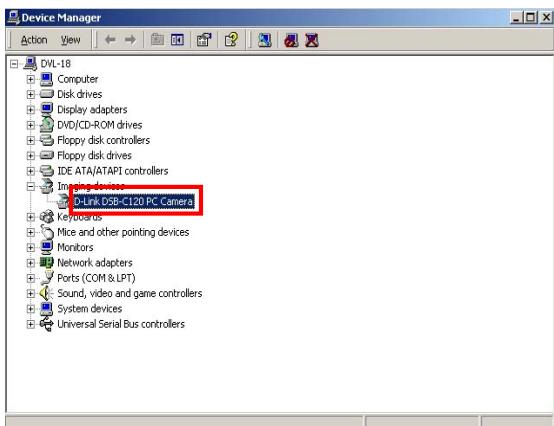

To confirm the DSB-C120 is properly installed, click "START" "SETTINGS" "CONTROL PANEL". Double-click "SYSTEM". Select the "HARDWARE" tab and click the "DEVICE MANAGER" button. Confirm that "D-Link DSB-C120" appears in the "IMAGE DEVICES" section.

Once properly installed, you are ready to start immediately capturing images and accreating video with the DSB-C120.

Please refer to the DSB-C120 Manual on the CD included with this product for information on how to install and use the VP-EYE 4.0 software

1. Make sure to install the driver and software BEFORE plugging the camera into USB port.
2. We recommend plugging the cable connector to USB port on PC directly to avoid low voltage.
3. If a dialog box pops up and request to have the language setting file replaced after plugging the camera into USB port, please simply click "Yes" to continue.
4. Please download the latest update of "Service Pack" (from Start → Windows Update) to keep the camera running smoothly.
5. If you have more than one image device in your system, please select the "D-Link DSB-C120" as the PC Camera device. In this way, you can use this camera to capture images.
