Before You Begin

This installation guide provides instructions for installing and configuring your camera. Additional documentation is also available on the D-Link support website.

Refer to the manual for your model for additional information on how to configure the device using the associated Setup Wizard. The manual and Setup Wizard may be found at https://dlink.com/support/.

Package Contents

This package includes the following items:

• Vigilance Outdoor Dome Camera
• Cable Waterproofing Connector
- Mounting Kit
- Allen Key
- Alignment Sticker
- Documentation

If any of the above items are damaged or missing, please contact your local D-Link reseller.

Note: Using a power supply with a different voltage than the one recommended for the device will cause damage and void the warranty for this product.

System Requirements

• Computer running Microsoft Windows®
- Internet Explorer 11

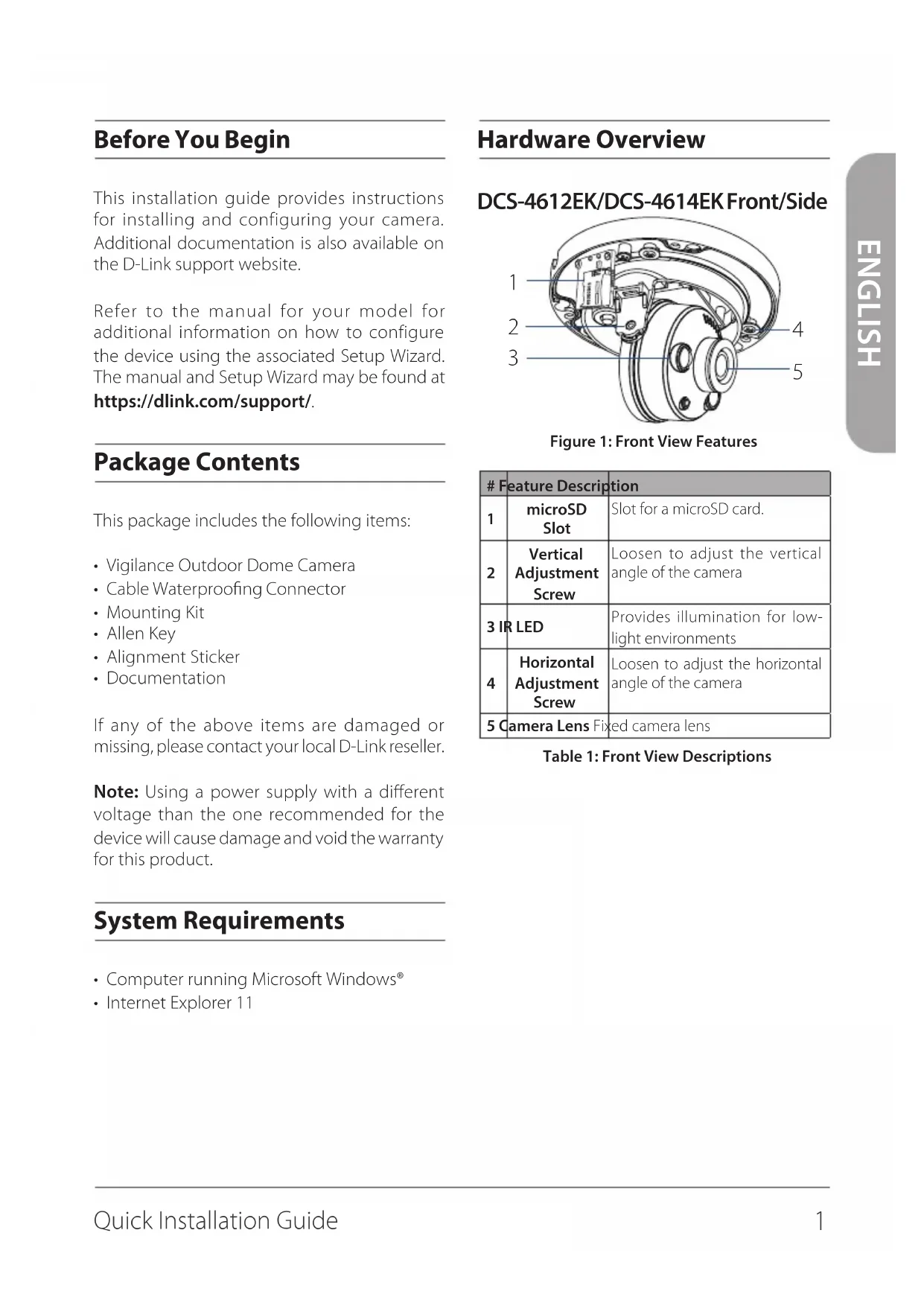

Hardware Overview

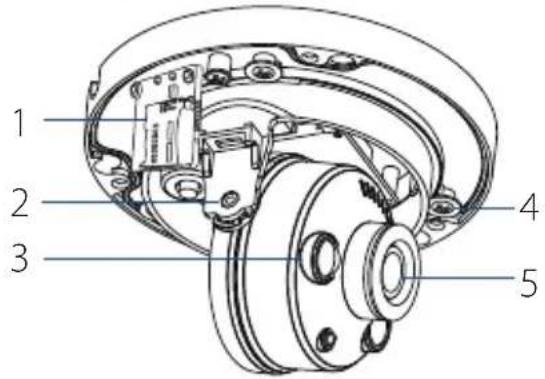

DCS-4612EK/DCS-4614EK Front/Side

1 2 3 4 5

Figure 1: Front View Features

# Feature Description
1	microSD Slot	Slot for a microSD card.
2	Vertical Adjustment Screw	Loosen to adjust the vertical angle of the camera
3 IR LED		Provides illumination for low-light environments
4	Horizontal Adjustment Screw	Loosen to adjust the horizontal angle of the camera
5 Camera Lens Fixed camera lens

Table 1: Front View Descriptions

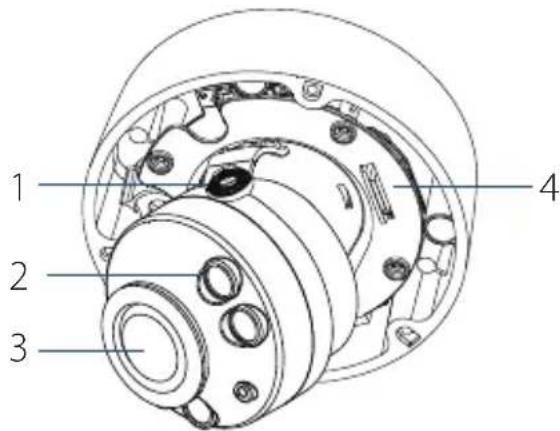

DCS-4618EK Front/Side

1 2 3 4

Figure 2: Front View Features

# Feature Description
1	Vertical Adjustment Screw	Loosen to adjust the vertical angle of the camera.
2	IR LED	Provides illumination for low-light environments
3	Camera Lens Motorized camera lens
4	microSD Slot	Slot for microSD card.

Table 2: Front View Descriptions

DCS-4612EK/DCS-4614EK/DCS-4618EK Cable Interfaces

1 2 3

Figure 3: Cable Interfaces

#	Feature Description
1	Ethernet Jack	RJ-45 connector for Ethernet. Can also be used to power the camera using Power over Ethernet (PoE)
2	Power Connector	Connects to an optional 12 V / 1.5 A power adapter (not included)
3	Reset Button	Press and hold for more than five seconds, then release to perform a factory reset

Table 3: Cable Interface Descriptions

Management Options

To configure and manage your camera, it is recommended that you download the associated Setup Wizard and the D-ViewCam software suite, both of which are available from the D-Link website.

Installing the Setup Wizard

1. Open a web browser, navigate to dlink.com/support/, and select your region.
2. On the next screen, enter the model number of your camera in the search bar and click Search. Click the picture of your camera. On the product page, click the Download button next to Setup Wizard.
3. Once the executable file has finished downloading, click it and follow the instructions to install the Setup Wizard.

Configuring the Camera

1. Ensure that your camera is plugged in (either using a 12 V 1.5 A power adapter or a PoE-enabled device) and connected to your computer with an Ethernet cable.

2. Open the Setup Wizard. It will display the MAC address and IP address of your camera. If you have a DHCP server on your network, this will be a dynamic IP address. If your network does not use a DHCP server, the network camera's default static IP 192.168.0.20 will be displayed. Select your camera, then click the Link button to continue.

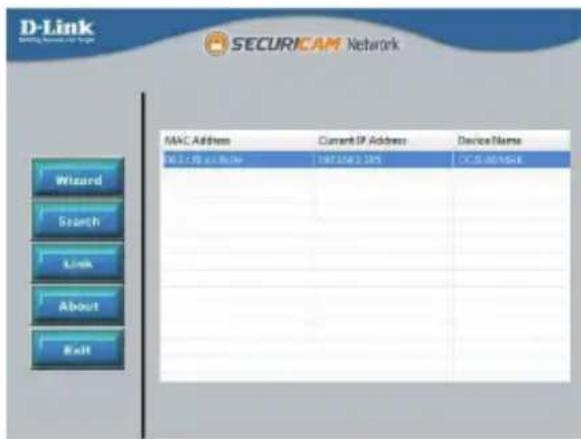

D-Link SECURICAM Network MAC Address Current IP Address Device Name MAC ID: 01.86.04 UNITS/2.185 DCS-08/MSC Wizard Search Link About Exit

Figure 4: Launching the Setup Wizard

1. If this is your first time logging in, you will be prompted to create a password, which must be between 8 and 30 characters and must contain both letters and numbers. Press OK.

New Password Confirm New Password Save

Figure 5: Creating a Password

1. To view the camera display, on the main screen of the Setup Wizard, click the Search button, then select your camera and click the Link button to open the camera's web UI. Alternatively, open a web browser and type the camera's IP address (displayed in step 2) into the URL bar and press Enter. Enter the password you created, and click Login to continue.

Password Login Administrator | Other User

Figure 6: Authenticating

Installing D-ViewCam

1. Open a web browser, navigate to dlink.com/support/, and select your region.
2. On the next screen, click the D-ViewCam link and click the most recent version to download the D-ViewCam setup wizard (packaged as a zip file).
3. Once the file has finished downloading, unzip it, and click the executable file SetupTool.exe. Follow the instructions to install the D-ViewCam software suite.

For advanced viewing options, refer to the D-ViewCam User Manual.

Mounting the Camera

Note: It is highly recommended that you configure and test your camera before mounting it.

The DCS-4612EK, DCS-4614EK and DCS-4618EK can be installed on the ceiling or wall. The process is identical for both cameras.

Mounting the Camera

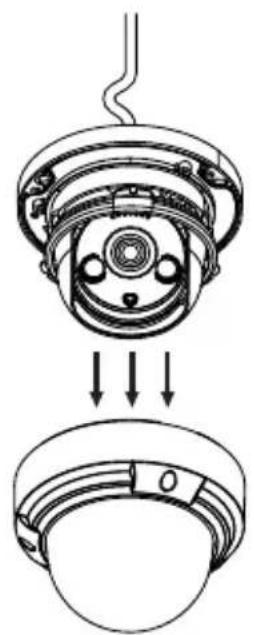

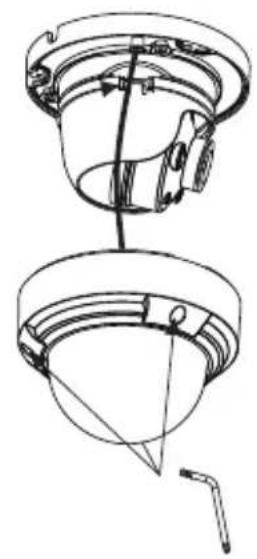

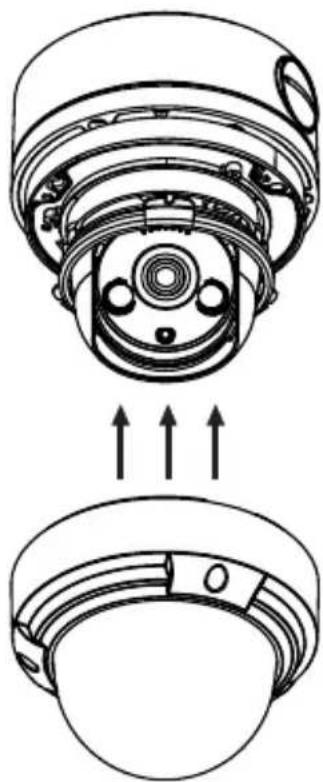

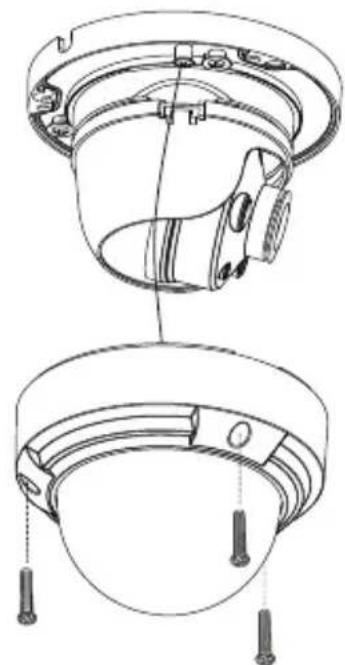

1. Use the included T10 or T15 screwdriver to unscrew the three screws on the dome cover and remove it.

Technical line drawing of a mechanical component with no visible text or symbols

Figure 7: Removing the Cover

1. Press the sides of the plastic lining and gently lift it to remove the lining from the camera.

Technical line drawing of a mechanical assembly with two views: top shows a circular component with a rotating arm, bottom shows a bowl-like structure (no text or symbols)

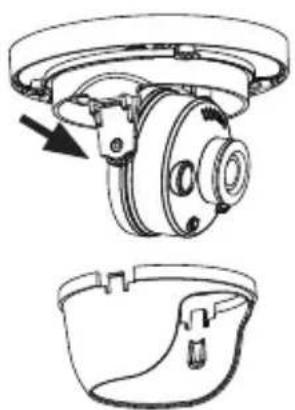

Figure 8: Removing the Lining

1. Place the installation sticker on the ceiling or wall. Using a 4 mm drill bit, drill three holes 30 mm deep into the wall or ceiling. Drive the plastic wall anchors into the holes.

Technical diagram of a mechanical assembly with clamps and gears (no text or labels)

Figure 9: Attaching the Camera

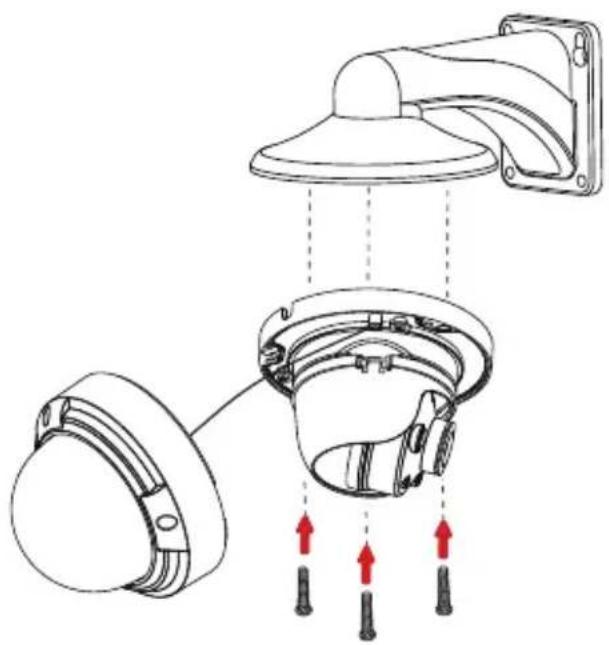

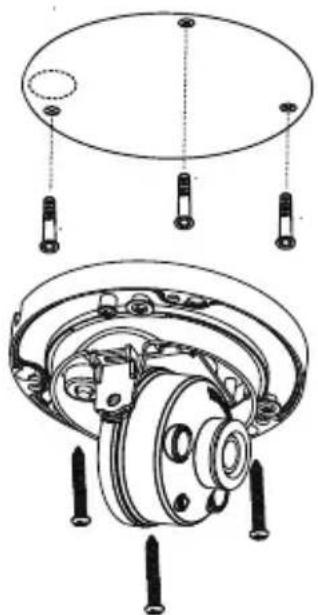

1. Insert three mounting screws into the holes in the base of the device. Place the device against the mounting sticker and screw it in to attach it to the wall or ceiling.

Three screws with rubber gaskets are provided with DCS-4618EK. To ensure waterproofness you MUST mount the DCS-4618EK with all three of the provided screws.

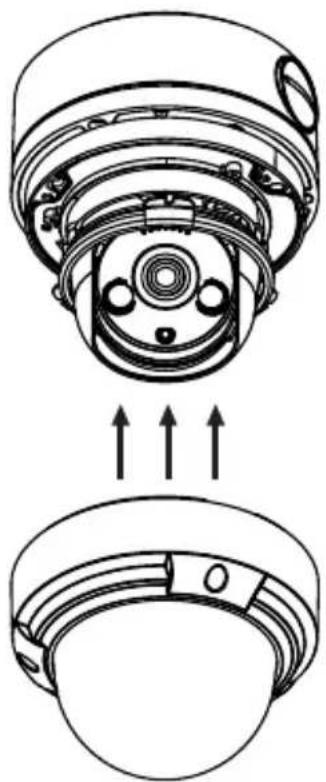

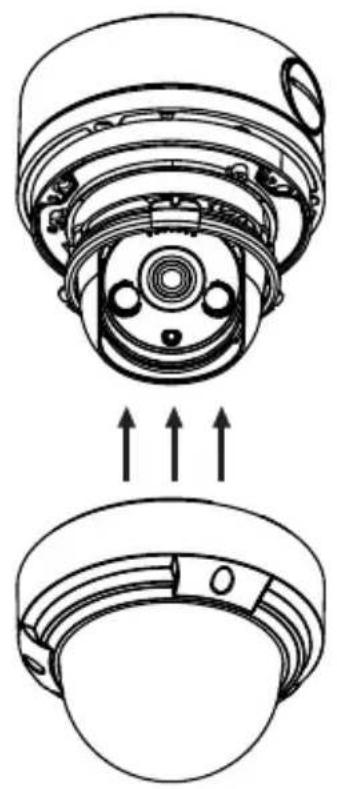

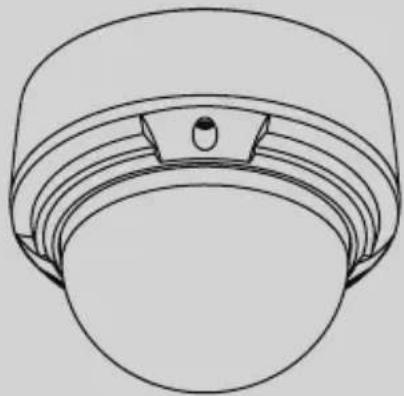

1. Reattach the lining to the camera body by sliding it on until it clicks. Replace the dome cover and refasten the screws securing it in place.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Figure 10: Replace the dome cover

Adjusting the Lens

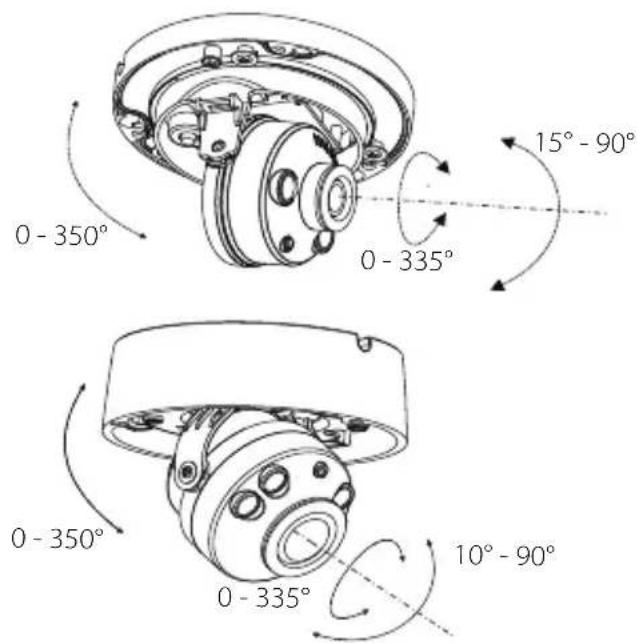

The angle, zoom and focus of the lens can adjusted using the web UI. For information on how to do this, refer to the User Manual.

0 - 350° 0 - 335° 15° - 90° 0 - 350° 0 - 335° 10° - 90°

Figure 11: Positioning the Lens

Waterproofing Your Installation

To waterproof your camera, follow the instructions below. A round Ethernet cable, a crimping tool, and RJ-45 plugs are required for this procedure.

1. Place the washer around the base of the Ethernet connector as shown.

Line drawing of a cable with a connector and a separate ring component (no text or symbols)

Figure 12: Attaching the Washer Ring

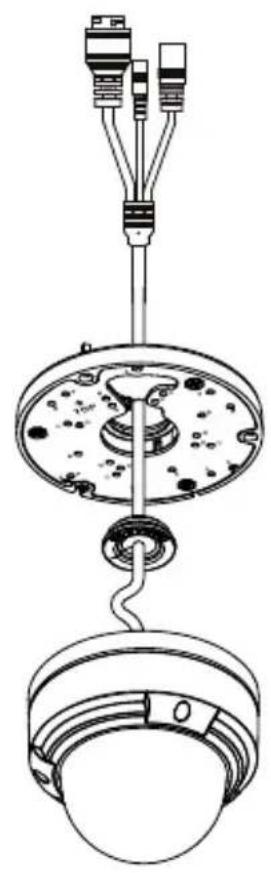

1. Thread the bare Ethernet cable through the waterproof connector as shown.

Diagram of a cable connector with internal components and directional arrows indicating movement (no text or symbols)

Figure 13: Threading the Cable

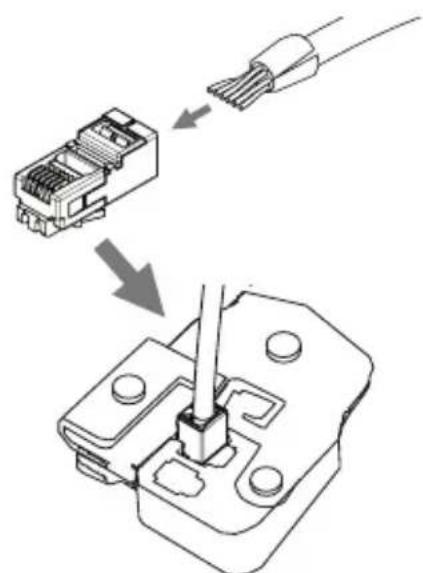

1. Attach an RJ-45 plug to the end of the cable using a crimping tool.

Technical diagram showing assembly steps of an electrical connector with labeled components and directional arrows

Figure 14: Attaching the RJ-45 Connector

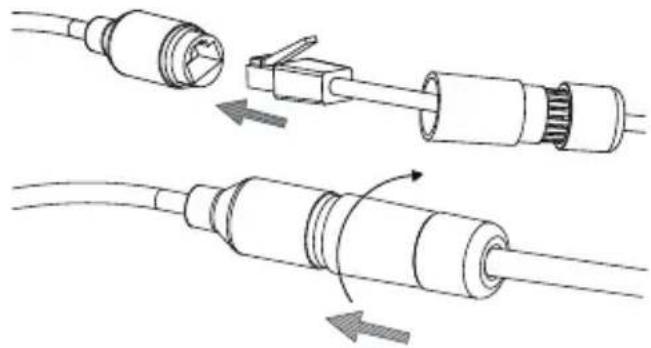

1. Connect the RJ-45 plug into the Ethernet connector, then screw the waterproof connector to the Ethernet connector by turning it clockwise about one half-turn.

Diagram showing two cable connector assemblies with arrows indicating assembly or movement (no text or symbols present)

Figure 15: Attaching the Waterproof Connector

1. Screw the back part of the waterproof connector clockwise until there is a tight seal around the Ethernet cable.

Pure diagram of a cylindrical cable with a curved arrow indicating rotation (no text or symbols)

Figure 16: Tightening the Connector

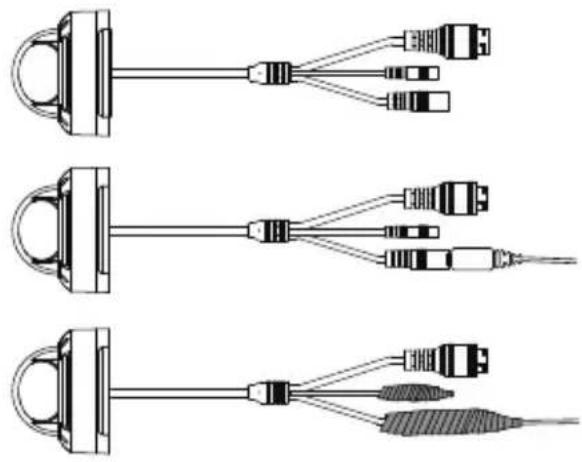

1. The power connector and reset button cables are not waterproof. It is recommended to use waterproof tape to protect them. Wind the tape around each cable in an overlapping manner to cover them.

Three schematic diagrams of cable connector assemblies with connectors and wires (no text or labels)

Figure 17: Wrapping the Power Connector and Reset Button

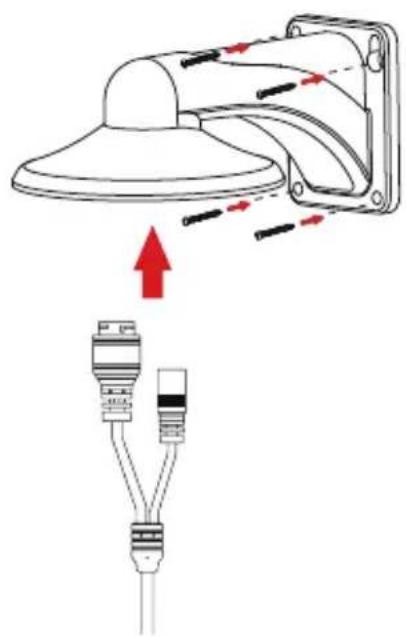

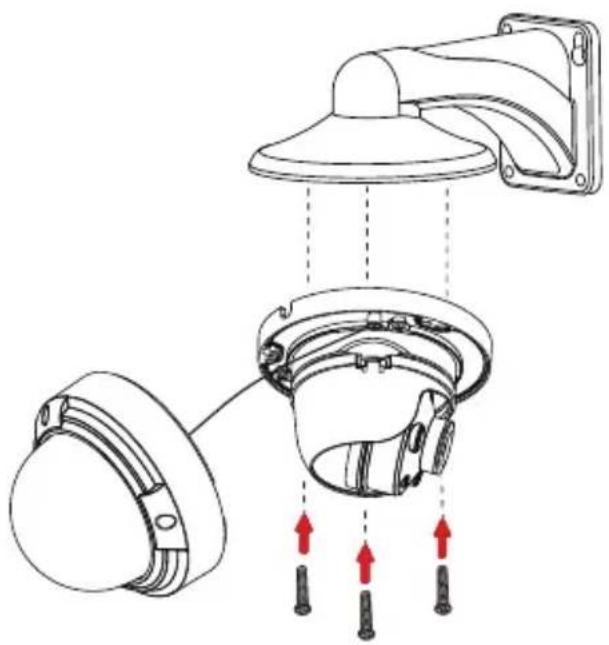

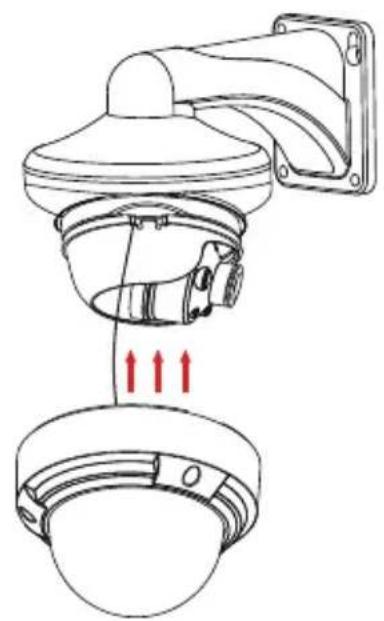

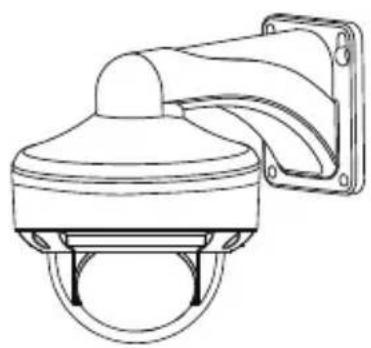

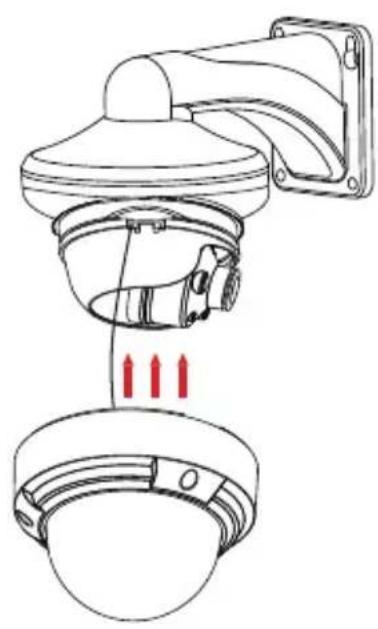

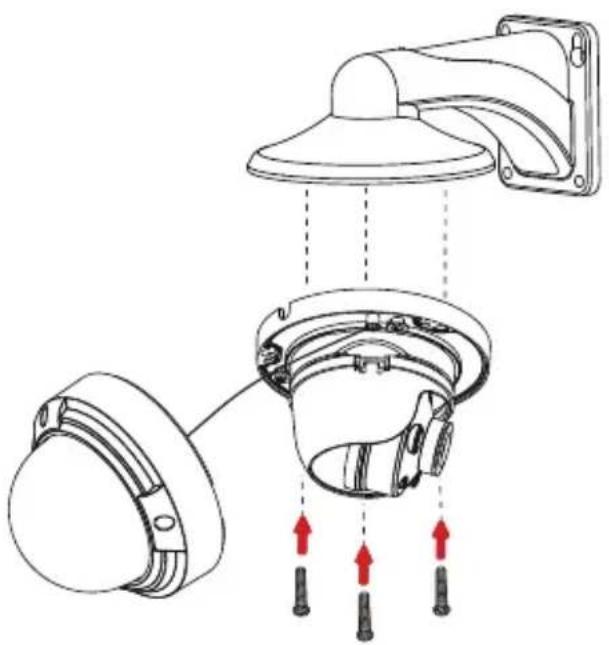

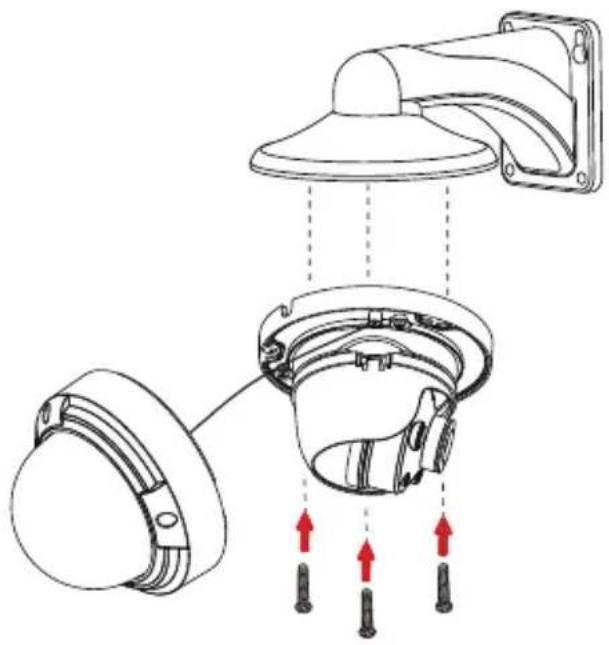

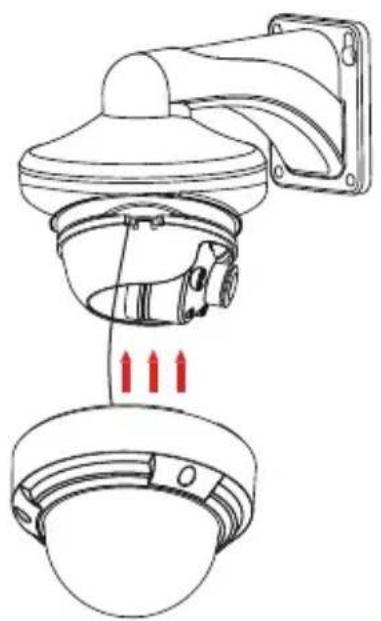

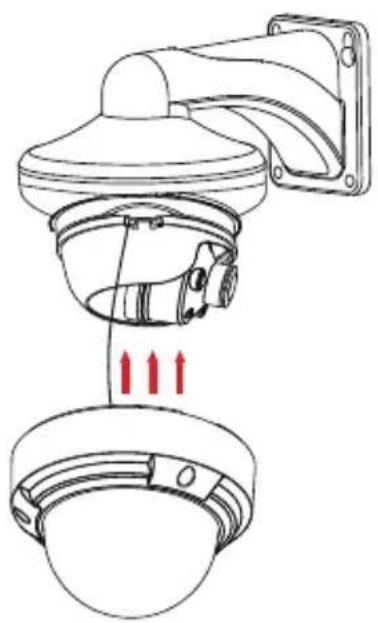

Using the DCS-37-5 Mount (optional)

1.

3.

Diagram showing a lamp with red arrows indicating light or motion, and a separate plug assembly with two connectors (no text or symbols)

Technical line drawing of a security camera with red directional arrows indicating movement or force (no text or symbols)

2.

4.

Technical diagram of a wall-mounted device with mounting bracket and internal components, showing red directional arrows indicating movement or force (no text or symbols present)

Line drawing of a security camera with mounted sensor array (no text or symbols)

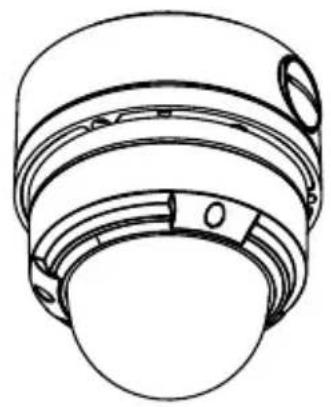

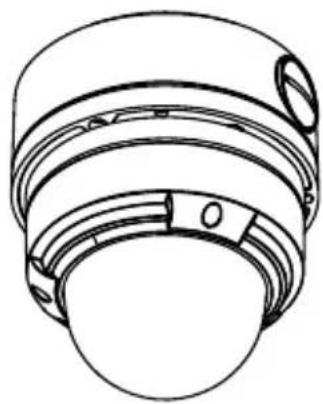

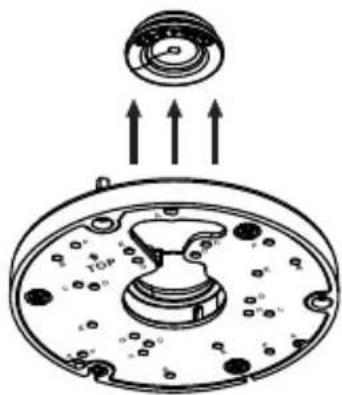

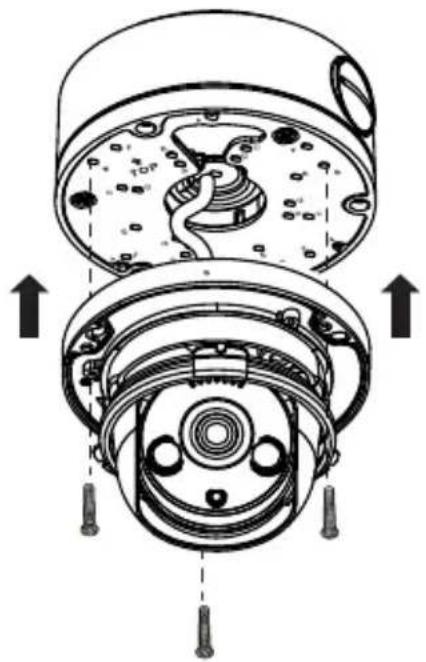

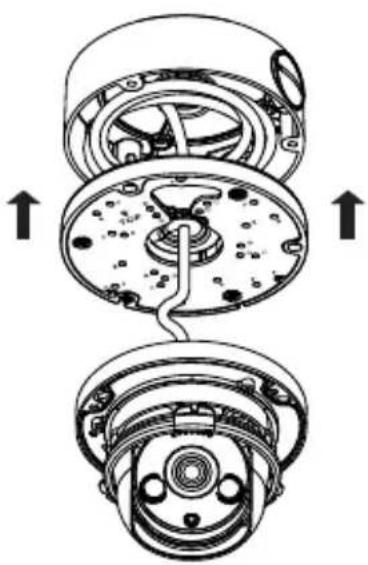

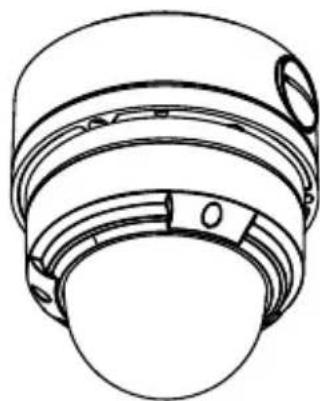

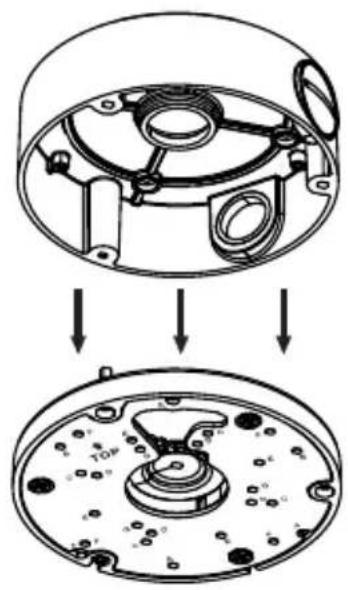

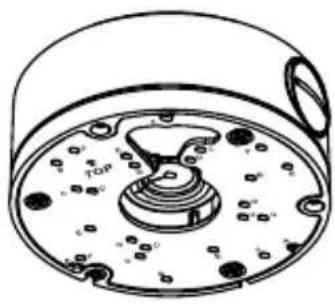

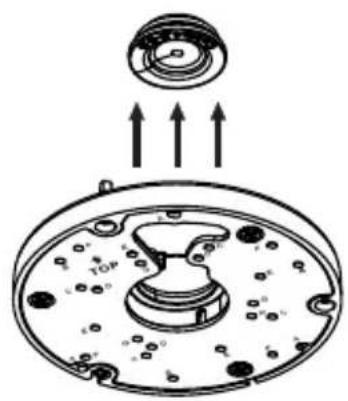

Using the DCS-37-6 Mount (optional)

1.

3.

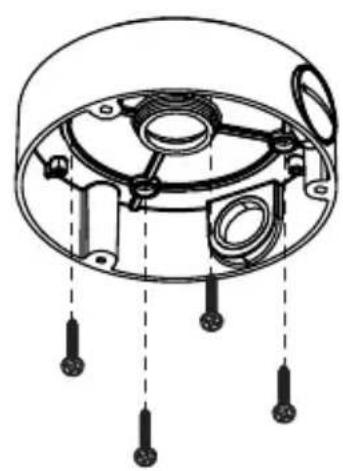

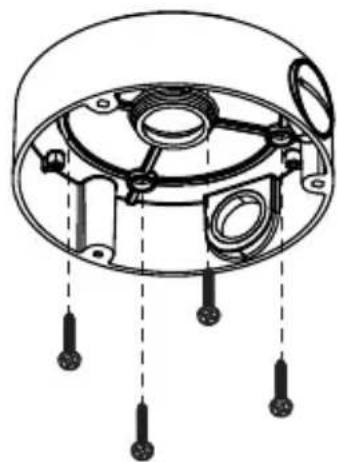

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with no visible text or symbols

2.

4.

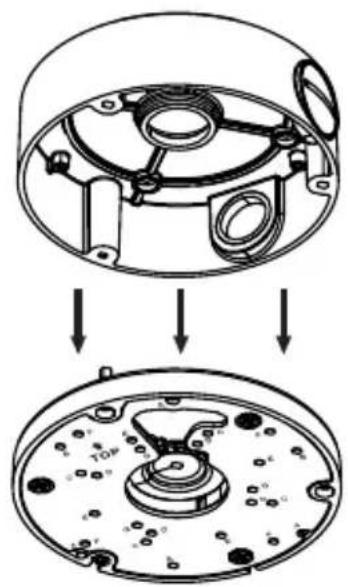

Technical diagram showing a mechanical assembly with two views of a circular component, no text or symbols present.

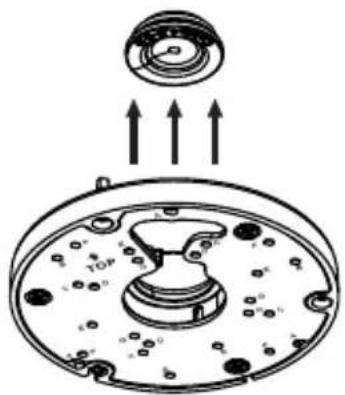

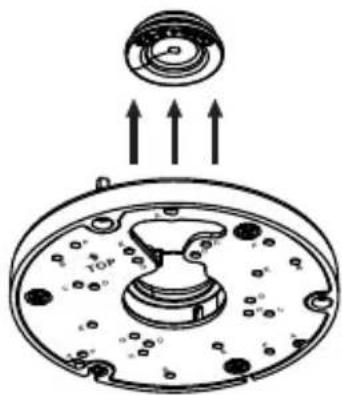

Diagram of a mechanical component with arrows indicating upward motion, no text or symbols present

1.

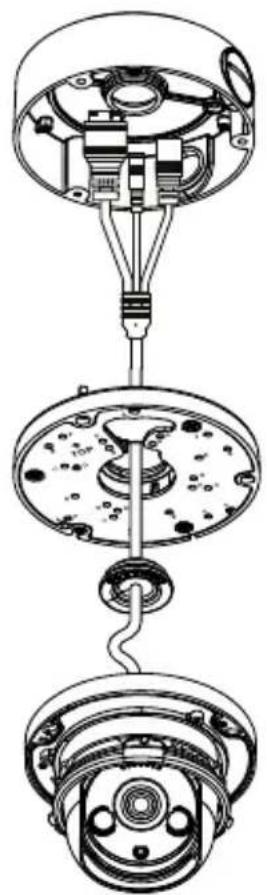

Technical line drawing of a mechanical assembly with hanging components and wiring (no text or symbols)

1.

Technical line drawing of a mechanical assembly with three views (top, middle, bottom) showing internal components and connections without any text or symbols.

1.

Technical line drawing of a mechanical assembly with no visible text or symbols

1.

Technical diagram of a mechanical assembly showing internal components and directional arrows (no text or labels)

9.

Cross-sectional diagram of a mechanical device showing internal components and assembly (no text or labels)

11.

Technical line drawing of a mechanical component with concentric layers and mounting holes (no text or symbols)

10.

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

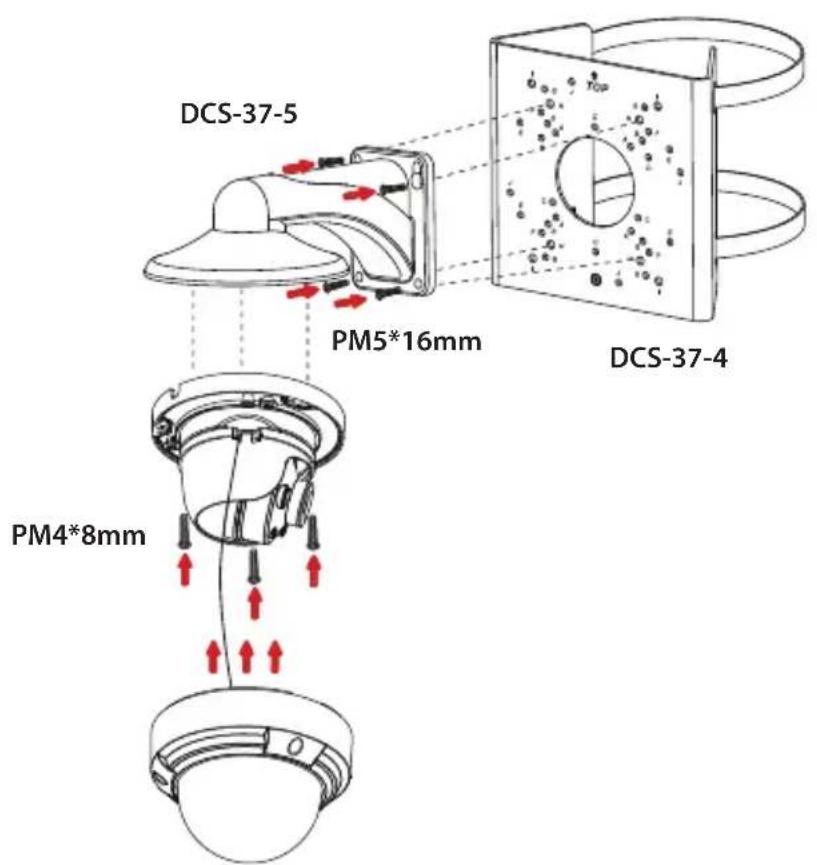

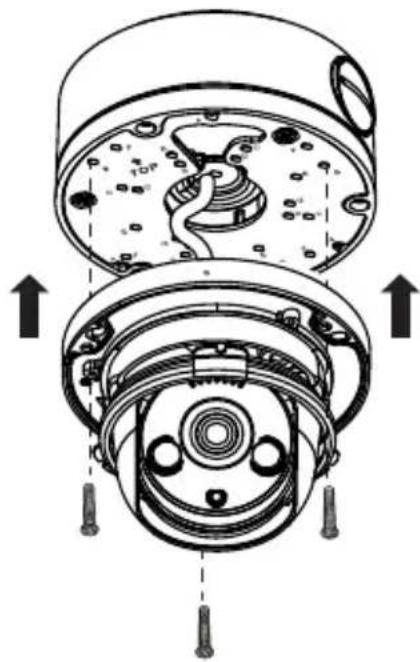

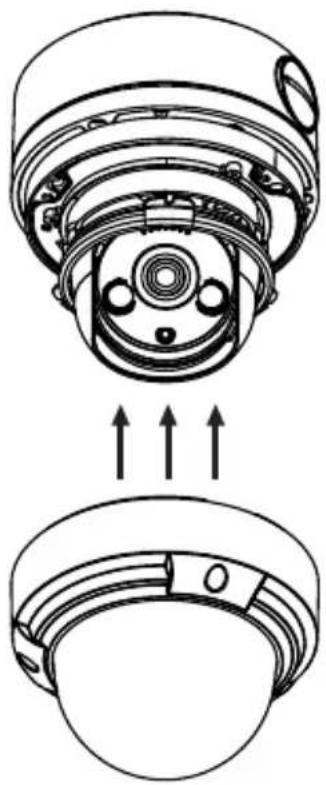

Using the DCS-37-4 Mount (optional)

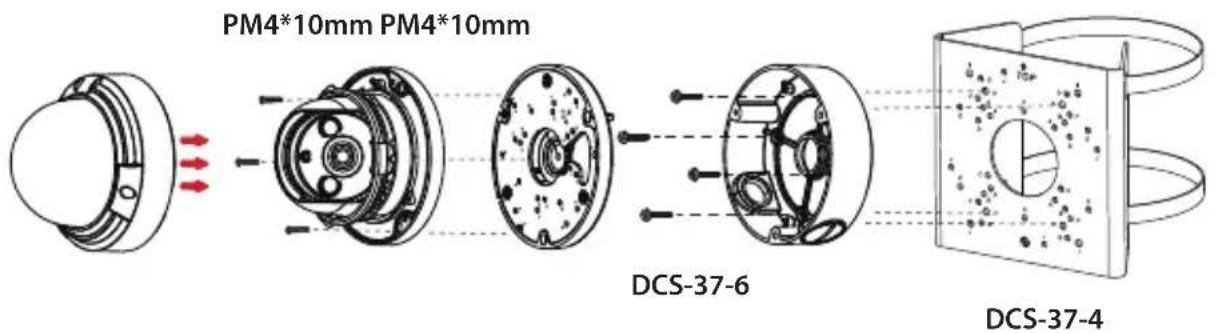

PM4*10mm PM4*10mm DCS-37-6 DCS-37-4

DCS-37-5 PM5*16mm DCS-37-4 PM4*8mm

Installation Information

Model no.	DCS-37-4 DCS-37-5 DCS-37-6
	Screw hole Screw size Screw hole Screw hole Screw size
DCS-4612EK DCS-4614EK	-- B PM4*8mm B PM4*10mm
DCS-4618EK -- G PM4*8mm A PM4*10mm
DCS-37-5	H	PM5*16mm	-	-	-	-
DCS-37-6	F	PM4*10mm	-	-	-	-

Additional Information

If you are encountering problems setting up your network, please refer to the user manual.

Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the packaging. Visit your local D-Link website for technical support details.

Additional help is available online. To find out more about D-Link products or marketing information, please visit the D-Link support website at http://dlink.com/support/.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.

TECHNICAL SUPPORT

dlink.com/support
