USER MANUAL K5200 COMPACT KARCHER

Head of Appropriation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

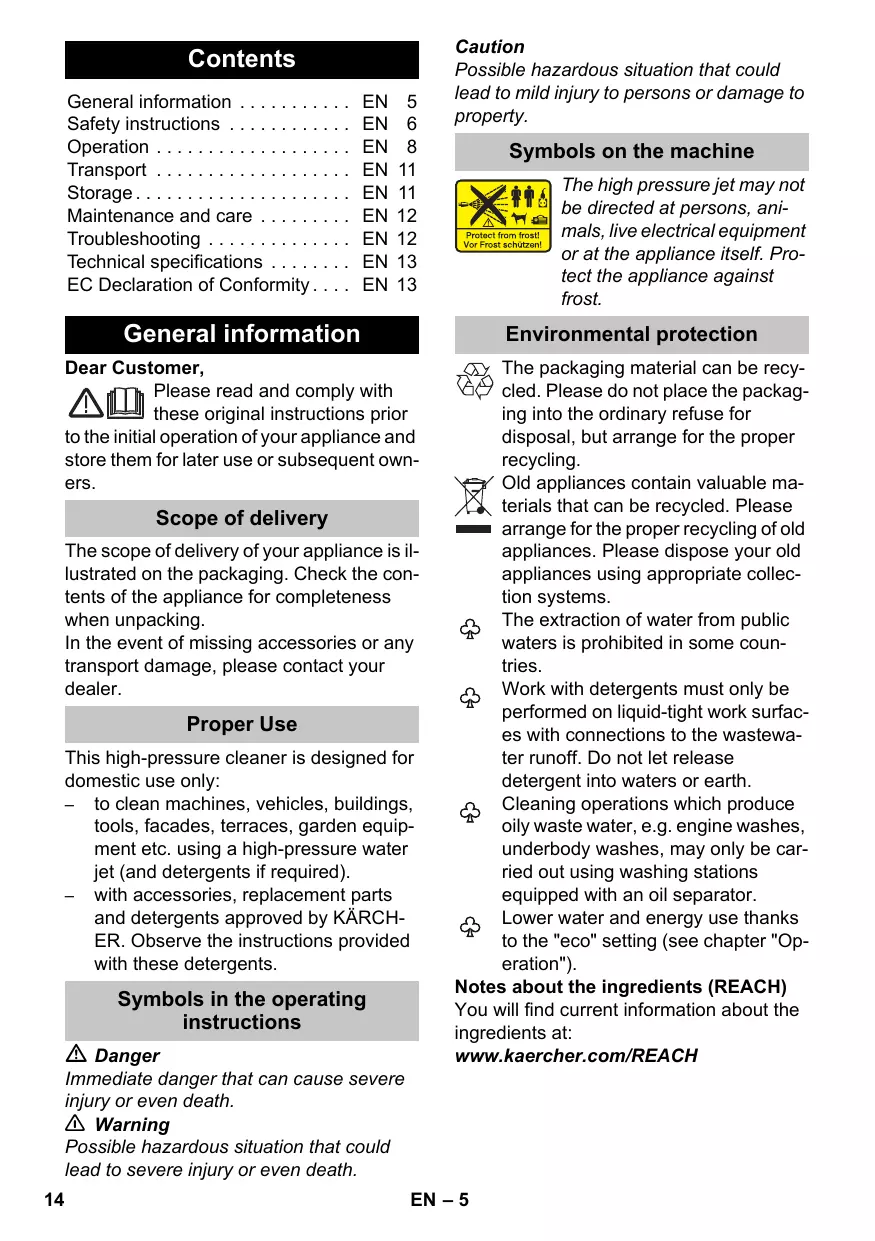

Contents

General information EN 5

Safety instructions EN 6

Operation EN 8

Transport EN 11

Storage EN 11

Maintenance and care EN 12

Troubleshooting EN 12

Technical specifications EN 13

EC Declaration of Conformity. . . . EN 13

General information

Dear Customer,

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Proper Use

This high-pressure cleaner is designed for domestic use only:

to clean machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. using a high-pressure water jet (and detergents if required).
with accessories, replacement parts and detergents approved by KARCHER. Observe the instructions provided with these detergents.

Symbols in the operating instructions

Danger

Immediate danger that can cause severe injury or even death.

Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

The high pressure jet may not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appliance against frost.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

The extraction of water from public waters is prohibited in some countries.

Work with detergents must only be performed on liquid-tight work surfaces with connections to the wastewater runoff. Do not let release detergent into waters or earth.

Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Lower water and energy use thanks to the "eco" setting (see chapter "Operation").

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. (See address on the reverse)

Safety instructions

Danger

• Never touch the mains plug and the socket with wet hands.
  The appliance must not be used if the power cord or important parts of the appliance, e.g. high pressure hoses, trigger gun or safety devices are damaged.
  Check the power cord and mains plug for damage before every use. If the power cord is damaged, please arrange for it to be replaced immediately by an authorised repair agent or a skilled electrician.
  Check the high pressure hose for damage before every use. Please arrange for the immediate replacement of a damaged high pressure hose.
  The appliance may not be used in areas where a risk of explosion is present.
  If the appliance is used in hazardous areas (e.g. filling stations) all of the safety provisions and operating instructions detailed in this manual must be observed.
  High pressure jets can be dangerous if improperly used. The jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.
  The high pressure jet must not be directed at other persons or directed by the user at him/herself to clean clothing or footwear.
• Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).

Vehicle tyres or tyre valves are susceptible to damage from the high pressure jet and may burst. The first indication of this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30~cm is observed when cleaning with the jet!
Risk of explosion!

Do not spray flammable liquids.

Never draw in fluids containing solvents or undiluted acids! This includes petrol, paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids or solvents as they are damaging to the materials from which the appliance is made.

Warning

The mains plug and the coupling of an extension cable must be watertight and must never lie in water. Moreover, the coupling may never lie on the ground. The use of cable reels that ensure that the sockets are at least 60~mm above the ground is recommended.
- Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labelled with a sufficient cable cross-section: 1 - 10 m: 1.5 mm²; 10 - 30 m: 2.5 mm²
Always fully unroll electrical cables from the cable drum.
High pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high pressure hoses, fixtures and couplings recommended by the manufacturer.
The appliance must not be operated by children or persons who have not been instructed accordingly.
The appliance may be used by individuals with limited physical, sensory or cognitive abilities or lack of experience and knowledge if they are under supervision or were instructed regarding the safe use of the appliance and understand the resulting risks.

Supervise children to prevent them from playing with the appliance.
- Keep packaging film away from children - risk of suffocation!
The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
- Do not use the appliance when there are other persons around unless they are also wearing safety equipment.
Wear protective clothing and safety goggles to protect against splash back containing water or dirt.

Caution

In case of extended downtimes, switch the appliance off at the main switch / appliance switch or remove the mains plug.
- Do not operate the appliance at temperatures below 0^ .
Observe a distance of at least 30 cm when using the jet to clean painted surfaces to avoid damaging paintwork.
Never leave the appliance unattended when it is in operation.
Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
All current-conducting parts in the working area must be protected against jet water.
The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
For safety reasons, we recommend that you operate the appliance only via an earthquake breaker (max. 30 mA).
- Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Power switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.

Prerequisites for the appliance's stability

Caution

Create stability for the appliance prior to all work on or with the appliance to prevent accidents or damage.

• The stability of the appliance is warranted when it is placed onto an even surface.

Operation

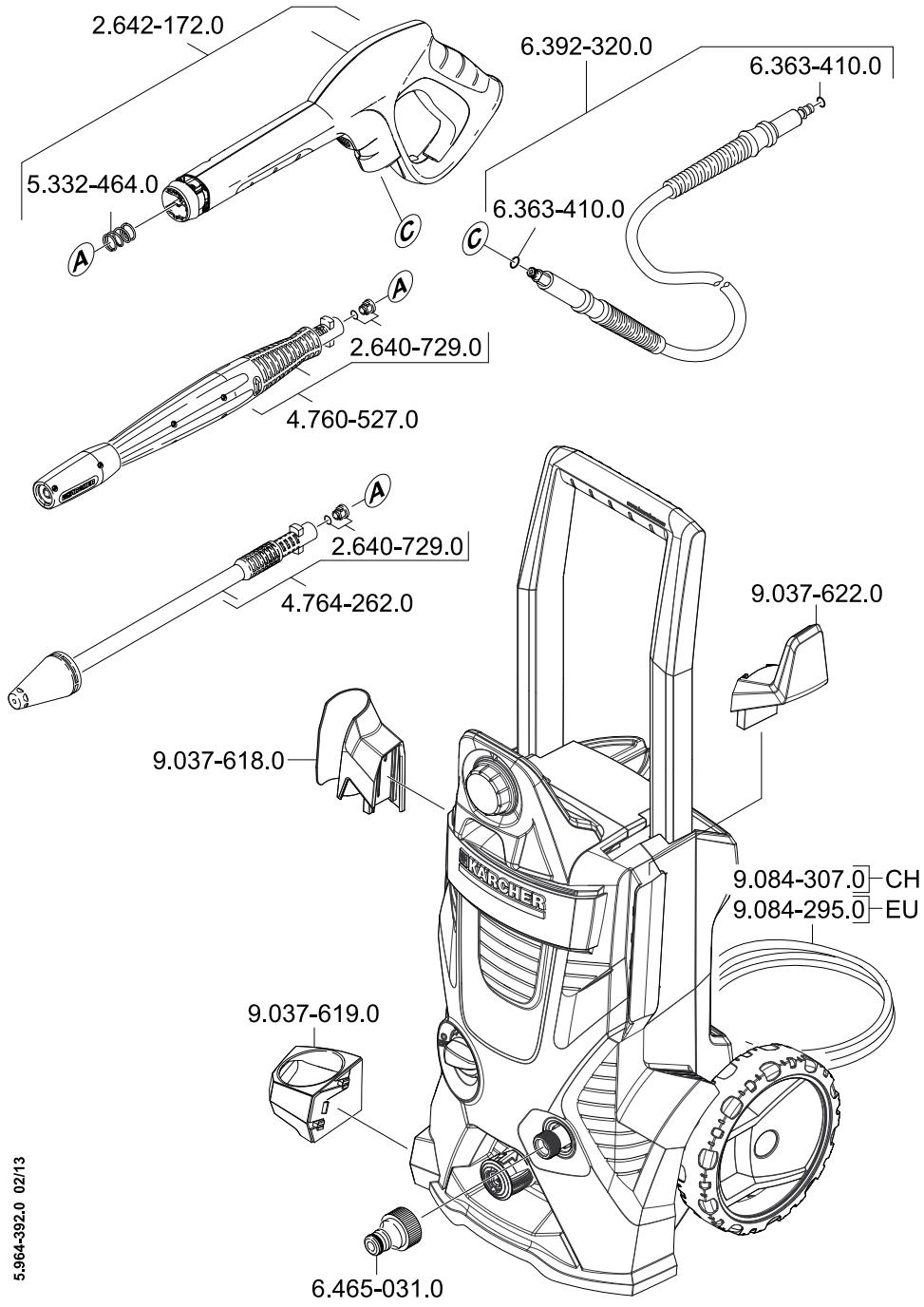

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

Illustrations on fold-out page!

1 Coupling element for water connection
2 Suction hose
3 Quick coupling for high pressure hose
4 Storage for trigger gun
5 Water connection with integrated sieve
6 Appliance switch (0/OFF - 1/ON eco).
7 Dosage regulator for detergent
8 Storage for trigger gun
9 Transport handle, detachable
10 Storage for high pressure hose
11 Storage of Plug 'n' Clean detergent bottle with detergent connection
12 Storage for accessories
13 Storage hook for mains connection cable
14 Plug 'n' Clean detergent bottle with locking lid
15 Mains cable with mains plug
16 Wheels
17 Trigger gun
18 Lock trigger gun
19 Key to detach the high pressure hose from the trigger gun
20 High pressure hose
21 Spray lance with Dirtblaster
22 Spray lance with pressure regulation (Vario Power)

Optional

23 Water filter (order no. 4.730-059)

Special accessories

Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.

Switch position "eco"

There are the switch positions "1/ON" and "eco" to switch the appliance on.

Note: The switch position "eco" allows the control of pressure and leads to water and energy savings of approx. 20% by using the spray lance.

Recommended application ranges for switch position "eco"

Before Startup

Mount loose parts delivered with appliance prior to start-up.

Install wheels

Illustration A

1 Push the wheels into the intake.
2 Secure the wheels using the included plug. Align the plug properly!

Install the storage for trigger gun

Illustration B

Place the bottom holder into the recesses and push forward until it audibly locks in.

Insert the top holder and push down all the way.

Install the storage hook for the mains connection cable

Illustration

Press in the storage hook and lock it into the top position.

Install the transport handle

Illustration D

Place the transport handle into the intake until you feel resistance. Use the heel of your hand or a soft rubber mallet to position it.

Install the dosage regulator for detergent

You will need the 2 included screws as well as a Phillips screwdriver PH 2.

Illustration

Insert both detergent hoses onto the hose fittings.

Install the dosage regulator and connect using 2 screws.

Note: During installation you must make sure that the tongues of the dosage regulator match up with the intended recesses in the casing.

Connect the high pressure hose to the trigger gun

Illustration

Push the high pressure hose into the trigger gun until it locks audibly.

Note: Make sure the connection nipple is aligned correctly.

Check the secure connection by pulling on the high pressure hose.

Connect high pressure hose to the appliance

Illustration G

Insert the high pressure hose tightly into the quick coupling on the appliance, it will lock in audibly.

Note: Make sure the connection nipple is aligned correctly.

Check the secure connection by pulling on the high pressure hose.

Water supply

Warning

According to the applicable regulations, the appliance must never be used on the drinking water supply without a system separator. Use a suitable system separator manufac KARCHER; or, as an alternative, a separator as per EN 12729 Type B, flowing through a system separator sidered non-drinkable.

Caution

Always connect the system separator to the water supply, never directly to the appliance!

Water supply from mains

Observe regulations of water supplier.

For connection values, see type plate/technical data.

Use a fibre-reinforced water hose (not included) with a standard coupling.

(Minimum diameter 1/2 inch (13 mm), minimum length 7.5 m).

Illustration H

1 Screw the coupling element to the water connection on the appliance.
2 Push the water supply hose onto the coupling unit.
Connect the water supply hose to the water supply.
Completely open the water tap.

Drawing in water from open reservoirs

Note: The max. suction height is 0.5m

Note: Impurities in the water can damage the high-pressure pump and accessories.

For protection, the use of the KÄRCHER water filter (optional accessory, order no.

4.730-059) is recommended.

Fill the suction hose with water.
Illustration H2

Screw the suction hose into the water connection of the appliance and insert it into the water source (e.g. rainwater drum).

Start up

Caution

Dry runs lasting longer than two minutes lead to damages to the high pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter "Troubleshooting".

Insert the mains plug into the socket.
Set the appliance switch to "1/ON".
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will switch on.

Switch the appliance on for a (max. of 2 minutes) and wait until the water exits at the hand spray gun without bubbles.

Release the lever on the trigger gun.
Set the appliance switch to "0/OFF".

Operation

Caution

Prior to cleaning, make sure that the high pressure is placed safely on level ground. Wear protective goggles and protective clothing during the cleaning process.

Illustration

Push the spray lance into the trigger gun and fasten it by turning it through 90^ .

Set the appliance switch to "1/ON".

Danger

The handgun is subjected to a recoil force when the water jet is discharged. Make sure that you have a firm footing and are also holding the handgun and spray lance firmly.

Pull on the lever of the trigger gun; the device will switch on.

Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.

Spray lance with pressure regulation

Carrying out the most common cleaning tasks. The work pressure can be infinitely regulated between "Min" and "Max".

Release the lever on the trigger gun.

Turn the spray lance to the desired position.

• Suitable for working in switch position "eco".

Note: Suitable for working with detergent; for this, turn the spray lance to the "Mix" position.

Spray lance with Dirtblaster

For particularly dirty items or areas.

Caution

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

Not suitable for use with detergents.
- The Dirtblaster reaches its maximum cleaning performance in standard mode.

Working with detergent

Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.

Notes regarding the detergent: The most commonly used KÄRCHER detergents can be purchased ready to use in their Plug 'n' Clean detergent bottles with locking lids. This will make the pesky refilling and filling processes redundant.

Illustration
Remove the lid from the Plug 'n' Clean detergent bottle and press the detergent bottle into the detergent connection with the opening facing down.
Illustration K
Adjust the suction volume of the detergent solution by means of the dosage regulator for detergents.
Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position.

Note: This will mix the detergent with the water stream.

Recommended cleaning method

Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
Spray off loosened dirt with the high pressure jet.

Interrupting operation

Release the lever on the trigger gun.
Lock the lever on the trigger gun.
During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.
Insert the trigger gun in its holder.

Finish operation

Caution

Only separate the high-pressure hose from the trigger gun or the appliance while there is no pressure in the system.

Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid. To store, place into the intake rotated by 180^ .
Release the lever on the trigger gun.
Turn off the appliance "0/OFF".
Turn off tap.
Press the lever on the trigger gun to release any remaining pressure in the system.
Lock the lever on the trigger gun.
Detach the appliance from the water supply.

Caution

When disconnecting the supply or high pressure hose, hot water may leak from the connections after operation.

Disconnect the mains plug from the socket.

Transport

Caution

In order to prevent accidents or injuries, keep in mind the weight of the appliance during transport (see Specifications).

When transporting by hand

Illustration

To push the appliance, the transport handle must be pulled all the way up; it will lock into place audibly.
Pull the appliance by its transport handle.

When transporting in vehicles

Prior to horizontal transport: Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid.
Secure the appliance against shifting and tipping over.

Storage

Caution

In order to prevent accidents or injuries, keep in mind the weight of the appliance when selecting a storage location for it (see Specifications).

Storing the Appliance

Park the machine on an even surface.
Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
Push the casing of the quick coupling for the high pressure hose toward the rear and disconnect the high pressure hose from the appliance.
Insert the trigger gun with the spray lance into the holder for the trigger gun.
Stow away the mains cable, the high-pressure hose and accessory on the appliance.

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

Frost protection

Caution

Protect the appliance and its accessories against frost.

The appliance and its accessories can get destroyed through frost if there is any water residues in them. To avoid damage to them:

Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
Store the appliance and the entire accessories in a frost free room.

Store the appliance and the entire accessories in a frost free room.

Maintenance and care

Danger

Turn off the appliance and remove the mains plug prior to any care and maintenance work.

Care

Prior to longer periods of storage, e.g. in the winter:

Remove filter from suction hose for detergent and clean under running water.
Illustration M

Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Maintenance

The appliance is maintenance free.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Troubleshooting

You can rectify minor faults yourself with the help of the following overview.

If in doubt, please consult the authorized customer service.

Danger

Turn off the appliance and remove the mains plug prior to any care and maintenance work.

Repair works may only be performed by the authorized customer service.

Appliance is not running

Pull on the lever of the trigger gun; the device will switch on.
Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
Check the mains connection cable for damages.

Pressure does not build up in the appliance

Check setting at the spray lance.
Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.
Check the water supply.
Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
Suction height of 0.5m when vacuuming from open container has been exceeded.

Appliance does not start, motor hums

Cause: Voltage reduction due to weak mains supply or when using an extension cable.

When switching on, first pull the lever of the hand spray gun and then switch the appliance switch to "I/ON" or "eco".

Strong pressure fluctuations

Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
Check water flow quantity.

Appliance is leaking

Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

Use spray lance with pressure regulation (Vario Power). Turn the spray lance to "Mix" position.
Check the settings at the dosage regulator for detergent.
Check whether the Plug 'n' Clean detergent bottle is placed into the detergent connection facing down.
Check the detergent suction hose for kinks.

Technical specifications

Electrical connection

Voltage	230 V
	1~50 Hz
Connected load	2,1 kW
Protection class	IP X5
Protective class	I
Mains fuse (slow-blow)	10 A
Water connection
Max. feed pressure	0,8 MPa
Max. feed temperature	40 °C
Min. feed volume	9 l/min
Max. Suction height	0,5 m
Performance data
Working pressure	12,5 MPa
Max. permissible pressure	14 MPa
Water flow rate	7,5 l/min
Detergent flow rate	0 - 0,3 l/min
Recoil force of trigger gun	17 N
Dimensions and weights
Length	349 mm
Width	427 mm
Height	867 mm
Weight, ready to operate with accessories	13,8 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value	<2,5 m/s²
Uncertainty K	0,3 m/s²
Sound pressure level LpA	75 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	91 dB(A)

Subject to technical modifications!

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.181-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2004/108/EC

2000/14/EC

2011/65/EC

Applied harmonized standards

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 89

Guaranteed: 91

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner

CEO

S. Reiser

Head of Appropriation

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Table des matieres

Consignes generales FR 5

www.kaercher.com/REACH

Garantie

Illustrations, cf. côte escamotable!

71364 Winnenden (Germany)

Telephone: [phone]

Winnenden, 2013/02/01

Indices

www.kaercher.com/REACH

Garanzia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

2011/65/CE

Head of Appropriation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Inhoud

www.kaercher.com/REACH

Garantie

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Índice de Contents

www.kaercher.com/REACH

Garantia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

2011/65/CE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Indices

www.kaercher.com/REACH

Garantia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

2011/65/CE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Indholdsfortegnelse

www.kaercher.com/REACH

Garanti

2006/42/EF (+2009/127/EF)

2004/108/EF

2000/14/EF

2011/65/EF

Head of Appropriation

71364 Winnenden (Germany)

TIf.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Innholdsfortegnelse

Generelle merknader . NO 5

www.kaercher.com/REACH

Garanti

2006/42/EF (+2009/127/EF)

2004/108/EF

2000/14/EF

2011/65/EF

71364 Winnenden (Germany)

TIf: [phone]

Winnenden, 2013/02/01

www.kaercher.com/REACH

Garanti

Head of Appropriation

Dokumentationsbefullmaktigad:

S. Reiser

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Sisallysluettelo

www.kaercher.com/REACH

Takuu

Head of Appropriation

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2013/02/01

Nivakacπepiexoμévωv

EviKcUToOeIfEiC EL 5

YTIOEiEeic aOaAeiae EL 6

Xειρισός. EL 8

Mεταφρά EL 11

AntoHkεuση EL 12

www.kaercher.com/REACH

Eyyunon

71364 Winnenden (Germany)

Tnλ: [phone]

: [phone]

Winnenden, 2013/02/01

icindekiler

www.kaercher.com/REACH

Garanti

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/02/01

Ornablenne

Obuyeka3aHnRA 5

Yka3aHnno TeXnKe 6e3oNaChOCTn.RU 6

YnpaBneHne RU 8

TpaHcnpTIpOBka RU 12

Xpahene RU 12

YxOД nTexHnueckoe o6cnyKBaHne.. RU 12

Pomoub B cnyae Heonolaok . . .RU 13

TexHHueckne daHHbIe RU 14

3aBHeHne o COOTBeTCTBn EC .RU 14

06zne yka3aHn

Ybaxaembl nokynateJIb!

Ipeed nepBbIM npImeHnEM Ba- shero npnbopa npountaTe 3Tu

OpunHaJIbHyU INCTpyKcIu NO 3KcNpyaTauNn, nocne 3TOrO DeIeCTByIe COOTBeTCTBeHNO u CoXpaHnte ee IJRA DaIbHeIWeero POJIb3OBaHn IIN dIra CNeDuIooero BlaJeIbca.

KOMnJIeKT NOCTaBKn

KOMnJIeKTAuNpIbOpa yka3aHa ha ynaKOBKe.
Ppi paCnakOBKe npIbOpa npOBepntb KOMnJIeKTAuHIO.

AkyaIbHbIe CBeIeHnO KOMNoHEnTax PnBVe-DeHbI Ha Be6-y3Ne IIO CneIyIoUeMy aIpecy: www.kaercher.com/REACH

Fapantna

B kaxdoi ctpane Deicbyot COOTBeCTBeHHO rapaTnHbIe ycNObN, n3daHbIe yNoIHOmOeHHo orpaHn3auee C6bTaHaSeI npOdyKuIN B DaHHo CTpAne. Bo3MOxHbIe HeNCnpaBHOCTn npi6opa B TeueHne rapaTnHoro cPokaMbYcTpAnReM 6ecPiatHo, ecn npuHa 3akJIouyaeTcB DeΦeKTax MaTePnaJIOB nIn OUs6kax pni N3rTOOBHeHN. B clyuae BO3NHKOHEHn PpeTeH3N B TeueHne rapaTnHoro cPoka npoc6Ba o6paatbcs, mEme npi Ce6e Yek O NOKynke, B ToproByo orpaHn3aUHO, npoabSyuBam npio6Op nIn B 6bnXaMHyO yOnlHOmOeHHyO clyj6y cepBnCHOrO 06cnyKJBAHn.

(Adpec yka3aHa no o6oPoTe)

Yka3aHnI NO TexHnKe 6e3ONaCHOCTN

Onachocmb

He npukacmbc K cemeoou u po-3emKe MOKpbIMu pykAmU.
Bknoyehue annapama 3anpeaemcra, ecnu cemeoou kaebb unu cyuecmeeHHbIe KOMNoHmbl annapama, Hnnpumep, wanahe bicokoo daenuehy, pyHou nuCmonem-pacbnImenu 3auumhble ycmpoUcmea noepexdeHbI.
Ipeod hauanom paobmblc annapamom npoepumb cemeoou kabel u umencelb-hyo eunky ha noepexkdehura. IopexkdeHbui cemeoou kabel dojken 6bimb He3amedlumelbno 3amehen ynonHomooenHO cnjxbocepucho0 o6cnjxua-HnA/cneuaJucmOM-3neKmpkOM.
Ipeed hauanom paobomby bbcokohanop Hbuiuha Heo6xodmo eceeda npoe

pЯь ha noepekdeHua. IopeekdeHbIe bICOKoHaOpHbI wlaHne noDnexum He3aMeDJIumelbHOJ 3aMeHe.

3Kcnnyamaua npubopa 60 63pblboona- Chbix 3ohx 3anpeuaemcra.
Ipu ucnolb3o6aHuu npubopa e onacbix 30hax (HaNPUMep, Ha aem03anpaOchbIX cmanuX) cledyem co6nodamb coom- bemcmeyouue npaeunamexnuk6e3ona- chocmu.
Haxodzaocn pod bicokum daJIeHuem cmpy 60bI MoJem npu HePpaBbHom uonl3oBaHuu npedcmaenmb ona- ChocMb. 3anpeaemcna HnpaBmcbmpyio 60bHa IIOdeU, XueomhIX, EKnIOyeHoe 3neKmpueckoe obopydoaHue Unu Ha cam blicOKOHaOpHbIM MOUu annapam.
He pa3pewaemcmaKxe Hapnaenmbcmpyio oobi, haxodyaUocn od bICOKMdaBeneHEm,Ha dpyeux unu c6b dny ucmku odekbo unu obyu.
He yucmumb cmpye 80dbI npedMembl, co-depkaaue eewecmea, epeHbIe dna 3do-poobra (HaNPUMep, ac6ecm).
AemomobunbHbIe wuHbI/wwHbIe eHmUu moeymbipoepeXdeHbI cmpyeE bOdbI nod daenHeuM u nonHyMb. IpeBIM npu3hakOM 3moo cnyKum u3MeHene ueema wunbI. PoepeXdeHbIe aemomobunbHbIe wunbI/wwHbIe eHmUu npedcmaenlom onachocmbdJxu3Hu.Bo epemyucmku wun Heo6xodMo bbldepjueambpaccmou Hue mexdy fopcyHKoU u wuHo, kak MuHMym, 30 cm!
Onachocmb 63pb18a! He paclbllm b oipouhe kudkocmu. BcabsbaHue annapamom xudkocmeu, copejauux pacmbopumenu, a mkae hepa36aeneHHbx Kucnom unpacmbopumenu He donyckaemc!K maKUM eeueceam omhocrmca, Hanpumep, 6en3un, pacmbopumenu kpacok u Ma3ym. O6pa3youuucr u3 makux eeueceMe myMAN Ie2koocnmaHernE, e3pbiooancenu ydoobum. He uconlbo6amb auemoh, hepa36aeneHHbc Kucnomblu pacmbopumenu, maKak OHU pa3pywaom Mamepuanblu, u3 komopbix u3aomoeH npubop.

△PnpdynpexkdeHue

CemeBa 8unka u coeduHmEnbIy 3neMeHm yDnHUMeYdoJXhbl 6bImb aepMeMuHyIMU u He haxoDbcB 8 bode.CoeduHmEnbIy 3neMeHm 6 daJIbHeuWeH He doJxhen Kacambcr noJa. PekomEHdyemc UcNoIb3OaMb KaBeNbHbIe 6baPa6aHbI, Komopbie oBecepeuaom pa3MeueHue po3emok He MeHee, Yem 60 MM om noJa.
Henodxodiae ydunhumenu moaynpedcmaemnb onachocmb. Bhe nomesehu cedeym uonlboaemb monbdoynu-uenbte dnyucnlo3oanu u coomeem-cmeehno Mapkupoeahhne yduunumenu cdocmamouhBM nonepeuhbIM ceyuHEm npo0da:1-10M:1,5MM2,10-30M:2,5 MM2
YdunHumeB cneDyem 8ce2a nonHocMbOp a3MaMbIaMb C kamyuKU.
BbICOKoHaOpHbIe uHaHeu, amMypa u MymbI UMeKm 60JIbWoe 3HaueHue dJa 6eOJacHocMu npubopa. B 3moU c83u cnedyem npumehm b moJIbKO bICOKoHaOpHbIe uHaHeu, apMampy u MymbI, peKOMHeDoEaHHbIe u3aomobumeJe npubopa.
3Kcnnyamaaun npubopa dembu unu nuuamu, He npoweodumu uHcmpykmax, 3a- npeuaemcra.
UcmpoucmBo pa3pewaemc ucnb3o- 6amb luuamuC oepaHueHHbIMU fusuceCKUMU, cehCophBMU UUNy UMc6eHHbIMU 03MOxHOCmAMU, a makxe luuaM, He 6nadaouum HeobxodumbIM Oblom U 3HaHnmu, ecnu OHu HaxoymcNoD npUCMompUm npOuNl Noadomokv 6obnacMu bezonachOu uCnoB3o6aHua OBopydoaHua u ocOHaIOM bImekaOnue omckda pucku.
Cneedumb 3a mem, ymo6bi demu He uapanucycmpooucmom.
YnakoOouHyI npEnky depjxme nodaIbwe om demei, cyueemeyem onachocmb ydywenia!
Ponb3oeamelbdoJxhenucnoIb3o6aamb npubopcocoemcmeuuuHa3naeHueM. OHdoJxhenyumblaeamb Mecmhble ocobenHocmu u obpaamb bHnmaHne npu pafo

me c npubopom Ha dpyeux nuu, haxodrauxcnaobnu3ocmu.

He ucnno3oeamb annapam, koeda 30ne deucmbua haxoara mcr dpyue niou, ecnu molbko ONU He Hocm 3auumHyu odek.
Дязамы om paэлмаюхсь 6рь3-208 eodbyu apra3u cneodyem hocumb coombeemcmyouyio 3aumnyo odexdy u 3aumHbIe OQU.

BhumaHue!

Bo epem npodoxumelbhex nepebboe 3eknnyamau cneyem ebiknquumb npubop c nomoubio enaho2 ebiknquamela / ebiknquamela npubopa unu omcoedunmb eeo om 3nekmpocemu.
He pa3pewaemc 3kcnnyamaaun npubopa npu memnepamype hke 0^
Ipu Mouke JakupoBaHbI NoeepxHocmeu cnedyem bidepkuabam paccmohue 30 cm om fopcyHKU do noeepxHocmu,ymobu u36exaMb nopepeDeHua JakupoBuK.
3aepaaemc0cmaenpbapomauu npubop63 npucmoppa.
Heo6xodumcneodum3a mem,ymo6bI cemeoU wHyp u yDunHumeu He 6bln noepekdehI nYmem nepeea dupe3 Hux, cdaJIueaHua, parmJeHua m.I. CemeBle uHypbl cNe dyem 3auuamb om 603- deCmua Japbl, macna, a maKke om noepexdHuO cmpbIMu KpaMlu.
Bce mokonpooOaue 3nemehmb pa60yeu 30He doJXbI 6bIMb 3auuueHbI om cmpyu oObl.
Ipu6op moXHO nOdknUoyamb moIbko K 3IeMeHmy 3IeKmpoNodKIOueHua,UCnoJI HeHHOMy 3IeKmpOMOHmepom 8 CoOmoem Cmeuu co cmahdapmom MeJdyHapodHou 3IeKmpomexHuuecko KOMUccu (M3K) IEC 60364.
Pp6op cneodyem eknouamb molko 6 cemb nepemehnoo moka. Hanpexehue doJxHO coombeemcmeoambyka3aHuaM 6 3aeodckou maBnUeKe np6opa.
13 coo6paqehu 6e3onacHocmu peKomeH dyemc uonl30aamb ycmpoucmeo c aemomam 3auumbl om moka ymeku (MaKC. 30 mA).
Moouue paobmbi, npu komopbix noaiaKomc smoohbte oodbl, codepkaue MaWunHoe Macno, Hapumep, Moika

deuamee, dhuza aemomobunpa3pewaemc npoodumb moIbko e cneuaIbHbIX Mecmax, obopydoaHHbIX macloomdenumelem.

2 BcacbBaHouJn JIaHr

3Быстpopаьемhoe coeДиЕпяpoIknIOUeHnBaBICOKOHaNOpHOrOшlaHra

4 XpaHHeIe pyHOrO IInCToJIeTa-paCbIIMTeTae

5 ΘeMeHTIINIOKIIouHnBODOCha6KeHHNco BCTPOeHHbIM CetTuMbIM qnlbTpom

6 BbiknnoaTeIb ycTroiCtBa (0/OFF - 1/ON - eco)

7 PerylTop do3npovkn moojoero cpectBa

8 XpaHeHpepyHoro nIcTOnTe-pacbIInTeJIa

9 PykoTka, BbItraNaeTc

10 XpaenHeIe IJHaIra BbICOKOr DaBJIeHnIa

11 XpaHHeHne 6yTbIJKn C MOIOUIM CpeIcTBOM Plug'n'CleanC3JeMeHToM POnKJIuOeHnA DnA MoIOUero CpeIcTBa

12 Mecto dIy xpaHEnI npHaIeXHoCTeI

13 KpOuKn Iy XpaHEnI cTeBOrO shHpya

14 Bytblka c moHouzIM CpeDCTBOM Plug'n' Clean c 3aOpHoi KpbIuKoI

15 Cetebo KabeJIb co UTencelbHOB BUNKOI

16 Koneca

17 Puchon nictolet-pacnbinteb

18Блokировka pyuHoro nIcToIe-ta-pacblnteTn

19 KhoNka DnIa OTcoeDInHeHn IuHaRa BbICo-Koro DaBHeHn OpyHOro nCTOneta-pac-NblnteJIa

20 甲anH BbICOKO TaBJeHn

21 CtpyHnay Tpy6ka c pfpe3oI dIy ydaJIeHnra Irp3n

22 CtpyHnA Tpy6Ka cpeYnTOpom DaBHeHn (Vario Power)

BkauectBe onu

23 BoJHOH ΦIbTp (NgДЯЗа3a3a4 730-059)

CneunalbHbIe npnHaednxHOCTN

CneuNbIe npHaJnHexHocTn pacuipraIOT Bo3MOxHOCTn npImeHeHnI npi6opa.Bolee DeTaIbHyIOHΦOpMaζIO MOxHO nOlyuHTb y ToproBOr opraHn3aunmФnpMbI KARCHER.

NooxeHne BbIKnIouaTeJra,eco

YTO6bI BKNIOHITb yCTPOINCTBO CNEyET YCTaHOBnTb BBIKNIOUATEJIb B NIOJXeHNe "1/ON" n "eco".

Yka3aHne: PapeBOd BbIKIouateTEnBNoIOJKeHne ,eco"po3BOJAErPnI pIpmHeHN cTpyHbIX Tpy6oK cpeyJIaTOpOM daBJIeHNA DoCTNcBcOKpaSeHnI NOTpe6JIeHn BObl I 3JeKTPO3-Heprn Do 20%

IpeDnaraeMbIe oBlaCTn npMHeHnnoJIOXeHn BbIKNIOuCaTeJe,ecO"

Ipeed haayanom pa60tbI

Ipeed nauanom 3kcnjnyataun annapapa yctaHOBIT npnlaeraMble He3akpenHeHHbe qactn.

YctaHObKa KOJec

PncyHOK A

1 YctaHObITb KOleca B KpeIJIeHne.
2 3aФИКСИРОВаТь KOЛЕСА ПИ NOMОДУ 3a- rIyueK, BXOДЯЦИX B KOMПЛЕKT NOCTABKN.

CobnDabT npabNbHocT paONOKeHna 3aRnyweK.

YcTaHOBnTbpeyIaTOpdo3nPOBKnN3aKePnITbEro pnp NOMOu2 BnHTOB.

Yka3aHne:BoBpeMaYcTaHOBKnHeHpeMeHHo CLeNyET npOBepNTb HAnuYeΦnKcaunPiHaHOK peRyJIrTOpA Do3NPOBKn B ppeDcMOTpeHHbIX IJIg HNX BbIeMKax Ha yCTpOJCTBE.

CoeHHeHne BbICOKoHaOpHOro WJaHra c pyHbIM NICTOJeTOM-pacblntTeJEM

PncyHOK

BCTaBnTbIbnHr BbICOKOr DaBJIeHnBpyu-HoNPiCTOJeT-pacblInTeJ DoUeLyKa.

Yka3aHne: Co6IIOHaTb npabINbHocTb pa- nIOJoxEHn COeINHITeJIbHO HINNEJIA.

Pa6oTa C MOUOUM CpeDCTBOM

Annapat He HnykdaeTcB InpoФиЛakTnueckOM 06CnyKuBaHIn.

3anaChbIe yactn

IcnoIb3yIteToIbKOOpunHaJIbHbIe3aIapChbIe
uctnΦnpMbKARCHER.Onncahne3aIapChbIX
chaTeHaxOJntcB KOHc DaHHo INHCTpyKcNIN
no 3KcPnyatauN.

Pomoub B cnyae HenoJaok

He6oJIbIe HeIcnpaBHOCTm MOxHO yCTpaHITb cAmOCToRrTeIbHO C NOMOuBIO CNeDyUoJero OINCAHn.

B cnyuae comHene nCneJyET oBaPauatbca B yIOnHomOeHHyO cnYk6y cepBnCHOro 0cIyKmbAHna.

Onachocmb

Ipu npoeedeenu nIObIx pa6om no yxody u mexHueckomy ocbnykuBaHuIO annapam cne-yem bIKNUOumb, a cemeoU wHyp - bIHymb u3 po3emku.

Pemohmble paobmyu paobmyc3nekmpueckumu y3namu moaynpou3eodumcb monbkoynonHomoyHou cnyxboepebuO o6cnyxueahua.

Ppnbop He pa6oTaET

→ BbIaHyb pbIar pyHoro nIcToIeta-pac- nIITeIa, npI6Op BKnIOHTcra.
→Пюверьte COOTBETCTBNE HAnpЯженя, yka3aHHORO B 3aBOДСКОТ abmnyke, HanpЯженIO nCTOCHNka 3JNeKTPo3Heprnn.
→Пюверпь се teьои kaбель на поржденя.

Pn6op He BkNoyaetc, DburaTeIb rnuT

Пручна: ПаденUE habржениu 13-3a слобу 3л ekmpocemu unu npu uconnb3o6aHuu yOnuHumeЯ.

Пи Вьклоченпржд BCero BbHyтbpivarpyHOrIO nICToJIeTa-pacblIInTeJIA3aTeM yCTaHOBITb BbKlIOUcATEJB yCtPoIcTBAВ noLoJKeHne,I/ON"(I/BKЛ)иЛn „ecO".

CnIbHbIe nepenaabi daBJeHna

OuICTnTb fOpcyHky BbICOKOro DaBHeHn: IroJIKoYdAaMTh 3aqr3HeHne n3 OTBepCTnI fOpcyHKn INPOMbITb ee CpepeDN BODoi.
→ПоверьтЕ количесТВОпадаевМоВODы.

Pp6opHerepMeTneH

→ He3haHTeINbHra HeRepeMeTNUHOCTb annpaTa oOByCIOBHeA TexHNueCKMn OOCoBENHOCTm. PIn CNJIbHOr HErepeMeTNUHOCTn 6paTntecb B ABOTOpN3OBaHHyO CnyKbOy cepBnCHOrO 0BCJyKNBaHHa.

YnctTae CpeDCTBO He BCacbIbAetc

IcnoIb3OBAtB cTpuyHny Tpy6ky C peryJrTOpom DaBHeHnA (Vario Power).PiobepHyTb cTpuyHny Tpy6ky B noIooKeHne "Mix".
→Поверпь рergyлгор ДзирOBКМошцero cpeдства.
→Поверпь,Вставлеси ЛИОТКрБТЯ 6y-ынka ДЯ MOJOUERO cpeДСТВa Plug'n Clean Bn3В COeINHITeJIbHbI 3JIeMeHT dЯ MOJOUERO cpeDCTBa.
→Поверпь BCасьИваюшлAnг ДЯ моюцero cpeДТВа на пергБы.

TexHnueckne daHHbIe

3JeKtpueckne npaMeTpbl

HaCTOaM Mbl 3aBnem, YTO HnKeyka3aHbI np6op nO CBOe KOHcEaUM IN KOHcTpKuN, a TAKKe B OcyueCTBLeHOM I DOnyuEHHOM HAM K PPOdaKe IcPONHeHN OTBeuae COOTBETCTBYUoM OCHOHBm Tpe6oBaHnM IO 6e3OpacHOCTn IN 3dOpOBbIO CORnaCHO dIpeKTiBAM EC. PnBHeCen N3MeHeHN, He CoTlacoBaHHbIX C HAM, DaHHOe 3aRbHeHne TePraT CBOU Cnly.

PpOdyKT BbICOKOHApHbMy MOUcHm

npn6op

Tun: 1.181-xxx

OCHOBhble DnpeKTHBbI EC

2006/42/EC (+2009/127/EC)

2004/108/EC

2000/14/EC

2011/65/EC

PpIMHeHHbIe rapMOHn3uPoBaHHbIe HopMbI

EN 50581

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

PipmHeHHbI IopraDOK OceHKn COOTBeTCTBn

2000/14/EC:Прилхенье V

YpOBeHb MoUHcTn 3Byka dB(A)

U3mepeHo: 89

TapaHTnIpOBAHo:91

HnkeoDnncabWneceIucaJeNCTbYHT no npuyehnIO nIO DOBepenHOctn pykoBOOcTba npednpraTna.

H.Jenner

CEO

S. Reiser

Head of Approbation

yNOLHOMOeHHbI NO DOKymEtAun:

S. Reiser

71364 Winnenden (Germany)

Tei.: [phone]

ΦaKc: [phone]

Winnenden, 2013/02/01

Tartalomjugyzek

www.kaercher.com/REACH

Garancia

Head of Appropriation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Obsah

www.kaercher.com/REACH

Záruka

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

2011/65/ES

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Vsebinsko kazalo

Splošna navodila SL 5

Varnostna navodila. 6

Uporaba SL 8

Transport 11

Skladiščenje SL 11

www.kaercher.com/REACH

Garancija

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

2011/65/ES

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/02/01

Spistresci

www.kaercher.com/REACH

Gwarancja

2006/42/WE (+2009/127/WE)

2004/108/WE

2000/14/WE

2011/65/WE

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2013/02/01

Mult stimate client,

www.kaercher.com/REACH

Garantie

Transportul in vehicule

Directive EG respectate:

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

2011/65/CE

Norme armonizate utilize:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Obsah

VseobecnePokyny. SK 5

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

2011/65/ES

Uplatnové harmonizovane normy:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

2000/14/ES: Priloha V

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2013/02/01

Pregled sadržaja

Opé napomene. HR 5

Sigurnosni napuci. HR 6

Rukovanje. HR 8

Transport HR 11

Skladištenje HR 11

Njega i odrzavanje HR 12

Otklanjanje smetnji.. HR 12

Tehnicki podaci HR 13

EZ izjava o usklaidenosti. HR 13

Opé napomene

Poštovani kupće,

www.kaercher.com/REACH

Jamstvo

U svakoj zemlji vaze jamstveni uvjeti koje je izdala naša nadležna organizacija za distribuciju. Eventualne smetnje na stroju za vrijeme trajanja jamstva uklanjamo besplatno ukoliko je uzrok greška u materijalu ili proizvodnj. U slučaju koji podljije garanciji obratite se, uz prilaganje potvrde o kupnji, Vašem prodavaču ili njabljžoj ovlaštenoj servisnoj službi.

(Adresu cete naci na poledini)

Sigurnosni napuci

Opasnost

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2000/14/EZ

2011/65/EZ

Primijenjene uskladene norme:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/02/01

Pregled sadržaja

Opste napomene SR 5

Sigurnosne napomene . SR 6

Rukovanje. SR 8

Transport SR 11

Skladištenje SR 11

www.kaercher.com/REACH

Garancija

U svakoj zemlji vaze garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na urežaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najblžoj ovlascenoj servisnoj sluzbi. (Adresu cete naci na poledini)

Sigurnosne napomene

Opasnost

Mrežni utikač in uticnicu nikada ne dodirujte vlažnim rukama.
Ure'daj nePokrecite akosuosteceini strujnipriklucnikabl važn delovi ure'daja,npr. crevo visokog pritiska, ručna prskalica ili sigurnosni elementi.
Pre svake upotrebe proverite da li na strujnom prikljucnom kablu sa utikačem ima oštećenja. Oštećen strujni prikljucni kabl odmah dajte na zamenu ovlasćenoj servisnoj sluzbi/elektricaru.
Pre svakog Pokretanja proverite da li na crevu visokog pritiska ima ostecenja. Osteceno crevo visokog pritiska odomah zamenite.
Zabranjen je rad u područjima ugroženim eksplozijom.
Kod upotrebe ureda u opasnim područjima (npr. benzinskim pumpama) treba da se poštuju odgovarajuci sigurnosni propisi.
Mlazovi pod visokim pritiskom mogukod nestrucne upotrebe biti opasni.Mlaz se ne sme da usmerava premaIjudima, zivotinjama, aktivnoj elektricnojopremi ili samom uredaju.
Mlaz pod visokim pritiskom neusmeravajte prema drugima ili sebi kako biste očistili odeću ili obúću.
- Parom ne prskajte predmete koji sadrze materijale opasne za zdravlje (na pr. azbest).
Automobilske gume/ventili guma se mogu ošetiti mlazom pod visokim pritiskom i puči. Prvi znak toga je

promena boje gume: Ostecene automobilske gume/ventili guma su opasni poŽivot. Kod cisćenja održavajte majmanje 30 cm razmaka!

Opasnost od eksplozije!

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2000/14/EZ

2011/65/EZ

Primenjene uskladene norme:

EN 50581

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/02/01

CbDpbXaHne

O6uynka3aHnB BG 5

Yka3aHn 3a 6e3oNaChocT. BG 6

ObcnykBaHe BG 8

TpaHcnpT. BG 11

CbXpaHHe BG 12

PnKn n noDpBxka BG 12

POMOu npHnEHNpabBHOCTN .BG 13

TexHHueckn DaHHN BG 14

ДекларашиязасьоветсвинаEO．BG14

06uzuka3aHna

YbaxaemKnHeHTn,

Ipei nIbPBoTo n3nOJ3BaHe Ha Ba- 1uyn ypei npOyTeTe TOBa opRn

HANHO INCHTPKUy yNtBAHe 3a pa6Ota, DeiCTBaIte CnopeJ Hero n ro 3ana3eTe 3a noKbCHO n3NoJI3BaHe nIIN 3a CNeDbaSny npntEkaTeJ.

OsemHaIOCTaKaTa

OeMbT Ha OocTabKa Ha ypea e n3o6pa3eH Ha onakOBkata. Pn pa3oNaKoBaHe npoBepete daJIIN CbIbPkaHneTo e NbJIHO.

PnIINCBaun npnaHnEeKHOCTn nI npn TpaHCnOpTn uetn moJI yBeDoMeTe Baunr TbproBec.

YnoTpe6a no npedHa3HaueHne

I3no3BaIte npocstpykaTa 3a pa6oTa IOD HanaIraHe cAmO B JInuHOTo Cn DoMaKINCTBO:

3a nouchtahe Ha MaunHn, npeBO3n CpeCTBa, CTPOIeJIH N KOHCTpyKuIN, IN-CTpyMeHTN, facaDN, Tepacn, rpaDHNCN ypeiN iDp. CbC cIIHa BOJHa CTpy NOd HJaRaHe (aKe e Heo6xOJMo C do6abKa Ha nouchTaAs npenapAtn).

cpa3peeHnTe oT fnpMa KARCHER npHaJIeKHOCTn OT OKOMIIeKTOBkata, pe3epBHNu cactn n npenapatn 3a NOUcTBaHe. Cna3BaIte yka3aHnTa h npenapatnTe 3a NOUcTBaHe.

CIMBOJIN B YnTBAHeTo 3a pa6oTa

Onachocm

3a Hnocpecmeho ap03a onacHocm, Ko-mo bdu do mekku meenechu noepedu unu do cMbpm.

IpeynpexdeHue

3a 8b3MoXHa onacha cumyaun, KoAmo 6u Mo-ana da doeede do mexku meenechu noepdu uIcMbpm.

BhumaHue

3a 8b3moXHa onacha cumyaun, kOAmo 6u Mo-ana da doede de o leku meeneHu nopedu unu Mamepuanhu uemu.

CnmboHnHa ypeda

He hacouaume cmpyma nod eucoko Hanjaane KbM xopa, kUeomHu, akmuHo eJeKmpueecko obopydeane unu KbM camur ype. Pa3eme ypeda om 3ampb3eahe.

Ona3BaHe Ha OKoJHaTa cpeJa

Onakobhnte MaepnnaMn Moat da cepeunknpaT. MoJr He XbPnIte onakobknte npi DomaunHnte OTnAdbu, a rnpedeaiTe Ha BTOpUHN CypOBHH C cJIEN NOBtOpha yNtpe6a.

CTapnte ypei nCbIbPjKaT ueHHMaTe- pnaHn, noJnxKaun Ha peuNKInpaHe, KOITo Moarat da 6bDat yNtpeBcHn NOB- TopHO. Iopadn ToBa moJa OTcTaRaBai- Te CTapnte ypei, n3NoJ3Baikn POnxOJaun 3a ceJI Ta CnCTeMn 3a cbBpaHne.

B HЯкон CTpaHи He e N03BOJIeHo N3TOU-BaHETO Ha BOJa OT OБцEcTBeHInTe BODHn6aCeyHn.

Pa6oTaTc nOuHCTBaUm npenapaTn e no3B0NeHa cAmo BbPxy yCTOyUmbn Ha TeUHOCTn pa6oTHn NOBbPxHOCTn C N3BOd KbMaKaHIn3aunrta 3a MpbCn BODa. He ocTaB8Ie NouchTBAUnte npenapaTn da nonaDat BB BODHNTe baceHHn I noVBata.

IOncTBaHe, npn KoTo ce OTeJMaMpbCHa B0da,CbDbPkaMa MacIO,HanpImep npn MneHe Ha DvRatEn, MneHe Ha NOD, MOKe Da Ce N3BbPbBa Camo Ha MeCTa, KbJeTO ca ppeBnEHN pe3epBoapn 3a Cb6npaH e MaCnOTo.

Hncko nontpebIeHne Ha BOa n eIeKtpu-yeCTBO nopaNIOLOKeHne Ha npekbcBa-ya Ha ypeDa ,eco" (BnKTe rnaBa O6cnykbaHe).

Yka3aHnna 3a CbCTaBKnTe (REACH)

AkyaHa HOpMaun 3a cbCTabKnte Ie Ha-MepnTe Ha:

www.kaercher.com/REACH

Fapanz

BbB BcKa CtpaHa BaKAT rapaHNoHHnTe ycNoBnI, Np6NkYBaHn OT OToPn3nPaHATAOT HAcDnCTpn6yTopkaФnpMa. EBeHTyAnHn NOBpeHnHa BaShn UyeD 1e OTCTpaHm B pAmKnTe Ha rapaHNoHHn CpOK 6e3nlatHO, Ako ce Kacae 3a DeFekT B MaTePnAInTe nnn npn PpOn3BOdCTBO. B rapaHNoHEn cIpyaC eObphete KbM DnCTpn6yTopa nn Na-6n3KnO TOpN3nPaH cepBN3, KaTO ppeCTabNt KeKocBata BeJelEcka. (Adpcnte 1e Na HamePte Ha 3aDnata CTpaHnca)

Yka3aHna 3a 6e30NaCHOCT

Onachocm

HuKoza He doKoceaume KOhmacma u uen-cena c enaxnpu bue.
He pa6omeme c ypeda, ako 3axpaheauuym kaben unu eaxnu qacmu ha ypeda, hannpumep mapkyb m 3a pa6oma nod Hanaane, nucmolema 3a pbuH npbckane unu npedna3nme npucnocobneuca noepedeHu.
Ipedu 6cya ynpompeba npoeepraaume Mpeko8ua 3axpanhaau Ka6e n c uence na 3a nopedu. Iopepen Mpeko8u 3axpaneaau Ka6e mpr6ba He3abaeHo da ce 3amenu om omopuzupan cepu3/cneuaunucm - eekmpomexnuk.
Ipedu 6cya ekcnloamau npoeepraaMe mapkya 3a pa6oma nohnaeahe 3a nopedu. He3abno nodmeheme nopeDeHua mapkyu.
3a6paheHa e paobomama 8be 83puoonacHu nOmeueHua.
Ia ce cna3bam Mepkume 3a be3onacnocm npu pa6oma c ype8 a onachu 30Hu (Ha- npumep Ha 6eH3unocmahuu).
Cmpyama nod bucoko hailaane moke da 6bde onacha npu Hnnpabunna yonppeba. He hacoubaume cmpyama kbm xopa, KU- oomHu, akmuBu eekmpuuecku ypedu unu kbm camur yped.
He hacouaume cmpyma nod bucoko hanae KbM dpya uu KbM c6e cu, 3a da no-yucmume obneknomo cu unu obyekume cu.

Ja He ce oBnueam npedMemu, Koumo cb- bpxam onacnu 3a 3dpaeemo eeueecmea (Hanp. a36ecm).
Igumme Ha aemomobunume u behmunume Ha aemomobunume ymu mozam da ce noepezm unu cnkyam om eucokomo hnaea He. Ippeum npuzhak 3a moea e obeseemrahemo Ha yumama. PoepedeHume aemomobunhu ymu u ehnmu Mozam da doedam do pfamahu nocneduu. Ppu noucmbane ocmaeeme pa3cmohue om nohe 30 cm!
Onachocm om ekcnno3u! He npbckaume 6b3nmaehreMu mehoc Mu. Hukoa He 3acmyk8aume meyocmu,cb- dbpxau pa3meopumenu, unu Hepa3peDeHu Kucelenu u pa3meopumenu! Takuea ca Hanpumep 6en3un, pa3pedumenu 3a bou unu NaPma.Cunho pa3npbckeaHama cmpy e necho 6b3nmaMeHUMa,ekcnno3ueHa u ompoHa. He u3non3aune auemoh, Hepa3peDu KuceLuHu u pa3meopumenu, 3auomo me amakyam u3non3eHume e ypeDa Mamepuanu.

△PnpdynpexdeHue

Ueencelm u kynnyhzm ha eudun yobjxumeneh kaben mpr6ea da sbdam bodoycmouuebu u he 6bua da ce hamupam 68boda.Oceen moea kynnyhzm He 6bua da neku Ha noda.Ipenopbyea ce u3non3eaHemo Ha 6apabahu 3a kabenu, Koumo a-paHMUPam, ye KOhmakmume ue ceHAMUPam Ha MuHMUM 60 MM om noda.
Henodxodzume yobjnxumenu Moam da ca onacnu. Ha omkpumo u3nnon3aume camo cboomeemno pa3pewehume u cbomemno 603naeHue yobjnxumenu c docmbyno Hanpeuho ceeyue:1-10M:1,5 MM2;10-30M:2,5 MM2
Bunau pa3eueaume yobjxumene dokpa om 6apa6ana.
Mapkyume 3a pa6oma nod hanahe, apmamypama u epb3kume ca baxhu 3a be3o-nachocmma ha ypea. N3non38aume camOpnpobuahume om npou36oumela mapkyu 3a pa6oma nod hanaane, apmamypu u epb3ku.
Ypebmt He mpr6ea da ce u3non3ea om de-ua, Mnaedexu unu HeomopuzupaHn luza.

Upeb'm Moje da 6bde o6cbnykbaH om luca c OapauuHu chuuecku, c9h3OpHu unu ymcmeenu cnoocbocmu unu c nunca Ha onum u no3hanura, ako me bdam nod Had3op unu ako ca npuyulu Uhcmpykuuu 3a 6e3oNaChmo u3nO3BaHe ha ypeda u C8bp3aHume c He2o OnacHcMtu.
Ieuma mpr6ea da sbdam nod had3op, 3a da ce aapaHmupa, ye Hma da ueparm cypeda.
Дрьжme опаковунomo Фонuo danele om deua, cbuceemyea onachocm om 3a- dywaabahe!
Pompe6umenmmp6ea da u3no13ea yepda cnped npednucnma.ToMp6ea da ce cb6pa38a c daedeocmume Ha mcmu u da eHnmaea npu paoboma cypeda danu haokolno hma xopa.
He u3non3eaumyepea,ako o6ceza ce Hamupam dpyu luca,ocbeHako He Hocam 3auumno obleko.
3a 3auuma om Hanpbckbae c eoda unu Mpbcomua hoceme ndxodyaio npedna3Ho oIekno u npedna3Nu ouna/Macka.

BhumaHue

Ipu no-npOdbJxumelHn np3u u3KIOUcme ypeDa om anaBnur npeKbceau /npekbc-eaHa ypeDa unu 20 u3BaDe me om uencena.
He u3no13eaime ypeda npu memnepamypu no0 0^
3a da u36eaheme nopedu, npu noucmeaHe ocuaypeme MuHmAnHo pa3cmOraHue om 30 cm Mekdy cmpyma u 6o4ducanume noobpxhocmu.
Ipo epeme Ha paBoma ypebM da He ce oc-ma8e 63n30p.
Bhumabaune kaeblm Ha ypeda unu ybIxumenl m da He ce noepeym unu ckbcam nopadu hacmbnahe, npebbahe, onbbahe unu dpya. Panaeme kaeba om monnHa, maca u ocmpu p6oee.
Bcuku eekmuuecku yacmu u enemmu 6o6eza ha paoboma mpr8ea da ca 3aumenu om oodhama cmpy.
Ypeobm Moke da ce 6knOyBa cAmo KbM eNeKmpueeCK KOHmakm, u3nBnHeH om eNeKmpomexHuk cbanaccho IEC 60364.
Cepb3aume ypeda cmo Kbmpomehne mok. HanpexeHuemo mp6ea da cbom

eemcme Ha zumupaHomo bpxymabenkamaHa ypeda Hanpexhenue.

Ipo npuunu Ha cueyphocmma npunucnno npenopbyeame 3aedeumhaemoh ypeda npe3 3auumno npucnpocobene 3a naoobe e Hapexehuemo (MaKc. 30 mA).
I Oucmbane, npu koemo ce omdenm Macnocbpbkauo omnaobyu Hodu, HaNP., npu Muehe Ha deuaamey u donhama yacm Ha Kopnyca,mpaeea da cmaea camo Ha Mueku cbc cenapamop 3a Macna.
To3u ype de pa3pa6omeH 3a non3eane Ha npenapamu 3a noucmeane, KoMo ce docmaem unu npenopbyeam om npou3o-dumena. I3no3eaHemo Ha dpyu npenapamu 3a noucmeane unu xumukanu MOKe da enowu hadexdHocmua u be3onac-Hocmma Ha ypea.

PpeDn3n npncno6JeHna

Bhumaue

IpeNa3Hume npucnocoblenue cnlyxam 3a 3a- uuma Ha nompe6umela u He mpr6ba da ce npomehm unu 3ao6kanaam.

KlouHaypeda

PpeKbCBAuyHa ypeDa npedTbPaTЯBa He npedHamepeHOTOnyckaHe BeknIooatauHa hypea.

IpeJIuBEN BeHTnC nHeBMaTnueH npeKbCBaY

IpeINBnT BENTIN PpeoTbpaTaBa HaDbNtBaHETO H aONyCTMOTO paBOTHo HAJrAHe. AKe cOCBO6OnIOCTbT Ha NICTOnEtA 3a pUHO pPcCKBaHE, INHEBMAtuHnRT KOHTAKT N3- KInOuBA NOMnATA, CTpy BnCOKO HAnraHe npekbcBA.AKOIOCTbT Ce npiNbPpNa,OTHO BKNHObVA NOMnata.

PpeDnOcTaBKn 3a yCToHNoBocT

Bhumaue

Ipedu ecuuk deuHocmu c yepda ycmaHOe me HezoBama ycmouuueocm, 3a da u3beaheme 3lononyku unu yepexdauha.

• YcToHnBocTtHa ypea e rapaHTnpaHa, aKO ToI 6bJe OCTaBeH Ha paBaHa NOBbpx-HOCT.

06cnyxBaHe

Oncanhe na ypeda

B Ta3n INHCTpyKUma 3a ynoTpe6a e OINcAHO mAKCmMaHnOTo o6OpyDbaHe. B Obema Ha DoCTabKa IMa pa3NIkN B 3aBNCMocT OT MOneJa (BnKTe ONaKOBkata).

BnxTe cxemnte Ha pa3rhaTataCTpaHua!

1 Kynnyhr 3a Cbbp3BaHe KbM 3axpaHbaHe c Boda
2 Mapky3a6oknyk
3Писпособленье 3абьрзпрсьeнява- He 3a Маркуа 3a paBoTa ПОД Наляганe
4 MЯСТо 3a CbXpaHEnHe Ha NmCTOJIeta 3a pBvHNo npbCKaHe
5 Bp3ka 3a BOda c Brpaedena ceeka
6 IpeKbcbaHa ypeJa (0/OFF - 1/ON - eco)
7 Perynatop do3npahe 3a noHcTbaUTo cpeDCTBO
8 MЯCTO 3a CbXpaHHe Ha NICTOJIeTa 3a pBvHo npBcKaHe
9Дрьжka 3a TpaHcnpoptupane,ИЗВаЖДаца ce
10 MЯсто 3a CBxpanHeHne Ha Mapkyua 3a pa6o-Ta nD hAnraHe
11 CbxaHene Plug'n'Clean 6yTuNka c nouCTBaU npenapat C u3B0d 3a nouCTBaU npenapaT
12 MЯСТо 3a CbXpaHHeHne Na pɪnHaДпExKHOCTNte
13 Kyka 3a cbxpaHene Ha 3axpaHaBauJЯ ka6eJ
14 Plug'n'Clean6byTnIkaC nouNCTbaU npena- paT cbc3aTBapau kapan
15 Mpexobn 3axpanbaa kaben c cencen
16 Kojena
17Пистонета рьчно пьсканe
18 BnokpoBka nictoJeT 3a pUHNo npbckaHe
19 Bytoh 3a OTdeJHHe Ha Mapkyu 3a paBoTa NOI HAnraHe OT NcTOneTa 3 pBHyO npBCKaHe
20 Mapkyu 3a pa6oTa npd nHaIrahe
21 Tpb6a 3a pa3npbCKBaHe C MeJaUka 3a Mpb-COTnraTa
22 Tpb6a 3a pa3npackkBaHe c perynipaHe ha hanaheTo (Vario Power)

Onuohalho

He e noxoxa 3a pa6oTa c nouchBaao CpeDCTBO.
- Φe3ata 3a 3ambpcBaHnI NOCTnIra CBOrTa MaKcMmaJIHa MOUHOCT Ha IOuHCTBaHe B CTaHdapTeH peXIM.

Pa60Ta c nouNCTBaIoo cpeIcTBo

3a cboTBeTHaTa 3aJa4a 3a noHcCTBaHe n3- noJ3BaIte cAmo CpeDCTBa 3a noHcCTBaHe n noJdpbXka Ha KARCHER, TbJ KaTo Te ca pa3pa6OteHn CneuaJIHO 3a n3noJ3BaHe c Baunyupei. N3noJ3BaHeTO Ha npYrN CpeDCTBa 3a noJcHCTBaHe n noJdpbXka MOKe Da IOBeDe Do 6bp30 n3HocBaHe n OTMaHa Na npTeHcUNTe 3a rapaHm. MoJ, INΦopMpaIte Ce B cneuaJIIN3npaHaTbProbcka MpeKa IIn I3NcKaIte INΦopMaqun ot KARCHER.

Yka3aHn 3a NoHCTBaIe NT npenapaTn:

Ha-Im3BecTHnTE NOUcTBAuI npenapatn Ha KARCHER 3a Te3n UpeDu MoRAT da 6bDaT 3aKyPeHn roTOBn 3a yNtPeb6a B 6yTNkA C NoUcCTBaU npenapat Plug'n'Clean cbC 3aTbApau Kaapan. Taka OTnpaD aOcaDnTo HAnBaHe n npelnuBaHe.

→ Φινγρα

CbaIe Te kanaka Ha 6ytInkata c nouICTBaI npenapat Plug'n'Clean n npitncheTe 6ytInkata C OTbopa NaIoY B I3BOda 3a noouCTBaIu npenapatn.

→ Φιγρα K

HaCTpoIte KOJIuYeCTBOTo HO I3CMyKBaHe Ha pa3TBopa Ha NOUcTBAUTo CpeIcTBO CpeYJNaTOp Do3nPaHe 3a NOUcTBAUc OpeIcTBO.

Да ce ИЗнолзва Трьба 3a pa3прackвае с ретулираиме на是可以打到（Vario Power)

Tpb6aTa 3a pa3npbckBaHe da ce 3aBbptn B noJoxeHne „Mix".

Yka3aHne: ITOTozH Nauchn npi EKcNlOaTa- 1IIOuNCTBaUINr TpaHcNopt Ce CMEcBa C BOHaTAtCtpy.

IpenopbYHTeJIen MeToD Ha nouchTbaHe

→ HanpbckaIte cyxaTa NOBbpxHOC T MaIKO npenapat 3a NouchTbaHe n OCTabeTe da no-DeiCTBa (HO da He N3cbXBA).
→ Pa3TbOpEHaTa MpbCOTnJa Ce n3PnAKe CbC CTpya NpO BnCOKo HaNraHe.

IpekbcBaHe Ha pa6oTa

OTnycheTe IocTa Ha nIcToJeTa 3a npbckaHe Ha pbka.
Блораду Te locta Ha nictoJeta 3a pbyho npbckaHe.
Ппnpгкьсане на paбота 3а по-прдьлжително Врeme (над 5 минут), ИЗКЛючete Довлнително урEDA,0/OFF".
NocTabeTe nIcTOneTa 3a pbYHO npbCKaHe B MRCTO 3a CbXpaHEHn Ha nIcTOneTa 3a pbYHO npbCKaHe.

Kpañ ha pa6oTata

BhumaHue

Camo omdeneme Mapkyua 3a paoboma nod haIraane om nucmolema 3a pbuHO npbckaHe uU om ypeDa, ako e cucmemama Hma HauHo HauRe.

IV3terIeTe 6byTnIkata c noHcCTBaU npenapat Plug'n' Clean ot OTbopa n ro 3aTbopete c Kanaka. 3a cbxpaHeHne ro noCTabete 3aBbptHa 180° B OTbopa.
OTnycheTe IocTa Ha nIcToJIeTa 3a npbcka-He Ha pbka.
→ N3KJIIOUeTe ypeTa ,0/OFF".
→ 3aTbOpTe KpaHa 3a BOdaTa.

→ПиТИСНЕ ЛОCTа на пИСТОЛЕ за 3а npь-ckeане на рьka,за за OCBOБДNTe СИСТЕмanta OT OCTaTBHOTO HANRAHe.
→Блokраи Te locta Ha nictoJeta 3a pBHyO npbckaHe.
OTdene Te ypea ot 3axpaHbHeTo C Boda. BHumahue

Ipu pa3deJIHe Ha 3axpaHaeauu Mapkyu Uu Mapkya 3a pa6oma nod Hnraane cled ekcnloamaue om u38oDume moke da u3meue oopeua boda.

→ ɪЗbaɪdete Σeɪncεηa OT KOHTaKtə.

TpaHcnpT

BhumaHue

3a da ce u36eaham 3lononyku unu hapnraea Hua npu mpaHcnopmupahe, e3ememe noD hMaHue meJlomo Ha ypeda (eux mexHuueckume daHHU).

PbueH TpaHcnpoT

Фигура

→ 3a n36byTbaHe Ha ypeDa ppeBapnteHnHO n3TeTneTe TpaHCnpOpTHaTa dpbXka Harope, Ie Ce Yye fHKcnpaHeto N.
TerIeTe ypea 3a TpaHcnpTHata npbXka.

TpaHcnpoT B npeBo3Hn cpeDCTBa

IpeiI TpaHcnpot B JnerHaIO nOIOKeHne: N3TerIeTe 6yTuJIkata C noUncTbaU npena-paT Plug'n'Clean ot OTbopa nro 3aTbopeTe c Kanaka.
OcnpypeTe ypeJa npotnB n3nIb3BaHe nnpoe6pbuaH.

CbXpaHHe

BhumaHue

3a da ce u36e2ham 3nnonyku unu hapnaeaHua npu u36opa Ha mcmomo 3a cbxpanehue,
63ememe noo BHumane meanomo Ha ypea (bxmexhueckume daHHU).

CbxpaheneHaypeda

YpeBt ce noctabra Bbpxy paBa hA nIOCKOCT.
→ HatncheTe pa3dJIeNTeHHN6bTOH Ha nCToIeTa 3a pBHyO IIpBcKaHe IOTDeIeTeMapKyuHa 3a pa60Ta IOJ HAnraHe OT NcToIeTa 3a pBHyo IIpBcKaHe.
→ Pπινιςκητε Κόρηγα ἀ πρισκούσθενηη-TO 3a 6bρ30 πρισκβεδηνγαθε 3a Μαρκγα 3a paδοτα ποῦнαγα Ε Μιδαπε Ε Μαρκγα 3a paδοτα ποῦнαγα.
NocTabete nIcToIeTa 3a pbUHO npbckaHe Cbc CTOMaHeHa Tpb6a B cbXpaHeHneTO 3a nIcToJIeTa 3a pbUHO npbckaHe.
→Пиберетe 3axpaHbauиKa6eI，Mapkyua 3a pa6oTa IOd HaNraHe I npHaJNeXHo- cTHTe B ypeJa.

Ppei no-ipoJbIKNTeHNO cxbxpanHeHne,Haip. np3 3IMATA cna3BaIte DoJIbHNITeHNO yka3a-HnraTBA rIABA PoIDpBxKa.

3aunTa oT 3ampb3BaHe

BhumaHue

Ypea u npunaednexhocmume da ce na3am om 3ampb3eahe.

UpeBtI npHaJnEeXHocTte ce pa3pyaBaT pIn 3ampb3BaHe, aKO ca HAnbIHO n3npa3HeHOT BOda. 3a da ce n36erHat yBpeKdAHH:

ɪənpaʒhete ypeə haŋbɪnHO OT Bɔdɑta: BkIIOUeTe ypeə 6e3 nOdBbP3aH mApKy 3a paδoTa Iod hAŋraHe i 6e3 nOdBbP3aH O 3axpaHBAhe C Bɔda (MakC. 1 MmH) n I3uKa'ItE, DOKATO OT N3BODa 3a BVCOKO Haŋra-He cnpE da N3ΠN3a Bɔda. N3KlIOUeTe ypeə.
YpeDa n BCNUKn PpHnHaJIeXHOCTn Da CE CbXpaHraBt B 3aIHTeHO OT 3ampb3BaHe MRCTO.

Upea n BCNUKn npuHaJIeXHOCtN da Ce CbXpaHЯBaT B 3aIHTeHO OT 3ampb3BaHe MRCTO.

Tpnxn noDpBxka

Onachocm

Ipedu 6craKaBe pu paBomu no nodpBxKama ypebM da ce u3KnHouBa u uencenbM da ce u3- 6aXda om KOhmaKma.

NoDpBxKka

IpeNi no-piOdbJIxNteHcBxaHHeHne,Ha-npIMep np3 3MaTa:

N3TeTJIeTeΦnITbpaOTBCMyKaTeHnHa MapKyu 3a NOuNCTBaUcO CpeDCTBO I NO NOuNCTeTe NOI TeUaIa BOJa.
→ Φιγρα M

I3TeTJTe TeKATA OT Bp3kata 3a KpaHa 3a BOa C NOMOHTA Ha NIOCKN KLEUIN I a NOHCTe IOI TEuAua BOa.

PoiDpBxKka

YpeBt He ce Hjckdae ot nOddpbXka.

Pe3epBn qactn

Излэвite само оригиалниpeЗрВи част ha KARCHER.Списьк ha peЗрВитч acstи che hamepitbe в края на habctoцTo YntBaHe 3a pa6ota.

Pomou npn Hen3npaBHOCTN

Mozke ta ma n da otctpaHnTe dpehnte noBpeDn, KaTo CneBaTe DaJeHnTe No-dOny OnncaHnY.

B cnyaH na cbMHeHne ce o6bPheTe KbM OTOpu3npaH cepBu3.

Onachocm

Ipedu cekakaepu pa6omu no nodpckama ypebmda ce u3knnoyeu u uencenbmda ce u3- 6axda om KOhmacma.

Pemohmhu pa6omu u pa6omu no eIekmpueckume eIemehmu Moaam da ce u3ebpweam camo om omopuzupan cep8u3.

UpeBbT He pa6oTu

→ N3dbpnaTe JIOCTa Ha NICTOJeTa 3a pBvHO npbckaHe, ypeDbT Ce BKJIouBa.
→Поберете Дали пооченоTo Ha TINOBaTa Ta6eJkata HanpexeHne cBbnaJa c HanpeXeHnETo HA n3TOUHnka Ha TOK.
→Пюверете зхранвашиkaбелза у蜱екдаHe.

YpeBbT He DoCTnHaHaIraHe

→Поберете HabToPkataHa Tpb6ata 3a pa3npbckBaHe.
06e3Bb3dUshaBaHe ha ypeDa: BkIIOUcTe ypeDa 6e3 Mapkyu 3a pa6oTa nOJnHaJaHe nI3yakaiTe (MaKc.2 MNHyTu),doKATO BoDATA 3aIOChE Da I3NIm3a 6e3 MexypueTa OT N3BOda 3a BNCOKO HAIraHe. N3KIOUcTe ypeDa nOTHOBO IOdBbPKeTe Mapkyu 3a pa6oTa nOJnHaJaHe.
→Пюверетe 3axpaHbaHeTo c Borda.
N3TerIeTeZeKaTaOTBpB3KaTa3aKpaHa 3a BOa C NOMOuTa Ha NIOCKN KNeuN I NaOHCTeTPOD TeUaBa BOa.
BicouHnHa Na 3acMyKBaHe 0,5 m HaaDbu-WeHa npu 3acMyKBaHe OT OTKpTn CbDoBe.

YpeBbT He noteI, MOTOpbT 6pbMn

PpuHa: Cnadahe Ha HanepeKeHuemo nopadu cna6a eIekmpueecka Mpeka unu npu u3non3-eane Ha yobJxumen.
→ПивКИHQUBAHeTo ПьрBOИЗБрnaiteLoCTaHa\PNCTOJIeTa3aPbUHO npbCKaHe,СледTOBaIocTabeTe ppeKbCbaYaHa ypeJaHa I/ON"uIN ,eco".

CnHn KOle6aHb HajraHeto

→ПочntBaHeHaДIO3aВиСОКHaJIЯГаHe:MaxHete 3ambpcBaHnIraOTOTBopaHaДIO3aTaC NOMOHTaHaNITaN3PnakHete CBOda HAppeI.
→PIOBopeTe De6nTa Ha BOdaTa.

YpeBbT He e xepMeTuYe

Maikata IINca Ha xepMeTNUHOCHT Ha ypeJa e obycnoBeHa TexHNueCKn. Ppi CUNHa IINca Ha xepMeTNUHOCCT Ce Obphete KbM OTOpu3IpaH cepBn3.

Почиствацто СредстBO He ce 3acMykBa

Да ceизползва Трьба 3а разнpackвае с ретулираиме на налганeto (Vario Power)Трьбая за разпьсckвае да ce 3авьрtnВ положене „Mix".
→Поберете насторкata Na Perynatopdo-3npaHe 3a NOHCTBaUTo CpeIcTBO.
Поберете, даль бутúnката с поисвацпpenapat Plug'n'Clean e noctав�а с овopa наюу визboa за поисвацпpenapat.
→ Поберете BCMykaTeHnMa MapKy 3a no-унствацо срдстBO 3a ORbHaTи MeCTa.

TexHnueckn daHHN

Eilektpnuecko 3axpaHbHe

S. Reiser
Head of Approbation

TbJIHOMOUIHKIIO DOKyMeHTaUNrTa:

S. Reiser

71364 Winnenden (Germany)

Tei.: [phone]

ΦaKc: [phone]

Winnenden, 2013/02/01

Sisukord

Uldmarkusi ET 5

Ohutusalased markused. ET 6

Kasitsemine ET 8

Transport ET 11

Hoiulepanek ET 11

www.kaercher.com/REACH

Garantii

Veevarustus veevargist

Surve tugev kōikumine

Toode: Korgsurvepesur

Tuup: 1.181-xxx

Head of Appropriation

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2013/02/01

Satura rādītājs

www.kaercher.com/REACH

Garantija

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2013/02/01

Turinys

Bendrieji nurodymai LT 5

www.kaercher.com/REACH

Garantija

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2013/02/01

3mict

3araJIbHi Bka3iBKn UK 5

IpaBnla 6e3neKn UK 6

Eknnnyatauia UK 8

TpaHcnpTyBaHHa UK 11

36epirahnra UK 12

Iorrr Ta texhuihe ocbnyrobyaHH. UK 12

Dionomora y BnnaIky HeNoJaIOK .UK 13

TexhiX hapaKTepeNCTnKU UK 14

3aBaBpIbIbIOBIDHcB EbponeCb-KoTo cInbTobapncTa UK 14

3araabhi Bka3iBkn

UaHOBn nokyneub!

Ipeepnepuim 3aCtocyBaHnM Ba- zoTO npiNCTPOIO npOHntAte zu

OpriHaIbHy IhctpyKlio 3 ekCnPyatauii, nicna zuoro DiIte BiNobiDHO Hei Ta 3bepekxtb II dna noDaIbWoTO KopncTyBaHnA abo Ina HactynHO ro Bnachnka.

KoMnJIeK TNoCTaHaHHa

KOMnIeKtaizipncTpoo 3aHaueHa Ha ynaKobu. Ipi po3nakyBaHni npicTpoo nepeBipnti KOMnIeKtaizio.

Y pa3i Hectaqui DoaTkoBoro OblaHaHHa 60 uIkoJKeHb,OTpIMaHnIX NiJ vac TpaHcNOpTyBaHHa, cIIq NOBIOMTe pO ue B ToproBeJbHy opraHiauio, kA npoDana anapat.

06naCTb 3aCTocyBaHHa

BukopncToByuTe ue OunuYBauch BnCOKOro TnCKy TiNbKn DnA npBaTHnx LiNei:

Для Oчишенmaшн，авTomobiib，6yidiBь，IHCTpymeHTiB，facaID，Tepac，npicaHnIX npIaID Ta iH.CTpymeHM BOniПТСКOM（Pn Heo6xIDHOCTi，3doabAHnM 3ac06iBДгУИшENHЯ）
3DOnOMIXHM ObnaHaHHaT Ta 3anHactnHAMn, DOnyuSeHmN fipMoIO KARCHER. ByIb IacKa, CIn dyTe Bka3iBkAm Do 3acobIB nra YnueHHa.

3nakynocici6nky

06epexHo!

Дян Hebe3neku,Яka 6e3nocepedHbO 3aapoxye ma npu3eodumb do mjaKuxmpaBm Yu cmepmi.

△Ponepeoehn

ДпяnomenuHOMoKnueOHe6e3neuHcmyauii,poMoKe npUeecmu do mKkuxmpaem Yu cmepi.

yeaza!

Дяnomenuho moKnueoi He6e3neuHc cumyaui, lo MoKe npU3ecmu do neaKux mpaM Yu cnpuunmu MamepiaIbHI 3bumku.

CnmboJIHn npicTpoi

He ckepooyamu cmpyminb eodu Ha IIOdeu, mApun, yeIMKHehe eIekmpuue He oIaHaHHa Hu cam BucOKOHanipHu MuHui

anapam 3axuamu npunaed iod mopo3y.

3axnCT HABKOLNIHbOrO cepeIOBua

MATEPIANyNAKOBKNPiDIAHOCTbCnpepepO6JI DnIa NOBTOPHOR BVKOPNCTAHNN.

www.kaercher.com/REACH

Fapantria

YKOxHi KpaHl DiHOb yMOBn rapaHTi, HadaHOI BiIDNoBIDHOO φipMOIO-npOaBcEM. HenoNaKn Bpo60ti npCTPOm MNU cyBaEMo 6e3PnAtoH npOTaROM TepMHy dI rapaTII, kkuO BOHn BVKNkani 6paKOM MaTepiAnu YN NOMIKAMN BTOBHeHH. Y BnPaNDky uHHoCTi rapaTII 3BePTtBCsdo npOabZu N BuHaBNIKKyAN ABTOPIN3OBAHm CepBICHN CEHTp 3DOKyMeHTaJIbHmPiTBEpIXeHHM NOKyKn. (AdpeCn DnB. Ha 3BOPoti)

Ppabuna 6e3neKu

△O6epexHo!

Hikonu He mopkaumecb MepexHo2o umekepy ma po3emku eoioeum pykamu.
YeIMKHeHnAnapamy3abOpnoEmbcy, KkUo MepeXeBu KaBb Yu cymmEi KomNoHenmu anapamy, HnpuKnad, uanaEu cokOaO mucky, pyHu niCmonempo3nIuoeau abo 3axuci npucmpoi nowkoJxHo.
Ipeod noayamkom pobomu 3 anapamom nepebipumu mepexeeu kaebma wemencelhy bunky ha nowkodxeHHa Nowkodxehui cunoeui kaebMa e HeaaHHO 3amihmu ynoeHOaxeHu cnyxboo cepeichoo o6cnyooyaHn/phiieemeneKmpukom.
Ipeesipmu wnaa ha npedem nowokdKeHHnpeo koxHUM buKOpucmaHNm. HeaHo 3amHmb depekmu wana
Poboma y buxohne3neuHX ymoaX He 03oJraemcbcra.
Ipu 3amhi npucmpo6 Hebe3neuHomy Micui (HanpuKnaad, 6eH3OKoJOnKa) Heo6xio Hn npumpymyamuc cneuaIbHuX nopad no mexHiui 6e3neku.
Cmpymeni niD muckom moxymb 6ymu He-6e3neumu y bunaedky heidnoiedho2o ix 3acmocyeaHn. He moXHa hnpaBJamcu cmpymh Ha IIOdeu, meapun, yeimkhyme enekmpoo6naadhaHn a6o Ha cam npunad.
Takok He do3e0nembcs ckepeoyamcmpymnbodu, uo nepe6yae nio eucokum muckom, ha iHux IIOdeu Cu Ha ce6debna yuueHH 3ymmra ouorey.
He mmu npedmemu, uo micmmb wkiidnuei dny 3doopoe' peoehnu (HappuKnad,

a36ecm).

Cmpymehm nid muckom moxymb 6dyu nookodxei abo nonhymu koneca aemobinie. Nepwoio o3naKOIO nookodxeHnE 3miHa konbopy koneca. Nookodxei koneca cmaHOBnMb Hebe3neky dny 3dopoe'B X odi ouuueHH cnid 3ebepiaamu ducmau zuo uohaumHee 30 cm!
He6e3neka ebuxy! He po3nulma oopu piDuHu. BcMOKmyeaHnaanapamom piu, uO Micmmb po3uuHnku, ma Hepo3eedeHX KuCnom yu po3uHHKie 3abOpnoEmbcr! Do makuX peo8un HaJekamb, HanpuKnad, 6EHsUN, po3uHHKU qap6 ma Ma3ym. TyMaH, uO yBOpOeMbcr 3 makx peo8Un, Ieko3aumucmu, eboxohe6e3neuHa ma ompyuHn. He buKOpucmoyeamu auemOH, Hepo3eedeHi Kucnomu ma po3uHHuKU, 60 BOHU pyuHyomb MamepiaNu, 3 kux Bu2oOMoNeHo anapam.

Tonepexdxehn

UImencelbHa 6nka ma 3'edHyBaIbHu IeMeHm nodOxJyEa aNoBuHHi 6bymu eep MemuHi ma He nepe6yAmu y oodi. 3'edHaIbHu IeMeHm HadaJI He NobuHe cmocyBamucr iDIOa. PeKoMeHdyEmcBcBukOpucmoByeamu KaebHi bapabAnu, kKi 3abe3neuyomb po3MiueHnpo3emok He MeHwe, HIX e 60 MM biD niDIOa.
HeniOxoxi nooOxyBaCi moXymb yIaMu He63neKy. I03a npumiueneHmU cnioE uKopucmoByeammu minbku donyuueHi do EukopucmanHa ma biOnoIdHO nomuehi nooOxyaei 3 doctamHim nonepeuHm nepepiom npooba: 1-10 M:1,5 MM2,10-30M:2,5 MM2
Ipoobxyea npouhen 3aekdu bymu noBHCmIO po3kpyeHUM 3 kaebbHO2O bapa-6aHy.
UHaue, apmamyp ma 3'edhaHnra -Maembaxluee 3naeHHnDnpeB6eNEpu pobomu 3npunaDom. D03eONMaCBAkOpucmaHnHwaHie, apmamyp ma 3'edHaHb, donyuHux dne buKOpucmaHn BupoBuHukom.
3abopohembceekcnnyamaia npucmpo0 dimbu abo Hekeanifikobahu mu ocobamu.
Ppucmpi do3e0nembc8 ukpucmoeyamu oc6amu 3 o6mexehmu pfizhumu, cehcorpHum a6o po3ymoum moKnueo

cmmu, a makok ocobam, uo He maomb nompip6ho0 doceidy yu 3naHb, kkuo BOHU 3haxodmbc niD haaJydom a6o npouwnu nideomobky e obnacmi be3neyuoo buKOpucmaHHa o6laohnnma ycbidomlIOOMb eumikaoyu 3 ubo0 pu3kU.

Cmexkumu 3a mum, uo6 dimu He apanu i3 npucmpoem.
PakyaBny npikympumaume nodani bDimeu, icHye He6e3neka 3adyuenn!
Kopucmyaay noeunen eukopcmoeyamu npucmpiy y iidnoeiodocmi do icmpykuii. BIn noeunen epaxooyama ymoeu micueocmi ma 3eepmamu yaaay ha mpemix oicio ndacpobomu 3 npucmpoem.
Ppucpiu He eukopucmooyme, koue 30hi doocjxHocmi e iHsi IIOdu, ocObuO, kkuo BOHU He MaOMb 3axUchozo oOay.
Odaume 3axuchy oedxy ma 3axuchi okyIpaI da 3axucmy bi eodu ma 6pydy, uio bpu3kyombc.

yeaza!

IiD yacmpueanux npepe e ekcnnyamaui ciid euknoumu npucmpi 3a donomooo oonoeho oumuka / umuka a npucmpo a6o bi'dhamu uo o ied enekmpo-mepexi.
He dozeonmberc ekcnnyamaui npucmpo npu memnepamypi huxue 0^
Для заюбаяаанна пожcodжени ру очшени сiod 3берiaamu bicmaнь уонаменше 30сm biodякованх поевхонь.
He moXHa 3aIiWamu npucmpiu 6e3 HaanA- dy niD yac po6omu.
Cniokyuime 3a mum, uo6 mepexhki ka6eni abo nodobkyeaui He moKHa 6yNo nouKodu mu hacmynuehu Ha Hux, y pe3yIb mami nepeuaHnna, po3ipBaHHra 60 nOioho yukodkeHH. 3axuuaume MepexeHu Ka6enb biO jaku, macna ma oocmpux noeepxoHb.
Bci yacmu, uo npoeobmcbmpymypo-6oii 30hi, nounni bymu 3axuuehi iio mpannnnna kpanenb eodu.
Ppucpiu moke bymu nio'edhaui nuwe do eekmpuuhoMepexi,uo noeunha bymu csmahoeena eekmpomohmepom 3eiho 3 IEC 60364.
Ppucpiu cndemukamunueo 3mHnoocmpymy.Hanpyaa noeunha eidnoeidamu

6ka3aHUM Ha fipMo8i mabluuji npucmpoio daHUM uo do Hanpyu.

3 mipkyeanhb 6e3neku padumo ckopucmamc b npucmpoem 3 a8momamom 3axucmy bi cmpy MyumikaHn (MaKc. 30 mA).
Pobomu 3 ouueneHn, 6 xodi kux 3'raIyombcr cmiHi oOu 3 BMcMOM Macmuna, HnpuKlad, Mummma Momopie, Dhuuca, cnid buKoHyBam mInbku e CneuaHbux Micyx dna Mumm3 MacmunbHm cenapamopom.
Leu npulad 6yno po3pobneho dny eukopumanny y Hbomy Muoyux 3acobie, zo nocmaayombc a6o pekomehyombec uropobnukom. Bukopucmanhy ihuux 3acobie MOKe EplunHymu Ha 6e3neky npulady.

3axnchi 3acobn

y8aza!

3axuchi npucmpoi cnayyomb dny 3axumy kopucmyaue. Budo3miHa 3axuchux npucmpoie Yu HexmyaHn Hmu He donyckaembcra.

Anapathni Bvmkaay

TOnOBHn BmMkaa 3anobira cAmoBilbHi po-60ti anapaty.

IponycknKJanaH 3 NHeBMaTHHM BUMNkaeM

Ipeynucn knapanan 3ana6irae nepeBunueHHIO npinyctmoro poboory Tncky.

Kaio Baxinb pyHoro nictoTea-po3nIIObau bIDnyckaTbcra, MaHOMeTpHuNBIIMKau BiKlNoaE HAcoc, NOdau cTpyMeHr BOINiD BVcOKM TnCKOM npInHHaTckAHHa Baxinb HAcoc 3HOBy BKnOuaTbcra.

YMOBnIJIa3a6e3neueHHNCTiIKoCTi

y8aza!

Ipeod eukohannm 6yob-kux diu 3 npunadom a6o bina Hb02o Heobxio 3a6e3neum cmiKicmb, uob 3anobiam Heuachum eunadkam ma mpaemvaaHHIO.

CTiKicTb npnnaIy rapaHToBaHa Imse y TOMy BnIaNky, KOINIORO BCTaHOBNeHO Ha pIBHn IOBepxHi.

EkCNNyatauia

Onnc npnctpoH

YcboMy noci6Hky 3 ekcnnyatauii HabeJeHO ONIC pncIPOU 3 MakcImaJIbHOIO KOMnJIeKTA- ciEIO. KomnJIeKtaJia BiDiPI3HЯETcbra 3aIeXHO BID MoJeJI (DINB. yNakyBaHH).

3o6paXeHHa nVB. Ha po3Bopot!

1 YactnHa 3'eHaHHaIJIa IIbE-DeHHa BOIN
2 BcMoKtUoHmJHaH
3 WbnuKOpO3HmHe 3'EnHaHHn IJIpiKIOUeHHB BUCOKOHipHOro UJNaHra
4 36epirahnnypuhoro nictolety-po3nnlIObaua
5ПдБЕДEHЯВОДN3I BCTaHOBJIeHIM CiTya-CTNMФINbTpOM
6 Bumika npictroo (0/OFF - 1/ON - eco)
7 Perynatop Do3yBaHHa MmHoro 3ac06y
8 36epirahnny pyuHoro nicToJeTy-po3nnIObaua
9 PyuKa dIa TpaHcnpOpTyBaHn, BuTaryeTbC
10 36epiraHHaJnAHry BucOKO TCKy
11 Micce 36epiraaHn PIIaWKn 3 MmHm 3ac06om Plug'n'Clean 3 eIementom ndklu-ueHHn dIy MnHoro 3ac06y
12 Micce dIy 36epirAHn aKcecsyapiB
13 Taqkn dny 36epirHnHa MepeKhoro uHypa
14 Плайka 3 миним засобом Plug'n' Clean i3 3anipHOIO KpnskoIO
15 MepexeBn Ka6eB 3i WTeNceIbHOIO BUNKOHO
16 Koneca
17 Puchni nicToIeT-po3nJIIOBau
18Блokуваня рунoro nictonety-po3nIOBaua
19 Khonka Дяп Вд'еданнь Шангу Високоу TSCKY BiD pyHoro nicToNeTy-pO3nIIOBauca
20 Pykab Bucokoto Tncky
21 CTymeHeBa Tpy6ka 3 ppe3oIO
22 CtrpymeHeBa Tpy6ka 3 peRyIIOBaHHaM TnCKy (Vario Power)

B kocti onii

23 BoJHnI pJIbTp (No 1nJa 3aMOBJeHHra 4.730-059)

CneuaJIbHe DonomixKHe 6JaHaHHa

IodatkoBe 6bnaHannr po3wnpOe MoKnBocti BnKopncTahnBaWoOr npncTpo. IodatKOby iHOpMaqio Bu MoKeTe OtpMaTu BaWoOr toProBoro areHa qipMn KARCHER.

IonoXeHHBmNkaa,ecO

Ioo yBIMKHyTN npncTpi CII BCTaHOBNuMnKaU bnoJKeHH ,1/ON" Ta ,eco

Bka3iBka: IpebeDeHHa BmNkaua B noJoxKeHn ,eco" Do3BOJAE npn 3actocyBaHHi CTpyMHnHnx Tpy6ok 3 peYIIOBAHHM TnCKy DOc8rtnCKopooyenHra CNOXINBaHHB BoNi i eNeKTPoeHeprii do 20%

Проноваи ссөрөн з actocуbaнг NOLOXKeHH BIMnkaч ,eco"

Ipeep noaatkom po6oTn

Перед початkom ekспунату anapaty BCtaHOBNTIdoani He3akpinJIe YacTINH.

BctaHOJIeHHKoJic

MaJIIOHOK A

1 BctaHOBHTN KOJeca B KpinneHHa.
2 3aφikcybATn KOJeca 3a dONOMORO 3arIyWOK, IO BXoJrTB DO KOMNKeTyr NOCTaUHn. JOTPMyBaTnc npabunbHocTi PO3aUyBaHH 3arIyWOK.

36ipka micza dnia 36epiraHn pyuHoro nicToJeta-po3nnIIObau

→ MaJIIOHOK B

BctaHOBTn HnKHiI TpMaCy y BnIMKn Ta nepecyHyTu NOrO BnepeD IO KlaCaHHa.

BctaHOBtN BepXHII TpIMaT Ta HATNCHTI NOr BOH3 Do ynpOy.

BcTaHOBJIeHHrauKIBIa 36epirAHnMepexeBOrO shypa

→MaJIIOHOK C

BtncHytn raykn dny 36epiraaHHa ta 3aqiK cyBaTu y BepXhbomy nOIOKeHHI.

BctaHOBJeHHpyKoTKn dIra TpaHCnOpTyBaHH

→ ManIOHOK D

BctaHObITn pyKoTky dIpyaOpTyBaHn B KpInIeHHn Do BiDyTHoro OnpOy. KopOTkIM yIapOM nOdyuSeUKN BdiJHKn BeJIHKOro naIbIa a60 M'JKOro rymOBoro MoJNotka BCTaHObITn pyKoTky B noTpioHe noJIOKeHHn.

BcTaHOBLeHnpeyIaTOpy Do3yBaHHMmHOro 3ac06y

ДявсановпньбудnotpioHо2 npknpaHnIX rBHTa i Onda xpectOba BkpyTka PH 2.

→ ManIOHOK

BctaHOBTN B eIeMeHTN pIKIOueHHe O6n-DbA WHaHr DnA MmHOrO 3ac06y.

BctaHObITn peYIaTOp Do3yBaHnTa 3a-KpInITn Ioro 3a DonomOrOIO 2 RBnHTiB.

PnmuMtka:PiudacBCTaHOBJIeHHHeoDMiH HcIid nepeBipNTn HaBbHicTb fikcaui PnaHOK peryIaTOpy Do3yBaHn B nepeIb6aueHx DnA HNX BnIMkax Ha npu- cToPI.

Bka3ibKa: IotpmyBaTncb npaBnIbHoro pO3MiueHHN 3'eHnYBaIbHoro HInenIO.

Ipebeipntu HadiHnicb KpInneneHn,notraHyBwIN 3a WnHaR BNCOKO TnCKy.

IpaBAnHbOa

IonepexdxHH

BiodnoiDho do dioux dupekmue 3a- bopohembceknpyamaia npuna- dy be3 cenapamopy cuscmem y cuscemi bodonocmaaannn numhoi

eodu.Cnio bukopucmooyamu eidnoeiHn cenapamop cucmem fipmu KARCHER a6o anbmephamuHn cenapamop cucmem,3aioHO EN 12729 muny BA.Boda,uo npouwuna uepe3 cuncmHn cenapamop,eaXaembcn Hnpudamhoo dny numma.

yeaza!

CucmemHu po3dIbHuk 3a8kdu Niokluoyamu do cucmemu bodonocmaaHn, i hikun 6e3no-cepeDhO do npunaay!

IpaBAnHb BOi 3 BDOrOHy

IotpmyTecb npad nipnemCTBa BOOONCTaHaHH.

ПOTуЖиСТь ДИВ. на 3БОДсБКИ ТаБЛМУЦI/ВТЕнчHINДaHINX.

→ CkopnctaItecB BOJAHM UJANHROM 3 MlHO ro MaTepiany (B KOMJIeK TocTaaHHe BXOHTb) 3I 3BNUAHI0O 3'ENyBaJIbHOO MyfTOo. (iAmEtP: MinIMyM 1/2ДIOmHa a6o 13 MM; peKomeHDoBaHa DoBXInHa 7,5 M).
→ ManHOHOK H

1 3'ειнувальну MyΦTy 3 KOMπηκTy πιί'ειнай Te Do eIeMéHTy anapata Дя падааннЯ BODи.
2 Haitn BoaHm ⅢHa 3'eHaJIbHy MyfTy.
→ΠД'ЕДНИ ВОДАн ИЛАН ДО BOДОВODY.
Lijinkom BiDkpiNe Te BoDorHnKpaH.

IoabaHnBaOIN3BIDKpnTHXBOOIMn

Bka3ibKa:MaKc.BnCota BCMOKTyBaHHaCKJa-dae0,5M.

BkaizbKa:BoJHi 3a6pydHeneHH MoKyb cnpuHnHTI NOKdoKeHH HaCocy BnCOKOrTO TCKy Ta npilaJa.ДЯ 3axNCTy paDnMo ckopnstatcBBoJHmФiJIbTpOM KARCHER (cneuaJIbHe npilaJa, Homep 3amOBJIeHH 4.730-059).

3anOBHHTB CMOKTYBaJIbHNI JNAHr BOIOJ.
→ ManHOK H2

PnirBHTNTN BCMOKTyBaJbHn ⅢJaHr Do eIeMeHTa nOaHi BOu Ha npCTpo Ta nOMiCHTN y DkepeNo BOu (HaepKna, y doOBOy bOouKy).

BVeDeHnBaEkcNnyatauio

yeaza!

Poboma ecxy npomraom 6inbwe 2 xeunu npueodumbouxody3nadyeucokohanipnozo hacoc.a. kuo npucmpi npomraom 2 xeunu Hne Habupaecmck, mo uo zcid eumkhymu i diyu biodoioho ekaziekam, kpi npueodmbc e enaei "Donomoaa y eunadky henoanadok".

BCTaBTe MepeKeBm uTeKepey po3eTky.
→ BCTaHOBtIN BVMnKaU npucTroO y noJoxHHra ,1/ON".
→ P036nokyBatn Baxijb pyuHoro niCToJeTypo3nIIOBaHa.
Iotarynt3aBaxijl,anapatYbIMKHeTbcra. 3aIuHTn npicTpii yBIMKHeHIM (He6iNbU, HIXHa2XbUNH),NOK3pyHOro pO3Pi- NIOBAa He NOUHe BxOJNTn BOa6e36yIb- 6aouk nobitpr.
→ 3BilbHItb BaxjIb 3pyHIM po3nIIIOBaayEM
→ BCTaHOBtIN BmIKaH a,0/OFF".

Ekcnnyataia

yeaza!

Ipeo noqamkom Mumm Heobxio Ho nepekohamucr e momy, uo muouu npunad bucokoomucky cmiiko ecmaHO ha pieHIO noeepxHi. Iid yac Mumm bukOpucmoeyume 3axuchiokyIpa ma zaxuchu oja.

→ MaJIIOHOK I
HaJIbTe Ha puHn NiCToJIeT-PO3NNIIOBaU CTpyMNHHy Tpy6Ky Ta 3aΦiKcYIe II, NOBepHyBwHn Ha 90^
→ BCTaHOBtIN BVMnKaU npNCtpoU y noIo-JxehHry ,1/ON".
△ObepexHo!

Cmpymnb 0odu, 0euxodmb 3 fopcyhku nid eucokum hano pom, cnpuunhe iidauy puhyo0 nicmonemy-po3nuloea.3 uie npuunu cnid 3aHmu cmiuke noJoxeHH, MiHo mpuamu pyHu niomlem-po3nuloea 3i cmpymuHHO MPy6ko.
→ Iotrahytn 3a Baxijb, anapat yBimKHeTbcra.

BkaizbKa: RaKIO BaxiNb 3HOBy 3BilbHtbcr, anapat 3HOBy BmKHeTbcr. Bncokn TnCK 3aJn- WaaETbcR B CnCTeMI.

CtpymeneBa Tpy6ka 3 peylnoBaHHaM TnCKy (Vario Power)

PekomehdoBaHi MeToOn OuyuenceHHa

→ Pɔπnɪnɪtɪn HeBénɪky Kɪnbɪkɪctb 3aʊcɒb y ἀŋ nɪsɛhɪn Ha cyxu NOBepxHIO Ta 3aɪnɪnɪtɪn Diərɪn (He Bucnɪxɑtɪn).
→ 3MnIte po3HHeHn 6pyd cTpymHeHm BnCOKOTo TNCy.

PpnnnHHTeeknnyataio

→ 3BilbHItb BaxJIb 3pyHIM pO3nIIOBaayEM
3a6nokyBaTn BaxiNb pyHoro nicToNeTypo3nnIIObaya.
→Пьд ac 标范их порьу робов (no-Ha5 xBnINH) anapat cnid BIMKATN ,0/OFF" (O/BIMK.).
BCTaBHTn pyHn niCToJIeT-pO3nIIOBaU y TpIMaU.

3aikyuHnpo60Tu

yeaza!

UHa bucoko0 muCKy iD'edHyema u id pyu Hoo po3nuiOea a6o npucmpno minbku mo di, konu e cucmemi iDcymHi muck.

→ BnHnTn PnIaKy 3 MmHm 3acObom Plug'n'Clean 3 KpinIeHnTa 3akpTu KpuIkoHO.ДЯ 36epirAnHa oBepHyTu Ha 180° Ta BcTaHOBtN B KpinIeHn.
→ 3BilbHItb BaxJIb 3pyHIM pO3nIIOBaayEM
→ BIMKHytn anapat "0/OFF" (0/BIMK.).
→ 3akpnTn BOoOpBoiDnKpaH.
→ HATNCHyTN Ha puKy po3nIIOBaua, 106 3MeHUNr TnCK y CnCTemI.
→ 3a6nokyBaTn BaxkInb pyHOro niCTOneTy- p03nIIIOBaua.
→ BiDOKpemTu anapat BiD BOIOONocTauHHa.

yeaza!

Ipu 3nrammi kueunbhoao a6o bucoKohanipHoo uanahea nioac pobomu moke eunukHymu bumik aapayoi oodu mucx 3'ehaHHa.

→ BntaHnItb MepexHn HTeKep 3i WTeNceJIb-HoI po3eTKI.

TpaHcnpTyBaHHa

yeaza!

Длзалбиаанн Heцсum eunadkam mmpaemyeanno npu mpaHcnopmyeahnI npuna- cyid npuiHmU do yea zu eaey npunaody (due. po3din "Texhihi dahi").

TpaHcnpOpTyBaHHBbpyHy

ManIOHOK

Texhiye 06cIyroByaHHa

Anapat He noTppe6ye npoΦiJIakTnHoro o6cnyroBaHHra.

3aapanchi yactuHn

BnKOpNCtOByIe TbIbKn opRbHaJIbHbI 3aNaChi
actHn HcipMn KARCHER. Onnc 3anachnx Cha-
CTn HnpanKInCi DaHOI IHcTpKuIi 3 ekCnPyatauii.

DOnomora y BnnaIky HenoJaok

He3nayHiyuKoJxehnBnMOxTe BnnpaBtncamocTlHO 3aDOnOMOIOHAcTyNHOOrO rIydu.YcMHiHnx BnApIckax,6yNbJaIcA,3BePtaTeCeDo KOMPeHTHOI Cnyk6bTexHIOIPiTpIMKn.

△ObepexHo!

Iid qac npoedeHn 6yob-kaux pObim 3 doanry ma mexHiNozo oCcnyOeBaHnAnapam cnId bumKhymu, a MepeKeBw uHyp - BumAamu 3 pozemku.

Pemohmhi pobomu ma pobomu 3 elekmpuHuMu 8y3lamu Moxe eukohyeamu mIbku ynoHoEaKeHa cnyk6a cepeicho0o o6cnyo8yaHn.

PpncpiHne npaucoc

→ BntaHHTn BaxiJIb pyHoro niCToTe-PO3-nIIOBAu, npNCtpiB BMKNHeTbcr.
IpebeipTe BiIIOBiHICTb HAnpyrN, Bka3aHOy 3aOoCkKi Ta6nUci, HAnpy3i DKepeena eNeKTPoeHeprii.
→Перевирту Мерекеви кабь на пошкджени.

PpncpiHne npaioe ntd Tnckom

IpeBipuHTn HactpoIOBaHHa CtpymHHOITpy6Kn.
→ BvdaneHnnoBipra i3 npncTpo: BBimKHyTN npncTpii 6e3 niknOyeHOro BucOKohanipHoro shaHra ta noeKaTu (He 6ilbwe 2 XBNIN), NOK 3 BucOKOHAnipHoro shaHa He noUHe BVXODHTu BOa 6e3 byl6aWOk nobITpy. BIMKHyTN npncTpii Ta 3aHOBOpneDnatn shaHr BucOKORo TNCy.
→IpebeBipTuNoaBaHnBDoN.
→ BntaHnlt 3 donomoroIO nnocKry6izm MepeXeBNI pIbTp 3 eIemaHTy dIra BOOno-CTaunHra Ta npOMuTe Ioro y npotoHni BOdi.
IpeBENIeHOBNCOTyBCMOKTYBaHHN0,5M npn BCMOKTYBaHHi 3 BiDkPnTOro pe3epByapa.

Anapat He BMnkaetbca, DBNrHy rndtB

PpuHa: PadiHnHa nApyuU uepe3 cna6ky eIekmpoMepexy abo npu buKOpucmaHHi no-doexyea.
→ПиВИМКHeHHi HAcampeEd BHTIgBa- jkijb pyuHoro NiCTOJeTy-po3nIIHObaua, noTIM yCTaHOBITb BIMKau anapaty B noloxhenra ,I/ON"(I/YBIMK.) a6o ,eco".

71364 Winnenden (Germany)

Ten.: [phone]

ΦaKc: [phone]

Winnenden, 2013/02/01

---

---

5.964-392.0 02/13

http://www.kaercher.com/dealersearch
