Product type	Battery grass trimmer
Brand	BOSCH
Model	ART26 COMBITRIM+
Weight (according to EPTA 01/2003)	2.4 kg
Power supply	Lithium-ion battery 18 V, 1.3 Ah
Charger	AL 2204 CV
Cutting diameter	26 cm
No-load speed	7400 rpm
Adjustable handle	Yes
Head angle adjustment	Yes (edge cutting possible)
Adjustable length	Yes (by twisting the shaft)
Blade type	Plastic blade (no metal blade)
Protective guard	Yes
Safety	Start lock, automatic stop, protection against accidental start
Maintenance	Clean ventilation slots and guard after use, replace blade if worn
Spare parts	Bosch original blades, batteries, charger
Sound pressure level	80 dB(A)
Sound power level (guaranteed)	94 dB(A)
Vibration (hand-arm)	< 2.5 m/s²
Permissible charging temperature	0 to 45 °C

Frequently Asked Questions - ART26 COMBITRIM+ BOSCH

How to charge the battery?

Insert the battery into the charger AL 2204 CV. Plug the charger into a mains socket. The LED indicator flashes during charging and stays on steadily when charging is complete. The battery temperature must be between 0°C and 45°C.

How to replace the blade?

First remove the battery. Push the worn blade inward to release it from the pin. Clean the pin with a knife. Mount the new blade by pushing it onto the pin, then pull it outward until it clicks into place. Use only Bosch original blades.

What to do if the grass trimmer does not start?

Check that the battery is charged and properly inserted. If the battery is too hot or too cold, let it return to room temperature. If the problem persists, contact Bosch customer service.

How to adjust the handle length?

Turn the elastic washer 90°, then pull or push the shaft to adjust the length. Retighten the washer once the desired position is achieved.

How to adjust the head angle for edge cutting?

Press the adjustment pedal and turn the shaft to the lowest position. Release the pedal. Then loosen the elastic washer, turn the shaft 90° to orient the head, then retighten the washer.

What safety equipment should I wear?

Wear safety goggles, closed-toe shoes, and long trousers. Use hearing protection (sound level up to 94 dB). Do not work barefoot or in sandals.

How to clean the grass trimmer?

Remove the battery. Use a soft brush and cloth to clean the outer surfaces, especially the ventilation slots. Open the protective guard and remove trapped grass with a piece of wood or plastic. Do not use water.

Why is the cutting time too short?

If the battery is not fully charged, charge it completely. If the grass is too tall, cut in several passes. If the battery is worn out, replace it.

Can I use metal blades?

No, never use metal blades. Only Bosch original plastic blades are allowed for this device.

Where to find spare parts and after-sales service?

Contact Bosch after-sales service: in France at 0800 05 50 51 (toll-free) or by email at [e-mail]. You can also visit www.bosch-pt.com for exploded views and parts.

USER MANUAL ART26 COMBITRIM+ BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

F016 L70 510 (2007.11) O / 279

ART

23 LI | 26 LI

BOSCH

de Originalbetriebsanleitung en Original instructions fr Notice originale es Manual original pt Manual original it Istruzioni originali nl Oorspronkelijke gebruiksaanwijzing da Original brugsanvisning sv Bruksanvisning i original no Original driftsinstruks fi Alkuperäiset ohjeet

el PwToTuO obnyiw xphonc tr Original isletme talimati pl Instrukcja oryginalna cs Puvodním námodem k používání sk Póvodný námod na použitie hu Eredeti hasznalatiutasitas ru OdHHNk pyKOBoCTBa nO 3KcIIaTaunn uk OpunirhaIbHa IHCtpyKci3 ekTlayataui

ro Instruetiuni de folosire originale bg OpHnHaHNo pKoBOdCTBO 3a ekTnAoTaun sr Originalno uputstvo za rad sl Izvirna navodila hr Originalne upute za rad et Algupärane kasutusjuhend Iv Instrukcijam

originalvaloda

It Originali

instrukcija

Deutsch. 7

English. Page 17

French. Page 27

Spanish. 37

Portuguese. 47

Italian. 57

Dutch. 69

Danish. 79

Swedish. Page 88

Norwegian. 97

Finnish. Page 106

Greek. Page 115

Turkish. Page 126

Polish. Page 135

Czech. Page 146

Slovak. Page 155

Hungarian. Page 165

Russian. Page 176

Ukrainian. Page 188

Romanian. Page 199

Bulgarian........................................................... 209

Serbian. Page 221

Slovenian. Page 231

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

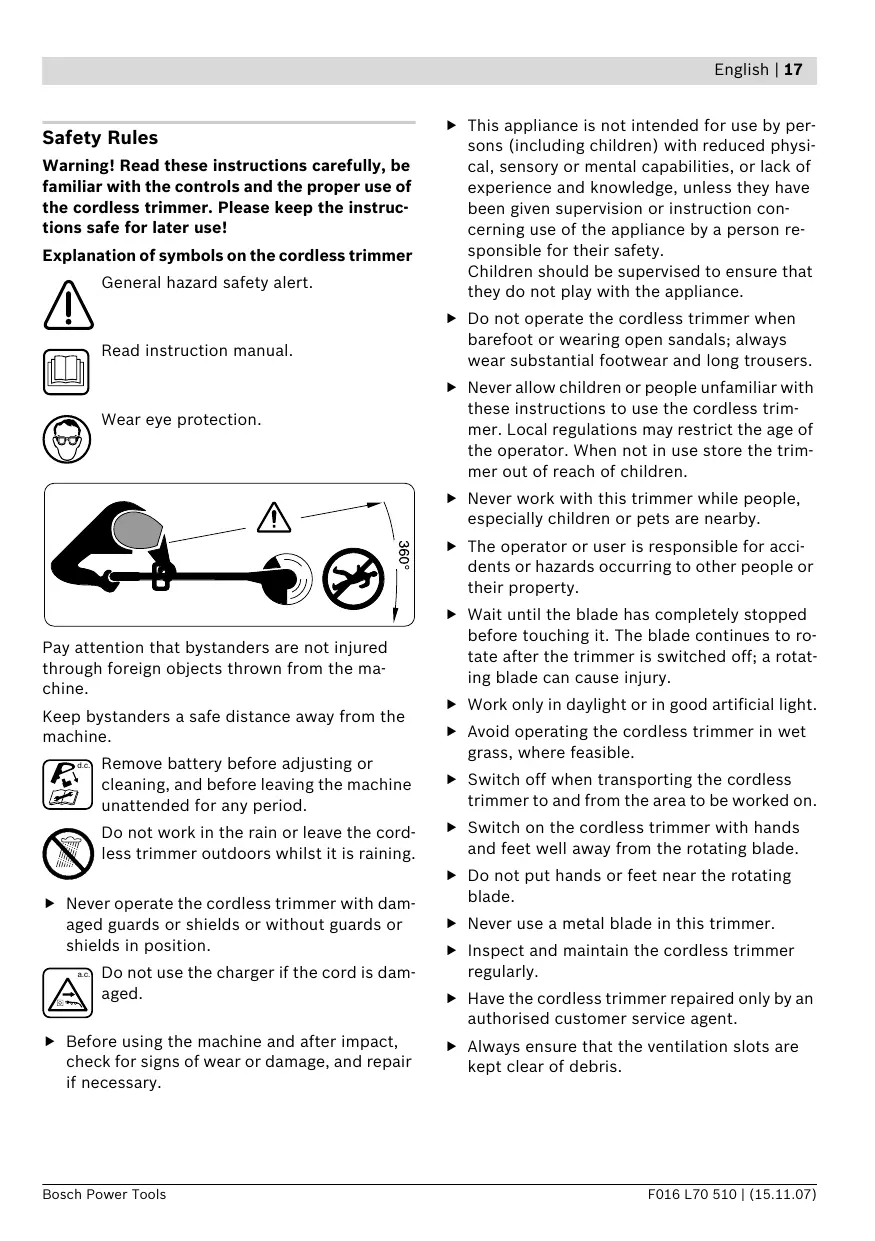

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the cordless trimmer. Please keep the instructions safe for later use!

Explanation of symbols on the cordless trimmer

General hazard safety alert.

Read instruction manual.

Wear eye protection.

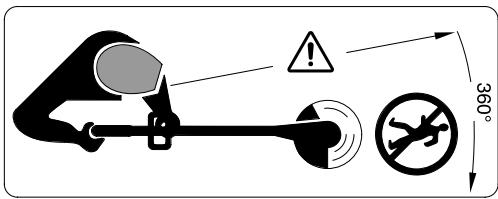

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Keep bystanders a safe distance away from the machine.

Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.

Do not work in the rain or leave the cordless trimmer outdoors whilst it is raining.

• Never operate the cordless trimmer with damaged guards or shields or without guards or shields in position.

Do not use the charger if the cord is damaged.

Before using the machine and after impact, check for signs of wear or damage, and repair if necessary.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not operate the cordless trimmer when barefoot or wearing open sandals; always wear substantial footwear and long trousers. Never allow children or people unfamiliar with these instructions to use the cordless trimmer. Local regulations may restrict the age of the operator. When not in use store the trimmer out of reach of children. Never work with this trimmer while people, especially children or pets are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property. Wait until the blade has completely stopped before touching it. The blade continues to rotate after the trimmer is switched off; a rotating blade can cause injury. Work only in daylight or in good artificial light. Avoid operating the cordless trimmer in wet grass, where feasible. Switch off when transporting the cordless trimmer to and from the area to be worked on. Switch on the cordless trimmer with hands and feet well away from the rotating blade. Do not put hands or feet near the rotating blade. Never use a metal blade in this trimmer. Inspect and maintain the cordless trimmer regularly. Have the cordless trimmer repaired only by an authorised customer service agent. Always ensure that the ventilation slots are kept clear of debris.

Switch off and remove the battery:

• whenever you leave the machine unattended for any period
• before replacing the blade
• before cleaning or working on the cordless trimmer.
• Store the machine in a secure dry place out of the reach of children. Do not place other objects on top of the machine. Replace worn or damaged parts for safety. Ensure replacement parts fitted are Bosch approved. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use only battery packs intended specifically for the machine. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause skin irritation or burns.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that can not be reached with the lawn mower.

Intended use is related to operation within 0°C and 40°C ambient temperature.

Delivery Scope

Carefully remove the machine from its packaging and check if the following parts are complete:

• Cordless trimmer
• Blade guard
• Adjustable handle (fitted)
• Cutting disc
• Blade Battery Charger
• Operating instructions

When parts are missing or damaged, please contact your dealer.

Product Features

The numbering of the components shown refers to the representation of the machine on the graphic pages.

1 On/Off switch 2 Lock-off button for On/Off switch 3 Handle 4 Handle screw 5 Adjustable handle 6 Adjusting collar 7 Shaft 8 Ventilation slots 9 Trimmer head

10 Blade 11 Blade guard 12 Foot pedal for trimmer-head angle adjustment 13 LED indicator 14 Battery charger 15 Battery 16 Cutting disc 17 Pin 18 Plant protector 19 Serial number

The accessories illustrated or described are not included as standard delivery.

Technical Data

Cordless Trimmer	ART 23 Li		ART 26 Li
Article number	3 600 H78 K..		3 600 H78 L..
No-load speed	rpm	7500	7400
Adjustable handle		●	●
Trimmer-head angle adjustment/edging adjustment		●	●
Cutting diameter	cm	23	26
Weight according to EPTA-Procedure 01/2003	kg	2.3	2.4
Serial number	See serial number 19 (type plate) on the machine
Battery	Li-Ion		Li-Ion
Article number	2 607 336 037		2 607 336 039
Rated voltage	V=	14.4	18
Capacity	Ah	1.3	1.3
Charging period (battery discharged)	min	180	180
Battery Charger	AL 2204 CV		AL 2204 CV
Article number	2 607 225 2..		2 607 225 2..
Charging current	mA	230	230
Allowable charging temperature range	°C	0-45	0-45
Weight according to EPTA-Procedure 01/2003	kg	0.7	0.7

Noise/Vibration Information

Measured values determined according to 2000/14/EG (1.60 m height, 1.0 m clearance) and EN 28 662.

Typically the A-weighted noise levels of the product are: Sound pressure level 80 dB(A); Sound power level 88 dB(A). Uncertainty K = 5 dB.

Wear hearing protection!

The hand-arm acceleration is typically below 2.5m / s²

Declaration of Conformity C

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 786, EN 60 335 according to the provisions of the directives 89/336/EWG, 98/37/EG, 2000/14/EC.

2000/14/EC: The guaranteed sound power level LWA is lower than 94 dB (A). Conformity assessment procedure according to Annex VI.

Notified body: SRL, Sudbury England

Notified body identifications number: 1088

Technical file at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For Your Safety

Switch off and remove battery from machine before adjusting or cleaning.

The blade continues to rotate for a few seconds after the cordless trimmer is switched off.

Caution - do not touch the rotating blade.

Assembly

Battery Charging

Observe correct mains voltage: The voltage of the power source must agree with the voltage specified on the nameplate of the unit. Equipment marked with 230 V can also be connected to 220 V or 240 V.

Use only the charging unit supplied. Only this charging unit is matched to the lithium-ion battery used in the product.

The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

Removing the Battery A

Press the battery unlocking button and pull out the battery 15 toward the rear.

Charging Procedure

The charging procedure starts as soon as the mains plug is plugged into the socket and the battery is then inserted into the battery charger 14.

Firstly, place the battery 15 as shown in the figure onto the front of the battery charger (0) and then press the battery 15 down at the rear (2). To remove the battery, proceed in reverse order.

Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage.

This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.

Note: The charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section "Technical Data".

Flashing Battery Charge Indicator 13

The charging procedure is signalled by a flashing battery charge indicator 13.

Continuous Lighting of the Battery Charge Indicator 13

Continuous lighting of the battery charge indicator 13 indicates that the battery is fully charged or that the temperature of the battery is not within the allowable charging temperature range, and cannot be charged for this reason.

The battery is charged as soon as the allowable charging temperature range is reached.

When the battery is not inserted, continuous lighting of the battery charge indicator 13 indicates that the mains plug is inserted in the socket and that the battery charger is ready for operation.

Charging Advice

With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charger.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

The Electronic Cell Protection (ECP) protects the lithium ion battery against deep discharging. When the battery is run down or discharged, the machine is shut off by means of a protective circuit: The blade no longer rotates.

Do not continue to press the On/Off switch after an automatic shut-off of the machine.

The battery can become damaged.

Product Assembly

Do not insert the battery until the cordless trimmer is completely assembled.

Ensure that the cordless trimmer is assembled in the following order:

Mounting the Blade Guard

Place the blade guard 11 on the trimmer head 9.

Hook the blade guard onto the trimmer head and push it toward the rear. Press the blade guard downward until securely latched (click).

Mounting the Cutting Disc/Blade

Press the cutting disc 16 onto the drive shaft (click).

Position the blade 10 onto the pin 17, push it down and pull it outward until it engages.

Operation

Starting

Remove stones, loose pieces of wood and other objects from the cutting area.

The blade continues to rotate for a few seconds after the cordless trimmer is switched off. Allow the motor/blade to stop rotating before switching "on" again.

Do not rapidly switch off and on.

Inserting the Battery

Insert the battery into the machine as shown. The battery must be felt to engage.

Switching On

Press the lock-off button 2 and hold while actuating the On/Off switch 1.

Release the lock-off button 2 again.

Switching Off

Release the On/Off switch 1.

Note: There is a short delay in the motor starting after engaging the on/off switch 1.

Adjustment

Using the Adjustable Handle

The adjustable handle 5 can be set in various positions:

To change the position, loosen the handle screw 4 and move the adjustable handle 5. Tighten the handle screw 4 securely to fix the adjustable handle 5 in the adjusted position.

Adjusting the Trimmer Length F

Turn the adjusting collar 6 by 90 degrees. Pull the shaft out to increase the height, or push the shaft in to decrease the height. Re-tighten the adjusting collar 6.

Adjusting the Trimmer-head Angle G

To change the cutting angle, press the foot pedal 12 down and move the shaft 7 to the requested position.

Release the foot pedal 12.

Adjusting for Edging Mode

H Adjusting the trimmer-head angle:

Press the foot pedal 12 down. Move the shaft 7 to the lowest position. Release the foot pedal 12 again.

Moving the trimmer head: Loosen the adjusting collar 6. Turn the shaft 7 by 90° to adjust the trimmer head 9 for trimming/edging as shown. Re-tighten the adjusting collar 6.

Working Advice

Protect the battery from heat, for example, also the continuous exposure to sun radiation and fire.

Product will not function if temperature is below 0°C or above 45°C

Cutting Grass

Move the cordless trimmer left and right, keeping it well away from the body.

The trimmer can efficiently cut grass up to a height of 15 cm. Cut higher grass in stages.

Trimming Edges

Guide the cordless trimmer along the edge of the lawn. Avoid contact with paved surfaces, stones or garden walls, as this will wear the blade rapidly.

For better control, use the plant protector 18 (accessory) as a guide.

Cutting Around Trees and Bushes

Carefully cut around trees and bushes so that they do not come into contact with the blade.

Plants can die if you damage the bark.

For better control, use the plant protector 18 (accessory) as a guide.

Battery Duration

The battery duration is dependent on the working conditions:

Light conditions:

up to 800 metres (ART 23 Li)

up to 1000 metres (ART 26 Li)

Medium conditions:

up to 350 metres (ART 23 Li)

up to 440 metres (ART 26 Li)

Tough conditions:

up to 60 metres (ART 23 Li)

up to 75 metres (ART 26 Li)

Changing the Blade D

Before any work on the machine itself, remove the battery from the machine.

To remove the worn blade 10, push it inward until it snaps off of the pin 17.

Clean the pin 17 of any residual plastic/debris with a sharp knife.

To mount a new blade 10, place the blade 10 onto the pin 17, push it down and pull it outward until it engages.

Note: Only use Bosch replacement blades. They have been developed specially for improved cutting and feed performance. The use of other blades will lead to a deterioration in performance.

Troubleshooting

The following chart lists problem symptoms, possible causes and corrective action, if your machine does not operate properly. If these do not identify and correct the problem, contact your service agent.

Warning: Switch the machine off and remove the battery prior to any troubleshooting.

Problem	Possible Cause	Corrective Action
Blade guard can not be mounted over cutting disc	Incorrect assembly	Remove cutting disc and mount blade guard again; also see "Assembly"
Trimmer fails to operate	Battery discharged	Recharge battery; also see "Battery Charging"
	Battery too hot/cold	Allow to cool/warm
Trimmer runs intermittently	Internal wiring of machine damaged	Contact Service Agent
	On/Off switch defective	Contact Service Agent
Excessive vibrations/noise	Machine defective	Contact Service Agent
	Blade broken	Replace the blade
Cutting time per battery charge too low	Battery has not been used for long period or only for short terms	Fully charge battery; also see "Battery Charging"
	Grass too high	Cut in stages
	Battery dead or defective	Replace the battery
Blade will not move	Battery discharged	Recharge battery; also see "Battery Charging"
	Machine defective	Contact Service Agent
Machine does not cut	Blade broken	Replace the blade
	Battery not fully charged	Recharge battery; also see "Battery Charging"
	Grass entangled around cutting disc	Remove grass
Continuous lighting of the battery charge indicator 13	Battery not (properly) inserted	Properly insert battery into battery charger
No charging probedure possible	Battery contacts contaminated	Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery
	Battery defective	Replace the battery
Battery charge indicator 13 does not light up	Mains plug of battery charger not plugged in (properly)	Insert mains plug (fully) into the socket outlet
	Socket outlet, mains cable or battery charger defective	Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself, remove the battery from the machine.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the machine should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

After Trimming/Storage

Switch the machine off and remove the battery. Ensure battery is removed before storage.

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots 8.

Turn the machine on its side and clean the cutting guard 11 inside. If grass cuttings are compacted, remove with a wooden or plastic implement.

Check if guards and protective devices are undamaged and properly mounted. Before using, carry out possibly necessary maintenance and repairs.

The battery should be stored between 0°C and 45°C.

After-sales service and customer assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Transport

The battery is tested according to UN document ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3. It has effective protection against internal overpressure and short circuiting as well as devices for the prevention of violent rupture and dangerous reverse current flow.

The lithium-equivalent content in the battery is below applicable limit values. Therefore, the battery is not subject to national or international regulations pertaining to dangerous mediums, neither as an individual component nor when inserted into a machine. However, the regulations governing dangerous goods may be relevant when transporting several batteries. In this case, it can be necessary to comply with special conditions (e.g., concerning the packaging). For more information, please refer to the instruction sheet (in English) under the following Internet address: http://purchasing.bosch.com/en/start/Allgemeines/Download/index.htm.

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste!

According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national law,

power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 26.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Subject to change without notice.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen, Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division, D-70745 Leinfelden-Echterdingen

For your safety

Robert Bosch (France) S.A.S.

Dr. Egbert Schneider, Senior Vice President Engineering

Dr. Eckerhard Strötgen, Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division, D-70745 Leinfelden-Echterdingen

For your safety

Dr. Egbert Schneider, Senior Vice President Engineering

Dr. Eckerhard Strötgen, Head of Product Certification

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Voor uweiligkeit

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product

Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The battery has been tested according to the UN manual

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Only for EU countries:

Only for EU countries:

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For safety reasons

Noise and vibration information

The measured values were determined in accordance with the directive 2000/14/EC (1.60 m distance and 1.0 m distance) and EN 28 662.

The conformity with the low noise characteristic level of the machine's acoustic power is stated at 80 dB(A). Acoustic power level 88 dB(A). Measurement uncertainty K = 5 dB.

Wear ear protectors!

The characteristic vibration value is less than 2.5 m/s2.

Declaration of conformity

We declare under our sole responsibility that this product complies with the following standards or standardizing documents: EN 786, EN 60335 in accordance with the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Remove the battery from the tool before any adjustment, maintenance, or cleaning.

The saw blade continues to rotate for a few seconds after the tool is switched off.

Caution: Do not touch the rotating saw blade.

Assembly

Battery charging

Note on the voltage: The voltage of the power source must match the voltage specified on the nameplate of the machine. Machines with a rated voltage of 230 V can also be operated at 220 V/240 V.

Use the charger supplied with the tool. Only this charger is suitable for the lithium-ion battery used in your machine.

The battery is equipped with a temperature monitoring system that allows charging only in the temperature range of 0°C to 45°C. This ensures a long battery life.

Note: The battery is partially charged. To ensure full battery capacity, charge the battery fully in the charger before first use.

The lithium-ion battery can be charged at any time. Interrupting the charging process does not damage the battery.

Battery removal

Press the battery release button and pull the battery out of the tool towards the rear.

Charging

Always keep the switch 2 closed, keep the switch and follow the ON/OFF switch 1.

Release the switch 2.

OFF mode

Release the ON/OFF switch 1.

Note: When you press the ON/OFF switch 1, the motor starts with a slight time delay.

Adjustment of the machine

User handle E

The handle 5 can be placed in different positions:

To change the position of the handle, loosen the knob 4 and move the handle 5. Then tighten the knob 4 to secure the handle 5 in the new position.

For the telescopic tube

1. Turn the locking ring 6 by 90° to release the telescopic tube. Pull the tube outward to extend it or push it inward to retract it. Ensure the locking ring 6 is tightened.

Adjustment of the cutting angle

To adjust the cutting angle, press the lever 12 and rotate the base 7 to the desired position.

Release the lever 12.

Put the connector on

The connector is placed on the head of the connector: Turn the collar 12. θησ Turn the guide 7 to the lower position. Leave the collar 12 loose.

Move the head of the connector to the desired position. Turn the guide 7 by 90° to move the connector head 9, as shown, for the connector/connector. Leave the collar loose.

Operation

Protect the device from extreme heat, e.g. from particularly strong sunlight and heat. The device does not operate at temperatures below 0°C or above 45°C!

Connector

Move the locking lever to the right and left, keeping a safe distance from your body.

The locking lever can be cut to a maximum length of 15 cm. When the lever is longer, cut it with a tool.

Connector

Guide the locking lever and the blade of the tool. To protect the blade from damage, prevent it from hitting hard objects and/or walls.

For the best guidance, use the tree protection guide 18 (figure number) as a guide.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools DivisionD-70745 Leinfelden-Echterdingen

For your safety

Up to 350 meters (ART 23 Li)

Up to 440 meters (ART 26 Li)

Operating conditions:

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Customer Service: [phone]

Customer Service Line: [phone]

Shipping

Dr Egbert Schneider Senior Vice President Engineering

Dr Eckerhard Ströttgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Robert Bosch Sp. z o.o.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Bosch Service Center PT

K Vapence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Transport

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mo7gc

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Az OnBiztonsagsaert

Do not work in the rain and do not leave the battery trimmer standing in the rain.

Never work with a trimmer with damaged guards or safety devices, or if they are removed.

Do not use the charger with a damaged cord or plug.

After an impact, check the tool for wear or damage and, if necessary, have it repaired before further use. This power tool is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or with insufficient experience and/or insufficient knowledge, unless they are under the supervision of a person responsible for their safety and receive from him instructions on the operation of this power tool.

Children should be supervised to ensure that they do not play with the power tool.

Do not mow with the battery trimmer in the rain or in wet grass. Always wear sturdy, closed shoes and long trousers. Never allow the battery trimmer to be used by children or persons who are not familiar with these instructions. Local regulations may restrict the operator's age. Store the trimmer out of reach of children. Do not work with the tool if people, especially children, or domestic animals are in the immediate vicinity. The operator is responsible for accidents and damage caused to other persons or their property. Do not touch the rotating blade until it has come to a complete stop. The blade continues to rotate after the motor is switched off and can cause injury. Work only in daylight or with good artificial lighting. If possible, do not operate the battery trimmer on wet grass.

Remove the battery trimmer before transporting it to the processing area and back. Switch on the battery trimmer only when there is sufficient distance from the rotating blade. Maintain a safe distance from the rotating blade. Do not use metal hooks for this trimmer. Regularly check and maintain the battery trimmer. Repair of the battery trimmer should only be carried out by authorized service workshops. Also, ensure the ventilation slots are clean. Switch off the trimmer and remove the battery:

• Always, when you insert the tool without a blade - before changing the blade - before cleaning and before performing work on the battery trimmer.

Store the tool in a secure, dry place inaccessible to children. Do not place any objects on the tool. -For safety, replace worn or damaged parts. For replacements, use only original spare parts from the Bosch company.

Before installing the battery, check that the tool is switched off. Installing the battery into a switched-on tool can lead to accidents. Charge the batteries only with chargers recommended by the manufacturer. A charger intended for a specific type of battery may create a fire hazard if used with other batteries.

Use only the batteries specified for the tools. Using other batteries may lead to injuries and fire hazards. Protect the unused battery from paper clips, coins, keys, nails, screws, and other small metal objects that could short-circuit the contacts. Short-circuiting the battery contacts may cause burns or fire. If the battery is used improperly, liquid may leak. Avoid contact with it. If it accidentally gets on skin, rinse with water. If this liquid gets into eyes, seek medical help. Leaking battery liquid may cause skin irritation or burns.

Function description

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety instructions

Switch off the tool and remove the battery before starting work on adjustment or cleaning.

After switching off the battery trimmer, the blade continues to rotate for a few seconds due to inertia.

Caution - Do not touch the rotating blade.

Assembly

The power supply must match the data on the type plate of the tool. Power tools for 230 V also operate at 220 V.

Use only the charger supplied with the tool. Only this charger is compatible with the lithium-ion battery of your tool.

The battery is equipped with a temperature control that allows charging only within a temperature range of 0°C to 45°C. This ensures a long service life for the battery.

Note: The battery is supplied partially charged. To ensure full battery capacity, charge the battery completely before first use.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

Removing the battery

Press the release button and pull the battery out of the tool.

Charging process

The charging process begins as soon as the plug of the charger is inserted into the socket and the battery is placed in the charger.

Place the battery according to the figure, first in the middle on the charger, and then press the battery down until it clicks into place. Remove the battery from the charger in reverse order.

The intelligent charging method automatically determines the state of charge of the battery and, depending on its temperature and voltage, charging is carried out with the optimal current.

This ensures gentle handling of the battery. When stored in the charger, it is always fully charged.

Note: Charging is only possible when the battery temperature is within the charging range, see section "Technical Data".

Battery charge indicator

The battery charger monitors the charging process with a light.

Continuous indicator light of the battery charger

Continuous light

The battery charger indicator light indicates that the battery is fully charged.

The battery condition is indicated by the continuous light. The charging process is interrupted if the battery temperature exceeds the permissible range. As soon as the temperature is within the permissible range, the battery charging resumes.

Without a battery, the continuous light of the charger indicator indicates that the plug is inserted into the mains socket and the charging device is in working condition.

Charging instructions

With intermittent or repeated charging without interruption, the charging device may heat up. This, however, does not pose a danger and does not indicate a technical malfunction of the power tool.

A noticeable reduction in operating time per charge indicates that the batteries are aging and need to be replaced.

The lithium-ion battery is equipped with "Electronic Cell Protection (ECP)" against deep discharge. The protection circuit switches off the power tool when the battery is discharged. The tool then stops.

After the automatic switch-off of the tool, do not press the switch again. The battery may be damaged.

Assembling the tool

Insert the battery only after the battery compartment is fully assembled.

Assemble the battery compartment only in the following order:

Mounting the protective cap

Place the protective cap 11 on the trimmer head 9.

Screw the protective cap onto the trimmer head and tighten it by hand. Press the protective cap down until it snaps into place (click).

Installing the cutting blade/knife

Press the cutting blade 16 onto the drive shaft (click). Then install the knife 10 on the pin 17, press on the knife and pull it outwards until it locks.

Working with the tool

Switching on

Remove the blade guard and other protective devices from the cutting area.

After switching off the battery trimmer, the blade continues to rotate for a few seconds. Wait for the motor/blade to stop before switching on again.

Do not switch the tool on and off without a pause.

Installing the battery

Insert the battery into the tool as shown. The battery must audibly click into place.

Switching on

Press the switch lock 2 and, in this position, activate the switch 1.

Release the switch lock 2.

Switching off

Press button 1.

Note: The tool starts when button 1 is pressed with a slight delay.

Tool adjustment

Using the adjustable handle

The adjustable handle 5 can be set in different positions:

To change the position, release the handle and set handle 5. Then tighten the handle to lock the adjustable handle 5 in the set position.

Adjusting the depth stop

1. Turn the locking sleeve 6 by 90°. 2. Press the depth stop, push it in to the desired depth. 3. Tighten the locking sleeve 6.

Changing the angle of the trimmer head

To change the cutting angle, press the release button 7 to the desired position. Release button 12.

Position for edge trimming

Adjusting the angle of the trimmer head

Press the release button 12. Bring 7 to the lowest position. Release button 12.

Usage instructions

Protect the battery from exposure to high temperatures, e.g., strong sunlight or heat. The tool does not work at temperatures below 0°C or above 45°C!

Cutting grass

Before mowing, tilt the mower left and right and keep a sufficient distance to the body.

Effectively mow grass up to 15 cm high. Taller grass should be mowed in stages.

Edging

Guide the mower along the lawn edge. To prevent premature wear of the blade, avoid contact with hard surfaces and stone or brick walls. For edging work, use the blade guard as an auxiliary guide (accessory).

Mowing around trees and bushes

Carefully mow around trees and bushes to avoid contact with the bark.

1000 meters (ART 26 Li)

Medium conditions

30-350 meters (ART 23 Li)

0.440 meters (ART 26 Li)

Difficult conditions

0.60 meters (ART 23 Li)

70-5 meters (ART 26 Li)

Blade replacement

Clean the blade 17 with a sharp knife from the remains of the adhesive mass and all contaminants.

Insert the new blade 10 into the blade 17, push it down and pull it out after fixing.

Note: Use only Bosch blades. This special development has improved cutting properties. Blades from other manufacturers have lower performance.

Troubleshooting

The following table lists the signs and possible remedies for malfunctions in case of improper operation of the device. If you cannot locate and fix the problem with this help, contact your service workshop.

Attention! Before troubleshooting, switch off the tool and remove the battery.

The battery should be stored at a temperature between 0°C and 45°C.

Service and customer advice

The service department will answer all your questions regarding repair and maintenance of your product and also regarding spare parts. You can also find spare parts information at the address:

www.bosch-pt.com

The Bosch consultant team will gladly help you with questions about purchase, application, and adjustment of products and accessories.

Russia

OOO «Robert Bosch»

Service center for maintenance

Power tools

Akademika Koroleva St. 13, Building 5

129515, Moscow

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Robert Bosch LLC

Service Center for Power Tools

Zaitseva St. 41

198188, Saint Petersburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Robert Bosch LLC

LLC "Robert Bosch"

Service Center for Power Tools

Electric Tools

Torskaya Mikrorayon, 53

630032, Novosibirsk

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

LLC "Robert Bosch"

Service Center for Maintenance

Electric Tools

st. Frontovykh Brigad, 14,

620017, Yekaterinburg

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

ACU YT-18

220064 Minsk, ul. Kuryatova, 7

Tel.: [phone]

Fax: [phone]

Transport

The battery is tested according to the UN ST/SG/AC.10/11/Rev.3, Part III, Subsection 38.3. The battery is equipped with effective protection against internal overpressure and short circuit, as well as devices to prevent static discharge under the influence of a single load and dangerous reverse current. The equivalent quantity of lithium in the battery is below the corresponding limit values. Therefore, the battery, both as a separate part and as built into the instrument, is not subject to the regulations for dangerous goods. However, the regulations for dangerous goods may become relevant when transporting several batteries. In such a case, it may be necessary to observe special conditions (e.g., for packaging). You can find details in the English documentation at the following address on the Internet: http://purchasing.bosch.com/en/start/ Allgemeines/Download/index.htm.

Disposal

Used power tools, accessories and packaging should be handed in for environmentally friendly recycling.

Only for EU countries:

Do not dispose of power tools in household waste! According to the European Directive 2002/96/EC on old electrical and electronic equipment and devices, and its implementation in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

Implementation of this Directive in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

Battery, battery pack:

Li-ion:

Please note the instructions in the "Transport" section, page 186.

Do not throw batteries into household waste, do not throw them into fire or water. Batteries must be collected and sent for recycling or to an ecological disposal facility.

Instructions for use:

Incorrect or damaged batteries must be disposed of in accordance with Directive 91/157/EEC.

We reserve the right to make changes.

Safety instructions

Warning! Please read the following instructions carefully. Familiarize yourself with the controls and proper use of the battery. Keep the instructions for future use.

Symbols on the battery

General warning for safety.

Read the instruction manual.

Wear protective gloves.

• Example
• Protective cover for adjustable handle (installed)
• Disc saw
• Charging instructions for the battery

If the device does not start or is defective, please contact the store.

Components

The component numbers refer to the components shown in the figure on the page indicated.

1 On/off switch 2 Locking button 3 Handle 4 Screw, adjustable handle 5 Adjustable handle 6 Locking sleeve 7 Tube 8 Ventilation slots 9 Spray head

10 Nozzle 11 Protective cover 12 Spray head adjustment knob 13 Indicator light 14 Charger 15 Battery pack 16 Nozzle 17 Blade 18 Protective guard 19 Serial number

The figure shown may not correspond to the standard delivery scope.

Technical data

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety instructions

Before carrying out any adjustment or maintenance work, switch off the tool and remove the battery pack.

After switching off the tool, wait a few seconds before removing the battery pack.

Caution - Do not touch the blade, as it is rotating.

Mounting

Battery charger

Charging the battery: To charge the battery, plug the charger into a power outlet. The charger is designed for 230 V and can also operate at 220 V/240 V.

Use the charger only for charging the battery. The charger is designed for the lithium-ion battery used in your device.

The battery has a temperature control element that allows charging only within a temperature range of 0°C to 45°C. This ensures proper operation and extends the battery's service life.

Note: The battery is supplied partially charged. To achieve full capacity, before using the device for the first time, fully charge the battery in the charger.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

Removing the battery

Press the battery release button, pull the battery back, and remove it from the device.

Charging

The charging process begins when the charger is plugged into a power outlet and the battery is inserted into the charger.

Insert the battery 15 as shown in the figure, into the charger (0), and then press the battery 15 (2) to lock it. To remove the battery, follow the reverse order.

Thanks to the intelligent charging process, the charging current is automatically detected and charging is carried out with an optimal current depending on the temperature and condition of the battery.

Store the battery, and if stored in the charger, it will be kept fully charged.

Note: The charging process is only possible if the battery temperature is within the permissible charging temperature range, see section "Technical Data".

Battery charge indicator

The charge level is indicated by the charge level indicator of the battery pack 13.

The charge level indicator of the battery pack 13 lights up.

The indicator lights up

The charge level indicator of the battery pack 13 signals that the battery pack

is fully charged or the temperature of the battery pack is outside the permissible temperature range for charging, and therefore charging is not possible. Only when the permissible temperature range for charging is reached will the battery pack be charged.

If the battery pack is not inserted, the indicator light of the charge level indicator 13 signals that the device is inserted into the socket and the charger is ready for operation.

Charging instructions

During continuous charging cycles or when several charging cycles are repeated one after the other, the charger may heat up. However, this is not a safety hazard and does not indicate a technical malfunction of the charger.

A short charging time indicates that the battery has discharged itself and needs to be replaced.

The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the protection circuit switches off. The device no longer moves.

After the automatic switch-off, do not press the switch again. This could damage the battery.

Mounting the accessory

Insert the battery pack only when the tool with the battery pack is fully assembled.

Assemble the tool with the battery pack in the following order:

Mounting the protective guard

Place the protective cap 11 on the head of the trimmer 9.

Pull the protective cap over the head of the trimmer and push it back. Press the protective cap down until it clicks.

MOUNTING THE DISC BLADE

Place the disc blade 16 on the drive shaft, pressing it down (click). Place it on the drive shaft, press it down and turn it until it locks securely.

OPERATION

TROUBLESHOOTING

Remove the cutting head and other items from the area where you will be working.

After using the trimmer with the battery, wait a few seconds. Before turning it on again, check that the motor has stopped.

Do not turn on the device immediately after turning it off.

INSTALLING THE BATTERY

Install the battery into the trimmer as shown. The battery must be fully inserted into the compartment.

TURNING ON

Press the lock button 2 and, while holding it, press the switch 1.

Release the lock button 2.

TURNING OFF

BiDnyctiB BmNkau 1.

BkaibKa: Iicna HaTnckaHHa BnMnKau 1 MOTOP 3aIpyckaTebC 3 He3HaUHO 3aTpMkoIO.

HactpoIOBaHHN TpHnAaY

BnKOpNCTaHH peryIbOBAHOI pyKoTKnE

PerybOBAHy pykoTky 5 MoXHa BCTaHOBIOBaTHy pi3Hi TIOLOXKeHHa:

1Lio6 3miHHTIIOLOXeHHB, BiPyCTiTB rBNHT Ha pykoTci 4 ta IepemictiB peryAbobaHy pykoTky 5. 3aTnHtBnHT Ha pyKoTci 4, 106 3aFikCyBaTH perYbOBAHy pyKoTky 5 y BCTaHOBLeHOMy TIOLOXeHHI.

PeryAIOBaHHI DOBXHNI TpMHepa F

1Повернitsь 3аTNCKHyВTuKy6Ha 90° 2AIAIIOOBoXeHHBNTaHITb Tpy6y，AIACKOpoueHHN BCTpOMiTB Tpy6y Ia6we.3HOBy3aTARHtB 3aTHCKHy BTVkky6.

PeryIIOBaHnK KyTa roIobKn TpImepa

Lio6 3mHHTN Kyt CkOswyBaHHn TpaBn, PpHtncHITb HOxHy PeaA1b 12 Ta HaxnIITb Tpy6y 7 B Heo6XiDHe IIOLOXKeHHn.

BiIpyctITb HOKHy PIIaIb 12.

HactpoIOBaHHA 3pi3yBaHHa TpaBn IOTiKaPAMN

H PeryuIobaHnK KyTa roLoOBKn TpImepa: IpnTncHItb HOxHy Teaab 12. IIpepmictb Tpy6y 7 y HauHHKue ToLoXeHHA. 3HOby BiNTb HOxHy Tea1b 12.

I TepecyhTe roLoBky TpImepa: 1 BiIpyctIb 3aTnCKHy BtUky 6. II NobephiTb Tpy6y 7 Ha 90° ，io6 hactpoiTn roLOBky TpImepa 9 DAA CKOswyBaHH TaBn/3pi3yBaHH TpaBn IIOiK Kaamn, kI KTOka3aHO. 3HOby 3aTARHtB 3aTNCKy BTykY 6.

Bka3iBkn 0oDo pO6ToN

Protect the battery from glass, e.g., from sunlight, as well as from fire. The device does not operate at temperatures below 0°C or above 45°C!

Trimming the grass

With the battery inserted, hold the trimmer in the right hand, keeping it in a stable position.

For example, with the battery in an effective state, trim grass up to 15 cm high. Taller grass should be trimmed gradually.

Trimming with the grass trimmer

With the battery inserted, guide the trimmer along the lawn. Move it slowly, avoiding contact with hard surfaces and stones.

For best results, use the protective guard as a guide (see figure).

Trimming grass around trees and bushes

When trimming grass around trees and bushes, be careful not to hit them with the blade. Bushes may be damaged by the trimmer head.

For best results, use the protective guard as a guide (see figure).

Battery operating time

Battery operating time depends on working conditions:

Light conditions:

Δ 0800 meters (ART23Li)

Δ 01000 meters (ART 26 Li)

Important conditions:

0.35 meters (ART23Li)

0.44 meters (ART26Li)

Important conditions:

0.60 meters (ART 23 Li)

0.75 meters (ART 26 Li)

Replacing the blade

Before all work, carefully disconnect the battery.

Remove the screws 10, lift it out of the housing, so that it comes out of the slot 17.

With the help of a screwdriver, clean all residues/brushings from slot 17.

To install the new blade 10, place blade 10 on slot 17, lift and turn it so that it locks into place.

Note: Use only original Bosch blades. This special development has better properties from the point of view of the blade. These blades lead to the first productivity of work.

Troubleshooting

In the following table, the symptoms of malfunction and the actions to be taken are given, so that you can eliminate the malfunction yourself. If this does not help you to find and solve the problem, please contact the service workshop.

Warning: Before troubleshooting, switch off the device and remove the battery.

Technical maintenance

Before any work, carefully disconnect the battery from the device.

Note: Regularly perform the maintenance work described below to ensure proper and safe operation of the device.

Check the device for visible damage, cracks, or loose parts. Ensure that all connections are secure.

Check that the covers and guards are not damaged and are correctly in place. Before starting operation, perform any necessary maintenance or repair work.

If, despite careful manufacturing and testing, the device still malfunctions, repairs should only be carried out by a master authorized for Bosch power tools.

For any questions or spare parts orders, please specify the 10-digit order number on the device's rating plate.

After work/storage

Switch off the device and remove the battery. Before storage, ensure the battery is removed.

Thoroughly clean the device with a soft brush and a dry cloth. Do not use water, solvents, or polishing agents. Remove all dust and particles, especially from the ventilation openings.

Clean the device and wipe the inside of the protective cover 11. If grass accumulates, remove it with a wooden stick or a soft brush.

Check that the covers and guards are not damaged and are correctly in place. Before starting operation, perform any necessary maintenance or repair work.

Store the battery at temperatures between 0°C and 45°C

Service center for customer maintenance

At the service center, you will receive answers to your questions regarding repair and technical maintenance of your product.

You can find detailed information and advice on accessories at the following address:

www.bosch-pt.com

Bosch consultants will be happy to help you with any questions regarding the purchase, use, and setup of products and accessories.

Ukraine

Bosch Service Center for Power Tools

Kranin Street, 1, 02660, Kyiv-60

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

The addresses of regional warranty service workshops are indicated in the enclosed warranty card.

Transport

The battery has been tested in accordance with the UN ST/SG/AC.10/11/Rev.3, Part III, Subsection 38.3. It is protected against internal overpressure and short circuit, as well as against static discharge during sudden load and against unsafe reverse current.

The lithium content is less than the permissible limit value. Therefore, the battery - whether alone or built into the device - is not subject to national and international regulations for dangerous goods. However, certain regulations for dangerous goods may apply when transporting some batteries. In such a case, it may be necessary to comply with special conditions (e.g., regarding packaging). More detailed information can be obtained from the English-language website at the following address:

http://purchasing.bosch.com/en/start/ Allgemeines/Download/index.htm.

Electrical appliances, accessories and packaging should be recycled in an environmentally friendly manner.

EU Directive:

Do not dispose of electrical appliances in household waste.

According to European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in

national legislation, electrical appliances that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Batteries/Battery packs:

Batteries/Battery packs:

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Maee i.v. Nogcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Switch off the power tool and remove the battery before making any adjustments or cleaning.

Bosch Service Center

Str. Horia Macelariu Nr. 30-34, 013937 Bucuresti

Tel. Service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Tel. Consultanţă tehnica: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-romania.ro

Transport

The battery is tested according to the UN Manual ST/SG/AC.10/11/Rev.3, Part III, Subsection 38.3. It has adequate protection against internal overpressure and short circuiting, and is also equipped with protective devices that prevent forced rupture and dangerous reverse current.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

3a Bawaata cnrypnoct

IpeN Da n3BbPwBaTe hAcTpoKN ITo eEeKTPoHnHCTpyMeHTa HAn Da To TOUHCTBaTe, N3KAIOUOte

eNeKTPoHHCTpymeHTa N3BaAdTe akymylaTophata 6aTeprna.

CaeH3KluOvaBeHa akyMylaTopHaTa TpeBOKocaKa HOXbT IpoDbAxxBa Da ce BbpTu HЯKOKeYHdI IO Hepua.

BHHMaHHe-HeDOnHpAaTe BbPraunCe HOK.

MOnTnpaHe

3apekdahe Ha akymylaTopHaTa 6aTePnA

Cn3BaIe H3NCKBAAHHTa 3a3xpaHBaIO HaIpeXeHHe: HaIpeXeHHeTo Ha 3axpaHBaII H3TOUHK Tp6Ba Da CbBtAa C daHHITE, H3TINCAHN Ha Ta6eKkata Ha eAEKtpOHcTpymEHTa. ELeKtpOHcTpymEHTn, 6o3NaueHc 230 V, MOrat Da 6bDat 3axpaHBAHn c 220 V/240 V.

I3TOM3BaHTe cAmo BkUOyeHOTOBOKOMTIAEKTOBkata 3apAHO yCTPONCTBO.CAMToe C IAPAmeTpN,IOXODAUS 3a I3TIOA3BaHaTaIpiu Baun eAEKTPOHnCtpymENT ANTHeBO-NOHAAkyMylatopHa 6atePn.

AkyMylaTOPHaTa 6aTepeHIMa TeMnepaTypeH KOHTPOL, KOnTO IIO3BOIABa 3apeKdaHeTo caMo B dHaIpa3OHa MeJxdy O ° C n 45°C .Taka ce yBeIuHaBa DbIroTpaiHocCTTa Ha aKyMylaTOPHaTa 6aTepeHra.

YtBtBaHe: AkymylaToPnHaTa 6aTepeRc Ce DoCTaBA YactNuHO 3apeDeHa. 3a Da DocTnHrTePeHHa KaIauNTeT Ha akymylaToPnHaTa 6aTepeRn, IpeDN TbpBOTo N3TOnl3BaHe r 3apeDeTe DOKpaB B 3apAHO TO YCTPOINCTBO.

IHTeBO-IOHHaTakymyAToPnHa6aTePnMoKe Da 6bDe3apeKdHaNTOBCaKO BpeMe,6e3TOBa Da CbKpaUaBA DbIroTpauHocCTTa N.IpeKbcBaHe Ha 3apeXdaHeTO CbIo He N BpeAn.

N3BaXdAHe Ha akymyIaTopHata 6aTepeHn A

HaTnCHeTe OcB6oJDaBaIu8 6yToH 3a akymlyaTopHaTa 6aTePnI N3BaDeTe akymlyaTopHaTa 6aTePnI 15 Ha3aO t eKeTKponHCTpymenta.

3apexkahe

The charging process begins when the charging device is connected to the mains and the battery is placed in the charging device.

Place the battery 15 in the charging device as shown in the figure, first the top (1) and then press the battery 15 into the charging slot (2). The removal of the battery is carried out in the reverse order.

Thanks to the intelligent charging process, the state of the battery is recognized and it is charged with the optimal current and temperature voltage.

Thus the battery is protected and, when stored on the charging device, it is always fully charged.

Note: The battery is charged only if the temperature is within the permissible range, see section "Technical Data".

Charging indicator 13

The charging process is indicated by the charging indicator 13.

Continuous light of indicator 13

The continuous light of indicator 13 indicates that the battery is fully charged.

If the battery temperature is outside the permissible charging range, the battery is not charged at the moment. When the temperature returns to the permissible temperature range, the charging process resumes.

The continuous light of indicator 13, when a battery is inserted, indicates that the device is switched on and the charging device is ready for operation.

Charging indication

During continuous charging, respectively during repeated consecutive charging of the battery, the charging device may heat up. This is normal and does not indicate a technical defect of the charging device.

Significantly reduced operating time after charging indicates that the battery is worn out and must be replaced.

The lithium-ion battery is protected against deep discharge by "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off via a protective circuit: the tool stops rotating.

Do not immerse the power tool in water or other liquids. Do not press the trigger while doing so.

The battery pack could be damaged.

Charging the power tool

Place the battery pack on the charger as shown, until the charging indicator lights up.

Charging of the battery pack must be carried out in the following sequence:

Mounting the cutting blades 3

Place the cutting blade 11 on the blade holder 9.

Turn the cutting blade on the blade holder and insert it. Press the cutting blade down until you hear a distinct click.

Mounting the hedge trimmer blade

Place the blade 10 on the shaft 17, press it down and turn it until you hear a click.

Working with the device

Switching on

Remove stones, nails, and other hard objects from the area where you will be working.

After switching on the battery pack, the blade will continue to run for a short time due to inertia. Before switching on again, wait until the blade has come to a complete stop.

Do not switch on the power tool immediately after switching it off.

Insert the battery into the power tool as shown in the figure. Make sure it clicks into place.

Switching on

Press and hold the switch for switching on 2, then press the switch for switching on 1.

Release the switch for switching on 2.

Switching off

Release the switch for switching on 1.

Note: The power tool starts only after the switch for switching on 1 has been pressed.

Adjusting the power tool

Using the adjustable handle

The adjustable handle 5 can be set in different positions:

To change the position, loosen the screw on the handle 4 and move the adjustable handle 5. Then tighten the screw 4 to lock the adjustable handle 5 in the selected position.

Adjusting the height of the guide rail F

Turn the locking knob 6 90° to release the guide rail, adjust it to the desired height, then turn the knob 6 back to lock it.

Then tighten the locking knob 6 again.

Adjust the angle of the cutting head C

To change the cutting angle, press lever 12 and turn the guide handle 7 to the desired position.

Release lever 12.

Adjusting for cutting close to a wall

Set the angle of the cutting head:

Press lever 12. Place the guide handle 7 in the starting position. Release lever 12 again.

Changing the cutting head:

Loosen the locking screw 6. Turn the guide handle 7 90° clockwise so that the head 9 is as shown in the figure. Tighten the screw 6 again.

Operating instructions

Charge the battery before first use, e.g., due to self-discharge and low temperatures.

The power tool does not operate at temperatures below -45°C!

Cutting depth

Set the cutting depth so that the blade protrudes no more than 5 mm beyond the workpiece.

The cutting depth can be adjusted effectively up to 15 cm. If the cut is deeper, cut in stages.

Cutting close to walls

The battery-powered hedge trimmer accelerates the fish on the scythe. To avoid rapid wear of the blade, avoid contact with hard surfaces or walls.

For better control, use the front handle as a guide for the trimmer (not included in the kit).

Cutting around the blade and crosswise

Cut carefully around the blade and crosswise, so as not to damage them with the cutting line. If the plant's bark is damaged, they may die.

For better control, use the front handle as a guide for the trimmer (not included in the kit).

Battery life

The operating time of the battery depends on the working conditions:

Light working conditions:

Up to 800 meters (ART 23 Li)

Up to 1000 meters (ART 26 Li)

Medium working conditions:

Up to 350 meters (ART 23 Li)

Up to 440 meters (ART 26 Li)

Heavy working conditions:

Up to 60 meters (ART 23 Li)

Delta 075 Meter (ART 26 Li)

Power tool safety

Before performing any work on the electric tool, remove the battery pack.

To remove the worn blade 10, press it inward until it snaps out of the holder 17.

Clean the holder 17 with a sharp knife from any dirt and debris.

To mount a new blade 10, place the blade 10 on the holder 17, press it inward until it clicks into place.

Note: Use only original spare blades. They are specially developed and have optimal properties for cutting. Use of other blades may lead to malfunctions and reduced performance.

Troubleshooting

The table below shows symptoms of faults and how you can help yourself if the power tool is not working properly. If you cannot find and fix the problem, follow the instructions in the table and contact your authorized service center for power tools.

Warning: Before troubleshooting, switch off the power tool and remove the battery pack.

Before performing any work on the power tool, remove the battery pack.

Note: Pulling the trigger starts the device. Ensure proper and safe operation of the power tool.

Regularly check the power tool for visible damage, loose connections, and worn or damaged parts.

Check that all switches and connections are properly and correctly mounted. Perform necessary repairs before starting work with the power tool.

If despite careful manufacturing and testing the power tool becomes damaged, the repair must be carried out by an authorized service center for power tools.

Contact the Bosch representative for questions about the device, indicating the 10-digit number on the type plate of the power tool.

Cleaning and maintenance

Switch off the power tool and remove the battery. Before adjusting the power tool, make sure the battery is removed.

Clean the dust extraction hose with a soft brush and cloth. Do not use water, solvents, or cleaning agents. Remove any dust or debris from the hose and parts, especially from the ventilation openings.

Place the power tool on a stable surface. Clean the dust extraction hose 11 with a brush and a dry cloth.

Make sure that the hose and the extraction system are not damaged and function properly. Carry out necessary repairs before continuing work with the power tool.

The battery must be stored at a temperature between 0 °C and 45 °C.

Service and consultation

The service will answer your questions regarding repair and maintenance of your product, as well as spare parts. You can find more information about spare parts at www.bosch-pt.com.

The Bosch consultants will help you with satisfaction regarding questions about purchase, application, and possibilities for adjusting various products from the Bosch product range and accessories for them.

Robert Bosch EOOD - Bulgaria

Bosch Service Center

Warranty and repair

ul. Srebarna 9

1907 Codner

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Transport

The battery is tested according to the UN ST/SG/AC.10/11/3 manual, part III, section 38.3. It has effective protection against overcharging and short circuit and is protected against mechanical damage and dangerous reverse currents. The equivalent lithium content contained in the battery is below the permissible limits. Therefore, the battery is not subject to national and international regulations for the transport of dangerous goods/materials. Nevertheless, when transporting many batteries, these regulations may become applicable. In such cases, it may be necessary to comply with special regulations (e.g., regarding the packaging). You can find more details in the brochure (in English) at the following address on the Internet: http://purchasing.bosch.com/en/start/ Allgemeines/ Download/index.htm.

Disposal

In order to protect the environment, power tools, accessories and packaging must be sorted for environmentally friendly recycling.

Only for EU countries:

Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

As national law, power tools that can no longer be used must be collected separately and handed in at a recycling center for environmentally friendly recycling of the raw materials contained in them.

Batteries and rechargeable batteries:

Li-Ion:

Please observe the notes in the section “Transport”, page 219.

Do not dispose of batteries into household waste, fire, or water. Batteries or rechargeable batteries must be collected, recycled, or disposed of in an environmentally friendly manner.

Page from EC:

According to Directive 91/157/EEC, defective or exhausted accumulators or ordinary batteries must be recycled.

The right to make changes is reserved.

Safety Instructions

Attention! Please read the following instructions carefully. Familiarize yourself with the working elements and the correct use of the grass trimmer. Please keep the operating instructions safe for later use.

Explanation of symbols on the grass trimmer

General safety warning.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Switch off the device and remove the battery before performing adjustment and cleaning work.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before adjusting or cleaning the device, switch it off and remove the battery.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before adjusting or cleaning the device, switch it off and remove the battery.

After the cordless vacuum cleaner is switched off, the blade continues to rotate for a few seconds.

Caution - do not touch the rotating blade.

Assembly

Charging the battery

Observe the mains voltage: The voltage of the power source must match the data on the rating plate of the device. Devices marked with 230 V can also operate on 220 V/240 V.

Use only the supplied charger. Only this charger is compatible with the Li-ion battery installed in your device.

The battery is equipped with a temperature control that allows charging only in the temperature range between 0°C and 45 °C. This ensures a long battery life.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Always switch off the tool and remove the battery before adjusting or cleaning.

After switching off the battery-powered lawn trimmer, the cutting blade continues to rotate for a few seconds.

Be careful - do not touch the rotating cutting blade.

Assembly

Battery charging

Connect to the correct mains voltage!

The voltage of the power source must correspond to the value indicated on the rating plate of the charging device. Devices designed for 230V can also be operated from a 220V or 240V power grid.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety
