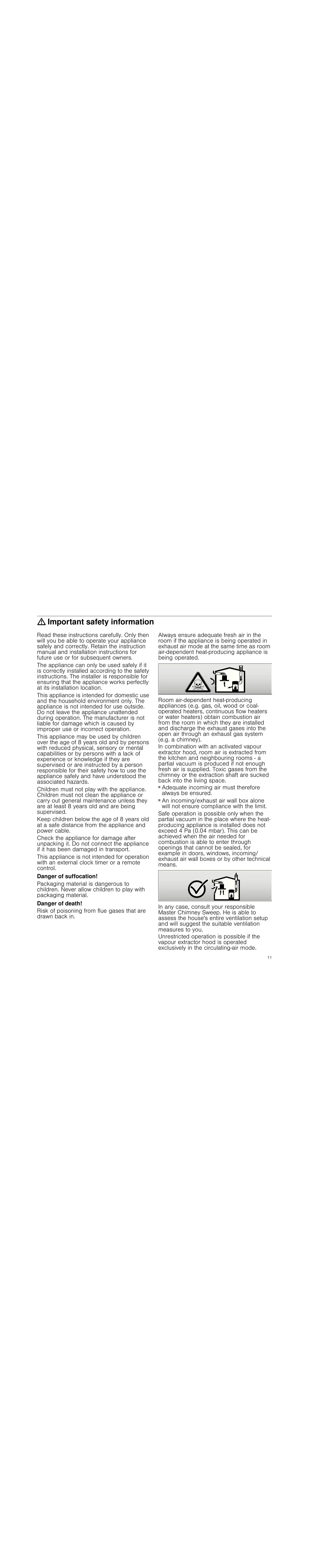

: Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners. The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location. This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. This appliance is not intended for operation with an external clock timer or a remote control. Danger of suffocation! Packaging material is dangerous to children. Never allow children to play with packaging material. Danger of death! Risk of poisoning from flue gases that are drawn back in.

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.

Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coaloperated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system

(e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space. ■ Adequate incoming air must therefore always be ensured. ■ An incoming/exhaust air wall box alone will not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heatproducing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/ exhaust air wall boxes or by other technical means.

In any case, consult your responsible

Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode. 11

■ Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. ■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heatproducing appliance for solid fuel (e.g. wood or coal) unless a closed, nonremovable cover is available. There must be no flying sparks. ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. ■ When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them. ■ Operating several gas burners at the same time gives rise to a great deal of heat. The ventilation appliance may become damaged or catch fire. The ventilation appliance must only be combined with gas burners that do not exceed the maximum total output of 12.4 kW. Risk of burns! The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance. Risk of injury! ■ Components inside the appliance may have sharp edges. Wear protective gloves. ■ Items placed on the appliance may fall down. Do not place any objects on the appliance. ■ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds. ■ Risk of jamming when retracting and extending the appliance. Never reach into the moving area of the appliance while it is Ris k of fire!

being retracted or extended. Keep children at a safe distance.

■ Cookware set down within the movement area of the appliance can fall over. Hot liquids that pour out can cause injury. Do not set down any cookware within the movement area of the appliance. ■ Cookware and cooktops become very hot. Never reach across the hot cooktop or take hold of hot cookware. Risk of electric shock! ■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. ■ Penetrating moisture may cause an electric shock. Do not use any highpressure cleaners or steam cleaners. Risk o f injury!

Risk o f electric sho ck!

Risk o f electric sho ck!

Caution! Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage. Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth. Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls. Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents. Items placed on the appliance may damage the appliance or adjacent cooktops when the appliance is extended or retracted. Do not place any objects on the moving parts of the appliance.

Environmental protection

Environmental protection

Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.

This appliance is labelled in accordance with the

European Directive 2012/19/EU concerning used electrical and electronic appliances (WEEE – waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.

This appliance can be used in exhaust-air mode or circulatingair mode.

The air which is drawn in is cleaned by the grease filters and an activated carbon filter, and is conveyed back into the kitchen.

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heating appliances.

Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.

If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

Note: To bind odours in air recirculation mode, you must install an activated carbon filter. The different options for operating the appliance in air recirculation mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.

Getting to know the appliance

Here, you can get to know your appliance and receive information about the accessories.

Retract/extend the appliance, switch the fan on and off

Operating the appliance

This appliance only works when it is completely extended. Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.

Extending/retracting the appliance

Risk of jamming when retracting and extending the appliance.

Never reach into the moving area of the appliance while it is being retracted or extended. Keep children at a safe distance.

Cookware set down within the movement area of the appliance can fall over. Hot liquids that pour out can cause injury. Do not set down any cookware within the movement area of the appliance.

The fan continues to operate for a further 15 minutes at level 1, and then switches off automatically after this time. The remaining run-on time is displayed in minutes on the display panel.

If the lighting is switched on, this is also switched off after this time. Press the x button to end the fan run-on time early.

The lighting can be switched on and off independently of the ventilation. Press the @ button.

Setting the brightness

Extending the appliance

Press and hold the @ button for 2 seconds.

The brightness is reduced.

Press the @ button to reset to the maximum brightness.

1. Remove any objects from the area of movement of the

The appliance extends fully. The fan starts at setting 2.

Retracting the appliance

Note: The filter cover must be closed completely. 1. Remove any objects from the area of movement of the

2. Press and hold the # button for two seconds.

The appliance retracts fully. The light and fan are automatically switched off.

Note: Always adjust the fan strength to meet current conditions. If there is a large build-up of steam or fumes, select a high fan setting. Switching on ■

The fan starts at setting 2. Press the + or - button to change the fan strength.

You can use the intensive setting if there is a large build-up of odours and fumes/vapours. Press the › button while ventilation is switched on. The intensive setting is activated. After 10 minutes, the electronics automatically turn the appliance down to the previously set ventilation setting. If you wish to end the intensive setting before this time expires, press the › button.

When the metal grease filter or activated charcoal filter is saturated, the corresponding symbol flashes:

Activated charcoal filter: ’

When this happens, do not delay cleaning the metal grease filter or replacing the activated charcoal filter any further.

For instructions on how to clean the metal grease filter, please refer to the section "Cleaning and maintenance". Restoring the saturation displays ■

Switch off the motor.

Press and hold the “-” button for two seconds.

Switching over the display for circulating-air mode

For circulating-air mode, the electronic control display must be switched over accordingly: ■ ■

The extractor hood must be connected and switched off.

Press and hold the “+” button for 2 seconds until ’ flashes twice on the display.

Repeatedly press the button to switch the electronic control back to exhaust-air mode (’ flashes once).

Cleaning and maintenance

Cleaning the metal mesh grease filters

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

: Risk of electric shock!

Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.

: Risk of electric shock!

Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.

Components inside the appliance may have sharp edges. Wear protective gloves.

Observe the information in the table to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use ■

harsh or abrasive cleaning agents,

cleaning agents with a high concentration of alcohol,

hard scouring pads or sponges,

high-pressure cleaners or steam cleaners.

Wash new sponge cloths thoroughly before use.

Follow all instructions and warnings included with the cleaning agents. Area

Clean with a dish cloth and dry with a soft cloth. Clean stainless steel surfaces in the direction of the grain only. Special stainless steel cleaning products are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth.

Clean using a damp dish cloth and dry with a soft cloth/towel.

Grease deposits in the grease filter may catch fire.

Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. Notes ■ Do not use any aggressive, acidic or alkaline cleaning agents. ■

When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth.

The metal mesh grease filters can be cleaned in the dishwasher or by hand.

Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters. ■

Do not clean heavily soiled metal mesh grease filters together with utensils.

Place the metal mesh grease filters loosely in the dishwasher.

The metal mesh grease filters must not be wedged in.

Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop. ■

Soak the metal mesh grease filters in a hot soapy solution.

Clean the filters with a brush and then rinse them thoroughly.

Leave the metal mesh grease filters to drain.

Removing and installing the filter

In order to guarantee efficient filtration of odours and grease, the filter must be serviced regularly. Metal grease filter The metal grease filter must be cleaned every 100 operating hours, and at least after two months. Activated charcoal filter (only in circulating-air mode) The activated charcoal filter must be replaced every 200 operating hours.

Do not use any stainless steel cleaners.

Aluminium and plastic

Clean with a soft cloth.

Clean with a soft cloth. Do not use a glass scraper.

Operating controls Hot soapy water:

Clean using a damp dish cloth and dry with a soft cloth. Risk of damage to the electronics from penetrating moisture. Never clean operator controls with a wet cloth. Do not use any stainless steel cleaners.

Opening the filter cover

2. Clean the metal grease filter and filter cover.

3. After removing the filters, clean the inside of the appliance.

Changing the activated charcoal filter (only in circulating-air mode)

1. Hold the edge of the metal clip firmly and pull towards the

middle of the filter.

2. Take the metal clip out of the holder.

3. Disconnect the activated charcoal filter from the metal grease 1. Fold the filter cover forwards. 2. Lift the filter cover forwards.

Removing metal mesh grease filter

4. Secure the activated charcoal filter back to the metal grease

filter with the metal clip.

Installing the metal mesh grease filter

1. Fit the metal grease filter. 2. Fit the filter cover.

1. Open the metal grease filter lock and remove the filter from

Note: Grease can collect in the bottom of the filter holder.

Hold the filter holder at an angle to prevent grease from dripping out.

Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.

: Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Possible cause Solution

The appliance does not work

The plug is not plugged in.

Connect the appliance to the electricity supply

Check whether other kitchen appliances are working

Check in the fuse box to make sure that the fuse

for the appliance is OK LED lights

Defective LED lights must only be replaced by the manufacturer, their customer service department or a licensed technician (electrician). What to do if water gets in If water gets in to the appliance during cooking or cleaning, proceed as follows: 1. Switch off the appliance. 2. Open the floor cupboard and mop up leaking water. 3. Leave the appliance switched off for 24 hours.

After this time, the appliance can be used again without restrictions.

Appliance does Filter cover not not switch on. closed.

The button illumination does not work.

The control unit Call the afterаsales servis faulty. ice.

The lighting does not work.

The bulbs are faulty.

Call the afterаsales service.

The grease or Clean the filter – see

If ª or ’ appears on the activated char- section "Cleaning and coal filter is sat- maintenance". display urated. --------

Close the filter cover fully.

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician. When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter to gain access). You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required. E no.

After-sales serviceO Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice GB 0844 8928999 Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply. IE 01450 2655 Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.

Accessories for circulating-air mode

(not included in the delivery) LZ53750
