USER MANUAL ER326BB70D SIEMENS

$QNDVWUH*D]OL2FDN2

# Standard-output burner with an output of up to 1.9 kW

$ High-output burner with an output of up to 2.8 kW

% Dual double-flame wok burner up to 6 kW

geräte (waste electrical and electronic equipment -

Switching on manually 12

Switching on automatically 12

Switching off a burner13

Cleaning and maintenance 14

Trouble shooting 15

Technical Assistance Service 15

Warranty conditions15

Used appliances and packaging 16

Environmentally-friendly disposal16

Additional information on products, accessories, replacement

parts and services can be found at www.siemens-home.bsh-

group.com and in the online shop www.siemens-home.bsh-

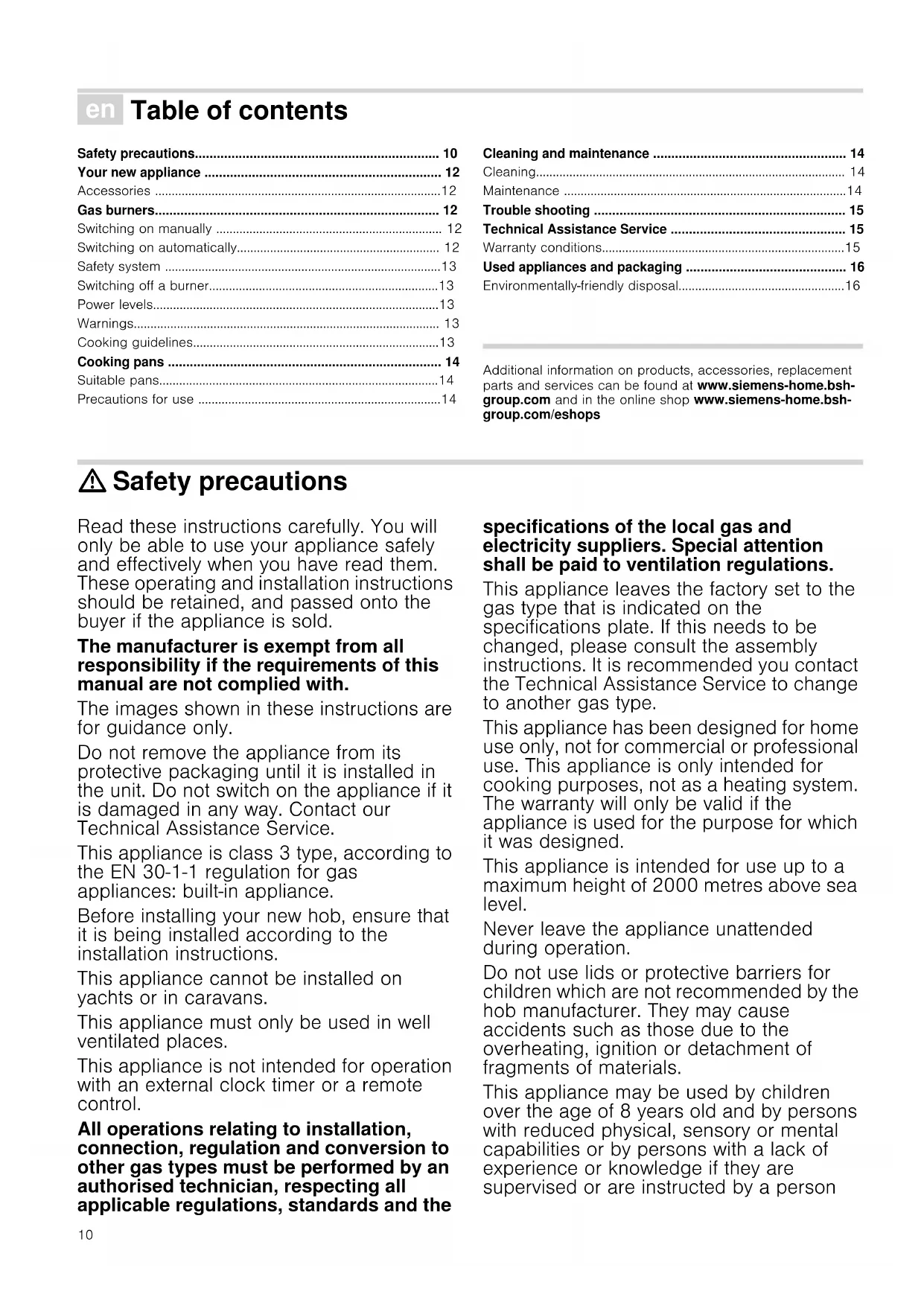

: Safety precautions

Read these instructions carefully. You will

only be able to use your appliance safely

and effectively when you have read them.

These operating and installation instructions

should be retained, and passed onto the

buyer if the appliance is sold.

The manufacturer is exempt from all

responsibility if the requirements of this

manual are not complied with.

The images shown in these instructions are

Do not remove the appliance from its

protective packaging until it is installed in

the unit. Do not switch on the appliance if it

is damaged in any way. Contact our

Technical Assistance Service.

This appliance is class 3 type, according to

the EN 30-1-1 regulation for gas

appliances: built-in appliance.

Before installing your new hob, ensure that

it is being installed according to the

installation instructions.

This appliance cannot be installed on

yachts or in caravans.

This appliance must only be used in well

This appliance is not intended for operation

with an external clock timer or a remote

All operations relating to installation,

connection, regulation and conversion to

other gas types must be performed by an

authorised technician, respecting all

applicable regulations, standards and the

specifications of the local gas and

electricity suppliers. Special attention

shall be paid to ventilation regulations.

This appliance leaves the factory set to the

gas type that is indicated on the

specifications plate. If this needs to be

changed, please consult the assembly

instructions. It is recommended you contact

the Technical Assistance Service to change

to another gas type.

This appliance has been designed for home

use only, not for commercial or professional

use. This appliance is only intended for

cooking purposes, not as a heating system.

The warranty will only be valid if the

appliance is used for the purpose for which

This appliance is intended for use up to a

maximum height of 2000 metres above sea

Never leave the appliance unattended

Do not use lids or protective barriers for

children which are not recommended by the

hob manufacturer. They may cause

accidents such as those due to the

overheating, ignition or detachment of

fragments of materials.

This appliance may be used by children

over the age of 8 years old and by persons

with reduced physical, sensory or mental

capabilities or by persons with a lack of

experience or knowledge if they are

supervised or are instructed by a person11

responsible for their safety how to use the

appliance safely and have understood the

Children must not play with, on, or around

the appliance. Children must not clean the

appliance or carry out general maintenance

unless they are at least 15 years old and

are being supervised.

Keep children below the age of 8 years old

at a safe distance from the appliance and

Risk of deflagration!

Accumulation of unburned gas in an

enclosed area carries a risk of deflagration.

Do not subject the appliance to draughts.

These might blow out the burners. Carefully

read the instructions and warnings on the

operation of gas burners.

The kitchen will become hot and humid and

combustion products produced when this

gas appliance is used. Make sure the

kitchen is well ventilated, particularly when

the hob is in operation: either keep the

natural ventilation apertures open, or install

a ventilation system (extractor hood).

Intense prolonged use of the appliance may

require additional or more effective

ventilation: open a window or increase the

power of the ventilation system.

The hotplates and their immediate vicinity

get very hot. Never touch the hot surfaces.

Keep children under 8 years old well away

from this appliance.

If the liquefied gas bottle is not upright,

liquefied propane/butane can enter the

appliance. Intense darting flames may

therefore escape from the burners.

Components may become damaged and

start to leak over time so that gas escapes

uncontrollably. Both can cause burns.

Always use liquefied gas bottles in an

The hotplates get very hot. Do not rest

inflammable objects on the hob. Do not

store objects on the hob.

Do not store or use corrosive chemicals,

products which produce fumes,

inflammable materials or non-food

products below or near this domestic

Fat or oil which is overheated can catch

fire easily. Never leave fat or oil to heat up

unattended. If oil or fats do catch fire,

never use water to put the fire out. Put the

fire out by covering the pan with a lid and

switch off the hotplate.

Cracks or fractures in the glass plate are

dangerous. Shut immediately off all

burners and any electrical heating

element. Unplug the appliance from the

mains or switch off the circuit breaker in

the fuse box. Shut off the gas supply. Do

not touch the appliance surface. Never

switch on a faulty appliance. Contact the

after-sales service.

Pans which are damaged, are not the right

size, hang over the edge of the hob or are

not positioned correctly can cause serious

injuries. Follow the advice and warnings

provided relating to the cooking pans.

In the event of a malfunction, turn off the

appliance’s gas and electricity supply. For

repairs, call our Technical Assistance

Do not tamper with the appliance's

If a control knob is too stiff to turn or it is

loose, it must not be used. Contact our

after-sales service immediately to have the

control knob repaired or replaced.

Risk of electric shock!

Do not clean the appliance using steam

Risk of electric shock!

Cracks or fractures in the glass plate

could cause electric shocks. Switch off the

circuit breaker in the fuse box. Contact the

after-sales service.12

Page 2 shows an overall view of your new appliance as well as

These appliances can be combined with conventional hobs of

the same make, using the joint accessory. See the catalogue

Depending on the model, the hob may include the following

accessories. These can also be acquired from the Technical

Assistance Service. -------- The manufacturer accepts no liability if these accessories are

not used or are used incorrectly.

There are indications to show which burner each control knob

It is essential to ensure that all the burner parts and pan

supports are correctly installed for the appliance to work

correctly. Do not swap the burner caps around.

Switching on manually

1. Press the chosen burner control knob and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter, matches,

etc.) and bring it close to the burner.

Switching on automatically

If your hob can be switched on automatically (ignition

1. Press the chosen burner control knob and turn it

anticlockwise to the maximum power setting.

While the control knob is still pressed down, sparks are

produced on all burners. The flame ignites.

2. Release the control knob.

3. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off setting

and repeat the steps above. This time, press and hold the

control knob for longer (up to 10 seconds).

: Risk of deflagration!

If after 15 seconds the flame does not ignite, switch off the

burner and open a nearby window or door. Wait at least one

minute before trying to switch the burner back on.

Only suitable for use on wok

burners with two or three

flames. Only use cookware

with a diameter of more than

26 cm, griddle plates, clay

casserole dishes, paella

pans, cookware with rounded

To extend the service life of

the appliance, we recom-

mend using the additional

Depending on the model, your hob may have a safety system

(thermocouple) that prevents the flow of gas if the burners

accidentally switch off.

To ensure that this device is active:

1. Switch on the burner as usual.

2. Without releasing the control knob, press and hold it down

firmly for 4 seconds after lighting the flame.

Switching off a burner

Turn the corresponding control knob clockwise to the 0 setting.

The progressive control knobs can be used to control the

power needed, from minimum to maximum power.

For dual double-flame burners, the inner and outer flames can

be controlled separately. The available power levels are as

It is normal to hear a soft whistling noise while the burner is

When first used, it is normal for the burner to give off odours.

This does not pose any risk and does not indicate a

malfunction. They will disappear in time.

An orange-coloured flame is normal. This is caused by the

presence of dust in the atmosphere, spilt liquids, etc.

If the burner flames are accidentally blown out, switch off the

burner operating control knob and do not try to relight it for at

A few seconds after the burner is switched off, a sound (thud)

will be produced. This is not a fault - this means that the safety

device is no longer operating.

Keep the burner as clean as possible. If the ignition sparkers

are dirty they will not light properly. Clean them periodically

using a small non-wire brush. Bear in mind that the ignition

sparkers must not suffer any serious impacts.

Maximum capacity or aperture and elec-

Inner and outer flame on full

Outer flame on low power,

inner flame on full power.

Inner flame on full power.

Inner flame on low power.

Reheating and keeping

things hot: cooked and pre-

Reheating, keeping things

hot and making tasty casse-

The cookware must not overhang the edge of the hob.

The following advice is intended to help you save energy and

Cleaning and maintenance

Once the appliance is cool, use a sponge to clean it with soap

After each use, clean the surface of the respective burner parts

once they have cooled down. If any residue is left (baked-on

food, drops of grease etc.), however little, it will become stuck

to the surface and more difficult to remove later. The holes and

grooves must be clean for the flame to ignite properly.

The movement of some pans may leave metal residue on the

Clean the burners and pan supports using soapy water and

scrub with a non-wire brush.

Alternatively, the pan supports can be put in the dishwasher.

Use the dishwasher manufacturer's recommended detergent. If

the pan supports are very dirty, they should be cleaned

Do not put the burner caps in the dishwasher.

If the pan supports are fitted with rubber rests, ensure that

these are also cleaned. The rests may come loose and the pan

support may scratch the hob.

Always dry the burners and pan supports completely. Water

droplets or damp patches on the hob at the start of cooking

may damage the enamel.

After cleaning and drying the burners, make sure the burner

caps are correctly positioned on the diffuser.

■ Do not remove the control elements when cleaning the

appliance. The appliance may be damaged if moisture finds

■ Do not use steam cleaners. This could damage the hob.

■ Never use abrasive products, steel scourers, sharp

implements, knives, etc. to remove bits of hardened food

■ Do not use knives, scrapers or similar implements to clean

the point where the glass meets the burner trims, the metal

frames or the glass/aluminium panels, if fitted.

Always clean off any liquid as soon as it is spilt. This will

prevent food remains from sticking to the hob surface and you

will save yourself any unnecessary effort.

Never slide pans across the glass surface, as you may scratch

it. In addition, try not to drop heavy or sharp objects on the

glass. Never strike any part of the hob.

Grains of sand that may come from cleaning fruits and

vegetables will scratch the glass surface.

Melted sugar, or foods which contain a lot of sugar which may

have spilt, should be cleaned off the hotplate immediately,

using the glass scraper.

Burner Minimum diameter

Use pans which are the right

size for each burner.

Do not use small pans on

large burners. The flame must

not touch the sides of the pan.

Do not use damaged pans,

which do not sit evenly on the

hob. Pans may tip over.

Only use pans with a thick, flat

Do not cook without using a lid

and make sure the lid is

properly fitted. This wastes

Always centre the pan over the

burner, not to one side.

Otherwise it could tip over.

Do not place large pans on the

burners near the control

damaged by the very high

Place the pans on the pan

supports, never directly on the

Make sure that the pan

supports and burner caps are

correctly positioned before

using the appliance.

Pans should be placed on the

Do not strike the hob and do

not place excessive weight on

Sometimes certain faults detected can be easily resolved.

Before calling the Technical Assistance Service, bear in mind

the following advice:

Technical Assistance Service

When contacting our Technical Assistance Service, please

provide the product number (E-Nr.) and production number

(FD) of the appliance. This information is given on the

specifications plate located on the lower section of the hob and

on the label in the user manual.

Please find the contact data of all countries in the enclosed

customer service list.

To book an engineer visit and product advice

Rely on the professionalism of the manufacturer. You can

therefore be sure that the repair is carried out by trained service

technicians who carry original spare parts for your appliances.

In the unlikely event that the appliance is damaged or does not

meet your expectations in terms of quality, please inform us as

soon as possible. For the warranty to be valid, the appliance

must not have been tampered with, or used inappropriately.

The applicable warranty conditions are those set out by the

company's representative office in the country of purchase.

Detailed information is available from retail outlets. Proof of

purchase must be presented to obtain the benefits of the

We reserve the right to introduce changes.

Fault Possible cause Solution

The general electrical sys-

tem is malfunctioning.

Defective fuse. Check the fuse in the main fuse box and change it

The automatic safety switch or circuit breaker has

Check the main control panel to see if the auto-

matic safety switch or circuit breaker has tripped.

The automatic switching

on function does not work.

There may be food or cleaning products stuck

between the ignition sparkers and the burners.

The space between the ignition sparker and the

burner must be clean.

The burners are wet. Dry the burner caps carefully.

The burner caps are not correctly positioned. Check that the burner caps are correctly posi-

The appliance is not earthed, is poorly connected

or the earthing is faulty.

Contact the installation technician.

The burner flame is not uni-

The burner components are not correctly posi-

Correctly place the parts on the appropriate

The grooves on the burner are dirty. Clean the grooves on the burner.

The gas flow is not normal

The gas supply is blocked by gas taps. Open all gas taps.

If the gas is supplied from a gas cylinder, check

that it is not empty.

Change the gas cylinder.

The kitchen smells of gas. A gas tap has been left on. Turn off the taps.

Incorrect coupling of gas cylinder. Check that the coupling is sound.

Possible gas leak. Shut off the gas supply, ventilate the premises and

immediately notify an authorised installation techni-

cian to check and certify the installation. Do not

use the appliance until ensuring that there is no

gas leak in the installation or appliance itself.

The burner immediately

switches off after releasing

The control knob was not held down for long

Once the burner is on, hold the control knob down

a few seconds longer.

The grooves on the burner are dirty. Clean the grooves on the burner.

Calls charged at local or mobile rate.

0.03 € per minute at peak. Off peak 0.0088 € per

Used appliances and packaging

If the ) symbol is shown on the specifications plate, bear in

mind the following instructions:

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

The packaging of your appliance has been manufactured using

only the materials which are strictly necessary to guarantee

efficient protection during transport. These materials are 100%

recyclable, thus reducing the environmental impact. You can

also contribute to caring for the environment by following the

■ Dispose of the packaging in the appropriate recycling bin.

■ Before you get rid of an old appliance, make sure you disable

it. Contact your local authority to find out the address of your

nearest recycling centre to dispose of your appliance.

■ Do not pour used oil down the sink. Collect it in a sealed

container and take it to an appropriate collection point or,

failing that, place it in the rubbish bin (it will end up in a

controlled dump; this is probably not the best option, but it

will avoid contaminating ground water).

This appliance is labelled in accordance with

European Directive 2012/19/EU concerning used

electrical and electronic appliances (waste electrical

and electronic equipment - WEEE). The guideline

determines the framework for the return and recycling

of used appliances as applicable throughout the EU.17

www.siemens-home.bsh-group.com/eshops

and electronic equipment - WEEE).

Recipienti adeguati 35

home.bsh-group.com/eshops

and electronic equipment - WEEE).

Branders Minimale diameter

ten of de aardleiding is defect.

(waste electrical and electronic equipment - WEEE).

www.siemens-home.bsh-group.com/eshops

de que as grelhas e as tampas

electrical and electronic equipment - WEEE).

Mağaza: www.siemens-home.bsh-group.com/eshops

www.siemens-home.bsh-group.com
