USER MANUAL BFD672MNW BRANDT

MANUEL D'INSTRUCTIONS - FR

INSTRUCTION MANUAL - EN

GUIA DE INSTALLACION Y USO - ES

MANUAL DE INSTRUÇÖES - PT

BRUGSVEJLEDNING - DA

NAVOD KPOUZITI-CZ

GEBRUIKSHANDLEIDIN - NL

You have just purchased a BRANDT product and we thank you for your trust.

We designed and manufactured this product with you, your lifestyle and your needs in mind, in order to best meet your expectations. We have put into it our expertise, our spirit of innovation and all the passion which has driven us for over 60 years.

We make every effort to ensure our products better meet your requirements, and our Customer Relations Department is at your disposal and will be happy to hear any questions or suggestions you may have.

You may also visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is happy to assist you in your daily life and hopes you will fully enjoy your purchase.

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

CONTENTS

FOR THE USER'S ATTENTION. 4

Safety and warning information. 4

Disposal 5

Installation 5

SAFETY PRECAUTION 9

POSITIONING 12

OPERATION CHECK 13

FOOD STORAGE 14

MAINTENANCE 17

TROUBLESHOOTING 18

FOR THE USER'S ATTENTION

This appliance is in accordance with the EU guidelines

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings.

To avoid to do damage, mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety instructions.

Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that a using it throughout its life will be properly informed on its correct appliance usage and safety.

Manufacturer cannot be responsible for damages caused by omission.

GENERAL SAFETY AND WARNINGS

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications

Safety for children and others who are vulnerable people:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

the hazards involved.

Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Keep all packaging away from children as there is risk of suffocation
- Do not let children play with the appliance, keep pets away.

• Old appliances must immediately be operated as unusable. Unplug and turn off the power cable flush with the appliance. Make the door lock inoperable, or better yet, remove the door to prevent such a child or animal may remain trapped inside while playing.

If problems occur, and that you cannot solve with the following advice we give you (see "Troubleshooting"), use only the approved customer service centres or to a qualified professional.

WARNING

• To avoid a hazard due to instability of the appliance, it must be installed, fixed if necessary, in accordance with the instructions.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• Do not use mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are clearly recommended by the manufacturer.
• Do not store explosive substances inside this appliance such as aerosols containing flammable gases propellants.
• Do not place the appliance in direct sunlight.
• Do not expose to flame.
• Stop the appliance and unplug it before cleaning or moving it.
• For models equipped with a water

dispenser or ice maker compartment, fill or connect only with a drinking water supply.
- If the supply cord is damaged, it must be replaced by the manufacturer, its after sales service or similarly qualified persons in order to avoid a hazard.

Cooling agents and insulation used in this product contain flammable gases. When you scrap the appliance, do it from an authorized collection point. Do not expose to flame

Refrigerant

Refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance; it is a gas more environmentally friendly, which is nevertheless flammable.

During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit is damaged.

Caution: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and any source of ignition.

-Thoroughly ventilate the room in which the appliance is located.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the electric cord may cause short-circuit, fire, and/or electric shock.

Disposal

This symbol indicates that this product should not be treated as household waste.

Your appliance contains recyclable materials. It is marked with this logo to indicate that used appliances must be delivered to an authorized collection point.

Check with your dealer or technical services in your area to find out the points for used appliances closest to your home. The appliance recycling organized by your manufacturer will be done under the best conditions, according to the European directive on waste electrical and electronic equipment.

Thank you for your help in protecting the environment.

Some packing materials of this device are also recyclable. Recycle them and play a role in protecting the environment by depositing them in the containers provided for this purpose.

In accordance with the most recent legislation on the protection and respect for the environment, your appliance does not contain HFC's, but a refrigerant called R600a. The exact type of refrigerant used in your appliance is also clearly indicated on the rating plate located inside the appliance, on the left wall down. R600a is a non-polluting gas that does not harm the ozone layer and whose contribution to the greenhouse effect is virtually zero.

Installation

WARNING: Correct installation of

your device complying with the rules that are given in this installation guide and use will allow you to keep your food in good conditions and with optimized energy consumption.

• If your appliance has wheels, remember that they are only used to facilitate small movements. Do not move on longer distance.
• Make an initial cleaning before connecting your device to the mains. Before any maintenance, disconnect your device. Do not pull the power cord but directly enter the profile.
• Place the unit in a dry and ventilated room.
• Avoid balconies, porches, decks; excessive heat in summer and cold in winter could prevent proper operation of your device, or even damage.

• Do not place it near a heat source such as radiator or oven for example.

• Keep a minimum distance between your refrigerator and other furniture: 3 to 5cm on the sides and 10cm above for good air circulation around the unit.

• Place the appliance at a suitable distance from the wall using the spacers if they provided in the accessory bag.
• Your appliance has been designed for optimum performance in a room temperature. We then say that it is designed for a special "climate class". This climate class is clearly stated on the rating plate located inside your appliance, on the left wall down. Beyond these temperatures, the performance of your appliance may be reduced.

Classe	Temperature
SN	from + 10°C to + 32°C
N	from + 16°C to + 32°C
ST	from + 16°C to + 38°C
T	from + 16°C to + 43°C

Advice:

After installation of your appliance, set its feet so that it is slightly tilted backwards, it will facilitate the closing of the door.

Before putting food, clean the interior and exterior of your appliance with bicarbonate of soda dissolved in water (1 tablespoon of bicarbonate for 4 litres of water). Do not use alcohol, abrasive powders or detergents which could damage the surfaces. (See chapter "Cleaning your appliance").

ELECTRICAL CONNECTION

The electrical installation must comply with the applicable standards and must be able to withstand the maximum power indicated on the rating plate.

The plug must be properly grounded.

We cannot be held responsible for any incident caused by defective electrical installation.

Electrical Installation Tips

• Do not use extension cable or adapter or power strip.

• Never remove the grounding.

• The socket must be easily accessible but out of reach of children.

In case of doubt, ask to your installer.

Your device is compliant with EU directives and their modifications.

ENERGY SAVING

To reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
• Keep doors open for as short time as possible.

• Do not put hot food in your refrigerator or freezer, particularly if they are soups or preparations which emit a large amount of steam.

• Ensure the optimal functioning of your device by not letting accumulate too much frost in the freezer (defrost it when the ice thickness exceeds 5-6 mm) and periodically cleaning the condenser (see "Maintenance your device").

• Regularly check the door seals and make sure that they always close effectively. If this is not the case, please contact service after sales service.

• Do not let it set at too low a temperature.

• Not fulfilling with drawers, bins and shelves arrangement could lead to increased energy consumption.

WARNING:

If the unit was shipped to home in a horizontal position, place it vertically and wait two hours before plugging it in. A small amount of oil may have flowed into the refrigeration circuit, you need to give it time to flow back towards the motor before connecting the appliance, otherwise you may damage it.

Before any maintenance, disconnect the power plug. Do not pull the power cable but

directly enter the profile.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and turn off the power.

• Do not clean the appliance with metal objects, a steam system, volatile oils, organic solvents or abrasives.

• Do not use sharp objects to remove ice. Use a plastic scraper.

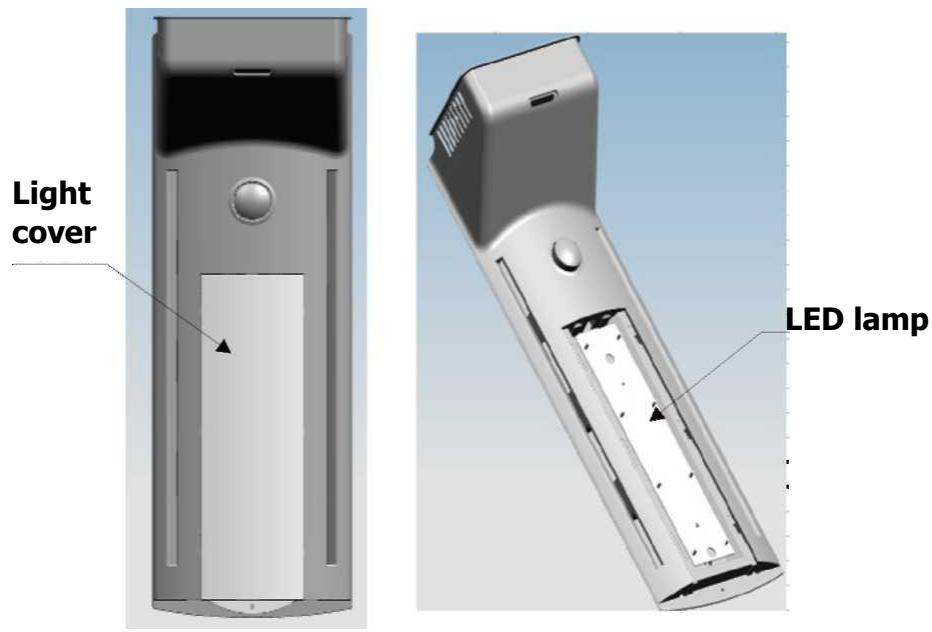

• To replace the light bulb, if operation is possible by the user himself, please refer to the "Maintenance" of this manual. Always be sure to unplug your appliance before.

WARNING: If the appliance is equipped with a LED lighting, it can only be replaced by a qualified technician.

Caution: risk of fire (R600a)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING:

-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

-WARNING: Do not damage the refrigerant circuit.

-WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. -Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

SAFETY PRECAUTION

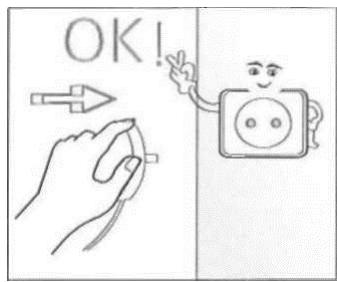

Please always follow the safety hint listed below:

The power supply for the unit should be exactly the same as described on the data sheet, and use the standard tri-prong socket.

The unit should be operated in the absence of flammable or explosive fumes. It is prohibited to put flammable, acid or volatile goods in cabinet.

Please unplug the unit first when you replace the light bulb or repair the refrigerator.

Please unplug the unit immediately if you find any abnormal smell or smoke, and contact your local service center.

Do not store or place dry ice in the refrigerator.

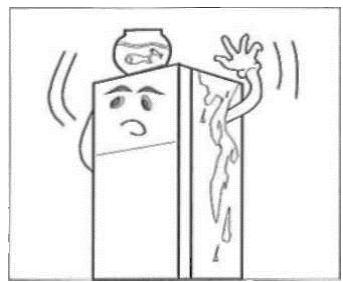

Please don't allow water on the cabinet, or put a vessel full of water on the refrigerator. If the refrigerator is wet, the electrical insulation capability may be weakened.

Hanging or sitting on the door is very dangerous, it may overturn the unit and subvert the goods in (or on) the refrigerator.

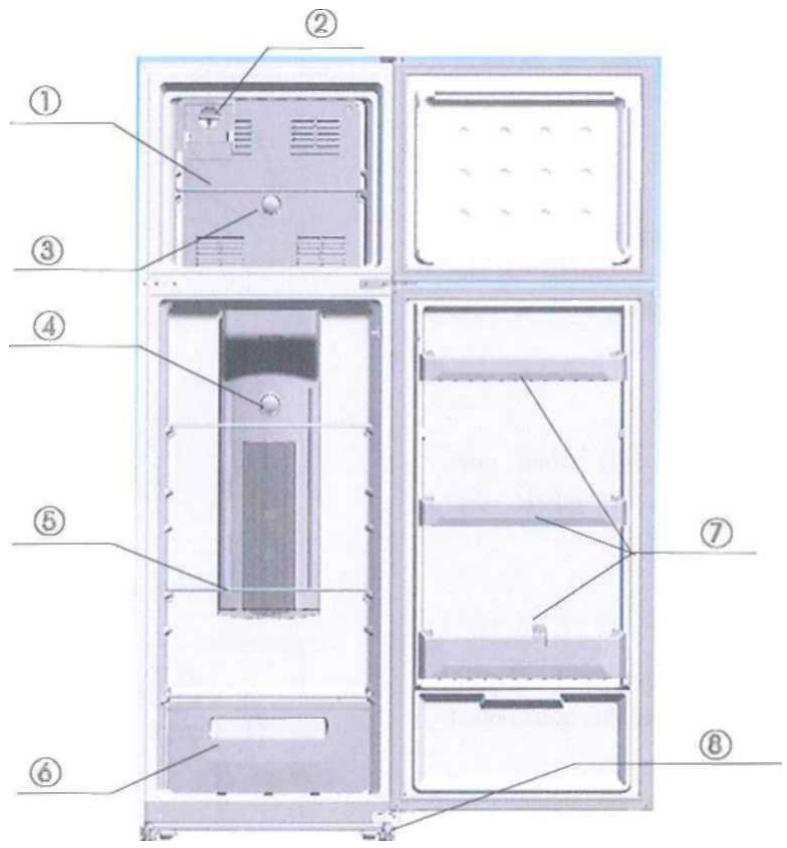

PARTS LIST (Optional)

Note: Figures in the user manual are only for reference. The actual product may differ slightly.

1. Freezer shelf 2. Ice maker 3. Control knob freezer
2. control knob refrigerator 5. Shelf 6. Crisper
3. door tray 8. Adjustable foot

Rated Power(W)	90
Size(width/depth/height):mm Net	598x642x1764
Net weight	60
Rated temperature rise(min)	700
Overall space required in use(mm)	W987*H1780*D1174

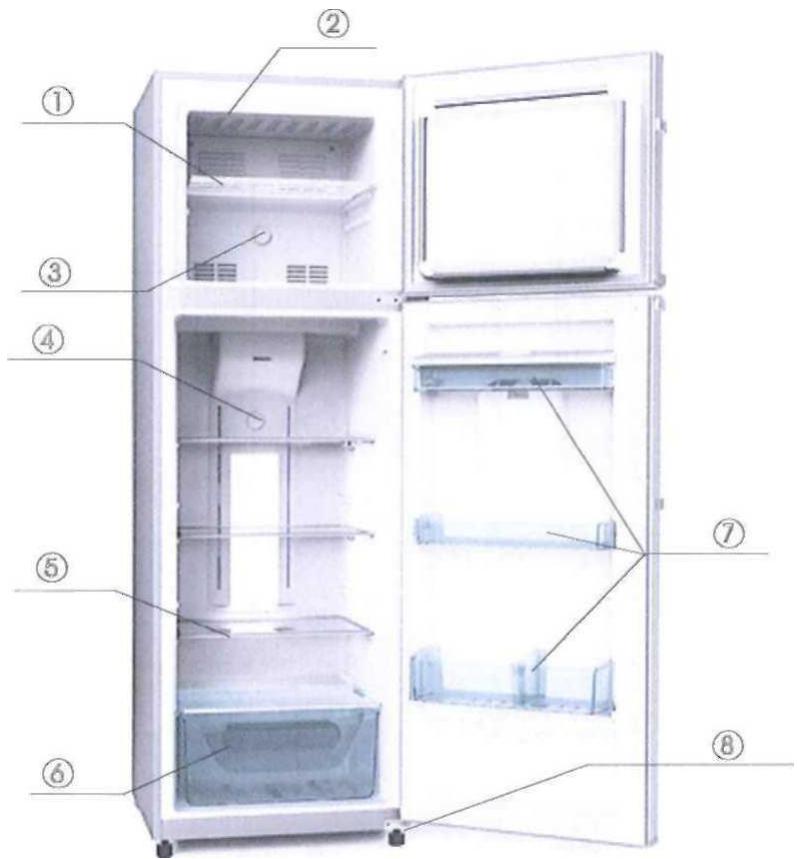

PARTS LIST (Optional)

Note: Figures in the user manual are only for reference. The actual product may differ slightly.

1. Freezer shelf 2. Ice maker 3. Control knob freezer
2. control knob refrigerator 5. Shelf 6. Crisper
3. door tray 8. Adjustable foot

Rated Power(W)	90
Size(width/depth/height):mm Net	598x642x1764
Net weight	60
Rated temperature rise(min)	700
Overall space required in use(mm)	W987*H1780*D1174

POSITIONING

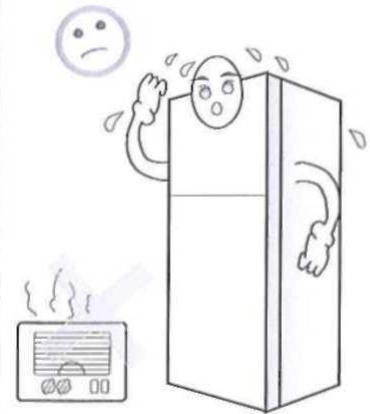

The unit should be placed in a ventilated and dry environment. Do not put the unit in direct sunlight, and keep it as far as possible from heat sources.

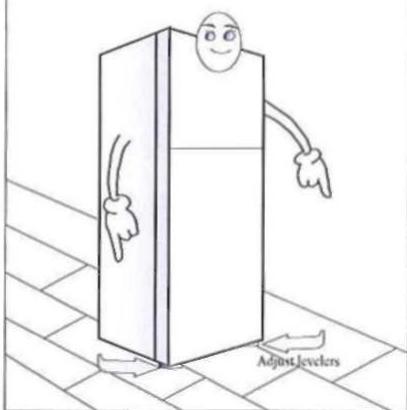

The unit should be placed on flat and stendy ground. Keep the unit level by adjusting the front leg levelers.

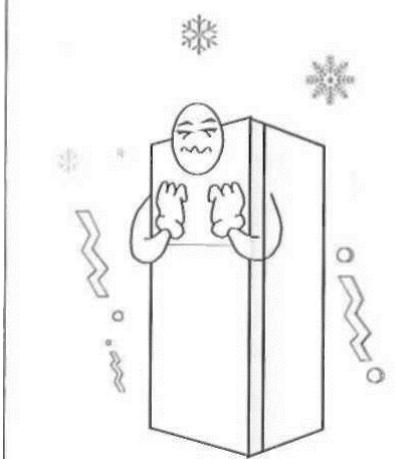

Don't put the unit in cold area.

There should be enough, spare space around the unit as shown, to allow proper ventilation.

No less than 10cm from the back of the refrigerator to the adjacent walls respectively. This requirement is good for open and close of the door and also for heat emission.

OPERATION CHECK

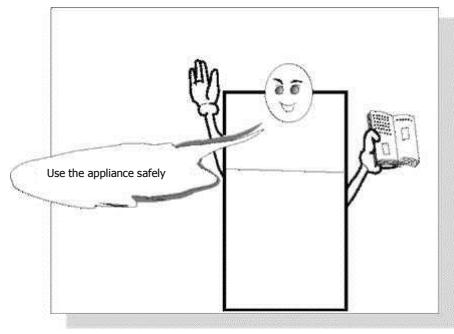

Make sure the unit has been placed properly and all instructions have been observed.

Adjust the control knob to the middle position, and then plug in the unit. After closing the door for several minutes, both side of cabinet becomes warm.

Wait 30 minutes and open the freezer compartment door. If you can feel cold air, the unit works properly.

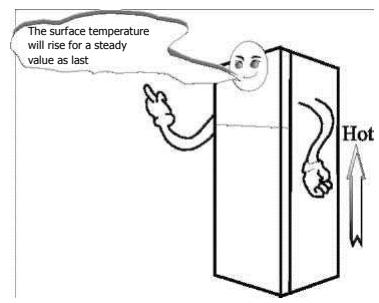

You can set the desired temperature in the compartment after a certain period of time.

FOOD STORAGE

Default temperature in the fresh compartment is between 0-4 degrees C, and although this lower temperature limits bacteria propagation, it is not suitable for a long period of food storage.

FRESH FOOD STORAGE

Cooked food should be cooled down to room temperature before it is stored in the refrigerator.

It is better to put the food in a sealed bag before placing it into the refrigerator.

In order to keep vegetables fresh in the crisper, any water should be removed first, otherwise the vegetables may spoil.

If vegetables are put into a bag, they can be stored for a longer period of time.

FOOD STORAGE

CONTROL KNOB

It is used to adjust the desired temperature of the different compartment.

R-TEMP control knob

F-TEMP control knob

The user can adjust cooling or freezing temperature by turning the control knob located at the back of the cooling zone cabinet. Refer back to the above picture.

The left knob is used to control cooling temperature, while the right one is to control the freezing temperature.

R-TEMP control knob

• Turn the knob clockwise, the cabinet temperature will be cooler.
• Turn the knob counter-clockwise, the cabinet temperature will be raised.

F-TEMP control knob

• Turn the knob counter-clockwise, the cabinet temperature will be colder.
• Turn the knob clockwise, the cabinet temperature will be raised.

FROZEN FOOD STORAGE

The temperature of the freezer is colder than -18^ . Frozen food can be stored for longer periods of time.

After buying frozen food, please put it into the freezer compartment as soon as possible.

FOOD STORAGE

Any hot food must be cooled down to room temperature before it is put into the freezer.

Please do not put glass containers filled with liquid into the freezer compartment as the glass may break.

It is better to sort the food before putting it into the freezer. Storing the same type of food together will help minimize the time during which the freezer door is open and, do a result reduce energy consumption.

The food should not be put too close to the outlet or inlet of the airflow. Doing so may affect the air circulation.

DOOR TRAY

There are some ventilation holes on the bottom of the door tray, please try not to block them all when putting the food in.

ICE TRAY

Fill the tray with cold water to near the top of each compartment. The fuller the stray, the more likely it could spill taking it from faucet to freezer.

When the cubes are fully frozen, twist the knob to separate the ice from the cubes, and recover the ice from the below box. Do not over-bend the ice maker tray to avoid breaking it.

MAINTENANCE

CLEANING

Always unplug the unit before cleaning.

The unit should be cleaned frequently both inside and outside using water and a little neutral detergent. Never use boiling water, harsh cleaning agents, acid, alkali or benzene etc.

WATER PAN CLEANING

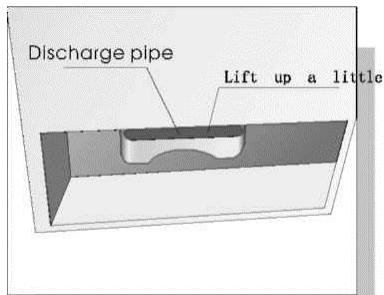

Make sure the fridge is unplugged before you take out the water pan.

The water pan is located at the back of the cabinet. Its function is to collect and evaporate the defrost water. It usually does not need special care, but if water is over flowing and an odd smell emanates from it, it may need to be checked and cleaned.

Pull out the power cord first. Lift the water pan up a little, and then pull it straight out carefully. (Caution: make sure the discharge pipe is not too hot). After cleaning, remix the water pan in its original position. Make sure that the pipe is on top of the water pan before you push in it the original position.

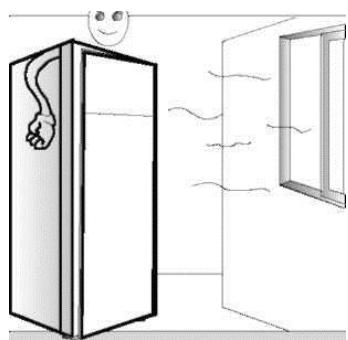

LEAVING THE UNIT SWITCHED

If the unit is switched off for a long time, it should be unplugged and thoroughly cleaned. Make sure to leave the door slightly open, and place the unit in a well-ventilated area to avoid any odour.

TROUBLESHOOTING

Before calling for service, please check the following issues first:

The reason of the trouble

Trouble	Possibility
The unit doesn't work	• Power is not on. • Low voltage
The unit works inefficiently	• The control knob is set at a "low number" position • Too much food in the unit • Hot food in the unit • Door opened & closed too frequently • There is a heat source nearby • The unit is exposed to direct sunlight
Noise	• Floor is not flat, and the unit is not placed steadily. • Contents are not placed in the right position
Food frozen	• Is the control knob set at proper position? Too high? • Is the food near the outlet of cold draught

TROUBLESHOOTING

FOLLOWING PHENOMENON IS NORMAL

The rivulet type of sound emanating from the unit is caused by the refrigerant flowing inside of the system pipe.

While the unit runs, heat radiates from both sides of the cabinet.

When the weather is too humid, the edges around the door may have a little moisture, wipe it with a dry cloth.

CHANGING THE LIGHT BULB

Please contact the service agent or similarly qualified persons if the light needs be changed.

Before changing the light board, please unplug the fridge first, then pull down the light cover and change the light board according to the picture, as shown above.

Make sure the light board is 220 - 240V /50Hz / 2W

Correct Disposal of this product

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Energy Saving Tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

INSTALLATION AF APPARATET 6

SIKKERHEDSFORHOLDSREGLER 10

PLACERING 13

TJEK AF ENHEDENS DRIFT 14

OPBEVARING AF MADVARER 15

VEDLIGEHOLDELS 18

FEJLFINDING 19

FOR BRUGERENS OPM&AERKSOMHED

INSTALLATION AF APPARATET

Vigtigt:

Det er kun

INSTALLATIE VAN UW APPARAAT 6

VEILIGHEIDSVOORZORGEN 10

PLAATSING. 13

CONTROLE VAN DE WERKING 14

VOEDSEL BEWAREN 15

ONDERHOUD 18

PROBLEMEN OPLOSSEN 19

INSTALLATIE VAN UW APPARAAT

Opgelet: Enkel een
