USER MANUAL BFU862YNA BRANDT

Close-up of transparent ice cubes with water droplets and bubbles, no text or symbols visible

MANUEL D'INSTRUCTION FR INSTRUCTION MANUAL EN MANUAL DE INSTRUCCIONES ES NÁVOD K OBSLUZE CZ NÁVOD NA OBSLUHU SK

Congélateur Freezer Congelador Chladnička

Ref: BFU8620NW

BFU8620NX

BFU8620NA

BFU862YNW

BFU862YNX

BFU862YNA

BFU8610NW

BFU8610NX

Chère Cliente, Cher Client,

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Simple line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Pure mechanical assembly diagram showing a lever and bracket (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram showing a mechanical assembly with a bracket and a small component, no text or symbols present

Technical line drawing of two rectangular electronic components with no visible text or symbols

Pure mechanical diagram showing a curved component with mounting holes and a plus symbol (no text or labels)

Simple line drawing of a curved mechanical component or bracket (no text or symbols)

Simple line drawing of a mechanical component with a bracket and small protrusions (no text or symbols)

Diagram of a mechanical assembly with a curved arrow indicating motion or direction (no text or symbols)

Mechanical assembly diagram showing a piston and shaft assembly with directional arrows (no text or labels)

Pure mechanical diagram showing a beam with supports and joints, no text or symbols present

Simple line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Two identical mechanical or fluidic device diagrams with no visible text, numbers, or symbols.

Simple line drawing of a corner-mounted device with a small object on top (no text or symbols)

Simple line drawing of a roof structure with a small object on the side (no text or symbols)

Pure technical line drawing of a bracket or frame structure without any text, numbers, or symbols

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical setup with a tray, blocks, and a ruler (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical bracket or mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or frame structure without any text, numbers, or symbols

Simple circular diagram with two vertical lines and a horizontal line inside, no text or symbols present.

Pure mechanical assembly diagram showing a bracket and shaft without any text or symbols

Diagram showing a mechanical or structural component with labeled parts ① and ②, likely illustrating a process or assembly.

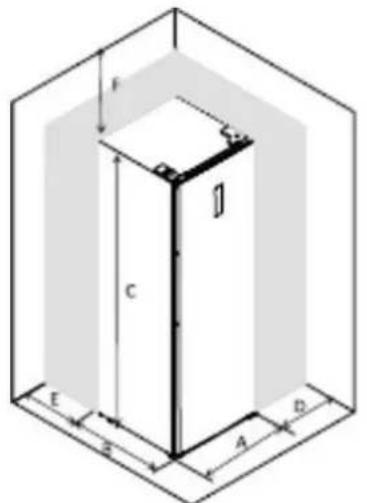

Espace à respecter

F C E A D

H D D G l m'

A	595
B	660
C	1851
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or cancellation status.

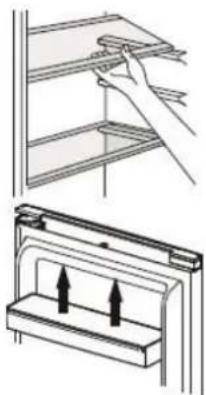

Diagram showing a hand placing a component above a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

CONTACTS & INFORMATIONS

Interventions France

You have just purchased a BRANDT product and we thank you for your trust.

We designed and manufactured this product with you, your lifestyle and your needs in mind, in order to best meet your expectations. We have put into it our expertise, our spirit of innovation and all the passion which has driven us for over 60 years.

We make every effort to ensure our products better meet your requirements, and our Customer Relations Department is at your disposal and will be happy to hear any questions or suggestions you may have.

You may also visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is happy to assist you in your daily life and hopes you will fully enjoy your purchase.

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

SAFETY

This appliance complies with the European directives.

SAFETY GUIDELINES

For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.

To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.

Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.

The manufacturer shall not be held liable in the event of misuse of the appliance.

GENERAL SAFETY AND WARNINGS

This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.

The refrigerating and insulating agents used in this appliance contain inflammable gases.

When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:

√ Avoid naked flames and all sources of inflammation.
√ Ventilate the room in which the appliance is installed.

Installation safety

• Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• It is dangerous to change the composition of this model in any way whatsoever.
• Ensure that the power cord is not trapped or damaged when you position your appliance.
• Any damage to the power cord may result in a short circuit and/or electrocution.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
• Do not place multiple plugs or portable power supply units behind the appliance.
• For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons

- This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully understood.

● Children must not play with the appliance.

● Children must not clean and maintain the appliance without supervision.
- Children aged 3 to 8 are allowed to load and unload refrigeration appliances.
- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use

• Do not damage the refrigerating circuit.
• Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.
• Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.
• Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety

To avoid contaminating food, follow the instructions below:

● Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.
- Regularly clean any surfaces that may come into contact with food and accessible drain systems.
- Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.
- Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.
- The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.
- The "one, two and three star" compartments are not suitable for freezing fresh foods.
- If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any

DISPOSAL

This symbol indicates that this product should not be treated as household waste.

Only dispose of the appliance in certified collection centres.

Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.

Contact your town hall or your retailer for the used appliance collection points closest to your home. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive on Waste Electrical and Electronic Equipment.

This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolant gas used in your appliance is clearly shown on the ID plate inside the fridge part of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.

Used appliances must be immediately made unusable.

Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

ECODESIGN

To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on the energy label on your product.

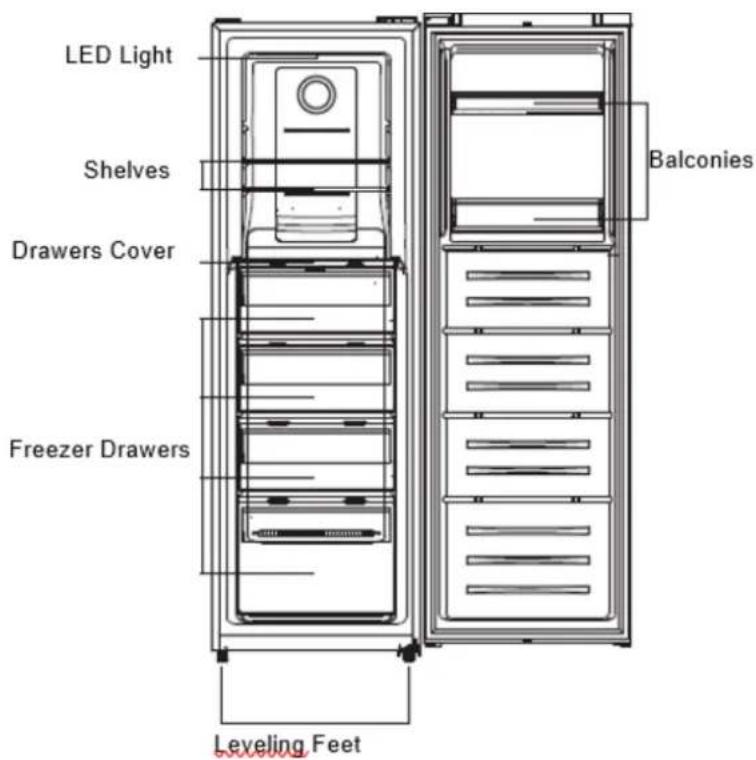

Layout and presentation of your appliance

• This refrigeration appliance is not intended to be used as a built-in appliance
- Your appliance was designed and tested to optimise its energy use.
- The proposed layout represents the ideal solution for achieving ideal energy consumption and optimum food storage.

LED Light Shelves Drawers Cover Freezer Drawers Balconies Leveling Feet

This illustration is only for hinting, the detail please check your appliance.

You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.

Energy-saving measures

In order to reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
- Leave the doors open for the shortest time possible.
- Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
- Check that your appliance is working correctly and do not allow too much ice to accumulate in the freezer (defrost when the ice is more than 5-6 mm thick). Clean the condenser on a regular basis.
- Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
- Do not adjust the temperature too low.

Storing food

Here are some rules you should follow:

• Maintain the cold chain and select "Booster" mode at least 6 hours before coming home with groceries.
• Defrost the freezer and clean it at least once a year.
• Keep home-made food in the refrigerator after first taking care to leave it to cool.
• Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.

Area	Type of compartment	Recommended temperature
Frozen food compartments	0 star compartment (depending on model)	0°C
	1 star compartment (depending on model)	-6°C
	2 star compartment (depending on model)	-12°C
	3 star compartment (depending on model)	-18°C
	4 star freezer drawers/shelves (depending on model)	-18°C

- Place the food in the locations recommended in the tables below.

Frozen food compartments (compartments available depending on model)

Freezer compartments	Logos & Markings	Type of food
0 star compartment		To store sorbet for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food.
1 star compartment		To store frozen products for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food.
2 star compartment		To store frozen products for a few days, make ice cream and ice cubes.This compartment is not suitable for freezing fresh food.
3 star compartment		To store frozen products for a few weeks/months and make ice cubes.This compartment is not suitable for freezing fresh food.
4 star freezer drawers/shelves		To freeze food and store:- Meat, fish (lower drawer/shelf).- Vegetables, chips (intermediate drawer/shelf).- Ice cream, fruit, ready-made dishes (upper drawer/shelf)

Care before installation

Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Never use detergents or abrasive cleaners, they will damage the inside coating.

When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.

Location

Warning! Never expose the appliance to a naked flame.

• Install the appliance in a dry and well ventilated place.
- The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.
- Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The refrigerator may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the "climate class" it is designed for. Ensure that the chosen location is compliant with these temperature limits:

Class	Ambient temperature
SN	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C
SN-ST	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38°C
SN-T	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43°C
N	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 32°C
ST	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 38°C
T	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 43°C

• Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.

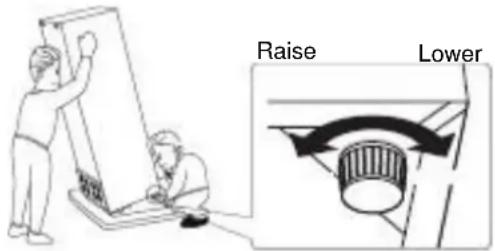

• Appliance levelling is achieved by adjusting one or more adjustable feet located under the unit (refer to the "Levelling the appliance" section).

If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.

Door Reversibility

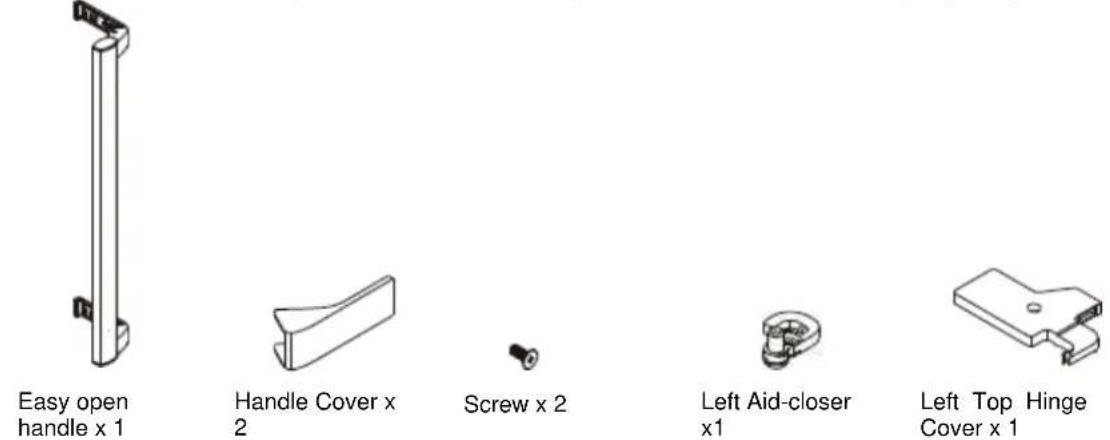

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag:

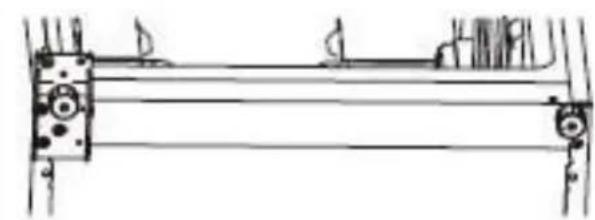

1. Remove upper wire box covers.

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Pure technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

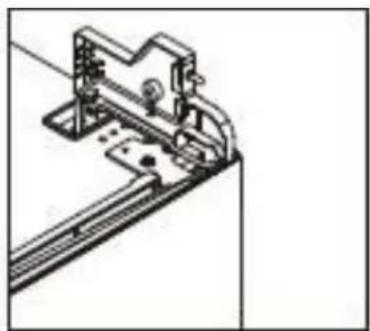

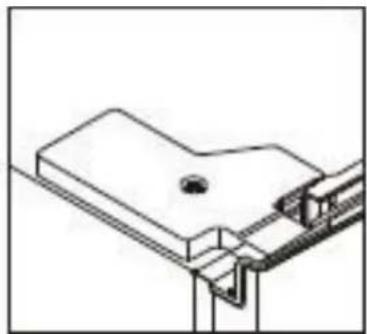

1. Unscrew right top hinge cover, and disconnect connectors of door switch and display.

Pure mechanical assembly diagram showing a lever and base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

1. Unscrew and remove the top hinge, and then remove the door.

Simple line drawing of a mechanical component with no text or symbols

Two simple line drawings of rectangular storage or cabinet-like objects, one open and one closed, with no text or symbols present.

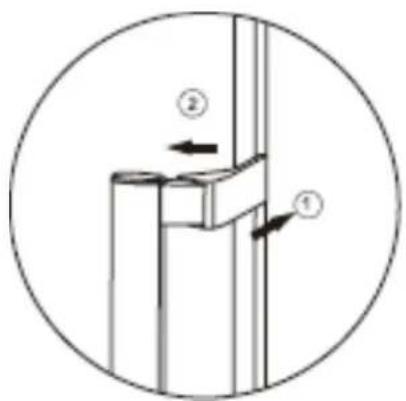

1. Remove the right aid-closer, and take out left aid-closer from accessories bag and install t at left side.

Pure mechanical diagram showing a curved component with a plus symbol at the end (no text or labels)

Pure mechanical component outline without any text, numbers, or symbols

1. Unscrew the bottom hinge, and remove the adjustable foot from the left side to the right side.

Simple line drawing of a mechanical component with a bracket and two small pins (no text or symbols)

Diagram of a laptop with an open screen and curved arrows indicating motion or movement (no text or symbols)

1. Unscrew and move the bottom hinge pin from the right side to the left side, then install the bottom hinge on the left side of the appliance.

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

Pure mechanical diagram showing a beam with supports and joints, no text or symbols present

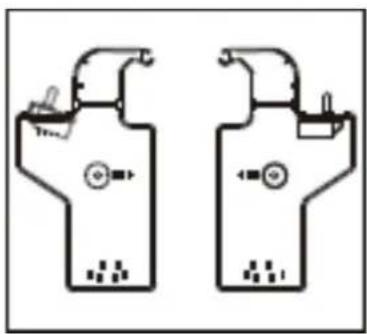

1. Unscrew and move the top hinge pin from bottom side to upper side. Remove door switch from right hinge cover and then install it in left hinge cover which is placed in accessory bag.

Pure mechanical assembly diagram showing a bracket with two cylindrical components and a curved arrow indicating motion (no text or symbols)

Two identical mechanical or fluidic device diagrams with no visible text, numbers, or symbols.

1. Unscrew and move the top decorative cover on the left side, and install it on the right side.

Simple line drawing of a junction bracket with a small object on top (no text or symbols)

Simple line drawing of a roof structure with a small object on the side (no text or symbols)

1. Install the door, and then move the connecting wires from right side to left side.

Pure technical line drawing of a mechanical bracket or frame structure without any text, numbers, or symbols

Simple line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

1. Install the top hinge to the left side, please slightly adjust the top hinge while installing to make sure gasket is well sealed.

Simple line drawing of a conveyor belt system with a tray and bin (no text or symbols)

1. Connect connectors of door switch and display, and install the left top hinge cover.

Mechanical assembly diagram showing a bracket with mounting holes and a rail support (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting structure without any text, numbers, or symbols

1. Install the upper wire box covers to the right side.

Technical line drawing of a mechanical bracket or frame structure (no text or symbols)

Technical line drawing of a door frame with mounting bracket (no text or symbols)

Easy open handle installation

1. Remove the screw hole covers.

Simple circular diagram with two vertical lines and a horizontal line inside, no text or symbols present.

1. Take out the easy open handle which is placed in crisper drawer, and install it.

Pure mechanical joint diagram without any text, numbers, or symbols

1. Install the easy open handle covers.

Diagram showing a mechanical or structural component with labeled parts ① and ②, likely illustrating a process or assembly.

Space required

• Choose a location that is not directly to sunlight.
• Choose a location with enough space so that the refrigerator can open easily.
• Allow a safety distance to the right (D), to the left (D), to the rear (E) and above (F) the appliance when installing it. This allows optimising product performance, reduces your power consumption and therefore limits your electricity bill (see diagram below).
• Make sure that air can freely circulate behind the appliance.

F C E A D

H D D 90° l G

A	595
B	660
C	1851
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

i Note that this appliance is not designed for built-in installation.

Levelling the appliance

Choose a place to install the refrigerator on a flat surface.

Two identical rectangular signs with checkmarks and a cross symbol, likely indicating approval or rejection status.

If the appliance is not level, the doors will not be correctly aligned and compartment sealing will not be ensured.

To level the appliance laterally, adjust the two adjustable feet on the front of the product.

Once the appliance is installed, ensure that it is slightly inclined rearwards. In this way, it will be easier to close the door. If necessary, adjust the setting of the adjustable feet.

Procedure for adjusting the feet at the front of the product

Raise Lower

Electrical connections

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.

• The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
• The power plug must be easily accessible and out of the reach of children.
• For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
• Do not use extensions, adapters or multiple plugs.
• Do not place multiple plugs or portable power supply units behind the appliance.

The manufacturer declines all liability if the above-mentioned safety precautions are not complied with. If in doubt, refer to your reseller.

USE & TIPS

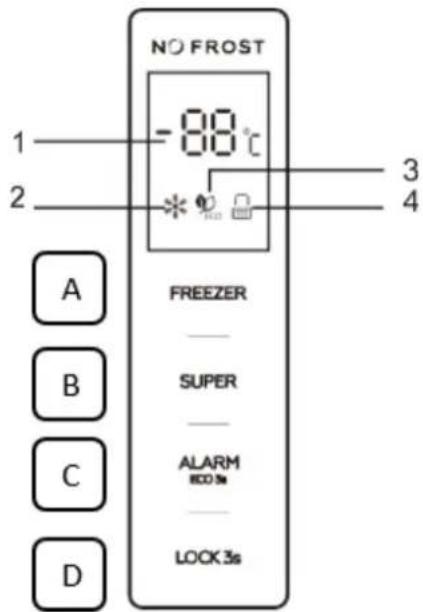

User interface introduction

NO FROST -88°C 1 2 3 4 A FREEZER - B SUPER - C ALARM ECO 5s - D LOCK 3s

Operation Interface

A- FREEZER: Temperature control of the appliance
B- SUPER: Select and deselect super mode control
C- ALARM/ECO: Clear door opening alarm, select and deselect ECO mode
D- LOCK: Locking and unlocking

LED display

1. Display window for preset temperature
2. Super mode icon
3. ECO mode icon
4. Locking and unlocking icon

Illustration of the buttons

All buttons are valid only in unlocking status. Short beep after per touching of buttons.

FREEZER: temperature control of the appliance available only for user defined mode

Touching "FREEZER" button consecutively, the temperature will change in a circle from -14C\~-22°C, stop touching and after 5 seconds flashing, temperature is set.

SUPER: Select and deselect super mode

• Press "SUPER" button to select super mode. After 5 seconds flashing of super mode icon, super mode is selected.
• When super mode is selected, super mode icon will light on, and display window will show -25°C.

- In super mode, touching "FREEZER" button, super mode icon will flash 3 times, but freezer temperature can not be changed.

To exit Super mode,

• Press "SUPER" button to deselect Super mode,
• Or after 50 hours of super mode without any operation, the refrigerator will automatically stop it and enter to previous setting.

Warning:

In super mode, noise of the appliance may be slightly higher than normal running.

ALARM/ECO: clear door opening alarm and high temperature alarm, select and deselect ECO mode

Short touching "ALARM/ECO" button to clear door opening alarm and high temperature alarm.

Touching "ALARM/ECO" button for 3 seconds to select ECO mode. After 5 seconds flashing of ECO mode icon, ECO mode is selected.

When ECO mode is selected, ECO mode icon will light on, and display window will show different preset temperatures, depending on the ambient temperature (Ta) of where the appliance be placed, as below.

Ambient Temperature (Ta)	Preset Temperature
T_a ≤ 13 °C	-18 °C
14 °C < T_a ≤ 20°C	-18 °C
21 °C < T_a ≤ 27°C	-18 °C
28 °C < T_a ≤ 34°C	-16 °C
T_a > 35 °C	-15 °C

In ECO mode, "FREEZER" button will not respond to any touching. Touching

"ALARM/ECO" button for 3 seconds to deselect ECO mode.

Note : Do not use ECO mode for freezing. Use the ECO mode only in case of short absence without leaving highly perishable food in your refrigerator.

LOCK: Locking and unlocking

Touching "LOCK" button for 3 seconds to lock the control panel, then the locking and unlocking icon will be "☐". In locking status, touch any button, the locking and unlocking icon will flash 3 times.

Touching "LOCK" button for 3 seconds to unlock the control panel, then the locking and unlocking icon will be "

In unlocking status, all buttons are available.

If no operation in 25 seconds, the control panel will be locked automatically.

Door opening alarm

If the door keeps opening for 90 seconds, door opening alarm sounds. Close the door to stop the door opening alarm.

Or short touching "ALARM/ECO" button to clear door opening alarm.

High temperature alarm

If high internal temperature of the appliance is detected, high temperature alarm will sound, "ht" and detected temperature will display alternately on display window.

Short touching "ALARM/ECO" button to stop door opening alarm.

High temperature display will disappear automatically only if detected temperature goes back to normal.

How to stop the product

To completely stop the appliance, you must unplug the plug from the electrical outlet.

Daily use

Your refrigerator compartment is equipped with shelves, door racks and drawers with various logos to help you store your food in the right place.

Using the shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the small door trays

The small door trays can be removed to assist cleaning. To do this, progressively pull the door rack in the direction indicated by the arrows until you can remove it completely. After cleaning it, replace it in the desired location.

Technical illustration showing a hand placing a component onto a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

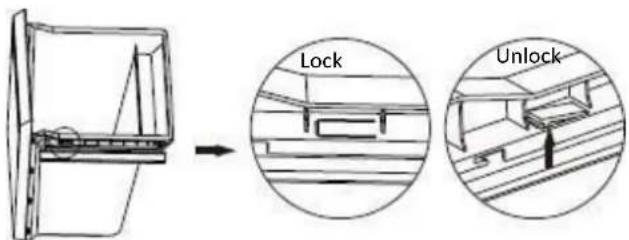

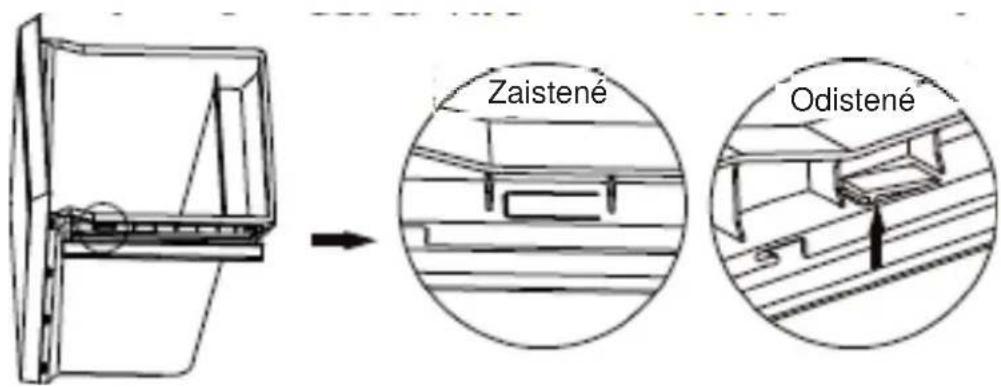

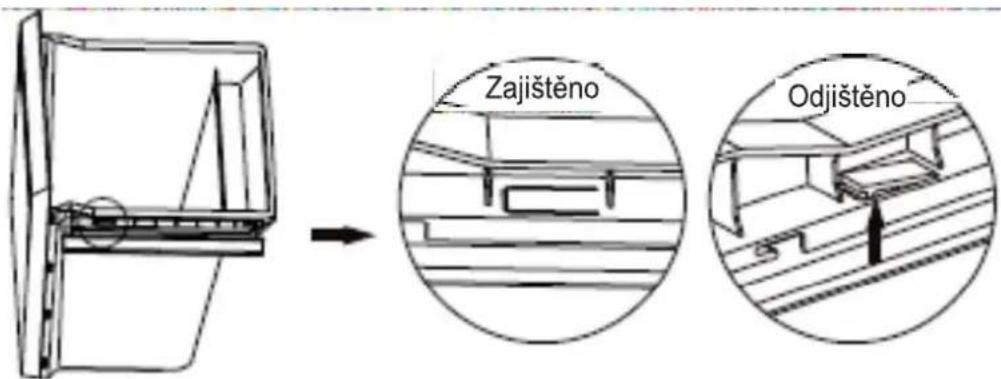

Disassemble the bottom drawer

1. Pull out the bottom drawer to stopper position.
2. Push up the elastic buckles on both sides of the bottom drawer.
3. Pull out the bottom drawer.

Lock Unlock

Ice cubes

This appliance can accept one or more ice cube trays for making ice cubes.

Freezing tips

To help you optimise the freezing process, here are some important tips:

• The maximum amount of food that you can freeze every 24 hours can be found on the ID plate.
  • The freezing process takes 24 hours. Do not add any more food to freeze during this time.
• Only freeze good quality, fresh and properly washed food.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.

• Wrap up the food in aluminium foil or polyethylene food wraps which are airtight.

• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid raising their temperature.

• Iced products, if consumed immediately after removal from the freezer compartment, may cause frost burns to the skin.
  • We recommend labelling and dating each frozen package.
• To obtain ice cubes faster, we recommend placing the ice cube trays in the top drawer.

Thawing food

• Before eating, frozen or deep frozen food may be thawed in the refrigerator compartment or at ambient temperature, depending on the time available.
• Some food may also be cooked directly when taken out of the freezer, while it is still frozen. In this case, cooking will take longer.

Important In the event of accidental thawing, caused for example by a power break, quickly eat the thawed food. Never refreeze thawed food.

Hints for the storage of frozen food

To guarantee optimum performance, comply with the following instructions:

• Ensure that frozen food has been stored correctly by the food retailer.
• Ensure that frozen food is quickly carried from the retailer to your freezer.
• Do not open the door too often or avoid leaving the door open longer than necessary.
• Once thawed, food will deteriorate rapidly and should never be refrozen.
• Do not exceed the storage states shown on the food.

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.

Cleaning

For hygiene reasons, regularly clean the appliance (sidewalls and interior and exterior accessories).

Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.

• Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Remove food from the appliance. Store it in a cool place and keep well covered.
  • After cleaning them, rinse surfaces with clear water and dry them.
  • After everything is dry, plug the appliance back into the plug.

- Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution.

i Never clean the appliance with a steam cleaner.

Cleaning the drain

To stop the defrost water from running into the refrigerator, clean the drain at the back of the refrigerator part from time to time. To do this, use a cleaning product as shown in the diagram on the right.

Replacing the light

This product contains a light source whose the energy efficiency class is G.

The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.

You will find all the information you need to contact our authorized technicians and our after-sales service in the “CONTACTS & INFORMATION” section.

Defrosting the freezer (If your model is No Frost Model, you don't need to defrost it)

Warning! No thawed food may be replaced in the freezer. Place it in the refrigerator then eat it quickly.

A thin coating of frost will slowly form on the inside walls of the freezer. This layer should be removed. Never use a sharp object as it could damage the appliance.

For hygiene and food conservation reasons, we recommend defrosting the freezer at least once a year by proceeding as follows:

• Pull out the mains plug from the mains socket.

• Remove any food from the compartment and place it in a special container to ensure that there is no break in the cold chain (e.g. in an ice box or insulated bag, etc.).

• Leave the freezer door open (NB: leave the refrigerator door closed) and place a basin under the appliance to recover the water from defrosting. You can also speed up this process by placing a bowl of hot water inside the compartment.

• Once defrosting is complete, dry the inside properly.
• Plug the power cord back in to return the appliance to service.
• Wait until the freezer has reached the recommended temperature before putting the food back in it.

Refreezing a thawed product encourages the spread of bacteria. This may become a health hazard if the bacteria that spreads are pathogens, as these may cause more or less serious food poisoning depending on the type of bacteria involved. If in doubt, cook the food involved.

Troubleshooting

Warning! If there is any anomaly, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.

If there is any anomaly during operation, check the following points before calling our approved after sales service or a qualified professional.

Problem	Possible cause	Solution
Appliance does not work.	The power cord is not plugged in or is loose.	Connect the power cord.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Outlet is defective.	Electrical malfunctions need to be repaired by an electrician.
Appliance freezes or cools too much.	Temperature is set too cold	Turn the thermostat to a warmer setting temporarily.
Food is not frozen enough.	Temperature is not properly set.	Please refer to the section on setting the temperature.
	Door was open for an extended period.	Only open the door when necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the thermostat to a colder setting temporarily.
	The appliance is near a heat source.	Please refer to the installation location section
Heavy build-up of frost on the door seal.	The door seal is not sealing.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time, handle the heated door seal with your hands to ensure that the appliance seals.
Water on the floor.	Water drain hole is blocked.	Please refer to the "Care and cleaning" section.
Appliance surfaces are hot when in use.	This is normal. Heat exchanger parts are located in the sidewalls.	Wear gloves when touching the sidewalls if necessary.
Unusual noises	The appliance is not level.	Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touchinganother part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

① Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).

If you cannot find the cause of the anomaly, only call our approved after sales service or a qualified professional.

CONTACTS & INFORMATION

Customer Relations France

For more information about our products or to contact us, please:

Visit our website: www.brandt.com

Servicing and repairs

A qualified professional accredited must make any repairs to your appliance;

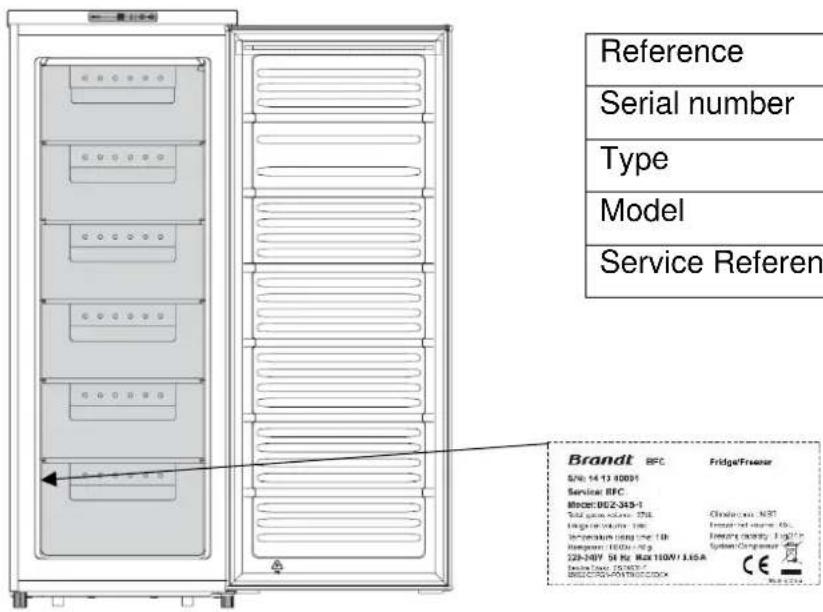

When making contact, mention the complete reference of your appliance (model, type, serial number). This information is provided on the ID plate located at the bottom left of the refrigerator (above the shelf or behind the crisper).

Reference Serial number Type Model Service Reference Brandt BFC FridgeFraser S/N: 14 13 10001 Service: BFC Model: BGC-343-1 Total capacity: TBL - Christiana - NRT Volume volume: 1 pc - Power input unit: Gc. Temperature ranging time: 10h - Heating capacity: Light°C Maximum temperature: 100kV / kg - System Component 228-240V 54 Hz Max 110W / 1.6A Supply Type: 25/2027 BFC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/NC CE Mn 2274

Reference
Serial number
Type
Model
Service Reference

You can find a list of approved service centres on our website www.brandt.com

This website also allows access to information on spare parts.

Original replacement parts

When any maintenance work is being performed, ask that only certified original spare parts be used..

The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.

Guarantee

Please contact your reseller to benefit from the guarantee. The manufacturer does not offer any commercial guarantee for the refrigeration appliance.

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Pure technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Pure mechanical assembly diagram showing a lever and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly with a bracket and a separate piece, no text or symbols present

Technical line drawing of two rectangular components with internal cutouts, no text or symbols present

Pure mechanical diagram showing a curved component with mounting holes and a central shaft (no text or symbols)

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a mechanical component with a bracket and small components below (no text or symbols)

Diagram of a mechanical assembly with curved arrows indicating motion or force direction (no text or symbols)

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a mechanical bracket with two cylindrical components attached (no text or symbols)

Two identical schematic diagrams of a device with ports and internal components, no text or symbols present.

Simple line drawing of a mobile phone mounted on a wall (no text or symbols)

Simple line drawing of a corner bracket with a small inset detail (no text or symbols)

Pure technical line drawing of a mechanical bracket or frame structure without any text, numbers, or symbols

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical assembly or mounting bracket with no visible text or symbols

Mechanical assembly diagram showing a bracket with mounting holes and a handle (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting structure without any text, numbers, or symbols

Technical line drawing of a mechanical bracket or mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Simple circular diagram with two vertical lines and a horizontal line inside, no text or symbols present.

Pure mechanical joint diagram without any text, numbers, or symbols

Diagram showing a mechanical or structural component with labeled parts ① and ②, likely illustrating a process or assembly.

F C E A D

H D D G l m

A	595
B	660
C	1851
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Two identical rectangular signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Subir Bajar

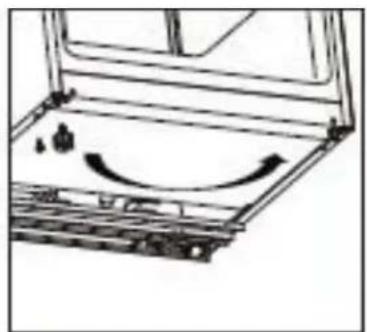

Conexión eléctrica

Technical illustration showing a hand placing a component onto a shelf, and a mechanical device with two upward arrows (no text or symbols)

This product contains a light source whose the energy efficiency class is G.

The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.

You will find all the information you need to contact our authorized technicians and our after-sales service in the “CONTACTS & INFORMATION” section.

Brandt BFC S/N: 14-11-00091 Service: BFC Model: DC2-348-1 Model: GCS Group: 7ML High quality: 100% Standard: 100% 50W/60W: 100% 225-240V Si No Max 1100V I.EGA Eating Type: 100% EBSI: 100% EBSI FridgeFraser Chronic class: NLS Internal source: 15C Internal unit: 1.5g System: Compressor CE HUA ID: 1234

Simple line drawing of a vertical pole with two side supports (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Isometric line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Pure mechanical assembly diagram showing a lever and base plate without any text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly with a bracket and a separate part, no text or symbols present

Line drawing of two rectangular devices, one open and one closed, with no visible text or symbols.

Simple line drawing of a mechanical latch or clip assembly (no text or symbols)

Simple line drawing of a mechanical bracket or hinge (no text or symbols)

Simple line drawing of a mechanical bracket and a small component with four pins (no text or symbols)

Diagram of a laptop with an open screen and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a shaft, housing, and bolt with directional arrows (no text or labels)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Two identical mechanical or fluidic device diagrams with no visible text, numbers, or symbols.

Simple line drawing of a mechanical bracket or support structure with no text or symbols

Simple line drawing of a roof structure with a small object on the side (no text or symbols)

Pure technical line drawing of a mechanical bracket or frame structure without any text, numbers, or symbols

Simple line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

Pure technical line drawing of a mechanical assembly or conveyor system without any text, numbers, or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Isometric line drawing of a mechanical or architectural component with no visible text or symbols

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Simple line drawing of a circular object with a vertical bar and a horizontal rod, no text or symbols present.

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical diagram showing a mechanical joint or connection with labeled parts ① and ②, likely illustrating a mechanical assembly or assembly.

F C 1 E 2 A D

H D D G θ l

A	595
B	660
C	1851
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Illustration showing two workers installing or repairing a door panel, with an inset showing a circular component being turned (no text or symbols)

Two labeled signs: a checkmark and an 'X' symbol, likely indicating cancellation or rejection.

Technical illustration showing a hand holding a shelf and a mechanical component with upward arrows (no text or symbols)

Simple line drawing of a vertical pole with two base legs and a handle (no text or symbols)

L'ahko otváratel'ná rukovät' x 1

Kryt rukoväti x 2

Skrutka x 2

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Isometric line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Pure mechanical assembly diagram showing a lever and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly with a bracket and a separate part, no text or symbols present

Line drawing of two rectangular devices, one open and one closed, with no visible text or symbols.

Simple line drawing of a mechanical latch or clip assembly (no text or symbols)

Pure mechanical part outline without any text, numbers, or symbols

Simple line drawing of a mechanical bracket and a small component with four pins (no text or symbols)

Diagram of a laptop with an open screen and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a shaft, housing, and bolt with directional arrows (no text or labels)

Pure mechanical diagram showing a beam supported by two vertical supports with circular components, no text or symbols present.

Mechanical assembly diagram showing a bracket with two cylindrical components and a curved arrow indicating rotation (no text or labels)

Two identical mechanical or fluidic device diagrams with no visible text, numbers, or symbols.

Simple line drawing of a junction table with a small object on the top surface (no text or symbols)

Simple line drawing of a roof structure with a small object on top (no text or symbols)

Pure technical line drawing of a mechanical bracket or frame structure without any text, numbers, or symbols

Simple line drawing of a mechanical device with a curved arrow indicating motion (no text or symbols)

Pure technical line drawing of a mechanical assembly or conveyor system without any text, numbers, or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Isometric line drawing of a mechanical or architectural component with no visible text or symbols

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a circular object with a vertical bar and a horizontal rod, no text or symbols present.

Pure mechanical assembly diagram without any text, numbers, or symbols

1. Nainštalujte l'ahko kryty l'ahko otváratel'nej rukoväti.

krok 3

Diagram showing a mechanical or structural component with labeled parts ① and ②, likely illustrating a process or assembly.

F C E A D

H D D α' β G

A	595
B	660
C	1851
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Vyrovnanie spotrebiča

Illustration showing two workers installing or repairing a door panel, with an inset showing a circular component being turned (no text or symbols)

Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or cancellation status.

POUŽÍVATEL'SKÉ ROZHRANIE

Technical illustration showing a hand placing a component into a shelf and then adjusting a rectangular device with two upward arrows (no text or symbols present)

Zaistené Odistené
