USER MANUAL ES4400 10 ROWENTA

Rowenta

www.rowenta.com

fig.1a

fig.1b

fig.1c

fig.2

fig.3

fig.4

fig.5

fig.6

fig.7

fig.8

fig.9

fig.10a

fig.10b

fig.11

fig.12

fig.13

fig.14

fig.15

fig.16

fig.17

fig.18

fig.19

fig.20

fig.21a

fig.21b

fig.21c

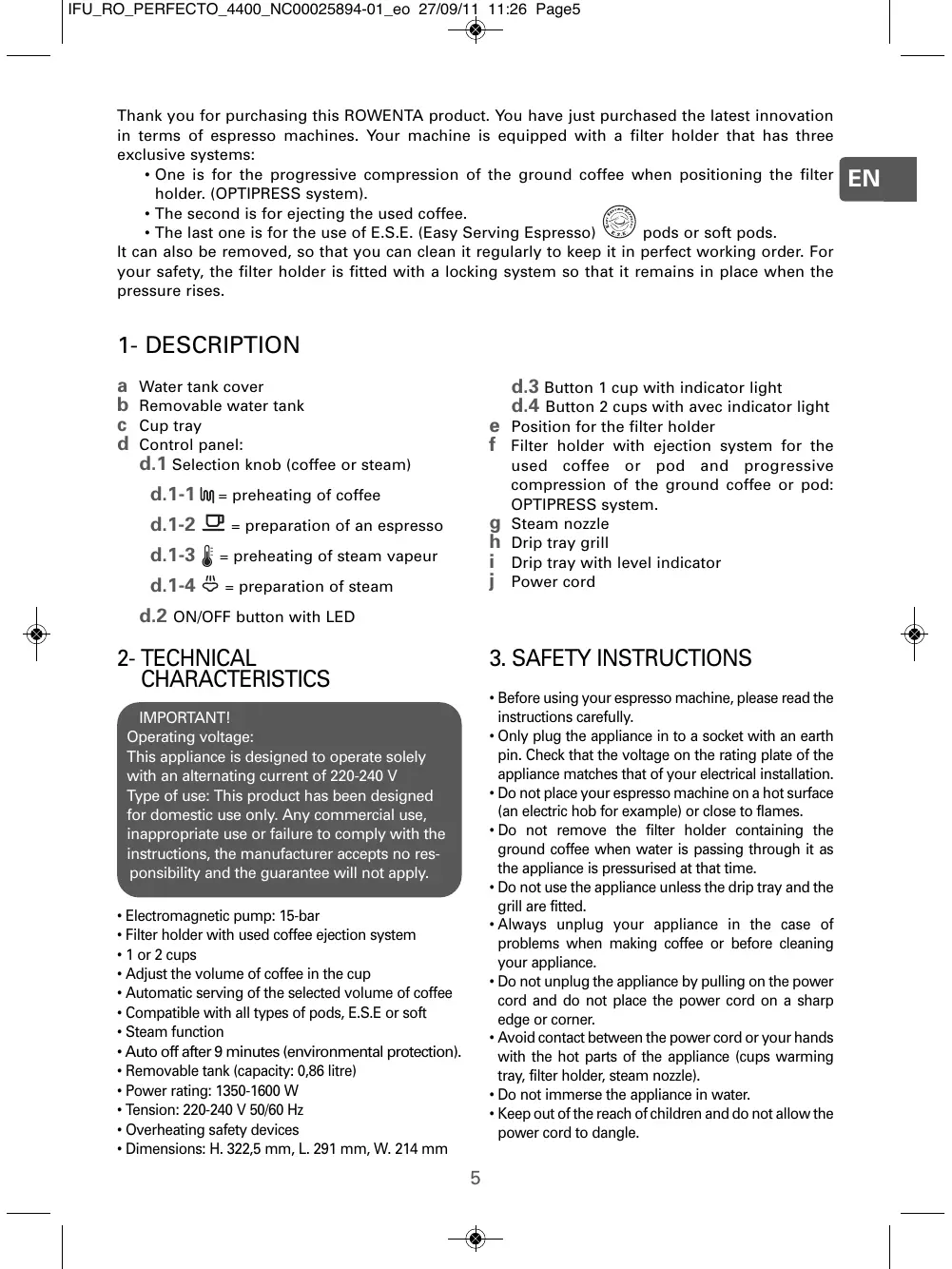

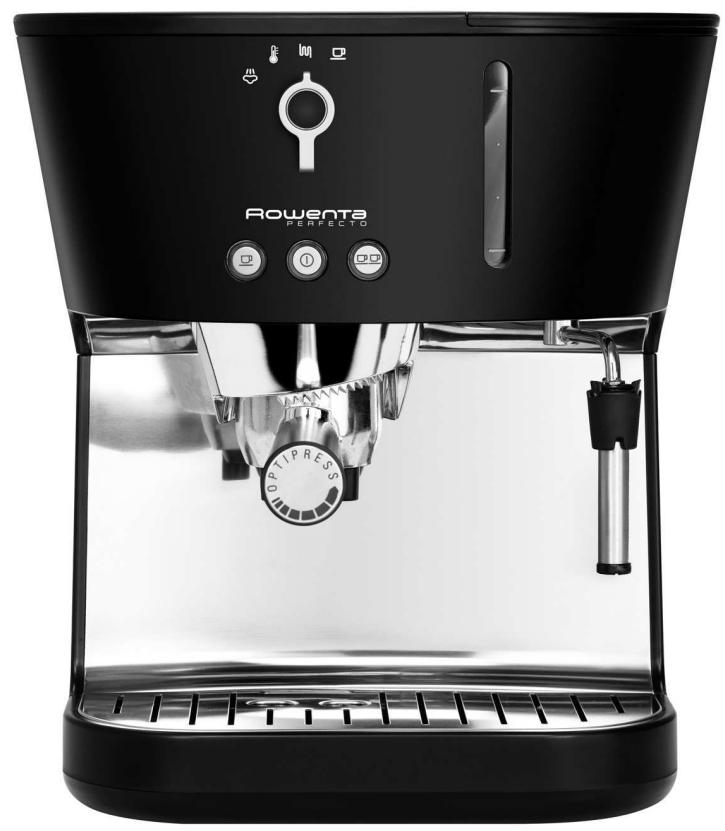

Thank you for purchasing this ROWENTA product. You have just purchased the latest innovation in terms of espresso machines. Your machine is equipped with a filter holder that has three exclusive systems:

• One is for the progressive compression of the ground coffee when positioning the filter holder. (OPTIPRESS system).
• The second is for ejecting the used coffee.
• The last one is for the use of E.S.E. (Easy Serving Espresso) pods or soft pods.

It can also be removed, so that you can clean it regularly to keep it in perfect working order. For your safety, the filter holder is fitted with a locking system so that it remains in place when the pressure rises.

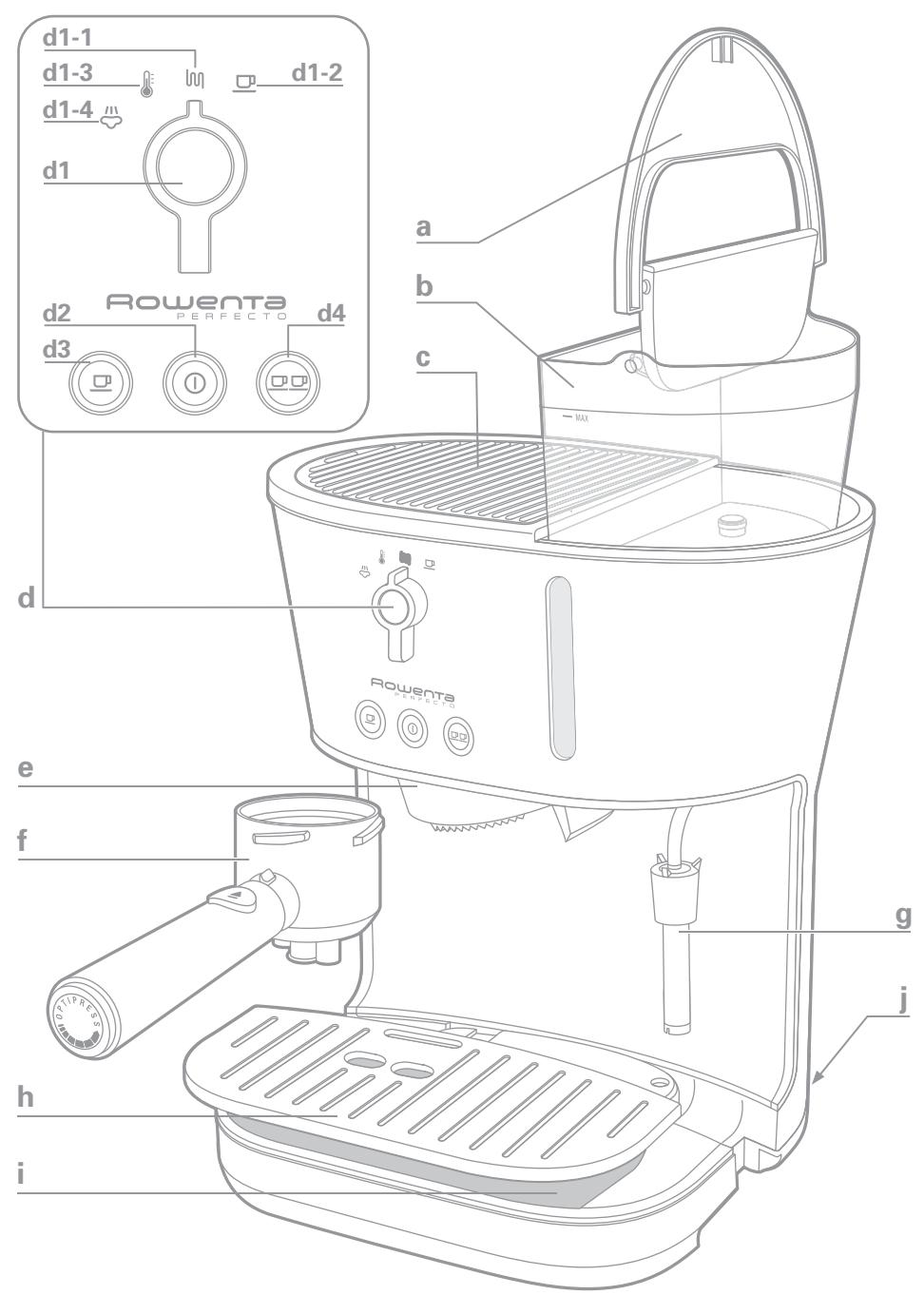

1- DESCRIPTION

a Water tank cover
b Removable water tank
C Cup tray
d Control panel:

d.1 Selection knob (coffee or steam)

d.1-1 = preheating of coffee

d.1-2 = preparation of an espresso

d.1-3 = preheating of steam vapeur

d.1-4 出= preparation of steam

d.2 ON/OFF button with LED

2- TECHNICAL CHARACTERISTICS

IMPORTANT!

Operating voltage:

This appliance is designed to operate solely with an alternating current of 220-240 V

Type of use: This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Electromagnetic pump: 15-bar
• Filter holder with used coffee ejection system
  1 or 2 cups
• Adjust the volume of coffee in the cup
  Automatic serving of the selected volume of coffee
• Compatible with all types of pods, E.S.E or soft
• Steam function
• Auto off after 9 minutes (environmental protection).
• Removable tank (capacity: 0,86 litre)
  Power rating: 1350-1600 W
  Tension: 220-240 V 50/60 Hz
  Overheating safety devices
• Dimensions: H. 322,5 mm, L. 291 mm, W. 214 mm

d.3 Button 1 cup with indicator light
d.4 Button 2 cups with avec indicator light

e Position for the filter holder

Filter holder with ejection system for the used coffee or pod and progressive compression of the ground coffee or pod: OPTIPRESS system.
Steam nozzle
h Drip tray grill
Drip tray with level indicator
j Power cord

3. SAFETY INSTRUCTIONS

• Before using your espresso machine, please read the instructions carefully.
• Only plug the appliance in to a socket with an earth pin. Check that the voltage on the rating plate of the appliance matches that of your electrical installation.
• Do not place your espresso machine on a hot surface (an electric hob for example) or close to flames.
• Do not remove the filter holder containing the ground coffee when water is passing through it as the appliance is pressurised at that time.
• Do not use the appliance unless the drip tray and the grill are fitted.
• Always unplug your appliance in the case of problems when making coffee or before cleaning your appliance.
• Do not unplug the appliance by pulling on the power cord and do not place the power cord on a sharp edge or corner.
• Avoid contact between the power cord or your hands with the hot parts of the appliance (cups warming tray, filter holder, steam nozzle).
• Do not immerse the appliance in water.
• Keep out of the reach of children and do not allow the power cord to dangle.

EN

• Follow the instructions for descaling operations.
• Do not use the appliance if it is damaged or if the power cord has been damaged.
• If the power cord or any other specific element is defective, in order to avoid any danger they must only be replaced by a Rowenta approved service centre. Under no circumstances must the appliance be opened by the user.
• Check that the filter holder has been tightened before making the coffee.
• This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities or persons with no experience or knowledge unless they have been provided with suitable instructions concerning the use of the appliance from a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The accessories and removable parts of the appliance are not dishwasher proof.
• Place on a flat, stable, heat-resistant work surface away from water splashes and sources of heat.
• This appliance is intended to be used only in the household.
  It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments,
  -farmhouses,
• by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments.

4. PRACTICAL ADVICE

IMPORTANT!

Before first use, after prolonged periods of non-use or after descending, the appliance must be cleaned as described in the paragraph: "FIRST USE"

Remember to release the filter holder while pressing the "EJECT" button lightly before removing it from the appliance (fig. 1a).

To obtain an espresso with an intense aroma, we recommend that you use freshly ground special espresso coffee that is suited to the delicate preparation of this type of coffee, as well as cups that are not bigger than 50ml
- Keep the ground coffee in the refrigerator, it will conserve its aroma for longer.
- Do not fill your filter holder to the top, use the measuring spoon (1 spoonful for 1 cup, 2 spoonfuls for 2 cups). Remove any excess ground coffee from

the edge of the filter holder.

• If the appliance is not used for more than 5 days, empty and rinse the water tank.
• Before removing the tank to fill or empty it, always remember to switch off the appliance.
• Always ensure that the appliance is placed on a flat, stable, heat-resistant surface.

5. FIRST USE

Rinsing before first use

Before using your coffee machine, clean all of the accessories in water and washing up liquid then dry them.

• Fill the tank with cold water and fit it onto the appliance, ensuring that it is fitted correctly (fig. 1b).
• Switch on the appliance by pressing the ON/OFF button d2 ①.
• The temperature light flashes then remains lit. The appliance is ready for use (fig. 2).

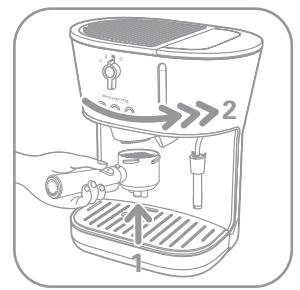

• Insert the filter holder (without ground coffee) into the appliance: turn it towards the right as far as possible (fig. 3).

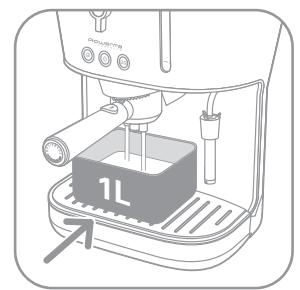

• Place a container with a volume of over 12 litre under the filter holder. Turn the switch d1 to the "coffee" position (fig. 4, 5, 6), then press on the two cup position several times if necessary.
• If the water doesn't run off (pump priming), repeat the process from the beginning.
• Let the water run from the tank. To stop the flow of water, turn the selector d1 to the position loq (fig. 7) and unplug the appliance.
• Remove the tank, empty it and rinse it carefully and fit it back onto the appliance (fig. 1b and 8).

6. PREPARING AN ESPRESSO

IMPORTANT!

If the espresso machine is being used for the first time, the appliance must be cleaned as described in paragraph 5 "FIRST USE".

With ground coffee

The type of ground coffee that you use will determine the strength and taste of your espresso: the finer your coffee is ground, the stronger the espresso.

• Before removing the removable tank, place the selector d1 in the position (fig. 7).
• Fill the tank with cold water and fit it back onto the appliance (fig. 8).

• Switch on the appliance by pressing the ON/OFF button d2 ①.

• The LED flashes while the machine is warming up, then remains lit. The appliance is then ready for use.

• Release the filter holder by pressing the button lightly and turning it towards the left (fig. 9). Using the measuring spoon, place the ground coffee into the filter holder: one measuring spoon (filled to the top) per cup for a good espresso (fig. 10a).
• Remove the excess ground coffee from the edge of the filter holder (fig. 10b).

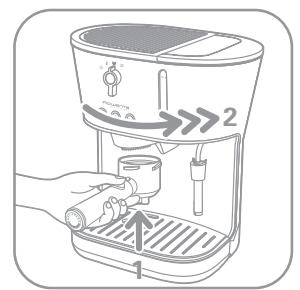

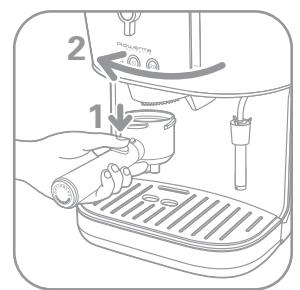

• Insert the filter holder into the appliance tightening it by turning it towards the right as far as possible (fig. 12).
• Place a cup on the grill of the drip tray under the filter holder (fig. 13).
• Turn the selector d1 to the position (coffee) (fig. 4).
• Press either the d3 button for 1 cup or the D4 button for 2 cups.
  After a few moments, the coffee stars to flow.
• When the cups are full, the coffee stops flowing automatically. Move the selector d1 back to the position (fig. 7).
• Remove the cup.

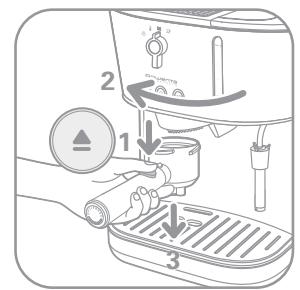

• Release the filter holder: press the button lightly while turning the filter holder towards the left and remove it from the appliance. Throw away the used coffee using the ejection system by pressing the "push" button on the handle fully (fig. 16). Wash the filter holder under running water, while pressing the "push" button to eliminate the remains of ground coffee (see also paragraph 8.B for deeper cleaning). It is normal that each time the control selector d1 returns to the position [m] there is a low noise of running water or steam, due to a specific device which eliminates the pressure from the circuits.

With an E.S.E espresso pod

"ESE" for "Easy Serving Espresso" is a pod (44 mm in diameter) of 7g of coffee that has been selected, ground and compacted between two filter papers especially designed to make Italian style espresso ("ristretto" short coffee). This system permits easy, simple, clean and comfortable use of your machine.

• Before removing the removable tank, remember to place the selector d1 in the position (fig. 7).
• Fill the tank with cold water and fit it back onto the appliance (fig. 8).
• Switch on the appliance by pressing the ON/OFF button d2 ①.

• The LED flashes during preheating, then remains lit.
  The appliance is then ready for use.

• Release the filter holder by pressing the button lightly and turning it towards the left (fig. 15). If required, remove the paper around the pod following the dotted lines (fig. 11). Place the E.S.E pod with the red writing facing downwards (fold the corners of the filter paper back). Ensure that the paper is placed inside the filter, otherwise this could cause leaks. For creamier and thicker froth, the E.S.E pod must be positioned correctly. The pod is designed to make one cup of coffee. The use of 2 E.S.E pods on top of one another is not recommended.

• Insert the filter holder into the appliance tightening it by turning it towards the right as far as possible (fig. 12).
  To prepare your espresso, follow the same procedure as for the preparation of an espresso with ground coffee.

With a soft pod

Your machine is also compatible with soft pods (generally 60~mm in diameter). As this type of pod is not specifically designed for espresso machines, you will obtain a weaker espresso than with an E.S.E. pod.

• Before removing the removable tank, remember to place the selector d1 in the position loq (fig. 7).
• Fill the tank with cold water and fit it back onto the appliance (fig. 8).
• Switch on the appliance by pressing the ON/OFF button d2 ①.
• The LED flashes during preheating, then remains lit. The appliance is then ready for use.
• Release the filter holder by pressing the button lightly and turning it towards the left (fig. 15). Place a soft pod into the filter holder. The pod is designed to make one cup of coffee. The use of 2 pods on top of one another is not recommended.
• Insert the filter holder into the appliance tightening it by turning it towards the right as far as possible (fig. 12).
  To prepare your espresso, follow the same procedure as for the preparation of an espresso with ground coffee.

7. INDIVIDUAL PROGRAMMING OF THE VOLUME OF COFFEE:

To change the pre-programmed amount of water, proceed as follows:

• Fill the water tank and turn the machine on (fig. 1 abc, 2, and 4).
• Put a spoonful of coffee in the filter by using a measuring spoon or use an E.S.E. or soft pod.

EN

• Put the filter holder in place and lock it by turning it to the right as far as it will go, up to the stop (fig. 12).
• Place a cup under the filter holder.
• Hold down the "1 cup" button (>3 sec) until the "1 cup" light flashes quickly. The coffee flows out.
• When the desired amount of espresso is obtained, press the "1 cup" button. This amount will be saved automatically.
• The next time when you press the "1 cup" button, you will obtain the most recently recorded amount. Programming for 2 cups uses the same method, by pressing the "2 cups" button (>3 sec).
• If you turn off the device, the volumes will need to be reprogrammed the next time you use it.

8. STEAM FUNCTION

Steam is used to foam milk (for example to make a cappuccino).

To produce steam, turn the switch d1 to the position (fig. 17) (to obtain more steam, the temperature needs to be higher than when making coffee).
- The ON/OFF button LED flashes again then remains lit. The appliance is then ready for use.
- Put the milk into a container. For best results, we recommend you use a container with a small opening (small jug for example).

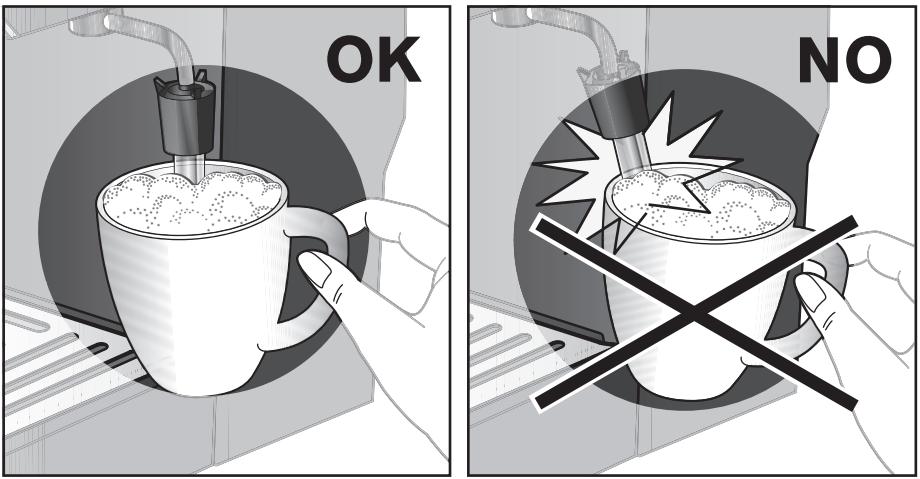

- Plunge the steam nozzle into the liquid.
- Turn the switch d1 to the position m (steam) (fig. 18): the steam comes out into the milk.
In order to give the milk plenty of froth, move the appliance in a circular direction from top to bottom (fig. 19), making sure that the steam nozzle remains upright at the centre of the container. (figs. 21c). The pump operates intermittently, this is normal.
- To obtain a good froth on your milk, we recommend that you use fresh cold pasteurised semi-skimmed milk, skimmed milk or UHT milk.
- During operation, it is normal for the temperature light of the ON/OFF button to light up and then extinguish.
- When frothing is completed, stop the appliance device (switch d1 in position).
- When the selector d1 is in the position , the appliance cools down automatically. During the cooling down phase, the LED of the ON/OFF button flashes, and hot water runs into the drip tray. When the optimal temperature for preparing an espresso is reached, the LED remains lit.

IMPORTANT!

Once the steam has been stopped, clean the steam nozzle immediately and thoroughly using a damp sponge (to avoid residues from sticking) and let a little more steam run through into free air to rinse the inside of the nozzle.

WARNING!

The steam nozzle is still hot! Be careful not to burn yours

9. MAINTENANCE AND CLEANING

A. The appliance

• Unplug the machine each time before cleaning and leave the appliance to cool down.
• Clean the outside of the appliance from time to time with a damp sponge. Wash the tank, the drip tray and its grill regularly and dry them.
• Rinse the inside of the tank regularly.
• When a fine white film obscures the tank, carry out a descaling operation. (see paragraph 10. DESCALING).
• Do not use alcohol or solvent based cleaning products.
• Once the appliance has been unplugged, clean the hot water grill and the seal regularly, using a damp sponge (fig. 16).
• Only clean with a damp cloth, do not use detergents or abrasive products.

B. The filter holder

The appliance that you have purchased is equipped with a removable ejecting filter holder, which allows you to maintain it in perfect working order. We recommend that you clean it each time after use.

These removal/fitting operations must be carried out when the machine has cooled down.

1. Removal of the filter holder:

2. Remove the filter holder from your machine.

3. Dispose of the used coffee or pod by pressing the "push" button (fig. 16).
   Rinse in clear water.
4. Remove the back of the filter holder by turning to the left, while pressing in the two brackets.

2. Cleaning and rinsing the filter holder:

The filter holder may then be cleaned using a household detergent and a scouring pad, but must be rinsed afterwards in clear water. For best results, you may press the ejection button several times while rinsing. We recommend shaking your filter holder vigorously in order to remove all water.

3. Fitting the filter holder:

Replace the bottom of the filter holder by rotating it anti-clockwise to lock.

C. The drip tray

When the drip tray full level is displayed, it must be emptied after removing the grid (fig. 20). The presence of water is normal, and does not mean there is a leak. If necessary, clean the drip tray and its grid with water and a little gentle washing-up liquid. Rinse and dry.

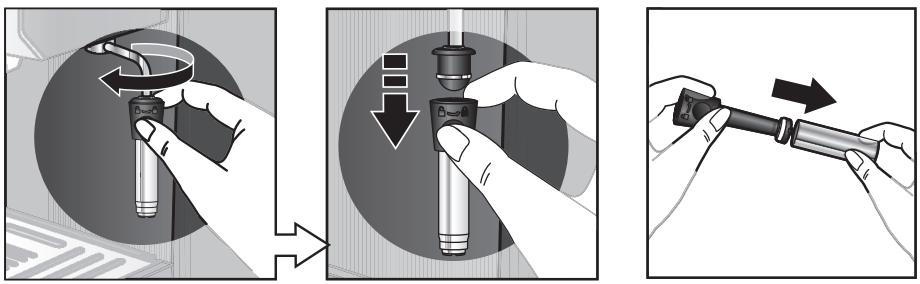

D. The steam nozzle (Fig 21 a, b)

This accessory consists of 2 parts: one part which is the plastic support and the other which is the metal protection cylinder.

• Before cleaning, unlock the nozzle from the articulated arm by turning it to the left.
• Then slide the metal cylinder along the plastic support.
• Clean these two parts with tap water and some mild washing-up liquid.
• Rinse and dry.

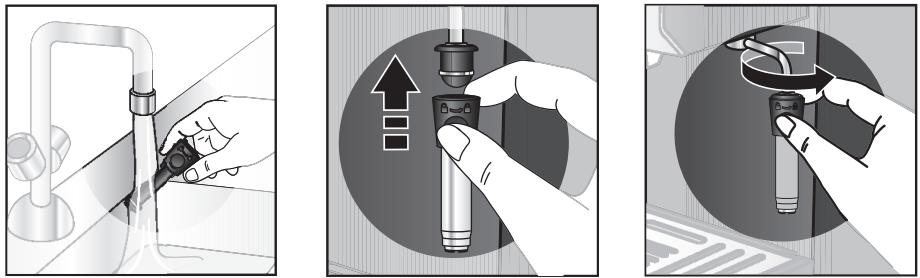

• Once the parts have been properly cleaned, put the metal cylinder back on the support.
• Make sure that you don't damage the silicone seal which makes the nozzle watertight.
• Insert the nozzle on the articulated arm then twist to the right.

10. DESCALING

• Regular descending of your appliance, as mentioned in paragraphs A and B for the coffee and steam functions, is the best guarantee of your machine's long life. The frequency of the descending operations must be adapted to suit the hardness of your water. Ask for advice from your local water authority.
• During the operation, do not stand your appliance on a marble surface. The descaler could affect it.
• To make this clearer, please find below a summary table of the frequencies of the descending operations according to the hardness of water and use:

DESCALING FREQUENCY
Av. number of coffees per week	Soft water (<19°Cth)	Hard water (19-30°Cth)	Very hard water (>30°Cth)
Less than 7	Once a year	Every 8 months	Every 6 months
From 7 to 20	Every 4 months	Every 3 months	Every 2 months
More than 20	Every 3 months	Every 2 months	Every month

If in doubt, we recommend carrying out a descending operation every month.

No repairs to your machine will be carried out due to:

• descending not being carried out,
• scale.

A. Descaling of the coffee function

• Unplug the appliance.
• Insert the filter holder (without ground coffee) into the appliance and lock it into place by turning it towards the right as far as possible (fig. 3).
• Place a container with a volume of more than 1/2 litre under the filter holder (fig. 6).
• Check that the selector d1 is in the position ln.
• Empty the tank and put it in place.
• Fill the tank with a mixture of three parts water to one part commercially available white vinegar (available

from hardware stores) or citric acid.

• Switch on the appliance.
• Place the d3 button in the maximum volume position.
• When the temperature light of the ON/OFF button remains lit, you can then switch to the position (coffee) (fig. 4).
• Press the d4 2 cups button (fig. 14).
• Let the mixture flow through.
• Wait for 2 minutes then repeat the operation twice, from the step of pressing the d4 2 cups button (fig. 14).
• Turn the selector to the position p
• Now follow the instructions for descending the steam function.

B. Descaling the steam function

• Next place the container under the steam nozzle.
• Turn the selector d1 to the position (steam heat) (fig. 17) (to obtain steam, the temperature must be higher than that required for coffee).
• the LED of the ON/OFF button flashes then remains lit.
• Turn the selector d1 to the position (steam extraction) (fig. 18): the steam pours into the liquid. Let the rest of the mixture flow for 2 minutes.
• During the operation, it is normal for the water temperature light to light up and then go out.
  After a few moments, stop the appliance (position).
• When the selector d1 is in the position ln, the appliance cools down automatically. During the cooling down phase, the LED of the ON/OFF button flashes and hot water runs into the drip tray.

C. Rinsing

IMPORTANT!

• After descending, rinse 2-3 times with clear water (without ground coffee), as described in paragraph "First use".
• Don't forget to rinse the steam nozzle (Figs. 21 a, b).

The appliance is descaled and ready to use again.

11. GUARANTEE

Your appliance is supplied with a guarantee but any incorrect connection, handling or use other than those described in the instructions will invalidate this guarantee.

The warranty for this appliance covers it exclusively for domestic use; any other type of use voids the warranty.

No repairs due to scale are covered by the guarantee. For any after sales or spare parts problems, contact your dealer or an approved service centre.

1. TROUBLESHOOTING

Problems	Possible causes	Solutions
The filter holder is blocked.	You have forgotten to release the filter holder.	Press the button while turning the filter holder towards the left (fig. 15).
The coffee is not dry after the water has passed through.	You have not tightened the filter holder correctly.	Tighten the filter holder more.
The espresso flows too slowly.	The coffee is too finely ground, too oily or powdery.	Choose a more coarsely ground coffee.
	The filter holder is dirty.	Clean your filter holder according to the instructions in paragraph 9.B.
	The water grill is dirty.	When the appliance has cooled down, clean the water grill with a damp sponge.
Water flows from the filter holder after the espresso has been made.	The selection knob has not been placed in the position "Resistor".	Turn the d1 control switch to [0] (fig. 7).
	Premature formation of scale due to very hard water.	Descale the espresso machine according to the instructions (paragraph 10).
Ground coffee in the cup.	The filter holder is dirty.	Clean the filter holder with hot water. Press the button to eliminate any remaining coffee. Shake it to remove of any water (also refer to paragraph 9.B.)
	The coffee is too finely ground.	Use a more coarsely ground coffee.
The espresso is not not frothy/has no crema.	The coffee is too old or has become stale.	Use a more recently ground fresher coffee.
	The coffee is not suited to making espresso.	Use a finer espresso ground coffee, and only use Espresso ground coffee
	There is not enough coffee in the filter holder.	Add more coffee.
The water tank leaks when it is moved.	The valve at the bottom of the tank is dirty or faulty.	Wash the water tank and activate the valve at the bottom of the tank with your finger.
	The valve is blocked by scale	Descale the appliance as described in paragraph 10.
Water leaking underneath the appliance.	Inside leak.	Check that the tank is fitted correctly. If the problem continues, do not use the appliance, contact an approved service centre.
Cracking noises are heard from the filter holder.	This is normal: safety lock on the filter holder.
The pump is abnormally noisy.	No water in the tank.	Switch off the appliance (position [0]), fill the water tank and switch back on.
The cups are not filled equally.	The filter holder is dirty.	Refer to paragraph 9.B for the maintenance of the filter holder.
The espresso leaks from the sides of the filter holder.	The filter holder is not fitted correctly.	Fit the filter holder in place and lock it (turn it from left to right as far as possible) (fig. 3).
	The edge of the filter holder has coffee on it.	Remove the excess coffee (fig. 10b) and clean the water grill with a damp sponge.
Your espresso has a bad taste.	After descaling, the appliance has not been rinsed correctly.	Rinse the appliance according to the instructions (paragraph 9) and check the quality of coffee.
The pump is not operating	The pump has been drained due to lack of water.	Fill the water tank and restart the pump (see paragraph 5. "FIRST USE"). Avoid emptying the water tank completely.
	The removable water tank is not fitted correctly.	Push the water tank firmly to fit it correctly.
The steam nozzle does not froth the milk.	The steam nozzle is blocked or scaled.	Descale the steam nozzle as described in the paragraph "DESCALING" or unblock it with a needle.
	The milk is too warm or not fresh.	Use very cold, very fresh milk.
	The container is not the right shape.	Use a small jug.

If the cause of the problem cannot be determined, contact an approved service centre. Do not dismantle the appliance yourself! (If dismantled, this will invalidate the guarantee).

13. ELECTRICAL OR ELECTRONIC PRODUCT TO BE DISPOSED OF

Do your part to protect the environment!

① Your appliance contains many materials that may be recovered or recycled.
Please take it to a local civic waste collection point

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - ROI

or consult our website - www(rowenta.co.uk

DE

7. INDIVIDUELE PROGRAMMING VOLUME VOOR KOFFIE:

6. ESPRESSON VALMISTUS

TÄRKEAA!

100n7 2 nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

11-15

1234567890

8 1
IMO2019 ( x^2y^2z^2 + 1) = 8y^6 + 4y^3 - 4
- if you like | x - 1| = | x + 2| ,| x + 3| = | x + 4| .

-1

IMO2019 z S 有

（HO/NO）,

• 107
  1.0,5 )
  17 170

（1）：

( 0,12) ± 1
S_ OBC = 12 · CD · BC = 12 × 5 × 5 = 452

（）（）

（）（）

-1

18 : 15^2 + 50^2 = 115^2 + 155^2 - 155^2 + 155^2 - 155^2 + 155^2 - 155^2 + 155^2 - 155^2 + 155^2 - 155^2 + 155^2 - 155^2 + 15( 15^2 - 15)
15

可：（）

1 1
r3 = r2 = 100 - 5 = 150
1 1（）
（H0/NO）
- 115ep
·

• 1
• inaneononeoneoneoneoneoneoneone

$$ 1 1 0 \div 3 = 1 2 $$

• 1. R 是一个定义域上的一点, P( 0,14t) .Q( -34,34t)
     10^6
     15 ^2 = 15 ^2 + ( -3) ^2 = - 3
     ( n + 1,2n + 1) = 1
     ( x + 1) ( y - 1) = 0
• ( 10^2 × 10^3 × 10^4 × 10^5) ( 10^6 × 10^7 × 10^8 × 10^9)
  6 11
• 1510-2-2-2-1513-1517-14-14-14-14-14-14-14-14-14-14-14-14-14-14-14-14-
  S APQ = S AOB + S QPH - S PQR
  ·s 2^10 + 7 - 1 = 10 + 7 - 1
  a1 = 2,an + 1 = 2an - 2an + 1

A-100600001158.2

201 111111111111111111111111111111111111111111111

$$ \begin{array}{l} 2 p - \text {O H} 2 (\text {H O / N O}) \rightarrow \text {O H} _ {3} \text {C} \text {O} _ {3} ^ {2 -} \ \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \cdot \ \varepsilon - L P - \text {国} = 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 \ Z - L P - \overline {{\square}} = \frac {1}{2} \cdot \overline {{\square}} ^ {\prime} \cdot \overline {{\square}} ^ {\prime} \cdot \overline {{\square}} ^ {\prime} \ L - L P - \ln = i n r s \ L P - \pi 1 ^ {c} \left[ 1 1 0 \dots \right] ^ {2} \left(\frac {1}{2} + \frac {1}{2} + \frac {1}{2}\right) \ \end{array} $$

p - 15 < 2( p - 2)
0 -
q -
2^n - 1 · 2^n + 1

1 - 1 ÷ = 11102

1^ 1^ 1^ 15^ 7^ 7^ 7^ 7^ 7^ 7^ 7^ 7^ 7^ 7^ 7^ 7.

· 1
( n + 1) · p^n - 1 0( mod D)

$$ \left| \overrightarrow {1 8 0} ^ {\prime}, \frac {3}{2} \overrightarrow {v} \cdot \overrightarrow {1 8 0} ^ {\prime} \right|. $$

1111 11112 (1)

11
18 × 19 × 19
1,2,3,4 1.5,11,17 10,14,19
( 0, 4) ± 1
11 < 23
S APQ = S AOB + S OBC - S PQR
( 1 + u) + ·s + ( 1 - u) + ( 1 - u) + ( 1 + u) u =
( 1,2) ( 1,2)

1000

182 57

A-1nnnnooep

1
| x - 2x| = 12x^2 + 15x + 3 + 110
4 -
6 -

$$ \begin{array}{l} \left. \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi} \int_ {0} ^ {\pi}\right) (S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S \ 1 1 ^ {\prime \prime} = 1 2 ^ {3} + 1 2 ^ {2} + 1 2 ^ {1} + 1 2 ^ {0} + 1 2 ^ {-} \ \end{array} $$

S APQ = S AOB + S AQP = S AOB + ( S_ AQP)

- ≤ 7 < 107

$$ \begin{array}{l} p p - \frac {1}{2} \cdot \frac {1}{2} \cdot 1 \cdot 1 \cdot 1 \cdot (A) = 0. 2 0 \frac {1}{2} \cdot 0. 2 0 \frac {1}{2} \ e p - \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \text {r} \ \end{array} $$

1100000000000000000000000000000000000000000

11 11 11 11 11 11 11 11 11 11 11 11 11

·111 111
| 11 + 12 - 13| = | 11 + 13 - 12 - 12|
- 1890418979991135678907

1111 1

15 15

1. 15 r oop ooeofo 2007 86
   ① 1ennnnn ennnn ennnn ennnn ennnn ennnn

eegn 1 eey

$$ A = 1 6 5 1 1 2 0 0 0 6 p 1 1 2 0 0 0 6 $$

gno 00000000000000000000000000000000000000000000

rroo ooeo ooeo n oosip n ofoe oof ofoe ofoe ofoe ofoe ofoe ofoe

104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 764 765 766 767 768 769 770 771 772 773 774 775 776 777 778 779 780 781 782 783 784 785 786 787 788 789 790 791 792 793 794 795 796 797 798 799 800 801 802 803 804 805 806 807 808 809 810 811 812 813 814 815 816 817 818 819 820 821 822 823 824 825 826 827 828 829 830 831 832 833 834 835 836 837 838 839 840 841 842 843 844 845 846 847 848 849 850 851 852 853 854 855 856 857 858 859 860 861 862 863 864 865 866 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 887 888 889 890 891 892 893 894 895 896 897 898 899 900 901 902 903 904 905 906 907 908 909 910 911 912 913 914 915 916 917 918 919 920 921 922 923 924 925 926 927 928 929 930 931 932 933 934 935 936 937 938 939 940 941 942 943 944 945 946 947 948 949 950 951 952 953 954 955 956 957 958 959 960 961 962 963 964 965 966 967 968 969 970 971 972 973 974 975 976 977 978 979 980 981 982 983 984 985 986 987 988 989 990 991 992 993 994 995 996 997 998 999

AA - A^ B^ C^ D^ 的确指

• • • 1
• 1111111111111111111111111111
  = 70^ n = 20^

12f( x) = x - ax^2 + ( a - 1) x

-100 1 (100)
15

A

ED = 2AE = 45,AD = 35

or rnrnnn nnnn nn nnnn

1 = [12]e + 1

rro 11111111111111111

15.04	0.070000r	0.070000r	0.070
15.07.04	0.070000r	0.070000r	0.070000r
25.04.04	0.070000r	0.070000r	0.070000r
25.04.04	(0.61>) 15 min	(0.61-0.61> 15 min)	(0.61<) 15 min
35.01.04	0.070000r	0.070000r	0.070

1^ ÷ 90 = 2

1

• 15 25 35 45 55 65 75 85 95
  rr = r 有解 r1 ≤ r2 ≤ r_3

n m 1 n m 1 1 o 0 0 1 n r e 0
98.56800 n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n

（）

$$ 0 1 - \frac {e}{r} = \frac {1}{r} $$

：

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. S_ OBC = 12 · CO · BC = 12 × CD × 5
                              1
2. 500000001
   12 + 13 + ·s + 1n + 1 < 2( n + 1) 2 < 102

• 10000000000000000000000000000000000000000000

S APQ = S AQP + S_ QPQ

10 1000000000000000000000000000000

rur; mcr 15913 mnyro, enyrs 1790

1 1

1,2,3,4 , 1,2,3,4

IMO2019 1 ≤ m0 < m1

$$ 1 1 - \frac {1}{2} $$

msssoed

• 1
  在 Rt = ( 2 - x) ^2 + y^2 = 1 x = 3,y = - 4

0-

70

S_木弟形 COBD = 12 · CO · BD × BD = 12 × CD × CD = 14

157

P

1 1

rnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

S木弟形 COBD = S COD + S BDO = S BOC +

( m + 1,2m - 1) = 0

1

（）（）

1 100000000000000000000000000000

FC = CF = 1.EF = FPC = 2

$$ 8 - \frac {1}{2} \times 1 5 ^ {3} \times 1 0 7 5 \times 1 0 7 5 $$

S

15 1
S APQ = S AQP + S_ PQR

10

• 21 ① 20 < 20 < 25 ②
  rpsn p 100 (scc)
  （HIO/NO）
• 50-49 #Pc1rccnnnnd
  mro

S AOB = S COD + S BOC - S BOC
mim
-

(II) a1 + a2 + a3 = 6,a4 + a5 + a6 = 16

1. = | | = | |

1

1

75

1

| x - 2x| = 12x^2 + 82x + 4 ( 2 < x < 3)

= 12 + 12

rppn 10000000000000000000000000000000000000000000000000

1. 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.

( x + 1) ( y + 1) = 0

or os. gong nnnn ng (scc)

S_ OBC = 12 · CO · BC = 12 × CD × 5

• m

( n + 1,2n - 1) = 1

在 Rt ABD 中:

m

• 175 (H)O(NO)

（）（）

S APQ = S PQR + S_ RQR

(,)

[y = {\left( x - 3\right) }^{2} + 9]

15

r1 = ( r2 - r) + d
nno 1
C
1 证明： · = | | · | | .
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
r原 = dn - 1^2( 12 + 12 + ·s + 12)
= 12 = 12( + ) = 12( + )
imnirrnnnrrnrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrrnnnrr
S木弟形 COBD = S COD + S BDO = S BOC +
- 1110011111111111111111111

5 5

12S = 12 · ( 1 - 12) ( 1 - 12) ( 1 - 12)

n = 230 或-1

FIMO11 M7

10 & 若 a1 = a2 = a3 = a4 = ·s = a11 10 & 若 a5 = a6 = a7 = ·s = a_11 .
2017年全国卷1卷15（20分） 2017年全国卷2卷15（20分）
n 15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.
·DET

80L

1000 1000

= 12( + ) · = 1m( + ) ·

14 2007 (poel) 1915

170^

12 12

d = 197 × 57708

• 05
  -5m9 15(5) r v, 0v, 6 153 oov
  - 97 r 个

n^2n^2 ;

一 1

15 15
1 1
1 2 3 4 5 6 7 8
rnnn rrrnne
- 517

rnrnnn rnrnnn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

n 560

rroo jrrn rnrnrnnr 1980:1980 imnnoe noe

[S = \frac{1}{2} \cdot {4}^{2} \times {10}^{2} \times {5}^{2} \times {10}^{2}]

mip 1

• 1
  1111111111111111111111111
  1
  rccccc 17 (rrrr) 3r r 2000000000000000000000000000000000000000000000000
  9 2017年上海春季班笔记-1 的唯一一课 (二) ( x > 0 x > 1) ·
  1070 1070 1070 (
  12 < 310 < 510 或 510 < 710 < 910
• 1000000000000000000000000000000000000000000000
• 1

1

0-16 17 18 19 20

(1) a4 = 2a1 + 3 = 4

r^n + 2 = r^p - r^p
21 1
rrostror r rostrr rostrorrrn 1.0

1510 1
1. = ( x1,y1) , = ( x2,y2)

$$ \sigma^ {a} = \frac {1}{2} a ^ {b} $$

$$ \begin{array}{l} \bullet 1 9 7 9: 1 9 7 9 3 0 a d o f t o r c, 9 9 7 b d o f t o r c \ \bullet \epsilon m _ {1} ^ {\prime} p _ {1} ^ {\prime} = s ^ {2} \pi \pi \pi \pi \pi \ \bullet \overline {{S}} ^ {C} = 0. 0 4 - 0. 0 4 ^ {1} = - 0. 0 - 0. 0 + 5 \ \bullet \mathrm {r e f} _ {\mathrm {p}} \mathrm {r e f} _ {\mathrm {c}}: \dots b 1 - \dots a 1 6 \ \begin{array}{l} \bullet \quad \overrightarrow {r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r} \ \overrightarrow {r r r r r r r r r r r r r r r r r} \ \overrightarrow {r r r r r r r r r r r r r} \ \overrightarrow {r} \end{array} \ \bullet \mathrm {f o r} 1 0 0 0 \mathrm {m i n} 1 5 0 0 0 \mathrm {m i n} 1 5 0 0 0 \mathrm {m i n} 1 5 0 0 0 \ \begin{array}{l} \bullet \quad \mathrm {o v e r s e r} \quad \mathrm {i n c} \quad \mathrm {r i g h t} \ \quad \mathrm {m i s} \end{array} \ \bullet m s ^ {2} \cap 1. 5 1 3 = k s ^ {2}, m r _ {1} \cap 1. 5 1 3 = m r _ {2} (\exists S \exists) \bar {n} \ \bullet \mathrm {m a x} 1 5 0 7 \div 2 = 1 2 5 0 7 \dots m \ \bullet \mathrm {o r i g i n a l} \mathrm {p o l y t i c a l} \mathrm {r e s e n t ?} \ \bullet \mathrm {i} \mathrm {n} \mathrm {a} \dots \mathrm {i} 7. \ \bullet 5 ^ {2} 1 5 0 0 0: \frac {1}{2} m i n = 2 5 0 0 0 0 0 0 0 0 \ \bullet \frac {1}{1 5} \div 1 5 = 0. 7 \ \end{array} $$

$$ \lambda = \text {o r} \text {e q u i n} 0. $$

rroo 111 100000000000000000000000000000000000000000000000000000000000000000000000000

$$ \begin{array}{l} 2 p - 3 s - (F E O / N O) \dot {N} E D \ v - l p - \frac {1}{w} = \frac {1}{2} + \frac {1}{3} \ \begin{array}{r l} \varepsilon - \mathrm {L P} & - \text {圆} = s ^ {\prime} \sqrt {s ^ {\prime}} \text {i n} \ \mathrm {乙} - \mathrm {L P} & - \text {口} = s ^ {\prime} \text {i n} \end{array} \ L - L P - \log = S ^ {c r} S ^ {r c} S ^ {r c} \ L P - r \sin 1 1 5 ^ {\circ} \dot {r} (\frac {1 0 0}{2} \dot {r} \dot {r}) \ \end{array} $$

$$ \begin{array}{l} p - \bar {n} n s s: \ 0 - \frac {m}{2} = \frac {1}{2} \ q - \infty , \infty , 1, \infty , \infty , \infty , \infty , \infty , \infty , \infty , \infty , \infty , \infty , \infty , \infty \ E - \frac {1}{2} \pi \sqrt {\frac {1}{\pi}} \ \end{array} $$

$$ - m 2 r m s 5 0 $$

Jolll 1000000000000000000000000000

Retailer name & address:

/ Nom et adresse du vendeur / Nombre y direccion del minorista / Nome e endereço do revendedor / Nome e indirizzo delnegozio / Name und Anschrift des Handlers / Naam en adres van de dealer / Forhandler navn & adresse / Återforsäljarens namn och adress / Forhandler navn og adresse / Jällenmyyyjän nimi ja osoite / nazwa i adres sprzedawcy / Numele Şi adresa vanzatorului / Parduotuvès pavadinimas ir adresas / Mūija kauplus ja aadress / Naziv in naslov trgovine / Tipusszám / Názov a adresa predajcu / Veikala nosaukums un adrese / Naziv i adresa maloprodaje / Naziv i adresa prodavca / Naziv i adresa prodajnog mjesta / Nume Şi adresa vanzātator / Název a adresa prodejce / Nama dan alamat peruncit / Nama Toko Penjual dan alamat / Tén va dja chi cura hang bán/ Satici firmanin adi ve adresi / HañBaHne i āpènc npoДaBa / HañBa i āpèca npoДaBa / TþrɒBKn obekt/ HañВи āpèca Na npoДaBnUцata / CaTyMbIbHn aTbi JxHe MekeH-kaBi/ Eπωνμια και διεθυνση καταστματος / χʌdʊnntŋ h wɪʌwɪnɪŋ l huwɪghú/

/ /

Distributor stamp /Cachet distributeur/Sello del distribuidor/

Carimbo do revendedor / Timbro del negozio / Handlerstempel / Stempel van de dealer / Forhandler stempel / Aterforsaljarens stampel / Forhandler stempel / Jalleenmyyjan leima / pieczenia sprzedawcy / Stampila vanzatorului / Antspaudas / Tempel / Zig trgovine / Elado neve, cime/ Razitko predajcu / Zimogs / Pecat maloprodaje/ Pecat prodavca / Pecat prodajnog mjesta / Stampila vanzatorului/Razitko prodejce/Cap peruncit/Cap dari Toko Penjual/Cura hang bán dong dai/Satici Firmanin Kasesi/ Neuatab npodabua/ Neuatak npodabua/ Neuat Ha TBPROBCKN oBeKT/ Neuat Ha npodabHnCiTa/ CaTyMbHbN Mepi/ Σφραγιδα καταστήματος/ ΣwUdunnnh quhpn/ nwnswnn/ nwnn/零售商的盖印/贩壳店印/soamaqm职人/ aJz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz
