USER MANUAL LP-LED4 YORKVILLE

Yorkville

LP-LED4

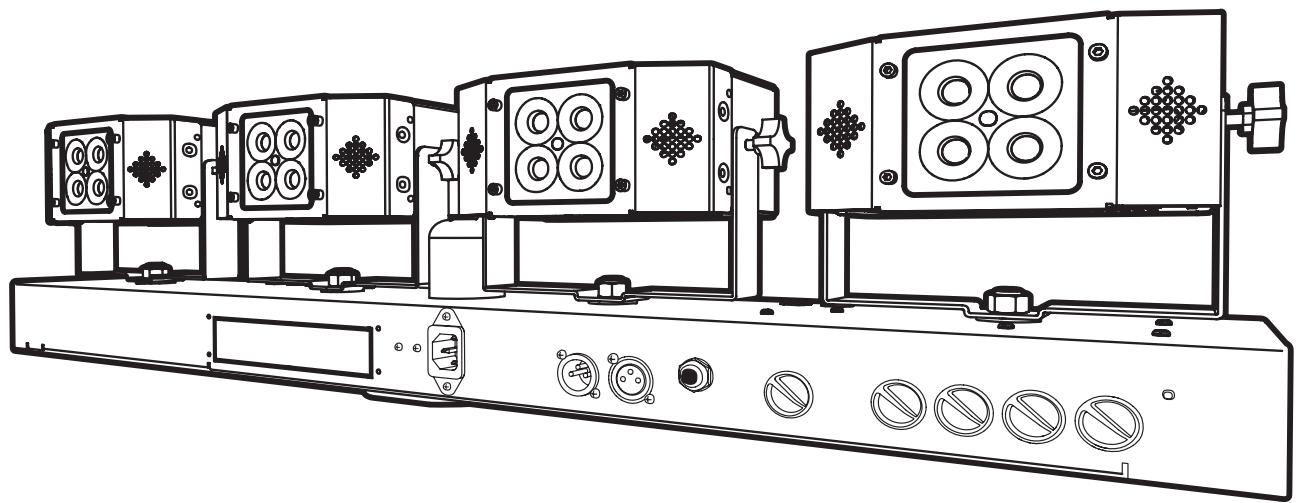

Stage Lighting Lightbar

Line drawing of a multi-chamber electronic device with multiple ports and control buttons (no text or symbols)

This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Instructions pertaining to a risk of fire, electric shock, or injury to a person

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Read Instructions: The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and heed all warnings.

Clean only with dry cloth.

Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.

Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!

Warning: When using electric products, basic precautions should always be followed, including the following:

Power Sources

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing ground. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Hazards

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. Only use attachments/accessories specified by the manufacturer

Note: Prolonged use of headphones at a high volume may cause health damage on your ears.

The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.

Terminals marked with the “lightning bolt” are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Power Cord

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. Protect the power cord from being walked on or pinched particularly at plugs. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. The mains plug of the power supply cord shall remain readily operable.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Service

The unit should be serviced only by qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

SUIVEZ TOUTES LES INSTRUCTIONS

Line drawing of a multi-chamber electronic device with multiple ports and control buttons (no text or symbols)

LP-LED4

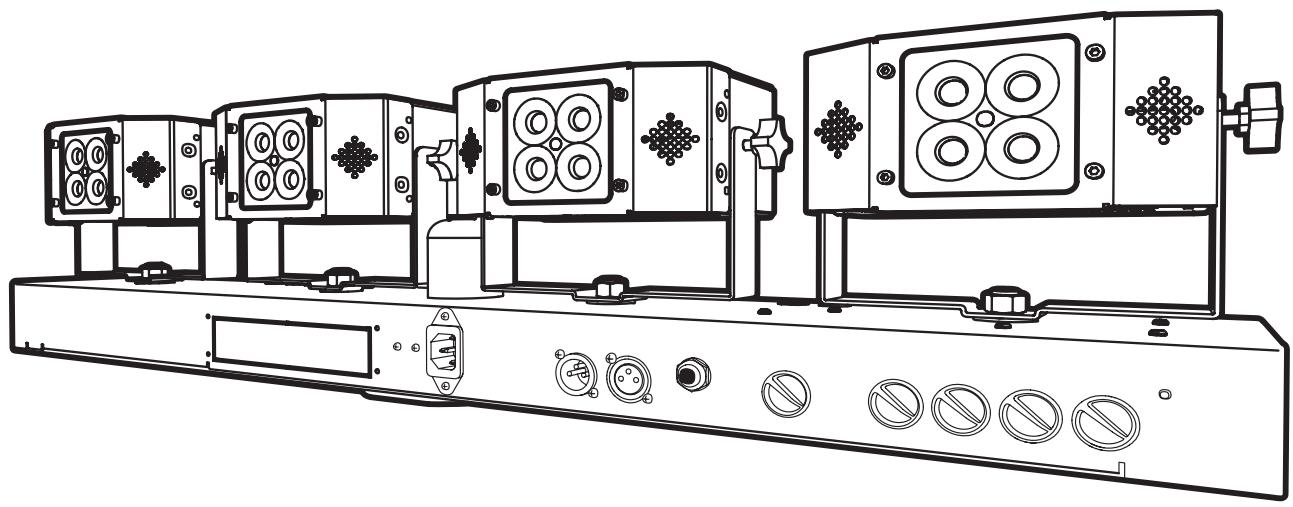

The Yorkville Sound LP-LED4 is a compact and powerful lighting system. The LP-LED4 consists of 4 light fixtures mounted on a stand-mountable base. The base houses the user controls, connectors for a separate controller, the power supply, and various mounting options. Each light fixture contains 4 very high-power multi-die LED emitters. Each of the emitters has a red, green, blue and white die. With the addition of the white die, a more complete light spectrum is available, objects and people illuminated appear with a more accurate color.

The light output of each fixture is roughly equivalent to 300 watt bulbs with gels. The beam has a diameter of 2 feet, at a distance of 6 feet. The diameter is 4 feet at a distance of 12 feet. The light is mixed in the lens so that the mixed light color is visible when looking at the lens. Each fixture may be adjusted in 2 axis.

Function

5 s 15 s COLOR FADE 90 s Fast Medium 10 s CHANGE 100% DUNING AUTO CHANGE 10%

Audio Effects

1.	4-band Sound to Light (slow)
2.	3-band Sound to Light (fast)
3.	Flash ALL with Bass Beat, (Mixed color changes with each beat)
4.	Flash Color Pairs with Bass Beat
5.	Audio Chase (1-step per Bass Beat) (Color changes with each beat)

Chase Speeds	Color Changes with Each Step
Fast	6 steps per second
Medium	2 steps per second
Slow	10 seconds per step

Color Fade	All Pods are the same color
Fast	5 seconds per fade
Medium	15 seconds per fade
Slow	90 seconds per fade

The LP-LED4 may be used in several ways:

1. Stand alone
2. With a separate controller
3. Linked to other LP-LED4s with one as master
4. Controlled by DMX signals through the add-on (sold separately) DMX module. The Yorkville Sound LP-C12 controller allows for more functionality than the LP-LED4 has on is own. The older Yorkville Sound LP-608 may also be used but has limited functionality (see more detailed description below). When a Yorkville Sound Color Controller is used, the controls on the LP-LED4 become inactive.

When the LP-LED4 is operated by itself (stand alone) there are a number of modes which are determined by the FUNCTION control:

OFF

Dimming (4 levels)

Chase (3 speeds)

Color fade (3 speeds)

Audio effects (5)

When used in the dimming mode, the color of each fixture is determined by the corresponding COLOR control. Any fixture can be turned off by setting the COLOR control to the off position. There are 15 colors and color choices start with red, then blue, white, amber yellow and finally green. There are several choices of color temperature for white. The color fade speeds are fairly slow and are intended for gradually changing mood lighting. The chase speeds are faster and are multi color.

DMX Module

The DMX module installs in a cutout in the chassis. It is necessary to connect to an internal circuit board with a jumper cable supplied with the DMX module. Operating instructions for the DMX mode are supplied with the DMX module.

Yorkville Sound LP-608 Lighting Controller

When operating with the Yorkville Sound LP-608 lighting controller the COLOR controls on the LP-LED4 remain active. The COLOR control can be used to select the color of each fixture or if the COLOR control is set to off then the LP-608 intensity control becomes the color control (including off) but the intensity is not controllable.

Color Organ (Audio to Light)

The LP-LED4 has sophisticated audio to light (color organ) circuitry. The automatic level circuitry allows it to be used with signals from weak line levels up to strong loudspeaker levels. The voltage range is 50mv to 100 volts.

Using Multiple LP-LED4s

Multiple LP-LED4 units may be linked with a standard 3-pin XLR cable. When the first unit in the chain is not receiving a control signal its controls are active and the downstream units operate identically to the first unit.

Mounting

The LP-LED4 will mount on a standard loudspeaker stand or C clamps can be fitted to any of the 4 threaded mounting points. (See Diagram 4)

Power Consumption

The advantage for using LED versus conventional incandescent lighting is two-fold. Not only does the unit give off much less heat but also consumes less than 5% to 20% of the energy. This eliminates the need for separate AC power circuits just to run the lights.

Power consumption is under 270 watts depending on color choice and intensity. The light fixtures and the base are fan cooled. The AC connector will mate with a standard IEC cable or with a special locking cable (provided). Line voltage can be anywhere from 100 to 240 volts AC.

Specifications

	LP-LED4
Max AC Input Voltage	100-240VAC 50/60 Hz
Power Consumption LEDs	16 Watts per LED, 4 LEDs per head, 64 Watts total
Power Consumption	270 Watts
Stand Mount Size	1 3/8 inch Round
Controller Cable	Standard Shielded 3-pin XLR Cable
Other	Optional DMX Module
Dimensions (LWH)	32.5 x 4 x 8 inches
	82.6 x 10.2 x 20.3 cm
Weight	20.3 lbs
	9.2 kg

Line drawing of a multi-chamber electronic device with multiple ports and control buttons (no text or symbols)

LP-LED4

Color fade (3 vitesses)

Audio effects (5)

82.6 × 10.2 × 20.3 cm

Poids 20.3 livres

9.2 kg

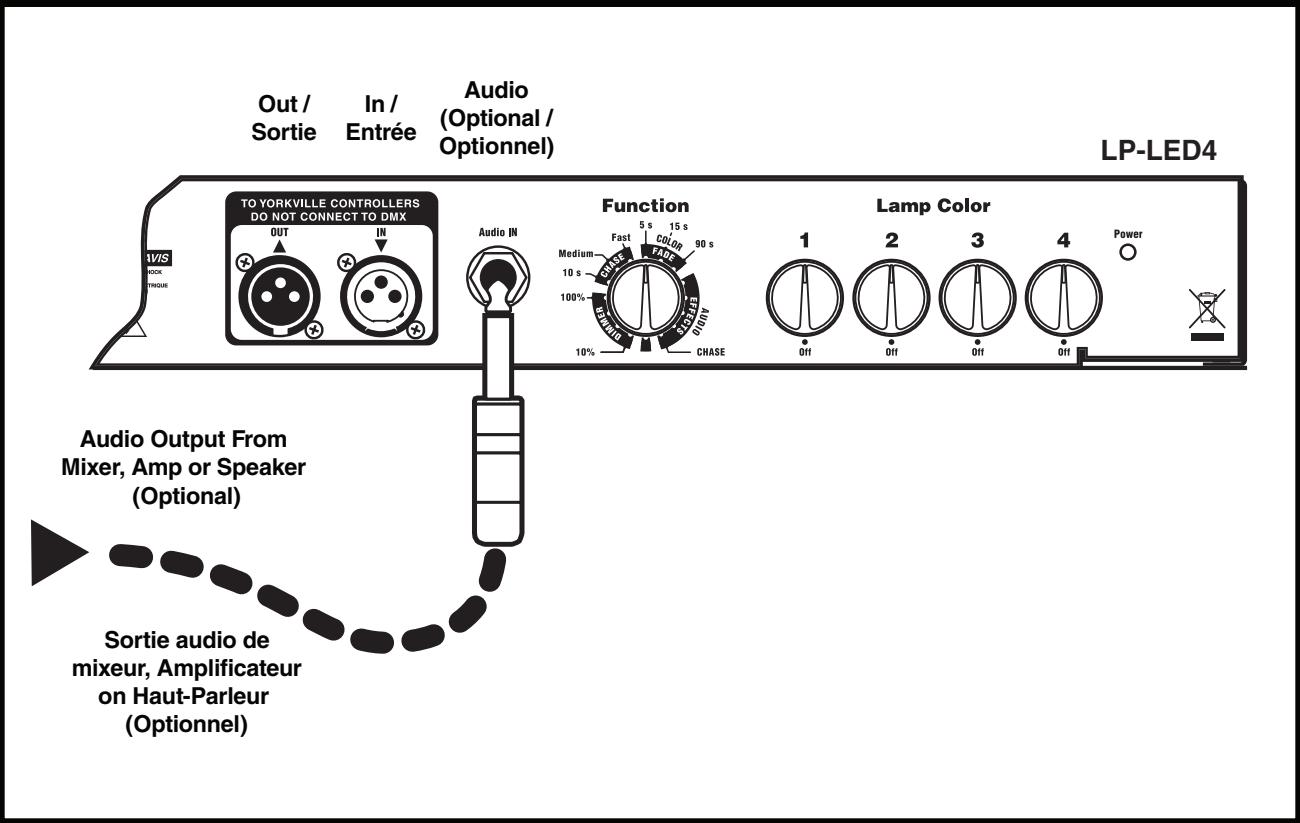

Audio In / Entrée Audio

Out / Sortie In / Entrée Audio (Optional / Optionnel) LP-LED4 TO YORKVILLE CONTROLLERS DO NOT CONNECT TO DMX Function Lamp Color 1 2 3 4 Power OUT IN Medium Fast 5 s 15 s 10 s CALE 90 s 100% CHASE 10% CHASE Audio IN Audio Output From Mixer, Amp or Speaker (Optional) Sortie audio de mixeur, Amplificateur on Haut-Parleur (Optionnel)

Two & Ten Year Warranty

Two & Ten

Unlimited Warranty

Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. This includes all Yorkville products, except for the YSM Series studio monitors, Coliseum Mini Series and TX Series Loudspeakers.

Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes or par bulbs. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.
