Elite ES18P - Loudspeaker YORKVILLE - Free user manual and instructions

Type	Rear Horn Loaded Subwoofer
Active or Passive	Active
Program Power	1600 watts (3200 watts Peak)
Max SPL	140 dB Peak (134 dB Continuous)
Frequency Response (+/- 3dB)	43 - 150 Hz
LF Driver	18-inch Cast Frame Woofer with 4-inch Voice Coil
LF Protection	Thermal / Overcurrent (X-max) / Clip
Power Consumption (120V typical/max)	4A / 4.5A
Power Consumption (230V typical/max)	2A / 2.3A
Input Connections	1 x XLR Input, 1 x XLR Mono Blend Input, 1 x 1/4-inch Link Input
Output Connections	1 x 1/4-inch Link Output, 1 x XLR Link Output

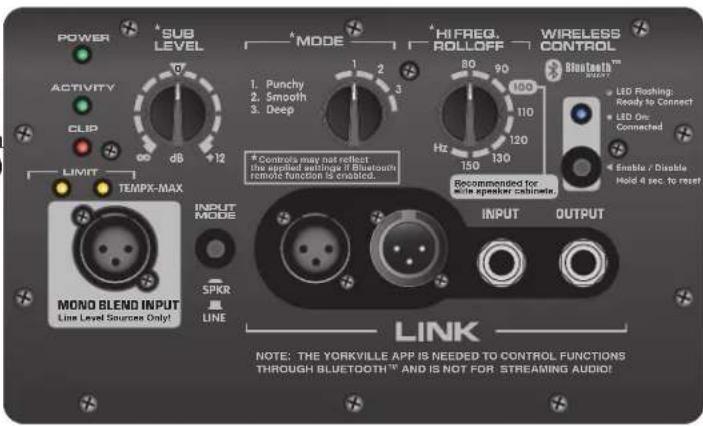

Level Controls	Master - Sub Level
Active Controls	Mode (1 Punchy, 2 Smooth, 3 Deep), High Frequency Roll-off (80Hz to 150 Hz)
LED Indicators	Power, Activity, Protection (Clip, X-Max, Temp)
Wheels	2 x Rear tilt-back
Handles	2 x Top Rear Back, 2 x Bottom Front, 3 x Each Side
Pole Mount Adapter	1 (Top) (1 3/8-inch - 3.5 cm)
Enclosure Materials	15mm (5/8-inch) 11-ply Russian Birch
Covering / Finish	Black Ultrathane Paint
Dimensions (DWH back/W in inches)	24.64 x 22.86 x 34
Dimensions (DWH back/W in cm)	62.6 x 68 x 86.36
Weight	137 lbs (62 kg)
Bluetooth Control	Yes (for app control only, not audio streaming)
Cleaning	Clean only with dry cloth
Service	Refer servicing to qualified service personnel; no user-serviceable parts inside

Frequently Asked Questions - Elite ES18P YORKVILLE

How do I connect the ES18P to a mixer?

Use a balanced XLR cable from the mixer's output to the XLR Input on the subwoofer. Set the Input Mode switch to Line and adjust the Sub Level control. The Mono Blend input can combine left and right signals into one sub.

Can I daisy-chain multiple ES18P subwoofers?

Yes, use the Link outputs (XLR or 1/4-inch) to connect additional ES Powered Subs in parallel. There is no practical limit to the number, but ensure the total load does not exceed the amplifier's capability.

What do the Mode settings do?

Punchy emphasizes upper bass for a tighter sound. Smooth maintains the original character with neutral bass. Deep boosts low frequencies for a deeper, more extended bass response.

How does the protection system work?

The subwoofer uses a DSP-based limiter to prevent clipping, over-power, and over-excursion (X-max). The protection LED (Clip, X-Max, Temp) will indicate when limiting or thermal shutdown occurs.

Can I use the Bluetooth for audio streaming?

No. The Bluetooth on the ES18P is for control only via the Yorkville App (iOS/Android). It cannot stream audio. Press and hold the Bluetooth button for 4 seconds to reset the module.

What is the recommended crossover frequency?

Set the Hi Freq. Rolloff control to match your top speakers. A good starting point is 100 Hz when using Yorkville elite powered tops. The range is adjustable from 80 Hz to 150 Hz.

What is the Mono Blend input for?

The Mono Blend input allows you to connect a second line-level signal (e.g., the other channel from a stereo mixer) without an external summing device. It sums both inputs internally to feed the subwoofer with a mono signal.

Can I use the ES18P with a passive speaker system?

Yes, set the Input Mode switch to Speaker Level and connect the subwoofer after a power amplifier or powered mixer output. Do not connect two speaker-level sources to the same sub.

How do I transport the ES18P?

Use the built-in handles (2 top rear, 2 bottom front, 3 on each side) and the tilt-back wheels on the rear. The subwoofer weighs 137 lbs (62 kg), so lifting with proper technique is recommended.

What cleaning and maintenance is required?

Clean the enclosure with a dry cloth only. Do not use liquids or solvents. Keep ventilation openings unobstructed. For service, contact a qualified technician. The subwoofer is for indoor use only.

USER MANUAL Elite ES18P YORKVILLE

WEB: www.yorkville.com

WORLD HEADQUARTERS

CANADA

Yorkville Sound Limited

550 Granite Court

Pickering, Ontario

L1W 3Y8 CANADA

Voice: 905-837-8481

Fax: [phone]

U.S.A.

Yorkville Sound Inc.

4625 Witmer Industrial Estate

Niagara Falls, New York

14305, USA

Voice: 716-297-2920

Fax: [phone]

Quality and Innovation Since 1963

Printed in Canada

SERVICE MANUAL

ES18P

SMT Disclaimer

Due to the complex nature of the use of SMT installed components in Yorkville equipment, we highly caution all service technicians in attempting to repair or replace SMT factory installed components.

Many of these components may be glued prior to initial soldering

Replacing SMT components requires expensive

specialized de-soldering equipment and training.

Yorkville Sound will repair and replace defective SMT components to ensure proper quality assurance and installation is maintained.

0 DCX016HMLFH 50030000Y0001 HE2000

IMPORTANT SAFETY INSTRUCTIONS

This lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The DO NOT STACK symbol is inlanded to alert the user that the product shall not be vertically slacked because of the nature of the product.

The excitation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Instructions pertaining to a risk of fire, electric shock, or injury to a person

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL. THIS DEVICE IS FOR INDOOR USE ONLY! INSTALLED BATTERY PACKS SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.

Read Instructions: The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and head all warnings.

Cleaning: Clean only with dry cloth.

Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.

Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!

Warning: When using electric products, basic precautions should always be followed, including the following:

Power Sources

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defealed. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing connection. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Hazards

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. Only use attachments/accessories specified by the manufacturer.

Equipment that is suspended overhead must use a secondary safeguard to prevent personal injury in the event the primary mounting mechanism fails. Safety eyebolts attached to the equipment and galvanized steel wire can be used together to implement a failsafe mounting thus ensuring the safety of the equipment and anyone positioned below the equipment.

Improper installation can result in bodily injury or death. If you are not qualified to attempt the installation get help from a professional structural rigger. Notes: Prolonged use of headphones at a high volume may cause health damage to your ears.

The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.

Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, sloves, or other apparatus (including amplifiers) that produce heat.

No naked flame sources, such as lighted candies, should be placed on the apparatus.

Power Cord

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blades or the third prong are provided for your safety. If the provided plug does not fill into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. Protect the power cord from being walked on or pinched particularly at plugs. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect the apparatus from the AC Maine, disconnect the power supply cord plug from the AC receptacle. The mains plug of the power supply cord shall remain readily operable.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Service

The unit should be serviced only by qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, requires battery pack replacement or has been dropped. Disconnect power before servicing!

IMPORTANT SAFETY INSTRUCTIONS

The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product

1. Read these instructions.

2. Keep these instructions.

3. Head all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prongs are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from lip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING:

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

• To completely disconnect this apparatus from the ac mains, disconnect the power supply cord plug from the ac receptacle.

- The mains plug of the power supply cord or appliance coupler shall remain readily accessible.

ES12P ES15P ES18P ES21P
System Type	Rear Horn Loaded Subwoofer	Rear Horn Loaded Subwoofer	Rear Horn Loaded Subwoofer
Active or Passive	Active Active Active		Active
Program Power (watts)	1200 watts (1800 watts Peak) 1800 watts (3600 watts Peak)		1600 watts (3200 watts Peak) 2400 watts (3600 watts Peak)
Max SPL (dB)	132ds Peak (126ds Continuous)	138 eS Peak (132ds Continuous)	140 dB Peak (134dB Continuous)
Frequency Response (Hz +/- 3dB)	45 - 150 (Hz +/- 3dB)	45 - 150 (Hz +/- 3dB)	43 - 150 (Hz +/- 3dB)
LF Driver(s)	12-inch Cost Frame Wofster w/4-inch Voicoseoil	15-inch Cost Frame Wofster w/4-inch Voicoseoil	18-inch Cost Frame Wofster w/4-inch Voicoseoil 21-inch Cost Frame Wofster w/4-inch Voicoseoil
LF Protection	Thermal / Overcurrent (X-max) / Clip	Thermal / Overcurrent (X-max) / Clip	Thermal / Overcurrent (X-max) / Clip
Power Consumption (typmax)	120V (4.0A / 5.6A), 230V (2.0A / 2.6A)	120V (5.5A / 5.6A), 230V (2.6A / 3.6A)	120V (4A / 4.5A), 230V (2A / 2.3A)
In / Out Connections	1 x XLR Input 1 x XLR Input 1 x XLR Input 1 x XLR Input
	1 x XLR Mono Blend Input 1 x XLR Mono Blend Input 1 x XLR Mono Blend Input
	1 x 1⁄4-inch Link Input	1 x 1⁄4-inch Link Input	1 x 1⁄4-inch Link Input
	1 x 1⁄4-inch Link Output	1 x 1⁄4-inch Link Output	1 x 1⁄4-inch Link Output
	1 x XLR Link Output	1 x XLR Link Output	1 x XLR Link Output
Level Controls	Master - Sub Level	Master	Master
LED Indicators	Power, Activity, Protection (Clip, X-Max, Temp)	Power, Activity, Protection (Clip, X-Max, Temp)	Power, Activity, Protection (Clip, X-Max, Temp)
Other Controls / Features	Active Controls: Mode - 1 Punchy, 2 Smooth, 3 DeepHigh Frequency Roll-off - 80Hz to 150 Hz	Active Controls: Mode - 1 Punchy, 2 Smooth, 3 DeepHigh Frequency Roll-off - 80Hz to 150 Hz	Active Controls: Mode - 1 Punchy, 2 Smooth, 3 DeepHigh Frequency Roll-off - 80Hz to 150 Hz
Wheels NC/NF		2 x Rear tilt-back	2 x Rear tilt-back
Bar Handels	1 x (ft left side), 1 x (Right side)	1 x (Top Rear Edge), 1 x (Bo	2 x Top Rear Back, 2 x Bottom Front, 3 x Each Side
Pole Mount Adapter (1 3/8-inch-3.5cm)	1 (Top) (1 3/8-inch-3.5cm)	1 (Top) (1 3/8-inch-3.5cm)	1 (Top) (1 3/8-inch-3.5cm)
Enclosure Materials	15mm (58inch) 11-ply Russian Birch	15mm (58inch) 11-ply Russian Birch	15mm (58inch) 11-ply Russian Birch
Covering / Finish	Black Ultrathane Paint	Black Ultrathane Paint	Black Ultrathane Paint
Dimensions (DWH back/W, Inches)	17 x 17 x 27	21 x 18 x 32	24.64 x 22.86 x 34
Dimensions (DWH x back/W, cm)	45 x 43 x 69	53.3 x 45.7 x 81.3	62.6 x 68 x 86.36
Weight (Ibe/kg)	85/8.5	113 / 50	137 / 62

Specifications subject to change without notice

Specifications

Specifications subject to change without notice

Block Diagram for ES Series Powered Subwoofers DESIGNED & MANUFACTURED BY YORKVILLE SOUND

ES12P ES15 ES18P ES21P

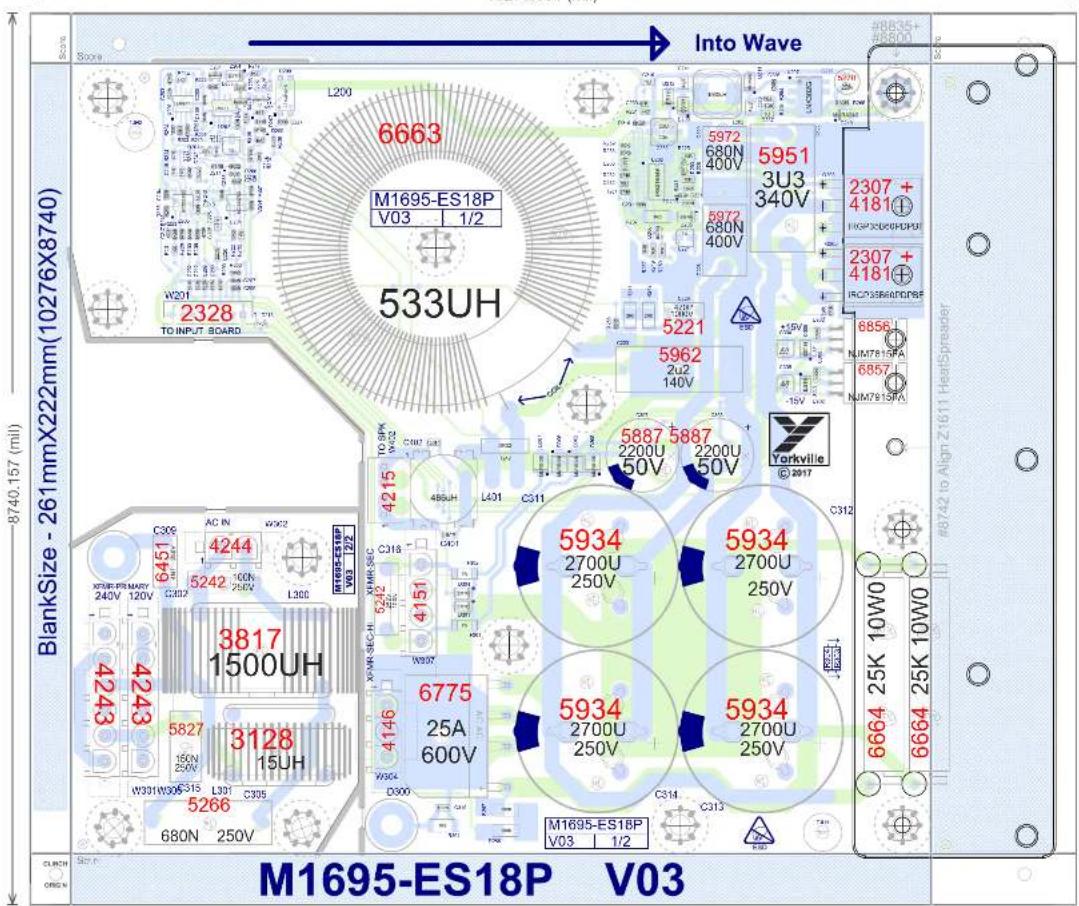

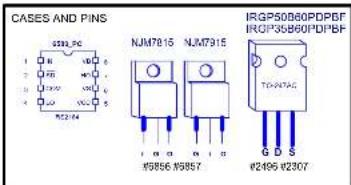

M1695 Parts Reference List 9/12/2018

REF YS # Description REF YS #						Description REF YS # Description
X - S/n	M1695-59 E	$18P	AMP/SUPPLY PCB	F309		ES1H 500V 1A0 D214 UPGT 8814	R260	470K	5% THERMISTOR NTC 0805 SMT
C200	100N	60V 5%CAP	0805 SMT X7R	F301	FUSE	SLOW 7A 125V SMT 6125	R261	W100	274K 1% 0805 SMT RES
C202	100N	60V 5%CAP	0805 SMT X7R	F302	FUSE	SLOW 7A 125V SMT 6125	R262	W100	274K 1% 0805 SMT RES
C203	100N	60V 5%CAP	0805 SMT X7R	HS1	4181 TO22	D THERMO PAD CERAMIC .080 THK	R263	W100	13K 1% 0805 SMT RES
C204	100N	60V 5%CAP	0805 SMT X7R	HS2	4181 TO22	D THERMO PAD CERAMIC .080 THK	R264	W125	1K4 1% 0805 SMT RES
C205	100N	60V 5%CAP	0805 SMT X7R	HS3	Z1611	ES18P/ES15P HEAT SPREADER	R265	W250	330R 5% 1206 SMT RES
C206	100N	60V 5%CAP	0805 SMT X7R	HN1	8871 4-40X	5/8 PAN PHILIPS MS BO&W	R266	1W00	100K 5% 2512 SMT RES
C207	100N	60V 5%CAP	0805 SMT X7R	HN2	8902 4-40X	3/4 PAN PHILIPS MS TBZ	R267	1W00	100K 5% 2512 SMT RES
C208	100N	60V 5%CAP	0805 SMT X7R	HN4	8485 #6 SP	LIT WASHER ZINC	R268	W125	4K02 0.1% 0805 SMT RES
C209		100N 50V 5%CAP	0805 SMT X7R	ITNS	3501 #4 B5	2200F006 COMP WASH SMALL	R301	1W00	1K8 5% 2512 SMT RES

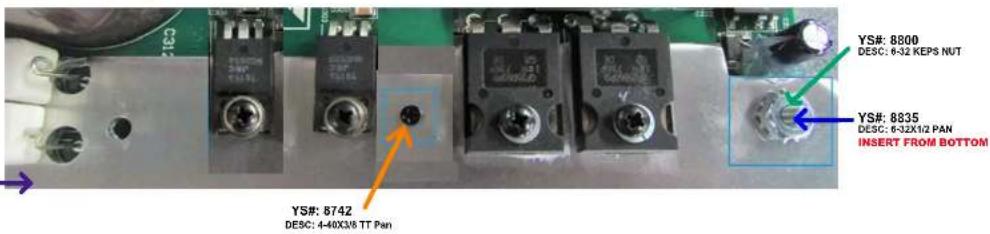

C210	100N	60V 5%CAP	0805 SMT X7R	HN6	8742 4-40X	3/8 PAN PH TAPTITE BO&W	R303	6664 10W0	25K 5% BLK RES
C211	100N	60V 5%CAP	0805 SMT X7R	HN7	8761 6-32X	1/2 PAN PHILMS ZINC CLEA	R304	6664 10W0	25K 5% BLK RES
C212	100N	60V 5%CAP	0805 SMT X7R	HN8	8800 6-32	KEPS NUT ZINC	U200	LTV-8	141S ACINPUT OPTOCOUPLER SMT
C213	680P	60V 5%CAP	0805 SMT COG	HN9	8871 4-40X	5/8 PAN PHILIPS MS BO&W	U201	LM311	COMPARATOR IC SMT SO-8
C214	470N	60V 5%CAP	1206 SMT X7R	HN10	8902	4-40X3/4 PAN PHILIPS MS TBZ	U202	LM311	COMPARATOR IC SMT SO-8
C215	_1U	50V 20%CAP	4.3X3.9 SMT ELC	HN11	8837 6-32X	1/2 PAN PHILIPS MS TBZ	U203	IRS2	844SPBF IC HILO FET DRVR SO14
C216	1U	25V 20%CAP	1206 SMT X7R	HN12	8800 6-32	KEPS NUT ZINC	U204	33078	DUAL OPAMP SMT SO-8

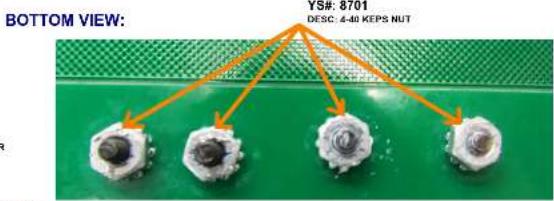

C217	470P	50V 5%CAP	0603 SMT NPO	HN13	8701 4-40	KEPS NUT ZINC	U205	33078	DUAL OPAMP SMT SO-8
C218	_1N	50V 5%CAP	0805 SMT NPO	HN14	8701 4-40	KEPS NUT ZINC	U206	TL33	COMPARATOR IC SMT SOT235
C219	5972 680N	400V 5%CAP	BLK RAD POLY FLM	HN15	8701	4-40	KEPS NUT ZINC	U207	LNK32G OFFLINE SWITCH SMT SMD8B
C220	220N	50V 10%CAP	1206 SMT X7R	HN16	8701 4-40	KEPS NUT ZINC	U302	6856 NJM7	815FA TO220 P 15V0 REG IS V1
C221	100N	100V 10%CAP	1206 SMT X7R	HN17	8485 #6 SP	LIT WASHER ZINC	U303	6857 NJM7	915FA TO220 N 15V0 REG IS V2
C222	5961 _3U3	450DC10%CAP	BLK MPOLYP FLM	HN18	3501 #4 B5	2200F006 COMP WASH SMALL	A201	2328 8 CIR	XH-HEADER 0.098IN
C223	5962 _2U2	140AC10%CAP	BLK RAD POLYP FLM	L200	6663 _533X	UH CHOKE 120T19AWG/77908CORE	W301	4147	6 PIN POWER PIN HEADER MALE POLZED
C224	_1U	50V 20%CAP	4.3X3.9 SMT ELC	L202	1000H	10% COIL 12MM SMT	W302	4162 2 PIN	POWER PIN HEADER MALE POLZED
C225	470P	50V 5%CAP	0603 SMT NPO	L300	3817 1.5X	UH COIL INPUT COM MODE	W304	4146 3 PIN	POWER PIN HEADER MALE POLZED
C226	47N	100V 10%CAP	1206 SMT X7R	L401	486U	UH COIL COMMON MODE 8A SMT	W306	4147 6 PIN	POWER PIN HEADER MALE POLZED
C227	100N	60V 5%CAP	0805 SMT X7R	M1695	W250	0R 1206 SMT RES	W307	4151 4 PIN	POWER PIN HEADER MALE POLZED
C228	5972 680N	400V 5%CAP	BLK RAD POLY FLM	O200	MMB	A92 PNP SOT-23 SMT	W402	4215	_4 PIN POWER VH MALE .156 10A
C229	5221 470P	1000V 5%CAP	POLYPROP BULK	O201	MMB	F439LT1 NCH JFET SOT-23 SMT T&R	E25200	MM32	18VT1G 18V0 0W2 5% SMT ZEN
C230	47P	50V 5%CAP	0805 SMT NPO	O203	2307 IRGP	85860PDPBF T0247 NPN IGBT TM
C231	100N	60V 5%CAP	0805 SMT X7R	O204	MMB	A92 PNP SOT-23 SMT
C232	_33U	25V 20%CAP	6.3X5.5 SMT EL	O205	2307 IRGP	85860PDPBF T0247 NPN IGBT TM
C233	100N	60V 5%CAP	0805 SMT X7R	R200	W125	10R0 1% 0805 SMT RES
C234	100N	60V 5%CAP	0805 SMT X7R	R201	W100	12K1 1% 0603 SMT RES
C235	_10U	10V 20%CAP	0805 SMT Y5V	R202	W125	10R0 1% 0805 SMT RES
C236	100N	60V 5%CAP	0805 SMT X7R	R203	W100	10K0 1% 0805 SMT RES
C237	_1U	25V 20%CAP	1206 SMT X7R	R204	W100	12K1 1% 0603 SMT RES
C238	_4U7	50V 10%CAP	1210 SMT CER	R206	W125	100K 5% 0805 SMT RES
C239	5270 _2U2	250V 20%CAP	BLK RAD .1EL	R207	W125	2K2 5% 0805 SMT RES
C241	_4U7	50V 10%CAP	1210 SMT CER	R208	W125	4M7 5% 0805 SMT RES
C242	100U	16V 10%CAP	1206 SMT X7R	R209	W125	100K 5% 0805 SMT RES
C301	100N	100V 10%CAP	1206 SMT X7R	R210	W100	6K98 1% 0805 SMT RES
C302	5242 100N	250V 20%CAP	BLK "X2" 15MM AC	R212	W100	10K0 1% 0805 SMT RES
C303	5887 220U	50V 20%CAP	BLK 18X27MM EL	R213	W100	182K 1% 0805 SMT RES
C304	4U7	25V 20%CAP	4X5.5 SMT ELC	R214	W125	4K7 5% 0805 SMT RES
C305	5266 680N	250V 20%CAP	BLK "X2" 27MM AC	R215	W125	47K5 1% 0805 SMT RES
C306	100N	100V 10%CAP	1206 SMT X7R	R218	W125	8K66 1% 0805 SMT RES
C307	5887 220U	50V 20%CAP	BLK 18X27MM EL	R219	W100	475R 1% 0805 SMT RES
C308	_4U7	25V 20%CAP	4X5.5 SMT ELC	R221	W125	470R 5% 0805 SMT RES
C309	6451 _4N7	250V 20%CAP	BLK "Y" 10MM AC	R222	W100	10K0 1% 0805 SMT RES
C310	100N	10V 10%CAP	1206 SMT X7R	R223	W100	6K98 1% 0805 SMT RES
C311	5934 270U	250V 20%CAP	BLK 40X60MM 4PS	R224	W125	47R 5% 0805 SMT RES
C312	5934 270U	250V 20%CAP	BLK 40X60MM 4PS	R225	W250	10R 5% 1206 SMT RES
C313	5934 270U	250V 20%CAP	BLK 40X60MM 4PS	R226	W100	15K0 1% 0805 SMT RES
C314	5934 270U	250V 20%CAP	BLK 40X60MM 4PS	R227	W100	1M0 1% 0805 SMT RES
C401	150P	100V 5%CAP	1206 SMT COG	R228	W250	10R 5% 1206 SMT RES
C402	150P	100V 5%CAP	1206 SMT COG	R229	W100	6K98 1% 0805 SMT RES
D200	CDSF-148	75V 0A15 100S SMT
D201	BZX84C22	22V 0W3 5% SMT ZEN
D203	BAT75D	SOT-23 SMT SCHTKY
D204	ES1H	500V 1A0 D214 UPGT 8814
D205	ES1H	500V 1A0 D214 UPGT 8814
D206	BAT75D	SOT-23 SMT SCHTKY
D207	CDSF-148	75V 0A15 100S SMT
D208	ES1H	500V 1A0 D214 UPGT 8814
D209	BZX84C43	43V 0W3 5% SMT ZEN
D210	MURA-40T3 400V 2A DIO 403D SMT
D211	MURA-40T3 400V 2A DIO 403D SMT
D212	ES1H	500V 1A0 D214 UPGT 8814
D213	BZX84C15LT1 15V0 0W225 ZEN SOT23
D214	CDSF-148	75V 0A15 100S SMT
D300	6775 BRIDGE C25A 600V WIRE LEAD SIP
D301	ES1H	500V 1A0 D214 UPGT 8814
D302	MURS 20T3 200V 1A DIO DO214AA SMT
D304	ES1H	500V 1A0 D214 UPGT 8814
D305	MURS 20T3 200V 1A DIO DO214AA SMT
D306	MURS 20T3 200V 1A DIO DO214AA SMT
D307	MURS 20T3 200V 1A DIO DO214AA SMT
D308	ES1H	500V 1A0 D214 UPGT 8814

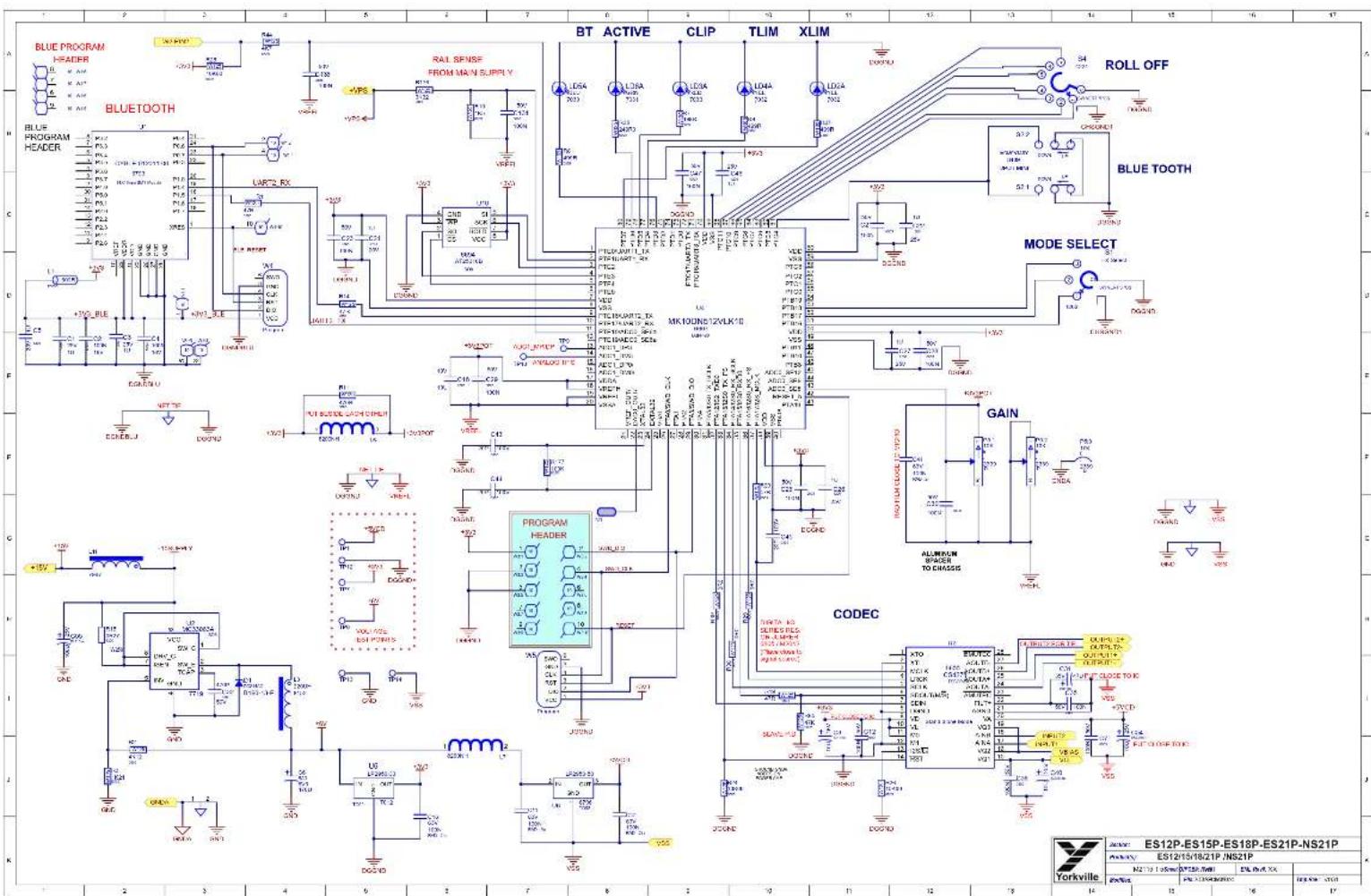

REF YS # Description REF YS # Description
A-A35	1696-59 E	12P/ES15P/ES18P INPUT/DSP PCB	P5	2339	10K B LIN 12MM DUAL 21DET P34	BD2	MM3218VT1G 18V0 0W2 5% SMT ZEN
C1	_1U	25V 20%CAP 1206 SMT X7R	PCB1	1696BLANK 1	OZ 2SD 83.9SQIN 03PER ES18/15P
C2	100N	16V 10%CAP 0603 SMT X7R	F1	W125 4R	5% 0805 SMT RES
C3	_1U	25V 20%CAP 1206 SMT X7R	F2	W100 3	T4 1% 0805 SMT RES
C4	100N	16V 10%CAP 0603 SMT X7R	F3	W125 1	K21 1% 0805 SMT RES
C5	_1U	25V 20%CAP 1206 SMT X7R	F4		W125 37K4 1% 0805 SMT RES
C6	5669 470U	6V3 20%CAP RAD EL T&R	F5	W125 2K	K1 1% 0805 SMT RES
C7	5945 10U	63V 20%CAP T&R RAD .2EL	F6	W125 10	K00 0.1% 0805 SMT RES
C8	5945 10U	63V 20%CAP T&R RAD .2EL	F7	W100 49R	1% 0805 SMT RES
C9	5233	330N 63V 5%CAP T&R RAD .2FLM	F8	W100 49R	1% 0805 SMT RES
C10	5233 330N	63V 5%CAP T&R RAD .2FLM	F9	W100 49R	1% 0805 SMT RES
C11	5212 100N	100V 5%CAP T&R RAD .2FLM	F10	W125 1	K5 5% 0805 SMT RES
C12	100N	50V 5%CAP 0805 SMT X7R	F11	W125 47R	5% 0805 SMT RES
C13	100N	50V 5%CAP 0805 SMT X7R	F12	W125 10	K00 0.1% 0805 SMT RES
C14	100N	50V 5%CAP 0805 SMT X7R	F13		W100 200R 1% 0805 SMT RES
C15	100N	50V 5%CAP 0805 SMT X7R	F14	W125 4R	5% 0805 SMT RES
C16	5212 100N	100V 5%CAP T&R RAD .2FLM	F15	W250 0	R27 5% 1206 SMT RES
C17	_10U	16V 10%CAP 1206 SMT X7R	F16	W100 2	K0 1% 0805 SMT RES
C18	_10U	16V 20%CAP 0805 SMT X5R	F17	W100 2	K0 1% 0805 SMT RES
C19	100N	50V 5%CAP 0805 SMT X7R	F18		W100 100R 1% 0805 SMT RES
C20	100N	50V 5%CAP 0805 SMT X7R	F19	W063 49	R9 1% 0603 SMT RES
C21	100N	50V 5%CAP 0805 SMT X7R	F20	W125 47R	5% 0805 SMT RES
C22	_1U	25V 20%CAP 1206 SMT X7R	F21	W125 1	K800 0.1% 0805 SMT RES
C23	100N	50V 5%CAP 0805 SMT X7R	F22	W125 47K	5% 0805 SMT RES
C24	_1U	25V 20%CAP 1206 SMT X7R	F23	W125 47K	5% 0805 SMT RES
C25	100N	50V 5%CAP 0805 SMT X7R	F24	W125 10	K00 0.1% 0805 SMT RES
C26	_1U	25V 20%CAP 1206 SMT X7R	F25	W125 10	K00 0.1% 0805 SMT RES
C27	_1U	25V 20%CAP 1206 SMT X7R	F27	W100 49R	1% 0805 SMT RES
C28	100N	50V 5%CAP 0805 SMT X7R	F28	W100 10	K0 1% 0805 SMT RES
C29	100N	50V 5%CAP 0805 SMT X7R	F30	W100 2	K32 1% 0805 SMT RES
C30	100N	50V 5%CAP 0805 SMT X7R	F31	W125 10	K00 0.1% 0805 SMT RES
C32	470P	50V 5%CAP 0603 SMT NPO	F32	W125 10	K00 0.1% 0805 SMT RES
C33	470P	250V 5%CAP 0603 SMT NPO	F33	W100 10	R 1% 0805 SMT RES
C34	100N	50V 5%CAP 0805 SMT X7R	F35	W125 24R	1% 0805 SMT RES
C35	_1U	25V 20%CAP 1206 SMT X7R	F37	W100 10	R 1% 0805 SMT RES
C36	_1U	25V 20%CAP 1206 SMT X7R	F38	W100 10	R 1% 0805 SMT RES
C37	470P	250V 5%CAP 0603 SMT NPO	F40	W125 0	R 5% 0805 SMT RES
C38	100N	50V 5%CAP 0805 SMT X7R	F42	W125 1	K800 0.1% 0805 SMT RES
C39	100N	50V 5%CAP 0805 SMT X7R	F44	W125 4	K7 5% 0805 SMT RES
C41	5212 100N	100V 5%CAP T&R RAD .2FLM	F45	W125 47R	5% 0805 SMT RES
C42	5212 100N	100V 5%CAP T&R RAD .2FLM	F46	W100 2	K0 1% 0805 SMT RES
C43	20P	100V 5%CAP 0805 SMT NPO	F47	W125 4	K02 0.1% 0805 SMT RES
C44	20P	100V 5%CAP 0805 SMT NPO	F48	W125 75R	1% 0805 SMT RES
C45	20P	100V 5%CAP 0805 SMT NPO	F49	W125 75R	1% 0805 SMT RES
C46	_1U	25V 20%CAP 1206 SMT X7R	F51	W125 47R	5% 0805 SMT RES
C47	100N	50V 5%CAP 0805 SMT X7R	F52	W125 56R	5% 0805 SMT RES
C48	_10U	16V 10%CAP 1206 SMT X7R	F53	W100 2	K0 1% 0805 SMT RES
C55	100U	25V 20%CAP 8X5.4 SMT ELE	F54	W125 4	K02 0.1% 0805 SMT RES
C54	100N	50V 5%CAP 0805 SMT X7R	F55	W125 56R	5% 0805 SMT RES
C55	100N	50V 5%CAP 0805 SMT X7R	F56	W100 20R	1% 0805 SMT RES
C56	B160 E3	60V 1A0 SCH DO214AC SMT	F57	W125 187K	0.1% 0805 SMT RES
C57	CDSF	4148 75V OA15 1005 SMT	F58	W125 187K	0.1% 0805 SMT RES
C58	CDSF	4148 75V OA15 1005 SMT	F107	W125 22K	1% 0805 SMT RES
C59	CDSF	4148 75V OA15 1005 SMT	F117	W125 31K	0.1% 0805 SMT RES
C60	CDSF	4148 75V OA15 1005 SMT	F164	W125 1K	5% 0805 SMT RES
C61	CDSF	4148 75V OA15 1005 SMT	F165	W125 31K	6% 0.1% 0805 SMT RES
C62	CDSF	4148 75V OA15 1005 SMT	F176	W125 3K	32% 1% 0805 SMT RES
C63	4140 XLR	MALE PCB MT VERT 24MM A-SERIES	F177	W125 10K	5% 0805 SMT RES
C64	4010 XLR	EML PCB MT VERT 24MM AA-SERIES	F180		W125 31K6 0.1% 0805 SMT RES
C65	4063 1/4IN	ISO JCK PCMT VT STER RT SWT	F181	W125 31K6 0.1% 0805 SMT RES
C66	4010 XLR	EML PCB MT VERT 24MM AA-SERIES	F1	4202 SP3T NCNSHORTING VERT ROT SWT 3POS
C67	4063 1/4IN	ISO JCK PCMT VT STER RT SWT	F2	3439 DPDT MNI PC VERT MOMENTARY
C68	FERHITE BEAD 600R @100MHZ 0805 SMT		F3	3522 DPDT MNI PC VERT SNP ALT
C69	_15.0UH COIL 0805 SMT		F4	4221	SP/T NONSHORTING VERT ROT SWT 7POS
C70	_220UH COIL 10X10MM SMT		SNTL1	8370 1 MIL POLYIMIDE LABEL, 1" X ,380"
C71	_8.2UH COIL 1210 SMT		F1	PROC4 BLE MODULE 14X19MM SMT
C72	_8.2UH COIL 1210 SMT		F2	MC33063ADR BUCK/BOOST INV IC SO8
C73	_15.0UH COIL 0805 SMT		F3	AK45582BIT CODEC SMT QFN28
C74	_15.0UH COIL 0805 SMT		F4		MK10DN512VLK10 100MHZ MCU IC LOFP80
C75	_15.0UH COIL 0805 SMT		F5	7012 LP2950-3 LDRP TO92 FIXED 3V3 REG
C76	_15.0UH COIL 0805 SMT		F6	7012 LP2950-3 LDRP TO92 FIXED 3V3 REG
C77	GRN LED 2V8 20MA 1206 SMT		F7	TL072 DUAL OPAMP SMT SO-8
C78	YEL LED 1V7 20MA 1206 SMT		F8		TL072 DUAL OPAMP SMT SO-8
C79	RED LED 1V5 20MA 1206 SMT		F9		TL072 DUAL OPAMP SMT SO-8
C80	YEL LED 1V7 20MA 1206 SMT		F10	AT25010B EEPROM 1K SMT IC SO8
C81	BLU LED 2V8 20MA 1206 SMT		F11	10 CIR DUAL ROW HDR 0.05 SPC SMT
C82	GRN LED 2V8 20MA 1206 SMT		F22	2328 B CIR XH HEADER 0.098IN
C83	4526_10K TRIM POT 6MM TOP ADJ RAD		F23		10 CIR DUAL ROW HDR 0.05 SPC SMT
C84	4526_10K TRIM POT 6MM TOP ADJ RAD		F24	6543 48R 265Y RESETTABLE THERMISTOR PTC
C85	4526_10K TRIM POT 6MM TOP ADJ RAD		F25	MM3Z18T1G 18V0 0W2 5% SMT ZEN

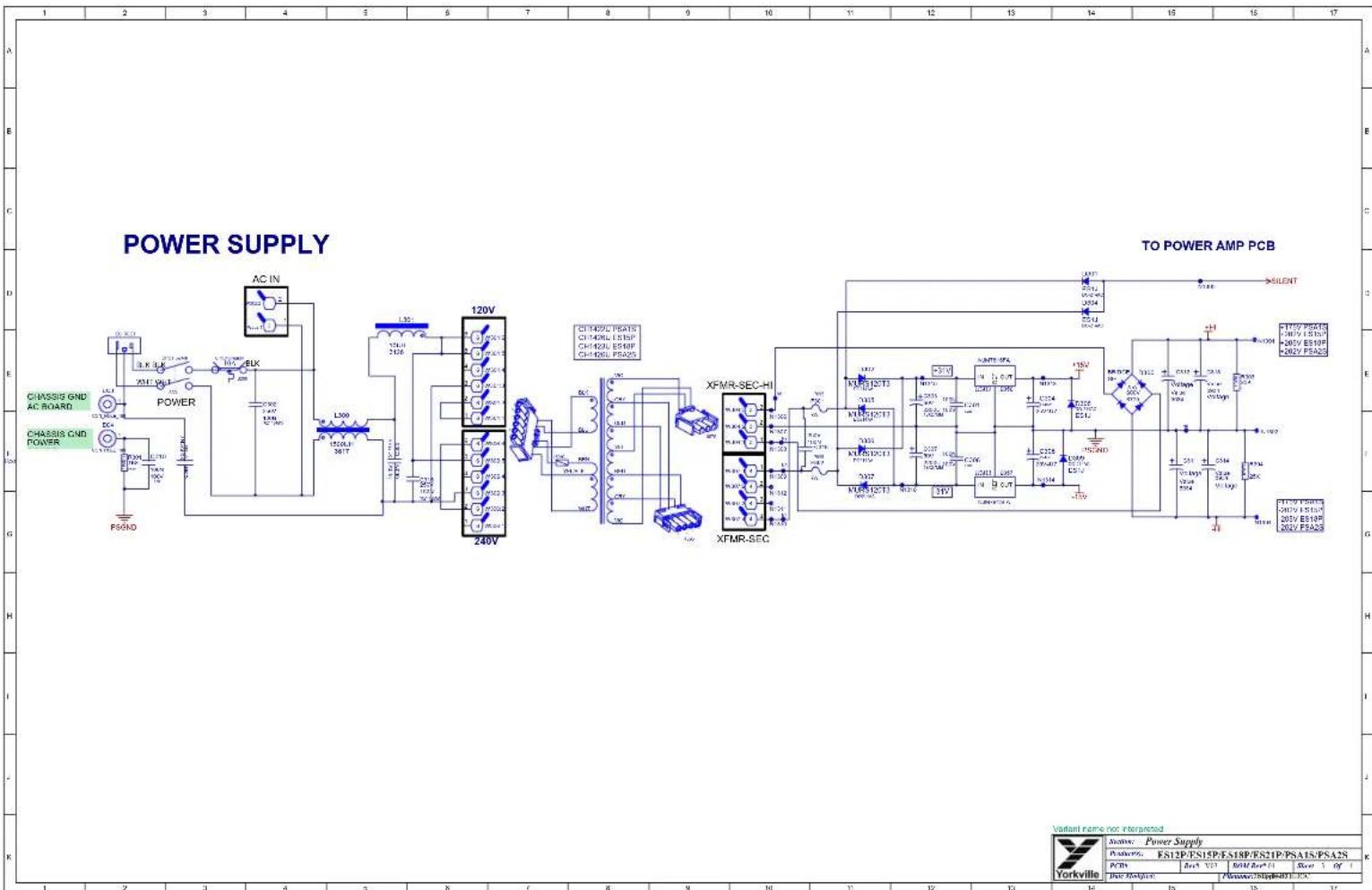

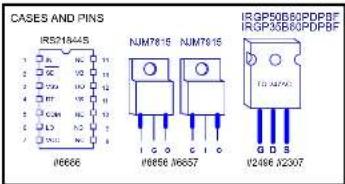

M1823 Parts Reference List 3/9/2020

REF	YS #	Description	REF	YS #	Description	REF	YS #	Description
ST-10UR	M1823-59 ES	2P,1SP,1BP,PSA2S AMP/SUPPLY PCB	FS03	SMAZ18-13	F 18V0 1W0 5% SMT ZEN	R240	W100	475R 1% 0805 SMT RES
C203	100N 5V	0V 5%CAP 0805 SMT X7R	F1	FUSE FAST	0A5 250VDC 350AC SMT 3912	R241		1W00 2R0 1% 2512 SMT RES
C204	100N 5V	0V 5%CAP 0805 SMT X7R	F2	FUSE FAST	0A5 250VDC 350AC SMT 3912	R242		5W00 0R02 1% OARS SMT RES
C705	100N 5V	0V 5%CAP 0805 SMT X7R	FS01	FUSE SLOW	0A 125V SMT 6125	R247		W125 4K7 5% 0805 SMT RES
C706	100N 5V	0V 5%CAP 0805 SMT X7R	FS02	FUSE SLOW	0A 125V SMT 6125	R248	1W00	2R0 1% 2512 SMT RES
C207	100N 5V	0V 5%CAP 0805 SMT X7R	HS1	4181 TO220 THE	RMO PAD CERAMIC .080 THK	R249	W250	10R 5% 1206 SMT RES
C209	100N 5V	0V 5%CAP 0805 SMT X7R	HS2	4181 TO220 THE	RMO PAD CERAMIC .080 THK	R250	W250	10R 5% 1206 SMT RES
C210	100N 5V	0V 5%CAP 0805 SMT X7R	HS3	ZC1611 ES PSA	SERIES HEATSPREADER	R251	W125	4K7 5% 0805 SMT RES
C211	100N 5V	0V 5%CAP 0805 SMT X7R	HW1	8871 4-40X5/8 PAN PHILIPS MS BLACK ZINC	R252	W100	1M0 1% 0805 SMT RES
C213	680P 5V	0V 5%CAP 0805 SMT COG	HW2	8902 4-40X3/4 PAN PHILIPS MS TBZ	R255	W125	82K5 1% 0805 SMT RES
C214	470N 5V	0V 5%CAP 1206 SMT X7R	HW4	6485 #6 SPLIT WASHER ZINC	R256	W125	82K5 1% 0805 SMT RES
C215	_1U 5V	0V 20%CAP 4.3X3.9 SMT ELC	HW5	3501 #4 B52200H	006 COMP WASH SMALL	R257	W125	4K7 5% 0805 SMT RES
C216	_1N 5V	0V 5%CAP 0805 SMT NPO	HW6	8742 4-40X3/8 PAN PH TAPTITE BO&W	R258	W100	20K5 1% 0805 SMT RES
C217	470P 5V	0V 5%CAP 0603 SMT NPO	HW7	8835	6-32X1/2 PAN QUAD MS TIN PLATE	R259	W100	182K 1% 0805 SMT RES
C218	_1N 5V	0V 5%CAP 0805 SMT NPO	HW8	8800	6-32 KEPS NUT ZINC	R260	470K	5% THERMISTOR NTC 0805 SMT
C219	5972 680N 40V	0V 5%CAP BLK RAD POLY FLM	HW9	8871	4-40X5/8 PAN PHILIPS MS BLACK ZINC	R261	W100	274K 1% 0805 SMT RES
C220	220N 5V	0V 10%CAP 1206 SMT X7R	HW10	8902	4-40X3/4 PAN PHILIPS MS TBZ	R262	W100	274K 1% 0805 SMT RES
C221	100N 10V	0V 10%CAP 1206 SMT X7R	HW11	8837	6-32 X 1/2 PAN PHILIPS MS TBZ	R263	W100	13K 1% 0805 SMT RES
C222	5986 10U 60VDC 5%CAP BLK MPOLYP FLM	0VDC 5%CAP BLK MPOLYP FLM	HW12	8800	6-32 KEPS NUT ZINC	R264	W125	1K4 1% 0805 SMT RES
C223	5962 _2U2 10AC10%CAP BLK RAD POLYP FLM	0VAC10%CAP BLK RAD POLYP FLM	HW13	8701	4-40 KEPS NUT ZINC	R265	W250	330R 5% 1206 SMT RES
C224	_1U 5V	0V 20%CAP 4.3X3.9 SMT ELC	HW14	8701	4-40 KEPS NUT ZINC	R266	1W00	100K 5% 2512 SMT RES
C725	470P 5V	0V 5%CAP 0603 SMT NPO	HW15	8701 4-40	KEPS NUT ZINC	R267		1W00 100K 5% 2512 SMT RES
C226	47N 10V	0V 10%CAP 1206 SMT X7R	HW16	8701 4-40	KEPS NUT ZINC	R268	W125	4K02 0.1% 0805 SMT RES
C227	100N 5V	0V 5%CAP 0805 SMT X7R	HW17	8485 #6 SPLIT WASHER ZINC	R303	6664 10W0 25K 5% BLK RES
C228	5972 680N 40V	0V 5%CAP BLK RAD POLY FLM	HW18	8921 ALUM FLAT	WASHER_128"ID_272" OD	R304	6664	10W0 25K 5% BLK RES
C229	5225 470P 16V	0V 20%CAP POLYPROP BULK	HW19	3501 #4 B52200H	006 COMP WASH SMALL	SMT	8372	1 MIL POLYIMIDE LABEL.,375" X .375"
C230	47P 5V	0V 5%CAP 0805 SMT NPO	HW20	8921 ALUM FLAT	WASHER_128"ID_272" OD	T200		LTV-8141S ACINPUT OPTOCOUPLER SMT
C231	100N 5V	0V 5%CAP 0805 SMT X7R	HW21	8921 ALUM FLAT	WASHER_128"ID_272" OD	J201	LM31	COMPARATOR IC SMT SO-8
C232	33U 2V	0V 20%CAP 6.3X5.5 SMT EL	HW22	8921 ALUM FLAT	WASHER_128"ID_272" OD	J202	LM31	COMPARATOR IC SMT SO-8
C233	100N 5V	0V 5%CAP 0805 SMT X7R	L200	6663 533UH CHOKE 120T19AWG/77908CORE	1703	IRS2	844SPBF IC HILO FET DRV RSO14
C234	100N 5V	0V 5%CAP 0805 SMT X7R	L202	7974 100UH 1% COIL 12MM SMT	J204	3307#	DUAL OPAMP SMT SO-8
C235	_10U 16V	0V 10%CAP 1206 SMT X7R	L300	3817 1.5MH COIL INPUT COM MODE	J205	3307#	DUAL OPAMP SMT SO-8
C236	100N 5V	0V 5%CAP 0805 SMT X7R	L301	3128 15UH COIL VTMI160-4 22T 16AWG	J206	TL33#	COMPARATOR IC SMT SOT235
C237	1U 2V	0V 20%CAP 1206 SMT X7R	L401	486UH COIL COMMON MODE BA SMT	J207		LINK302G OFFLINE SWITCH SMT SMDBB
C238	_4U7 9V	0V 10%CAP 1210 SMT CER	DOB1	M1823BLANK 2	OZ 2SD 89.81SQIN 1PER ES PSA2S	J302	6856 NJMT	815FA TO220 P 15V0 REG IS V1
C239	5270 _2U2 2V	0V 20%CAP BLK RAD .1EL	Q200	MMBTA92	PNP SOT-23 SMT	I303	6857 NJMT	915FA TO220 N 15V0 REG IS V2
C241	_4U7 9V	0V 10%CAP 1210 SMT CER	Q201	MMBF4391L TNCHF JFET SOT-23 SMT T&R	N201	2328 8 CIR	XH-HEADER	0.098IN
C242	_10U 16V	0V 10%CAP 1206 SMT X7R	Q203	2496 IRGP50B60PD1PBF T0247 NPN IGBT T	N301	4243 6 PO#	HEADER ASSY (MALE) PCB MOUNT
C301	100N 10V	0V 10%CAP 1206 SMT X7R	Q204	MMBTA92	PNP SOT-23 SMT	N302	4244 2 PO#	HEADER ASSY (MALE) PCB MOUNT
C302	5242 100N 25V	0V 20%CAP BLK X'2 15MM AC	Q205	2496	IRGP50B60PD1PBF T0247 NPN IGBT T	N304	4146 3 PIN	POWER PIN HEADER MALE POLZED
C303	5887 2200U 5V	0V 20%CAP BLK 18X27MM EL	R3		W125 1K54 1% 0805 SMT RES	N306	4243 6 PO#	HEADER ASSY (MALE) PCB MOUNT
C304	_4U7 25V	0V 20%CAP 4X5.5 SMT ELC	R4	W125 1K54	1% 0805 SMT RES	N307	4151	4 PIN POWER PIN HEADER MALE POLZED
C305	5266 680N 25V	0V 20%CAP BLK X'2 27MM AC	R5	W125 1K54	1% 0805 SMT RES	N402	4215 4 PIN	POWER VH MALE .156 10A
C306	100N 10V	0V 10%CAP 1206 SMT X7R	R6	W125 1K54	1% 0805 SMT RES	2D200	MM32	18VT1G 18V0 OW2 5% SMT ZEN
C307	5887 2200U 9V	0V 20%CAP BLK 18X27MM EL	R7	W100 2K32	1% 0805 SMT RES
C308	_4U7 25V	0V 20%CAP 4X5.5 SMT ELC	R8	W100 2K32	1% 0805 SMT RES
C309	6451 _4N7 2V	0V 20%CAP BLK Y' 10MM AC	R9	W100 1K0	1% 0805 SMT RES
C311	5934 2700U 2V	0V 20%CAP BLK 40X60MM 4PS	R200	W250 10R	5% 1206 SMT RES
C312	5934 2700U 2V	0V 20%CAP BLK 40X60MM 4PS	R201	W100 12K1	1% 0805 SMT RES
C313	5934 2700U 2V	0V 20%CAP BLK 40X60MM 4PS	R202	W250 10R	5% 1206 SMT RES
C314	5934 2700U 2V	0V 20%CAP BLK 40X60MM 4PS	R203	W100 10K0	1% 0805 SMT RES
C315	5827 150N 25V	0V 20%CAP BLK X'2 15MM AC	R204		W100 12K1 1% 0603 SMT RES
C316	5242 100N 25V	0V 20%CAP BLK X'2 15MM AC	R205		1W00 10OK 5% 2512 SMT RES
C401	150P 10V	0V 5%CAP 1206 SMT C0G	R207	W100 1K0	1% 0805 SMT RES
C402	150P 10V	0V 5%CAP 1206 SMT C0G	R208	W125 4M7	5% 0805 SMT RES
CCR1	6663 CORE 7 V	908-A7 KOOL MU POWDER CORES	R209	1W00 10OK 5% 2512 SMT RES
D1	3SMAJS	3B2B 20V 3W0 DO214AC SMT ZEN	R210	W100 6K9B	1% 0805 SMT RES
D2	3SMAJS	3B2B 20V 3W0 DO214AC SMT ZEN	R212	W100 10K0	1% 0805 SMT RES
D200	CDSF41	88 75V OA15 100S SMT	R213	W100 182K	1% 0805 SMT RES
D201	BZX84C	E2 22V 0W3 5% ZEN	R214	W125 4K7	5% 0805 SMT RES
D203	BAT750	SOT-23 SMT SCHTKY	R215	W125 47KS	1% 0805 SMT RES
D204	ES1J	300V 1A0 DO214AC SMT SMA	R218	W125 8K6B	1% 0805 SMT RES
D205	ES1J	300V 1A0 DO214AC SMT SMA	R219	W100 475R	1% 0805 SMT RES
D206	BAT750	SOT-23 SMT SCHTKY	R221		W100 475R 1% 0805 SMT RES
D207	CDSF41	88 75V OA15 100S SMT	R222		W100 1OK0 1% 0805 SMT RES
D208	ES1J	300V 1A0 DO214AC SMT SMA	R223	W100 6K9B	1% 0805 SMT RES
D209	BZX84C	E3 43V0 W3 5% SMT ZEN	R224	W125 47R	5% 0805 SMT RES
D210	MURA2	OT3 400V 2A DIO 403D SMT	R225	W250 1OR	5% 1206 SMT RES
D211	MURA2	OT3 400V 2A DIO 403D SMT	R226	W100 15K0	1% 0805 SMT RES
D212	ES1J	300V 1A0 DO214AC SMT SMA	R227	W100 1MK	1% 0805 SMT RES
D213	BZX84C	SLT1 15V0 W2225 ZEN SOT23	R228	W250 1OR	5% 1206 SMT RES
D214	CDSF41	88 75V OA15 100S SMT	R229	W125 1K5#	1% 0805 SMT RES
D300	6852 BRIDGE	45A 600V WIRE LEAD SIP	R230	W125 4K02	0.1% 0805 SMT RES
D301	ES1J	300V 1A0 DO214AC SMT SMA	R231	W100 1K0	1% 0805 SMT RES
D302	MURS1	OT3 200V 1A DIO DO214AA SMT	R232		W100 1K0 1% 0805 SMT RES
D304	ES1J	300V 1A0 DO214AC SMT SMA	R233		W125 1K54 1% 0805 SMT RES
D305	MURS1	OT3 200V 1A DIO DO214AA SMT	R234	W100 182K	1% 0805 SMT RES
D306	MURS1	OT3 200V 1A DIO DO214AA SMT	R235	W100 6K9B	1% 0805 SMT RES
D307	MURS1	OT3 200V 1A DIO DO214AA SMT	R236	W100 1R0	5% 2512 SMT RES
D308	SMAZ18	13-F 18V0 W0 5% SMT ZEN	R237		W100 10OR 1% 0805 SMT RES

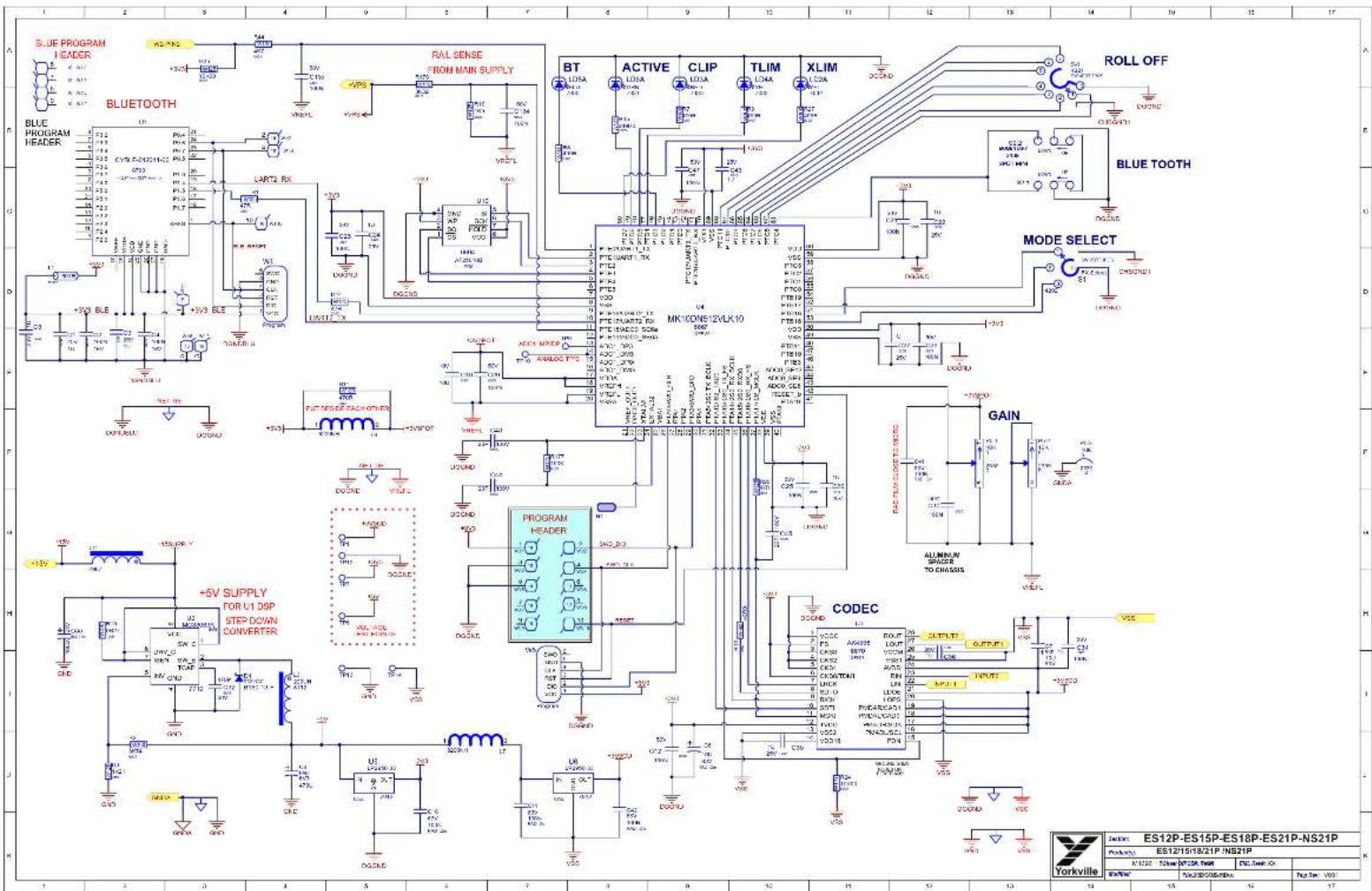

REF YS # Description REF YS #
31-ABS	M2115-59 BS	S12P/ES15P/ES18P INPUT/DSP PCB	L3	220UH	COIL	10X10MM SMT	L176	W124	3K32 1%	0805 SMT RES
31	_1U	25V 20% CAP 1206 SMT X7R	L6	_8.2UH	COIL	1210 SMT	L177	W125	100K 5%	0805 SMT RES
32	100N	16V 10% CAP 0603 SMT X7R	L7	_8.2UH	COIL	1210 SMT	L180	W125	31K6 0.1%	0805 SMT RES
33	_1U	25V 20% CAP 1206 SMT X7R	L10	15.0UH	COIL	0805 SMT	L181	W125	31K6 0.1%	0805 SMT RES
34	100N	16V 10% CAP 0603 SMT X7R	L11	15.0UH	COIL	0805 SMT	L1	4202 SP3T	NONSHORTING VERT ROT SWT 3POS
35	_1U	25V 20% CAP 1206 SMT X7R	L12	15.0UH	COIL	0805 SMT	L2	3439 DPDT	MINI PC VERT MOMENTARY
36	5669 470U	6V3 20% CAP RAD EL T&R	L25	15.0UH	COIL	0805 SMT	L3	3522 DPDT	MINI PC VERT SNP ALT
37		100N 50V 5% CAP 0805 SMT X7R	LD3A	GRN LB	D 2V8 20MA 1206 SMT		L4	4221 SP7T	NONSHORTING VERT ROT SWT 7POS
38	_10U	16V 20% CAP SMT ELC	LD3A	YEL LED	1V7 20MA 1206 SMT		LN1	8370 1 MIL	POLYIMIDE LABEL 1"X 380°
39	_2N2	50V 10% CAP 0805 SMT X7R	LD3A	RED LED	1V5 20MA 1206 SMT		LP2	TEST	POINT MINIATURE SMT
40	_6N8	50V 5% CAP 1206 SMT X7R	LD4A		YEL LED 1V7 20MA 1206 SMT		LP2	TEST	POINT MINIATURE SMT
41	5212 100N	100V 5% CAP T&R RAD .2FLM	LD5A	BLU LED	D 2V8 20MA 1206 SMT		LP3	TEST	POINT MINIATURE SMT
42	100N	50V 5% CAP 0805 SMT X7R	LD6A	GRN LB	D 2V8 20MA 1206 SMT		LP3	TEST	POINT MINIATURE SMT
43	100N	50V 5% CAP 0805 SMT X7R	F5	2339_10K B LN 12MM DUAL 21DET P34			LP28	TEST	POINT MINIATURE SMT
44	100N	50V 5% CAP 0805 SMT X7R	F6B1	M2115BLANK 1 OZ 2SD 83.9SQIN 03PER ES18/15P			LP29	TEST	POINT MINIATURE SMT
45		100N 50V 5% CAP 0805 SMT X7R	F1	W125 47R 5% 0805 SMT RES			LP30		TEST POINT MINIATURE SMT
46	5212 100N	100V 5% CAP T&R RAD .2FLM	F2	W125 4K 2 1% 0805 SMT RES			LP32	TEST	POINT MINIATURE SMT
47	_10U	16V 20% CAP SMT ELC	F3	W125 1K1 1% 0805 SMT RES			LP33	TEST	POINT MINIATURE SMT
48	_10U	16V 20% CAP 0805 SMT X5R	F4	W125 37K4 1% 0805 SMT RES			LP34	TEST	POINT MINIATURE SMT
49	100N	50V 5% CAP 0805 SMT X7R	F5	W125 22K1 1% 0805 SMT RES			LP35	TEST	POINT MINIATURE SMT
50	100N	50V 5% CAP 0805 SMT X7R	F6	W125 10K0 0.1% 0805 SMT RES			LP1	PROC	4 BLE MODULE 14X19MM SMT
51	100N	50V 5% CAP 0805 SMT X7R	F7	W100 4998 1% 0805 SMT RES			LP2	MC33	063ADR BUCK/BOOST INV IC SO8
52	_1U	25V 20% CAP 1206 SMT X7R	F8	W100 4998 1% 0805 SMT RES			LP3	CS42	71 CODEC SMT IC TSSOP28
53	100N	50V 5% CAP 0805 SMT X7R	F9	W100 4998 1% 0805 SMT RES			LP4	MK10	DN512VLK10 100MHZ MCU IC LQFP80
54	_1U	25V 20% CAP 1206 SMT X7R	F10	W125 1K4 5% 0805 SMT RES			LP5	7012 LP29	50-33 LDRP TO92 FIXED 3V3 REG
55	100N	50V 5% CAP 0805 SMT X7R	F11	W125 4708 5% 0805 SMT RES			LP6	6796 LP29	50-50 LDRP TO92 5V0 REG T&R
56	_1U	25V 20% CAP 1206 SMT X7R	F12	W125 10K0 0.1% 0805 SMT RES			LP7	TL072	DUAL OPAMP SMT SO-8
57	_1U	25V 20% CAP 1206 SMT X7R	F13		W100 200R 1% 0805 SMT RES		LP8	TL072	DUAL OPAMP SMT SO-8
58	100N	50V 5% CAP 0805 SMT X7R	F14	W125 47R 5% 0805 SMT RES			LP9	NE55	32D DUAL OPAMP SMT SO-8
59	100N	50V 5% CAP 0805 SMT X7R	F15	W250 DR7 5% 1206 SMT RES			LP10	AT25	10B EEPROM 1K SMT IC SO8
60	100N	50V 5% CAP 0805 SMT X7R	F16	W100 4K9 1% 0805 SMT RES			LP11	NE55	32D DUAL OPAMP SMT SO-8
61	_47U	35V 20% CAP 6.3MM SMT ELE	F17	W125 1K0 1% 0805 SMT RES			LP12		NE5532D DUAL OPAMP SMT SO-8
62	470P	50V 5% CAP 0803 SMT NPO	F18		W100 100R 1% 0805 SMT RES		LP1	10 CIR	DUAL ROW HDR 0.05 SPC SMT
63	470P	250V 5% CAP 0803 SMT NP0	F19	W125 47R 5% 0805 SMT RES			LP2	2328	8 CIR XH-HEADER 0.098IN
64	_10U	25V 20% CAP 5X5.4 SMT EL	F20	W125 47R 5% 0805 SMT RES			LP3	10 CIR	DUAL ROW HDR 0.05 SPC SMT
65	100N	50V 5% CAP 0805 SMT X7R	F21	W125 1K0 0.1% 0805 SMT RES			LP4	6543 48R	65V RESETTABLE THERMISTOR PTC
66	100N	50V 5% CAP 0805 SMT X7R	F22	W100 100R 1% 0805 SMT RES			LP5	MM3	18VT1G 18V0 0W2 5% SMT ZEN
67	470P	250V 5% CAP 0803 SMT NP0	F23	W100 100R 1% 0805 SMT RES			LP6	MM3	18VT1G 18V0 0W2 5% SMT ZEN
68	100N	50V 5% CAP 0805 SMT X7R	F24	W125 10K0 0.1% 0805 SMT RES
69	100N	50V 5% CAP 0805 SMT X7R	F25	W125 10K0 0.1% 0805 SMT RES
70	_10U	25V 20% CAP 5X5.4 SMT EL	F26	W125 10K0 0.1% 0805 SMT RES
71	5212 100N	100V 5% CAP T&R RAD .2FLM	F27	W100 4998 1% 0805 SMT RES
72	5212 100N	100V 5% CAP T&R RAD .2FLM	F28	W100 2K9 1% 0805 SMT RES
73	20P	100V 5% CAP 0805 SMT NPO	F29	W125 OR 5% 0805 SMT RES
74	20P	100V 5% CAP 0805 SMT NPO	F30	W100 2K2 1% 0805 SMT RES
75	20P	100V 5% CAP 0805 SMT NPO	F31	W100 100R 1% 0805 SMT RES
76	1U	25V 20% CAP 1206 SMT X7R	F32	W125 249K0 1% 0805 SMT RES
77	100N	50V 5% CAP 0805 SMT X7R	F33		W125 OR 5% 0805 SMT RES
78	_10U	16V 20% CAP SMT ELC	F34
79	470P	50V 5% CAP 0603 SMT NPO	F35	W100 100R 1% 0805 SMT RES
80	100N	50V 5% CAP 0805 SMT X7R	F36
81	100N	50V 5% CAP 0805 SMT X7R	F37	W100 100R 1% 0805 SMT RES
82	330P	50V 5% CAP 0805 SMT NPO	F38	W100 100R 1% 0805 SMT RES
83	_22U	25V 20% CAP 1210 SMT X7R	F39	W125 OR 5% 0805 SMT RES
84	_2N2	50V 10% CAP 0805 SMT X7R	F40	W125 OR 5% 0805 SMT RES
85	100U	25V 20% CAP 8X5.4 SMT ELE	F41	W125 750R 1% 0805 SMT RES
86	330P	50V 5% CAP 0805 SMT NPO	F42	W125 4K2 1% 0805 SMT RES
87	100N	50V 5% CAP 0805 SMT X7R	F43	W125 750R 1% 0805 SMT RES
88	_1N5	50V 5% CAP 0805 SMT NPO	F44	W125 750R 1% 0805 SMT RES
89	22U	16V 5% CAP 5X5.5 SMT ELC	F45	W125 750R 1% 0805 SMT RES
90	_2N7	100V 10% CAP 0805 SMT COG	F46	W125 560R 5% 0805 SMT RES
91	470P	50V 5% CAP 0603 SMT NPO	F47	W125 698R 1% 0805 SMT RES
92	_2N7	100V 10% CAP 0805 SMT COG	F48	W125 1K27 1% 0805 SMT RES
93	470P	50V 5% CAP 0803 SMT NPO	F49	W125 560R 5% 0805 SMT RES
94	100N	50V 5% CAP 0805 SMT X7R	F50		W100 200R 1% 0805 SMT RES
95	100N	50V 5% CAP 0805 SMT X7R	F51	W125 187R 0.1% 0805 SMT RES
96	B160-E3	60V 1A0 SCH DO214AC SMT	F52	W125 187R 0.1% 0805 SMT RES
97	CDSF	148 75V OA15 100S SMT	F53	W125 47K 5% 0805 SMT RES
98	CDSF	148 75V OA15 100S SMT	F54	W100 100R 1% 0805 SMT RES
99	CDSF	148 75V OA15 100S SMT	F55	W100 100R 1% 0805 SMT RES
100	CDSF	148 75V OA15 100S SMT	F56	W100 100R 1% 0805 SMT RES
101	CDSF	148 75V OA15 100S SMT	F57	W125 10K 5% 0805 SMT RES
102	CDSF	148 75V OA15 100S SMT	F58	W125 10K 5% 0805 SMT RES
103	CDSF	148 75V OA15 100S SMT	F59	W125 10K 5% 0805 SMT RES
104	CDSF	148 75V OA15 100S SMT	F60	W125 10K 5% 0805 SMT RES
105	CDSF	148 75V OA15 100S SMT	F61	W125 10K 5% 0805 SMT RES

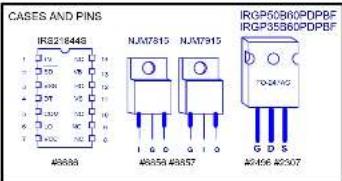

M2124-02 Parts Reference List 2/16/2022

REF.	YS #	Description	REF.	YS #	Description	REF.	YS #	Description
2001	V2124 69 ES BT	AMPS,PPFLY PCB	31001	SMXZ 15LF 18W 1W 5% SAT ZEN
2002	V2124/ANK 2	2X25D 89/55ON 9PLR 3STBP	3102	SMXZ 15LF 18W 1W 5% SAT ZEN
2003	100N 5W	SVCAP 8905 SMT XTR	C1	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2004	100N 6W	SVCAP 8905 SMT XTR	C2	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2005	100N 6W	SVCAP 8905 SMT XTR	3101	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2006	100N 6W	SVCAP 8905 SMT XTR	3102	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2007	100N 6W	SVCAP 8905 SMT XTR	3103	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2008	100N 6W	SVCAP 8905 SMT XTR	3104	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2009	100N 6W	SVCAP 8905 SMT XTR	3105	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2010	100N 6W	SVCAP 8905 SMT XTR	3106	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2011	100N 6W	SVCAP 8905 SMT XTR	3107	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2012	100N 6W	SVCAP 8905 SMT XTR	3108	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2013	100N 6W	SVCAP 8905 SMT XTR	3109	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2014	100N 6W	SVCAP 8905 SMT XTR	3110	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2015	100N 6W	SVCAP 8905 SMT XTR	3111	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2016	100N 6W	SVCAP 8905 SMT XTR	3112	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2017	100N 6W	SVCAP 8905 SMT XTR	3113	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2018	100N 6W	SVCAP 8905 SMT XTR	3114	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2019	100N 6W	SVCAP 8905 SMT XTR	3115	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2020	100N 6W	SVCAP 8905 SMT XTR	3116	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2021	100N 6W	SVCAP 8905 SMT XTR	3117	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2022	100N 6W	SVCAP 8905 SMT XTR	3118	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2023	100N 6W	SVCAP 8905 SMT XTR	3119	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2024	100N 6W	SVCAP 8905 SMT XTR	3120	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2025	100N 6W	SVCAP 8905 SMT XTR	3121	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2026	100N 6W	SVCAP 8905 SMT XTR	3122	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2027	100N 6W	SVCAP 8905 SMT XTR	3123	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2028	100N 6W	SVCAP 8905 SMT XTR	3124	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2029	100N 6W	SVCAP 8905 SMT XTR	3125	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2030	100N 6W	SVCAP 8905 SMT XTR	3126	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2031	100N 6W	SVCAP 8905 SMT XTR	3127	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2032	100N 6W	SVCAP 8905 SMT XTR	3128	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2033	100N 6W	SVCAP 8905 SMT XTR	3129	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2034	100N 6W	SVCAP 8905 SMT XTR	3130	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2035	100N 6W	SVCAP 8905 SMT XTR	3131	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2036	100N 6W	SVCAP 8905 SMT XTR	3132	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2037	100N 6W	SVCAP 8905 SMT XTR	3133	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2038	100N 6W	SVCAP 8905 SMT XTR	3134	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2039	100N 6W	SVCAP 8905 SMT XTR	3135	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2040	100N 6W	SVCAP 8905 SMT XTR	3136	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2041	100N 6W	SVCAP 8905 SMT XTR	3137	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2042	100N 6W	SVCAP 8905 SMT XTR	3138	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2043	100N 6W	SVCAP 8905 SMT XTR	3139	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2044	100N 6W	SVCAP 8905 SMT XTR	3140	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2045	100N 6W	SVCAP 8905 SMT XTR	3141	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2046	100N 6W	SVCAP 8905 SMT XTR	3142	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2047	100N 6W	SVCAP 8905 SMT XTR	3143	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2048	100N 6W	SVCAP 8905 SMT XTR	3144	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2049	100N 6W	SVCAP 8905 SMT XTR	3145	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2050	100N 6W	SVCAP 8905 SMT XTR	3146	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2051	100N 6W	SVCAP 8905 SMT XTR	3147	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2052	100N 6W	SVCAP 8905 SMT XTR	3148	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2053	100N 6W	SVCAP 8905 SMT XTR	3149	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2054	100N 6W	SVCAP 8905 SMT XTR	3150	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2055	100N 6W	SVCAP 8905 SMT XTR	3151	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2056	100N 6W	SVCAP 8905 SMT XTR	3152	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2057	100N 6W	SVCAP 8905 SMT XTR	3153	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2058	100N 6W	SVCAP 8905 SMT XTR	3154	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2059	100N 6W	SVCAP 8905 SMT XTR	3155	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2060	100N 6W	SVCAP 8905 SMT XTR	3156	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2061	100N 6W	SVCAP 8905 SMT XTR	3157	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2062	100N 6W	SVCAP 8905 SMT XTR	3158	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2063	100N 6W	SVCAP 8905 SMT XTR	3159	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2064	100N 6W	SVCAP 8905 SMT XTR	3160	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2065	100N 6W	SVCAP 8905 SMT XTR	3161	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2066	100N 6W	SVCAP 8905 SMT XTR	3162	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2067	100N 6W	SVCAP 8905 SMT XTR	3163	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2068	100N 6W	SVCAP 8905 SMT XTR	3164	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2069	100N 6W	SVCAP 8905 SMT XTR	3165	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2070	100N 6W	SVCAP 8905 SMT XTR	3166	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2071	100N 6W	SVCAP 8905 SMT XTR	3167	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2072	100N 6W	SVCAP 8905 SMT XTR	3168	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2073	100N 6W	SVCAP 8905 SMT XTR	3169	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2074	100N 6W	SVCAP 8905 SMT XTR	3170	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2075	100N 6W	SVCAP 8905 SMT XTR	3171	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2076	100N 6W	SVCAP 8905 SMT XTR	3172	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2077	100N 6W	SVCAP 8905 SMT XTR	3173	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2078	100N 6W	SVCAP 8905 SMT XTR	3174	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2079	100N 6W	SVCAP 8905 SMT XTR	3175	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2080	100N 6W	SVCAP 8905 SMT XTR	3176	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2081	100N 6W	SVCAP 8905 SMT XTR	3177	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2082	100N 6W	SVCAP 8905 SMT XTR	3178	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2083	100N 6W	SVCAP 8905 SMT XTR	3179	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2084	100N 6W	SVCAP 8905 SMT XTR	3180	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2085	100N 6W	SVCAP 8905 SMT XTR	3181	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2086	100N 6W	SVCAP 8905 SMT XTR	3182	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2087	100N 6W	SVCAP 8905 SMT XTR	3183	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2088	100N 6W	SVCAP 8905 SMT XTR	3184	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2089	100N 6W	SVCAP 8905 SMT XTR	3185	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2090	100N 6W	SVCAP 8905 SMT XTR	3186	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2091	100N 6W	SVCAP 8905 SMT XTR	3187	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2092	100N 6W	SVCAP 8905 SMT XTR	3188	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2093	100N 6W	SVCAP 8905 SMT XTR	3189	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2094	100N 6W	SVCAP 8905 SMT XTR	3190	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2095	100N 6W	SVCAP 8905 SMT XTR	3191	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2096	100N 6W	SVCAP 8905 SMT XTR	3192	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2097	100N 6W	SVCAP 8905 SMT XTR	3193	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2098	100N 6W	SVCAP 8905 SMT XTR	3194	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2099	100N 6W	SVCAP 8905 SMT XTR	3195	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2100	100N 6W	SVCAP 8905 SMT XTR	3196	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2101	100N 6W	SVCAP 8905 SMT XTR	3197	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2102	100N 6W	SVCAP 8905 SMT XTR	3198	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2103	100N 6W	SVCAP 8905 SMT XTR	3199	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2104	100N 6W	SVCAP 8905 SMT XTR	3200	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2105	100N 6W	SVCAP 8905 SMT XTR	3201	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2106	100N 6W	SVCAP 8905 SMT XTR	3202	LUSB FAST GAS 2XVOC 3VAC 5M1 3612
2107	100N 6

M2125-02 Parts Reference List 2/16/2022

REF. VS # Description REF. VS #					Description	REF.	YS #	Description	REF.	YS #	Description
2-1-1	M2125 50 E812PES SPESBP INPUT/DSP PGB	D75		15.0UH COL 360S SMT	91	4202	SPST NON-SHORTING VERT ROT SWT 3POS
2-2		D76		15.0UH COL 360S SMT	92	3400	DPDT MIN PC VERT MOMENTARY
2-3	100N 16V 5GCAP 080S SMT XTR	D74		SHN LLD 240 20MA 120S SMT	93	3622	DPDT MIN PC VRT SNP AV
2-4	100N 16V 5GCAP 200S SMT XTR	D73		YR LFD IVY 20MA 120S SMT	94	4221	SPST NON-SHORTING VERT ROT SWT 3POS
2-5	100N 16V 5GCAP 080S SMT XTR	D74		SFD LFD IVY 20MA 120S SMT	95,1	8372	ML FQ YAIDE LABRI 1% SMT
2-6	100N 16V 5GCAP 200S SMT XTR	D75		YEL LFD IVY 20MA 120S SMT	96,1		TEST POINT MINIATLRE SMT
2-7	5920 8700 SVG 5GCAP RAD EL TSR	D76		BLU LLD 240 20MA 120S SMT	97		TEST POINT MINIATLRE SMT
2-8	100N 50V 5GCAP 080S SMT XTR	D74		G3N LFD 240 20MA 120S SMT	98		TEST POINT MINIATLRE SMT
2-9	100N 16V 5GCAP 5MT EL G	D75		2538 10K 61N 12MV DUAL 21GET P3H	99		TEST POINT MINIATLRE SMT
2-10	2N2 50V 5GCAP 800S SMT XTR	D74	M2125BLANK 1 D2 23D 83.88GIN SUPER ES15*P	122		TEST POINT MINIATLRE SMT
2-11	6N8 50V 5GCAP 200S SMT XTR	D71		TEST POINT MINIATLRE SMT	123		TEST POINT MINIATLRE SMT
2-12	6212 100N 100V 5GCAP 5TAR RAD 2FLM	D71		W12E 478 5% 800S SMT RES	124		TEST POINT MINIATLRE SMT
2-13	100N 50V 5GCAP 080S SMT XTR	D71		W12E 4312 1% 800S SMT RES	125		TEST POINT MINIATLRE SMT
2-14	100N 50V 5GCAP 080S SMT XTR	D71		W12E 1421 1% 800S SMT RES	126		TEST POINT MINIATLRE SMT
2-15	100N 50V 5GCAP 080S SMT XTR	D71		W12E 3784 1% 800S SMT RES	127		TEST POINT MINIATLRE SMT
2-16	100N 50V 5GCAP 080S SMT XTR	D71		W12E 2941 1% 800S SMT RES	128		TEST POINT MINIATLRE SMT
2-17	6212 100N 100V 5GCAP 5TAR RAD 2FLM	D71		W12E 10600 0.1% 800S SMT RES	129		TEST POINT MINIATLRE SMT
2-18	100 16V 5GCAP 5MT ELG	D71		W100 458R 1% 800S SMT RES	130		TEST POINT MINIATLRE SMT
2-19	100 16V 5GCAP 080S SMT XTR	D71		W100 548R 1% 800S SMT RES	91		PROCKLE MODULE 14X16AM SMT
2-20	100N 50V 5GCAP 080S SMT XTR	D71		W100 548R 1% 800S SMT RES	92		MC3003ADR BUCKIDIOOST IVC IC SO8
2-21	100N 50V 5GCAP 080S SMT XTR	D71		W12E 1405 5% 800S SMT RES	93		CS4271 CODRC SMT IC TSECP8
2-22	100N 50V 5GCAP 200S SMT XTR	D71		W12E 478R 5% 800S SMT RES	94		MX4003SALKT 72MV-Z NDU IC LOPNC
2-23	100N 50V 5GCAP 200S SMT XTR	D71		W12E 10600 0.1% 800S SMT RES	95		7613 959033 DBP TODZ RUBD SYS TFRS
2-24	100N 50V 5GCAP 080S SMT XTR	D71		W100 208R 1% 800S SMT RES	96		6790 LP2800 50 LCHP TOSO 5V0 HKD TAR
2-25	100N 50V 5GCAP 080S SMT XTR	D71		W12E 478R 5% 800S SMT RES	97		TLN2 DUAL OPAMP SMT SO4
2-26	100N 50V 5GCAP 200S SMT XTR	D71		W250 3027 5% 120B SMT RES	98		TLN2 DUAL OPAMP SMT SO4
2-27	100N 50V 5GCAP 080S SMT XTR	D71		W100 449R 1% 800S SMT RES	99		NEFS320 DUAL OPAMP SMT SO4
2-28	100N 50V 5GCAP 080S SMT XTR	D71		W12E 1447 1% 800S SMT RES	100		AY2010B EEPROM 1K SMT IC SO8
2-29	100N 50V 5GCAP 080S SMT XTR	D71		W100 305R 1% 800S SMT RES	101		NEFS320 DUAL OPAMP SMT SO4
2-30	470 25V 5GCAP 63MM SMT LLL	D70		W12E 478R 5% 800S SMT RES	102		NC5520 DUAL OPAMP SMT SO4
2-31	670P 50V 5GCAP 080S SMT NPO	D70		W12E 478R 5% 800S SMT RES	91		10 CIR DUAL ROW HDR UKS SPEC SMT
2-32	670P 25V 5GCAP 360S SMT NPD	D71		W12E 1400C 0.1% 800S SMT RES	92		2328 B CR XHHEADER 0.04RN
2-33	160 25V 5GCAP 5X3.4 SMT FL	D72		W100 100R 1% 800S SMT RES	93		10 CIR DUAL ROW HDR OATS SPEC SMT
2-34	160N 50V 5GCAP 080S SMT XTR	D72		W100 100R 1% 800S SMT RES	94		6643 SD 28V TRSPTTAR F THRMSTOR PTC
2-35	160N 50V 5GCAP 080S SMT XTR	D72		W12E 10600 0.1% 800S SMT RES	95		MX215XTIS 18VO DW 5N SMT ZEN
2-36	470P 25V 5GCAP 360S SMT NPD	D75		W12E 10600 0.1% 800S SMT RES	96		MX215XTIS 18VO DW 5N SMT ZEN
2-37	160N 50V 5GCAP 080S SMT XTR	D76		W12E 10600 0.1% 800S SMT RES
2-38	160N 50V 5GCAP 080S SMT XTR	D77		W100 548R 1% 800S SMT RES
2-39	160 25V 5GCAP 5X3.4 SMT FL	D78		W100 240 1% 800S SMT RES
2-40	6212 100N 100V 5GCAP TSR RAD 2FLM	D79		W12E 378 5% 800S SMT RES
2-41	6212 100N 100V 5GCAP TSR RAD 2FLM	D79		W100 2432 1% 800S SMT RES
2-42	62P 10W 5GCAP 080S SMT NPO	D73		W100 100R 1% 800S SMT RES
2-43	2XP 10W 5GCAP 080S SMT NPO	D75		W12E 2488R 1% 800S SMT RES
2-44	2XP 10W 5GCAP 080S SMT NPO	D76		W12E 32 5% 800S SMT RES
2-45	160 16V 5GCAP 5MT FLG	D77		W100 100R 1% 800S SMT RES
2-46	470P 50V 5GCAP 080S SMT NPO	D78		W100 100R 1% 800S SMT RES
2-47	160N 50V 5GCAP 080S SMT XTR	D79		W12E 378 5% 800S SMT RES
2-48	160N 50V 5GCAP 080S SMT XTR	D80		W12E 447 5% 800S SMT RES
2-49	330P 50V 5GCAP 080S SMT NPO	D82		W12E 758R 1% 800S SMT RES
2-50	22U 25V 5GCAP 720S SMT XTR	D83		W12E 758R 1% 800S SMT RES
2-51	2NP 25V 5GCAP 800S SMT XTR	D84		W100 2432 1% 800S SMT RES
2-52	330P 50V 5GCAP 080S SMT NPO	D87		W12E 4432 1% 800S SMT RES
2-53	160N 50V 5GCAP 080S SMT XTR	D88		W12E 758R 1% 800S SMT RES
2-54	1NS 50V 5GCAP 080S SMT NPO	D89		W12E 758R 1% 800S SMT RES
2-55	2NF 10W 10GAP 080S SMT COG	D92		W12E 758R 1% 800S SMT RES
2-56	470P 50V 5GAP 080S SMT NPO	D93		W12E 568R 5% 800S SMT RES
2-57	2NP 10W 10GAP 080S SMT COG	D94		W12E 628R 1% 800S SMT RES
2-58	470P 50V 5GAP 080S SMT NPO	D95		W12E 1627 1% 800S SMT RES
2-59	160N 50V 5GAP 080S SMT XTR	D96		W12E 300R 5% 800S SMT RES
2-60	160N 50V 5GAP 080S SMT XTR	D97		W100 208R 1% 800S SMT RES
2-61	8163-FA 5GV 1AD SCHDO144C SMT	D98		W12E 187K 6.1% 800S SMT RES
2-62	DSF444B 75V 0V15 100S SMT	D99		W12E 187K 6.1% 800S SMT RES
2-63	DSF444B 75V 0V15 100S SMT	D9A		W12E 478K 5% 800S SMT RES
2-64	DSF444B 75V 0V15 100S SMT	D9A		W100 100R 1% 800S SMT RES
2-65	DSF444B 75V 0V15 100S SMT	D9B		W100 100R 1% 800S SMT RES
2-66	DSF444B 75V 0V15 100S SMT	D9C		W12E 10K 5% 800S SMT RES
2-67	470P 50V 5GAP 080S SMT MT VERT 24VN AS-SERIES	D95		W12E 10K 5% 800S SMT RES
2-68	470P 50V 5GAP 080S SMT MT VERT 24VN AS-SERIES	D96		W12E 354R 1% 800S SMT RES
2-69	470A LINN SO JOKPCNT VT STIK RT SMT	D97		W12E 100K 1% 800S SMT RES
2-70	470P LINN FFM PCS MT VERT 24VN AS-SERIES	D98		W12E 838R 1% 800S SMT RES
2-71	470B LINN SO JOKPCNT VT STER RT SMT	D99		W12E 23K1 1% 800S SMT RES
2-72	FERRITE BEAD GDR QTJ00MHZ 080S SMT	D10		W12E 316K 6.1% 800S SMT RES
2-73	16JUH COIL 080S SMT	D11		W12E 14K 5% 800S SMT RES
2-74	260U1 COIL WIXKM SWT	D12		W12E 316K 6.1% 800S SMT RES
2-75	8221 COIL WIXSM SMIT	D13		W12E 3492 1% 800S SMT RES
2-76	8221 COIL WIXSM SMIT	D14		W12E 30K SMIT	81		W12E 10K SMIT
2-77	16JUH COIL 080S SMT	D15		W12E 316K 6.1% 800S SMT RES

M2126-01 Parts Reference List 2/28/2022

S - Y - S	V2126 59 ES 18T NMPSL/PPLY PCB	D001	SMXZI 13LF 18V/ 1WD 5% SAT ZEN	R4-1	W100	475R 1%	8005 SMT RES
S300	V2126BLANK 2 D2 25D BUL/SON 1PLR ESTUP	C002	SMXZI 16LF 18V/ 1WD 5% SAT ZEN	R4-1	TW00	240 1%	2516 SMT RES
S31	100N 50V SYNCAP 8005 SMT XTR	F1	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	ZW00	800 1%	OANS SMT HRS
S31	100N 50V SYNCAP 8005 EMT XTR	F2	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W125	647 5%	8005 SMT HRS
S31	100N 50V SYNCAP 8005 SMT XTR	C001	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	TW00	270 1%	2516 SMT HRS
S31	100N 50V SYNCAP 8005 SMT XTR	C002	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W250	104 5%	2506 SMT HRS
S31	100N 50V SYNCAP 8005 SMT XTR	B01	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W250	104 5%	2506 SMT HRS
S31	100N 50V SYNCAP 8005 SMT XTR	B02	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W125	2K7 5%	8005 SMT HRS
S31	100N 50V SYNCAP 8005 SMT XTR	B03	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W100	100 1%	8005 SMT HRS
S31	100N 50V SYNCAP 8005 SMT XTR	B04	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W125	820 5%	8005 SMT HRS
S31	470N 50V SYNCAP 1206 SMT XTR	B04	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W125	820 5%	8005 SMT HRS
S31	1U 50V SYNCAP 4 25X3.9 SMT LLC	B05	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W100	447 5%	8005 SMT HRS
S31	1U 50V SYNCAP 8005 SMT XPO	B06	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W100	200 5%	8005 SMT HRS
S31	470N 50V SYNCAP 8005 SMT XPO	B07	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W100	162R 1%	8005 SMT HRS
S31	1U 50V SYNCAP 8005 SMT XPO	B08	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W100	470K 5%	THEVESTOR RTO BDOE SMT
S31	0572 800N 50V SYNCAP BLK RAD POLY FLM	B09	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W100	274K 1%	8005 SMT HRS
S31	220N 50V SYNCAP 1206 SMT XTR	B010	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W100	12K 1%	8005 SMT HRS
S31	100N 100N SYNCAP 1206 SMT XTR	B011	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W125	1K3 1%	8005 SMT HRS
S31	580S 10U 500N C2 SYNCAP BLK MPOLP FLM	B012	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	W2N	3X0R 5%	1208 SMT HRS
S31	580S 2U2 140G C2 SYNCAP BLK RAD POLY FLM	B013	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	TW00	100K 3%	2512 SMT HRS
S31	1U 50V SYNCAP 4 25X3.9 SMT FLO	B014	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	TW00	100K 3%	2512 SMT HRS
S31	470N 50V SYNCAP 8005 SMT XPO	B015	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	W225	4X02 01%	8005 SMT HRS
S31	57N 100N SYNCAP 1206 SMT XTR	B016	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	8004 100N	2XK 5%	BLK HRS
S31	100N 50V SYNCAP 8005 SMT XTR	B017	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	8004 100N	2XK 5%	BLK HRS
S31	5872 800N 400N SYNCAP BLK RAD POLY FLM	B018	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	8722 1ML	POLYMDF LABEL 375" X 375"
S31	5872 470N 1600N SYNCAP POLYRPID RLK	B019	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	LTV-	4M15 ACINPUT OPTICOLPLER SMT
S31	479 50V SYNCAP 8005 SMT XPO	B02	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-1	LM311	COMPARATORIC SMT SOB
S31	100N 50V SYNCAP 8005 SMT XTR	B03	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	LM311	COMPARATORIC SMT SOB
S31	300 N 20V SYNCAP 8 25X3.9 SMT LL	B022	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	8509 18SZ	9H10DPIC HLBT TET DRINK
S31	100N 50V SYNCAP 8005 SMT XTR	B026	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	380N	DUAL OFAVP	SMT SOB
S31	100N 50V SYNCAP 8005 SMT XTR	B027	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	380N	DUAL OFAVP	SMT SOB
S31	100N 50V SYNCAP 1206 SMT XTE	C003	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	TL3S1	COMPARATORIC SMT SO738
S31	100N 50V SYNCAP 8005 SMT XTR	C004	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	NKX20, QPR IFP SWITCH SMT SWAFS
S31	1U 50N SYNCAP 1206 SMT XTR	C005	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	6506 NUMB/5EA TO22K IN VDOES IS V1
S31	4U7 50N SYNCAP 1206 SMT CER	C006	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	6827 NUMB/5EA TO22K IN VDOES IS V2
S31	3U8 250N SYNCAP 8X10 SMT ELE	C007	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	2388 6 CR NH/HEADER OBRIN
S31	4U7 50N SYNCAP 1206 SMT ELE	C008	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	2438 4 PDS HEADER ASSY WALEY POB MOUNT
S31	1U 18V 95C/4 SYNCAP 1206 SMT XTE	C009	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	100N 100N SYNCAP 1206 SMT XTR	C010	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4446 3 PPM POWER PIN HEADER WALE POLPED
S31	5242 200N 200N SYNCAP BLK XYZ 1MM AG	F	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4243 4 PPM HEADLASS ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 1MM AG	F5	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4127 4 PPM HEADLASS ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP 4X5.5 SMT FLO	F5	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4216 200N HEADL STRAIGHT PIN IPPOS IS 168
S31	5968 680N 25N SYNCAP BLK XYZ 27MM AG	F6	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	WMZ7 EVUTIG 18V/667 5% SUT ZEN
S31	100N 100N SYNCAP 1206 SMT XTR	F7	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5887 220N 50V SYNCAP BLK XYZ 27MM EL	F8	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP 4X5.5 SMT FLO	F9	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F10	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP 4X5.5 SMT FLO	F11	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F12	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F13	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F14	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F15	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F16	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F17	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F18	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F19	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F20	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F21	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F22	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F23	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F24	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F25	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F26	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F27	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F28	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F29	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F30	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F31	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F32	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F33	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F34	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F35	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F36	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ 27MM AG	F37	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	5877 220N 50V SYNCAP BLK XYZ 27MM AG	F38	PUSL FAST GAS 25VDC 35VAC 5MT 3812	R4-2	4244 4 PDS HEADER ASSY WALEY POB MOUNT
S31	4U7 25N SYNCAP BLK XYZ

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY POTENTIOMETERS AND KNOBS

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	27-OCT-2016	V01	RELEASED	FOR PRODUCTION
2	07-JUL-2017	V01	9077	REMOVE SIL PADS YS# 3797 AND CHANGE SCREW 8741 TO 8871
3	2-NOV-2017	V01	9114	Changed R225 and R249 from 22R(YS#7930) to 12R (YS#7852)
4				Changed Q203A and Q206A from BAT54 (YS#7944) to BAT75G (YS#9106)
5				Change R219 from 470R (YS#7856) to 475R (YS#7673)
6				Change R264 from 1K62 (YS#6137) to 1K4 (YS#9107)
7				Add 12K1 0603 relistor (YS#7761) between pin 3 and pin 4 of U201
8				For M1693 PCB Only:
9				Change Q203A and Q205A from IRGP50B60PDPbF (YS#2385) to IRGP50B60PD1PbF (YS#2495)
10				For M1692 PCB Only:
11	10-NOV-2017	V01	9134	Change Q203A and Q205A from IRGP50B60PDPbF (YS#2385) to IRGP50B60PD1PbF (YS#2495)
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	26-NOV-2017	V02	9114	Add two 150pF 100V capacitors (YS#5962) between PS, GND and pin 1 and pin 4 of W402
2				Change C309 connection from before L300 to after L300
3	20-DEC-2017	V02		Added M1890(ES31P) and M1891(ES12P) to board
4	15-DEC-2017	V02		Added 5 test points for Test & Repair
5	22-DEC-2017	V02		V02 Released
6	02-APR-2018		8196	Replace screw #8751 (zinc) with #8835 (tin)
7	01-SEP-2018	V03		X6024 Board - De-Exed
8		V03	9284	Added C316, L301, and C315 for EMI Improvements
9	03-OCT-2018	V03		V03 Released
10	01-FEB-2019		9277	Changed W301, W306 to YsPart# 4243 and W302 to YsPart# 4244
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13

POTENTIOMETERS AND KNOBS
REF	FUNCTION	POT#	STYLE	KNOB#

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

PCB ASSEMBLY DOCUMENTATION

MOUNTING HARDWARE & INSTRUCTIONS FOR HEAT SPREADER ZC1611:

1- First install #8742 screw to align heatspreader ZC1611
2- Install all devices on Heat Spreader
3- Install #8800 and #8835 for grounding. Nut up.

MOUNTING HARDWARE FOR U302/U303 AND Q203/Q205:

MOUNTING HARDWARE FOR D300:
TOP VIEW:

Close-up of a black electronic component with a threaded top and surrounding circuit board (no visible text or symbols)

YS#: 8800
DESC: 6-32 KEPS NUT
D300

BOTTOM VIEW:
YS#: 8837 DESC: 6-32X1/2 PAN NO WASHER NEEDED

Close-up of a green printed circuit board with soldering tools and a black component (no visible text or symbols)

RTV INSTRUCTIONS:

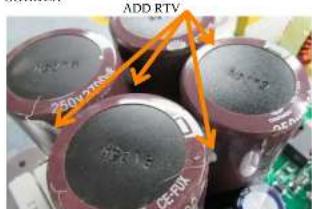

ADD RTV BETWEEN:
ADD RIV BETWEEN: C311, C312, C313 and C314 AFTER WAVE SOLDER

Add RTV UNDER R303 AND R304 on the heatspreader
IMPORTANT: Keep the resistors away from the nearby capacitors (C312, C313)

Assembly Documentation
ES12P/ES15P/ES18P/ES21P/PSA19/PSA2S
-100 EML (2004) 5.98.07.2024
HcaNet On 2016-03-04 E-01/07 New Delix Term

Dav Dels, Turinza KIRNCE

2 | 1 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY POTENTIOMETERS AND KNOBS

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	27-OCT-2016	V01	RELEASED	FOR PRODUCTION
2	07-JUL-2017	V01	9077	REMOVE SIL PADS YS# 3797 AND CHANGE SCREW 8741 TO 8871
3	2-NOV-2017	V01	9114	Changed R225 and R249 from 22R(YS#7930) to 12R (YS#7852)
4				Changed Q203A and Q206A from BAT54 (YS#7944) to BAT75G (YS#9106)
5				Change R219 from 470R (YS#7856) to 475R (YS#7673)
6				Change R264 from 1K62 (YS#6137) to 1K4 (YS#9107)
7				Add 12K1 0603 relistor (YS#7761) between pin 3 and pin 4 of U201
8				For M1693 PCB Only:
9				Change Q203A and Q205A from IRGP50B60PDPbF (YS#2385) to IRGP50B60PD1PbF (YS#2495)
10				For M1692 PCB Only:
11	10-NOV-2017	V01	9134	Change Q203A and Q205A from IRGP50B60PDPbF (YS#2385) to IRGP50B60PD1PbF (YS#2495)
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	26-NOV-2017	V02	9114	Add two 150pF 100V capacitors (YS#5962) between PS, GND and pin 1 and pin 4 of W402
2				Change C309 connection from before L300 to after L300
3	20-DEC-2017	V02		Added M1890(ES31P) and M1891(ES12P) to board
4	15-DEC-2017	V02		Added 5 test points for Test & Repair
5	22-DEC-2017	V02		V02 Released
6	02-APR-2018		8196	Replace screw #8751 (zinc) with #8835 (tin)
7	01-SEP-2018	V03		X6024 Board - De-Exed
8		V03	9284	Added C316, L301, and C315 for EMI Improvements
9	03-OCT-2018	V03		V03 Released
10	01-FEB-2019		9277	Changed W301, W306 to YsPart# 4243 and W302 to YsPart# 4244
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13

POTENTIOMETERS AND KNOBS
REF	FUNCTION	POT#	STYLE	KNOB#

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	14-MAR-2017	V01		RELEASE FOR PRODUCTION
2	01-SEP-2017	V02	9101	ADDED U1D MEMORY CHIP FOR BLUETOOTH
3	17-SEP-2016	V03	9233	Changed LEDs on pcb to smt LEDs to accommodate light pipes
4			9323	Added NS21P option
5	18-AUG-2021	V04	9443	Moved F2 and C42 away from J2.
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2				•
3
4
5
6
7
8
9
10
11
12
13

POTENTIOMETERS AND KNOBS

POTENTIOMETERS/SWITCHES AND KNOBS
REF	FUNCTION	POT/SW YS#	STYLE	KNOB#
S1	MODE SELECT	4202	ROT	8653C
S4	HF ROLL OFF	4202	ROT	8653C
P5	GAIN	2339	P34	8653C

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Yorkville	Design Information And History
	Product: ES121018/21PINS21P
	N1002 - 5mm	PCOar-24mm	ECL-24mm Rx
	WxWxWx	WxWxWxWxWxWxWxWx	Top Box: V031
14		15	16	17

V04M1696 ES12/15/18/21P

PCB ASSEMBLY DOCUMENTATION

SPECIAL PRODUCTION NOTES

1. PCBSA: RTV BETWEEN ALL TALL COMPONENTS AND WHERE INDICATED.
2. PRIOR TO INPUT INTO WAVE SOLDER MACHINE, USE AJIG FOR INPUT JACK ALIGNMENT.
3. PCBSA: AFTER WAVE USE PIZZA CUTTER TO SEPARATE THE BOARDS.
4. TEST: AFTER BOARD PROGRAMMING PLEASE CHECK APPROPRIATE BOX BESIDE THE MODEL THAT THE PCB WAS PROGRAMMED FOR. ENSURE THE CORRECT BOX IS CHECKED ON BOTH SIDES OF PCB WHERE INDICATED.

PCB HARDWARE

SCREWS AND BOLTS

NUTS

STANDOFFS

MISCELLANEOUS

THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD.

Yorkville	Section Assembly Documentation
	Product ES121051821P/NS21P
	N1002 - 5mm DPCar-Defel		CNJ-Defel-CK
	Wolffre	5%3024-600-10.2x-Def		Top-Def. V001
14		15	16	17

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	14-MAR-2017	V01		RELEASE FOR PRODUCTION
2	01-SEP-2017	V02	9101	ADDED U1D MEMORY CHIP FOR BLUETOOTH
3	17-SEP-2016	V03	9233	Changed LEDs on pcb to smt LEDs to accommodate light pipes
4			9323	Added NS21P option
5	18-AUG-2021	V04	9443	Moved F2 and C42 away from J2.
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2				•
3
4
5
6
7
8
9
10
11
12
13

POTENTIOMETERS AND KNOBS

POTENTIOMETERS/SWITCHES AND KNOBS
REF	FUNCTION	POT/SW YS#	STYLE	KNOB#
S1	MODE SELECT	4202	ROT	8653C
S4	HF ROLL OFF	4202	ROT	8653C
P5	GAIN	2339	P34	8653C

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Yorkville	Design Information And History
	Product: ES121018/21PINS21P
	N1002 - 5mm	PCOar-24mm	ECL-24mm Rx
	WxWxWx	WxWxWxWxWxWxWxWx	Top Box: V031
14		15	16	17

POWER SUPPLY

Critical Safety Components

This symbol is placed next to
Safety Critical Components

S### Power Supply
Product: M1823-FS12P-15P-18P-PSA2S
2415327-50-00 CNTY 48692
New Modell: 21M 10.77 | Treasure: New SLI

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY POTENTIOMETERS AND KNOBS

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	08-May-2019	V01		New EMC compliant boardFOR ES12P-E821P and PSA2S: Replace R242 #5110 0R04 2Wwith #5142 0R02 5W and DNS R243
2	22-Aug-2019		9440
3
4	23-Sept-2019	V02	9454	REPLACE D306 AND D309 FROM YS#8814 ES1J TO YS#9159 SMAZ18 18V ZENER
5			9456
6	27-Oct-2020		9411	Replaced #2496 with #2321
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Design Information And History ES12P/ES15P/ES10P/ES21P/PSA1S/PSA2S N 1527 2.35mm D*25P/MW0 EAL P###

BlankSize - 261mmX222mm (10276X8740)

M1823V02

ES12P-15P-18P-PSA2S

PCB ASSEMBLY DOCUMENTATION

MOUNTING HARDWARE & INSTRUCTIONS FOR HEAT SPREADER ZC1611:

1- First install #8742 screw to align heatspreader ZC1611
2- Install all devices on Heat Spreader
3- Install #8800 and #8835 for grounding. Nut up.

MOUNTING HARDWARE FOR U302/U303 AND Q203/Q205:

TOP VIEW:

BOTTOM VIEW:

Four circular electronic components on a green circuit board, each with an orange arrow pointing to its top section (no text or symbols visible)

MOUNTING HARDWARE FOR D300:

TOP VIEW:

Close-up of a black electronic component with a threaded top and labeled pins (no readable text or symbols)

Clip all 4 leads short on D300:
BOTTOM VIEW:

YS#: 8800 DESC: 6-32 KEPS NUT

D300

YS#: 8837 DESC: 6-32X1/2 PAN NO WASHER NEEDED

Close-up of a green printed circuit board with soldered components and a black screw on the central component (no visible text or symbols)

RTV INSTRUCTIONS:

ADD RTV BETWEEN: C311, C312, C313 and C314 AFTER WAVE SOLDER

Add RTV UNDER R303 AND R304 on the heatspreader

IMPORTANT: Keep the resistors away from the nearby capacitors (C312, C313)

Assembly Documentation

ES12P/ES15P/ES10P/ES21P/PSA1S/PSA2S

N1523 2.35cm/DF150.7662 D/A Pn D/A Pn Pb 2000000000000

Face Sable

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY POTENTIOMETERS AND KNOBS

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	08-May-2019	V01		New EMC compliant boardFOR ES12P-E821P and PSA2S: Replace R242 #5110 0R04 2Wwith #5142 0R02 5W and DNS R245
2	22-Aug-2019		9440
3
4	23-Sept-2019	V02	9454	REPLACE D306 AND D309 FROM YS#8814 ES1J TO YS#9159 SMAZ18 18V ZENER
5			9456
6	27-Oct-2020		9411	Replaced #2496 with #2321
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Design Information And History ES12P/ES15P/ES10P/ES21P/PSA1S/PSA2S N 1527 2.35mm D*25P/MW02 EAL P### 21 E###

Yorkville		Product: ES12/15/18/21P INS21P
		POWERED SUBOXOFER INPUT PCBscrew
		N2710 105mm	D7250.4mm V21	3% mm	X5
13	14	15	16	17

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	01-OCT-2021	V01		RELEASE FOR PRODUCTION
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10

POTENTIOMETERS AND KNOBS

POTENTIOMETERS/SWITCHES AND KNOBS
REF	FUNCTION	POT/SW YSM	STYLE	KNOBM
S1	MODE SELECT	4221	ROT	8653C
S4	HF ROLL OFF	4202	ROT	8653C
P5	GAIN	2339	P34	8653C

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Design Information And History

ES1215H021P/NS21P

N2101 10am DPC8e/5mU EVL PnR XX

2014

(1) 50%

Critical Safety Components

This symbol is placed next to
Safety Critical Components

Yorkville	Sertes: Power Supply
	Product(s): ES18P
	ME12GSSheet (yPCB-NRe)		ROM Re+101
	Base Modified: 2015-02-25		Flexwork: Supple SCL-HA

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY POTENTIOMETERS AND KNOBS

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	23-FEB-2022	VD1		RELEASED FOR PRODUCTION
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Yorkville	Design Information And History
	E518P
	02130 2-10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000		500,000,000
	PUMAAT	PUMAAT	PUMAAT	TupAte 0.538

BlankSize - 261mmX222mm (10276X8740)

M2126V01

ES18P

FOR ES18P ONLY - M2126 and M2124
Use Up and Go To TABLE FOR IGBTs Q203 AND Q205
Order	YS Part No.	MFG Part No.	Marking
1st	2508	IKW40N65RH5	K40ERH5
2nd	2429	IKW50N65RH5	K50ERH5
3rd	2512	IKW50N65SS5	K50ESS5

SPECIAL INSTRUCTIONS

When stock is depleted on part 2509 use the table to determine the next replacement part. The Use Up and Go To Table indicates the order in which YS Part# 2509 is to be replaced. Part replacements must always be done in pairs for each pcb.

As each of the part inventory in the table is depleted and it is time to use a replacement, contact Production Engineering to change the system MML so correct inventory is maintained.

MOUNTING HARDWARE & INSTRUCTIONS FOR HEAT SPREADER ZC1611:

1- First install #8742 screw to align heatspreader ZC1611
2- Install all devices on Heat Spreader
3- Install #8800 and #8835 for grounding. Nut up.

PCB ASSEMBLY DOCUMENTATION

MOUNTING HARDWARE FOR U302/U303 AND Q203/Q205:

MOUNTING HARDWARE FOR D300:
TOP VIEW:

Close-up of a green circuit board with a black electronic component and orange arrows pointing to features (no readable text or symbols)

YS#: 8800 DFSC: 5-32 KIPS NUT
D300
YS#: 8837 DESC: 6-32X1/2 PAN NO WASHER NEEDED

BOTTOM VIEW:

Close-up of a green printed circuit board with soldered wires and a black component (no visible text or symbols)

RTV INSTRUCTIONS:
ADD RTV BETWEEN: C311, C312, C313 and C314 AFTER WAVE SOLDER

Add RTV UNDER R303 AND R304 on the heatspreader

IMPORTANT: Keep the resistors away from the nearby capacitors (C312, C313)

DESIGN HISTORY AND INFORMATION

CHANGE HISTORY POTENTIOMETERS AND KNOBS

#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1	23-FEB-2022	VD1		RELEASED FOR PRODUCTION
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10
11
12
13
#	DATE	VER#	PC#	DESCRIPTION OF CHANGE
1
2
3
4
5
6
7
8
9
10

PINOUT DIAGRAMS

THIS SHEET CONTAINS A CHANGE HISTORY LOG, A LIST OF THE POTS & KNOBS AND A LEADS & PINS REFERENCE SECTION.

Yorkville	Design Information And History
	Risations
	(###) 2 (###) ### ### ###	### ### ###
	###	### ### ### ###	### ### ###

ES-Series Active Subwoofers

Input Mode

Line Level - Use when fed a signal directly from a line level output. It's recommended to use balanced cables with XLR connectors or TRS ¼-inch phone plugs (Tip, Ring, Sleeve) to help reduce the unit's sensitivity to hum and buzz.

Speaker Level - Set to speaker level when fed from an amplifier or speaker out from a 'powered' mixer!

WARNING: Do not plug in two speaker level sources to a single ES Powered Subwoofer!

Note: The ES Powered Sub can be plugged in before or after the full range enclosure, it does not alter the signal to the daisy chained enclosures. An external crossover is not necessary.

Tip: The Link jacks allow many ES Series Powered Subs to be connected in a string (parallel). There is no practical limit to the number of ES Powered Subs that may be connected together. WARNING: Do not plug in two speaker level sources to a single ES Powered Sub

Sub Level

Adjusts the bass added to the sound system by the ES Powered Sub. It's recommended to set the control while operating at a low sound level. A '12 o'clock' setting on the ES Series Powered Subwoofer's Lev control is the correct starting point when setting up a sound system.

Note: At high output levels, this control may be overridden by the internal limiter.

Mode

Punch Mode processes the sound so it's perceived as punchier, giving less power into deep bass and more into the upper bass.

Smooth Mode will keep the original signal character with no preference for deep or upper bass.

Deep mode processes the signal with a deeper sound, giving more power into deep bass while keeping the upper bass similar to the Smooth Mode.

Hi Freq. Rolloff

Sets the upper bass frequency which the ES Powered Sub rolls off, providing part of the ‘crossover’ function. Ideally the ES Powered Sub would be used with an élite powered top cabinet (both cabinets set at 100 Hz).

Input / Output LINK Jacks

All Link jacks are connected in parallel, use them to daisy-chain other ES Powered Subs or full-range enclosures. For normal operation, connect the ES Series Powered Subwoofer just like an ordinary speaker along with the full range enclosures.

Note: the Mono Blend Input is designed for Line Level signals only!

Line Level - If receiving the signal from a non-powered mixer, a line level signal processor or another line-level source, set the input switch to Line.

Speaker Level - Set the Input Level switch to Speaker if the signal is coming directly from a power amplifier, 'powered' mixer, or another powered source.

Mono Blend Input Jack

This input jack enables you to connect a secondary line level signal without needing to externally sum two signals (e.g. Left and Right). This is helpful when you are adding a single ES Powered Sub to a stereo system.

Bluetooth™ Control

This control enables or disables the Bluetooth™ connection between a tablet or a smart phone using the Yorkville App. Pressing the Bluetooth™ button for more than 4 seconds resets the ES-Series powered subwoofer to factory settings.

Note: The Bluetooth™ functionality on this product is intended for control only. It does not allow for Bluetooth™ audio connection

Protection

The ES Series Powered Subs use a DSP-based circuit to prevent clipping, over power and over excursion. At high levels, the limiter will limit the gain. The level control should be set while operating at low levels. Turn the master volume of the signal going to the subwoofer down to allow the balancing and setting of the bass along with the full range speaker top in use.

Note: At high power levels, when the limiter is operating, increasing the Subwoofer's Level Control will NOT increase the output.. Do NOT continue to increase this setting while operating at high levels.

Stand Mounting Adapter

The ES Series Powered Subs come equipped with a built-in stand mounting adapter that can be used with Yorkville SW-Teletube accessory to support élite powered top cabinets. The support tube can be adjusted up to its full 5-foot 4-inch extension safely as long as the ES Series Powered Subwoofer is not inclined more than 10^irc (10-degrees).

WARNING: Larger or heavier cabinets should not be used! Do not use larger than the recommended top cabinets!

To get the full Owner's Manual please visit our website at

http://www.yorkville.com/manuals/ or, if you need a printed version call 905-837-8777

Printed In CANADA

QuickStart-ES_P-00-1v4 • YS#QSTART-ESP) • January 22, 2020
