USER MANUAL CX80P YORKVILLE

Yorkville CX80P Loudspeaker

Coliseum Mini Series CX80P - Powered Speaker - 100w, 8 inch / 1 inch

The Coliseum Mini Series – specifically designed for fixed installations. Years of experience with enclosure design made it logical for Yorkville to create of a range of speaker cabinets that have been specifically engineered for installations. The knowledge gained while developing the TX, élite, Pulse and Performance enclosures helped yield a series of practical, yet cost effective enclosures.

The CX80P is a compact 100-watt powered loudspeaker with an 8-inch woofer and 1-inch Mylar tweeter. The enclosure is made from durable ABS plastic. Its trapezoidal shape makes the CX80P ideal for applications in tight locations and it is built with a pole mount adapter for placing the CX80P on a speaker stand.

Features include both a 14 -inch TRS INPUT jack and a 14 -inch AUX OUT jack for inter-connecting additional CX80Ps. Controls include GAIN, TONE and VOLUME. The 14 -inch TRS LINE input can alternatively be used with a microphone and the input sensitivity is switchable between MIC and LINE levels. The AC VOLTAGE SELECTOR switch permits you to use the CX80P with either 115VAC or 230VAC line voltages around the world.

Power LED and ON/OFF Switch

The LED illuminates when the CX80P is connected to the AC mains and switched on.

Voltage Selector Switch

According to the country in which you are using the C1170P, set the switch for either 115VAC (i.e. North America) or 230VAC (i.e. Europe)

INPUT and AUX OUT Jacks

The Input and Aux Out jacks are 14 -inch TRS phone jacks and are balanced, however they are compatible for use with unbalanced TS 14 -inch plugs as well. Connect your line-level signal source here (mixer, CD/tape player, laptop etc.).

As noted earlier, the Input can be used alternatively to connect a microphone. If the microphone does not have a 14 -inch plug, you will require an adaptor (or adaptor cable such as our PC-25XPS 25-ft with female XLR to 14 -inch stereo connectors). This turns the CX80P into a simple and compact PA system. The Aux Out is wired in parallel with the Input which permits connecting two or more CX80Ps together (it's recommended to use balanced 14 -inch TRS cables such as Yorkville's PC-10ST or PC-20ST (10ft or 20ft TRS to TRS)).

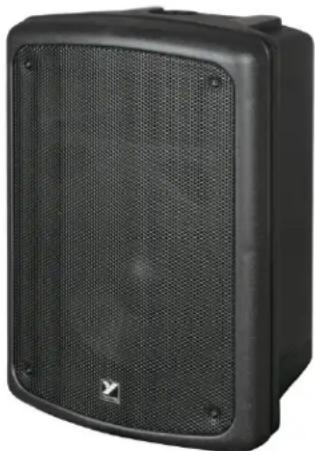

Black audio amplifier speaker with mesh grille and visible speaker icon (no text or symbols)

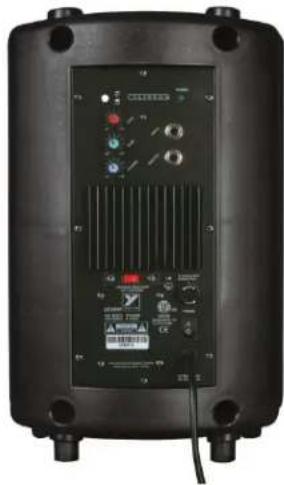

Back view of a black industrial electronic device with control panel and buttons (no visible text or symbols)

Line/Mic Switch

Select Line when connecting a line-level signal source to the Input, or select Mic when connecting a microphone.

Note: Do not connect speaker-level sources such as an amplifier's output to the INPUT.

GAIN Control

The Gain allows you to adjust the sensitivity of the CX80P's Input preamp separately from the volume. When starting out, set the gain around '5' — then, re-adjust (as needed) to maintain clarity with adequate volume.

Volume Control

The Volume control adjusts the overall loudness of the CX80P, depending on the Gain control setting. When starting out, set the Volume low (while adjusting the GAIN as above), then increase the Volume to the appropriate setting.

Tone Control

The Tone control adjusts the treble balance. Start out with a center/neutral setting, and then turn clockwise for treble emphasis or counter-clockwise to soften the treble response.

REAL Gear.

REAL People.

www.yorkvillec.com

Yorkville Sound 550 Granite Court Pickering, Ontario L1W-3Y8 CANADA

Yorkville Sound Inc. 4625 Witmer Industrial Estate Niagara Falls, New York 14305 USA

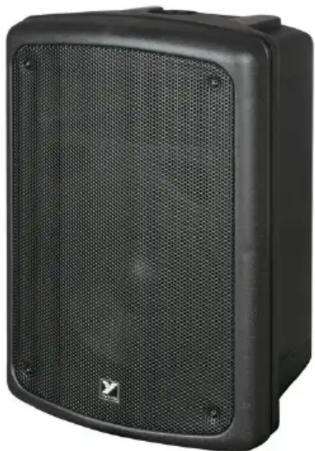

Black outdoor audio amplifier speaker with mesh grille and visible buttons (no text or symbols)

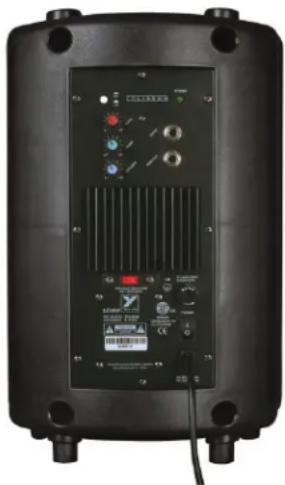

Back view of a black electronic device with control panel and buttons (no visible text or symbols)

Yorkville Sound 550 Granite Court Pickering, Ontario L1W-3Y8 CANADA

Yorkville Sound Inc. 4625 Witmer Industrial Estate Niagara Falls, New York 14305 USA

Yorkville CX80P Loudspeaker

Specifications

System Type 2-Way

Active or Passive Active

Program Power (Watts) 100

Max SPL (dB) 113

Frequency Response (Hz +/- 3db) 60 - 20000

Driver Configuration 8-inch / 1-inch dome tweeter

HF Driver(s) 1-inch Mylar Dome Tweeter

LF Driver(s) 8 inch

Total Power (Watts) 100

Cooling Scheme Heat Sink

Power Cable Built-in

Power Switch Yes

Inputs 2 x 1/4-inch TRS (Input/Aux Out)

Inputs - 1/4-inch Jacks 1 TRS

Mixer Controls Mic/Line sensitivity switch Gain, Tone, Volume controls

Other Controls / Features Switchable AC voltage 115/230

Feet Yes

Pole Mount Adapter (1 3/8inch/3.5cm) Built-in

Enclosure Materials ABS Plastic

Grille Perforated Metal

Dimensions (DWH xbackW, inches) 11.25 x 9.75 x 16.25 x 9.5

Dimensions (DWH xbackW, cm) 28.5 x 25 x 42 x 24

Weight (lbs/kg) 18.7 / 8.5

Spécifications

Active ou Passive Active

Puissance Nominale (Watts) 100

Pression Sonore Maximum (dB) 113

Niagara Falls, New York

14305 USA

Two Year Warranty

Two Year

Limited Warranty

Yorkville's two-year conditional warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail within two years of the original purchase date due to a manufacturing defect, simply return it to your Yorkville Dealer with original proof of purchase and it will be repaired free of charge.

Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States
