| Product Type | Stroller |
| Brand | HARTAN |
| Model | TOPLINE CL |
| Recommended Age | From 6 months (with carrycot from birth) |
| Maximum Child Weight | Up to 15 kg |
| Stroller Weight | Approximately 10 kg (estimate) |
| Folded Dimensions | Not specified in the manual |
| Chassis Materials | Painted and chrome-plated metal |
| Wheel Type | Pneumatic, recommended pressure 1.2 - 1.5 bar |
| Brake | Locking brake on rear wheels |
| Safety | 5-point safety harness, safety half-turn lock, double anti-fold safety |
| Canopy | Adjustable canopy with sun visor and climate zone (zippers) |
| Backrest | Gradually adjustable from sitting to lying position |
| Handlebar | Height adjustable and reversible |
| Footrest | Foldable and height adjustable |
| Fabric Care | Machine wash at 30°C (delicate cycle), dry brushing, mild stain remover |
| Suspension Care | Clean and lubricate axles every 4 weeks, silicone spray |
| Warranty | 2 years from product delivery |
| Recommended Accessories | Rain cover, carrycot (for under 6 months) |
| Spare Parts | Only original Hartan parts |
Frequently Asked Questions - TOPLINE CL HARTAN
User questions about TOPLINE CL HARTAN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stroller in PDF format for free! Find your manual TOPLINE CL - HARTAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TOPLINE CL by HARTAN.
USER MANUAL TOPLINE CL HARTAN
Acceptance Certificate
Name / Name:
StraBe / Road:
Phone (with area code):
e-mail:
Colour of fabric (design):
Zubehör / Accessories:
Kaufdatum / Date of purchase:
Salesperson (name in block letters)
Note: signing this acceptance certificate does not restrict the legal rights of the purchaser.
Handler/Dealer:
PRODUCT SERVICE
- Completeness m checked/OK
2. Function check
n Folding mechanism m checked/OK
n Road behaviour m checked/OK
n Wheels m checked/OK
n Adjusting mechanism m checked/OK
n Brakes check m checked/OK
n Suspension check m checked/OK
3. Intactness
n Frame check m checked/OK
n Fabric check m checked/OK
n Plastic parts check m checked/OK
I have checked the product and have ascertained that it is supplied complete, has no external, visible faults and that all functions are intact.
I have received sufficient information concerning the product and its functions before purchase and have been instructed on care and maintenance.
1 Handlebar
2 Handlebar catch
3 Combined safety turn lock
4 Securing button
5 Handle-folding lock button
6 Additional safety lock
7 Wheel retention
8 Parking brake
9 Hood and safety bar
10 Silently adjustable hood
11 Sun canopy
12 Tilt-adjustable backrest
13 Safety belt
14 Adjustable footrest
15 Handlebar lock
16 Fall-out protection
17 climatic zone
18 Fall-out protection
Congratulations on your purchase
You want your baby to feel safe and secure, that's why you have purchased a high-quality product. You have made an excellent choice. Products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will provide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the industry's own 'Oko-Tex-Standard 100' to guarantee that all the fabric parts of your pram are safe for your baby.
Please do not use this pram before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.
For the safety of your child
WARNING! Using this pram while jogging, skating, etc. is dangerous and requires extra cau-tion.
WARNING! Never leave your child unattended in the pram.
WARNING! Use the safety belt for your child.
WARNING! Shopping bags must not be hung on the handle as this may affect the stability of the pram.
WARNING! This model has been designed for one child only.
WARNING! Seats for carrying a second child are not allowed for this model.
WARNING! The carriage top, the seat unit, and the carrycot may not be used as a child car seat in vehicles.
WARNING! For safety reasons, only use Hartan accessories and replacement parts.
Instructions
Unfolding the pram
By pushing the lock buttons 5, unfold the upper section to bring the handle in horizontal position. Pull handle 1 upwards until handle catch 2 has engaged.
WARNING! Before using the pram, make sure all catches are locked.
Folding the pram
Important! Make the red securing buttons 4 point upwards by reversing the handlebar 1 to the respective position. Turn safety lock 3 inwards to unlock the handle and push the additional safety lock 6 to fold the pram completely. When folding the pram, ensure that at least one of the two brakes is released. Push the lock buttons 5 and fold the handle's upper section 1 toward the bottom of the footrest (securing device).
WARNING! There is always a risk of jamming one's limbs, fingers, etc. when folding or un-folding the chassis, swinging the handle, or adjusting the backrest, so we ask you to proceed with caution
Swinging the handlebar
Push the red securing button 4 and pull the safety turn lock 3 upwards to unlock the handlebar. After you have put the handlebar into the desired position, make sure the handlebar locks 15 on both sides are latched.
WARNING! Please proceed with caution when swinging the handlebar from the front to the rear, and vice versa, making sure no movable parts jam the baby's limbs, or fingers, etc.
Height adjustment of handlebar
Press the two handle-folding lock buttons 5 and bring the upper section of the handlebar 1 in the desired position.
Changing of wheels
Push the button 7 to release the retention, and pull off the wheel.
Push the wheel right to the axle's stop, and press down the button.
Make sure, all wheels are held in place properly.
Parking brake
Press the red push button 8 down to release the brake. To close the brake, push the red button upwards. Having parked the pram, try to push it to check the brake.
Make sure the brakes are closed when placing the baby in the carriage or taking it out of it.
Hood and safety bar
By pressing the bayonet joint 9, the hood or the safety bar can be pulled out.
Sun canopy
Press the two front hood bows together 10 to adjust the hood. Adjusting the hood can be ef-fected silently. By taking off the rear hood section 11, the hood can be converted into a sun canopy by means of a zip fastener. Good ventilation of the hood is important. To prevent heat from accumulating inside, we recommend to open the two zip fasteners 17 and to fold up the hood flap.
Adjusting the backrest
By lifting the back clip 12 at the rear, the backrest can be adjusted from sitting to reclining position in close steps.

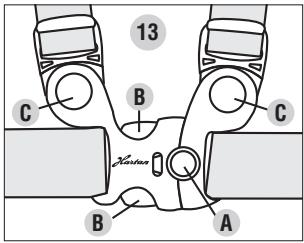

Safety beltWARNING!
Use the safety belt 13 for your child.
Always use the crotch belt in combination with the waist strap.
Remember to tighten the seat belt when it slacks.
Unfasten the belt:
To unfasten the belt, press the red point A and the two latches B as well.
To unfasten the shoulder straps, press the buttons C.
Instructions
Adjusting the footrest
First, press the two buttons 14, located at the right and left side respectively, to fold the footrest down. Then raise the footrest to the required position. A number of settings up to the horizontal position can be selected.
To prolong the footrest, press the two buttons 16, and pull it out.
WARNING! In case the carrycot is attached to the frame, the footrest should always be in horizontal position, as an additional protection preventing it from slipping out.

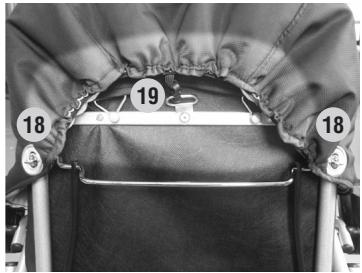

Fall-out protectionWARNING!
As an additional protection preventing the baby from falling out of the carriage, secure the hood to the metal back. To do this, join the two grommets 18 to their respective turn-lock fasteners, and the hook lock 19 to the metal ring on the back plate as well.
Suitability for the child
The Topline hood stroller is designed to carry a child from the age of 6 months, and up to 15kg in weight.
This model is not suitable for children under the age of 6 months except in connection with an appropriate carrycot.
WARNING!
Only use this seat unit when your child is able to sit independently.
All the materials we use can easily be cared for.
Care of the fabric parts
Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30^ . Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.
Care of the chassis
The chassis requires regular care. You should clean and slightly lubricate the wheel axles at an regular 4-weeks interval. Use a silicone based I lubricant spray for all moving plastic parts. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator.
Wheels: Using pneumatic wheels, make sure they have got enough air in the tire. Specified tire inflation pressure should be between 1.2 and 1.5bar max. WARNING! Max. tire pressure will be reached quickly. Overpressure may result in accidents and personal injuries. Replace worn wheel bushes and springs in time. Whenever possible, do not park carriages using pneumatic tired wheels for a longer period of time on light PVC or linoleum as rubber tires may rub off on the floor covering.
Tire air loss
Tires tend to lose air over time. When blowing up a flat tire, inflate it only halfway first, and make sure the tire is evenly seated, to avoid "wobble". Then continue to inflate it to the proper pressure.
Quality agreement
2 YEARS WARRANTY
This product is guaranteed for a period of 2 years beginning on the date it is handed over by the dealer. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.
WHAT WILL BE COVERED BY THE WARRANTY?
This product is warranted against defects in materials and workmanship that existed at the time it was handed over.
THIS WARRANTY DOES NOT COVER ....
We disclaim liability for defects in the object of purchase that are beyond our control. This especially applies to:
n natural wear and tear (wear-related defects) and defects due to excessive stress
n consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
n defects due to improper or inappropriate use (see Instructions)
n defects due to incorrect assembly or operation
n defects due to negligent handling or lack of maintenance of the product
n defects due to improper alteration of the product.
WARRANTYCLAIM-YESORNO?
Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty.
Scratches: Scratches caused by wear and tear will not be covered by the warranty.
Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty.
Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty.
Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine.
Tearing of seams, fabrics, press studs : At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered.
Wheels: As wheels used on prams will not be balanced, they may show slight run-outs ("wobbles"). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a "flat". This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.
Quality agreement
WHAT TO REMEMBER WHEN BUYING YOUR PRAM
Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the hand-over check.
WHAT TO DO IN CASE OF A COMPLAINT
Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.
USE, CARE AND MAINTENANCE
To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.
