Product Type	Self-contained rechargeable portable audio system
Brand	Samson
Model	XP25i
Dimensions (L x W x H)	336 x 188 x 155 mm
Weight	2.5 kg
Amplifier Power	25 Watts
Speaker	13 cm full-range, neodymium magnet, paper cone
Frequency Response	60 Hz – 15 kHz (±3 dB)
Harmonic Distortion	Less than 1%
Battery Type	Gel, 12 V DC, 2.6 Ah
Battery Life	Up to 8 hours of continuous use
Charging Time	Approximately 4 hours
External Power	100-240 V AC / 18 V DC (charger included)
Audio Inputs	Microphone (1/4" mono unbalanced), Line (3.5 mm stereo), built-in iPod dock
Audio Output	Line (3.5 mm stereo)
Included Microphone	Samson PT40M, dynamic, cardioid, 1 m coiled cable, on/off switch
Controls	Volume/Power (microphone), iPod Volume, Power indicator (red) and Charge indicator (green/red)
Construction	Polypropylene with internal reinforcements, textured black vinyl finish
Included Accessories	Charger, carrying strap with microphone clip, microphone stand adapter (5/8" thread)
Maintenance	Clean with a dry cloth; do not block ventilation slots
Safety	Do not open the enclosure; have repairs done by a qualified technician; do not expose to moisture
Recycling	Do not dispose of with household waste; drop off at an electronics recycling collection point

Frequently Asked Questions - XP25I SAMSON

How do I charge the battery of the Samson XP25i?

Use the included charger. Plug it into the DC In jack on the back of the unit. The Charge indicator flashes green during charging and stays solid when the battery is full. A full charge takes approximately 4 hours.

What is the battery life?

The battery life is approximately 8 hours of continuous use at moderate volume. To maximize battery lifespan, fully recharge the unit after each use and avoid complete discharges.

Which iPod models are compatible with the docking station?

The docking station is compatible with most recent iPod models (including iPod touch, iPod nano, iPod classic). Ensure the iPod is properly inserted into the dock for proper connection. For older models, use an adapter if necessary.

Can I use a microphone other than the one provided?

Yes, you can connect any dynamic or high-impedance electret microphone to the Mic In input (1/4" jack). The input level is suitable for vocal-type microphones.

How do I use the XP25i with an external audio source?

Connect your source (MP3 player, smartphone, etc.) to the Line In input (3.5 mm) using an appropriate cable. The source volume is controlled by the iPod knob (which controls the overall volume for line and iPod inputs).

What should I do if the Power indicator does not light up?

First check that the battery is charged. If it is discharged, plug in the charger. If the indicator remains off, the internal fuse may have blown. Contact a qualified technician to replace the fuse (same as original model).

Can I use the unit while charging?

Yes, the XP25i can be used while charging. Simply plug the charger into the DC In jack and turn on the unit. The Charge indicator will flash during charging.

How do I clean the XP25i system?

Use a soft, dry cloth to clean the enclosure. Do not use chemical or abrasive cleaners. Avoid letting liquids enter through ventilation slots or connectors.

Can I mount the XP25i on a microphone stand?

Yes, the enclosure has a built-in female thread adapter 5/8 inch (16 mm) compatible with most standard microphone stands. Simply screw on the provided adapter if needed.

What to do in case of failure or malfunction?

Do not open the enclosure. Have any repairs done by a qualified technician. For warranty returns, contact Samson customer service at 1-800-3SAMSON (USA) or your local dealer to obtain a return authorization number.

USER MANUAL XP25I SAMSON

Copyright 2010, Samson Technologies Corp. v1.3

Samson Technologies Corp.

45 Gilpin Avenue

Hauppauge, New York 11788-8816

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: [phone]

www.samsontech.com

Important Safety Information

AVIS RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

RECHARGEABLE BATTERY

CAUTION: This unit contains a rechargeable battery. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type of battery. Do not expose to excessive heat such as sunlight, fire, etc. The battery used in this product must be recycled or properly disposed of. Please dispose of used batteries in a manner that follows any local regulations. Do not incinerate. Contact your local recycling center for information about the proper disposal of rechargeable batteries.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES CLASS B. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MUST NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. SUITABLE FOR HOME OR OFFICE USE.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important Safety Information

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. This apparatus shall not be exposed to dripping or splashing liquid and no object filled with liquid, such as a vase, should be placed on the apparatus.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during lightning storms or when not in use for long periods of time.
11. Do not override the intended purpose of the polarized or grounding-type plug. A polarized plug has two blades, with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician to replace the obsolete outlet.
12. Protect the power cord from being walked on or pinched, particularly at the prongs, convenience receptacles, and the point where they exit from the apparatus.
13. Use only with the cart stand, tripod bracket, or table specified by the manufacture, or sold with the apparatus.

When a cart is used, utilize caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Refer all servicing to qualified service personnel. Servicing is required if the apparatus has been damaged in any way, such as power-supply cord or plug breakage, damage due to liquid or objects falling onto the apparatus, exposure to rain or moisture, or if the apparatus does not operate normally, or has been dropped.
2. POWER ON/OFF SWITCH: For products with a power switch, the power switch DOES NOT break the connection from the mains.
3. MAINS DISCONNECT: The plug should remain readily operable. For rack-mount or installation where plug is not accessible, an all-pole mains switch with a contact separation of at least 3mm in each pole shall be incorporated into the electrical installation of the rack or building.
4. FOR UNITS EQUIPPED WITH EXTER- NALLY ACCESSIBLE FUSE RECEP- TACLE: Replace fuse with same type and rating only.
5. MULTIPLE-INPUT VOLTAGE: This equipment may require the use of a different line cord, attachment plug, or both, depending on the available power source at installation. Connect this equipment only to the power source indicated on the equipment rear panel. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel or equivalent.

Table of Contents

Introduction. 2
XP25i Features 3
Gel-Cell Batteries. 4
XP25i Controls and Layout. 5
XP25i Controls and Layout. 6
Connecting an iPod 7
XP25i Specifications. 8
XP25i Dimensions 9

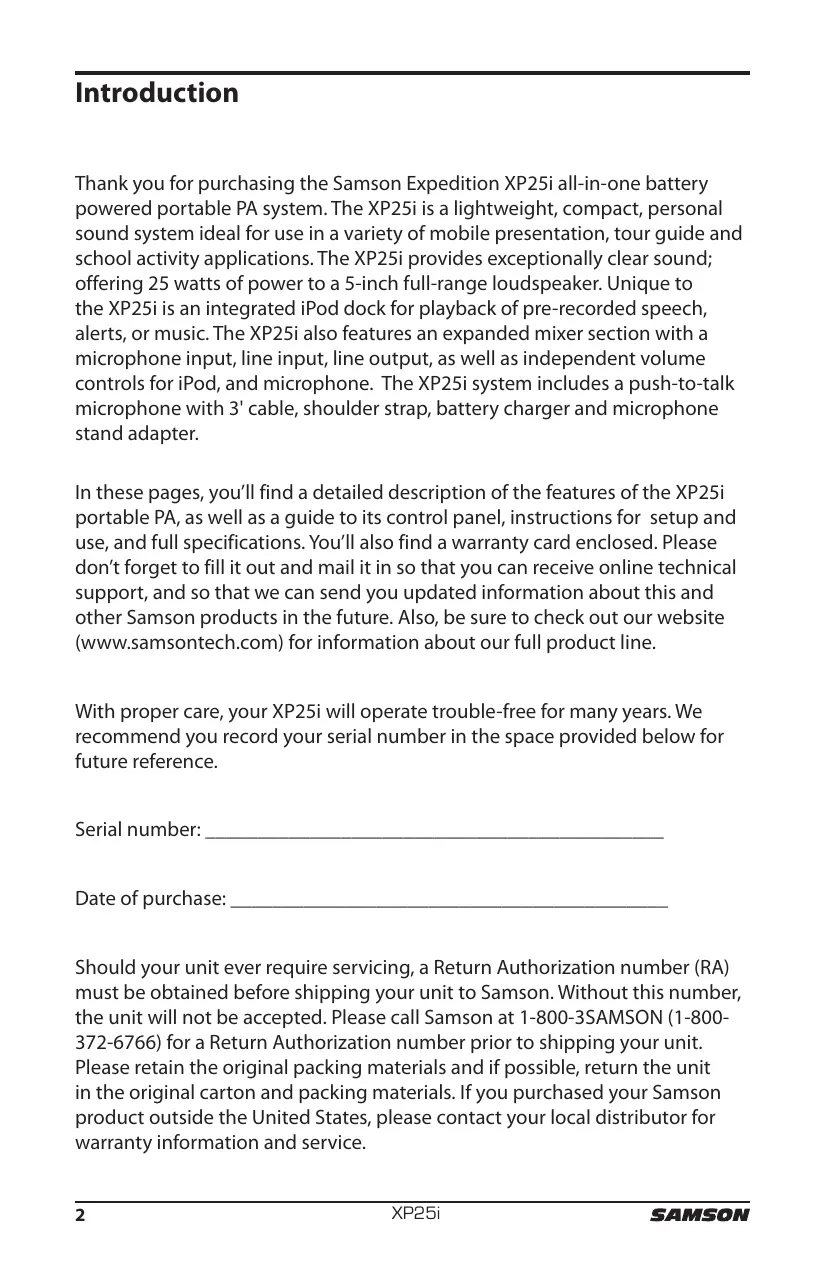

Introduction

Thank you for purchasing the Samson Expedition XP25i all-in-one battery powered portable PA system. The XP25i is a lightweight, compact, personal sound system ideal for use in a variety of mobile presentation, tour guide and school activity applications. The XP25i provides exceptionally clear sound; offering 25 watts of power to a 5-inch full-range loudspeaker. Unique to the XP25i is an integrated iPod dock for playback of pre-recorded speech, alerts, or music. The XP25i also features an expanded mixer section with a microphone input, line input, line output, as well as independent volume controls for iPod, and microphone. The XP25i system includes a push-to-talk microphone with 3^ cable, shoulder strap, battery charger and microphone stand adapter.

In these pages, you'll find a detailed description of the features of the XP25i portable PA, as well as a guide to its control panel, instructions for setup and use, and full specifications. You'll also find a warranty card enclosed. Please don't forget to fill it out and mail it in so that you can receive online technical support, and so that we can send you updated information about this and other Samson products in the future. Also, be sure to check out our website (www.samsontech.com) for information about our full product line.

With proper care, your XP25i will operate trouble-free for many years. We recommend you record your serial number in the space provided below for future reference.

Serial number:

Date of purchase:

Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials. If you purchased your Samson product outside the United States, please contact your local distributor for warranty information and service.

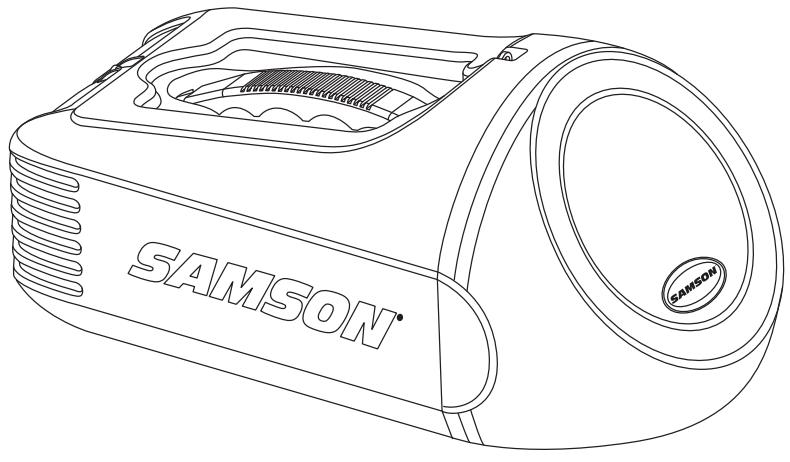

Here is a look at some of the unique features of the XP25i battery powered portable PA system:

• Compact, lightweight, ergonomic design for easy transport with carry handle and shoulder strap.
  Built-in rechargeable battery with 8 hours of continuous use per charge.
  Battery recharges in only four hours.
  5" full-range high efficiency loudspeaker.
  25-watts onboard power.
  Integrated iPod dock with volume control.
  Samson PT40M push-to-talk microphone with 3^ coil cable included.
  Line input and output allows use with other audio devices.
  Power and battery charge indicator LEDs.
  Rugged construction for use while carrying, placed on a table, or mounted using the built-in microphone stand mount.
  Battery charger included.

Gel-Cell Batteries

The XP25i is a battery powered portable sound system that comes with a rechargeable gel-cell battery installed.

Before using your XP25i for the first time, you must charge the rechargeable battery for at least four hours. To charge, connect the included AC/DC adaptor to the XP25i. The Battery LED will flash while the unit is charging. When the XP25i is fully charged the Battery LED will light steady green.

With proper use and care, the battery in your XP25i should last for many years. Follow these instructions for getting the longest life from the internal battery:

• Charge the XP25i completely after each use.
  The battery must not be exposed to extreme heat.
• Avoid completely draining the battery.
  Always store your XP25i in a full-charge condition.
• For long-term storage, you should apply a topping charge to the XP25i every six months

Note: Extended storage below the critical voltage may result in the battery failing to hold a charge, in which case the battery will need to be replaced. Battery life may vary based on temperature, age, and product usage.

Gel-cell rechargeable batteries must not be disposed of with household waste. To discard your rechargeable battery, bring to an appropriate public collecting site, or battery retail location. To guard against possible short-circuiting, rechargeable batteries should be completely discharged before being disposed of, and its terminals should be covered with non-conductive adhesive tape (for example, black electrical tape).

Note: If you have any questions regarding discharging the battery, contact a technician or your local collection center.

Caution: Under no circumstances should your battery be incinerated as this can cause explosion.

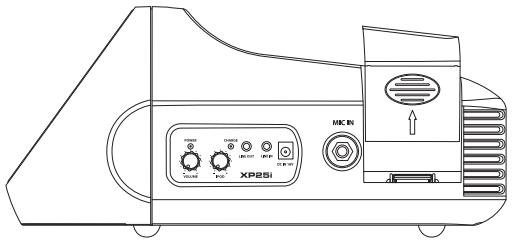

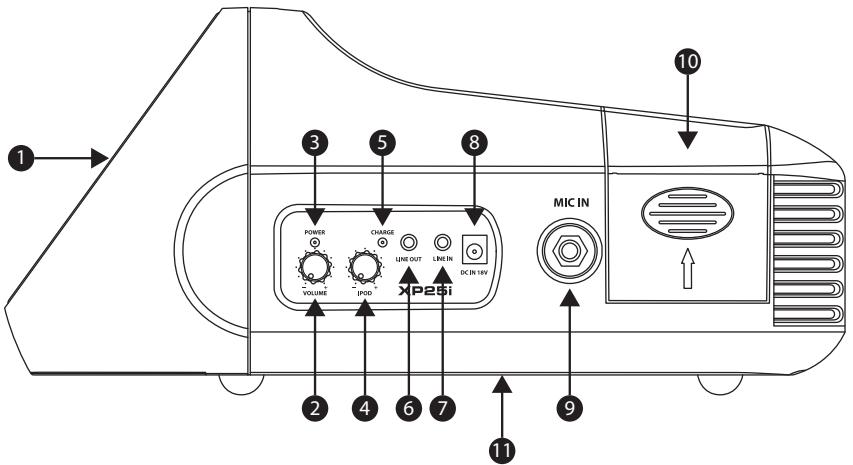

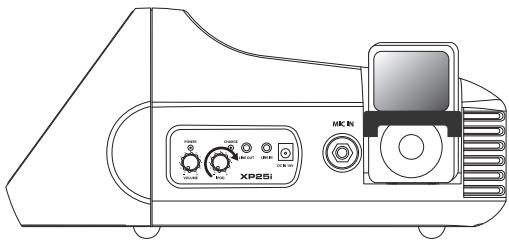

1. Loudspeaker - 5" full-range high efficiency paper cone transducer.
2. Volume/Power Control - This rotary knob controls the level of the microphone input and powers the unit on and off. Turn the control clockwise to turn the system on. Turn the knob counter-clockwise until it clicks to turn the system off.
3. Power Indicator - RED LED illuminates indicating the unit is powered on, ready for operation.
4. iPod Level - This rotary knob controls the level of the iPod to the loudspeaker.
5. Charge Indicator - The Charge Indicator flashes GREEN while the rechargeable battery is charging, and will light steady GREEN when the battery is fully charged. The Charge Indicator will flash RED when the battery is low and the unit is power on.

6. Line Out Jack - 1/8" (3.5mm) auxiliary Line Output. The Microphone, iPod and Line In signals are present at this output.

7. Line In Jack - 1/8" (3.5mm) auxiliary Line Input for connecting an external sound source (CD player, MP3 player, or audio line output from another device).

8. DC Power Input - Connect the supplied AC/DC adaptor to recharge the battery or to supply power to the unit.
9. Microphone Input - 1/4" (6.3mm) Mic level Input jack. Plug the supplied Samson PT40M or another high-impedance microphone into this input.
10. iPod Compartment - The XP25i has a built-in iPod dock which can be used to connect most of the latest iPod models. The iPod signal is controlled by the iPod Level control (#4).
11. Microphone Stand Adaptor - 5 / 8" female thread adaptor for mounting the XP25i onto a microphone stand.

XP25i Controls and Layout

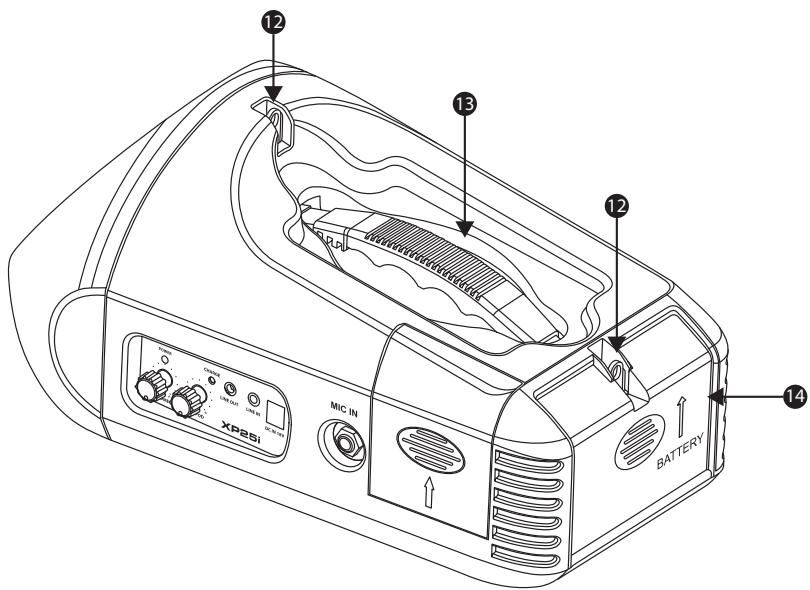

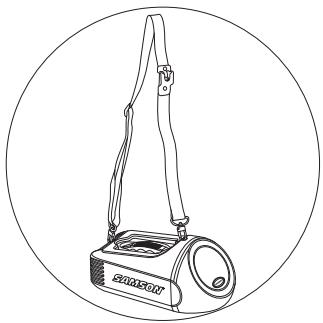

1. Shoulder Strap Connection - Connect the included Shoulder Strap to these two connection points. The shoulder strap includes a microphone clip for the Samson PT40M microphone.

1. Carry Handle - Ergonomically designed Carry Handle allows for easy transport.
2. Battery Compartment - The XP25i comes with a rechargeable battery installed. If you ever need to replace the battery, open the compartment cover, and remove the battery protection plate. Gently slide the old battery from the compartment and disconnect the RED and BLACK battery leads. Connect the battery leads to the new battery. Connect the RED cable to the positive (+) terminal, and the BLACK cable to the negative (-) terminal. Slide the battery into the compartment, replace the protection plate and slide the compartment cover closed.

Note: If you have any questions about replacing the battery contact Samson or your local distributor.

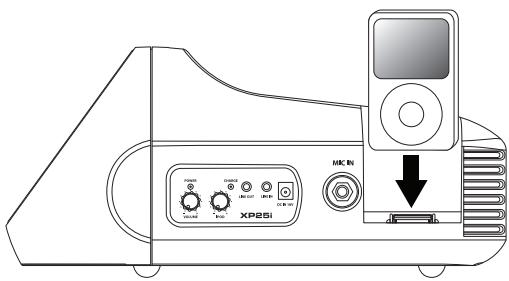

Follow these simple steps for using an iPod with your XP25i portable PA system.

1. Slide the iPod compartment door up to remove.

1. Install your iPod into the XP25i by sliding the iPod onto the connector. Be sure the iPod is seated properly and that it has made a solid connection in the dock.

1. Align the iPod protective bracket with the grooves on either side of the compartment and slide into place.

1. With the iPod playing, rotate the iPod Level control clockwise until you reach the desired volume level.

XP25i Specifications

System

Loudspeaker 5" neodymium magnet loudspeaker

Frequency Response . 60Hz - 15kHz ±3dB

T.H.D. Less than 1%

Amplifier Power 25 Watts

Signal Inputs 1/4" Mic jack, 1/8" Line In jack, iPod dock

Signal Outputs 1/8" (3.5mm) Line Out jack

MIC Input 1/4" TRS jack, unbalanced

Mic Input Impedance. 3.3 kΩ

Mic Input Max. Level -10 dBu (low gain)

Mic Input Max. Level -34 dBu (max. gain)

Line Input Max. Level . . . . . . . . . . -10 dBu (no gain control)

Rechargeable Battery. 12 V DC / 2.6 AH

Charging Time 4 hours

Operating Time. Up to 8 hours

External Power Supply . . . . . . . . . . AC 100~240V /DC 18V

Microphone

Type. .Samson PT40M, push-to-talk dynamic

Polar Pattern .Cardioid (Unidirectional)

Cable Length 3' coil cable

Enclosure

Construction . Polypropylene internally ribbed

Grill Black textured vinyl covering

Mounting Integral microphone stand receptacle

Dimensions 13.25" L x 7.4" W x 6.1" H

336mm L x 188mm W x 155mm H

Weight 5.5 lbs / 2.5 kg

Specifications and appearance are subject to change without notice.

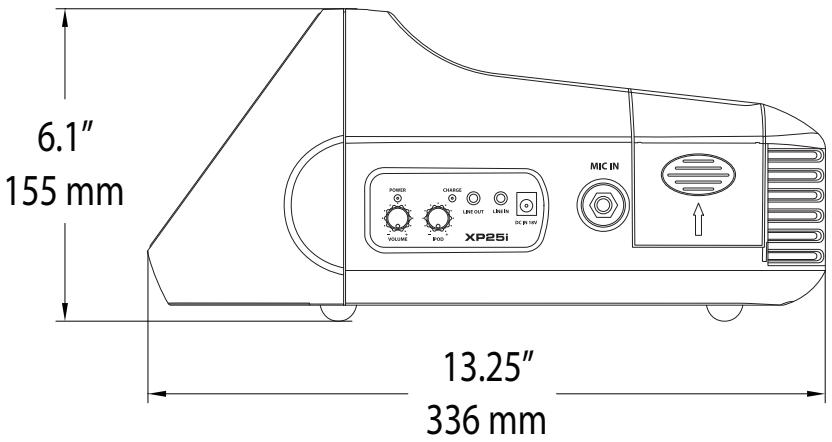

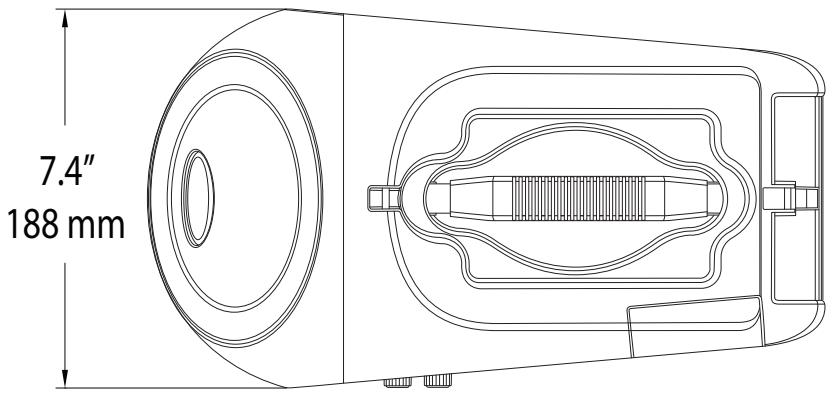

XP25i Dimensions

EC Declaration of Conformity

We, Samson Technologies Corporation, located at 45 Gilpin Ave, Hauppauge, NY 11788 USA declare under our own responsibility that the Products:

Equipment:	Portable PA System
Model:	XP25i

are in conformity with the essential requirements of the following EC Directive(s) when installed in accordance with the installation instructions contained in the product documentation:

2006/95/EC	LVD Directive
2004/108/EC	EMC Directive

and that the standards and/or technical specifications referenced below have been applied as indicated:

IEC 60065:2001 +Amd 1:2005	Audio, video and similar electronic apparatus - Safety requirements.
EN 60065:2002 +A1:2006+A11:2008	Audio, video and similar electronic apparatus - Safety requirements.
EN 55013:2001 +A1:2003+A1:2006	Sound and television broadcast receivers and as-sociated equipment - Radio disturbance characteristics - Limits and methods of measurement.
EN 55020:2007	Sound and television broadcast receivers and as-sociated equipment — Immunity characteristics — Limits and methods of measurement.
EN 61000-3-2:2006 class A	Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current <= 16 A per phase).
EN 61000-3-3:2008	Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection.

Year of CE Marking (Low Voltage Directive): 2010

Signed on behalf of the manufacturer:

Name: Douglas Bryant

Position: Vice President Engineering

Date: 8/25/2010

Amplification 25 Watts

Entrées. Jack 6,35 mm (micro), mini-Jack 3,5 mm

Akku 12 V DC / 2.6 AH

Ladezeit 4Stunden

Name: Douglas Bryant

Dimensioni . 336mm L x 188mm P x 155mm A

13,25" L x 7,4" P x 6,1" A

EC Declaration of Conformity

We, Samson Technologies Corporation, located at 45 Gilpin Ave, Hauppauge, NY 11788 USA declare under our own responsibility that the Products:

Equipment:	Portable PA System
Model:	XP25i

are in conformity with the essential requirements of the following EC Directive(s) when installed in accordance with the installation instructions contained in the product documentation:

73/23/EEC	LVD Directive
89/336/EEC	EMC Directive

and that the standards and/or technical specifications referenced below have been applied as indicated:

IEC 60065:2001+Amd 1:2005	Audio, video and similar electronic apparatus - Safety requirements.
EN 55013:2001 +A1:2006	Sound and television broadcast receivers and as-sociated equipment - Radio disturbance characteristics - Limits and methods of measurement.
EN 55020:2007	Sound and television broadcast receivers and as-sociated equipment — Immunity characteristics — Limits and methods of measurement.
EN 61000-3-2:2006 class A	Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current <= 16 A per phase).
EN 61000-3-3:1995 +A1:2001+A2:2005	Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection.

Year of CE Marking (Low Voltage Directive):

2010

Signed on behalf of the manufacturer: Derys

Name: Douglas Bryant

Position: Vice President Engineering

Date: 7/25/2010
