ULTRAGLIDE EASYCORD FV4379 - Iron T-FAL - Free user manual and instructions

Product type	Steam iron
Brand	T-FAL
Model	ULTRAGLIDE EASYCORD FV4379
Power supply	120 V
Easycord system	Integrated cord guide with extension button
Auto off	Yes, 3 positions (vertical 8 min, horizontal/lateral 30 sec)
Anti-drip	Yes
Vertical steam	Yes
Spray	Yes
Steam boost	Yes (button)
Steam control	Adjustable (continuous)
Self-clean	Yes (button)
Anti-calc valve	Removable, monthly cleaning recommended
Soleplate	Ultraglide
Water tank	Transparent with max level indicator
Recommended water type	Tap water (if very hard, dilute 50% with purified water)
Manufacturer warranty	1 year (parts and labor); soleplate lifetime guarantee (USA/Canada)
Customer service (USA)	1 800 395-8325 / www.t-falusa.com
Use	Household use only

Frequently Asked Questions - ULTRAGLIDE EASYCORD FV4379 T-FAL

What type of water to use in the iron?

Use untreated tap water. If your water is very hard, dilute it with 50% purified (bottled) water. Never use distilled, softened, scented, or other special waters, this may cause spitting or brown stains.

Why does water leak through the soleplate holes?

The temperature is too low to produce steam. Set the thermostat to the steam zone (• to MAX) and wait for the temperature light to go out. Avoid using the steam boost too often without waiting a few seconds.

How to clean the anti-calc valve?

Unplug the iron and empty the tank. Press the self-clean button (fig.14a) and remove the valve (fig.14b). Soak the black part in white vinegar or lemon juice for 4 hours, rinse with running water, and replace.

What to do if the iron produces little or no steam?

Check that the tank is not empty. Clean the anti-calc valve and perform a self-clean cycle. If the iron has been run dry for too long, also perform a self-clean.

How to use vertical steam?

Place the garment on a hanger without wearing it. Set the thermostat to MAX. Repeatedly press the steam boost button (fig.8) while holding the iron a few centimeters from the fabric. This function is ideal for delicate clothing, curtains, etc.

How does the Easycord system work?

Press the button on the base (fig.4) to automatically deploy the cord guide. This prevents the cord from dragging on the laundry and wrinkling it during ironing. To store, wind the cord around the heel and secure the system in the notch (fig.12).

What does the auto off indicator mean?

The iron automatically shuts off after 8 minutes in vertical position or 30 seconds in horizontal/side position. The light blinks. To turn it back on, gently shake the iron until the light stops blinking.

How to descale the iron?

Once a month, perform a self-clean: set steam to 0, fill to MAX, heat to MAX, then unplug. Hold the iron horizontally over the sink, press the self-clean button and remove the valve. Gently shake to expel water and impurities.

What to do if brown stains appear on laundry?

This may be due to burned limescale deposits or use of chemicals. Perform a self-clean and check the type of water used. If the soleplate is dirty, clean it with a damp cloth. Avoid using starch on fabric in that area.

What is the warranty on this iron?

T-Fal warrants the product against manufacturing defects for 1 year from the date of purchase. The soleplate is guaranteed for life (valid only in USA and Canada). The warranty does not cover damage due to misuse or excessive scaling.

USER MANUAL ULTRAGLIDE EASYCORD FV4379 T-FAL

345 Passmore Avenue Toronto, ON M1V 3N8

1-800-418-3325

MEXICO

GROUPE SEB MEXICO, S.A. de C.V.
Calle Goldsmith 38 401 Piso 4
Polanco, Distrito Federal C.P. 11560 Mexico.

RFC GSM8211123P5

(01800) 112 83 25

U.S.A.

GROUPE SEB USA 2121 Eden Road Millville, NJ 08332

800-769-3682

: www.tefal.com

T-faL

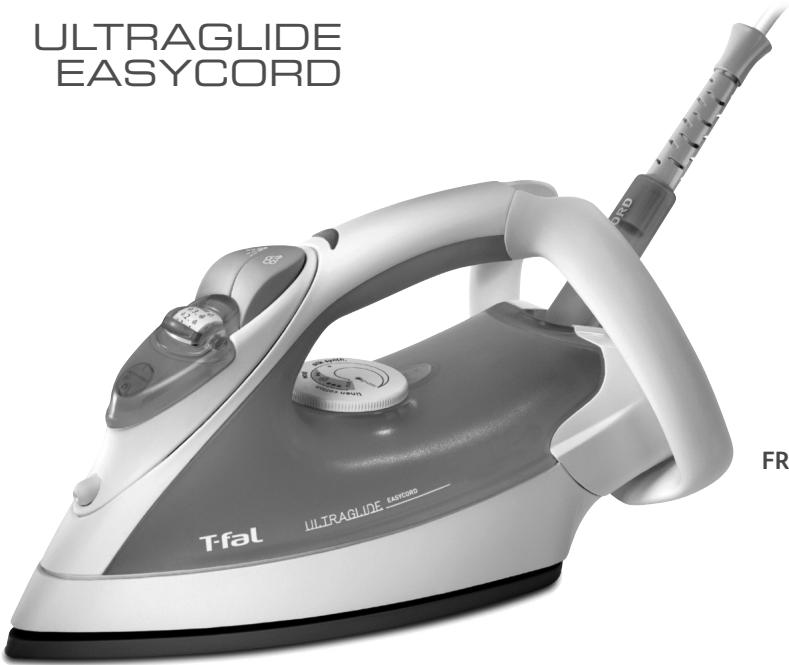

ULTRAGLIDE EASYCORD

Mod.: FV42xx - FV43xx series

When using your iron, basic safety precautions should always be followed, including the following:

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron or the base of the iron in water or other liquids.
3. Never yank cord to disconnect from outlet ; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.
9. This appliance is only for domestic and personal use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 15 amp. cord should be used. Cords rated for less amper may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

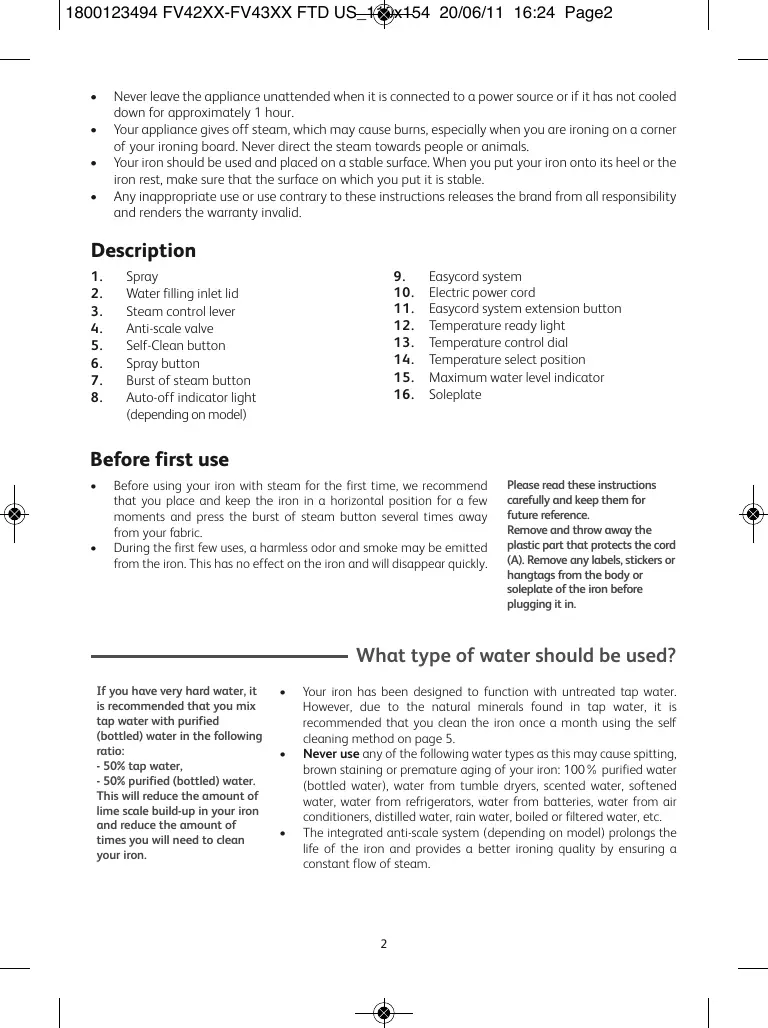

For your safety

• This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Warning! The voltage of your electrical outlet must correspond to that of the iron (120V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the warranty.
• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Center to avoid any danger.
• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or has functional anomalies. Never dismantle your appliance: have it inspected by an Approved Service Center to avoid any danger.
• Always unplug your appliance: before filling or rinsing the reservoir, before cleaning it and after each use.

• Never leave the appliance unattended when it is connected to a power source or if it has not cooled down for approximately 1 hour.
• Your appliance gives off steam, which may cause burns, especially when you are ironing on a corner of your ironing board. Never direct the steam towards people or animals.
• Your iron should be used and placed on a stable surface. When you put your iron onto its heel or the iron rest, make sure that the surface on which you put it is stable.
• Any inappropriate use or use contrary to these instructions releases the brand from all responsibility and renders the warranty invalid.

Description

1. Spray
2. Water filling inlet lid
3. Steam control lever
4. Anti-scale valve
5. Self-Clean button
6. Spray button
7. Burst of steam button

8. Auto-off indicator light (depending on model)

9. Easycord system

10. Electric power cord
11. Easycord system extension button
12. Temperature ready light
13. Temperature control dial
14. Temperature select position
15. Maximum water level indicator
16. Soleplate

Before first use

• Before using your iron with steam for the first time, we recommend that you place and keep the iron in a horizontal position for a few moments and press the burst of steam button several times away from your fabric.
  During the first few uses, a harmless odor and smoke may be emitted from the iron. This has no effect on the iron and will disappear quickly.

Please read these instructions carefully and keep them for future reference.

Remove and throw away the plastic part that protects the cord (A). Remove any labels, stickers or hangtaggs from the body or soleplate of the iron before plugging it in.

What type of water should be used?

If you have very hard water, it is recommended that you mix tap water with purified (bottled) water in the following ratio:

• 50% tap water,

• 50% purified (bottled) water. This will reduce the amount of lime scale build-up in your iron and reduce the amount of times you will need to clean your iron.

• Your iron has been designed to function with untreated tap water. However, due to the natural minerals found in tap water, it is recommended that you clean the iron once a month using the self cleaning method on page 5.

• Never use any of the following water types as this may cause spitting, brown staining or premature aging of your iron: 100% purified water (bottled water), water from tumble dryers, scented water, softened water, water from refrigerators, water from batteries, water from air conditioners, distilled water, rain water, boiled or filtered water, etc.
• The integrated anti-scale system (depending on model) prolongs the life of the iron and provides a better ironing quality by ensuring a constant flow of steam.

Use

To fill the water tank

• Unplug your iron before filling it and set the steam control lever to , 0, (fig.1).
• Open the water tank filling inlet lid (fig.2), place the iron in a horizontal position and fill it with water (fig.3).
• Close the water tank filling inlet lid.

Do not exceed the "MAX" fill level as indicated on the water tank of the iron.

To use the Easycord system

Always use the Easycord system for enhanced comfort of use.

• Your iron is equipped with the Easycord system to prevent the cord from dragging across your garments and wrinkling just ironed clothing.
• Press the button located on the base (fig.4) and the Easycord system is automatically in use. You can now plug in your appliance and begin ironing.

To adjust the temperature and the steam

• Adjust the temperature (see table below) by turning the temperature control dial to the temperature select position (fig. 5).
• When the iron is plugged in, the temperature control light will remain "on" until the temperature is reached (fig.6). Once the temperature is reached, it will go "off".
• Adjust the amount of continuous steam output by moving the steam control lever (fig.7). See below table for recommended steam output levels.

FABRIC	POSITION OF TEMPERATURE BUTTON	STEAM SETTING POSITION
LINEN	MAX	\( \textcircled{,}3,\textcircled{,} \)
COTTON	\( \bullet \bullet \)	\( \textcircled{,}2,\textcircled{,} \)
Wool	\( \bullet \bullet \)	\( \textcircled{,}1,\textcircled{,} \)
SILK
SYNTHETIC (Polyester, Acetate, Acrylic, Polyamid)	\( \bullet \)	\( \textcircled{,}0,\textcircled{,} \)

= STEAM ZONE

• Your iron heats up quickly, therefore, begin ironing with fabrics that are ironed at lower temperatures first, then go on to those requiring a higher temperature.

• It is normal for the temperature indicator light to turn on and off during ironing.

• In order to avoid water leaking from the soleplate onto your garment:

• Set the steam lever to 0. when ironing silk or synthetic fabrics and set it to 1. for wool.

• Should you need to turn down the temperature, wait until the temperature light comes back on before beginning to iron again.

• When ironing fabrics with mixed fabrics, set the iron temperature for the most delicate fabric.

• For delicate fabrics, we recommend testing the fabric first on an inconspicuous place for example, inside the hem.

• If you want to iron without steam, set the steam control level to ± 0.

To obtain more steam

In order to achieve the maximum amount of steam, it is recommended that you wait a few seconds after you push the burst of steam button again.

• Press the Burst of Steam button periodically to remove stubborn wrinkles (fig.8).

Spray Function

• The Spray button (fig.9) will release a mist of water onto your fabrics. Use this to remove stubborn wrinkles.

Vertical steam function (depending on model)

Every fifth time you press the button, return the iron to the horizontal position. The steam is very hot. When using the vertical steam function, always iron with the garment on a hanger, never while wearing it.

This is ideal for removing wrinkles in delicate garments, jackets, skirts, curtains, etc.:

Hang the garment on a hanger and hold the fabric slightly taut with one hand.
- Set the temperature control dial to MAX (fig.5).
- Repeatedly press the Burst of Steam button (fig.8) and continuously move the iron over the fabric (fig.10).
- Hold the iron a few inches from the fabric to avoid burning delicate fabrics.

3-Way automatic shut-off (depending on model)

The iron is equipped with an electronic system that will automatically cut the power source to your iron if it is left vertically on its heel for more than 8 minutes, on its soleplate for more than 30 seconds or on its side for more than 30 seconds.

The auto-off warning light (fig.11) will flash when the iron is in the shut off mode.

• To restart the iron, gently shake the iron until the warning light stops flashing.

When the auto-off warning light is on, it is normal for the temperature light to remain off.

Anti-drip function (depending on model)

When using the iron for the first time, allow 2 minutes for steam to be produced.

• If the soleplate temperature is too low, the iron will not produce steam because of the anti-drip technology which prevents droplets of water leaking from the soleplate.

To store your iron

• Set the steam control to 串 . 0 . 串 and unplug the iron.
• Wait until the soleplate cools down and empty the water tank. (A little water may remain in the reservoir).
  To wind the cord around the heel of the iron, slide the Easycord system into the knotch in the heel (fig.12). Depending on the model, push down the Easycord button, slide the flexible cord into the Easycord system, and release the button to lock into place (fig.13). Wind the remainder of the cord around the heel.
• Store the cold iron on its heel.

Maintenance and cleaning

To clean the anti-scale valve

Unplug your iron and let it cool completely before cleaning it.

The iron will not function without the anti-scale valve.

Never touch the end of the valve!

It is recommended that you clean the anti-scale valve once a month to remove scale build up on the valve.

Clean the anti-scale valve as noted below:

Unplug your iron and empty the water tank.
- Press the Self-Clean ejection button (fig.14a) and remove the anti-scale valve (fig.14b)
- Soak the valve (the black section only) in white vinegar or plain lemon juice for 4 hours.
- Rinse the valve under running water and put the anti-scale valve back.

To clean the iron

It is recommended that you clean the iron once a month to slow down scale build up and prolong the life of the iron.

Clean your iron as noted below:

Unplug the iron, set the steam control lever to 0 and fill the water tank to MAX.
- Place the iron on its heel, set the temperature dial to MAX, plug in the iron and wait for the indicator light to go out.
Unplug the iron and place it horizontally over a sink.
- Press the Self-Clean ejection button (fig.14a) and remove the anti-scale valve (fig.14b).
Gently shake the iron over the sink until all of the water (along with impurities) runs out through the soleplate.
- At the end of the operation, put the anti-scale valve back into the iron and allow it to heat for 2 minutes on its heel to dry the soleplate.

To clean the soleplate

Never use abrasive or aggressive products.

• Unplug the iron. When the soleplate is slightly warm, wipe it with a soft cloth.

If there is a problem

PROBLEM	POSSIBLE CAUSE	SOLUTION
Water drips from the holes of the soleplate.	The chosen temperature is too low and does not allow for the formation of steam.	Position the temperature control dial in the steam range (from •• to MAX).
	You are using steam while the iron is not hot enough.	Wait until the temperature light goes out.
	You are using the Burst of Steam button too often.	Wait a few seconds before pressing the button again.
	There is too much steam.	Move the steam control lever to a lower setting.
	You have stored the iron horizontally, without emptying it and without setting it to •, 0, *.	See the section "Storing your iron".
Brown streaks come through the holes of the soleplate and stain the fabric.	You are using chemical descaling agents.	Do not add any descaling agents into the water tank.
	You are not using the right type of water.	Perform a self-cleaning operation and consult the chapter "What type of water should be used?".
	Fabric fibers have accumulated in the holes of the soleplate and are burning.	Perform the self-cleaning operation and clean the soleplate with a damp sponge. Vacuum the holes of the soleplate from time to time.
	Your fabric has not been rinsed sufficiently or you have ironed a new garment before washing it.	Make sure that your fabric is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes.
The soleplate is dirty or brown and is staining the fabric.	The temperature is set too high.	Clean the soleplate with a damp sponge and lower the temperature.
	You are using starch.	Clean the soleplate with a damp sponge. Always spray starch onto the reverse side of the fabric to be ironed.
There is little or no steam.	The water tank is empty.	Fill it.
	The anti-scale valve is dirty.	Clean the anti-scale valve.
	Your iron has a build-up of scale.	Clean the anti-scale valve and perform the self-cleaning iron operation.
	Your iron has been used dry for too long.	Perform the self-cleaning iron operation.
The soleplate is scratched or damaged.	You have used your iron on an abrasive surface or it has been misused.	The T-fal iron has a Lifetime warranty on the soleplate (valid in USA and CANADA only). Please contact our consumer service depart-ment at 1-800-395-8325.
Steam or water comes from the iron as you finish filling the tank.	The steam control lever is not set to the •, 0, * position.	Set the steam control lever to •, 0, * .
	The water tank is overfilled.	Never exceed the Max level .
The spray button does not spray water.	The water tank is not filled enough.	Fill the water tank.

For all other problems or questions, please contact our Consumer Service Department at 1-800-395-8325 or visit us at www.t-falusa.com. Or in Canada at 1-800-418-3325 or visit our website at www.t-fal.ca. You may also contact an approved Service Center, please visit our website for their contact information.

MANUFACTURER'S WARRANTY

：www.tefal.com

With a strong commitment to the environment, most of T-fal products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call T-fal consumer service directly at the phone number below for repair options.

Your help to sustain the environment is appreciated!

The Warranty

This product is guaranteed by T-fal for 1 year against any manufacturing defect in materials or workmanship, starting from the initial date of purchase.

The manufacturer's warranty by T-fal is an extra benefit which does not affect consumer's Statutory Rights.

The T-fal warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At T-fal's choice, a replacement product may be provided instead of repairing a defective product. T-fal's sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement.

Conditions & Exclusions

The T-fal warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a T-fal authorized service centre. Full address details for each country's authorized service centre are listed on the T-fal website (www.tefal.com) or by calling the appropriate telephone number listed below to request the appropriate postal address.

T-fal shall not be obligated to repair or replace any product which is not accompanied by a valid proof of purchase.

This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow T-fal instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following:

• using the wrong type of water or consumable
  -scaling (any de-scaling must be carried out according to the instructions for use);
  -ingress of water, dust or insects into the product;
  -mechanical damages, overloading
  -damages or bad results due to wrong voltage or frequency
  -accidents including fire, flood, lightning, etc
  -professional or commercial use
  -damage to any glass or porcelain ware in the product

This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The T-fal manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one:

a) The T-fal guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration.
b) The T-fal guarantee does not apply in case of non-conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications
c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by T-fal
d) In cases where the product is not repairable in the new country, the T-fal guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This T-fal manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion.

Additional information

Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in T-fal internet site.

CANADA

GROUPE SEB CANADA

345 Passmore Avenue

Toronto, ON

M1V 3N8

1-800-418-3325

MEXICO

GROUPE SEB MEXICO, S.A. de C.V.

Calle Goldsmith 38 401 Piso 4

Polanco, Distrito Federal C.P. 11560

Mexico.

RFC GSM8211123P5

(01800) 112 83 25

U.S.A.

GROUPE SEB USA

2121 Eden Road

Millville, NJ 08332

800-769-3682

: www.tefal.com

PRECAUTIONS IMPORTANTES

345 Passmore Avenue Toronto, ON M1V 3N8

1-800-418-3325

MEXICO

GROUPE SEB MEXICO, S.A. de C.V.
Calle Goldsmith 38 401 Piso 4
Polanco, Distrito Federal C.P. 11560

Mexico. RFC GSM8211123P5 (01800) 112 83 25

U.S.A.

GROUPE SEB USA 2121 Eden Road Millville, NJ 08332

800-769-3682

: www.tefal.com

No实用性: How many products are available?

GROUPE SEB CANADA 345 Passmore Avenue Toronto, ON M1V 3N8

1-800-418-3325

MEXICO

GROUPE SEB MEXICO, S.A. de C.V.
Calle Goldsmith 38 401 Piso 4
Polanco, Distrito Federal C.P. 11560
Mexico.
RFC GSM8211123P5
(01800) 112 83 25

U.S.A.

GROUPE SEB USA 2121 Eden Road Millville, NJ 08332

800-769-3682

: www.tefal.com
