USER MANUAL BS 18 LI 18V METABO

18 V...1,5 Ah ...6.25499 ... Li-Power Compact
18 V...3,0 Ah ...6.25455 ... Li-Power Extreme
18 V...4,0 Ah ...6.25527 ... Li-Power Extreme

6.

B

7.1

C

7.2

D

7.3

E

7.4

F

1... = Nm...Nm

= . N m

(SB 18 Li)

SB...

7.5

G

7.7

H

7.8

12.			BS 14.4 Li	BS 18 Li	SB 18 Li
U	V		14,4	18	18
n0	/min, rpm	1	0 - 450	0 - 450	0 - 450
		2	0 - 1600	0 - 1650	0 - 1650
M1	Nm (in-lbs)		20 (177)	24 (212)	24 (212)
M3	Nm (in-lbs)		40 (354)	48 (424.8)	48 (424.8)
M4	Nm (in-lbs)	1	0,7 - 4,9 (6.2 - 43)	0,8 - 4,8 (7 - 42)	1,2-6,5(10.6-57.5)
D1 max I	mm (in)	1	10 (3/8)	10 (3/8)	10 (3/8)
		2	5 (3/16)	5 (3/16)	5 (3/16)
D2 max II	mm (in)	1	20 (3/4)	20 (3/4)	20 (3/4)
		2	16 (5/8)	16 (5/8)	16 (5/8)
D3 max	mm (in)	2	-	-	10 (3/8)
s	/min, bpm		-	-	25800
m	kg (lbs)		1,4 (3.1)	1,5 (3.3)	1,8 (4)
G	UNF(in)		1/2“ - 20 UNF	1/2“ - 20 UNF	1/2“ - 20 UNF
Dmax	mm (in)		10 (3/8)	10 (3/8)	13 (1/2)
ah, ID/Kh, ID	m/s2		-	-	16 / 1,5
ah, D/Kh, D	m/s2		< 2,5 / 1,5	< 2,5 / 1,5	2,5 / 1,5
ah, S/Kh, S	m/s2		< 2,5 / 1,5	< 2,5 / 1,5	2,5 / 2,5
LpA/KpA	dB(A)		73 / 3	73 / 3	89 / 3
LWA/KWA	dB(A)		-	-	100 / 3

J

EN 60745

2006/42/EG, 2004/108/EG, 2011/65/EU

2012-02-14

Volker Siegle

Director Product Engineering & Quality

Responsible Person for Documentation

D2max = in Weichholz

Dmax in Beton

s = max.Schlagzahl

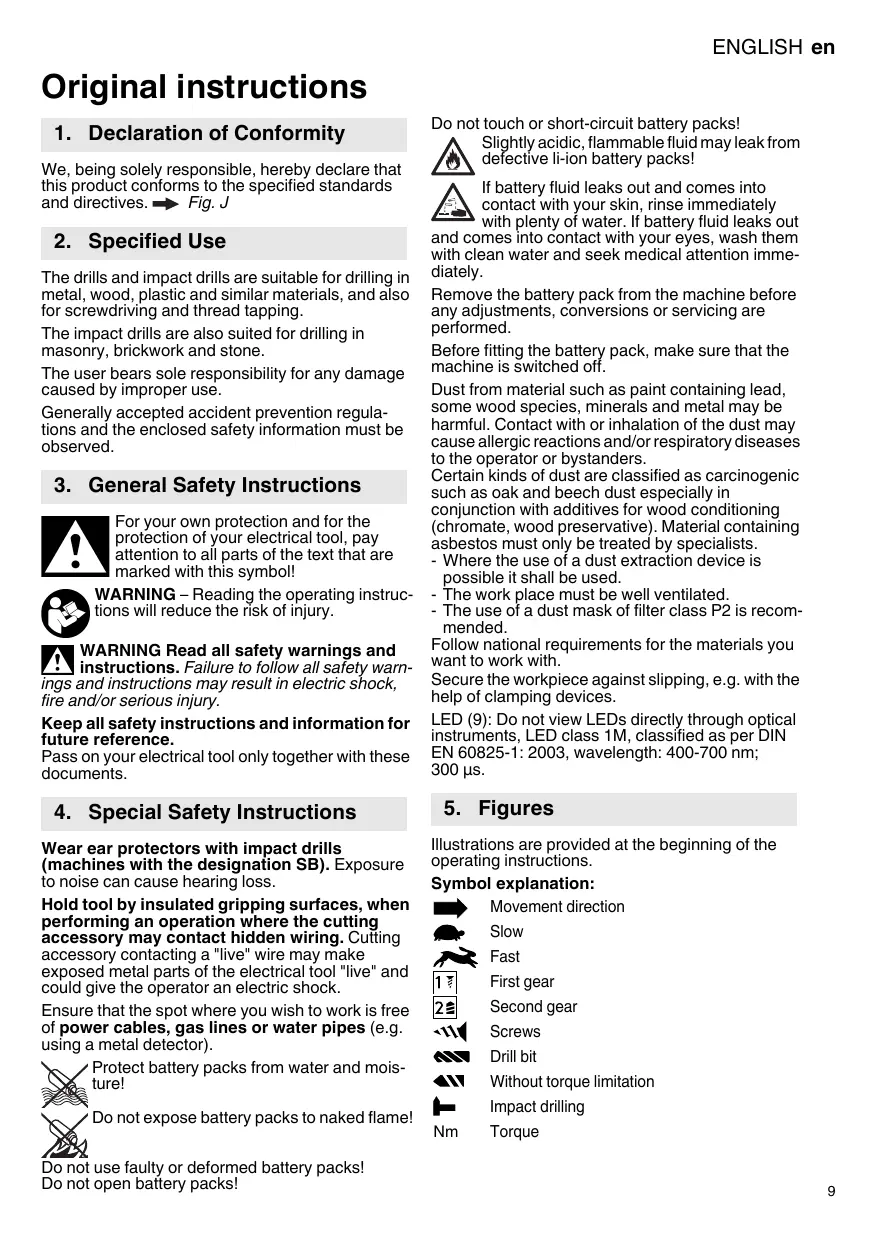

Original instructions

1. Declaration of Conformity

We, being solely responsible, hereby declare that this product conforms to the specified standards and directives. Fig.J

2. Specified Use

The drills and impact drills are suitable for drilling in metal, wood, plastic and similar materials, and also for screwdriving and thread tapping.

The impact drills are also suited for drilling in masonry, brickwork and stone.

The user bears sole responsibility for any damage caused by improper use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3. General Safety Instructions

For your own protection and for the protection of your electrical tool, pay attention to all parts of the text that are marked with this symbol!

WARNING - Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions. Failure to follow all safety warn-and instructions may result in electric shock, nd/or serious injury.

Keep all safety instructions and information for future reference.

Pass on your electrical tool only together with these documents.

4. Special Safety Instructions

Wear ear protectors with impact drills (machines with the designation SB). Exposure to noise can cause hearing loss.

Hold tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the electrical tool "live" and could give the operator an electric shock.

Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).

Protect battery packs from water and moisture!

Do not expose battery packs to naked flame!

Do not touch or short-circuit battery packs!

Slightly acidic, flammable fluid may leak from defective li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out

and comes into contact with your eyes, wash them with clean water and seek medical attention immediately.

Remove the battery pack from the machine before any adjustments, conversions or servicing are performed.

Before fitting the battery pack, make sure that the machine is switched off.

Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders.

Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunction with additives for wood conditioning (chromate, wood preservative). Material containing asbestos must only be treated by specialists.

• Where the use of a dust extraction device is possible it shall be used.

• The work place must be well ventilated.

• The use of a dust mask of filter class P2 is recommended.

Follow national requirements for the materials you want to work with.

Secure the workpiece against slipping, e.g. with the help of clamping devices.

LED (9): Do not view LEDs directly through optical instruments, LED class 1M, classified as per DIN EN 60825-1: 2003, wavelength: 400-700 nm; 300~ s .

5. Figures

Illustrations are provided at the beginning of the operating instructions.

Symbol explanation:

Movement direction

Slow

Fast

First gear

Second gear

Screws

Without torque limitation

Impact drilling

Nm

Torque

Do not use faulty or deformed battery packs!

Do not open battery packs!

6. Overview

Fig. A

1 Keyless chuck
2 Sleeve (torque, drilling, impact drilling)*
3 Switch (1st/2nd gear)
4 Rotation selector switch (rotation setting, transport lock) - both sides of the machine
5 Battery pack release button
6 Capacity indicator button
7 Capacity and signal indicator
8 Battery pack
9 LED lights
10 Ttrigger

*equipment-specific

7. Use

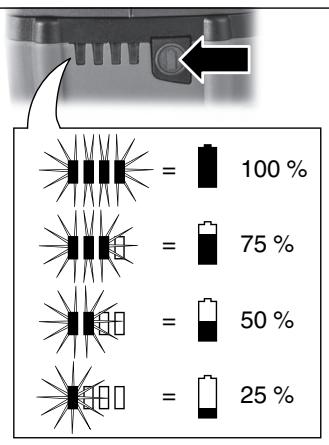

7.1 Battery pack, capacity and signal display Fig.B

Charge the battery pack before use.

If performance diminishes, recharge the battery pack.

The ideal storage temperature is between 10^ and 30^ .

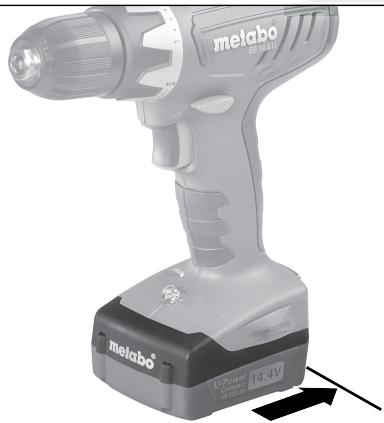

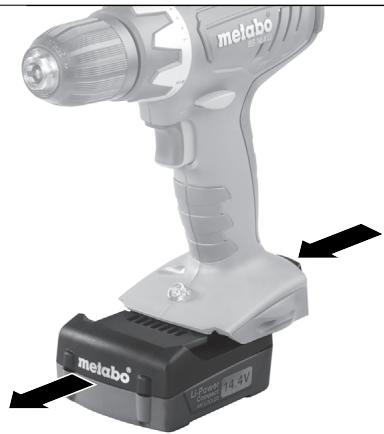

7.2 Removing, replacing battery pack Fig. C

7.3 Setting direction of rotation, transporting safety device (switch-on lock) Fig. D

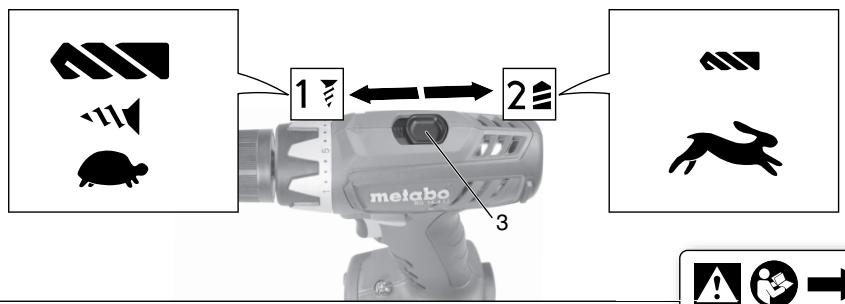

7.4 Selecting gear stage Fig. E

Do not set the switch (3) unless the motor has stopped completely!

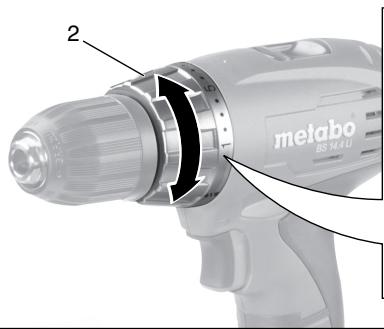

7.5 Setting torque limitation, drilling, impact drilling Fig. F

7.6 Switching on/off, setting speed Fig.A

Switching on, speed: press the trigger (10). The speed can be changed by pressing in the trigger.

Switching off: release the trigger (10). Note: The noise that the machine makes when it switches off is due to the design (quick stop) and has no influence on the function or the service life of the machine.

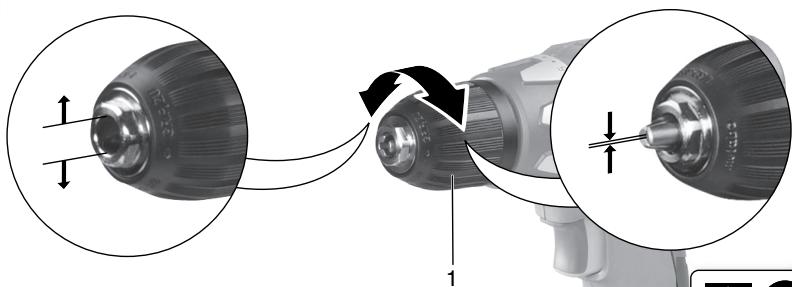

7.7 Keyless chuck Fig. G

With a soft tool shank, retightening may be required after a short period of operation.

Notes on machines with the designation SB...

1. The ratchet sound which can possibly be heard after opening the drill chuck is functional and is switched off by a reverse rotation of the sleeve.

2. Clamping tool:

Turn sleeve (1) in direction "GRIP, ZU" until the noticeable mechanical resistance has been

overcome.

Caution! The chuck is not yet fully tightened! Keep turning the sleeve (it must "click" when turning)) until it cannot be turned any further - only now is the tool safely clamped.

Cleaning: From time to time, hold the machine vertically with the keyless chuck facing downwards and turn the sleeve fully in direction "GRIP, ZU" and then turn fully in direction "AUF, RELEASE". The dust collected falls from the keyless chuck.

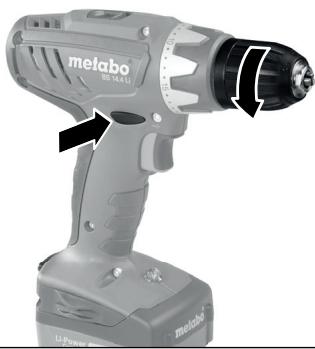

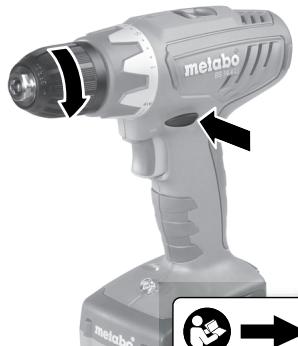

7.8 Unscrewing chuck Fig.H

Employ the same procedure when attaching the chuck, except in reverse order.

8. Troubleshooting

8.1 The machine's multifunctional monitoring system

If the machine switches off automatically, the machine electronics have activated automatic protection mode. A warning signal sounds (continuous beeping). The beeping stops after a maximum of 30 seconds or when the trigger (10) is released.

Causes and remedies:

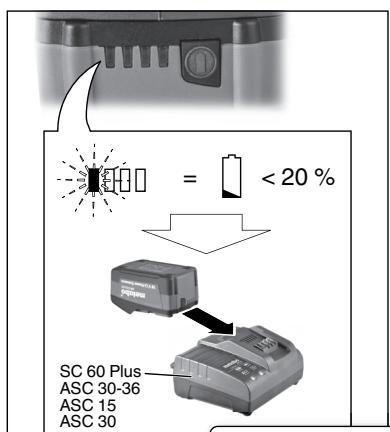

1. Battery pack almost empty Fig. A, B (The electronics protect the battery pack against damage through total discharge).

If one LED is flashing (7), the battery pack is almost flat. If necessary, press the (6) button and check the LEDs (7) to see the charge level. If the battery pack is almost flat, it must be recharged.

1. Long continuous overloading of the machine will activate the temperature cut-out.

Leave the machine or battery pack to cool.

Note: If the battery pack feels very warm, the pack will cool more quickly in your "AIR COOLED" charger.

Note: The machine will cool more quickly if you operate it at idling speed.

1. If the current is too high (for example, if the machine seizes continuously for long periods), the machine switches off.

Switch off the machine at the trigger (10). Then continue working as normal. Try to prevent the machine from seizing.

9. Accessories

Use only genuine Metabo accessories.

For a complete range of accessories, see www.metabo.com or the main catalogue.

10. Repairs

Repairs to electrical tools must be carried out by qualified electricians ONLY!

If you have Metabo electrical tools that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com.

You can download spare parts lists from www.metabo.com.

11. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Battery packs must not be disposed of with regular waste. Return faulty or used battery packs to your Metabo dealer!

Do not allow battery packs to come into contact with water!

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline 2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling. Before disposal, discharge the battery pack in the power tool. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).

12. Technical Specifications

Fig. 1. We reserve the right to make technical improvements.

U = Voltage of battery pack

No-load speed

Tightening torque for screwing:

M1 = Soft screwing application (wood)

M_3 = Hard screwing application (metal)

M4 = Adjustable torque

Max. drill diameter:

D1max = in steel

Dmax in softwood

D3max = in concrete

s = Max.impact rate

m = Weight (with smallest battery pack)

G = Spindle thread

D max = Chuck clamping range

Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

a_h, ID = Vibration emission value (impact drilling into concrete)

a_h,D = Vibration emission value (drilling into metal)

a_h,S = Vibration emission level (screwing without impact)

K_h, = Uncertainty (vibration)

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It is also suitable for a provisional estimate of the vibratory load.

The specified vibration level applies to the main applications of the power tool. However, if the tool is used for other applications, with different accessories or is poorly maintained, the vibration level may

vary. This can considerably increase the vibratory load over the entire working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This can considerably reduce the vibratory load over the entire working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

A-effective perceived sound levels:

L_pA =Sound pressure level

LWA = Acoustic power level

K_pA^W K_WA = Uncertainty (noise level)

During operation the noise level can exceed 80 dB(A).

Wear ear protectors!

Measured values determined in conformity with EN 60745.

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

Notice originale

Kh,... Incertitude (vibration)

a_h,D = trillingsemissiewaarde (boren in metaal)

Reservedelsestiner kan downloads paa www.metabo.com.

a_h, ID = Vibrationsemission (slagboring i beton)

a_h,D = Vibrationsemission (boring i metal)

a_h,S = Vibrationsemission (skruning uden slag)

K_h, = Usikkerhed(vibration)

TsqteIbHo 3aKpeNITe o6pa6aTbIbAemyo DeTaIb, HapnIpMep, C NOMOuB 3aXHMOB.

CbeToNDIOd (9): He cMoTpnte Ha rOpAun CBeToDIOd chepe3 onTnueckne npnbopbl; CbeToNDIOd

Klacca 1M, KlaaccnphiunpoBaH no EN 60825-1: 2003,Длна ВОЛны:400-700 HM;300 MKC.

5. PucyHKn

PncyHKn pacnoJIOxeHb I HauaJIe pyKOBoDCTBa nO 3KcIpyatauN.

IorcheHnKHCNoJIb3yEmbIM Cnmbolam:

HapablneHne DvnKeHHa

MeDJIeHNO

BbICTpo

Первая сокорсы

BtopaCKopoctb

BnHtbl

Cbepra

Bez orpaHneHn KpyTaeo MOMeHa

Ydaphoe cBepenHe

Nm

KpyTauHIM MOMENT

6. 063op

Pnc.A

1БbICTPO3aXIMHO CBEPINbHbN naTPOH
2 TnIb3a (KpyTAA MOpHrT, CBepeHne, ydapHoe CBepeHne)*
3Переклочаелсхорoctи(1-2-）
4Переклочаелнанразаленьврашени (perynipobka HanpaablenenBpauneHn,6OknipobKaДЯТРaHcnpTIpOBKN)-собenvCTOPOH INHCTpyMentHa
5 KhoNka pa36IoknpoBkn aKHyMnyTOpHOro 6loKa
6 KhoNka HndnKaaunm EMKoCTn
7 CnHaJIbHbI INdIkaTOP eMkoCTN
8 AkHymyIaTOpHbI 6IoK
9 CBeToaIOA
10 HaKIMHNOIpeHKIOUaTeJIb B3aBNCIMOCTNOT KOMJIeKTaUN

7. 3Kcnnyataun

7.1 AHHyMylTOpHbI 6JIOH, CnHaNbHbI HNIMKaTOp EMMoCTn Pnc.B

Ipeed nCnoJIb3OBAHnEM 3apJnte aKHyMylaTOpHbI 6Jok.

Pn CHNKeHm MOuHocTn 3apAaTe aKKymyTophBn6lOK.

PpUHHbI n cnocobI yCTpaHeHn HeuCnpaBHOCTN:

1.AHHymyIaTOPbIb6IoK noTu pa3paJKeH

Pnc.A,B(3JNEKTOPOHHb6nO3aunuAaeT aKKyMnJIaROT NOBpeXdEHNBA CBeJeCTBHe rnybKOHorpaarJa).

EcIn CBTeOAnIOM Mmraet (7), aKHyMylTOpHbI 6JIoN IOU p3pAINLcH. HAnMMte KHOHNy (6)n NO CBeToIOHdAM (7)npOBepbTe cTeeneHb 3apJa.EcIn aKHyMylTOpHbI 6JIoN IOUtn pa3pAINLcH, Heo6xOdmo CHOBa 3apAINt b er!

2. Пи дinteьнпергу3ke щлкторнстуМ enta copabtlaBaetenlOBaB 3aunTa.

IpoJOnJIte, noka 3JIeKToPHNCHTpymEnT nII aKKyMylrTopHbI 6JIOK He OcTBiHyT.

Yka3aHHe: B cIyuae nepeRpeBa aKHyMylAToP Horo 6Ioka erO OXlaJxDHeNc MOxHNo yCkOpNTb, hCpOJIb3y3 ZapdHoe yCTpoiCTBO “AIR COOLED”.

Yka3aHHe: 3JIeKTPoINHCTpymeHT OXJaHdaetc86bICTpee B peHXMe XOJOCTORO XOJa.

3. PnCNIshHOM BbICOHO CNtOHa (KaK, HAnpImep, BcIyae npDoJIHKeTbHO 6LoKnPobKN) 3JeKtPOINCTpyMEn OTKlIOUaEaTcR.

BbIKIOUHTe 3JIeHTPOINHCTPymEHT HaKIMMbIM nepeKIOHATElem (10).Iocne 3TOrO npodJkaITE pa60Ty B HopMaIbHOM peKIme. N36eraTe 6JOKIOBKN By DaJIbHeNlSeM.

9. Пинадлжнотн

IcnoIb3yTe ToIbKO opuHaJIbHbIe npHaJdJIeK-HocTn Metabo.

D2max = noMraKoN dpeBecnHe

D3max = no 6eToHy

S = MaKcImaJIbHaЯ YacTToTa yIapOB

m = Macca (C cambim Jérkimi aHHyMjra-TOPHbIM 6JOKOM)

G = pe3b6a wnnHdela

CymmaHoe 3aueHne Bn6paunu (BeKToPna Cymma TpEx HanaBaeTcB COOTBCTBN co cTaHapdTom EN 60745:

a_h,1D = 3Nauchenne Bnôpaçu (yadapHOe cBépJIenHe B 6eToHé)

a_h,D =

3NaHeHNE Bn6paun（CbepeHne B MeTaJIe)

a_h,S = 3NaueHne Bn6paun (3aBnHnBaHne 6e3 yDapa)

Kh,... KO3ΦΦHnUeHT nOgpeuHocTn (Bn6paun)

Yka3aHHbI B DaHHOM pyKOBoDCTBe yPoBeHb Bn6paunu N3MepeH MeToDm, OnpedeJIeHHbIM

CTaHApTOM EN 60745, INMOKeT NcNoIb3ObaTcBdAmpaBHeNIAJeHTpOHNCTpyMeHTOBdpyrC dpyrom. ON TaKte NpOxDnT dI ppeBaPntelb Horo OnpeJeHnB VbpaOnHOHn HarpyKn.

Yka3aHHbI yPOBeH bN6paCunI DeIcTBtTeJIeH IJIA OCHOBHbX Cfepe NcOJIb3OBAHNJ 3JeKTPoMHCTpyMeHTA.ODHaKO cEcln 3JeKTPoHNCTpyMeHTNcOJIb3yeTcI JdI pyrJxU cIeJI, C dpyrIMn paOChIMN IHCTpyMeHTAMNI IN B CJIyae eEO HeYDoBtBTOpNTeJIbHO TExO6ClyuHBaHnI, yPOBeH bVbpaCUn MoKeT 6blb HbIM. BcJIeDCTBE 3TOBO TteEHNE BCEr nepIOda paBoTI IHCTpyMeHTa BO3MOJHO 3HaUNTeJIbHoE YBeLIueHeH N6paCIN OHHO HArpy3Kn.

ДлTochHOrO onpeTeleHnBn6paZHOHnOH
Harpy3Kn CLeDyET TAnHeYuHTbYBaTb PpOMeKHyTHN
BpEmEH, B TeueHne KOTopbX 3KeLTKoHNCTpy
MeHT HaxoINCTB B BkIKIOUeHmCOCTOHNnIIN
pa6oTaET BXIoCTyIO. BcIeDCTBnE 3TOBO
TteueHne BCeR oepnoDa pa6oTbI 3KeHtPOHNCTpy
MeHTa Bo3MOxHNO 3HaUInTeMbHOe YMeHbSeHne
Bn6paZHOHn Harpy3Kn.

ПриMuNTeДоноЛНТeьHbIe Меры 6e3oNaCHOCTn ДЯЗaUNTbI ONEpAToPаOT Bo3dEJICTBnA Bo3NHa UOSeBnB6paunH, HApMep: TExNHueCKeO obcLny KINBaHHe 3JeHTPOINHCTpyMeHTa n pa6oHyX HnCTpyMeHToB, COxPAHeNIE TEnla pyK, IpaBInbHaorpaHn3aUny pa6oHyx pnocecoB.

YpOBeHbIyMaIO MeToYoA:

LDA = ypOBeHb 3ByKOBOrO daBJIeHnA

LWA = yPOBEHb 3ByKOBOM MOUHOCTN

KpA, KWA= KOaΦnueHT nOgpeHOCTN (ypoBehb wyma)

Bo Bpemra 80 d5(A).

HaedeBaIte 3aunTHbIe HayuHHNn!

Pe3yIbTaTbI N3MepeHn IOnUyeHbIB COOTBeTCTBnI CO CTaHdApTOM EN 60745.

Ha k3a3HHbIe TExnHcEckne XapAHTepiCTNkpcAnpOCTpaHJIOTcDonyCKn, PpeyCMOTpeHHbIeDeIeCTBHyUOUMn CTaHApTaMn.

PROFESSIONAL POWER TOOLS

metabo®

work. don't play.

Metabowerke GmbH, 72622 Nürtingen, Germany www.metabo.com
