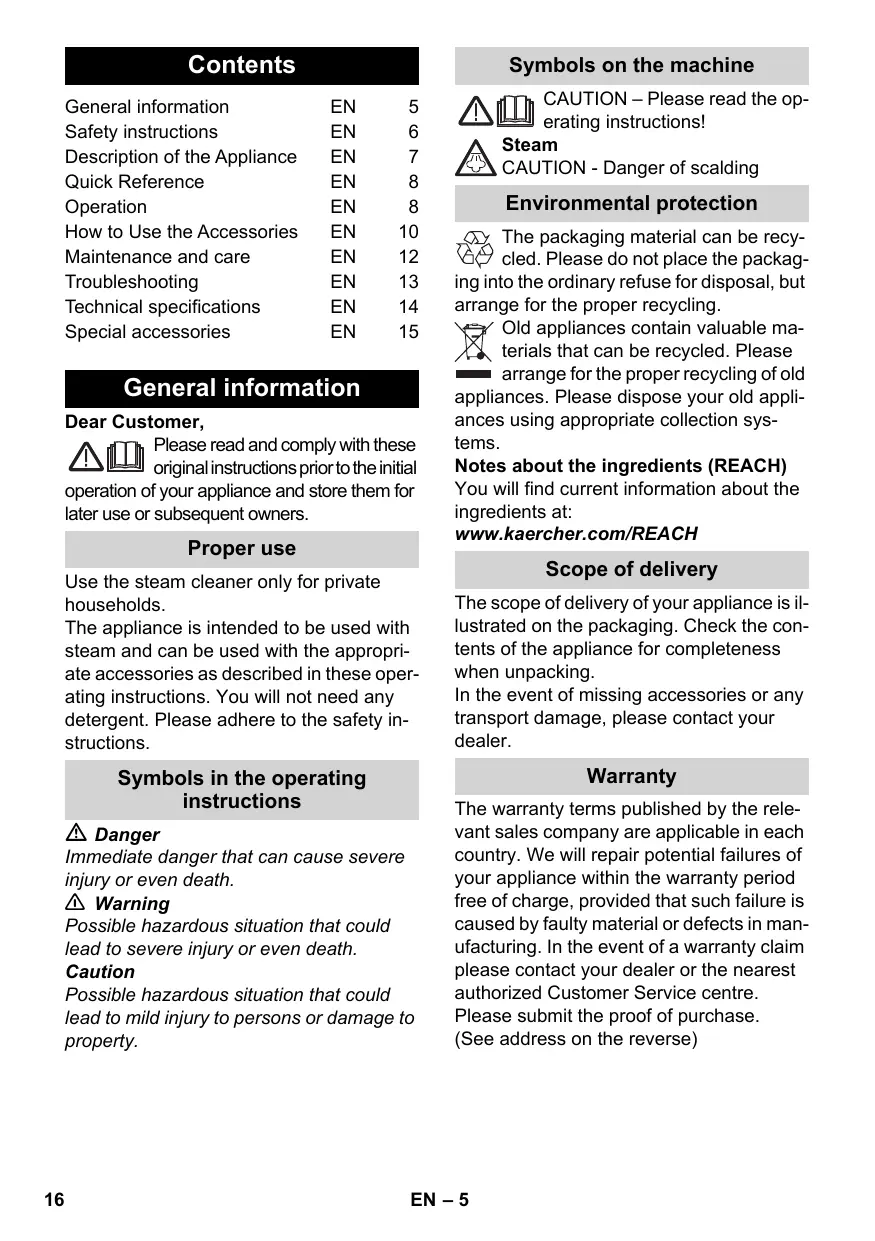

USER MANUAL SC 5800C KARCHER

Description of the Appliance EN 7

Quick Reference EN 8

Operation EN 8

How to Use the Accessories EN 10

Maintenance and care EN 12

Troubleshooting EN 13

Technical specifications EN 14

Special accessories EN 15

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial

operation of your appliance and store them for later use or subsequent owners.

Proper use

Use the steam cleaner only for private households.

The appliance is intended to be used with steam and can be used with the appropriate accessories as described in these operating instructions. You will not need any detergent. Please adhere to the safety instructions.

Symbols in the operating instructions

Danger

Immediate danger that can cause severe injury or even death.

Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

CAUTION - Please read the operating instructions!

Steam

CAUTION - Danger of scalding

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but go for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection sys

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. (See address on the reverse)

Safety instructions

Danger

The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
- Never use the appliance in pools containing water.
The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the maintenance lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
- Never touch the mains plug and the socket with wet hands.
- Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
- Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
The maintenance lock must not be opened during operation.

Warning

The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
- Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm^2 .
The connection between power cord and extension cable must not lie in water.
If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Never leave the appliance unattended when it is in operation.
- Be very careful while cleaning tiled walls with sockets.

Caution

Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
- Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.
The appliance must not be carried during cleaning.

The appliance must provide of a stable ground.
Use and store the unit only in accordance with the specifications in the description and/or figure.
The steam switch must not be locked during the operation.
- Protect the appliance from rain. Do not store outside.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Boiler thermostat

If, in case of a malfunction, there is no water in the boiler, the temperature in the boiler rises. The boiler thermostat turns off the heating. Once the boiler is filled, normal operation can continue.

Safety thermostat

The safety thermostat turns off the appliance if the boiler thermostat and the pressure controller fails and the appliance overheats in case of a malfunction. Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.

Maintenance lock

The maintenance lock acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.

If the pressure controller is defect and the steam pressure in the boiler rises, the pressure control valve, and steam is emitted through the maintenance lock to the outside.

Please contact your local KÄRCHER customer service before you put the appliance into operation again.

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

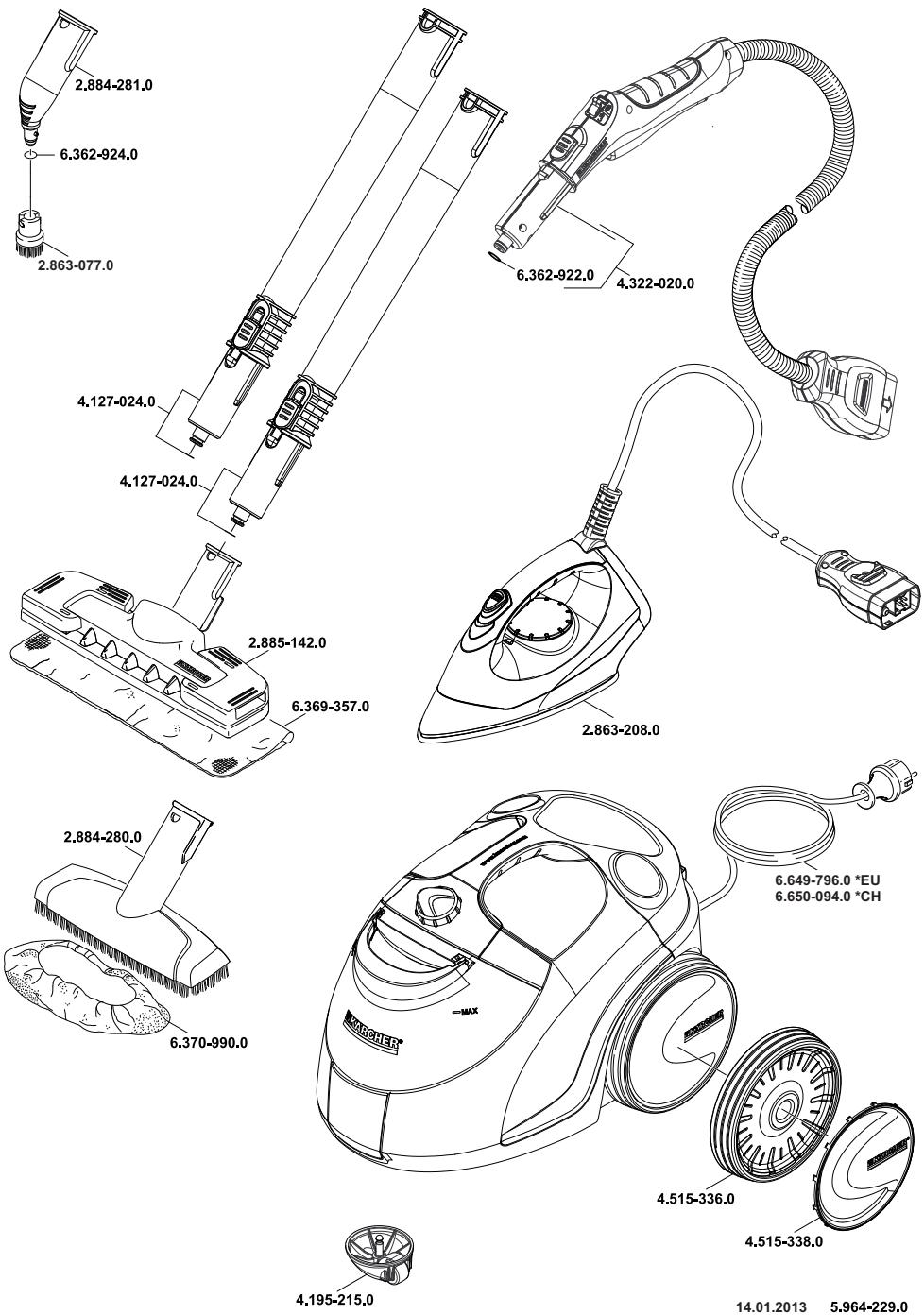

Illustrations on fold-out page!

A1 Appliance connector with cover
A2 Water reservoir
A3 Carry handle for water reservoir
A4 Selector switch
A5 Operating panel
a Display - OFF position
b Display - water shortage (RED)
c Display - heater (GREEN)
d Min. steam level
e Selection range of steam level
Max. steam level
g Steam level Vapohydro function
A6 Locking door for accessories compartment
A7 Maintenance lock
A8 Carrying handle
A9 Holder for accessories
A10 Accessories storage
A11 Storage for mains connection cable
A12 Storage holder for floor nozzle
A13 Mains cable with mains plug
A14 Running wheels (2 ea.)
A15 Steering roller
B1 Steam gun
B2 Steam lever
B3 Unlocking button
B4 Child lock
B5 Steam hose
B6 Steam plug
C1 Detail nozzle
C2 Round brush
D1 Hand nozzle
D2 Terry cloth cover
E1 Extension tubes (two tubes)
E2 Unlocking button
F1 Floor nozzle
F2 Retaining clip
F3 Terry floor cloth

Option

H1 Steam pressure iron
H2 Upper steam button
H3 Display - heater (ORANGE)
H4 Lower steam button
H5 Steam lock
H6 Temperature controller
H7 Steam plug

Quick Reference

Illustrations on Page 2

1 Fill the water reservoir up to the "MAX" marking.
2 Insert the steam plug into the appliance connector.
3 Plug in the main plug. Switch on the appliance by turning the selector switch.
4 Display - heater blinks green. Wait until the heater display lights up permanently green.
5 Connect the accessories to the steam gun. The steam cleaner is ready to use.

Operation

Illustrations on fold-out page!

Attaching the Accessories

Illustration 2

Open the cover of the appliance socket.

Tightly insert the steam plug into the appliance connector. The plug must click into place audibly.

To disconnect: Press the cover of the appliance connector down and disconnect the steam plug from the appliance connector.

Illustration A - B

Connect the required accessories (see Chapter "How to use the accessories") to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the unlocking button of the steam gun locks into place.

Illustration

Use the extension tubes if necessary. To do so, connect one or both extension tubes to the steam gun. Insert the required accessories on the free end of the extension tube.

Removing the Accessories

Danger

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!

Move the child protection unit toward the back (steam lever locked).

Illustration D

To detach the accessory parts, press the unlocking button and pull the items apart.

Filling the Water Reservoir

The water reservoir may be refilled at any time.

Caution

Do not use condensation water from the drier!

Do not fill with detergent or other additives (for example fragrances)!

Do not use pure distilled water! Max. 50% distilled water and 50% tap water. Do not use collected rain water!

Illustration 1

You can remove the water reservoir to fill it or you can fill it directly on the appliance.

Take off water reservoir

Pull the water reservoir straight up.
Fill the water reservoir up to the "MAX" marking while positioned vertically under the water tap.
Insert the water reservoir and press downwards until it arrests.

Directly on the appliance

Pour water from a container into the funnel inlet. Fill up to the "MAX" marking.

Turning on the Appliance

Place the unit securely on a firm surface.
Insert the mains plug into a socket.
Rotate the selector switch to steam level selection range from the OFF position.

Display - heater blinks green.

Note: If there is no or not enough water in the steam boiler, the water pump starts and supplies water from the reservoir into the steam boiler. The filling process may take several minutes.

Wait until the heater display lights up permanently.

The steam cleaner is ready to use.

Note: The appliance briefly closes the valve every 60 seconds. This will prevent the valve from sticking. There will be a slight audible click. The steam delivery is not impaired by this.

Refilling Water

In case of water shortage, the water shortage display lights up red and a signal can be heard.

Note: Every time there is not enough water in the steam boiler, the pump automatically supplies water from the water reservoir into the steam boiler. If the water reservoir is empty, the water pump is not able to fill the steam boiler and the steam tapping is blocked.

Fill the water reservoir up to the "MAX" marking.

Note: The water pump tries to fill the steam boiler in short intervals. If the filling is successful, the steam tapping is released immediately, and the red display goes out.

Adjusting the Steam Quantity

The emerging steam is regulated by a selector switch. Depending on the type of contamination and its severity, this selector switch offers adjustment possibilities from the minimum steam level (slight contamination) to the max. steam level (severe contamination).

For severe contamination located in difficult to access areas, there is the vapohydro function.

Adjusting the steam quantity

Set selector switch to the required steam volume.
While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.

Turning Off the Appliance

Rotate the switch to the OFF position to turn off the appliance.
Disconnect the mains plug from the socket.
Press the cover of the appliance connector to the bottom and disconnect the steam plug from the appliance connector.
Empty the residual water from the water reservoir.

Storing the Appliance

Illustration F - G

Store the round brush in the accessory compartment.
Insert the manual nozzle onto each extension pipe.
Put the extension pipes into the large accessory holders.
Insert the point stream nozzle into the accessory storage compartment.
Hook the floor nozzle into the parking position.
Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.
Stow away the mains cable in the accessory holder for the mains cable.

How to Use the Accessories

Important application instructions

Cleaning floor surfaces

It is recommended to sweep or vacuum the floor prior to using the steam cleaner. This way, the floor is already cleared of dirt/ loose particles prior to the wet cleaning.

Refreshing textiles

Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam at first, then let dry and then check for colour or shape changes.

Cleaning of Coated or Lacquered Surfaces

When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, parquet; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it.

Caution

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.

Cleaning of Glass

In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.

Then clean the window surface with the hand nozzle and attachment. Use a squeezegee to remove the water or wipe the surfaces dry.

Caution

Do not direct steam onto the sealed locations of the window frame to prevent damage.

Steam gun

You can use the steam gun without any additional accessories, e.g.:

• to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20~cm .
  to remove dust from plants. Here, keep a distance of 20-40 cm.
• for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

Detail nozzle

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy lime scale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.

Round brush

The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.

Caution

Not suited for the cleaning of sensitive surfaces.

Illustration B

Attach the round brush to the detail nozzle.

Hand nozzle

Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls and mirrors.

Floor nozzle

Suited for all washable walls and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.

Note: Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam cleaned. However, these will disappear with repeated cleaning procedures.

Illustration

Attach the floor cloth to the floor nozzle.

1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

Parking the floor nozzle

Illustration

During work breaks, hook the floor nozzle into the parking holder.

Steam iron

Danger

The steam pressure iron must not be used if it has been dropped, shows visible signs of damage or if it leaks.
The steam pressure iron is hot and so is the steam jet! Point out to other people the possible risk of being scalded or burnt. Never direct the steam jet at people or animals (risk of scalding). Do not touch any electrical leads or combustible objects with the hot steam pressure iron.

Warning

The steam pressure iron and its connecting cable must be kept out of reach of children under the age of 8 during the heating and cooling down periods.

The steam pressure iron must be used and placed on a stabile surface.

Note: We recommend using the Kärcher ironing table with active steam extraction (2.884-933.0). This ironing table has been designed to match your new steam cleaner. It facilitates and, thus, accelerates the ironing process substantially. In any case, you should use an ironing table which is covered with a mesh-type underlay allowing the steam to pass through.

Note: Please do not select the VapoHydro function while the steam pressure iron is plugged in to prevent the laundry to be ironed from getting wet.

Make sure that there is fresh tap water in the boiler of the steam cleaner.
Tightly insert the steam plug of the iron into the appliance connector. The plug must click into place audibly.

Display - iron will light up green permanently.

Start-up the steam cleaner according to the description.

Recommended steam levels:

Level	Textiles
Min. steam level	Slightly wrinkled clothes
Max. steam level	Jeans

Wait until the steam cleaner is ready to use.

Steam ironing

All fabrics can be steam ironed. Delicate imprints or fabrics should be ironed on the reverse or according to the manufacturer's specifications.

Note: For these sensitive textiles, we recommend using the KÄRCHER non-stick ironing sole BE 6006 (Ordner no. 2.860-142.0).

Adjust the temperature control of the steam iron within the notched range (***/MAX).
As soon as the heater display of the iron switches off, you can start ironing.

Note: The sole plate must be hot to prevent the steam from condensing on the sole plate and dripping onto the garment to be ironed.

Use the top or bottom steam switch.
- Steaming at intervals: Press the steam switch. Steam will be emitted while the switch is pressed.
Continuous steaming: Pull the latch for the steam switch toward the rear until it locks in. Steam will escape continuously. To unlock, push the lock forward.
Direct the first burst of steam at the start of the ironing process or after ironing breaks at a separate piece of cloth until the steam is emitted evenly.
You can hold the iron in an upright position to apply steam to curtains, dresses, etc.

Dry ironing

Note: Even if you iron without steam, there must be water in the boiler.

Adjust the temperature of the iron according to the garment you want to iron.

•	Synthetics
••	Wool, silk
•••	Cotton, linen

Note: Please observe the ironing and washing instructions in your garment.
As soon as the heater display of the iron switches off, you can start ironing.

Maintenance and care

Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Rinsing the steam boiler

Rinse the steam cleaner boiler at the latest after 8 boiler fillings.

Disconnect the mains plug from the socket.
Allow the steam cleaner to cool down.
Empty the water reservoir or remove it from the appliance.
Remove the accessories from the accessory compartments.

Illustration H

Open the locking door of the accessory compartment.
Remove the accessories from the accessory compartment.
Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.
Completely empty the steam boiler to remove existing water (see fig. 1).

Dscaling the Steam Boiler

As limes cale builds up on the boiler walls, we recommend to de scale the boiler in the following intervals (RF = reservoir fillings):

Degree of hardness		° dH	mmol/l	RF
I	soft	0-7	0-1,3	100
II	medium	7-14	1,3-2,5	90
III	hard	14-21	2,5-3,8	75
IV	very hard	>21	>3,8	50

Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.

Disconnect the mains plug from the socket.
Allow the steam cleaner to cool down.
Empty the water reservoir or remove it from the appliance.
Remove the accessories from the accessory compartments.

Illustration H

Open the locking door of the accessory compartment.
Remove the accessories from the accessory compartment.
Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
Completely empty the steam boiler to remove existing water (see fig. 1).

Warning

Only use products approved by KÄRCHER to exclude any damages of the appliance.
User the KÄRCHER decalcifier sticks (order no. 6.295-206) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descending solution can have an aggressive effect on delicate surfaces.
Pour the descending solution into the boiler and allow it to react for approximately 8 hours.

Warning

Do not screw the maintenance lock onto the appliance during the decalcifying. Do not use the steam cleaner as long as there is decalcifying agent in the boiler.

Completely empty the descending solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
Completely empty the steam boiler to remove existing water (see fig. 1).
Screw the maintenance lock in using the extension pipe.
Fill water reservoir (see page 8).
The steam cleaner is ready to use.

Care of the Accessories

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.

You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ . Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified

Descale the steam boiler.

No steam

Display - water shortage blinks red and signal is emitted.

No water in the water reservoir.

Fill the water reservoir up to the "MAX" marking.

Display - water shortage lights up red.

No water in the steam boiler. Overheating protection of the pump was triggered.

Turn off the appliance.
Fill the water reservoir up to the "MAX" marking.
Turn on the appliance.

Water reservoir has not been inserted properly or is calcified.

Remove the water reservoir and rinse it.
Insert the water reservoir and press downwards until it arrests.

Steam lever cannot be pressed anymore

Steam switch is secured with the lock / child-proof lock.

Move the child protection unit forward.

Steam iron "spits out" water!

Set the thermostat to level ...
Rinse or decalcify the boiler of the steam cleaner.

Steam level VapoHydro selected

Turn the selector switch to the steam level selection range.

After breaks during ironing, water drops will come out of the steam pressure iron.

During longer breaks from ironing, the steam in the steam line can condense.
Direct the first burst of steam at a separate piece of cloth.

High water output

Steam boiler is decalcified

Descale the steam boiler.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Technical specifications

Electrical connection
Voltage	220-240 V
	1~50 Hz
Protection class	IPX4
Protective class	I
Performance data
Heating output	1800 W
Heating output steam iron	700 W
Operating pressure max.	0,4 MPa
Heating time	4 Minutes
Steam volume
– Continuous steaming	50 g/min
– Steam push max.	130 g/min
– Vapohydro	230 g/min
Filling quantity
Water reservoir	1,5 l
Boiler capacity	0,5 l
Dimensions
Weight (without accessories)	6,0 kg
Length	439 mm
Width	301 mm
Height	304 mm

Subject to technical modifications!

Special accessories

Order number

Microfibre cloth set, bath 2.863-171

2 soft floor cloths made of plush velour,
1 abrasive cover for the hand nozzle,
1 polishing cloth for the mirrors and fixtures

Microfibre cloth set, kitchen 2.863-172
2 soft floor cloths made of plush velour,
1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces

Microfibre cloth set, soft floor 2.863-173
2 soft floor cloths made of velvet velour
Microfibre cloth set, soft cover2.863-174
2 soft covers made of plush velour

Terry-cloth rags 6.369-357

5 floor cloths made of cotton

Terry-cloth covers 6.370-990

5 covers made of cotton

Round brush kit 2.863-058

4 round brushes for the detail nozzle

Round brush kit with brass bristles 2.863-061

Removal of especially stubborn dirt ideal for insensitive surfaces.

Power nozzle with extension 2.884-282 for point stream nozzle

To remove tough contamination, especially in areas that are difficult to reach.

Round brush with scraper 2.863-140

Round brush with two rows of heat-resistant bristles and a scraper. Not suitable for sensitive surfaces.

Turbo steam brush 2.863-159

For cleaning tasks where you would usually have to scrub.

Textile care nozzle 4.130-390

For freshening up clothes and textiles.

Decalcifying sticks (9 pieces) 6.295-206

Active ironing board AB 1000 2.884-933

For excellent ironing results with substantial time-saving (only for 230V

Steam pressure iron 2.863-209

Non-stick ironing sole 2.860-142

Suitable for ironing sensitive materials.

Contenu

www.kaercher.com/REACH

Fornitura

www.kaercher.com/REACH

Leveringsomvang

Geen water in de watertank.

Watertank vullen tot marking "MAX".

www.kaercher.com/REACH

www.kaercher.com/REACH

www.kaercher.com/REACH

Leveringsomfang

www.kaercher.com/REACH

Leveringsomfang

Leveringsomfang for apparatet er vist pa emballasjen. Kontroller at innholdet i pakken er fullstendig, när du pakker ut.

Stille inn dampmengde

www.kaercher.com/REACH

www.kaercher.com/REACH

Toimitus

www.kaercher.com/REACH

Sigmaεuασία

To npapadotEO uAIKO tns ouakeuuns ateikovicietai OTn ouakeuaoia. KatrTnv aTOauokueuaia 1evTe To TEPiExOevo TNS wTPOCS TIV TAnpots Ta.

Eav Aeitouv EApntmuata n Exov Tpokknei Znuiic Kata t n eTapopap, Tnapaaloue EvnuepwoTev TpOunrteuT oac.

Eyyunon

www.kaercher.com/REACH

Teslimat kapsami

KpaTkoe pyKOBOdCTBO RU 8

3KcnpnyatauR 8

IcnoIb3OBAHne pInHaJIeXHoCTei RU 10

YxOnd TeXnHueckoe o6cnnyKuBaHneRU 13

PomouB B cIyuae HenoIaIOK RU 14

TexHnueckne daHhble RU 15

CneuaaIbHbIe npHaadJeXHoCTn RU 16

06zne yka3aHna

Ybaxaembl nokynateJIb!

Ipeep nepbbm npimHeHnem Ba- wero npibopa npountaTe 3Tu

OpnHnHaIbHyU INCTpyKcIu NO 3KcnPyTaUIN, nocLe 3TOrO DeIeCTByIe COOTBeTCTBeHNO I COxpaHnte ee IJa DaIbHeIWeero POJIb3OBaHIn IJIN dIyUoIero BlaJeIbua.

IcnoJIb3OBaHHe NO Ha3HaueHnIO

IcnoIb3yIe np6op dIry OunCTKn napom ncknOHTeBHO B DOMaWHem XO3YCTBE. Pnp6op npEHa3NaueH dIpy npOBedeHn OoNCTKn npam. OUnCTky MOxHNO pBOoDntb C npIMHeHnEM NOxOJauxx PpHaJNeKHOCTei, ONcaHHbIX BY pKOBoDCTBe NO 3KcPnyatau. MoUoune cpeDCTBa He TpebyOTc. CJeNyET CObIOdaTb IHcTpyKuIN No TEXnke 6e3OnacNoCTn

CnMbOJIbI BpyKOBoIDCTBe NO 3KcNJIyatauIN

Onachocmb

ДяненocpeodcmeHNO ap03aue ouanachocmu, komopar npueodum K mxeJIbIM yeeyam unu K cmepu.

△PnpdynpexdeHue

ДлгьозможнουnomehцuaanbHo onachou cumyaauu，komopая можем npueecmuК mяжелыm ybebyam UNU K cmepmu.

BhumaHue!

Длгь озможнйnomeнцальноona choу-cmyauu，komopая можемпраecMuКлakummpaammUIIpoBnebMamepuanbHbuyep6.

CnmbolbHa annpaTe

BHHMAHHe - O3NaKoMbTeCb CnH-CTpykUneI NO 3KcPnyatauIN!

Nap

BHIMAHHE - onachoctb oxora

3aunTa Okpykaioe cpebl

Ynakoboyhie MaTePnAnbI npriOnHbI dIaBtopuHoiO6pa60TKI. Po3TOMy He BblBaIte yNakOBky BMeCTe C DomaUHMAm, a CdaIte ee B OOnH nIpyHKTOB pniTOPuHOrO cbIpBJ.

CtapbIe npi6opbl coepkataeHHbIe nepepaBaTaIBaEMbIe MaTePnAbJI, noJIeKaUHe nepeDaue B nyHKtBI npiEmKn

BtopuHoro cIbpy. IIO3OMy yTuIN3nPyuTe CTapbIe np6Opby uepe3 COOTBeTCTByOuIne CNTEmbl pInEMKn OTXoDOb.

IcnoJb3ObaHne npHaJdlexHoCTeI

BaxHbIe yka3aHnI NO nCNoJIb3OBAHnIO

OuHCTnTb NOBepxHOCTb IOna

Ipepe npimeneHem yctpoCTBa Ia YnCTkn napom pekomehnyetc noMeCTN INI pOpblIeocntb POJI. TaKIM o6pa3OM MOXHO OCBOoDITb ONOT rpa3n/paccbinaHHoro Mycopa nepepe npoeDeHem BnaXHoYbOpKn.

OcbexeHne TeKCTnJIbHbIX n3deJIn

Ipeep npoBeHnem Opb6OTKn C nOMOsb npbopa dnyuCTkn napom cneJeYET BcERda npOBepaTb yToHnBOcTB TeKCTnIbHbIX n3deJn K Bo3dEyCTBnIO npa. PpexKe BCero, cJeDyET o6pa6OtaTb napom n3dEJIne, 3aTEM npocUHTb erO n, hakoHeu, npOBepNTb yCTOnuBOcTB Okpackn n HaJIynch DeOpMaunn.

YnCTka NOBepxHOCTeC NOKpbITnMn I NaKpOBAHHbIX NOBepxHOCTeI

Причстке Лаимрованьх NOBepxHOCTeи Ип NOBepxHOCTeC NOKpbItNeM, HApPIMeP, KuxOH- Ho Me6eIи Me6eIи ДЯ KBaPTnpy, DBepei, napKeta, Bock, Me6eIbHa NOIITypa, NCKycCTBeHHoe NOKpbITNe IIN Kpacka MOryt pactBOpHTbcr IIN Ha HIX MOrYT BO3HNKHyTb PRTHaДЯ пRObeENH YA ChSTKn CneJyET Clerka OTnaptB caFteKу 3aTeM nPoTepeTb eN nepeuCJIeHHbIe NOBepxHOCTN.

BHUMAHue!

He napraeJme nap ha npukneeHbte KpomKu, nockoIbky obknaOka moXem omKneumcbc. He uCnoJIb3yUme npubop dnyucmku depeEaHHbix unu napKeMHbIX nnon8 be3 nOKpbimura.

UcTka CTeKna

Прии ИЗКИX BHeUHIX TempepaTpax,пржд ВсERO,ЗИМОД,проггейТЕ OKOH Hoe CTKNo.Бla- ROДАР 3OTOMY BbI CMOKeTe ЛERKO OБра6OtaTb napOM BCIO NOBEXHOCTb CTKJa.ТakIM OБраз- 3OM yДаCTСЯ N3бЖATb HApPЯЖЕНО NOBEXHO- CTN, KOTOPOE MOJET ПИВЕСТИ K BOЮ CTKJa. 3aTEM NOBEXHOCTb OKHa Heo6xOДМО ONU- CTNtB C PrIMeHEnEM рУнOH ФорсУНКИ n Can- ФETKn.ДЯ YdAnEnerIA BODbl CneDyET ИСПЛьЗOBaTB HabaDCky ДЯ мОй OKOH Или hab- Cyxo пОТeРeТ b NOBEXHOCTb.

BhumaHue!

Iap He Hanpaenlom Ha yynnomHenHbte yacmku 03ne okOHHO paMbI dI npedompaueHuaee noepexkdeHua.

Papoboi nictolet

3aKpeNTb TkaHb IJI MaMbITbI NOHa HAnoNBHOΦOpcyHke.

1 CnoXntb TkaHb IJMaBtBnIOna BIOJIb NomecNTHa Hee fOpcyHKy IJnIOna.
2 OTKpbItb 3axnMbl.
3 TomecHTb KOHcI TkaHN BOTBepCTnA.
4 3aKpbItb3axnMbl.

BHUMAHue!

Cneumb, ymo bI naBcBi He nonanu mexdy 3axumamU.

BbICOKN BbIXOa BOdbI

B napobom kOTne o6pa3oBaJnacb hakInb

→ YdaJIInTe HauKInb n3 napOBoro KOTna.

3anaChbIe yactn

IcnoIb3yIte TOnbKO opunHaJIbHbIe 3aNaChbIe
uctn fnpMbI KARCHER. Onncahne 3aNaChbIX
chaTei HaxoITcB B KOHc DaHHoN INHCTpyKcNIN
no 3KcPnyatauN.

TexHHueckne daHHbIe

www.kaercher.com/REACH

Szallitasi tétel

www.kaercher.com/REACH

Obsah dodávky

www.kaercher.com/REACH

Dobavni obseg

Obseg dobave Vase naprave je prikazan na embalaži. Pri jemanju stroja iz embalaže preverite popolnost vsebine.

Pri manjkajocem priboru ali transportnih skodah obvestite VaSega prodajalca.

Garancija

V vsaki državi veljago garancijski pogoji, ki jih določa naše prodajno predstavništro. Morebitne motnje na naprvi, ki so posledica materialnih ali proizvodnih napak, v Času garancije brezplačno odpravljamo. V primeru uveljavljanja garancije, se z originalnim računom obrnite na prodajalca oziroma najblžji uporabniski servis.

www.kaercher.com/REACH

Zakres dostawy

Mult stimate client,

www.kaercher.com/REACH

Articolele livrate

Reimprospāṭaṭarea textilelor

www.kaercher.com/REACH

Rozsaḥdodávky

www.kaercher.com/REACH

Opseg isporuke

Poseban pribor SR 15

Opste napomene

Poštovani kuple

www.kaercher.com/REACH

Obim isporuke

Sadržaj isporuke Vašeg uredaja je prikazan na ambalaži. Pre vadenja uredaja iz ambalaže proverite da li je sadržaj potpun.

Ako pribor nedostaje ili je došlo do ošćenja prilikom transporte, molimo da o tome obavestite svog prodavca.

Garancija

U svakoj zemlji vaze garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na urežaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najblžoj ovlašćenoj servisnoj službi.

(Adresu cete naci na poledini)

Sigurnosne napomene

Opasnost

Upozorenje

Zabranjen je rad u područjima ugroženim eksplozijom.
■ Prilikom upotrebe uredaja u opasnim područima treba poštovati odgovarajuće sigurnosne propise.
Uredaj nemojte koristiti u bazenima u kojima ima vode.
Ure'daj se ne sme koristiti za ciiscenje elektricnih aparata i uredaja kao sto sunpr. klasicne i mikrotalasne pecnice, aspiratori, televizori, lampe, fenovi za kosu, elektricne grejalice i slično.
Pre upotrebe proverite da li su urejai pribor u ispravnom stanju. Ako stanje nije besprekorno, ne sme se upotrebljavati. Posebno proverite priključni strujni kabl, zatvarač za izvodenje radova održavanja i parno crevo.
Ostecen strujni priključni kabl odmah dajte na zamenu ovlascenoj servisnoj sluzbi/elektricaru.
Osteceno parno crevo odomah zamenite. Sme se upotreblavati samo parno crevo kojeg je preparucio proizvodač (kataloški broj vidi u spisku rezervnih delova).
Mrežni utikač in uticnicu nikada ne dodirujte vlažnim rukama.
- Parom ne Čistite predmete koji sadrze materije štěne po zdravlj (npr. azbest).
Mlaz pare na maloj udaljenosti nikadane dodirujte rukom niti usmeravajte prema ljudima ili zivotinja (opasnost od opekotina).
Zatvarač za izvodjenje radova odžavanja se tokom rada ne sme otvarati.
Ure'daj sme da se priključuje samo na elektrčni priključak kojeg je izveo elektroinstalater u skladu sa IEC 60364.
Ure'daj priključujte samo na izmeničnu struju. Napon se mora podudarati sa tipskom pločicom urežaja.

U vražnim prostorijama, kao što je npr.
kapatilo, urežaj priključujte na uticnice
sa predspojenom FI zaštitnom
sklopkom.
Neodgovarajuci produkti kablovi mogu biti opasni. Upotreblavajte samo produktne kablove zašićene od prskanja vode sa prečnikom od najmanje 3x1 mm².
Spoj strujnog i produktu nag kabla ne sme lezati u vodi.
Kod zamene spojeva na strujnom priključnom ili produktom kablu mora se obezbediti zašita od prskanja i mehanička Čvrstina.
Korisnik mora uredj upotrebljavati u skladu sa njegovom namenom. Mora voditi raçauna o lokalmim uslovima i kod rada sa uredjem paziti na lijude u okolini.
Deca starija od 8 godina i osobe sa smanjenim fiziickim, senzornim ili mentalnim mogucnostima opazanja ili s ograničenim iskustvom i znanjem smeju koristiti ovaj uredaj samo uz nadzor ili akou upućene u to kako sigurno koristiti uredaj kao i u eventualne povezane opasnosti. Deca ne smeju da se igraju s uredajem. Deca ne smeju obavljati poslove oderžavanja i cisćenja uredaja bez nadzora.
Ure'daj za vreme rada nikada ne ostavlajte bez nadzora.
- Opreznost pri cisćenju popločanih zidova sa utićnicama.

Oprez

Pazite da se mrežni ili produzni vod ne unisti ili osteti gazenjem, gnečenjem, vučenjem ili slicnim. Mrežni vod zašitite od vruçine, ulja i oštrih rubova.
Urezeroarza vodu nikada ne sipajterastvarae,tecnosti sa rastvaraicima ilinerazredene kiseline (npr. sredstva za ciiscenje,benzin,razredivace i aceton),jer mogu nagristi materijaleupotrebljene u uredaju.
Tokom cisćenja se urećaj ne sme nositi.
Uredaj mora imati stabilnu podlogu.

Ure'daj koristite i skladišite samu skladu sa opisom odnosno slikom!
Tokom rada ne pritežite polugu za paru.
Ure'daj za'sitite od kise. Nikada ga ne cuvajte na otvorenom.

Sigurnosni elementi

Oprez

Sigurnosni elementi sluze za zašitu korisnika i ne smeju se ni menjati niti zaobilaziti.

Regulator pritiska

Regulator pritiska tokom rada održava što je moguce ujednačeniji pritisak u kotlu. Grejanje se isključuje kod postignutog maksimalnog radnog pritiska u kotlu i ponovo uključuje pri padu pritiska u kotlu usled trošenja pare.

Termostat kotla

www.kaercher.com/REACH

OsemHaIOcTaBkata

ObeMt Ha doctabka Ha ypea e n3o6pa3eH ha onakOBkata. Pn pa3oNAKObaHe npOBepete daJIIN cbIbpxKaHneTo e nbIHO.

PnI INNCBaUIN pInHaNJIeXHOCTHn IIN npIN TpaHCnOpTn UeTe NMOJ yBeDomeTe Baunr TBproBec.

Fapanm

BbB Bcya CtpaHa BaKaT rapaHNoHHte ycNoBnI, Np6NkBaHn OT OToP3nPaHata OT Hac DnCTpn6yTopcKaФnpMa. EBeHTyAnH NOBpeHn Ha Ba7n UyeD Ie OTCTpaHm B pAmKnTe Ha rapaHNoHHn CpOK 6e3nLaTHO, Ako Ce Kacae 3a DeFekr T MaTePnaHNe Inn Pnp Ipn3BOdCTBO. B rapaHNoHEn Clyuaye Ce O6bPHeTe KbM DnCTpn6yTopa Inn NaH-6Jln3KnO TOpN3nPaH cepBn3, KaTO PnpctabnE KacoBATA 6eJexka. (Adpecnte ige HameRnTe Ha 3aHaTa CTpaHnIa)

Yka3aHna 3a 6e30nacHOCT

Onachocm

3a6pahehaepabomamae6e3puoeonacHu nomeueHua.
Ipu pa6oma c ype8a 8 onacHu 30Hu da ce cna3eam cbombeHume Mepku 3a 6e3o-nachocm.
Ypeda da He ce u3noJ3ea e baceuHu, Kou-mo cBbpxkam oda.
Upea He mpr6ea da ce u3nol3ea 3a noucme ha enekmpoypeu, Hanp. yphu, KxhHeCKu abcop6ampu, MukpoBbHOBu neku, meeue3Op, lampu, cewoapu, enekmpueecku omnonenu U m.H.
Ipedu u3non3ehe yepda u npuHaedJeKHOc mume da ce npoeepm 3a cbombem-cmbauo Ha u3uckeahma cbcmohue. Ako ypedbm He e o omluHcBcMOnHue, u3non3eaHemo My e 3abpaHeno. MOn npoeepeme cneuaanHo 3axpaHeauaKa6en, peu3uoHmo Kaaue U napocmpuyHnur Mapky.
IoppepeHmpexobu 3axpaheau Kaebmpra6ea He3abaeho da ce 3aemeHu om omu3upaan cepu3/cneuaunucm - enekmpomexnK.
Ipoepednna napocmpyeh Mapkyu mpa6ea da ce cmenu He3abaaHo. I03eNoH e camo u3non3eaHemo Ha npenopbuaH om npou3oodumela napocmpye Hapky (Euk Homepa 3a npbku bcnucka Ha pe3epeHume yacmu).
Hukoa a He dokoceaume konhma ma u uen-cena c enaxHu pue.
Ja He ce obnueam c npa npedemu, Koumo cbobpxam onacnu 3a 3paepemo euecmeba (Hap. a36ecm).
Paphama cmpy He mpr6ea da ce dokocea cpbka om 6nuzko pa3cmohue unu da ce Hacoyea KbM xopa u XuubomHu (cbueecmyea onachocm om u3aaphe).
Ipo epeme Ha pa6oma He 6uBa da ce omepa pypeu3uoHmo kaaye.

△PnpdynpexdeHue

Ypeobm MoKe da ce eknOuea cAmo KbM eNeKmpuuecku KOHmakm, u3nJIHeH om eNeKmpomexHuk cbanacho IEC 60364.
Cepb3eaume ypeda camo KbM npomeHnue mok. HanpexeHuemo mp6ea da cbom- eemcmea ha zumupaHomo ebpyx maBenkama na ypeda HanpexeHue.
Bbe eJaxHu nomeuHua, Hap. 6aHu, EKnUoyBaIme ypeDa e KOhMaKmu c npedea-pumEnHO EknUoyHa npomueoElaOea 3a-uma.
Henodoxoamme yobjxumenu mozam da ca onachu. IV3no3aume eduncmbeHo BO- doycmouue yobjxumenukabcI c ha- npeuHO ceueHue MUHUMYM 3x1 MM2.
Bp3kama Mexoyuencena u yobjxumenHua Ka6eHne 6uea da nonada e8e oda.
Ipu noDMraHa Ha cBeDuHHe Ha MpeXoeua Unu yDbJxumEnnua KaBen mpr6ea da ce zapahmupa 3aUma om eODo Hn npcku u MexahuHa 3dpaBuHa.
Pompe6umenmmp6ea da u3non3ea yepda cnped npednucnnaema.Tou mpe6ea da ce cbo6pa38a c daedeohcmtme Ha mcmo u da eHnmae npu pa6oma cypeda danu HaukoJIO Hma xopa.
To3u ypeMoKe da ce u3non3ea om deua Had 8 aodunu u om luca c oepaHueHu fu3uYeCKU, ceh3OpHu Uu yMcMeEH cnooc6HocMu unu c lunca Ha onum u no3HaHua, ako me bdam pod had3op unu ako ca noIyUu uncmpkyuu 3a be3oNaHOMo u3- non3eHe ha ypeDa u cBp3aHume c Hezo onachocMu. Deama He buea da uepaem Cypeda. POnucMeAnemo u nodpbkama om cmpana Ha nompebumEn He buea da ce u3bpuBaam om deua Be3 Haid3op.
Ipo epeme Ha paBoma ypeDb m da He ce oc-ma8e 6e3 hao3op.
Bhumane npu noucmahe ha cmehu c nloku c KOhmaqumu.

BhumaHue

Bhumabaume kaebm ha ypeda unu ybJxumenma de he ce noepedam unu ckbcam nopadu hacmbnahe, npesbahe, onbahe unu dpyeo. Pase me kaeba om monluna, maca u ocmpu p6oee.
Hukoza He HanuBaIme 6bE oOdHua pe3ep-Boap pa3mBOpumenu, cboBpkaUu pa3meOpumenu meHocmu unu He pa3peDeHu KucEnu (HaP. noucMeau npenapamu, 6eH3un, pa3peDumenu 3a 6ou u aue-moH), mTu kamo me ue pa3aDam U3non3eaHume e ypeDa Mamepuanu.
Ipo epeme Ha noucmeahe ypeb m He 6uaa da ce Hocu.
Ypebymmpa6aa da ce nocmaea ebycmaunha ochoa.
Pabomeme unu cxbxpanhaeaume ypeda camo e cbomeemcmbue c onucahuemo pecn. u3obpaxehuemo!
Ipu pa6oma He 3aknueme Iocma 3a npapa.
Ia3eme ypeo om dbk. He 20 cbxpanhaume Ha omkpmo.

PpeDn3n npncno6neHna

BhumaHue

IpeNa3Hume npucnocobneu r cyjxam 3a 3a- uuma na nompebumeJ u He mpr6ba da ce npomehm unu 3aoBuKanm.

PerylaTop 3a HajraHaTeO

По врeme Ha pa6oTa perуIaTOpbT 3a HaJIraHTo IOДьрЖa MaKcIMaJIHO NOCTOЯHHO HaJIraHTo B KOTeJa. Пи DoCTnIraHe HaMaKcIMaJIHOTo pa6OTHo HaJIraHaBc H KOTeJa HaIpyBaHTo CnIPA, a npi NoHIXaBaHe Ha HaJIraHTo B KOTeJa BCNeIdCTBHe Ha OTdeJIaHTo Ha napaTa OTHOBO CE BKIIQUyBa.

KoteJIeH TepMoCTaT

Korato B cnuyaHa rpeuKa B KOTeHa HMa BO Da, TemnepaTypaTa B Hero Ce NOBuaBa. KoTeHNrT TepMOCTa N3KJIUOyBa HarpraBaHTo. HopmaHata EcKnloaatauia e Bb3MOxHa OTHo BO, KORATO CE HaNbIHH KOTEJbT.

Предан сегмocтат

Ako perynatopbHT Ha harnraheTo n KOTenHnIaT TepmoCTaT OTkaxe B cnyaHa rpeuKa n ype-DbT pperpee, toraba npdePna3HnIaT TepmoCTaT N3KnIOUba YpeDa. 3a BpbUaHe B n3XoJHO noJooKeHne Ha npdePna3HnIaTepMOCTaTe O6bphete KbM OTOpun3npaHnIaCepBn3 Ha KARCHER.

Pebu3nOHNo KaNaYe

Pebu3noHOTOKaaneecbueBpeMeHNOBeHTn3aCBpxHaJraHe.To 3aTbaPRAKoTeNa Cpeuy NOBuaBaHe Ha napOBTO HauJraHe. Ako peryIaTopbT 3a HauRaHeTo Ce NobpeDu n napOBTO HauJaHe B KOTela CE NOKaU, BeHTnJIbT 3a CBpxHaJraHeCe OTbApri NaPaTa Ce OTBeXda HABhN pEe3 peBu3NoHOTOKaane. PpeDu Da PycHeTe OTHOYoypeA, ce oBpHeTe KbM OTOpunpaH cepBn3Ha KARCHER.

OnicaHneHaypeda

B Ta3n INHCTpyKUma 3a yNtpe6a e OINcAoH MaKcImaJIHOTo OobOpYdBaHe. B Obema Ha DoCTabKa IMa pa3JIKN B 3aBNCIMoCT OT MoJeJa (BIXkTe ONaKOBkata).

→ BuxTe CXeMITE Ha pa3IbHa-tata cTpaHnca!

A1 KoHTaKT Ha ypeDa C Kanak
A2 BoDEN pe3epBoap
A3 IpbXka 3a HocHe 3a BOdHnpe3epBoap
A4 PteKbCbaa 3a n36op
A5 O6cnykBaio none

a IHHdkauJa - I03nua OFF
b IHHdkaunr-HeoctnHaBoDa(HEPBEHA)
c IHHdkaunia-3aqrpaBahe (3EJIeHA)
d MIn. napha cTeen
e 30ha 3a n36op Ha cnilata Ha npapa
f MaKc. napHa cTeenH
g IapHa cTeenH cyHKcna Vapohydro
A6 KaNaue 3a YeKMeDxKeTo 3a npHaNDJeXHOCTN
A7 PeBn3IOHNO KaIaYe
A8 IpbXka 3a HocHe
A9Дрьжka 3a пинанлжнocHTN
A10 CbXpaHene Ha npHaJdIeXHoCTnTe
A11 MЯсто 3a CBхpaHene Ha 3axpaHbauия Ka6eJ
A12 Hocay 3a napknaphe 3a noobata duo3a
A13 Mpekobz 3axpaBaU Ka6eN c uencen
A14 Xoobu kOJIeJa (2 bpoa)
A15 Bodeza polka
B1 NapoctpyuH nictolet
B2 JIoCT3a npapa
B3 BytoTH 3a De6Iokpapane
B4 3aunta 3a deca
B5 Napoctpyeh Mapkyu
B6 NapoctpyuH uencen
C1 CtrpyHaIIO3a
C2 KpbIgna YeTka

D1 PbUHa IIO3a
D2 XabnneHO nokpmbano
E1 YdIbnKabauu Tpb6n (2 6pOa)
E2 ByToH 3a De6JIOKIPAne
F1 PiooBaIou3a
F2 3aIbprkaa cko6a
F3 Iodoba Kbpna

Onzna

H1 IOtna c npHo hajrahe
H2 PpeKbcba 3a npapa (doJy)
H3 INdikauza-3aqrpaBaHe (OPAHXEBA)
H4Пркьсваузапа (rope)
H5 BnoknpaHe Ha npeKcbVau 3a npapa
H6 Tepmoperynatop
H7 Napoctpyuen zencen

KpaTko yntbTaHe

→ Bux n3o6paXeHnTa Ha cTpaHnca 2

1 BoDnHrT pe3ePBoaP da ce HapbIHN IO mapKnipOBkata ,MAX".
2 IapoctpyHnIa Tcekep da ce nocTaBn B KOHTaKtHa Ha ypeJa.
3 BkHouTe UencenBa EneKtpnueckata mpeka. BkHouTe ypeDa KaTo 3aBbPnte npek BaHa 3a n36op.
4 NóuKauaJr -3aepBaHemO Mu2a 3eNeHO. ⅢyakaJIte, DOKATO INDnkaCnIra Ta Ha 3arpa BaHETO CBETHE NOCTOARHO 3eNEHO.
5 HakpaHnka da ce BkIouN KbM napoctpyHnra nncToJET. NapoctpyHnraT ypeE e roTOB 3a pa60Ta.

Ecknloatauia

→ BuxTe cXeMITE Ha pa3IbHa-tata cTpaHnca!

MOnTupaHHe Ha npHaadnExhOcHTte

→ Φιγρα 2

OTbopeTe kanaka Ha KOthakTa Ha ypeda.

→ PapoctpyHnT ⅢeNcE ce nOCTaB b KOHTaHa ypeJa. PnTOBa Tp8Ba Da ce YyeΦKcnpaHeTo Ha igekepa.

3a da pa3deIume:HaTuscheteKanakaHa KOHTaKaTa Ha ypeDa HAnOly Nn3BaJeTe npocTpynHnIeNcEJ OT KOHTaKaTa.

→ Φιγρα A - B

CbpxTe Heo6xOdMnTe npHaJnEcxHocTn (BnK rnaBa,In3non3BaHe Ha npHaJnEcxHOCTnte") c napoctpyHnI NcTOnet. 3a ceJIta OTBOpEnHn KpaH na PpHaJnEcxHocTTa Ce nOCTabR Bbpxy napoctpyHnI NcTOnet I ce n36ytBa,doKaTO ce pHKcapa De6loKnpaunr80yToH na napoctpyHnI NcTOnet.

→ Φιγρα

Pn Heo6xOuMOCn 3n0n3BaIte ydbJxHTeHNHTe Tpb6n.3a ceTnA CbByPxKeTe c npoCTpyHnI nCtOnet eHnata pecn. DBeTe ydbJxHTeHNn Tpb6n. Heo6xOuIMATA npnHaDJIeXHOCT Da Ce NoCTaBn Ha CBO6OHNKpaH Na YdbJxHKeTIHnTa Tpb6a.

DemOHTHIPAhe Ha npHaJdJIeXHOCTNTE

Onachocm

Ipu demohmupahe Ha npuaadkHexhocmume Moxe da u3meue opeuca ooda! Hukoaa He demohmupaume npuaadkHexhocmume no epeme Ha u3lui3ane Ha npapa - cbueecm8yea onacHocm om u3apareHe!

NocTaBete 3aunItaTa 3a Deua HADOny (NocT 3a npapa 6noknPanH).

→ Φιγρα D

3a da demoHTnpate npHnAdneXHOCTnTe, HATNCHE Te De6IOKnpauny ByTOH nOTdeJIeTe YacTnTe eHa oT dpya.

PnK3a npHaJneXHocHTte

3a6eJekka: Iodoama Kbprna u xaenueHomo nokpuabaNo ca npedeapumelno u3npahu u mozam dupekmno da ce u3no3eam 3a pa6oma c napocmpyunu ypeod.
→ПеретаambpcenhTe noobn KbpnnnxabBnEHn NOKpBaNa B nepaHn np TempepaTypa 60^ .He n3no3BaIteOMEKOTnEn,3a da moKe Kbpnte doBe daNoemAT Mpbcotna. Kbpnte ca noDxOJa-3a cyuhebe CuyuINH.

Pomou npn Hen3npaBHOCTN

Mhoro YeCTO pInuHnTe 3a nobpeHa ca eIeMeHTapHn N C NOMoUTa Ha CneDnTe yKa3aHnMoJKe Camn Da rN OTcTpaHnTe. AKO He cTe cnTyprHn INIINOBpeHnTe He ca ONiCaHn TyK, ObbpHeTe CE KbM OTOpN3npAHHa cepBn3.

Onachocm

ObcnykxeaHemO da ce u3eBpwea camo npu u3- aeden uencenU oxlaedn napocmpyen ypeD. PemohmHume deHocmu no ypeDa da ce u3- eBpweam eduncmbeHo om omopuzupan cep6u3.

YdbkBaHe Ha BpeMeTo 3a 3arpaBaHe

IapoctpyHnT KOTeJ CbDbpKa BapOBuK

→Поунствае на варовикаварoctpyHня KOTeJ.

JinncaHa napa

Индикага - HeidocTnHa Boda MInra chepBeno n ce cyBa cnHajen ToH.

Jinca Ha BOda BbB BoDnHa pe3epBoap.

→ BoDnHrT pe3ePBoaP da ce HAnbIHN DoMapKnIpOBkata ,MAX".

Индикачи HeIoOCTnHa BOda CBetn chepBeHo.

JInca Ha BOa B NapoctpyHnna KOTeI. 3aun-tata O TnperepaBe Ha nomnPata e N3KNUOyeHa.

→ N3KJIIOUe Te ypeJa.
→ BɔdHnT pe3ePboaP da ce HapbIHN Do mApKInpOBeKaTa ,MAX".
Da ce BknHOnu ypea.

BoHnT pe3epBoap He e nOCTaBeH npaBnIHOJIIMA KOTJIeH KAMbK.

→ CbaIe Te BoHnIpe3epBoap I ro nIaKHe-Te.
→Побtabete BOHINpe3epBOapиHaTnchTe HANOy，DOKaTOceФNKcnpa.

JIocta 3a napata He MoXe Da Ce BKnIOUc

JIoCTbT 3a npapa e ocInypen c 6IoknpoBkata / 3aunItata ot Deua.

→ NocTaBte 3aunTata 3a Deua Hnpei.

Naphata IOTnI,IIIOe BODa!

→ Ioctabete tepmoperyaTopa hcteneH…
→ N3πλκHηte KOTeJa ha napocTpγHnγ ypeД nIŋ rO noHnCTeOT BapOBnK.

Парна стени Варону Habстpoера

→ 3aBbptTe npeKbCbaua 3a n36op Ha 3oHa-Ta 3a n36op Ha cInnata Ha npapa.

Cnei nay3n B rnaheTo OT IOTyTa c napHo NaJraHe N3nn3aT KaNk BOda.

Pnno-npOndbJnxTeHnN nay3n B rJaJeHeTo npaTAt MoKe da KOHdEHNpaB napOpNoBoDa.
→Пьрваразарнаструяда се насочи Кьм OTделна Кьрna.

Bucoko n3nyckaHe Ha Boda

NapoctpyHnT KOTeJ CbDbpxa BapOBVK

www.kaercher.com/REACH

Tarnekomplekt

Lisavarustuse monteerimine

Joonis 2

Avage seadme pistikupesa kate.

www.kaercher.com/REACH

Piegades komplekts

Jusu aparata piegades komplekti ir attelots uz iefakojuma. Izsainojot pbaraudiet, vai satsurir pilinigs.

www.kaercher.com/REACH

Komplektacija

Ctapi npncTrooi MICTaHIMatepiAIN, 10 MOkyTb BKNOPNCTOByBaTnCRA

NOBTOPOHO. TOMy, 6yNb IaCKa, yTnI3yIte TnpICrpoi 3a DOnOMOrOIO CneuaJIbHnx M 360py CMITTR.

Ihctpykuii i3 3acTocyBaHHK KOMnHOHeTtB (REACH)

AkyaJIbHI BiIOMOCTI npo KOMHOENTn HabeJeHi Ha Be6-By3JI 3a aIpecoIO:

www.kaercher.com/REACH

KomnJIeKToNocTaaHHe

KOMIIeKtaIg npIcTpoIO 3a3haYeHa hyaNakOci.Ipn po3nAkyBaHHi npIcTpoIO nepeBipITN KOMIIeKtaIIO.

Y pa3i Hectaui DoDAtKOBOrO oBlaDHaHnA a6o yUkOJKeHb, OTPMAmHx NiI qac TpaHCnpTByBaHHra, CIIIO NobIDOMTe pO ue B ToproBeIbHy orpAHizauHIO, Jka npOdaIa anapat.

Tapahtria

YKOxHi KpaIHi DIIOTb yMOBn rapaHTi,HaadaHOI BiIDNoBIDHOO φIpMOH-npOaBcEM. HenoJaKn Bpo60ti npCtPOu MN ycBaEMo 6e3nPaTHo npTfROM TepmiHy dI rapaHTi, JAKUO BOHN BVKlnKaHI 6paKOM MaTePiaNy Ch NOMInkAmn BnroTOBJIeHHy. Y BnnaDky CUnNHOCTI rapaHTi 3BePTITbCJdo npoDaBcYn B HaB6nKChn ABTOPIN3OBAHm CepBICHm UeHTp 3 DOKyMeHTaIbHm NiDTBvepdxKeHHa NOKyni. (AApceN DnB. Ha 3bOpoti)

Ppabuna 6e3nekn

ObepexHo!

Poboma y u6byxohene3neuHX yMo8ax He do360jraembcra.
Ipu eukopucmaHHi npucmpoIO He6e3neuHux 3ohax cnid dompumyeamucra iDnoiHux npabun mexhiku 6e3neku.
Eknyamaia npcmpo 6baceHi, oMicmmb yody, zaboponeha.
Ppucpii He moXHa eukopucmoeyamu dna yuueHnHa eekmpuHuNX npcmpoie, HappuKnad, dyxOeK, eumxHux Haicie, MikpoxaIbOeux neeu, meeneizopie, lamn, fehie, eekmuHux obiaipieaie moio.
Ipepe uokopumnHm nepeepme cnpaBncmb npucmpo ma akcecayie. Kkuo 0bnaDnHn 3haxodumbcy Hbe3doaHOMy cmahi, uoO He moKHa bukopcmoeyamu.Ocbnue pemelho nepeipme Kaebb MepexHozo KueneHHn, npobky dny mexHiHOo o6cnyooyehnma wana h nodayi napu.
UwKodxehu KaebIb MepexHooZkuBHeHHNoBuHEnbymu HeaaHOn3aMHeHu yNoBHOaKeHoO clyXboOpceBicHOo o6cny2o8yeaHH/phiXiueMe-eneKmpukom.
Uwkodxehu wlahe nodaqui napu nidnaea Heauii 3amhi. Do3eOnjembcya BukopucmaHHn minbku wlaHae nodaqui napu, peKoMeHdoBaHux eupo6HuKOM (Homep dny 3amOBeHnH dyue.y cnuCKy 3anachux yacmuH).
Hikonu He mopkaumecb Mepexhoo omekepy ma pozemku oonozmu pykamu.
He yucmum npoio npedmemu, uO micmmb peoounu, ukiolui 3doop08 (Hapuknad, a36ecm).
UydoHomy pa3i He mopkaumeccmpymehn npu pyko1o 3bni3koieidcmahima He hanaeJume iHa nioe ma meapun (He6e3neka onikie napoi).
Ipo6ka dny mexnHoo o6cnyooyeAHnHe Ma e iDkpuamuc nio yac eknnyamaui.

△Ponepeoehn

Ppucpiu moxe bymu nio'edhaui nuue do eekmpuuhoMepexi,uo noeunha 6ymu 8cmaHOeHa eekmpomohmepom 3eiho 3 IEC 60364.
Ppucmpiu cni dEmukamu nuue do 3minnoo cmpymy. Happya noeunna eidnoeidamu Eka3aHUM Ha fipmoei mabnuci npucmpoko daHUM uodo hapyuu.
U cupux npumiueneHHx, HanpuKnaad, y eahnux kimhamax, ekniouaume npucmpiun bku e po3emku i3 nepeekuoyehum 3anobixkHM bumukayem muny FI.
HeiOnoiHn odoxyeaui moymb 6ymu Hebe3neHmu. BukOpucmoeyme mIbku 6pu3ko3axuuehu nOdoxyeaui i3 nepemuHOM npoody He meHu 3x1 MM2.
3'ehaHnHa MepeKhoBunku ma nodoxxyaHa He noBuHHe Jekamu y eodi.
Ipu 3amini cnojnyhux enemehmie Ha Ka6eJI mepexHo2o JkuElenHnA 60 nooexyuea i noBuHnHa 3abe3neyeamuc6 6pu3ko3axuueHHra ma MexaHnHa MiunHcMb.
Kopucmyaay noeunen eukopucmoeyamu npucmpiu y iidnoeiodocmi do incmpykuii. Bin noeunen epaxooyamu ymou Micueoymi ma 3eepmamu ybaay Ha mpemix oic ndac pobomu 3 npucmpoeM.
Leu npucmpiu do3e0nembc8 bukopcmoeyamu dimm cmapwe 8 pokie i ocobam 3 obmxeHUMU pfizHUMU, cehcoHUMa abo po3yMoBUM moKlueoocmmu, a makoX ocobam, uO He MaIomb nompio dociody u 3HaHb, Kaoo eoHu 3haxodumymcbra iD haJiaDom oc6bu, uO biIOBidae 3aix 6e3neky, i ompumaomb eid II nonepedhi po3'rcHenry bIDHOCHo 6e3neHoi ekCnpyamaui npucmpoIO. He do3e0nJaMe dimam apaMu 3 npucmpoem. He do3e0nJaMe dimm npoeodum ouuueHHma o6cnlyoeyeanHn npucmpo6e3 HaJydy.
He MoXHa 3aIuWam npucmpiu 6e3 Haanay niO yac pobomu.
ObepejNcMb npu yuueHnI kaxeJbHex cmIn 3 eJeKmpuHuMu po3emKaMu.

yeaza!

Cniokyuime 3a mum, uo6 mepejxhi kaeni abo nooboxyaui He moKna byno nowkodmu hacmynuueu Ha Hux, y pezylbami nepeuaHnra, po3ipbaHnra abo noodiHoO ywkodxeHnra. 3axuzaume mepejxhu Kaebibid kapu, ma na ma oocpux noeepxohb.
YxodHomy pa3i He eukopucmo8yume po3uHnku, pioHn, 0o Micmpb03uHnku a6o Hepo3eedehi Kucnomu (hnp., MuHi 3acobu, 6eh3un, po3piKyeayi pap ma auemoh) i He 3aIueaIme ix y bak dny bodu, ockInbku BOHu aapecuEHO ennuabomha Mamepianu, eukopucmaH e npcmpoi.
Ipehenoc npucmpoio ndac po6im 3 ouuueHHa3aboponeHui.
IpucmpiHHeo6xio hO po3miamaHa miCuHIOcHOeI.
Ekcnnyamyeamu ma 36epiaamu npucmpiu 3aioHo do onucy ma manIOHKie!
Iid yac pobomu He do3oJIembc8 6nokyeaHna baxen npaui napu.
3axuzaume npucpii eio douy. He 3epeiaeme nioikpumum He6om.

3axnchi npictpoi

yeaza!

3axuchi npucmpoi cnayomb dna 3axucmy Kopucmyaue. Budo3miHa 3axuchux npucmpoi yu HexmybaHn Hmu He donyckaembcra.

Perynatop Tncky

PergyIaTOp TnCKy UTPmUe MaKcImaJIbHO noCTiHn TnCK y pe3epByapi nID uac po6oTu npuJaY. HarpiBaHHraBIMKaAcTbcra pRn DOcRHeHHi MaKcImaJIbHO rO 3NaueHHraPo6oHOro TnCKy U pe3epByapi, i npn naiHnTIcky B pe3epByapi BHaCNIIOk BiD60py napHarpiBaHHra 3HOby BMKaAcTbcra.

Tepmoctat KOTna

JaKIO npn BUNHKHeHHI HeCnpaBHOCTi y KOTJI He Mae BOIN, TEMpepaTya B HbOMy NiDnUuyeTbcra. TepMOCTaKOTJIA BUMNKaE HarpiB. 3BvauHn pekm po6ToN 6Ye 3HOBy DOCTUYHNI, KOJI KOTeI 6Ye 3AnOBHeHNI.

3axnCHNI TepMoCTaT

JaKuo peryIaTOP TnCKy Ta TePMoCTa KOTna BnIIOB i3 NaI npu BNHNKHeHHi HecnpaBHOcTi I npiCTpiI nepeRpiBCr,TO pNCTpiB BMnKaEbCz 3a DonOMOrO 3axNCHOrO TeMocTaty. 3BepHITbc DO BiDiny 3a6e3neueHHa 3axNCHMn TeMocTATAMN B BiINOBIHni CnyKoi o6cnlyroByBaHHa KJIeHTIB KOMNaHII "KARCHER".

Побka Дд Тхичноро obcnyroBybaнь

Пробka дяTekhiHOrO obcnyroBvBaHnЯ e OdnohyacHO i peyuKuHnM KnaIaNOM.BoHa 3amNkae KOTeI BID BUNHkaOHyo TnCKy napi. RaKuo peryIaTOp TnCKy noUKOJKeHO i TnCK napi B KOTJI 3pocTaE,TOpeyuKuHn KnaIaN HBiDUnHReTbCra i npa BNXOOnTb Ha3OBHi uepe3 npo6Ky dЯ TekhiHOrO obcnyroBvBaHnR.. 3BepHIbCra,6yd NaCa,do BiDiNpy BiDNoBLeHnRApoBTo n pnpCTpOu B BiDNoBIdHni Cnyk6i obcnyroBvBaHnKJIeHTIB KOMNaHII KARCHER.

Onnc npncptpo

YcIbOMy noci6Hnky 3 ekcnnyatauui HabeJeHO ONUC pncTPOU 3 MAKCImaJIbHOO KOMJIeKtaueIO. KomNKeTauaB iDpi3HReTbcra 3aJIeXHO BID MoDeJI (DNB. yNaKyBaHH).

306paXeHHaNb.Ha po3Bopoti!

A1 ⅢepebHa po3eTka npnlaу 3 KpuIkoIO
A2 Pe3epByap IЯ BODI
A3 Pучka peЗервару Дя Вори
A4 菲佩明凯
A5 PanaheIb ynpablinnHa
a IhdkaTOp "PoiJoxeHHBIMNK"
b IhdkaTOp "HeCTaHa BOIDn" (UEPBOHIN)
c IndikaTop "Harpib" (3EJIeHnI)
d Mih. KjIbKiCTb napi
e Bn6ip diaana3ohy BNtpaTn napi
f MaKc. KInbKiCTb napi
g KInbKiCTb napu,dyHkciJa Vapohydro
A6 3amok BiDcki DnIa akcecyapib
A7 Ipo6ka dny texhHoro o6cIyRObyBaHHa
A8 Puyka
A9 Tpimmaq dIpaIpaHaJIeXHoCTeI
A10 36epirarHn akcecyapib
A11 Miche nIy 3epeiranHn MepeXhoro shhya
A12 NapkyBaJIbHe KpiIJIeHnHa cAcdKn dIpy nIiJIoRn

A13 MepexeBn Ka6eB 3i StTeNceJbHIO BUNIkoHO
A14 Pobouki koneca (2 wTuKn)
A15 CnpmaMOyBaJIbHn BaJIeIb
B1 Iapobni nictolet
B2 Baxilb noaipn
B3 Khonka po36bokybaHHa
B4 3axntBid ditei
B5 Napobni wlaHr
B6 Ⅲtekep noaui napu
C1 CoNIO TOUKOBOTO CTpymenH
C2 Kpyrna uitka
D1 Puyne conno
D2 POKPITT3 enoHky
E1 IopobKyBaJIbHI Tpy6Kn (2 WtYkn)
E2 Khonka po36JokyBaHHa
F1 Conno nla nony
F2 3atncka
F3 TAnuipka dnn MmTTn iDnorn

Onci

H1 Пpacka Дяпасувань napою niD TnCKOM
H2 Bvmkau napi (hixhi)
H3 IndikaTop "Harpib" (IOMAPAHUHEBNI)
H4 Bvmka Napu (Bepxhi)
H5БLOkyBaHHBmMkaa napi
H6 Peryntop temepatyp
H7 Ⅲtekep noaui napu

Kopotka i nctpykciia

→ДиВ.МалнOKнHa CTOpiHci 2

1 HanoBHTn pe3epByap IJRA BODIO BiDMITKIN "MAX".
2 BctabTe wTekep noaui napi B wTeencbHy po3eTkpy npnady.
3 BCTaBTe 5TEnCeIbHy BnIky. YbIMKHyTI npIcTpi, oBepyBUn nepemikau.
4 IHOukamop "Haapie" 6JIUMae 3eJIeHUM. 3aueKaTn, pOKI INdIkaTOp "HarpiB" He 3acBITNTICr 3eJIeHIM.
5Пибднaite hacaikydo napoboro nictoleta. Napobn cenapatop roTOBn do pObToN.

EkCNNyatauia

3o6paXeHHaNb.Ha po3Bopoi!

3MOHTyBaTHO6JIaHaHHA

He bukopucmoeyamu 3ibpany doouoy oody!

→ MaHIOHOK 1

Дянановспь ВОJO MOЖHA 3ЯТи pe3eрБуар Дяв ВODи abOн HANOBHOBaTN IOrO BODO6e3nocepeHbOHa npICCTpoI.

3HHTpe3epByapy DnBODN

→ПOTЯнтугпразервардя ВориВертукальноугopy.
→ 3anobHnTn pe3epByap nIa BODn BePTKajbHo nIa BOJOpOBiDnM KpaHOM Do nO3naUKN MAX".
→ BctaHOBtI pe3epByap IЯ BOi Ta haTNCHTI Ha HbOrO Do φikcauii.

Be3nocepedHbO Ha npuiJaDi

→ HaNITN BOy3 6MHOCTi y 3aJIINBHy Bnpy. 3aONBnTn Do nO3HaCKn ,MAX".

YbimKHeHH npnlaNy

→Пипад HeобхiДно Встановлобати на МИЧУ OCHOBY.
→ BcTaBTe MepeXnHm uTKepey uTencelbHy po3eTKy npuNaNy.
→Пелевеси перемпач 3 положень ВIMIK в положень, BiДноВибраНOMу дIANa3OHy BInТрати napи. Inoukamop "Haapis"БлUMаЗ 3eЛeнUM.

Bkaieka: JaKo y npoOmy KomIi biCymna eOda a6o II HeBaAamO, Emukaembcra 6oRaHui Hacoc ma nodae body 3 pepepyapn oEoU do npoOzo Komla. Ppouec 3anOBHeHHa EoHO MoKe mpuEamu deKiNbKa XbUnH.

3auekaTn, nOKn He 3acBITncs iHdkaTOp "HarpiB".

Iapobn cenapaTop roTobn do p60tn.

Bka3ieKa: PpuCpmi KoxH6 6eKyHd Ha kuiCb yac 3akpuBa cKnAnaH. Lc 3anobiae 3aKluuObaHHc KnAnaHa. Ppu cIbOMy moKJIueo noymu mxe KnaaHn. Bunyck npay epe3 ue He 6yde npuyeno.

DOnnBaHnBBoN

Pn HeCTaHi BOiB pe3epByapi InBa BOi6IIMae YepBOHIn iHNkaTop "HeOniK BOnu", a TAKOX 3ByuHTb 3ByKOBI CNHaJ.

Bka3ieKa:KoKHO2O pa3y, KOJIu 8 npoOBMy KOMNI 3aIuaaembca 3aHaMo MAna KINbKicMb eOdu, 8o8nH u Hacoc aemomamuHNo nOdae oody 3 pe3epeayd7ne Odu 8 npoBu komen. RaKIO pe3epeayd7ne Odu npoxHi, mo 8o8nH u Hacoc He MoXe HanoBHObamu npoBu komen i Eio6ip napu bKnOkymbcra.

→ HanoBnHTn pe3epeByap IЯ BODI BOIMITKIN "MAX".

Bka3ieka:Yepe3 Heeenuki npomixkU yacy 608nH Hacoc HamaaaembCra Hano8Humu npo8u komen. JaKo npouec Hano8HenH npoxodumy ycniHoo, opa3yJ eIDHOeMbc8 eId6ip napu i CheepuH iHoukamop eUMukaemcbc.

PeryIIOBaHHKJIbKOcTi napi

UnpaBnHnKiIbKICtNo nap3ZdiChIOeTbc3a
aONOMOIO nepEMNKaua.3aJeXHO bID BIRJMy
Ta iHTehCNBHOCTi 3abpydHeHHNcEi nepEMNKa
DO3BOJLAE BVbpatn HanaHTyBaHHB DianA30Hi
BID MIn. (He3NaHHi 3abpydHeHH) DO mAcC.
KiIbKOCTi napn (3NaHHi 3abpydHeHH).
IJa cINbHnx 3abpydHeHb, po3aUoBaHHx y
BaxkOIOCTyUNHX MICzAx, cIid BVbpatn
fynKciu Vapohydro.

YctaHObKa kInbKoCTi napi

BctaHObHTn nepemKau Ha Heo6xIDHy kiIbKicTb napy.
→ Hatncitb Ha Baxkilb noaChi napi, npu cboMY cnoatky Haprabnoun napOBn nicToJeT ha TkaHHy, nokn npa He 6ynde BHXOINTPiBHOMipHO.

BmKHeHH npuJaDy

Baxilb noaqui nap He moxha HaTCHyTN

Baxijb npaui napn 3aqiKcobAHni 6IIOkyBaHHM / 3axNCTOM BiD BKJIoueHHra DiTbMn.
→Перевеси вперадн ec nolokhenha 3axnct BiДдITEI.

PnncptiDnA YnueHnna npoH "BnllbOByc" Bovy!

BCTaHOBuNTnpeyIpyTOpTeMnepaTyprn B nOJKeHHa
→ПомИТИ KOTIEL ПИСТРОДЯ УИSEЕНHA npoIO a6O BnDAJIHTI 3 HbOrO HAKIN.

BctaHOJIeHHyHKuVapohydro

IpebeBcTnIepeMkauBIOJoxHnN "Bubip diana3OHy BITpAn npu".

PicnnepeepnbB npaCybaHni 3 npackn BnuIaHTbc KpanPi BOi

Пи Тпвалnx Nepeрьх nap мож Кондсуваць в napорpoBOД.
→ Perpши Stpymihb napy cnid cnpryMaTn Ha TkaHInHy.

Bucokn Buxid BoDn

Ynapobomype3epByapi 3'raBvBaHakn

→ BnDanitb hakin 3 napoBoro pe3epByapa.

3aapanchi yactuHn

BnKOpNCToBvIeTbJIbKnOpriBHaJIbHbI3aNaChi
actHnHfipMn KARCHER. Onnc 3anachnx
yactHn HapnKiHcI daHOi IHCTpyKci3
ekpnyataii.

Texhui XiapaKTepuCTnKn

EneKtpnHi 3'cDHaHHa

a gj 2 all Jkwhu uo e clal j

.wwjoo

alwogoljEj

jgl jol jj J

Jawal alg

.aa

jIJIcIeOJe Ie bEaIIeJz

/1aiiiaaegwoggnoe

J a,b a, a,b

gjgl jIbJl aIa> alw gblol

L

Lio（）JalI Iaololol

.clo

aJrJl jorJrJl aJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJr

··

ggljllcbilljgeylecbwl

.1gio aJl allj

abg Vapohydrojll a

a

J

aJbssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

jIaIolso no eLo

Jn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

a a

gj jll no aeg JgJ ggg

alaoa jolaoe

olall no oas

jLJIaIc aJ> cJwJg>g

aLc no aJzll aawjll alljlu

J

JlJIy JliJll

iic. llll joi jol jol oclua

L 105

e aae aoe 50

.aaai

jbs

w 10 y/ a/ all Jla/c j> paa

jdy jydu

y1jg2//Jc2x0y1Jlaol pia//jz

. laia/laie/ aoj jso Ndo

algb jz

jLJIaIc aJ>UwJg>

aLc no aJyJtJyJyJy

J

2x - y = 8

glll jaoe clalqps

aag ojol jdag

.1all 1j

a0x 1 aal jj Jai

"

nlll

.

gog. g. aalall aod oalw

J 100000000000000000000000000000000000000000000000

oogallolal no ayxlil gaiy p . (Iooall jbal) loai

o 12a/ aJzai// sGw pDzuiy J 1000000000000000000000000000000000000000000

j4.2

golpdoaaijllaljly

a aal lal lal al aal aal aal aal aal aal aal aal

aIeI aIg cIaI aas wls Ials abglo clal Jai cIaI aizao pgo jLlA yLc

JLJI/laI JI IaI JI JI 10
Ig29 IcJlclAI JI JI LIOICJ. JIJI

Jl/ aLc o clal aiaa gbiu J 1jll 2g adac Jubei pW9

11" aXc 111 1j

oJg jI sIaI I aI Jglz abglo
aIac pI loicg JIyI aIc cJai JIaII JIyI GJyS aIac gJzI cJai IJyI JIyI JIyI JIyI

J111 405

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

G J 111111111111111111111111111111111111111111

jll 405 1

JlJIaos Jc JuiyI cio 1oo

cllljJ 10

.

1. yla/ 20 20 45 60 10

cIglo/sgl/abu1go aoe psc

！(jocJia//Jwlc)

yI Ic /baoclo/2w/pccl

a:ajjI 50%50

1a2axo jbo 100 100

10g

jgl jgl jgl jgl jgl jgl jgl jgl

aJz

sogas Jkaw clal jz w p

aill aolc clal jg eJp

sagac Jkaw aizg jIg."

.

jglalclaljjJlslp

Jawal alg

.aa

jglj 0oJooJzll Jo

cJall gao 6eog no slal a

111 aXe 111 1j

"

jglj

.

J 1

J

OFF 1yllg 00000000000000000000000000000

Jl 1

Jlll 1

y

.0jaiuoo a

J

!aagall aaxal jblj gall

J

20g

JJIJI JIJIg aJg jIJI IJI JIJI

.

J 1

.8gaaog

jgljwglbcjclaia:Jaell

Jaa Jaa Jaa Jaa Jaa Jaa

jIgJl

B-Aoo

Jgjbl) a0jUU Ua>duu Jgog

n nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

Jolgo Jkiy jz

wduo Jc JzJdJI Jg.5

.

j 1

.122 20

a

OFF

（a>）eJU J 1

（）

d

e

f

Vapohydro abg g

J

A6

A7

Aa 8

A9

A10

JJJJUdUdUdUdU>J<0 A11

A12

A

J LgUgUg A13

(1) a : a A A14

A15

B1

B2

B3

Jl6b7JI aIla> alwB4

B5

B6

C1

0 0 C2

D1

D2

(2) ydoJl oJyJIo E1

aJg cllln no aia yiaia jyia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I yia I y ia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia Jyia

Jn J

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

KARCHER cLac aao JgJg JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

jgljll

piaa/la 1c 1o/11jae jae 9/1gclc Jc

.

Iaiaial piaio

bdo jL bdo a bdo 1
jol .n J k0yll oJ y00
Jl J J doo Jgog s c J
s J Oo a d w p g a L f
Jy Jy Jy Jy Jy Jy Jy Jy Jy

aJz

y/ jge//jog y
1g9 00 aaa, p b29 .IEC60364laal

22 1jg>1 j0g p
1g>1 g0 jg>1 g>1 g/aj j
1c 2g>ga// ala// lc 2sia//
jg>1

pai y. lola// jio aip// slo//
muo o// jj// jao//
.FI /lol/ liaa/ 29j0 Joo

yai/1LwJkuu/kaal/ 1c Jaiy/2g.0gbsauiia// cll 1o a2o yai lIw pIzwi// .jY/ Ic x13 gbao /j wlg jwggogg yj y

llw g/ aS/11 115 100g jddic
210 11L/11 aJla> 1c 1s/11 1yjda//
.4S/11 S/11 4yJla/1g sla//

jgljll Jlaeew/olxiuall lc j 1jg .022a//olg// lqg abzai//k//og//o//uic /lsw//osw lc o2g plzuiw/uc//k//jia// jglj

llw adog JdW/ Lc JgJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJ

Jl/10gbs JIuWbJgE//Lc p9
s//Jl/10gbs P2wU. c//lll
//10j a9seal) guaal 4,2a
./10gba9 aa/la

1j 1y 1g yIy Jy y 1y

Jgj j 11 / 11/11/11/11/11/11/11/11/11/11/11/11/11/11/11/11/11/11/

1/21/11 0/21/11 y jg//j

aui|la>

oIg gll alg fai Ialg 10
Jol lgl p c jy Jdssy
Ig Jg aiaaall aalw 9 oog
gOg Olacl aiaaall agjll gao

J L J 10000000000000000000000000000000000000000000000000000000000000000000000000

alaleeilllalll

f bafjll jg> pdsawb.
aJzall aBtll Jrcl
n 1
yJl jll jll jll J
llk Aswiaiaai all jgs oD
LJ LJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJL

Jjll Jd j0g jg

1
0
/
/
/
/
/
/
/
/
/
/
/
/

jgljllc o2g>gall jgoJll

1JdJdJdJdJd

http://www.kaercher.com/dealersearch
