Product type	Webcam
Brand	GENUIS
Model	VIDEOCAM SLIMCLIP
Category	Camera
Power supply	USB (5V)
Connection	USB port
Dimensions (approx.)	80 x 30 x 20 mm
Weight (approx.)	50 g
Image resolution	Up to 640 x 480 pixels
Main functions	Still image capture, AVI video recording, digital zoom, security function, email sending, video calling
Included software	CD-ROM with drivers and Genius VideoCAM UI application
Messaging compatibility	MSN Messenger, Yahoo Messenger, CUseeMe
Maintenance	Clean the lens with a soft dry cloth
Safety	Do not expose to water, avoid shocks
Spare parts	USB cable, CD-ROM (drivers and software)
Repairability	Contact GENUIS customer service
Installation instructions	Install the driver before connecting the camera to the USB port

Frequently Asked Questions - VIDEOCAM SLIMCLIP GENUIS

How to install the camera driver?

Insert the CD-ROM, then click on Utility Driver and follow the instructions. If the installation screen does not appear, go to Start > Run, type D:\SETUP.EXE (if D is your CD drive).

Why does the camera not work after connecting?

Make sure you have installed the driver before connecting the camera to the USB port. If the problem persists, uninstall the driver and software, then reinstall correctly.

How to take a photo with the camera?

In the Genius VideoCAM UI interface, click on the C icon (Take a photo) or use the physical Snapshot button on the camera.

How to use the digital zoom?

In Web Cam mode, use the J (Zoom In) and K (Zoom Out) icons. You can also adjust the image with the movement arrows (left, right, up, down) by clicking on L.

How to record a video?

Click on the D icon (Capture full motion image) to start recording in AVI format. To play a file, click on A.

How to configure the surveillance system?

Click on the G icon (Surveillance). You can set a recording duration. The camera detects motion and records automatically. In the absence of motion, it turns off after 4 seconds.

How to send a photo by email?

From the interface, click on the F icon (Send by email). Your default email client will open with the photo attached.

How to adjust exposure in bright environment?

Go to Camera Control > Control > Exposure and adjust the settings as needed.

How to use the camera with MSN Messenger?

Under Windows XP, open a conversation, click on the person's name, then on Start camera. The other person must accept. For the downloaded version, click on Webcam then Get a webcam.

What to do if the CD-ROM does not start the installation?

Open Start > Run, type D:\SETUP.EXE (replace D with your CD drive letter) and press Enter. The installation will start manually.

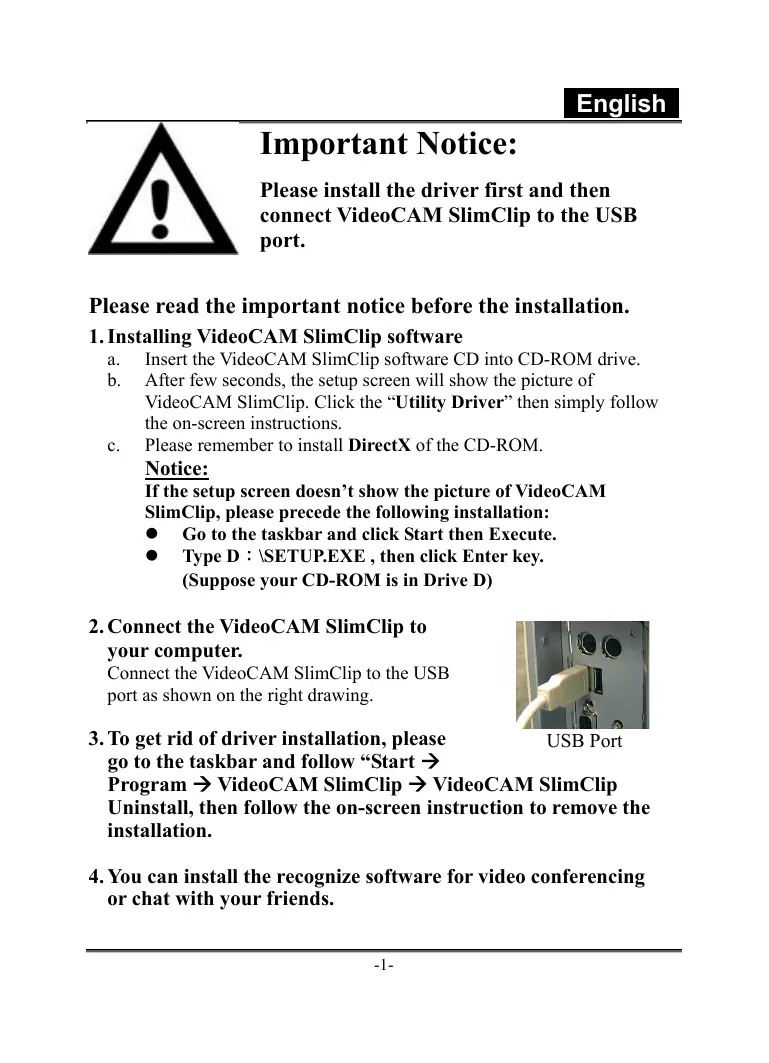

USER MANUAL VIDEOCAM SLIMCLIP GENUIS

Please install the driver first and then connect VideoCAM SlimClip to the USB port.

Please read the important notice before the installation.

1. Installing VideoCAM SlimClip software

a. Insert the VideoCAM SlimClip software CD into CD-ROM drive.
b. After few seconds, the setup screen will show the picture of VideoCAM SlimClip. Click the "Utility Driver" then simply follow the on-screen instructions.
c. Please remember to install DirectX of the CD-ROM.

Notice:

If the setup screen doesn't show the picture of VideoCAM SlimClip, please precede the following installation:

• Go to the taskbar and click Start then Execute.
• Type D : \SETUP.EXE , then click Enter key.

(Suppose your CD-ROM is in Drive D)

2. Connect the VideoCAM SlimClip to your computer.

Connect the VideoCAM SlimClip to the USB port as shown on the right drawing.

USB Port

3. To get rid of driver installation, please go to the taskbar and follow "Start

Program VideoCAM SlimClip VideoCAM SlimClip Uninstall, then follow the on-screen instruction to remove the installation.

4. You can install the recognize software for video conferencing or chat with your friends.

You can use snapshot button to capture still image or rotate the lens cover to adjust the focus.

5. Function description for the major icon

A. Play the .avi file.
B. Preview the video image.
C. Take a picture.
D. Capture image with full motion video.
E. Camera Control
F. Send photo through e-mail.
G. Use PC camera as a security monitoring system.
H. Exit the Genius VideoCAM Series UI.
I. Convert AVI files into MPEG-1 format
J. Zoom In (Web Cam mode Only)
K. Zoom Out (Web Cam mode Only)

L.

You can adjust the image to the position you would like to have by clicking Left, Right, Up, or Down. (Web Cam mode Only)

NOTE

• Make sure to install the USB driver before connecting the device otherwise unable to install properly. If you encounter problems, uninstall the driver and software then follow the proper installation.
  Should you need the device under high luminance environment, please follow the steps as below:

Camera Control Control Exposure

Should you need the device to activate the animation function, please follow the steps as below:

Capture image with full motion video Click the

1. Function description for the security monitoring system icon.

You can record any movements that appear in front of your monitor automatically. It can also record anytime until the HD is full. If there's no movement, it will shut down automatically after four seconds or until there is new movement. It's a great security monitoring system and you can set the software so it works at times when you're not around.

A.

Setup time of the security monitoring system.

When you start to record video, please press the play button.

NOTE

The recording file will be retained in C:\WINDOWS\Album.

1. The camera is compatible with MSN Messenger, Yahoo Messenger, and CUSeeMe.

2. MSN Messenger Guide

Microsoft Windows Messenger has been included with Microsoft Windows XP (or you can download from http://www.msnmessenger-download.com) to provide videoconferencing service.

Using MSN Messenger as for Videoconferencing

• If you are using MSN Messenger included with Windows XP, please follow the procedure as below:

Click the person's name you would like to connect with Click the Start cameras button The text message window will display the message: "You have asked to have a video and voice conversation. Please wait for a response or Cancel (Alt +Q) the pending invitation." the other person will click Accept or Decline to begin or terminate the video and voice

conversation.

• If you download the MSN Messenger from the website (http://www.msnMessenger-download.com), please follow the procedure as below:

Click the person's name you would like to connect with Click the Webcam button the other person will click Accept or Decline to begin or terminate the video and voice conversation. Click Get a webcam

Yahoo Messenger Guide

From the main Messenger window, click the Tools menu, select Start My Webcam, then press the Broadcast button press the camera icon on the toolbar select the Friend menu and choose Invite to View My Webcam

CUsSeeMe

(for more detail, please access http://www.cuworld.com/join_room.asp)

Click "Join a Group Video Chat and Meet CUWorld

"Members" on the main CUSeeMe window The webpage of Join a CUworld Video Chatroom Select a channels link under the icon on left of the webpage Pick a Room from the list you want to join You will automatically be launched into a video chat

NOTE

Please make sure you already installed the camera driver and connect the camera to the computer before running video conferencing or video chat.
Please make sure you close the other webcam program before running the video conferencing or video chat.
