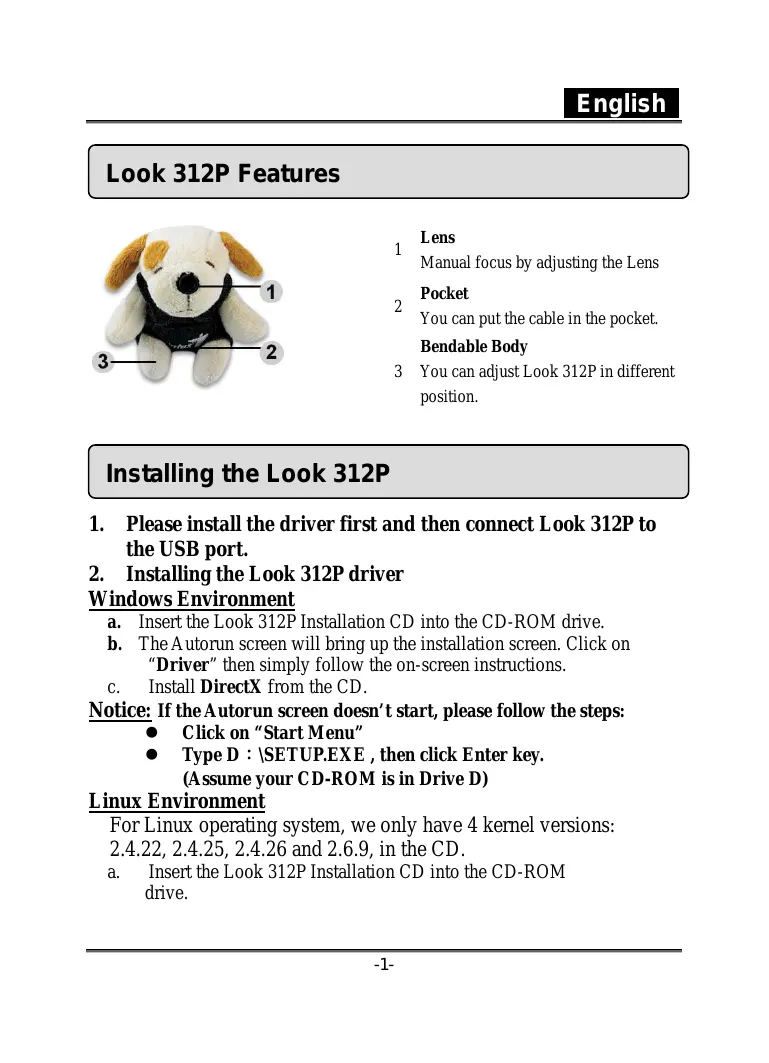

USER MANUAL LOOK 312P GENUIS

Manual focus by adjusting the Lens

2

Pocket

You can put the cable in the pocket.

Bendable Body

3

You can adjust Look 312P in different position.

Installing the Look 312P

1. Please install the driver first and then connect Look 312P to the USB port.
2. Installing the Look 312P driver

Windows Environment

a. Insert the Look 312P Installation CD into the CD-ROM drive.
b. The Autorun screen will bring up the installation screen. Click on "Driver" then simply follow the on-screen instructions.
c. Install DirectX from the CD.

Notice: If the Autorun screen doesn't start, please follow the steps:

• Click on "Start Menu"
• Type D : \SETUP.EXE , then click Enter key. (Assume your CD-ROM is in Drive D)

Linux Environment

For Linux operating system, we only have 4 kernel versions:

2.4.22, 2.4.25, 2.4.26 and 2.6.9, in the CD.

a. Insert the Look 312P Installation CD into the CD-ROM drive.

b. Click on the CD-ROM Driver.
c. Choose the file folder, "Linux Driver".
d. Chose the kernel version which is correspondent to the version of your operating system.
e. Click on the file, "Readme.txt", to know the installation steps.

1. Insert the Look 312P's USB cable to your desktop's or laptop's USB port.

1. Complete software and hardware installation. You can install the software you would like for video conferencing or chat with your friends.

Genius Application (Windows Only)

You can use our software to capture the real-time image, record or execute the simply security function.

To run the software, please go to the task bar and follow "Start" Click "Program" Choose "Look 312P" Click "Look 312P". Or you may execute the software by simply clicking the shortcut of "Look 312P".

NOTE

After installing the driver of Look 312P, the system will automatically create a file (C:\WINDOWS\Album or C:\WINNT\Album) to save the images you take using the Genius Application.

1. Description for the major icon

Preview mode

Snapshot mode

Video Clip Mode

Security monitoring system

Exit the Genius UI

Camera Control

NOTE

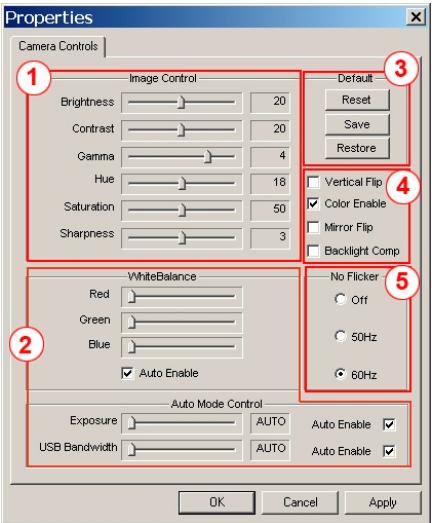

In the "camera control section", you can personalize your camera

settings for different circumstances.

You can adjust different values for different circumstances and environment
You may adjust values toward image appearance. Before adjusting values, you have to unclick "Auto" to unlock.
-Press "Reset" to return to the manufacturer's settings.

-Press "Restore" to return to the previous settings.

-Press "Save" to save the values you set up.

• You can flip the image horizontally or vertically by choosing "Mirror Flip" or "Vertical Flip".
• -If your web camera is located in backlight position, you may click "Backlight Comp" to get a sharper image.
  ⑤ Select the correct frequency according to the country where you are using the web camera.

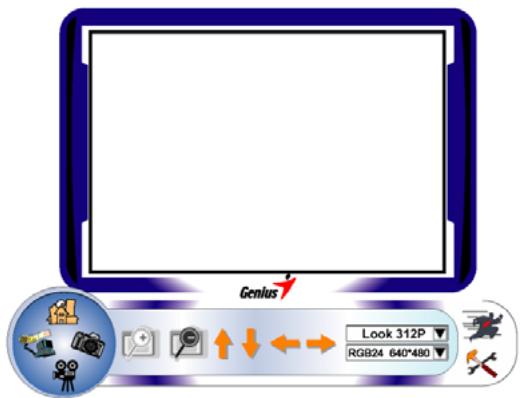

2. Preview Mode

You can use the function buttons on the control panel to zoom in/out and move upward/downward/left/right.

Zoom in the image

Zoom out the image

Move the image upward

Move the image downward

Move the image to the left

Move the image to the right

RGB24 640*480

Resolution Selection

There are 2 categories of resolution: RGB24 and

1. You can select 5 different image resolutions for each of them. The file size of 1420 will be smaller than

RGB24. So, I420 may be the better choice for

transmission.

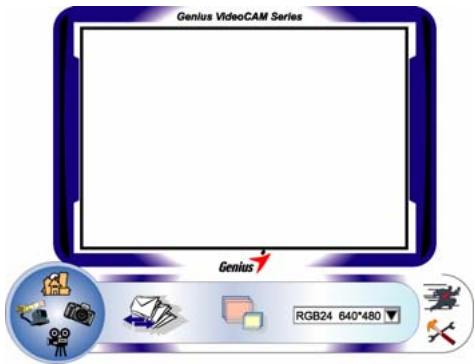

3. SnapShot Mode

You can press the Snapshot button in the right of the circle to take a picture right away and share with your friends.

Send photo by e-mail

Shoot continuously

RGB24 640*480

Resolution selection

This section shows the resolution you selected in the "Preview Mode". If you want to change the resolution, please click "..."to go back to the "Preview Mode" to make the changes.

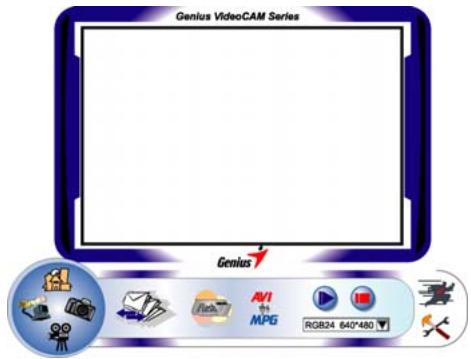

4. Video Clip Mode

You can record real-time image in this section.

Send photo by e-mail

Convert AVI files into MEPG-1 format

Start recording

Stop recording Exit the Video Clip Mode

To Create animation

Press to start; Press to stop

Press to return to the video recording mode

This function has to be under the resolution of RGB24 320 x 240 or I420 320 x 240. Please make sure the resolution is correct before executing this function.

RGB24 640*480

Resolution selection

This section shows the resolution you selected in the "Preview Mode". If you want to change the resolution, please click " "to go back to the "Preview Mode" to make the changes.

5. Security Monitoring System

This function records any movements that appear in front of your monitor automatically. It can also record anytime until the HD is full. If there's no movement, it will shut down automatically after four seconds or otherwise it will be active when detecting new movement. It's a great security

monitoring system at times when you're not around.

Start recording

Stop recording

Setup time of the security monitoring system

Set up the degree of the variance for every second of recording image. When the differences are over the setup degree, the system will alert you.

Set up the different alerting sound effects

NOTE

In "Security Monitoring System" section, you can record in any size of image resolution. If you want to change the resolution, please click "to go back to the Preview Mode" and make the changes.

MSN Messenger, Yahoo Messenger, AIM

■ MSN Messenger

a. For live video function, you'll need MSN Messenger version 6 or later. If you don't have it, please refer to the website: http://www.msn messenger-download.com to download.
b. Now, get to sign onto MSN Messenger service.
c. Choose a friend on the contact list and Click "OK" to confirm.
d. Double-click on your friends, who are available to chat. Click on the web camera icon
e. Your friend will then receive an invitation message. When your friend confirms to talk, the video chat will start.

Yahoo Messenger

a. Download Yahoo Messenger at http://messenger.yahoo.com and finish the registration, if you don't have it.
b. Sign onto Yahoo Messenger.
c. From the main window, click Tools menu, then select "Start My Webcam".
d. Right-click on a name in your Messenger List and choose "View Webcam".
e. Your friend will then receive an invitation message. When your friend clicks YES, the video chat will start.

AOL Instant Messenger

a. You can download AOL Instant Messenger free at http://www.aim.com and finish the registration, if you don't have it.
b. Sign onto AOL Instant Messenger.
c. Click on "Show Messenger Lists" and choose the friend you want to start with video chat with.
d. Your friend will then receive an invitation message. When your friend confirms to talk, the video chat will start.

NOTE

Please make sure you already installed the camera driver and connected the camera to the computer before running video conferencing or video chat programs.
Please make sure you close other webcam programs before running the video conferencing or video chat program.

DDPlayCam Software (Windows Only)

DDPlayCam is an interactive multimedia software. It integrates the most advanced virtual interactive technology: facial recognition and motion tracking, with cartoon characters, figures and amazing visual effects, allow you doing virtual role play, interacting with virtual environment, morphing yourselves in real time.

DDPlayCam includes two parts: DD ThemeParty and DD ThemeParty PrintCenter. DDPlayCam is for virtual role play. DD ThemeParty PrintCenter is for arranging the pictures you take in DD ThemeParty and printing them out.

1. Installing the DDPlayCam Software

1. Insert the Look 312P Installation CD into the CD-ROM drive.
2. The Autorun screen will bring up the installation screen. Click on "DDPlayCam" then simply follow the on-screen instructions. Once finished, DD ThemeParty and DD PrintCenter are ready to go.

2. Running DD ThemeParty

a. Connect the web camera to the computer
b. Please go to the task bar and follow "Start" Click "Program" Choose "DDPlayCam" Click "DD ThemeParty". Or you may execute the software by simply clicking the shortcut of "DD

ThemeParty"

DThemeParty

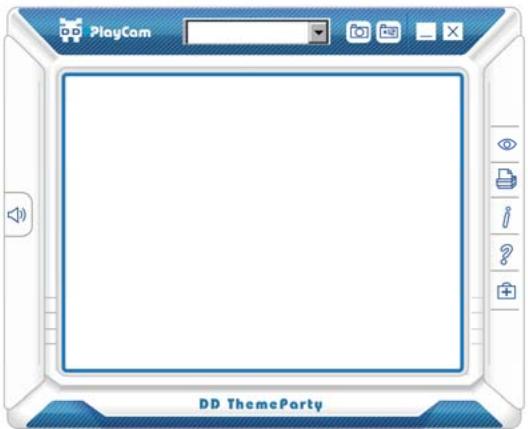

DD ThemeParty Introduction

To run DD PlayCam DD Theme Party, you should set your camera resolution to 320*240 and also check for your position before the web camera. Please position your face around the center position as possible.

Please note that if your camera resolution is not in 320240 , the software will ask you to make the change. Please follow the on-screen instructions to change the resolution to 320240 .

Tool Tip
Function Description

AboutDD PlayCam Display DD PlayCam software version

Capture (Enter) Take a snapshot in process

Sequential Capture Take 12 snapshots as a GIF animation

DD PrintCenter Open DD PrintCenter application

Close Windows Exit application

Help Call help documentation

Minimize Windows Minimize skin

Mute Turn off audio

Technical Support Connect to technical support web service

View Photo View photo from captured pictures or animation.

3. Running DD PrintCenter

a. Connect the web camera into the computer
b. Please go to the task bar and follow "Start" Click "Program" Choose "DDPlayCam" Click "DD PrintCenter". Or you may execute the software by simply clicking the shortcut of "DD

PrintCenter"

DD

ThemeParty

PrintCenter

DD PrintCenter Introduction

DD PrintCenter lets you easily print digital photos by using a variety of layout templates. Please note that as an indivisible part of DD PlayCam software, this function allows you only to print photos generated by DD PlayCam software and saved automatically in the DD PlayCam folder within My Pictures.

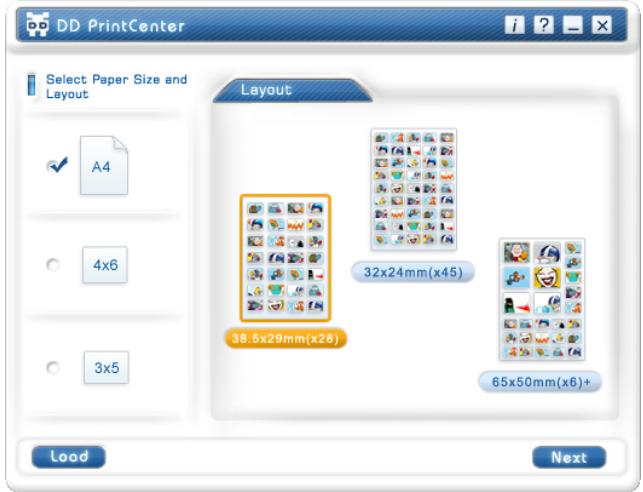

a. Step 1: Select Paper Size and Layout or Load Document

DD PrintCenter provides you three standard paper sizes. They are A4, 46 and 35 inch styles. Each paper of the sizes contains three types of layout templates. Firstly, you have to select a paper size and simultaneously you can see three corresponding layout templates on the right part of the windows. Each layout template shows you the actual size of a single photo and the number of photos a single paper can print, such as 24mm^*18mm . Select the layout by directly clicking the template, and then click the "Next" button. Or click Load button to open an existing DD PrintCenter document.

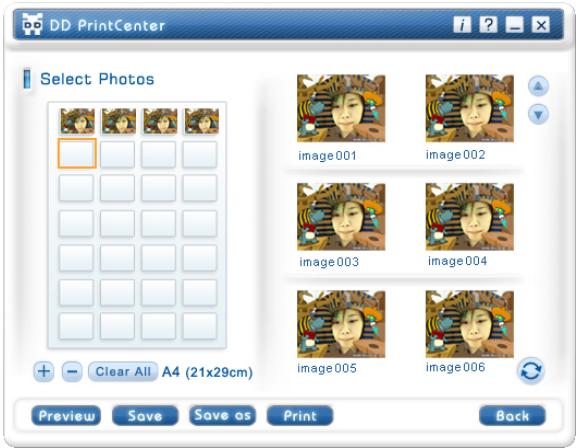

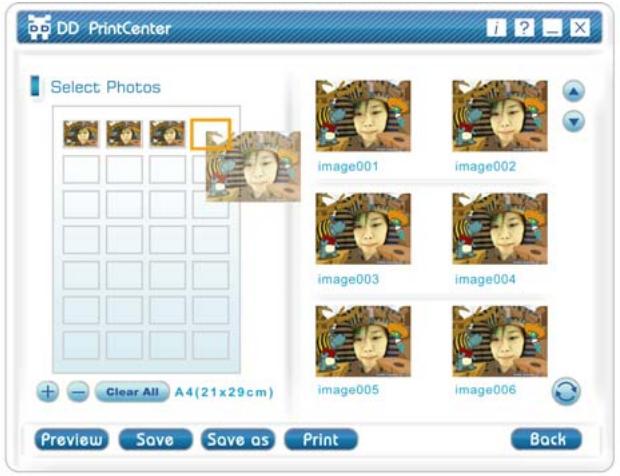

b. Step 2: Choose and Load Photo

You can see an empty layout template and thumbnail pictures that you captured and saved in the DD PlayCam folder. Roll over any pictures you want to print and drag it directly into an empty position you would like to place it in the template. Or click an empty position first in such a case the frame of the position marked immediately and double click on the picture you want to print. You will see the picture you have selected showing on that position.

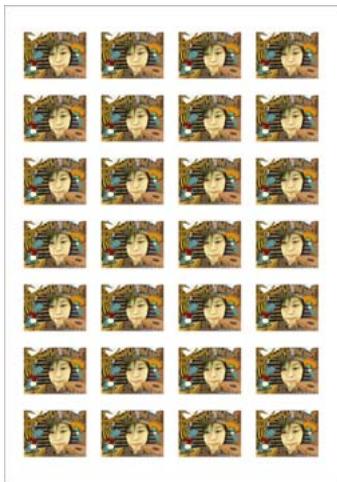

c. Step 3: Add, Delete and Save

If you want to print several copies from the same picture, you do not have to repeat the steps for dragging. You only need to select the target picture which you have already dragged into template and click the "+" button. The picture will duplicate at the next position automatically. One clicking, one time of duplication! Adversely, if you want to delete the picture which you have already dragged into template, just select the target picture and click the "-" button. On the other hand, if you want to save the whole template with selected pictures for printing next time or elsewhere, just clicking on "Save" button. The whole template will be saved as a single JPEG file extension. In the save combo box, you can select another file extension called PCF to save template layout you have edited as a DD PrintCenter document. For next time, you can use the "Load"

button to open the PCF file for further editing. You can also use Save as function to save a file as the format you indicated.

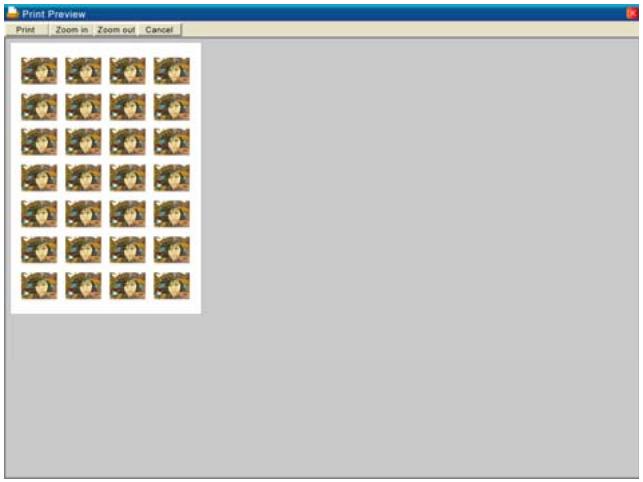

d. Step 4: Preview and Print

You can click the Preview button, then Print. However, please note that DD PrintCenter does not provide functions for controlling or adjusting any settings of your client printer device. We recommend you should check your printer settings and the paper you have loaded before printing.

NOTE

For further information about the DDPlayCam software, please go to the task bar and follow "Start" Click "Program" Choose "DDPlayCam" You can click "Click "DD ThemeParty Technical Support"; "DD ThemeParty User Guide" or "DD ThemeParty Web Service" depends on your requirement.

To remove the driver installation: Please go to the taskbar and follow "Start" "Program" Choose "DDPlayCam" Click "DD ThemeParty Uninstallation", then follow the on-screen instructions to remove the driver.
