USER MANUAL LOOK 313 MEDIA GENUIS

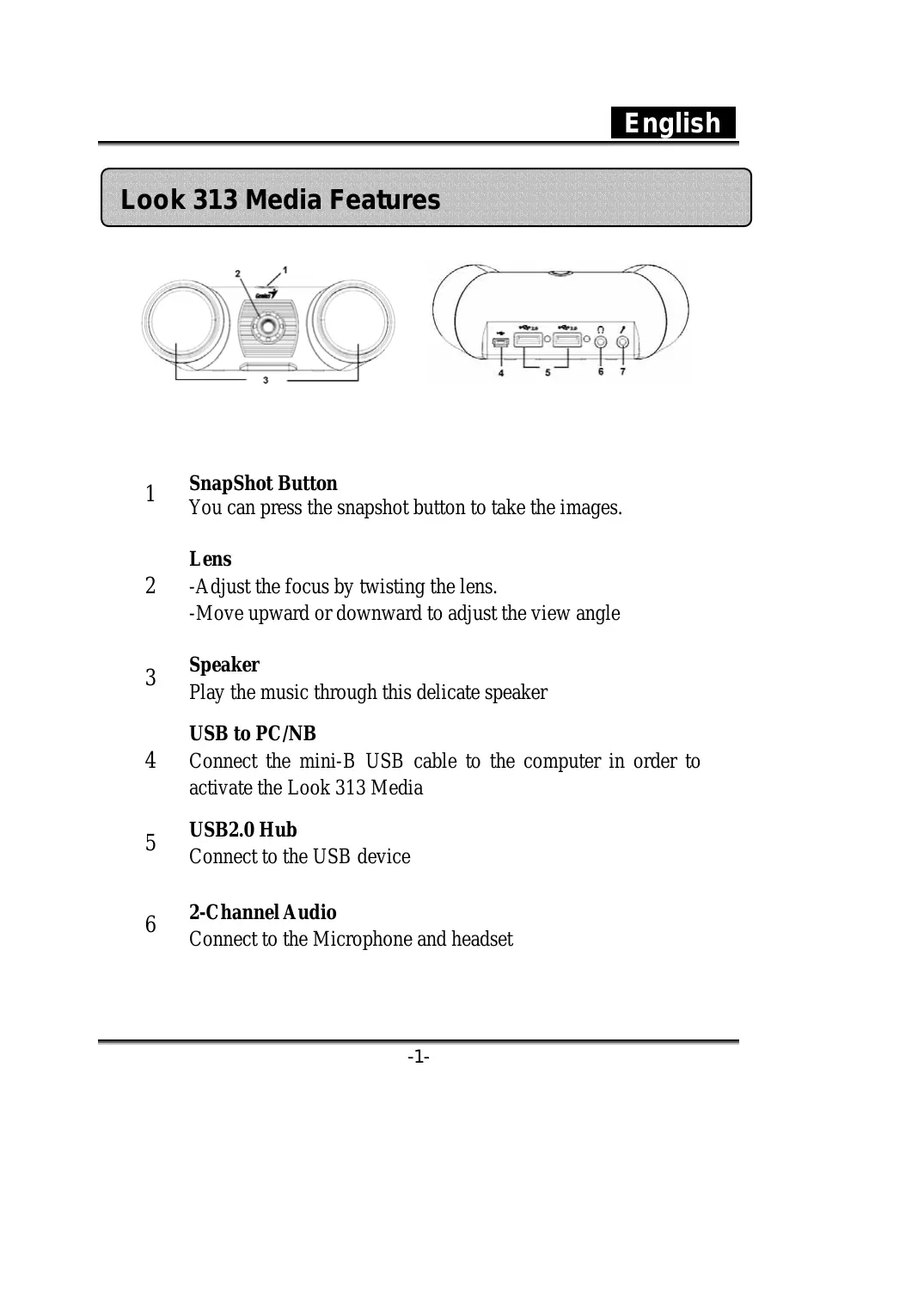

| Look 313 Media Features SnapShot Button You can press the snapshot button to take the images. Lens -A djust the focus by twisting the lens. -Move upward or downward to adjust the view angle Speaker Play the music through this delicate speaker USB to PC/NB Connect the mini-B USB cable to the computer in order to activate the Look 313 Media USB2.0 Hub Connect to the USB device 2-Channel Audio Connect to the Microphone and headset

1. Please install the driver first and then connect Look 313

Media to the USB port.

2. Installing the Look 313 Media driver

Windows Environment a. Insert the Look 313 Media Installation CD into the CD-ROM drive. b. TheAutorun screen will bring up the installation screen. Click on “Driver” then simply follow the on-screen instructions. c. Install “DirectX” from the CD. Notice: If the Autorun screen doesn't start, please follow these steps: e Click on “Start Menu”. © Type D] \SETUPEXE , then click “Enter” key. (Assume your CD-ROM is in Drive D) Mac Environment a. Insert the Look 313 Media Installation CD into the CD-ROM drive. b. Double click on the CD-ROM drive. c. Click on the file folder of “Look 313 Media Driver OSX 1.0”. d. Click on “Look 313 Media Driver Install” then simply follow the on-screen instructions. e. Restart the computer Notice: e The Look 313 Media can work properly with any video chat software supported video feature and USB web camera. The iC hat can’t be supported because it only support the Apple’s web cameras or the IEEE 1394 web camera.

3. Insert the Look 313 Media’s USB cable to your desktop’s or

laptop's USB port. Please follow the instructions to connect the USB cable properly.

EEE 43 a. Mini-B Connector Please connect the mini-B connector to the Look 313 Media b. Connect the USB connector as for the power supply Please connect to the USB connector to the computer’s USB port. c. Connect the USB connector as for providing more power and being another USB port. If you connect the high power consumption USB devices to the Look 313 Media’s USB ports, like scanner, digital camera, etc., you will need to connect the USB connector to your computer’s USB port. Meanwhile, this USB connector has the hub feature. So, you can connect the USB device to it as long as it is connected to the computer. Complete software and hardware installation. You can install the software you would like to use for video conferencing or chat with your friends. Speaker A djustment For getting the best quality, we will suggest you to clockwise or counterclockwise from the side to the front. DEC — OEC

NOTE m To remove the driver installation: Windows Environment: Please go to the taskbar and follow “Start” > “Program” > “Look 313 Media” Click “Uninstall”, then follow the on-screen instructions to remove the driver. Mac OSX Environment: Please go to the HDD of the operation system “Application” “Look 313 Media” Click “Uninstall”, then follow the on-screen instructions to remove the driver. | Genius Application (Windows Only) You can use our software to capture the real-time image, record or execute the simply security function. To run the software, please go to the task bar and follow “Start” > Click “Program” Choose “Look 313 Media” > Click “Look 313 Media”. Or you may execute the software by simply clicking the shortcut of “Look 313 Media”. NOTE & After installing the driver of Look 313 Media, the system will automatically create a file (C:\WINDOWS\Album or C:\WINNT\AÏbum)to save the images you take using the Genius Application.

1. Description for the major icon

AS In the “camera control section”, you can personalize your camera settings for different circumstances.

(es EYES - You can flip the image horizontally or vertically by choosing “Image Mirror” or “Image Flip”. - When the light is not sufficient, you may click on “Low Light” to get a clear image. You can adjust different values for different circumstances and environment When you want a still image capture, you can drag the bar to select a resolution size you want. -VGA: 640 x 480; -SVGA: 800 x 600 -XGA: 1024 x 768 -SXGA1280 x 960 You may adjust values toward image appearance. Before adjusting values, you have to unclick “Auto” to unlock. -Press “Reset” to return to the manufacturer’s settings. -Press “Restore” to return to the previous settings. -Press “Save” to save the values you set up.

Select the correct frequency according to the country where you are using the web camera. (Before doing this, you will need to select “Indoor”.) -If your web camera is located in backlight position, you may click “Backlight compensation” to get a sharper image. -You can have a black-and-white photo effect by clicking on “B/W Mode”.

Satres [ESS Zoom side Cour C Ent CPR men mu 5 Mr Dee db Cm Te CPR > um Ca Ce There will be 27 different kinds of video effects/frames for you to select. The effects can also be applied to the video chat software, like MSN Messenger. You can directly connect to this effect page from the web camera settings in the video chat software. Besides the 27 kinds of video effects/frames in section 1, you also can bring in your customized frame. Please note that, in the customized frame, you must have the color in Pantone 255 in the area, where you want your image show up. The area in Patone 255 is where the image is going to display. The frame size needs to be 640 x 480 pixels.

@ Auto Change: Once you choose this, the 27 kinds of video effects will take turns from the first one to the last one. No effects & frame: Once you choose this, the video effects will be determinate. Zoom Corot CT 2e | us In this section, you can enable the “Zoom” function. Please select “Enable Zoom” before zooming. -Scroll the bar to zoom in or zoom out -Press the 4-direction button to move the image upward, downward, leftward, and rightward.

You can use the function buttons on the control panel to zoom in/out and move upward/downward/left/right.

[' +} Zoom in the image Zoom out the image Move the image downward

{ Move the image upward

Move the image to the left

mD Movethe image to the right Resolution Selection There are 2 categories of resolution: RGB24 and 1420. You can select 5 different image resolutions for each of them. The file size of 1420 will be smaller than RGB24. So, 1420 may be the better choice for transmission. RGB24 640°480 W]

You can press the Snapshot button & in the right of the circle to take a picture right away and share with your friends. EL: Send photo by e-mail C Shoot continuously

Resolution selection This section shows the resolution you selected in the (RG624 640480] “Preview Mode”. If you want to change the resolution, please click "to go back to the “Preview Mode” to make the changes.

4. Video Clip Mode $

You can record real-time image in this section. = — °e *# d=E: Send photo by e-mail ConvertAVI files into MEPG-1 format Start recording Stop recording Exit the Video Clip Mode © œ@inkf

To Create animation Press fl to start; Press e stop

Press to retum to the video recording mode This function has to be under the resolution of RGB24 320 x 240 or 1420 320 x 240. Please make sure the resolution is correct before executing this function. Resolution selection This section shows the resolution you selected in the “Preview Mode”. If you want to change the resolution, please click “2 go back to the “Preview Mode” to make the changes. RGB24 640°480 W]

5.Security Monitoring System *e This function records any movements that appear in front of your monitor automatically. It can also record anytime until the HD is full. If there's no movement, it will shut down automatically after four seconds or otherwise it will be active when detecting new movement. It's a great security monitoring system at times when you're not around.

Start recording (æ Stop recording Setup time of the security monitoring system Set up the degree of the variance for every second of recording image. When the differences + Senstty _= are over the setup degree, the system will alert you. CE aet Setup the different alerting sound effects NOTE Li In “Security Monitoring System” section, you can record in any size of image resolution. If you want to change the resolution, please click “Æl"to go back to the “Preview Mode” and make the changes.

6. Volume adjustmentQ}

After installing the Genius application, you will find the icon on the right-hand side on the task bar. You can click on it to pop out the window as below to adjust the volume of the audio devices. Before using the volume adjustment function, please select the audio devices.

Speaker Volume You can adjust the speaker’s volume or the headset/earphone in this section. Mute: Select it to disable the voice. Volume: Scroll the bar to control the volume Balance: Scroll the bar to control the volume of the right and left speaker. Speaker Volume You can adjust the speaker’s volume or the microphone in this section. Mute: Select it to disable the voice. Volume: Scroll the bar to control the volume

| MSN Messenger, Yahoo Messenger, AOL | LC MSN Messenger a. For live video function, you’1l need MSN Messenger version 6 or later. If you don’t have it, please refer to the website: http://messenger.msn.com to download. b. Now, get to sign onto MSN Messenger service. c. Choose a friend on the contact list and Click “OK” to confirm. d. Double-click on your friends, who are available to chat. Click on the webcam icon. e. Your friend will then receive an invitation message. When your friend confirms to talk, the video chat will start. f. For the further information, please refer to the website at http://messengermsn.com LC Yahoo Messenger a. Download Yahoo Messenger at http://messengeryahoo.com and finish the registration, if you don’t have it. b. Sign onto Yahoo Messenger. . From the main window, click Tools menu, then select “Start My Webcam”. d. Right-click on a name in your Messenger List and choose “View Webcam”. e. Your friend will then receive an invitation message. When your friend clicks YES, the video chat will start. f. For the further information, please refer to the website at http://messengeryahoo.com

LC AOL Instant Messenger a. You can download A OL Instant Messenger free at http://www.aim.com and finish the registration, if you don't have it. b. Sign onto AOL Instant Messenger. c. Click on “Show Messenger Lists” and choose the friend you want to start with video chat. d. Your friend will then receive an invitation message. When your friend confirms to talk, the video chat will start. For the further information, please refer to the website at

http://www.aim.com É NOTE ” Please make sure you already installed the camera driver and connected the camera to the computer before running video conferencing or video chat programs. ” Please make sure you close other webcam programs before running the video conferencing or video chat program. | DDPlayCam Software (Windows 2000/XP Only) DDPlayCam 2.0 is an interactive multimedia software. It integrates the most advanced virtual interactive technology: facial recognition and motion tracking, with cartoon characters, figures and amazing visual effects. It allows you do a virtual role-play, interacting with a virtual environment, morphing yourself into real time. It includes 3 cutting-edge software programs: DD ThemeParty2.0, DD PlayCam @live and DD PrintCenter. DD ThemeParty 2.0 is intended to be interactive educational multimedia, which delivers improved performance for both real-time video streaming

and special effects applied to streamed video. DD PlayCam @live 2.0 is the transmitting function of Internet application with interactive multimedia software for DD PlayCam-DD ThemeParty 2.0, which can be applied to data transmission with instant peer-to-peer synchronized video and synthesis for real-time effects on the Internet.

1. Installing the DDPlayC am Software

a. Insert the Look 313 Media Installation CD into the CD-ROM drive. b.The Autorun screen will bring up the installation screen. Click on “DDPlayCam” then simply follow the on-screen instructions. Once finished, DD ThemeParty , DD PlayCam @live and DD PrintCenter are ready to go.

2. Running DD ThemeParty Software

a. Connect the web camera to your computer b. Please go to the task bar and follow “Start” Click “Program” > Choose “DDPlayCam”— Click “DD ThemeParty”. Oryou may execute the software by simply clicking the shortcut of “DD ThemeParty” LC DD ThemeParty Introduction To run DD PlayCam DD Theme Party, you should set your camera resolution to 320*240 and also check for your position before the web camera. Please position your face around the center if possible. Please note that if your camera resolution is not in 320*240, the software will ask you to make the change. Please follow the on-screen instructions to change the resolution to 320*240.

Check version of DD PlayCam-DD Î About DD ThemeParty ThemeParty. | | Capture Snapshot Take a snapshot of the current screen. Capture Animation Take 12 snapshots as a single GIF animation. 7 DD PrintCenter Open DD PrintCenter to print snapshots. X Close Window Close DD ThemeParty 2.0. ? Help Open DD ThemeParty 2.0 user guide. pe Minimize Window Minimize DD PlayCam to a button on the taskbar. “| |Mute Turn off audio. : Send a message to DD PlayCam technical I |Technical Support upport. @| |View Photo View snapshots or GIF animations.

Send Snapshot [Email a snapshot to a friend. Open manager to setup themes or change DD ThemeParty Manager Disable Effects Do not apply effects to web camera image. Do not show animations on top of web Disable Animations : camera image. S| | F1 12] (@ DD PlayCam @live Open DD PlayCam @live to use peer

Connect the web camera to your computer Load the instant messenger software For using the DD PlayCam @live with your instant messenger software, you need to go to the section of the camera setting in your instant messenger software. Whatever the web camera uses for the instant messenger, you have to change the device to “DDPlayCam”. The DD PlayCam @live then can work properly with the instant messenger software. Then you can start DD ThemeParty 2.0 and select one theme. When you press the button, the slash in the icon means data transmission under the disabled status, the stream from DD ThemeParty 2.0 will be sent to the virtual camera and then be sent to the instant messenger software. At this time, the altemative peer can see stream data you have transmitted in real time. DD PlayCam @live 2.0 allows peer-to-peer transmission. Only if both peers have installed DD ThemeParty 2.0 and DD PlayCam @live

2.0 virtual camera driver, stream data can be transmitted

synchronously by the same procedures to connect to other peers, so that the alternative peer can see the process as you use the software. If you want to stop the data transmission, just press the button again on the interface of DD ThemeParty 2.0.

4. Running DD PrintCenter

a. Connect the web camera into the computer b. Please go to the task bar and follow “Start” Click “Program” > Choose “DDPlayCam”— Click “DD PrintCenter”. Or you may execute the software by simply clicking the shortcut of “DD ThemeParty” l’on the right-hand side of the main frame # DD PrintCenter Introduction DD PrintCenter lets you easily print digital photos by using a variety of layout templates. Please note that as an indivisible part of DD PlayCam software, this function allows you only to print photos generated by DD PlayCam software and saved automatically in the DD PlayCam folder within My Pictures.

Step 1: Select Paper Size and Layout or Load Document DD PrintCenter provides you three standard paper sizes. They are A4, 4*6 and 3*5 inch styles. Each paper size contains three types of layout templates. First, you select a paper size and you can see three corresponding layout templates on the right part of the window. Each layout template shows you the actual size of a single photo and the number of photos a single paper can print, such as 24 mm*18 mm. Select the layout by directly clicking the template, and then click the Next button. Or click Load button to open an existing DD PrintCenter document.

Step 2: Choose and Load Photo You can see an empty layout template and thumbnail pictures that you captured and saved in the DD PlayCam folder. Roll over any pictures you want to print and drag it directly into an empty position you would like to place it in the template. Or click an empty position first and the frame of the + position is marked immediately, double click on the picture you want to print. You will see the : Le + picture you have selected appear = in that that position.

Step 3: A dd, Delete and Save If you want to print several copies from the same picture, you do not have to repeat the steps for dragging. You only need to select the target picture which you have already dragged into template and click the “+” button. The picture will duplicate at the next position automatically. One click, one duplication! If you want to delete the picture that you have already dragged into template, just select the target picture and click the - button. On the other hand, if you want to save the whole template with the selected pictures for printing next time or elsewhere, just click on the “Save” button. The whole template will be saved as a single JPEG file extension. In the save combo box, you can select another file extension called PCF to save the template layout you have edited as a DD PrintCenter document. For the next time, you can use the Load button to open the PCF file for further editing. You can also use Save as a function to save a file as the format you indicated.

Step 4: Preview and Print ms YOU can Click the Preview button, cocc then Print. However, please note Ses that DD PrintCenter does not PTT j i j (sas provide functions for controlling or ECLTI adjusting any settings of your client bdd printer device. We recommend you should check your printer settings and the paper you have loaded before printing. NOTE ” For further information about the DDPlayC am software, please go to the task bar and follow “Start” > Click “Program” > Choose “DDPlayC am” + You can click Click “DD ThemeParty 2.0 Technical Support”; “DD ThemeParty 2.0OUser Guide” depends on your requirement. = To remove the driver installation: Please go to the taskbar and follow “Start” > “Program” > Choose “DDPlayCam” > Click “DD ThemeParty 2.0 Uninstallation”, then follow the on-screen instructions to remove the driver. the on-screen instructions to remove the driver.
