USER MANUAL P533 GENUIS

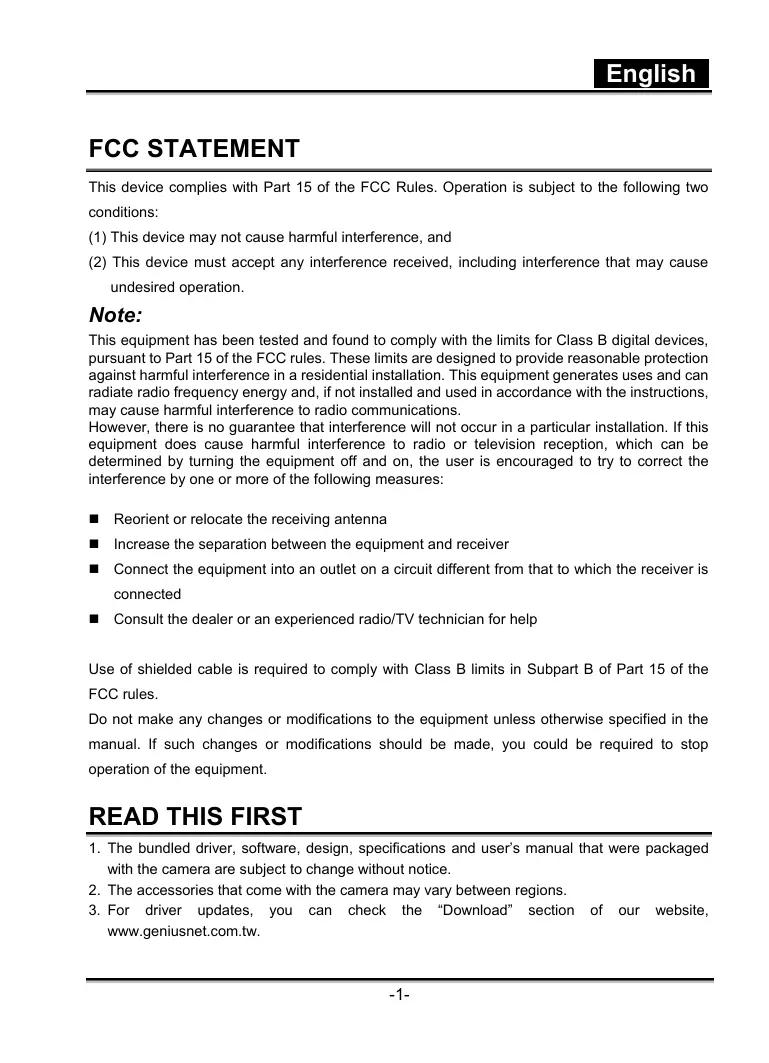

FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 ofthe FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oceur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuming the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: m_ Reorient or relocate the receiving antenna M _ increase the separation between the equipment and receiver = Connect the equipment into an outlet on a circuit different from that to which the receiver is connected M Consult the dealer or an experienced radio/TV technician for help Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

. The bundled driver, software, design, specifications and users manual that were packaged with the camera are subject to change without notice.

2. The accessories that come with the camera may vary between regions.

3. For driver updates, you can check the ‘Download’ section of our website,

4. We are not liable whatsoever for any compensation arising from errors in descriptions in this

users manual WARNING D Do not use the camera if it is emitting smoke, becomes unusuall hot to be touched, emitting any unusual odor or noise, or if it is in any other abnormal state. Operating the camera in any of these situations may cause a fire or an electrical shock. Stop using the camera immediately, tum the camera off, and then disconnect the power source (batteries or AC power adapter). If you are using îhe AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. After checking that smoke is no longer being emitted, contact your dealer or a local authorized service facility and request repairs. Never attempt to repair the camera yourself, as this will terminate the warranty. D Do not use the camera if any foreign objects have entered the camera. Turn the camera off, and disconnect the power source (batteries or AC power adapter). If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. Then contact your dealer or a local authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock. M {the camera has been dropped or if the camera case has been damaged, turn the camera off, and then disconnect the power source (batteries or AC power adapter).if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. Then contact your dealer or a local authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock. M Do not place the camera in any unstable locations such as on a wobbly table or sloping surface where the camera may fall or tip over and cause injury. M Do not expose the camera to moisture and make sure that there is no water getting into the camera. Take particular care when using the camera under extreme weather conditions such as rain or snow, or when operating the camera at the beach on near water. Water in the camera may cause a fire or an electrical shock. M Do not attempt to modify the camera. This may cause a fire or an electrical shock. M Do not remove the camera casing. This may cause an electrical shock. Your dealer should only carry out intemal inspection, maintenance and repair or a local authorized service facility. M Do not touch the power plug during a thunderstorm if you are using the AC power adapter. This may cause an electrical shock.

CAUTION Do not place the camera in damp or dusty locations. This may cause a fire or an electrical Shock Do not place the camera in a location affected by oil fumes or steam, such as near a cooking stove or humidifier. This may cause a fire or an electrical shock. Do not cover or wrap the camera or the AC power adapter with a cloth or quit. This may cause heat to build up and distort the case and cause a fire. Always use the camera and its accessories in well-ventilated locations. Handie the camera carefully and do not bump the camera into any hard object. Handling the camera roughly may cause a malfunction. Do not move the camera while it is switched on. (If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have switched off the camera.) Ensure that any connector cords or cables to other devices are disconnected before moving the camera. Faïlure to do so may damage the cords or cables and cause a fire or an electrical shock. When leaving the camera unused for long periods, such as during a vacation, always remove the batteries from the camera or unplug it from the power source (AC power adapter) for safety. If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. Failure to do so could result in a fire. Do not use batteries other than those specified for use with the camera. The use of unsuitable batteries may result in the batteries splitting or leaking and causing a fire, injury, or soiling of the battery compartiment. When placing the batteries into the camera, check the polarity markings on the battery (- and +) to ensure that you insert the battery correct}. Incorrect battery polarity may result in the batteries spliting or leaking and causing a fire, injury, or soiling of the battery compartiment. Remove the batteries if the camera will not be used for an extended period of time. The batteries may leak and cause a fire, injury or soiling of the battery compartiment. If the batteries leak, clean and wipe the battery compartiment carefully and install new batteries. Wash your hands carefully if you touch the battery fluid.

CAMERA. 8-13 Front view Rear view Mode dial Viewfinder LED indicators LCD monitor information GETTING STARTED 1416 Installing the batteries Charging the Battery Inserting an SD memory card Attaching the strap TAKING PHOTOGRAPHS 16-28 Photography in the Auto Capture Model E3 ] Using the Viewfinder Using the LCD Monitor LCD Monitor Display (Capture Mode) Using the Optical Zoom Using the Digital Zoom Using the Self-timer Using the Flash Changing the Focus Changing the Exposure Compensation Setting the Image Size and Quality Photography in the Program Model P } Photography in the Shutter Speed-priority Model TV] Photography in the Aperture-priority Model AV] Photography in the Full Manual Model M] Photography in the Portrait Model @ } Photography in the Sports Model Z* ] Photography in Night Scene Model ( ] Making Movie LA |

IMAGES/MOVIES TO YOUR

INTRODUCTION Overview Your new digital camera delivers high quality, 2560 x 1920 resolution images using a 5.25 Mega pixels CCD imager. Using either the optical viewfinder or the 1.5" TFT color image LCD monitor, You can compose images and then examine them in detail. An auto-flash sensor automatically detects the shooting (lighting) conditions and determines whether the flash should be used. This feature helps ensure that your images turn out right. SD Memory Card is storage medium for saving images that you have photographed. Even if the camera's power is tumed OFF, the images saved on the SD Memory Card are not erased. SD Memory Card can be repeated read and written. Images you have taken can be downloaded to your computer using the USB cable (USB driver required for Win 98 and Mac OS 8.6). You can enhance and retouch your images on your computer by using the provided editing software, or image editing software you may have already owned. You may share your images with your friends via e-mail, in a report, or on a website. DPOF functionality allows you to print your images on a DPOF compatible printer by simply inserting the memory card. Note: The memory card testing results for 512MB are based on Toshiba, Panasonic and Sandisk SD Memory Card. Package contents Carefully unpack your package and make sure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer. D Digital camera D ss ccbe M Licco cable D Scie CD-ROM D Users manual D Camera strap

D Quick guide D Camera pouch BE 50 Rechargeable Lithium lon M A 2208 SD memory card Batteries M Rechargeable Lithium lon Battery M Rechargeable Lithium lon Battery Charger Charger Power Cord M Ac Piug Adaptor for EU to US Note: Accessory and components may vary by different retailer. T7-

Front view Selftimer/AF support LED Optical viewfinder Built-in flash Shutter button Lens/lens cover POWER Power button MIC Microphone Mode dial DC IN 5V terminal USB/ANV OUT terminal alolo/s\olals|wlnls

Rear view Viewfinder Diopter adjustment dial Viewfinder LED 5/8] Zoom button Speaker

| gd Focusbutonmaco MENU LES Focus button/macro C6 MENU Menubutton

Command dial 3 SET Setbutton "2 Arrow button (right) 10. Ü Delete button © W® Flahbulon 11: Tripod socket A / 12. Battery/SD Memory Card 5Y Arrow button (down) cover &ANr.… Selftime buttonfnterval 13. LCD monitor

Viewfinder LED Indicator Description Color State Setup Mode RISEgE Charge PC Mode Battery Mode Mode AEorAFis [instandby [in Under locked with the | mode. communication | charging Green On | Shutter button to PC. (SD held half Memory Card down. is inserted.) WingtoSD | Accessingof |Inconnectng | Error on | Memory Card | SD Memory | 1PC. (SD inprogress. | Cardin Memory Card Red progress is inserted.) When the Interval Flashing | 1298 is notin : : timer focus. standing Processing Disconnection | No battery images (SD Memory On | Chargingof Card is flash in inserted.) Orange progress SD Memory Flashing_| Hardware malfunction Card is not = inserted.

LCD Monitor Information AUTO capture mode Zoom state Voice icon Mode dial soting 2 = jm, |} Battery condition Macro Æ — Flash light status Focus area Picture size Picture quality Backlight conpeñsation Sel-timer Slow shutter speed Possible number of shots Program/Tv/Av/Manual/Portrait/Sports/Night scene mode Zoom state Voice icon

1. Make sure the camera power is off.

2. Open the battery/SD Memory Card cover.

3. Insert the battery in the correct orientation shown.

M Tiltthe battery lock lever toward the strap attachment and then insert the battery following the orientation of the arrow on the battery's label. M Insert the battery as far as it can go

4. Close the battery/SD Memory Card cover.

M To remove the battery: Open the battery/SD Memory Card cover and then release the battery lock lever. After the battery is slightly ejected, pull out the battery slowiy. NOTE Use only the specified battery type (Lithium lon). If you are not going to use ihe battery for an extended period of time, remove it from the camera to prevent leakage or corrosion. Never use different type of battery. Avoid using battery in extremely cold environments as low temperatures can shorten the battery life and reduce the camera performance Battery lock lever Charging the Battery

1. Insert the battery, noting correct polarity (+ and -)

Input Voltage: 100-240V/50-60Hz Output Voltage:4.2V/750mA LED Indicator: Status LED Indication Hatery Charge Condition Eaiery not installed Green ok Battery installed Green Fuly charged Battery installed Red Charging Battery installed/not off Battery/charger defective installed

A. Before you use a new battery, it should be charged for 3 hours the first time. B. _Ifthe green LED is on when power is connected, it indicates the battery charger is operating normally and ready for battery charging. C.._ When the battery is put into the battery charger, the LED indicator changes from green to red, indicating the battery is being charged D. Ifthe LED indicator is not on when the power is connected, it indicates that the battery charger is defective. The user should tu AC power of. E. lfthe battery has been charged over 3 hours and the LED indicator is still red, this means the battery is faulty. The user should remove the battery, F. lfitis necessary to charge a backup battery, the user should wait until the charging battery is completely charged. Then remove the charged battery and charge the backup battery. © NorE m Never use the battery unspecified for he camera. M Do not place the camera in hot temperature. Use it at room temperature. Inserting an SD Memory Card (Optional) Al images and video clips taken by the camera can be stored in an SD (Secure Digital) Memory Card. Even if the camera's power is OFF, the images saved in the SD Memory Card are not erased. An SD Memory Card can be repeated read and written. You may also expand the memory capacity up to 512MB so that you can store additional images and video clips.

1. Make sure the camera is off.

2. Slide the battery/SD Memory Card cover in the direction of

3. Insert an SD Memory Card :

M The front side of the memory card (printed arrow) should face towards the front side of the camera. M lfthe card cannot be inserted, check the orientation 4... Close the battery/SD Memory Card cover. M To remove the SD Memory Card, make sure the camera is off. Open the battery/SD Memory Card cover. Press lightly on the edge of the memory card and it will eject.

© NorE M ifthe camera is powered-on without the card, the “NO CARD message appears on the LCD monitor. m_ To prevent valuable data from being accidentally erased from an SD Memory Card you can slide the write-protected tab (on the side of the SD Memory Card) to “LOCK”. m_ To save, edit or erase data on an SD Memory Card, you must unlock the card. MMC Card can not be accepted to use. m_ Please format an SD Memory Card by this camera before use.

pond We proscndte ILocx sel Attaching the Strap To prevent accidental slippage during the use, always use the strap. Attach the hand strap as follows:

1. Thread the small loop of the hand strap through the strap eyelet

2. Pullthe large loop through the small loop until the strap is firmly

secured. TAKING PHOTOGRAPHS Photography in the Auto Capture Mode [F3] Your camera provides a single image capturing, continuous image capturing and auto exposure bracketing capturing. Itis equipped with both an optical viewfinder and a 1. 5" full color TFT LCD monitor to compose images. Taking images by using the optical viewfinder will conserve more battery power. If your battery is in low level, it is recommended to compose images by using the viewfinder. The LCD monitor can help you accurately compose the pictures and examine ll details. However, this may also consume you more battery power.

1. Tum the camera on by pressing the POWER button.

2. Setthe mode dial to [ FE ].

3. Compose your shot in the viewfinder.

m Tumithe ‘diopter adjustment dial until Diopter adjustment dial the image appears clearly within the viewfnder.

4. Press the shutter button down halfway, and C

then press it down fully. m The viewfnder LED indicator lights red while the camera is processing a captured image. Le) NOTE M Voice memo is starting to record at stil image capture mode just after the photograph is taken in case of activating this function. It provides 10 seconds for recording and only can be done once. To terminate recording, press the shutter button down fully Using the LCD Monitor

1. Tum the camera on by pressing the POWER button

2. Setthe mode dialto[ F3 ]

m By default, the LCD monitor setting is "ON".

3. Compose the picture in the LCD monitor.

4. Press the shutter button down halfway (the camera

adjusts the exposure and the focus), then press it down É fully. m The viewfinder LED indicator lights red while the camera is processing a captured image. LCD Monitor Display (Capture Mode) The [IQ Display button can select display format. Whether in “Still Image” or “Movie” mode, preview image with full OSD is displayed OSD (on-screen-display) full display —> OSD display OFF —> LCD monitor OFF

€ NoTE = The image in the LCD monitor darkens in strong sunlight or bright light. This is not a malfunction. m Using the LCD monitor for an extended period of time will decrease the number of images you can take. To increase the shots and conserve battery power, it is recommended to turn the LCD monitor off and use the viewfinder instead. Using the Optical Zoom The lens moves during the zoom photography. Zoom photography allows you to take telephoto and wide-angle shots. The subject appears closer by pressing the [[4]] button and appears farther away by pressing the [Æ#} button.

1. Setthe mode dial to one of [E}, (P3, (Tv AVI (M3 (Q 1 LG).

2. Ifrequired, tum on the LCD monitor by pressing

the [101] button. Re) and

3. Compose the picture by using the [L41 {EE

button. = Pressing the [ [41] button zooms in on the subject, and enlarges the subject on the LCD monitor. = Pressing the [F#]} button provides a wider angle picture. The lens position moves according to the zoom button setting.

4. Press the shutter button down halfway, and then press it down fully.

Using the Digital Zoom By using the digital zoom, images can be enlarged so that the subject appears closer. However, the more the image is enlarged, the grainer the image will become. The digital zoom function is only available when you set the LCD monitor and the digital zoom to ON. To capture a digitally zoomed image, perform the following steps: Set the mode dial to one of (ED, (PA, TV, (AVI, Mi, 13, 1 #3, 1G 1, if) and power on the camera.

2. lfrequired, tum on the LCD monitor by pressing

the [IQ] button. Digital Zoom

3. To enable the digital zoom is as follows: Optical Zoom

2. Press the MENU button.

b. Press the 4 or BR button to select Function page. c. Press the < or B button to select Digital Zoom, and press the SET button. d. Press the 4 or R button again to select ON, and press the SET button. e. Press the MENU button. f._ To activate the digital zoom, press the [ [1] button completely and hold it until the image on the LCD monitor expands. Press the shutter button to capture a *zoomed" image © NorE m The camera has 1X to 3X optical zoom and 1X to 4.0X electrical zoom function "Digital zoom function is terminated when user selects LCD off mode. Using the Self-timer The [Ÿ/NT.] self-timer button can select the capturing mode between “OFF” (default) and “Self timer (2 sec., 10 sec. 10+2 sec. or Interval)". L sec] The camera automatically takes a picture after two seconds delay. [10 sec] The camera automatically takes a picture after ten seconds delay. [10+2 sec] The camera automatically takes a picture after ten seconds delay, and takes again after two seconds. In case of flash light capacitor is not charged up, the second take can be done at two second after charged [Interval] The camera automatically takes a picture every preset time till media full or battery empty. To activate the self-timer by pressing the shutter button. After selecting this mode, self-timer icon displays on LCD monitor and then LED on the front panel blinks fast for the last 3 seconds. Using the self-timer allows you to get into the scene when taking group images.

1. Secure the camera to a tripod or place it on a stable

2. Setthe mode dial to one of (EE, (Pi, (TV, AVI (Mi,

1Q 1. LÆ 11€ 1. D] and power on the camera

3. Press the [Ÿ/INT] button.

= When you toggle the self-timer button, the following are displayed in the accordingly order: of 10 sec 2 sec 10+2sec Interval t ] Compose the picture.

5. Press the shutter button down halfway, and then press it down fully.

= The selftimer function is activated. The photograph is then taken after the preset time. = When the photographs are taken using the LCD monitor, the count down is displayed. © NorE M After an image is taken using self-timer, the self-timer mode is turned off. m_ The selftimer is not possible in the continuous capture mode.

m The selftimer is only available for 2 or 10 seconds delay at [»@] mode. The camera automatically starts to recording after 2 or 10 seconds. Using the Flash The flash is designed to function automatically when lighting conditions warrant the use of flash. You can take an image using a suitable flash mode to your circumstances. If you change the flash mode, the camera wil retain that setting even if the camera is turned off.

1. Setthe mode dial to one of [ÆB}, {P, [TV], [AV], [M] and power on the camera.

2. Press the [Ë] button repeatedly until your desired flash mode appears.

= When you toggle the flash button at [EE] mode, the available flash modes are displayed in the following order. C No display ] Auto Læ 5] Red-Eye Forced Flash 1 suppressed Flash L#] Forced Flash J Compose the picture and press the shutter button down halfway, then press it down fully. NOTE

M Aïter flash fires, it takes approximately 5 seconds to 10 seconds to be ready for the next shot during solid orange indicator. The camera has FOUR flash modes: Auto, Red-Eye Reduction, Forced Flash and Flash Off. The table below will help you to choose the appropriate flash mode: icon Flash Mode Description D J | AuoFlash The flash fes automatically according to the ambient lighting conditions. [æ 5) | RegEve Reduction Select this mode for general photography. % {With auto-flash except _ | The flash emits a precursor-flash before to [Tv] LAVI MI) the main flash fes. This causes the pupil in the human eyes to contract, reducing the red-eye phenomenon. Select this mode when taking images of people and animals in low-light conditions: [y] | rocedrn The flash wi always fre regardiess ofîhe surrounding brighiness. Select this mode for recording images with high contrast {back lighting) and deep shadows. = Flash Of The flash wi not re. Select ins mode [@1 when taking images in a place where flash photography is prohibited, or when the distance to the subject is beyond the effective range of the flash. © NorE m Auto flash can only be set at [ED] mode. It can not be set at [M], [P], [Tv] and [Av] modes. = inthe [Q) Portrait mode, flash setting is fixed to Red-Eye Reduction mode automatically. = _inthe [2] Sports mode, flash setting is fixed to [CE. m _inthe [@] Night scene mode, flash setting is fixed to [ #] except [ A ] Focus mode.

1. Setthe mode dial to one of (ED), (Pi, [TV], (AVI,

EM Q LA Gr camera. SR} and power on the

2. Togglethe [ #4 | Focus button.

The selected focus mode is displayed on the LCD monitor. {no indication}: Normal Auto Focus (0.8m to infinity). [Yr Macro Auto Focus (0.09m to infinity/ Wide, 0.3m to WT infinity/Tele). [ À ] The camera will focus on the subjects in a distance of infinity to take photos. [8m]: The camera wil focus on subjects in a distance of : 3m to take photos. [im]: The camera will focus on subjects in a distance of ‘1m to take photos.

3. Compose the picture.

4. Press the shutter down halfway, and then press it down fully.

© NorE When shooting a close-up in Macro mode, use the LCD monitor to compose your shot, avoiding the off-center parallax phenomenon. m There is not a distinct point (subject range) at which Normal mode is favored over Macro mode; take in image in both optical modes and compare the results. m_ After a Macro shot is taken DO NOT FORGET to reset the lens to the normal position. Changing the Exposure Compensation This setting [ /F4] allows you to intentionally lighten or darken the entire image. Use this setting when the optimum brighiness (exposure) cannot be obtained, for example, when the brighiness between the subject and the background is not balanced or when the subject to photograph occupies only an extremely small part of the screen. The [ /F3] exposure Compensation button can select “Normal capturing mode”, “Backlight compensation capturing mode” and “Exposure compensation adjusting mode” cycling.

1. Setthe mode dial to one of [P], [Tv], [AV] and power on the camera

Backight compensation Toggle the [ É/E%] button to select exposure compensation mode or backlight compensation mode. When exposure compensation mode is selected, rotate the Command dial to adjust the exposure, and press the [ É4/E4 ] button again to confirm. M Rotate the Command dial to counter clockwise direction to decrease (darken) exposure, and rotate the Command dial to clockwise direction to increase (brighten) exposure. Compose the picture, press the shutter button down halfway, and press it down fully. Exopsure compensation Effective Subjects and Set Values Positive (+) Compensation + Copying of printed text (black characters on white paper) + Backlit portraits + Very bright scenes (such as snowfields) and highly reflective subjects + Shots made up predominantiy of sky Negative (-) Compensation + Spot lit subjects, particulary against dark backgrounds + Copying of printed text (white characters on black paper) + Scenes with low reflectivity, such as shots of green or dark foliage

© NorE = While selecting “Backlight compensation capturing mode”, the EV value sets to +1.3 EV automatically and setting of exposure compensation value is ignored. min “Exposure compensation’, the default value is *O.0EV”. The setting range is as follows: -2.0/-1.71-4.31-1.0/- 0.7 | -0.3 / O (default) / +0.3 / +0.7/ #1.0 / +1.3/ +1.7 / +2.0 M Exposure Compensation cannot be set at [ÆW] mode. m The ideal brighiness sometimes cannot be obtained even if a large exposure value is set in dark photographic conditions. In this case, press the shutter button, and check the brightness in the preview image (photographed stil image). Setting the Image Size and Quality Size and quality settings determine the pixel size (dimension), image file size, and compression ratio for your image. These settings affect the number of images. These settings affect the number of images that can be stored in an SD Memory Card Larger and higher quality images offer the best photographic results but take up more memory space. Larger/quality settings are recommended for printed output and situations requiring the finest detail. Smaller/quality images take up less memory space and may be quite suitable for Sharing images via e-mail, in a report, or on a web page To change image size or image quality,

1. Setthe mode dial to one of LED), (P}, (Tv), (AV), (M1, (@, LÆ 1, [G J and power on

2. Pressthe MENU button

m The menu screen appears.

3. Select Size or Quality by usingthe À or W button.

4. Press the SET button. Select the desired image size or image quality setting by using the

A or # button. Press the SET button to confirm. To exit the menu screen press the MENU button. The tables below show the approximate number of images that can be stored on Still Image and Movie Image mode. Still Image Mode Quality mode (Compression | Image Size | eus | 1ou8 | same | œaus | 1oms | 25eu8 | sims Rate) Fine (1/4) su 2 6 El 2 ss 105 22 (2560 x 1920)

1. Setthe mode dial to [P] and power on the camera

2. Compose the picture.

3. Press the shutter button down halfway, and press it down fully

Photography in the Shutter Speed-priority Mode [Tv] In this mode, photographs are taken with the priority given to shutter speed. The camera automatically sets the aperture value according to the shutter speed! À fast shutter speed produces a photograph that looks as if a moving subject is still. À slow shutter speed produces as photograph that makes you feel that it is flowing.

1. Setthe mode dial to [Tv] and power on the camera.

2. Rotate the Command dial to adjust the shutter

speed. Compose the picture and press the shutter button down halfway, then press it down fully & NOTE m _{fthe appropriate combination cannot be set even if the aperture is adjusted to its limit, the aperture value is displayed in “red”. Photography in the Aperture-priority Mode [Av] In this mode, photographs are taken with the priority given to aperture. The camera automatically sets the shutter speed according to the aperture. À small aperture value produces a portrait photo with an out-of-focus background. The smaller the aperture value, the more out-of-focus the background becomes. À large aperture value produces sharp images on both close objects and distant objects like landscapes. The larger the aperture value, the larger the area for sharp images.

1. Setthe mode dial to [Av] and power on the camera

2. Rotate the Command dial to adjust the aperture value.

m The aperture value and the shutter speed corresponding to that value are displayed on the LCD monitor.

3. Compose the picture and press the shutter button down halfway, then press it down fully

€ NoTE = The largerthe F value, the smaller the aperture size becomes and vice versa

Photography in the Full Manual Mode [M] This mode can set the aperture and shutter speed values separately before taking a photograph. Both the aperture value and shutter speed can be changed by rotating the Command dial Set the mode dial to [M] and power on the camera.

2. Adjust the aperture and shutter speed separately,

= Pressthe [E8/Æ3T buton to selectthe aperture or shutter speed. Available function is displayed in blue on the LCD monitor. M Rotate the Command dial to adjust the value

3. Compose the picture, press the shutter button down halfway, and press it down fully

Photography in the Portrait Mode 1 Select this mode to make people stand out with the background out-of-focus. Flash setting is fixed to red-eye reduction mode automatically.

1. Setthe mode dial to [ © ] and power on the camera

Compose the picture. Press the shutter button down halfway, and press it down fully.

Photography in the Sports Mode [ <*] Select this mode to take photographs of fast-moving subjects. Flash photography is not possible.

1. Set the mode dial to [ ÆŸ] and power on the camera.

Compose the picture. Press the shutter button down halfway, and press it down fully.

Photography in the Night Scene Mode [ € Select this mode to take photographs of people against a dusk or nigh-time background. Flash setting is fixed to Slow Synchrony (the flash is fired at a slower shutter speed).

1. Setthe mode dial to | ] and power on the camera.

Compose the picture. Press the shutter button down halfway, and press it down fully.

Making Movies [ &] The movie mode allows you lo record video clips at the size of 320 x 240 pixels and 160 x 120 pixels. By dialing the MODE switch to [ L' position, the camera can take moving image with “voice” recording. The camera shows the preview image on the LCD monitor. {in LB] mode, the LCD monitor cannot be turned off.)

1. Setthe mode dial to [BP]

2. Compose the picture, press the shutter button down halfway, and press it down fully.

M Photography begins. [REC] appears on the LCD monitor.

3. To stop making movies, press the shutter button down fully again.

M fou do not do this, photography is automatically stopped when there is no more free space on the SD Memory Card, or when the maximum size that a single movie can be recorded is reached. © NorE min Li] mode, EV compensation cannot be set or activated. min D] mode, the flash mode is automatically set to [OFF]. The image size during capture and playback becoms (320X240) or (160xt20). The movie made in (320x240) size is displayed on the entire LCD monitor, and that made in (160x120) size is displayed in ihe center of the screen.

CHANGING THE PRESET CONDITIONS (IN

CAPTURE MODE) This menu is for setting the basic setting to be used for photography in the (ED), [P1, [TV], LVL M QE or

1. Setthe mode dial to one of ED}, 1P}, TV], (AVI, LM], 1@ 1, LÆ 1, LG], DR] and power

on the camera. 1 photography modes.

2. Press the MENU button

m The menu screen is displayed.

3. Use the € or B button to select the menu page.

4. Usethe A or W button to select the desired

setting and press the SET button: SetAdjust A or v :Selectitem M This saves the settings, and returns the display to menu screen

Quality Set the quality (compression ratio) sharpness at which the image is Lo be recorded [Fine]: 114 compression (still image)/110 compression (video clip) [Standard]: 1/8 compression (still image)/1/14 compression (video clip) IEconomy]: _ 1/16 compression (still image) 1/19 MonExit 4or p1Saoct Page Set Adjust A0 _:Select tem compression (video clip) Sharpness Set the level of the image sharpness. IHard]: Hard effect [Normal]: Normal sharpness (default) L Menuext 40r D -SaecPags (Soft: Soft effect Set Acust A or w Select em € NoTE M This function is not available in the v&) mode Contrast Set the contrast of the image to be photographed. IHard]: Hard contrast [Normal]: Automatic (standard) setting (default) MenuExi 4or D Seed Page ISoft}: Soft contrast SetAdust A or Select em Color Set the color of the images to be photographed. [Standard]: Standard color (default)

MenuExt or P :Soloct Page SetAdust Aor w :Select em

IMivid]: Vivid color ISepia]: Sepia [Monochrome]: Black and white Function Setting The Function Setting contains 6 items: Capture Mode, Voice Memo, LCD Brightness, Digital Zoom, Preview and Interval/Count Capture Mode Set the capture mode at which the image is to be I recorded. ° s [Single]: 1 shot mode can be set (default). 4 [Continuous]: _ In this mode, photographs are taken Interval/Count [ESS continuously at a maximum speed Menu:Exit %or à :Select Page SetAdust Aor w_:Select em of 0.5 second speed interval. The maximum number of photographs that can be taken continuously is 3 photographs. In this mode, the camera takes 3 consecutive pictures in the order of standard exposure, underexposure and overexposure compensation. Voice Memo Set the voice memo for still image. In case of activating voice memo, audio data which incoming from microphone is recorded 10 seconds at preview or playback mode. NenuEmt 4or P :Salect Page SetAdjust A or w_:Select tem [ON]: Enable voice memo IOFFI: _ Disable voice memo

© NorE M When voice memo is set to “ON", preview setting is also fixed to “ON”. LCD Brightness Adjust the brightness of the LCD monitor. By selecting LCD bright of menu, and press the SET button, the LCD control mode is displayed Press W button to darken the LCD monitor, or À button to lighten the LCD monitor. The LCD monitor s adjustment range is within 5 to +5. SetEnter A or w :Select The default value is 0. Digital Zoom Enlarge the center of the screen and takes photographs with the focal distance increased by factor of 4.0. [ON]: Enable digital zoom photography (defaut). [OFF]: Disable digital zoom photography, BFERCEÈAES Preview Set to display a photographed image on the LCD monitor immediately after you have taken the shot. [ON]: Enable display preview (default). (OF Disable display preview

Menu:Exit 4or D :SalectPage stAQjust A0 Y ‘Select Rem © NoTE M A photographed image is displayed on the LCD monitor for 2 seconds. M When preview is set to “OFF”, voice memo setting is also fixed to “OFF”.

Interval/Count The camera provides interval image capturing based on this setting. This mode is available in the self-timer photography. By selecting Interval/Count and press the SET button, the Interval/Count mode is displayed Press the À or W button to change the interval time. Recording interval is 1 minute Recording interval is 3 minutes [10 Min.}: Recording interval is 10 minutes. 160 Min.J: Recording interval is 60 minutes. Select count by pressing the 4 or BR button. You can or > :Solect lim SetAdjust_Aor w_ :Change Value set the counts you want to take pictures by pressing the A or Y button. To cancel Interval/Count while this function is activated, press the power button to turn off or toggle the mode dial. LE 2shots can be taken

Le 29 shots can be taken AE/AWB Setting The AE/AWB Settng contains 4 items: White balance, Metering, ISO and Manual WB. This menu is not available in the [ ED Jauto ana L fl mode. White Balance The camera determines the white balance by averaging the various kinds of light that actually enters the lens. You may set in advance the white balance when taking photographs under specific lighting conditions. [Auto]: Auto white balance (default). _— [incandescent ]: Incandescent light mode. [Fluorescent 1]: Reddish fluorescent light mode. [Fluorescent 2]: Bluish fluorescent light mode. [Day Light J: Daylight mode. L Cloudy ]: Cloudy mode SRE {Manual ]: Manual mode.

Metering The camera calculates the exposure level before a photograph is taken. [Multi ]: Multi metering (default) The exposure is measured and calculated for the entire area of the screen By dividing the entire area of the screen, the exposure level for each unit is calculated. A well balance exposure can be obtained. [Spot J. Spot metering Function The exposure is measured in a very small area at the center ofthe screen. Itis possible to calculate the exposure of a subject without being affected by the Menuext 40r P :SoeciPage surrounding environment. Set Adjust A0 _:Select tem ISO Set the photographic sensitivity at which the image is to be recorded. [100]: Equivalent to color ISO100. [200]: High-sensitive photography equivalent to color ISO200. [400]: High-sensitive photography equivalent to color ISO400. [Auto]: Automalically set between ISO 100 to 150400. MenuExt 4or SetAdust_Aor v_ Select lem € NoTE nn, (Q 141.16 or BP] mode, the ISO will be automatically set between ISO 100 to ISO 400 Min [Tv], [Av] or [M] mode, during 100, the ISO will be fixed to ISO 100; during 200, the ISO will be fixed to ISO 200; during 400, the ISO will be fixed to ISO 400. m_In[P ] mode, ISO setting has 100, 200, 400 and Auto . If Auto is selected, the camera will automatically set the ISO value according to the ambient brightness.

Manual WB You may select “Manual WB” by using À or W Function button at AE/AWB adjusting menu, and press the SET button. LCD monitor shows the manual WB menu. Compose the picture with white object (e.g.white paper) inside the area indicated by blue angle on the LCD monitor. SetEnter A or y :Select Select “Execute” by using the Æ or W button, then press the SET button. NOTE M This operation does not care the current mode of white balance. After setting manual WB automatically white balance mode can be set to manual.

PLAYING BACK IMAGES [ 2] ]

Playing Back Photographed Images (Single-Frame Playback) Play back photographed still images one image at a time.

1. Setthe mode dial to [D] and power on the camera.

mThe last recorded image appears on the LCD monitor.

2. Rotate the COMMAND dial or press the A or

Y button to advance to next frame or to go back one frame. M Rotate clockwise: Display the next image. M Rotate counterclockwise: Display the previous image. © NoTE M Press the SET button lo playback lhe voice memo data

M Images can be rotated by pressing the 4 or B button during playback. Pressing the 4 button rotates an image counterclockwise, and pressing the D button rotates it clockwise. M lfno images in the SD Memory Card, the message of “NO IMAGE" is displayed on the LCD monitor. M You can also playback your images on a TV screen. First connect one end of the AN cable to the A/V out terminal of the camera. Then connect the other end to the A/V input socket of the TV. Set the mode dial to (playback) and then turn the TV and camera on. M Make sure to tu off the camera before connecting or disconnecting with the A cable. Voice Record By pressing the shutter button during playing back the picture, voice may be recorded When pressing the shutter button down fully “VOICE RECORDING" is indicated on the LCD monitor for 10 seconds. Pressing the shutter button down fully again “VOICE RECORD END" is indicated. © NorE M _inthe playback display mode, voice icon is displayed for the voice recorded picture. M Voice record is also available at still image capture mode. M _ Voice record only can be done once Playing Back Movies Playback movies that you have recorded. The movies made in FULL size are displayed on the entire LCD monitor, and those made in HALF size are displayed in the center of the screen.

1. Setthe mode dial to (P>]} and power on the

camera. m The last recorded image appears on the LCD monitor.

2. Rotate the Command dial or press the À or W

button to select the movie to play back.

3. Press the SET button

1. Setthe mode dial to [D] and power on the camera.

M The last image frame appears on the LCD

2. Press the [Æ) button:

M Nine images are displayed simultaneously.

3. Usethe À, Ÿ, € or D button to move the cursor and select the image to be

displayed at regular size. Press the SET button to display the selected image on the full screen. © NoTE M inthe thumbnail display mode, movie icon [A ] is displayed for the movie data. Zoom Playback The camera has 2x and 4x playback digital zoom function. While reviewing your images, you may enlarge a selected portion of an image. This magnification allows you to view fine details. Movies cannot be displayed using the zoom playback feature. Set the mode dial to [11] and power on the camera. M The last image frame appears on the LCD monitor.

2. Rotate the COMMAND dial or press the A or # button to select the frame you want to

enlarge. M You can also select the image by the same operation as for thumbnail playback.

3. Adiust the zoom ratio by using the [LE or [É4) button

m_ Pressing the [LA button will entarge the image. To return to normal magnification, press the 1) button = The image is displayed enlarged, and a white frame and green frame are displayed on the LCD monitor. m The white frame indicates the entire image, while the green frame shows the location of the currently enlarged area.

4. Usethe À, Ÿ, € or D button to select

the area to enlarge. = Adjust the display area to enlarge while viewing the white and green frames. Endre mage

© NorE m_ Pressing the [LË] button magnifes the image from 1x —» 2x — 4x. m_ Pressing the [P) button reduces the image from 4x —» 2x —æ 1x Slideshow Display The slideshow function enables you to playback your images automatically in sequential order as a slide show. This is a very useful and entertaining feature for reviewing recorded images and for presentation.

1. Setthe mode dial to [[F]] and power on the camera.

M The last image frame appears on the LCD monitor.

2. Press the MENU button

m The menu screen appears.

= _ The slideshow starts at 3 seconds interval and [El] is displayed on the LCD monitor. M To stop the slideshow display, press the SET button € NorE M The Auto Power Off function does not operate during the slide show. DPOF (Digital Print Order Format) Print Information DPOF is the abbreviation for Digital Print Order Format, which allows you to print the images directly from the DPOF-compatible printers by simply inserting the Next Munu memory card into the printer and do the necessary POP Next Munu settings. unu

1. Setthe mode dial to [D] and power on the camera.

2. Press the MENU button.

= The menu screen appears. SetAdjust aor w :Select em

3. Select the “DPOF" by using the À or W

button and press the SET button. M You can select the Single or Al option and press the SET button Lo confirm the selection.

4. Print Number, Date and Print Enable appear. Dae ON

Use the A or W button to select one of them RIRBRES ED and press the SET button to confirm.

5. Usethe À, Y, € or D button to make SetEnter A or y Select

change and press the SET button to confirm. The camera returs to Single/AIl submenu. To exit from the menu screen, press the MENU button [Print Number] : Select the image quantity from 1-9. [Date] : Select to print the date on the image or not. [Print Enable] : If you select “Cancel” and press he SET button to confirm, all the settings will be deleted. If “Execute” is selected and confirmed the camera will save the settings. SetEnter À ory :S SetEnter _A or w :Solect SetEnter _ À or y : Select Protect This function gives the image protection from erasing. Follow the steps below to perform the protect functions.

1. Setthe mode dial to [[]] and power on the

camera. Press the MENU button. Select the Protect by using the À or W button and press the SET button. Protect submenu appears, including Single, All and Select. Use the A or W butlon to select one of them and press the SET button to confirm.

In Single/AIl submenu, use the A or W button to select the desired setting and press the SET button [Set]: The one image displayed on the LCD monitor is locked and [Ÿ] is displayed on the LCD monitor. [Cancel Cancel image protection. Protect]: [Exit]: Exit from the menu screen. If“Select is selected, thumbnail display appears on the LCD monitor. Use the A, %, € or D button to select the image and press the [ID] button to select lock/unlock and press the SET button to confirm. LCD Brightness Adjust the brighiness of the LCD monitor. This adjustment does not adjust the brighiness of the image to be recorded. The LCD monitor's adjustment range is. Fisy __| within -5 to +5. LCD Bright.

Set the mode dial to [1] and power on the camera. Press the MENU button. Select the “LCD Bright.” by using the À or W The menu screen appears. button and press the SET button. SetEnter A or y :Select Use the A or W button to select the desired setting and press the SET button. LCD Monitor Display (Playback Mode) The [ID] Display button can switch the display on the LCD monitor when playing back photographed images. You can switch the display to show a list of detailed information

Set the mode dial to [11] and power on the camera. Rotate the Command dial or press or button to select the image. Press the [O} button. M Each press of the [IDI] button switches the display format as follows: Standard —R Image only ——B Detailed information Î |

© NorE M This function is not available for movie image playback. ERASING IMAGES [ Ë ] The [É] button provides to erase image file. While pressing [Ë] button during monitoring mode, the latest image data and erase menu appears on the LCD monitor.

1. Setthe mode dial to [11] and power on the

2. Press the [f] button.

= The Delete menu is displayed on the LCD monitor.

3. Usethe À or Y button to select the Delete sub-menu (Single/All/Select).

Erasing Single Image Single: Erase this image. a. Select [Single] and press the SET button to confirm the selection. = "Delete This Picture?" sub-menu is displayed on the LCD monitor. b. Usethe À or W button to select Execute/ Cancel. [Execute]: Erase this image. MenuEtt [Cancel]: Cancel the deletion ER AOVÉLE c. Press the SET button to confirm the setting. Erasing All Image Al: Erase all image. Select [AII] and press the SET button to confirm the selection. M ‘Delete All Picture?" sub-menu is displayed on the LCD monitor. b. Usethe À or Y button to select Execute/ Cancel. [Execute]: Erase this image. SetEnter A or y :Select [Cancel]: Cancel the deletion

c. Press the SET button to confirm the setting. Erasing Selected Image Select: Erase the selected image a. Select [Select] and press the SET button to confirm the selection. = Thumbnail display and [f] appear on the LCD monitor. b. Usethe À, Ÿ, € or D button to selectihe image you want to erase and press the [f] button to confirm the selection. = [É] icon appears on the selected image. c.. Press the SET button to confirm deletion. © NorE m Images cannot be erased when they are protected or the SD Memory Card is write-protected. M This function is available for all modes except for PC and SET-UP modes. SET-UP MODE This feature allows you to set up {he default settings for using your camera in addifion to image-related settings. You can select your personal preferences for the camera by this mode. Basic Setting The Basic Setting contains 6 items: Card Information, Frame Number Reset, Format, Sound, Beep and Auto Power Off. MenuExt or p :SelectPage SetAdjust Aor w_:Select em

Card Information Display the total and remaining memory size of the inserted SD Memory Card.

1. Setthe mode dial to [SET-UP] and power on

the camera. Use the A or Y button to select Card Info. Press the SET button. = Card Information will be displayed.

4. Press SET button once again to exit

SetExit Frame Number Reset Reset the frame number. Default reset: Folder number is 100 and file number is 0001

1. Setthe mode dial to [SET-UP] and power on

2. Use the À or W button to select Fr. No.

= Frame Number Reset menu is displayed on the LCD monitor.

5. Press the SET button to confirm the setting.

€ NoTE M ifioider already exists on SD Memory Card, it assigns older number to the existing folder. Format Formatting erases all images and reformats the SD Memory Card loaded in your camera. Protected images are also erased. SD Memory Card cannot be formatted ifitis write-protected. Set the mode dial to [SET-UP] and power on the camera. Use the À or Y button to select Format. SCENE ce Sale Press the SET button. Format SD card” menu is displayed on the LCD monitor.

4. Use the À or W button to select Execute/Cancel.

[Execute]: Format the memory card. [Cancel]: Does not format the memory card. Custom

Press the SET button to confirm the setting. Sound Satihe sourd ONOFF Set the mode dial to [SET-UP] and power on the camera. Custom

2. Use the À or Y button to select Sound.

3. Press the SET button

The pull down menu for Sound is displayed on the LCD monitor. IBeep

4. Use the À or Y button to select the desired 1Min

sound setting. PET CES [ON]: Enable the sound setting. RE [OFF]: Disable the sound setting.

5. Press the SET button to confirm the setting.

Beep Setihe beep ONIOFF. Custom Set the mode dial to [SET-UP] and power on Next Menu the camera, No .f Next Menu

2. Usethe À or W button to select Beep.

3. Pressthe SET button.

M The pull down menu for Beep is displayed on the LCD monitor. tune

4. Usethe A or Y button to select ONOFF. NE

[ON]: Enable the beep setting. [OFF]: Disable the beep setting

5. Press the SET button to confirming the setting.

ex Menu Auto Power Off Next Menu

In case no buttons is pressed for a certain period of time while power on, the camera turns off automatically to conserve power. The default value is 1 minute.

Set the mode dial to [SET-UP] and power on the camera. Use the À or W button to select Auto POFF. Press the SET button The pull down menu for Auto Power Offis displayed on the LCD monitor. Use the À or Y button to select the desired time setting. [1 Min}: If no operation is carried out for 1 minute, Auto power off is activated (default) L2 Min}: If no operation is carried out for 2 minutes, Auto power off is activated. 13 Min}: If no operation is carried out for 3 minutes, Auto power off is activated.

5. Press the SET button to confirm the setting.

Custom Setting The Custom Setting contains 5 items: Date/Time, System Reset, Language, Video Output and System Information: Date/Time Set the Date and Time.

1. Setthe mode dial to [SET-UP] and power on

the camera. Use the Æ or W button to select Date/Time. Press the SET button "The Date/Time menu is displayed on the LCD monitor.

5. Usethe A or W button to set the value for

6. Press the SET button to confirm the setting after all item values are set.

The System Reset menu is displayed on the LCD monitor.

4. Use the Æ or W button to select

Execute/Cancel. [Execute]: Return to default setting. [Cancel]: Retain the current setting.

5. Press the SET button to confirm the setting.

1. Setthe mode dial to [SET-UP] and power on

The pull down menu for Language is displayed on the LCD monitor. MenuExt or p Select Page

4. Usethe À or W button to select the desired EEERRESE

5. Press the SET button to confirm the setting.

Video Output Set the video output system according to the country in which your camera used.

1. Setthe mode dial to [SET-UP] and power on

3. Press the SET button. BEF

SetAdjust Aor w :Select em The pull down menu for Video Output is displayed on the LCD monitor.

4. Use the & or W button to select the desired setting.

INTSC]: NTSC system. [PAL]: PAL system

5. Press the SET button to confirm the setting

System Info. System Information System Information Version 0.035 Display the camera firmware version.

1. Setthe mode dial to [SET-UP] and power on

2. Usethe A or W button to select System Info SetExit

3. Press the SET button.

The camera firmware version is displayed on the LCD monitor.

YOUR COMPUTER You can share recorded images/ideo clips with your family or friends via e-mail or post them on

the Web. Before doing this, you need to connect the camera to your computer by using the USB cable and then transfer the imagesWvideo clips. To transfer images/ideo clips from the camera to your computer, follow the steps below: Step 1: Install the USB driver (only for Windows 98) Step 2: Connecting the camera to your computer Step 3: Downloading imagesivideo clips System requirements System requirements (Windows) (Macintosh) cpu Pentium 166 MHz PowerPC G3/G4 processor or higher Windows os 98/98SE/Me/2000/XP 98 86 or later

Memory (G4MB recommended) (GAMB recommended) Free Space on Hard Disk | 128MB hard diskspace | 128MB hard disk space A CD-ROM drive, A CD-ROM die, Required Devices An available USB port An available USB port Color monitor (800x600, | Color monitor (800x600, Color Monitor 24-bit or higher 24-bit or higher recommended) recommended) Step 1: Installing the USB driver on Windows computers The USB driver on the supplied CD-ROM is exclusively for Windows 98. Installing the USB driver on computers running Windows 2000/ME/XP is not necessary.

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive. The welcome screen

2. Click “Install USB Driver”. Follow the onscreen instructions to complete the installation.

3. After the USB driver installation is complete, restart your computer.

Installing the USB driver on Macintosh computers Mac OS 8.6 users must install a USB driver. For Mac OS 9.0 or higher, the computer will

automatically recognize the camera and load its own USB drivers.

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive.

2. Select and double-click “Digital Camera Driver Installer”.

3. Select ‘Install Location" and click “Install”.

4. Follow the on-screen instructions to complete the installation and restart your computer.

Step 2: Connecting the camera to your computer

1. Setthe mode dial to PC mode

2.. Connect one end of the USB cable to an available USB port on your computer.

3. Connect the other end of the USB cable to the USB

connector on the camera. Tu the camera on. From the Windows desktop double click on “My Computer Look for a new ‘removable disk” icon appearing in the “My Computer” window Your recorded images/movies wil be in a folder on this “removable disk”. (For Mac users, double-click the “untitled” disk drive on the desktop.) DES Step 3: Downloading images/video clips When the camera is turned on and connected to your computer, it is considered as a disk drive, just like à floppy disk or CD. You can download (transfer) images/video clips by copying them from the ‘removable disk” (‘untitled” disk on a Macintosh) to your computer hard drive or to another kind of disk. For computers running Windows Open the “removable disk” by double-clicking on it. Double-click on the folder that contains your recorded images/ideo clips. Select the imagesivideo clips that you prefer and choose “Copy” from the “Edit” menu. After that, open the destination location and choose “Paste” from the “Edit” menu

For computers running Mac OS Open the “untitled” disk window and the hard disk or the destination location. Drag and drop from the camera disk to the desired destination. Le) NOTE +_ Memory card users may prefer to use a memory card reader (highly recommended). INSTALLING PHOTOSUITE PhotoSuite is a very user-friendly image-editing program. With PhotoSuite, you can easily retouch, compose and organize your images. It contains a variety of templates, such as photo frames, birthday cards, calendars and more. Get your images ready and go explore this amazing program. To install PhotoSuite

1. Inset the CD-ROM packaged with the

camera in to the CD-ROM drive. The welcome screen appears.

2. Click "Install PhotoSuite". Follow the on-screen instructions to complete the installation.

© NoTE For information on how to use PhotoSuite to edit and retouch your recorded images, please refer to its online help. For Windows 2000/XP users, make sure to install and use the PhotoSuite while logged in as a user with an Administrator account. PhotoSuite is not supported on the Mac.

INSTALLING PHOTOVISTA PhotoVista is an easy-to-use program that lets you create spectacular 360° panoramic images in a snap. When you view these panoramas, you get the experience of being totally immersed in a realistic environment. PhotoVista's powerful engine quickly and automatically stitches images together, and its intuitive interface will let even a novice get great results in minutes. To install PhotoVista:

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive. The welcome screen

2. Click "Install PhotoVista". Follow the on-screen instructions to complete the installation.

© NoTE For information on how to use PhotoVista to create spectacular 360° panoramic images, please refer to its online help. For Windows 2000/XP users, make sure to install and use the PhotoVista while logged in as a user with an Administrator account. PhotoVista is not supported on the Mac. Windows XP users who have not installed XP Service Pack 1, be sure to link to http:java.sun. comigetjava/download.html first and download the Java Virtual Machine installation. For more information about Java, please refer to its online help at http:/java.sun.com/getjava/help.htmi After this Java installation, you can install iSee Media PhotoVista. PhotoVista System Requirements are:

Focusing Auto-focus Shutter speed Bsec-1/1500 sec Image capturing Singie/Continuous/Auto exposure Digital zoom 4x (Capture mode) , 2x and 4x (Playback mode) Exposure Program TvAvIManuallPortrailSporis/Night scene Exposure compensation | -2EV-+2EV White balance AutolincandescentFluorescent 1/ Fluorescent 2/ Day light/Cloudy/Manual Flash AutolRed-eye forced flash} Suppressed flash} Forced flash Flash effective range 0.5m-3.0m 150 sensitivity 100-400 (Auto) 100/100-200/100-400 (Excepl Auto) Seltimer 10 sec/2sec/10+2 sec/nterval Video output 640x480 (Playback mode) . NTSC/PAL Terminal DC IN terminal/USB terminal/ANV OUT terminal Power supply Lithium lon battery or AC adapter (SV) Dimension (WXDxH) 24x63x35mm (without protruding parts) Weight Approx. 180g (without battery)
