USER MANUAL P433 GENUIS

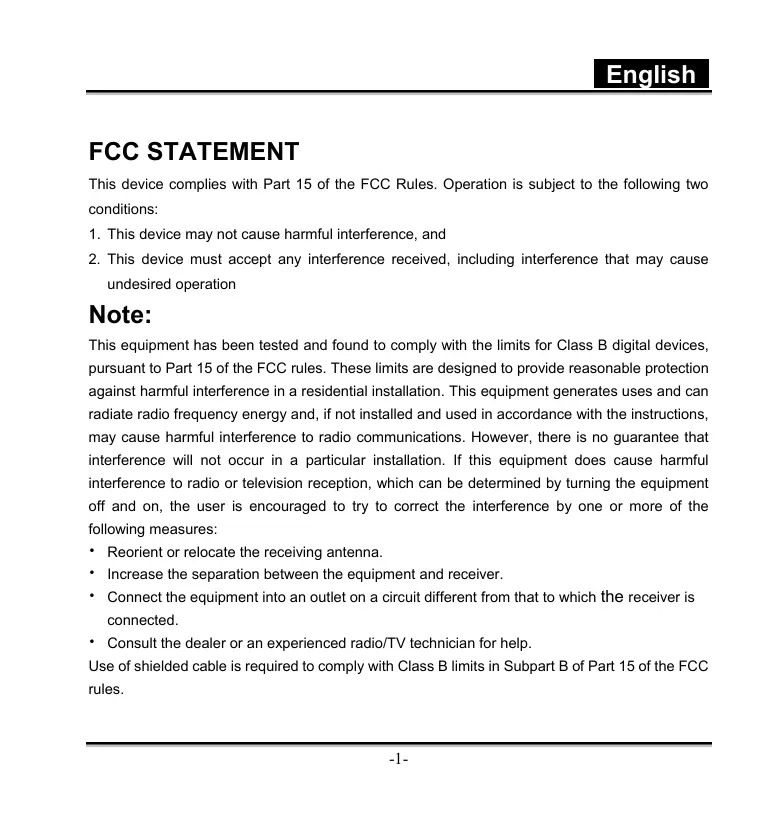

FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not ocour in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuming the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna: Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

. The bundled driver, software, design, specifications and users manual that were packaged with the camera are subject to change without notice.

2. The accessories that come with the camera may vary between regions.

3. For driver updates, you can check the “Download” section of our website,

www.geniusnet.com.tw.

4. We are not liable whatsoever for any compensation arising from errors in descriptions in this

user's manual. WARNING DB D not use the camera if it is emitting smoke, becomes unusually hot to be touched, emitting any unusual odor or noise, or if it is in any other abnormal state. Operating the camera in any of these situations may cause a fire or an electrical shock. Stop using the camera immediately, turn the camera off, and then disconnect the power source (batteries or AC power adapter. If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. After checking that smoke is no longer being emitted, contact your dealer or a local authorized service facility and request repairs. Never attempt to repair the camera yourself, as this will terminate the warranty. Æ D not use the camera if any foreign objects have entered the camera. Turn the camera off, and disconnect the power source (batteries or AC power adapter). If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. Then contact your dealer or a local authorized service facility. Do not continue

to use the camera as this may cause a fire or an electrical Shock. Ifthe camera has been dropped or if the camera case has been damaged, tu the camera off, and then disconnect the power source (batteries or AC power adapter). If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. Then contact your dealer or a local authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical Shock Do not place the camera in any unstable locations such as on a wobbly table or sloping surface where the camera may fall or tip over and cause injury. Do not expose the camera to moisture and make sure that there is no water getting into the camera. Take particular care when using the camera under extreme weather conditions such as rain or snow, or when operating the camera at the beach on near water. Water in the camera may cause a fire or an electrical shock. Do not attempt to modify the camera. This may cause a fire or an electrical shock. Do not remove the camera casing. This may cause an electrical shock. Your dealer should only carry out internal inspection, maintenance and repairs or a local authorized service facility. Do not touch the power plug during a thunderstorm if you are using the AC power adapter. This may cause an electrical shock. CAUTION Do not place the camera in damp or dusty locations. This may cause a fire or an electrical shock. Do not place the camera in a location affected by oil fumes or steam, such as near a cooking stove or humidifier. This may cause a fire or an electrical shock. Do not cover or wrap the camera or the AC power adapter with a cloth or quilt. This may cause heat to build up and distort the case and cause a fire. Always use the camera and its

accessories in well-ventilated locations. Handie the camera carefully and do not bump the camera into any hard object. Handling the camera roughly may cause a malfunction. Do not move the camera while it is switched on. (If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have switched off the camera.) Ensure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or an electrical shock. When leaving the camera unused for long periods, such as during a vacation, always remove the batteries from the camera or unplug it from the power source (AC power adapter) for safety. If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera. Failure to do so could result in a fire. Do not use batteries other than those specified for use with the camera. The use of unsuitable batteries may result in the batteries spliting or leaking and causing a fire, injury, or soiling of the battery compartiment When placing the batteries into the camera, check the polarity markings on the battery (- and +) to ensure that you insert the battery correct}. Incorrect battery polarity may result in the batteries splitting or leaking and causing a fire, injury, or soiling of the battery compartiment Remove the batteries if the camera will not be used for an extended period of time. The batteries may leak and cause a fire, injury or soiling of the battery compartiment. If the batteries leak, clean and wipe the battery compartiment carefully and install new batteries. Wash your hands carefully if you touch the battery fluid.

CAMERA. 9-18 Front view Rear viewr Mode dial LED indicators LCD monitor information

GETTING STARTED.…... 18-24

Installing the batteries Using the AC power adapter {optional accessory) Loading an SD memory card {optional accessory) Attaching the strap Choosing the language Setting the date and time Setting the image resolution and quality TAKING PHOTOGRAPHS 24-37 Basic Setting Using the Viewfinder Using the LCD Monitor Using the Zoom Functions Using the Self-Timer Using the Flash Photography in a Variety of Modes Selecting the Manual Mode Selecting the Auto Mode Selecting the Macro Mode Selecting the Portrait Mode Selecting the Landscape Mode Selecting the Night Scene Mode Selecting the Sports Mode

PLAYBACK MODE... 38-46

Viewing Images Zoom Playback Displaying Thumbnail Images Slide Show Display Setting DPOF Deleting ImagesWVideo Clips To Delete One ImageWVideo Clip To Delete All Images/Video Clips

Formatting an SD card or Internal Memory

Recording video clips Viewing video clips TRANSFERRING RECORDED

COMPUTER … 48-51 Step 1: Installing the USB driver on Windows computers Installing the USB driver on Macintosh computers Step 2: Connecting the camera to your computer Step 3: Downloading images / video clips For computers running Windows For computers running Mac OS INSTALLING PHOTOSUITE 52 INSTALLING PHOTOVISTA.. .53

INTRODUCTION Overview Your new digital camera delivers high quality, 2304 x 1728 resolution images using a 4.0 Mega pixel CCD sensor. Using either the optical viewinder or the 1.6" TFT color image LCD monitor, you can compose images and then examine them in detail. An auto-flash sensor automatically detects the shooting (lighting) conditions and determines whether the flash should be used. This feature helps ensure that your images tum out right. The SD Memory Card is storage medium for saving images that you have photographed. Even if the camera's power is tumed OFF, the images saved on the SD Memory Card are not erased. The SD Memory Card can be repeatedly read and written In addition to still images, you can record short videos using the movie function. Images you have taken can be downloaded to your computer using the USB cable (USB driver required for Win 98 and Mac OS 8.6) You can enhance and retouch your images on your computer by using the provided editing software, or image editing software you may already own. You may share your images with your friends via e-mail, in a report, or on a website. DPOF functionality allows you to print your images on a DPOF compatible printer by simply

inserting the memory card. Package contents Carefully unpack your package and make sure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer. M Digital camera D Us cabe M Viceo cable D Sora CD-ROM D Users manual M Camera strep M Quick guide M Camera pouch M2 x A4 alkaiine batteries Common (Optional) Accessories: M 50 memory card (up to 256MB capacity) M AC power adapter

Front view Mode dial Shutter button Camera strap AIV OUT (AudioWVideo Out) terminal BEN = Digital terminal DC-in connector

Rear view 1... A Arrow button (up) L Flash button 2 Arrow button (right) 3 W Arrow button (down) Ÿ Seif-timer button

4. Arrow button (left)

Viewfinder LED indicator LCD monitor Delete button Tripod socket T Zoom in button @ _ Digital zoom button W Zoom out button Æ thumbnail button 3 playback button © Menu button Battery/SD card cover -Il-

Mode dial © 6 © Mode Description , M Manual Mode Select this mode to set the aperture value and shutter speed values separately.

2. Auto Mode Select this mode to a just "point-and-shoot" action

3 Ÿ Macro Mode Select this mode to shoot a close-up of the subject. n Portrait Mode Select this mode to make people stand out with the background out-of-focus

5. Landscape This mode is used when the distance to the subject

Mode is between 1.9m and infinity. 8 À Night Scene Select this mode to take photographs of people

Mode against a dark or nighttime background. 7 “ Sports Mode Select this mode to capture fast-moving subjects. 8 f Setup Mode Select this mode to adjust the camera settings. Fe] Movie Mode Select this mode to record video (movie) clips.

LED indicators Indicator Status Description/Activity Sound LED Indicator Solid red The camera is powering up. No LED Indicator Solid green The camera is powered and Yes *(1) ready LED Indicator Blinking red Camera error Yes *(3) LED Indicator Blinking red Charging the flash No LED Indicator Blinking Image is being recorded to the No green memory card LED Indicator Blinking USB communication/transfer in No green progress LED Indicator Solid green The camera is ready to record Yes *(1) images (or movies)

Selftimer Indicator Blinking red The self-timer function is Yes *(1) activated. — — Error message Yes *(3) — — Valid button event Yes (1) *(1) The camera sounds one beep. *(8) The camera sounds three beeps. LCD monitor information These indicators are displayed when recording still images:

• Normal Saturation E1 High Es] Medium [5] Low Sharpness INT High IR] Medium [M] Low White balance AUTO Dayight Cloudy Sunset Tungsten Fluorescent

j Auto flash F1 12. Em a apter Battery level dicator [is] Red-eye reduction [#] Filflash(on) Full battery power Æ@] Fiashof Medium battery power

9. Color [= ] Virtually no battery

[AT Fui color power [FA] gtack and Wite

These indicators are displayed when recording video clips:

These indicators are displayed when playing images back: . Reverse Key Card indicator Forward Key Print indicator Image size Date (year-month-day) Current image! total number of images ppm sesn Battery level

These indicators are displayed when playing video clips back: . Reverse key Battery level Forward key

+ Current image number! total number of images

GETTING STARTED You can use either two AA size batteries (Alkaline, Ni-MH) or an AC power adapter (optional accessory) to power the camera. Battery power is convenient for recording images or video clips while the AC power adapter power is recommended for transferring images lo your computer. Installing the batteries Make sure the camera is off. Slide the battery/SD card cover in the direction of the [OPEN arrow. Insert the batteries according to the correct polarity marks (+ or -) Close the battery/SD card cover firmly.

Le) NOTE If you won't be using the batteries for an extended period of time, remove them from the camera to prevent any leakage or corrosion. Never use manganese batteries. Avoid using the batteries in extremely cold environments as low temperatures may shorten the battery life and reduce the camera performance. Using the AC power adapter (optional accessory)

1. Make sure the camera is off.

2. Open the jack cover and connect one end of the AC

power adapter to the DC IN jack on the camera.

3. Connect the other end to an electrical outlet.

© NorE + Make sure to use only the AC power adapter specified for the camera. Damage caused by the use of an incorrect adapter is not covered under the warranty. +_ To prevent unexpected auto power off resulting from no battery power left during the process of transferring your images to the computer, use the AC power adapter as a power supply. Loading an SD memory card (optional accessory)

The camera comes with 11MB of internal memory, allowing you to store images and video clips in the camera. However, you can expand the memory capacity by using the SD memory card so that you can store additional images and video clips.

1. Make sure the camera is tumed off.

2. Slide the battery/SD card cover in the direction of

3. Insert the SD memory card.

The front side of the memory card (printed arrow) should face towards the front side of the camera. M ie card cannot be inserted, check the orientation

4. Close the battery/SD card cover.

To remove the SD memory card, make sure the camera is off. Open the battery/SD card cover. Press lightly on the edge of the memory card and it will eject. © NorE To prevent valuable data from being accidentally erased from an SD memory card you can slide the write-protected tab (on the side of the SD memory card) to “LOCK”. To save, edit, or erase data on an SD memory card, you must unlock the card Write-protected

Attaching the strap To prevent accidental slippage during use, always use the strap. Attach the camera strap as follows:

1. Thread the small loop of the strap through the strap

eyelet on the camera.

2. Pull the large loop through the small loop until the

Strap is firmiy secured Choosing the language When you turn on the camera for the first time, the language setting screen appears, prompting. Language you to choose a language for displayed English information on the LCD monitor. Follow the steps below to set the OSD (On-Screen Display) language.

1. Select a language that you prefer by using the

2. Press the OK button to confirm.

• The language setting will be retained even if the camera is tumed off.

Setting the date and time The Date/Time screen will be presented iffwhen: The camera is tumed on for the first time. M ie camera is tuned on after removing the batteries/AC power adapter _or replacing the batteries. When the date and time setting screen appears, follow the steps to set the correct date and time. You may skip this procedure by pressing EXIT. Date & Time

1. Enter the values of the date and the time by usingthe À / W button. Press EXIT after all

fields are set. M nincrease the value, press the À button. Œ 5 decrease the value, press the W button Setting the image resolution and quality Resolution and quality settings determine the pixel size (dimension), image file size, and compression ratio for your image. These settings affect the number of images that can be stored in internal memory, or on an SD memory card. Higher resolution and higher quality images offer the best photographic results but take up more memory space. High resolution/quality settings are recommended for printed output and situations requiring the finest detail. Lower resolution/quality images take up less memory space

and may be quite suitable for sharing images via e-mail, in a report, or on a web page. To change image resolution or image quality, perform the steps below: Capture Menu

1. Slide the POWER switch and turn on the camera.

2. Press the (Æ] button on the rear side of the EV

camera White balance

3. Select Image size or Quality by usingthe À /

g y oyusng 4» : Change Y buton

4. Press OK button. Select the image size or image

quality you prefer by usingthe À / W button.

5. Press OK to confirm. To exit the menu screen, press the [=] button.

The table below shows the approximate number of shots that you can take at each setting based on 16MB internal memory or an 8MB/16MB/32MB/128MB/256MB SD memory card. Resolution | Qualiy | Compressen | 16M8 | eus SD |1emB So[sus SD |6aus so] 128m8 | 256u8 rate Intomal | Memory | Memory | Memory | Memory | SD | so Memory | Cars | Carë | Cam | Gard | Memory | Memory Card | Card are [Fire 81 6 3 7 m | 35 | 7 | 150 Norma 121 1 5 me | 24 | ss | ns | 25 Economy. 161 12 7 m | 5 75 | 155 | 00 1600x1200 [Fine 81 o 7 mm | 3 75 | 155 | 220 Norma 121 1 “ 2 | ss | ns | 20 | 4e

Economy. 161 27 15 4 72 | 168 | s0 | co +280x960 [Fine 81 » | 25 | ss | 120 | 20 | 500 Norma 121 CRE se | es | 160 | 270 | 740 Economy. 161 so | 2 s | no | 20 | 500 | 100 Gaoxt8o |rine 81 go | gs | 150 | s10 | 6so | 1350 Norma 121 co | so | 105 | 225 | 460 | 1000 | 2000 Economy. 161 520 | es | 140 | 300 | 620 | 1300 | 2650 The above data shows the standard testing results. The actual capacity varies according to the shooting conditions and settings. TAKING PHOTOGRAPHS Basic Setting Your camera is equipped with both an optical viewfinder and a 1.6" full color TFT LCD monitor to compose images. Taking images by using the optical viewfinder will conserve more battery power. If your batteries’ level is in low condition, it is recommended to compose images by using the viewfinder. The LCD monitor can help you accurately compose the pictures and examine all the details, but using it may also consume more battery power. However, always use the LCD monitor for MACRO shots to avoid parallax effects. Using the viewfinder Using the viewfinder helps you to compose images and adjust the subject in the focus.

1. Turn the camera on by sliding the POWER switch

2. Setthe mode dial base on the desired scenery

(Manual, Auto, Macro, Portrait, Landscape, Night Scene or Sports).

3. Compose your picture in the viewfinder

4. Press the shutter button.

se LED indicator blinks green while the camera is processing a captured image. Using the LCD monitor Using the LCD monitor can help you to confirm an image while taking pictures, to replay recorded imagesWvideo clips or to adjust menu settings. The mode icons, text and numbers that are displayed on the LCD monitor may vary according to the current settings.

1. Tu the camera on by sliding the POWER switch

2. Setthe mode dial base on the desired scenery

(Manual, Auto, Macro, Portrait, Landscape, Night Scene or Sports).

3. Compose your shot in the LCD monitor.

4. Press the shutter button.

se LED indicator blinks green while the camera is processing a captured image. € NoTE

In Capture mode, pressing the OK button will set the LCD ONJOFF. The LCD monitor darkens in strong sunlight or bright light. This is not a malfunction Using the LCD monitor for an extended period of time will decrease the number of images you can take. To conserve battery power and increase the number of shots you can take, it is recommended to turn the LCD monitor off and use the viewfinder instead. Always use the LCD monitor for MACRO shots. in L Ë9 ] Movie mode, the LCD monitor cannot be turned off. Using the Zoom Functions The lens moves during the zoom photography. Zoom photography allows you to capture telephoto and wide-angle shots. By using the digital zoom, images can be closer by pressing the (T) telephoto button. Or appears smaller away by pressing the (W) wide-angle button. To capture a digitally zoomed image, perform the following steps:

1. Turn the camera on by sliding the POWER switch.

2. Set the mode dial base on the desired scenery (Manual, Auto, Macro, Portrait, Landscape,

Night Scene or Sports).

3. Press T button to activate the zoom function.

M oigitai zoom range is from 1.25x to 4x (within 11 stages: 1.25x, 1.5x, 1.67x, 1.75x, 2x, 2.28%, 2.5x, 8x, 3.33x, 3.5x and 4%). Æ 5 cxit the digital zoom, press continuousiy the W button and returm to the optical zoom status.

4. Press the shutter button to capture a “zoomed" image.

€ NoTE You can only set the digital zoom at the resolution of 2304 x 1728 pixels; digital zoom is not available at the resolution of 1600 x 1200 pixels, 1280 x 960 pixels or 640 x 480 pixels. In Capture mode, zoom key is always active to zoom the lens between wide-angle and telephoto shots. Digital zoom cannot be used in [ 29 ] Movie mode. Using the Self-Timer By using the self-timer you can join into the screen when taking group shots. You can take pictures with the self-timer in any shooting mode (Manual, Auto, Macro, Portrait, Landscape, Night Scene or Sports). The self-imer duration is 10 seconds. After the self-timer is set, the shutter automatically releases after 10 seconds. The selftimer lamp starts blinking

relatively slow for 7 seconds and then blinking rapidly for the last 3 seconds. . Secure the camera to a tripod or place it on a stable surface.

2. Tum the camera on by sliding the POWER switch

3. Set the mode dial base on the desired scenery (Manual, Auto, Macro, Portrait, Landscape,

Night Scene or Sports). . Compose the picture: . Press the Ÿ button. M 2 count down is displayed on the LCD monitor. um »

. Press the shutter button. M cancel the soif-timer photography at any time, press the self-timer button to disrupt the sequence. € NoTE +_In Capture mode, pressing the W button will set self-timer ON + After one shot is taken, the self-timer mode is turned to OFF. +_In selftimer mode, rotating the mode dial will change into Capture mode +_In selftimer mode, pressing [ © Jor [ (>) ] wiil change into Capture mode. Using the Flash The flash is designed to function automatically when lighting conditions warrant the use of flash. You can take an image using a suitable flash mode to your circumstances. If you change the flash mode, the camera will retain that setting even if the camera is turned off.

1. Turn the camera on by sliding the POWER switch.

. Set the mode dial base on the desired scenery (Manual, Auto, Macro, Portrait, Landscape, Night Scene or Sports). . Press the Ÿ button located on the rear side of the

camera repeatedly until your desired flash mode appears on the LCD monitor.

. Compose the picture and press the shutter button. +_ The camera has four flash modes: Automatic Flash (default), Red-Eye Reduction, Fill Flash (on), and Flash Off. The modes appear cyclically when you press the À button on the rear side of the camera. The table below will help to choose the appropriate flash mode: Flash Mode Description LÉ] Auto Flash The flash fires automatically according to the ambient conditions. Select this mode for general photography. The flash emits a precursor-flash before the main flash fies. [This causes the pupil in the human eye to constrict, reducins [Hé ] Red-eye Reduction pur » 9 he red-eye. Select this mode when taking pictures of people land animals in low-light conditions.

[# ] Fil Flash on The flash will always fire regardiess of the surrounding brightness. Select this mode for recording images with high contrast (backlighting) and deep shadows. [® ] Fiash off [The flash will not fire. Select this mode when taking images in al place where flash photography is prohibited, or when the (distance to the subject is beyond the effective range of the flash. © NorE + in LŸ T1 Macro mode and [ À ] Landscape mode, flash photography is not possible. +_ In [©] Night Scene mode, flash photography is fixed to Fil Flash (on). Photography in a Variety of Modes Your digital camera offers you choices of seven “scenes”, which include Manual mode, Auto mode, Macro mode, Portrait mode, Landscape mode, Night Scene mode and Sports mode. In these modes, your camera setting can automatically be optimized for the selected subject's type, Sparing you the trouble of adjusting the settings one-by-one.

Scene Mode Description [ M ] Manual Mode This mode is used to adjust to users preferred conditions. [A] Auto Mode This mode is used to simplify capturing procedures. [Ÿ] Macro Mode This mode is used to shoot a close-up of the subject, such as flowers or insects. [ Q ] Portrait Mode This mode is used to make the main subject stands out precisely with the while the background details are out-of-focus. A ] Landscape Mode This mode is used to enhance color, saturation shown in sky capes, mountains, forests and other landscape scenery, or to take portraits that feature a landmark in the background. [ & ] Night Scene Mode This mode is used to capture human subjects against a dusk or nighttime background. [ #] Sports Mode This mode is used to capture fast moving subjects. © NoTE +_In Capture mode, pressing the OK button will set the LCD monitor On/Off.

Selecting the Manual Mode You can capture images by manual adjusting conditions such as image quality, image size, saturation, sharpness, white balance, ISO speed, flash mode and EV compensation. For the above setting information, refer to the capture menu. Tum he camera on by sliding the POWER switch. . Rotate the mode dial to [M] . Press the (] Menu button.

. Set image size, Image quality, EV, White balance, Color, Saturation and Sharpness by pressing A! Ÿ button and then press the OK button to confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the image, then press it fully down.

Selecting the Auto Mode In this mode the camera adjusts the majority of the settings. Simply point the camera at the subject and then shoot.

1. Turn the camera on by sliding the POWER

2. Rotate the mode dial to [A].

4. Set Image size, Image quality, EV, White balance, Color, Saturation and Sharpness by

pressing À / W button and then press the OK button to confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the image, then press it fully down.

© NorE +_In [A] Auto mode, Color, Saturation and Sharpness settings cannot be adjusted manuall. Selecting the Macro Mode Use the macro mode to capture a close-up of the subject, such as flowers or insects. The effective range is between 0.2m and 0.7m. Tum he camera on by sliding the POWER switch. Rotate the mode dialto L Ÿ ]

3. Press the [Æ] Menu button.

4. Set Image size, Image quality, EV, White balance,

Color, Saturation and Sharpness by pressing A / % buton and then press the OK button to confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the image, then press it fully down.

€ NoTE +_When shooting a close-up in L Ÿ ] Macro mode, use the image LCD monitor to compose your shot, avoiding the off center parallax phenomenon. +_ After a macro shot is taken DO NOT FORGET to reset the lens Lo the normal status. + In L Ÿ ] Macro mode, the internal flash cannot be used. Selecting the Portrait Mode Taking pictures by selecting the [ © ] Portrait mode helps you to construct portraits in which the main subject stands out sharply and clearly against indistinct background's details. The effective range is between 04m and infinity. Tum the camera on by sliding the POWER switch.

2. Rotate the mode dial to [ 9]

3. Press the [Æ] Menu button.

4. Set Image size, Image quality, EV, White balance,

Color, Saturation and Sharpness by pressing A % button and then press the OK button to confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the

image, then press it fully down.

+ in [91 Portrait mode, in a dusk or nighitime background, the Flash mode defaus to L® ] (automatically set to Red-Eye Reduction). Selecting the Landscape Mode Taking pictures by selecting the | À ] Landscape mode helps you to capture vivid and [4] expansive landscape pictures with the enhancement of images color and saturation. The Landscape mode is used when the distance to the subject is between 0.4m and infinity.

1. Tu the camera on by sliding the POWER

2. Rotate the mode dial to [ À ]

3. Press the [Æ] Menu button.

4. Set Image size, Image quality, EV, White balance,

Color, Saturation and Sharpness by pressing À ! Ÿ button and then press the OK button 10 confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the image, then press it fully down.

+_ in [À ] Landscape mode, ISO speed cannot be set and Flash mode defaults to Flash Off. Selecting the Night Scene Mode Capturing human subjects by using the [ 1 night Scene mode helps to provide a neturai balance between the main subject and the background. The people in an evening sky or night scene are illuminated with lights from the flash while the background is captured at a slow shutter speed to prevent blurring and let both (people and the background) appear according to the exposure.

1. Tu the camera on by sliding the POWER switch

2. Rotate the mode dial to [ © 1

3. Press the [Æ] Menu button.

4. Set Image size, Image quality, EV, White balance,

Color, Saturation and Sharpness by pressing A VW button and then press the OK button to confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the image, then press it fully down.

+ in LÉ Inignt Scene mode, Flash mode defauis to L * l{automatcaly set to fash on) Selecting the Sports Mode Usingthe L' 1 sports mode helps you to capture fastmoving objects. Tum the camera on by sliding the POWER switch. Rotate the mode dialto [1

. Press the (] Menu button. s © . Set Image size, Image quality, EV, White balance, Color, Saturation and Sharpness by pressing AÀ / W button and then press the OK button to confirm.

5. Compose the picture.

6. Press the shutter button down halfway to focus the image, then press it fully down.

€ NoTE + in LÀ sports mode, 150 speed cannot be set. + For continuous shooting, just keep pressing the shutter button.

PLAYBACK MODE in D] mode, you can view, magnify, delete images, play video clips, or run a slide show. Playback mode also provides a thumbnail image display, allowing you to quickly scan for the image you want. © NorE +_In Playback mode, pressing the D] Playback button or rotating the mode dial will change into Capture mode. +_ In Playback mode, pressing the shutter button wil change into Capture mode and automatically take the current image. Viewing Images You may view your recorded images on the LCD monitor by pressing the (®] button. . Tum he camera on by sliding the POWER switch. . Press the (®] button, and then press the menu

. View and select your recorded images by using the « ! > button. Œ view the previous image, press the button

To viewrthe next image, press the D> button. Through the LCD monitor, the screen also displays the detailed information of the captured image, such as print indicator, image size, date, current number of the image, total number of the images and the battery level. The print icon only appears on the LCD monitor when the image is set to print out. 3:24 9 54 The recorded time only appears on the LCD monitor, when it is recoded by using | É? ] movie mode. © NorE *_Ifthere is no image stored in the internal memory or the memory card, an indication of “No image” will appear on the LCD monitor. +_ You can also view your images on a TV screen. Connect one end of the video cable to the video out jack of the camera and connect the other end to the video input of your input of your TV. Press the (1 button and then turn on TV or camera Zoom Playback While reviewing your images, you may enlarge a selected portion of an image. This magnification allows you to view fine details.

1. Tu the camera on by sliding the POWER switch

. View and select your recorded images by using the / D button. 8» © - To zoomed the image press the [T] button. M Digital zoom in the playback mode can magnify up to 6x.

.. To return to the regular display from 6x status, keep pressing the [W] button and it will change into thumbnail images. © NorE + _ When you zoom the maximum portion of the selected image, the À / W / / > keys wil disappear. Displaying Thumbna Images This function allows you to view nine thumbnail images on the LCD monitor simultaneously so that you can quickly scan for a particular image.

1. Tum the camera on by sliding the POWER

2. Press the (] button and then the Ed button.

M \ine thumbnail images appear on the LCD monitor (assuming there are nine or more. recorded images in the memory).

D eva tul-size image, press [T] the telephoto or OK button after the image selection by usingthe À / W 1 €; D button. € note While displaying thumbnail images, pressing the delete button will cause the current chosen image to be deleted. While displaying thumbnail images, by pressing the >] playback button, the screen will change to Capture mode and be ready to take next shot. Slide Show Display The slide show function enables you to play your images back automatically in sequential order as a slide show. This is a very useful and entertaining feature reviewing recorded images, video clips and good for presentations. . Tum the camera on by sliding the POWER switch. . Press the (®] Playback button.

by using À / W button. . Press the OK button and to set the playback interval by using À / W button. a # And then press the OK button again to confirm as your preference.

M 2 side show starts, displaying your images on the LCD monitor one by one with the interval. D sp the side show display, press the OK button or rotate the mode dial. € NoTE You can adjust the slide show display interval within the range of 1 sec. to 10 sec. (1 sec. /3 sec. / 6 sec. / 10 sec.) To not set the slide show display you may choose Exit. The slide show display defaults to1 sec. intervals. Setting DPOF DPOF (Digital Print Order Format) allows you to embed printing information on your memory card. By using DPOF, you can select an image to be printed and then specify how many prints or which image you would DPOF like. Take your memory card to a DPOF enabled printer that accepts memory cards. The DPOF/card-compatible Eee | printer will read the embedded information on the memory = card and print your images as specified To set DPOF: 4»: Change

1. Tum the camera on by sliding the POWER switch.

button to select quantity or image. M 5 0POr icon will appear on the DPOF-setting image. The DPOF menu options: {Quantity]: select the image quantity from 0-9 [Set image]: allows you to select your preference image [Exit]: to exit the screen. © NorE + To print images from the internal memory, it is necessary lo copy your images to the SD memory card first. + The LÉH] print icon will also display on the LCD monitor to indicate images selected for printing. Deleting Images/Video Clips To delete one image or video clip at a time, use the Îf] button on the rear side of the camera. To delete all images or video clips at once, you may find this option in Playback menu.

M 5 Delete One Image/Video Clip Tum the camera on by sliding the POWER switch. . Press the (] button on the rear side of the

camera to see he captured images and video clips

. Select the unwanted imageWvideo clip by using te €7 D buton and then press the ff button.

. Continue the deletion if necessary. M {ai images are deleted, [No image] will Pop up.

. To exit this screen, rotate the mode dial. Æ 5 Deiete Al Images/Wideo Clips Tum the camera on by sliding the POWER switch. . Press the (1 button on the rear side of the

camera to see he captured images and video clips. LOLUCON 720 All images on card

Then press the ÊÆ] button. . Select Delete by usingthe À / W button. . Press the OK button and then select [AII images on card] by using the À / W button. . Press the OK button again to confirm.

M Aer that, [No image] pops up. To exit the screen, press the [1] playback button, El menu button, or rotate the mode dial. The camera is ready to take the next image now or video clip. € NoTE To delete the images or video clips stored in the internal memory, the steps are the same as mentioned above. Be sure to remove the SD memory card first and the OSD screen will display as "AI images on memory". The OSD message for deleting all images or video clips will display as “AI images on card ‘or “Al images on memory” based on your decision whether to delete information recorded in the card or in the internal memory. Formatting an SD card or Internal Memory Using this option you may format the internal memory or the SD memory card. To perform the format function, press the Æ / W and then press OK.

€ NoTE + To format the images or video clips stored in the internal memory, be sure to remove the SD card memory card first and the OSD screen will display as "Format memory?" Movie MODE Recording Video Clips The movie mode allows you to record video clips at a resolution of 320 x 240 pixels.

1. Tum the camera on by sliding the POWER switch.

2. Pressthe #9 button

M 2 recording movie time, REC icon, the card indicator and the battery level will all display on the LCD monitor.

3. You can start recording the video clip simply by.

pressing the #9 button M stop the recording, press the PT button. © NorE +_itis not possible to zoom in or zoom out while in the [ 9 ] Movie mode. + In movie mode, image size, image quality and selftimers functions cannot be set or activated. +_ In movie mode, the flash mode is automatically set to OFF. Viewing Video Clips To view the recorded video clips, follow the steps below.

1. Tum the camera on by sliding the POWER switch.

2. Press the (®] button

3. View and select your recorded video clips by using

ie € D buton. M rie playing back the video clips, within 2 sec. the camera will automatically play the whole movie recording again. M nie viewing the video clips, the € 7 D keys, the current image, recorded time wi also indicated on the LCD monitor.

Æ 5 stop playback, press the OK button Œ 5 exit playback, press the [>] playback button or rotate the mode dial. Then the camera is ready to take the next shot or video clip. € NoTE The zoom function cannot be activated while playing back the video clips. When playing back the video clips, the screen will also count down the recorded time. To play out the voice recorded in the video clips, you can use a video-compatible television connected via the supplied AV cable. PC connected with the USB cable can also play out the recorded voice in the video clip. Be sure to turn ON your speaker.

TRANSFERRING RECORDED IMAGES TO

YOUR COMPUTER You can share recorded images/ideo clips with your family or friends via e-mail or post them on the Web. Before doing this, you need to connect the camera to your computer by using the USB cable and then transfer the images/video clips. To transfer images/ideo clips from the camera to your computer, follow the steps below: Step 1: Install the USB driver (only for Windows 98) Step 2: Connecting the camera to your computer Step 3: Downloading imagesvideo clips

Memory (G4MB recommended) (GAMB recommended) Free Space on Hard Disk 128MB hard disk space 128MB hard disk space Required Devices A CD-ROM drive, An available USB port A CD-ROM drive, An available USB port Color Monitor Color monitor (800x600, 24-bit or higher recommended) Color monitor (800x600, 24-bit or higher recommended) Step 1: Installing the USB driver on Windows computers The USB driver on the supplied CD-ROM is exclusively for Windows 98. Installing the USB driver on computers running Windows 2000/ME/XP is not necessary.

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive. The welcome screen

2. Click ‘Install USB Driver”. Follow the onscreen instructions to complete the installation. After

the USB driver installation is complete, restart your computer.

Installing the USB driver on Macintosh computers Mac OS 8.6 users must install a USB driver. For Mac OS 9.0 or higher, the computer will automatically recognize the camera and load its own USB drivers.

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive.

2. Select and double-click “Digital Camera Driver Installer”.

3. Select ‘Install Location" and click “Install”.

4. Follow the on-screen instructions to complete the installation and restart your computer.

Step 2: Connecting the camera to your computer . Connect one end of the USB cable to an available USB port on your computer. Connect the other end of the USB cable to the USB

connector on the camera.

- Look for a new “Removable disk” icon appearing in the “My Computer" window. Your recorded imagesivideo clips will be in a folder on this “removable disk”. (For Mac users, double-click the “untitled” disk drive on the desktop.) Step 3: Downloading images/video clips When the camera is turned on and connected to your computer, it is considered as a disk drive,

just like à floppy disk or CD. You can download (transfer) images/video clips by copying them from the ‘removable disk” (‘untitled” disk on a Macintosh) to your computer hard drive or to another kind of disk. For computers running Windows Open the “removable disk” by double-clicking on it. Double-click on the folder that contains your recorded images/ideo clips. Select the imagesivideo clips that you prefer and choose “Copy” from the “Edit” menu. After that, open the destination location and choose “Paste” from the “Edit” menu For computers running Mac OS Open the “untitled” disk window and the hard disk or the destination location. Drag and drop from the camera disk to the desired destination. € NoTE +_Itis recommended that you use the AC power adapter as a power supply for the camera while transferring your images/video clips from the camera to your computer to avoid any camera cut off unexpectedly if the batteries run out. +_ Memory card users may prefer to use a memory card reader (highly recommended).

INSTALLING PHOTOSUITE PhotoSuite is a very user-friendiy image-editing program. With PhotoSuite, you can easily retouch, compose and organize your images. It contains a variety of templates, such as photo frames, birthday cards, calendars and more. amazing program. = _ TC To install PhotoSuite € . Inset the CD-ROM packaged with the camera in to the CD-ROM drive. The welcome screen appears. Click ‘Install PhotoSuite”, Follow the on-screen instructions to complete the

installation. e) NOTE For information on how to use PhotoSuite to edit and retouch your recorded images, please refer to its online help. For Windows 2000/XP users, make sure to install and use the PhotoSuite while logged in as a user with an Administrator account. PhotoSuite is not supported on the Mac.

INSTALLING PHOTOVISTA PhotoVista is an easy-to-use program that lets you create spectacular 360° panoramic images in à snap. When you view these panoramas, you get the experience of being totally immersed in a realistic environment. PhotoVista's powerful engine quickly and automatically stitches images together, and its intuitive interface will let even a novice get great results in minutes. To install PhotoVista: Insert the CD-ROM packaged with the camera into the CD-ROM drive. The welcome screen appears. Click "Install PhotoVista". Follow the on-screen instructions to complete the installation. @ NOTE For information on how to use PhotoVista to create spectacular 360° panoramic images, please refer to its online help. For Windows 2000/XP users, make sure to install and use the PhotoVista while logged in as a user with an Administrator account. PhotoVista is not supported on the Mac.

MENU OPTIONS The Capture Menu In the Capture menu, you can determine he conditions you would like to choose such as image size, image quality, EV compensation, white balance, ISO, color, saturation and sharpness. Tum he camera on by sliding the POWER switch.

Set the mode dial base on the desired scenery (Manual, Auto, Macro, Portrait, Landscape, Night Scene or Sports).

. Press the =] button and then scroll through the options by pressing the À / W button.

Image size = Image Size Refer to Seting the Image Resolution and Quality. Lame |

1280 x 960 FE 640 x480 Image quality Image Quality Refer to Settng the Image Resolution and Quality. age _— À Norr #4 + Economy

Your camera adjusts the exposure for each scene automatically. However, when the subject is too dark or too bright, the camera adjusts the brighiness or darkness. This is called EV compensation. The EV compensation of your camera can be adjusted from [2.0 EV] to [+2.0 EV] (0.5 EV step). To select the EV compensation you wish, first press the OK button. A/v:Change Then increase or decrease the EV compensation depending on what you need by using the A 1% button and then press the OK button again to confirm.

Effective Subjects and Set Values je (+) Compensation Æ Copying of printed text (black characters on white paper) D sacuit portraits M Very bright scenes (such as snowfields) and highly reflective subjects M Shots made up predominantly of sky Negative (-) Compensation M Spot ighted subjects, particularly against dark backgrounds M \2ging of printed text (white characters on black paper) M Scenes with low reflectivity, such as shots of green or dark foliage € NoTE «in [9] portrait mode, the EV compensation cannot be set White balance When the brighiness of the light changes, our eyes adapt to the difference so that the white object remains white. For digital still cameras, they can also see the white object as white by averaging the light around the subject The camera determines the white balance by averaging the various kinds of light that actually enters the lens. You may set in advance the white balance when taking photographs under specific lighting conditions (Auto, Daylight, Cloudy, Sunset, Tungsten and Fluorescent). To set the white balance, first press the OK button. Then choose the appropriate white balance

setting you prefer by pressing the À / W button and then pressing the OK button again to confirm. [Auto] : automatically adjusting the white balance Daylight] : for recording outdoors on a bright day Cloudy] : recording for overcast, shaded, twilight or evening skies Sunset] : for recording under sunset Tungsten] : for recording under tungsten lighting condition Fluorescent ] : for recording under fluorescent lighting condition The ISO speed decides the sensitivity to the lights. The higher the ISO number is, the more sensitive it is to the lights. ‘When recording under dark situations or recording fast movements, use a high-number setting. However, while recording high quality images, we suggest you to use a low-number setting. To set the ISO speed, first press the OK button. Then choose the appropriate ISO speed by pressingthe À / W button and then press the OK button again to confirm [Auto] adjusts the ISO speed automatically [100] : equivalent to ISO 100

1200] : high-sensitive photography, equivalent to ISO 200 [400] : high-sensitive photography, equivalent to ISO 400 © NorE + in L®] portrait mode, [ À ] Landscape mode and NI Sports mode, the ISO speed setting is not possible. Color To capture an image, the camera offers three types of color (Full Color/Black and White/Sepia) for you to match as your wish. Your images will demonstrate different impressions by choosing different types of color. To set the color, first press the OK button. Then choose the appropriate color background Full (Color/Black and White! Sepia) you prefer by pressingthe À / W button and then pressing the OK button again to confirm. © NorE +_ The color setting is not possible in [A] Auto mode.

Saturation To capture an image, the camera offers you three different degrees of color (High/Medium/Low) for you to match as you wish. Your images will give a different impression by choosing these different degrees of color. This is called Saturation. To set the color, first press the OK button. Then choose the appropriate color saturation (High/Medium/Low) you prefer by pressing the 4 1% button and then pressing the OK button again to confirm. © NorE «The saturation setting is not possible in [A] Auto mode. Sharpness The camera will automatically emphasize the Sharpness borders between light and dark areas of the image This wi make the image's edges seem sharper. N Med et To set the Sharpness detail first press the OK VE button. Then choose the appropriate sharpness degree (High/Medium/Low) you prefer by pressing the À / W button and then pressing the OK

button again to confirm. € NoTE +_ The sharpness setting is not possible in [A] Auto mode. The Playback Menu Use the Playback menu to transfer your recorded imagesWvideo clips to a memory card, or to create an on-camera slide show displaying or figure DPOF settings. You can also use the Playback menu to delete one or all images, to format the memory card or the internal memory and also record voice/sound if you prefer. To access the Playback menu, press the [>] button first and then press the (Æ] button. Scroll through the menu options by using the À / W button. Delete Refer to “Deleting Images/Video Clips” in Playback Mode. Copy to card This feature allows you to copy your images from the camera's memory card or the internal

memory. However, you can only do this when the memory card is installed and the internal memory contains images. To perform this function, first press the OK button. Then select [No] or [Yes] by using the À / W button and press OK button to confirm. Showing the copying process a bar displays and the screen indicates "Copy to card". Slide show Refer to “Slide Show Display" in Playback Mode. (p.43) DPOF Refer to “Setting DPOF" in Playback Mode. (p.44) The Setup Menu You can select your preference for the camera settings in Setup mode. Rotate the mode dial to Setup mode and navigate to the option you wish to configure by usingthe À / W button TV Set to default Beeper Language English Date & time Refer to “Setting the Date and the Time” in GETTING STARTED. (p. 19)

You can view your images on a TV. Remember to select the correct video output type according to where you are located. To set this option, first press the OK button. Then use the À / W button to select your TV receiving system [NTSC] or [PAL] and press the OK button to confirm INTSC]:_ Select this format when located in the U.S.A., Canada, Japan, Korea, Taïwan, Central America, or Mexico. IPAL}: Select this format when located in Australia, Belgium, China, Denmark, Finland, Germany, Great Britain, Holland, ltaly, Kuwait, Malaysia, New Zealand, Nonway, Singapore, Spain, Sweden, Switzerland, Thailand or Yugoslavia Beeper The camera makes a sound (beep) each time you press the camera button if this function is enabled Press the OK button. Soft

Then select the beeper [Louder], [Sof] or [Off] by using the À / W button and then the OK button to confim [ose | M 2 camera defauits to [OFF] Language This option allows you to select the language for the menus and the texts displayed on the LCD monitor. To set the language, refer to the section "Choosing the Language”. (p.19) M 2 camera defaults to English.

Power off time If the camera remains unused for a certain period of time while the camera is powered on, the camera will switch to ‘idle" mode, and eventually tum itself off to conserve the power. Inactivity period Inactivity period Camera Status (Batteries) {AC Power Adapter) 60 seconds. 60 seconds. Stay idle 3 minutes 30 minutes Shut off Ifthe camera is idle, re-activate the camera by pressing any button or rotate the mode dial. If the camera has powered-off then you must turn the camera on again by sliding the POWER switch. To change the power saving interval when the camera is charging with batteries, first press the OK button. Then select the power-off interval you prefer by usingthe À / W button and then the OK button to confirm. 1 min], [5 min], [10 min], (30 min], [OFF] M 2 camera defaults to [3 min] Set to default If you wish to restore all camera settings to their original status, select this option and then press the OK button. Then select [No] or [Yes] by using the A! W button and then OK button to confirm.

Exposure compensation Auto; Manual: -2.0 - +2.0EV (0.5EV step) White balance Auto; Manual: Daylight, Cloudy, Sunset, Tungsten, Fluorescent Compressed format JPEG, MPEG 1 Level ! for video clip Standards JPEG, EXIF 2.1, DPOF 1.1, DCF 1.1, MPEG 1 Level 1 Interface DC IN jack, USB connector, VIDEO OUT jack (NTSC or PAL) Operating environment Operation: 0°C-40°C, 15%-90% humidity Storage: -20°C-60°C, 10-95% humidity Power 2 x AA Alkaline batteries, 2x AA Ni-MH batteries, AC power adapter Tripod socket Yes Dimensions 95 x 64 x 36 mm (W x H x D) (without protruding parts) Weight ‘Approx. 180g {without batteries and the SD memory card) “Design and specifications are subject to change without notice.
