USER MANUAL POE-FSH804 AIRLIVE

8-Port 10/100Mbps Ethernet Switch with 4-Port POE

Quick Setup Guide

Table of Contents

List of Languages

English 1

Italiano 20

Cesky 5

Magyar 23

Deutsch. 8

Polski 26

Espanol 11

Portugués 23

Elambdanvikoç 14

Pycckn 32

Francais. 17

Slovensky 35

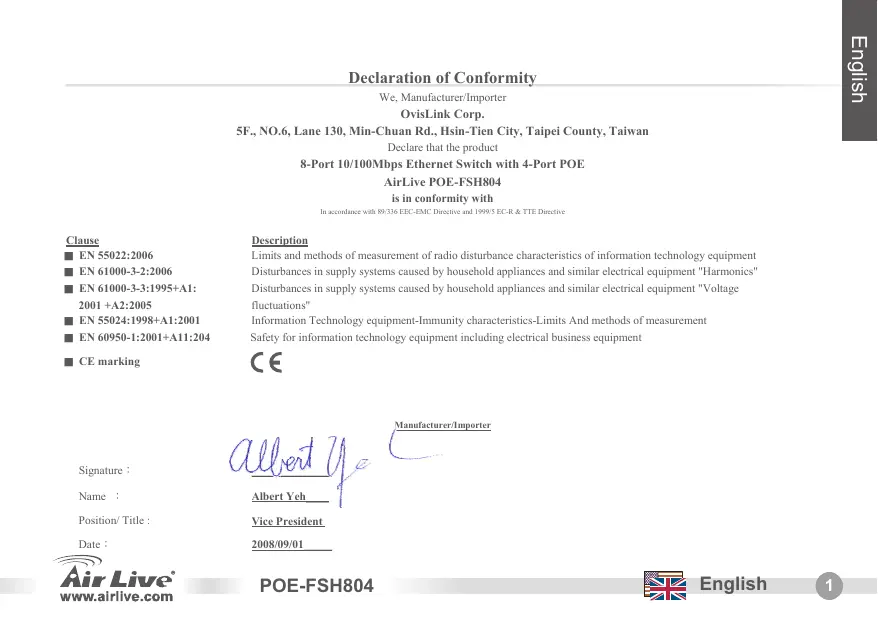

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp.

5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan

Declare that the product

8-Port 10/100Mbps Ethernet Switch with 4-Port POE

AirLive POE-FSH804

is in conformity with

In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive

Clause

EN 55022:2006
EN 61000-3-2:2006
EN61000-3-3:1995+A1:2001+A2:2005
EN 55024:1998+A1:2001
EN 60950-1:2001+A11:204
CE marking

Description

Limits and methods of measurement of radio disturbance characteristics of information technology equipment Disturbances in supply systems caused by household appliances and similar electrical equipment "Harmonics"

Disturbances in supply systems caused by household appliances and similar electrical equipment "Voltage fluctuations"

Information Technology equipment-Immunity characteristics-Limits And methods of measurement Safety for information technology equipment including electrical business equipment

Signature :

Name :

Position/ Title :

Date:

Vice President

2008/09/01

Manufacturer/Importer

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences when the equipment is operating in a commercial area. This equipment generates, uses and may radiate radio frequency energy, and if not installed in accordance with the user guide, may cause interference in the transmission of radio communications. If operating in a residential area, it is probable this equipment will cause harmful interference, in which case the user will be required to try to correct this interference using his own means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause radio interference, in which case the user can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive POE-FSH804 meets the basic requisites of directive 99/05/CE, and is therefore liable for the accuracy of these data:

OvisLink Corp.

5F, No.6 Lane 130

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Warranties

This product has undergone various quality controls to ensure proper operation.

This product is covered by a two-year warranty for countries inside European Union. For other countries, the warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be applicable in the event of damage caused by improper use of the product, accidents, faulty handling or manipulation nor any future incompatibility with third party products.

Product Layout

Front View	Back View

LED Rules

LED Indicator	Color	Status	Meaning
Power	● Green	ON	Power ON
		OFF	Power OFF
PoE Max.	● Red	ON	Power consumption would be over limit
		OFF	Power consumption is used safely
Link/Act	● Green	ON	Port is connected
		Blinking	Transmitting/Receiving
		OFF	Port is connected
SPEED	● Orange	ON	Works on 100Mbps
		OFF	Works on 10Mbps
PoE Status	● Green	ON	Power is provided
		OFF	No powered device (PD) is found

Installation Steps

1. Remove the switch and accessories from the package.
2. Connect power to the switch. Make sure that "Power" LED is on.
3. Connect devices to the switch, and check whether the "Link/Act" light is on. If not, please make sure that power is on for the other device or PC.

Important Notice

1. POE-FSH804 is an end-span power sourcing equipment (power via 12,36 pin). Only port 1 to port 4 support PoE function.
2. Total power consumption is Max. 60W; 802.3af power consumption is Max. 55W (Port 1 - 4).
3. The maximum cabling distance is 100 meters.
4. Do not form a network loop.
5. Always check the LED lights for troubleshooting.

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Záruka

Tento produit by podrobeny Rozlichnym kontrolam kvality k zajisteni vsech funkci.

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Garantiebestimmungen

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Garantías

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

EyyuOεiC

AutoToTpoioV exiUtoBnEe diapopouc TIOItKoC Eeyxouc yia Tnv Eeaaqalian nG awatng Aetoupyiaac.Auto To TpoioV KAULTTETAI aTO ia (2)DietN Eyyunon yia TIG Xwpec EvrOc EupwtaiKnHg Evuong. Ia Tc alAeXwpe, n Tepio06c EyyunOn civai eva (1) Etoc. 2EpiTTWOn OTIOAodHnTote ELATTWAtOc n DiakOTnKATAKeuHs, 3a EtnkKeuaTei ato Tnv OvisLink Corp. NapakaLw EATE e tAnp N tov TPOunTheur nC yia Tc LEITTOpeIEc ot dIdiKaiaia Tou AkoAUouitai. H Eyyunon Dv IOxue i e TEPiTTWOn Znmu Cnou Ta POKLnEi aTO nTv avapmoTn Xphon Tou TpoioVtoc, Ttw ATUxnuAtuv, Tou LEATWAtIKoU xeiipou h n Tou xeipou ou OTE OTIOUdbHnTote MEAAovTKou aoumbiAcTou me Ta TpoioVt aTiwv.

περιγαφή Προῖόντος

Емпróбөгia о汞η	Піσω о汞η

περιγραφή LED

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Garanties

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Garanzia

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Jotallas

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Gwarancje

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Garantias

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

TapaHTnHbIe 06a3aTeJIbCTBa

UcTpoCTBO npoIIO pa3nHbIe TeCTb KaueCTBa, UTObI rapaHTnpOBaTb HopMaIbHOe FyHKuOHNpOBaHne. Ha npOyKT npedocTbIaeTcB Dba Roda rapaHTn DnA CtpaH-ynHeOB EC. IInr CtpaH He BxOJaNcE BC - rapaHTn Odni rOd. B clyae npo3BODCTBeHHORO 6paKa HnI NOnOMKn, OvisLink Corp npo3BeTeT peMOHT n3DeJn.IoXaIyIcTA, CBxIKTeB C noCTabUkOM DnI NOnyehN E0one NOnpOboHnHfOpMaIOn o npOeDype rapaHTnHorO obClyXbAHnI. PpO3BOMntEh Me Moet JHe TcBtCTBeHHOCTb 3a YucpeB Bo3NHKmN B p3eyIbTaTE HeaJdHexaJeero IcNoJIb3OBaHn, HeecactHOrO CUYaYn HnPabINbHO o6paSeHn. IpO3BODntEh TAKke He Heecet OTBctCTBeHHOCTb 3a DaJIbHeuSyHo HecOBMeCTMOCbTc

YCTPOIcTBaMn OT CTOpOHHnx Ipon3BOOnTeJIeJ.

Cxema npoodykTa

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: [phone]

Záruky

OvisLink Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC.

RU

KompanaHOvSInk Corporation 3AARBLET, CTO 3TO UCTPOJTHBO OTBUEAOT SCHOBHBM TpeBOBAHIMN IPOUCHM POJCTBENHBM YCLOBHBM,NJIOKHEHN B M DIPHKTHE 1999/EC.

SK

OviLink Corporation potvrduzije, ze toto zariadenie vyhovuje poziadavkam a'dalsim predispom smerince 1999/5/EC.

FR

5F, NO.6, LANE 130, MIN CHUAN RD., HSIEN-TIEN CITY, TAIPEI COUNTY, TAIWAN

This equipment may be used in AT, BE, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL,PL,PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR

OvisLink Corporation declares that this device is in use and will continue to be used for other applications. Other relevant provisions of directive 1999/5/EC

Tested to Comply with the following requirements: FOR HOME OR OFFICE USE
