Product Type	Gigabit Network Switch
Brand	AIRLIVE
Model	LIVE-GSH8T
Number of Ports	8 Ethernet ports 10/100 Mbps + 1 Gigabit copper port
Auto-MDI/MDI-X Function	Yes, on all ports
Auto-negotiation	Yes, on all ports
Flow Control	Yes (802.3x on Gigabit port)
Indicator LEDs	Power (green), Link/Act (green), FDX/Col (yellow), 100M (red), Gigabit (green)
Power Supply	External AC adapter (not provided with manual)
Dimensions (approx.)	20 x 12 x 4 cm
Weight (approx.)	300 g
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Maximum Cable Distance	100 meters
Recommended Cable	CAT5 UTP/STP for 100 Mbps, CAT5e for Gigabit
Mounting	Desktop with supplied rubber feet
Maintenance	Clean with a dry, non-abrasive cloth
Safety	Avoid network loops; do not open the case
Spare Parts	AC adapter available as an option

Frequently Asked Questions - LIVE-GSH8T AIRLIVE

How to install the AIRLIVE LIVE-GSH8T switch?

Remove the switch and accessories from the packaging. Place the rubber feet on the bottom. Connect the power supply; the Power LED should light up. Connect your devices to the ports: use a CAT5 twisted pair cable for 10/100 Mbps connections and CAT5e for the Gigabit port.

What to do if the Power LED does not light up?

Check that the AC adapter is properly connected to the switch and to a working power outlet. Test with another outlet if possible. If the LED remains off, the adapter may be defective.

How to interpret the Link/Act LEDs?

The Link/Act LED is green. Solid on: connection established. Blinking: sending or receiving data. Off: no connection. Check the cable and that the remote device is powered on.

What does the FDX/Col LED mean?

The FDX/Col LED is yellow. Solid on: the port is in Full Duplex mode. Off: Half Duplex mode. Blinking: collisions detected in Half Duplex mode. Some blinking activity is normal.

Which cable to use for a Gigabit connection?

For the Gigabit port, use a twisted pair cable of category 5 (CAT5) or higher (CAT5e, CAT6) in UTP or STP. Maximum distance is 100 meters. The switch supports auto-MDI/MDI-X, so a straight or crossover cable works.

Can I use this switch to create VLANs?

The LIVE-GSH8T model does not have a VLAN selector. For VLAN segmentation, refer to a model like the Live-FSH16T+ which includes a hardware selector. Here, all ports are in the same broadcast domain.

My network slows down or crashes, what to do?

Check that no network loop is formed (do not connect two ports of the switch together). Ensure that the cable distance does not exceed 100 meters. Verify that all devices are on the same IP segment (e.g., 192.168.0.x). Avoid using a device in 10 Mbps Full-Duplex without auto-negotiation.

How to check my IP address in Windows?

Under Windows NT/2000/XP, open the command prompt and type IPCONFIG. Under Windows 9x, run WINIPCFG. Your computer's IP address is displayed. It must be in the same range as other devices to communicate.

Does the switch heat up normally?

Yes, slight heating is normal. Ensure the switch is placed in a well-ventilated area, away from direct sunlight and heat sources. Do not place objects on top of it.

Where to find the complete manual?

The complete manual is available for free download in PDF format on the site notice-facile.com. You can also request a translation in your language by providing your email.

USER MANUAL LIVE-GSH8T AIRLIVE

Live Series Switches

Live-FSH5PS, Live-FSH8PS, Live-FSH5R, Live-FSH8SB, Live-FSH8R, Live-FSH16T+, Live-GSH5T, Live-GSH8T

Quick Setup Guide

English 1

Espanol 4

Deutsch 7

François 10

13

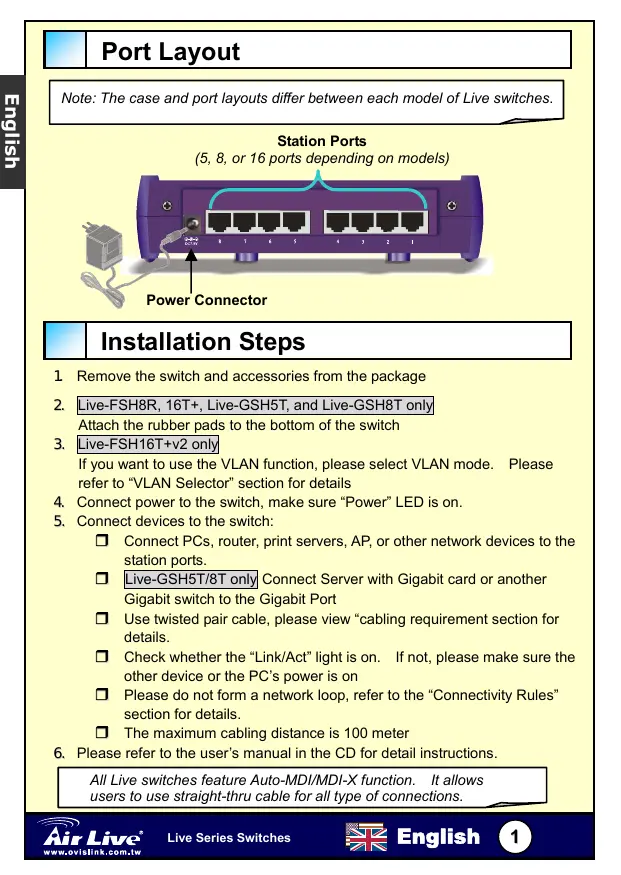

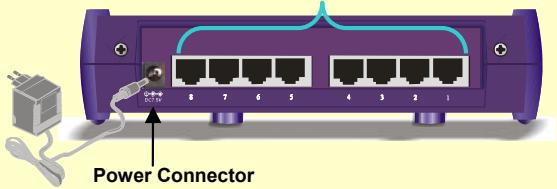

Port Layout

Note: The case and port layouts differ between each model of Live switches.

Station Ports
(5, 8, or 16 ports depending on models)

Installation Steps

1. Remove the switch and accessories from the package
   Live-FSH8R, 16T+, Live-GSH5T, and Live-GSH8T only Attach the rubber pads to the bottom of the switch
   Live-FSH16T+v2 only If you want to use the VLAN function, please select VLAN mode. Please refer to "VLAN Selector" section for details
2. Connect power to the switch, make sure "Power" LED is on.

3. Connect devices to the switch:

4. Connect PCs, router, print servers, AP, or other network devices to the station ports.
   Live-GSH5T/8T only Connect Server with Gigabit card or another Gigabit switch to the Gigabit Port
   Use twisted pair cable, please view "cabling requirement section for details.
   Check whether the "Link/Act" light is on. If not, please make sure the other device or the PC's power is on
   Please do not form a network loop, refer to the "Connectivity Rules" section for details.
   The maximum cabling distance is 100 meter

5. Please refer to the user's manual in the CD for detail instructions.

All Live switches feature Auto-MDI/MDI-X function. It allows users to use straight-thru cable for all type of connections.

LED & Cabling Rules

LED indicator	Color	Status	Meaning
All Models
Power	• Green	ON OFF	Power ON Power OFF
Link/Act	• Green	ON Blinking OFF	Connection is made Transmitting/Receiving No connection is made
FDX/Col	• Yellow	ON OFF Blinking	Full Duplex Half Duplex Collisions (in half duplex)
100M	• RED	ON OFF	100 Mbps Connection 10 Mbps Connection
Live-FSH16T+
VLAN	• Yellow	ON	VLAN Mode On
VLAN	• Yellow	OFF	VLAN Mode OFF
Live-GSH5T/ Live-GSH8T
• 1000/ACT • 100/ACT • 10/ACT	• Green • Green • Green • Green	ON ON ON Blinking	FDX 1000Mbps Connection FXD 100Mbps Connection FXD 10Mbps Connection Transmitting/Receiving

Port Type	10/100 Ports	Gigabit Port (Live GSH5T/8T)
Cable to use	100Mbp :CAT5 UTP/STP 10Mbps: Cat 3, 4, 5 UTP/STP	10/100/1000Mbps Cat 5 UTP/STP
To PC	Straight-through	Straight-through
To hub/switch	Straight-through	Straight-through
Maximum distance	100m	100m

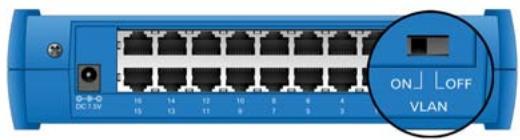

VLAN Selector (Live FSH16T+ only)

For normal operation, please make sure your VLAN switch is in "OFF" Position

Live-FSH16T+ is equipped with VLAN selector switch in the back panel. When activated, each port will be in its own VLAN group with 2 sharing ports. Ports in different VLAN groups cannot see each other. However, everyone can see the sharing port. Please make sure your VLAN selector is in "OFF" position if you are not using the VLAN function.

ON: Every port in its own VLAN group sharing Port 8 and 16
OFF: VLAN function off, the switch operates in normal mode

Connectivity Rules

Please avoid forming a network loop (see the diagram on the right) when connecting the cables. A network loop can cause the network to shutdown..
The maximum cable distance is 100 meter
Always check the LED lights for trouble shooting
Computers and network devices must be in the same IP subnet in order to see each other. For example, 198.168.0.1 can not see 192.192.1.1 for Class C subnet. You can find out the computer's IP address by typing "IPCONFIG" in WinNT/2000/XP's command line. For Win9x, run "WINIPCFG".
- Avoid operating device in 10Mbps full duplex mode if the device does not have auto-negotiation function.
