Product Type	Unmanaged network switch
Brand	AIRLIVE
Model	LIVE-FSH5R
Number of ports	5 RJ45 ports 10/100 Mbps
Power supply	External power adapter (5V DC, not included)
Power consumption	Approximately 3 W
Dimensions (L×W×H)	Approximately 140 × 85 × 30 mm
Weight	Approximately 200 g (without adapter)
Main functions	Auto-MDI/MDI-X, auto-negotiation 10/100 Mbps, 802.3x flow control, store-and-forward
VLAN	Not supported on this model (available on LIVE-FSH16T+)
LED indicators	Power (green), Link/Act (green), FDX/Col (yellow), 100M (red)
Cable type	Twisted pair UTP/STP Cat 3, 4, or 5 for 10/100 Mbps
Maximum cabling distance	100 meters
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% RH (non-condensing)
Maintenance and cleaning	Disconnect the device, clean with a soft dry cloth. Do not use abrasive products or solvents.
Safety	Do not create a network loop. Observe the maximum cabling distance. Use only the provided adapter.
Spare parts and repairability	No user-serviceable parts. In case of failure, contact after-sales service.
General information	Compact switch for home or small office network. 2-year warranty.

Frequently Asked Questions - LIVE-FSH5R AIRLIVE

How to install the LIVE-FSH5R switch?

Remove the switch and accessories from the packaging. Place the rubber pads under the feet if necessary. Plug in the power, connect your network devices to the ports. The Power LED should light up.

What does the 100M LED mean?

The 100M LED (red) indicates the speed: on for 100 Mbps, off for 10 Mbps. If it is off, check the cable and the device.

How to interpret the FDX/Col LED?

The FDX/Col LED (yellow) is on in Full Duplex mode, off in Half Duplex, and blinks in case of collisions. If it blinks frequently, it may indicate excessive traffic or a network loop.

Can I plug a crossover cable into the switch?

Yes, all Live switches support Auto-MDI/MDI-X. You can use either a straight-through or crossover cable.

What is the maximum cabling distance?

The maximum distance between the switch and a device is 100 meters (328 feet) with a quality UTP/STP cable.

What to do if a Link/Act LED does not light up?

Check that the device is powered on and the cable is properly inserted. Try another cable or another port. If the problem persists, the cable or device may be defective.

Does the switch get hot?

Slight heat is normal. Make sure the switch is placed in a well-ventilated area and not in direct sunlight. Do not block ventilation slots.

How to configure a VLAN on the LIVE-FSH5R?

The LIVE-FSH5R model does not have VLAN functionality. VLAN is available on LIVE-FSH16T+ models with a physical selector on the back. For this model, VLAN is not supported.

Can I connect two switches together?

Yes, you can connect two switches using a standard port. Avoid creating a loop: do not connect the two switches with two different cables without a spanning tree protocol.

What to do in case of a power outage?

The switch has no configuration memory. Once power is restored, the switch will restart and operate normally without loss of settings.

USER MANUAL LIVE-FSH5R AIRLIVE

Live Series Switches

Live-FSH5PS, Live-FSH8PS, Live-FSH5R, Live-FSH8SB, Live-FSH8R, Live-FSH16T+, Live-GSH5T, Live-GSH8T

Quick Setup Guide

English 1

Espanol 4

Deutsch 7

François 10

13

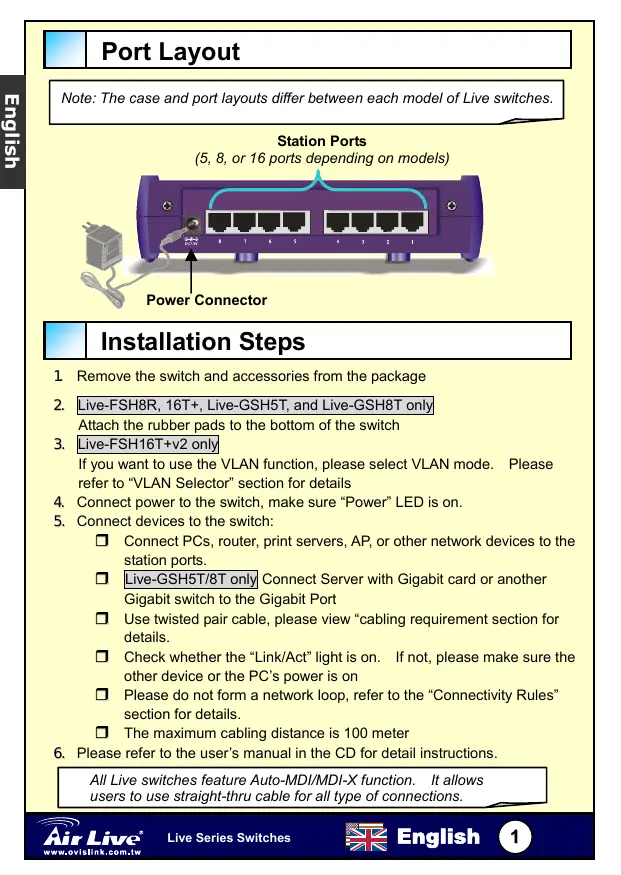

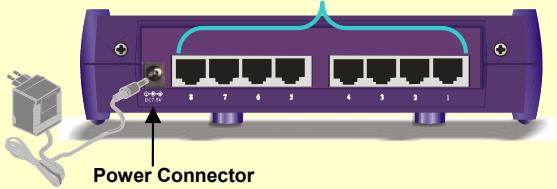

Port Layout

Note: The case and port layouts differ between each model of Live switches.

Station Ports
(5, 8, or 16 ports depending on models)

Installation Steps

1. Remove the switch and accessories from the package
   Live-FSH8R, 16T+, Live-GSH5T, and Live-GSH8T only Attach the rubber pads to the bottom of the switch
   Live-FSH16T+v2 only If you want to use the VLAN function, please select VLAN mode. Please refer to "VLAN Selector" section for details
2. Connect power to the switch, make sure "Power" LED is on.
3. Connect devices to the switch:

Connect PCs, router, print servers, AP, or other network devices to the station ports.
Live-GSH5T/8T only Connect Server with Gigabit card or another Gigabit switch to the Gigabit Port
Use twisted pair cable, please view "cabling requirement section for details.
Check whether the "Link/Act" light is on. If not, please make sure the other device or the PC's power is on
Please do not form a network loop, refer to the "Connectivity Rules" section for details.
The maximum cabling distance is 100 meter

1. Please refer to the user's manual in the CD for detail instructions.

All Live switches feature Auto-MDI/MDI-X function. It allows users to use straight-thru cable for all type of connections.

LED & Cabling Rules

LED indicator	Color	Status	Meaning
All Models
Power	• Green	ON OFF	Power ON Power OFF
Link/Act	• Green	ON Blinking OFF	Connection is made Transmitting/Receiving No connection is made
FDX/Col	• Yellow	ON OFF Blinking	Full Duplex Half Duplex Collisions (in half duplex)
100M	• RED	ON OFF	100 Mbps Connection 10 Mbps Connection
Live-FSH16T+
VLAN	• Yellow	ON	VLAN Mode On
VLAN	• Yellow	OFF	VLAN Mode OFF
Live-GSH5T/ Live-GSH8T
• 1000/ACT • 100/ACT • 10/ACT	• Green • Green • Green • Green	ON ON ON Blinking	FDX 1000Mbps Connection FXD 100Mbps Connection FXD 10Mbps Connection Transmitting/Receiving

Port Type	10/100 Ports	Gigabit Port (Live GSH5T/8T)
Cable to use	100Mbp :CAT5 UTP/STP 10Mbps: Cat 3, 4, 5 UTP/STP	10/100/1000Mbps Cat 5 UTP/STP
To PC	Straight-through	Straight-through
To hub/switch	Straight-through	Straight-through
Maximum distance	100m	100m

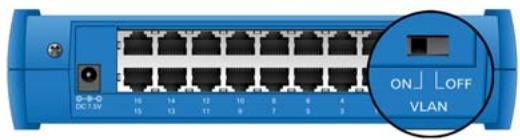

VLAN Selector (Live FSH16T+ only)

For normal operation, please make sure your VLAN switch is in "OFF" Position

Live-FSH16T+ is equipped with VLAN selector switch in the back panel. When activated, each port will be in its own VLAN group with 2 sharing ports. Ports in different VLAN groups cannot see each other. However, everyone can see the sharing port. Please make sure your VLAN selector is in "OFF" position if you are not using the VLAN function.

ON: Every port in its own VLAN group sharing Port 8 and 16
OFF: VLAN function off, the switch operates in normal mode

Connectivity Rules

Please avoid forming a network loop (see the diagram on the right) when connecting the cables. A network loop can cause the network to shutdown..
The maximum cable distance is 100 meter
Always check the LED lights for trouble shooting
Computers and network devices must be in the same IP subnet in order to see each other. For example, 198.168.0.1 can not see 192.192.1.1 for Class C subnet. You can find out the computer's IP address by typing "IPCONFIG" in WinNT/2000/XP's command line. For Win9x, run "WINIPCFG".
- Avoid operating device in 10Mbps full duplex mode if the device does not have auto-negotiation function.
