USER MANUAL POE-200CAM AIRLIVE

Air Live Powered by OvisLink Corp. POE-200CAM 1/3 Sharp CCD Dual Stream DOM IP Camera User’s Manual

Declaration of Conformity We, Manufacturer/Importer OvisLink Corp. 5F., NO.6, Lane 130, Min-Chuan Rd. Hsin-Tien City, Taipei County, Taiwan Declare that the product 1/3 Sharp CCD Dual Stream DOM IP Carema AirLive POE-200CAM is in conformity with In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive Clause Description BEN 55022:2006 Class B Limits and methods of measurement of radio disturbanct characteristics of information technology equipmen BEN 61000-3-2:2000+ Disturbances in supply systems caused by household appliance: A2:2005 Class A and similar electrical equipment "Harmonics BEN 61000-3-3:1995+ Disturbances in supply systems caused by household appliance: A1:2001+A2:2005 and similar electrical equipment "Voltage fluctuations BEN 55024:1998+A1:2001 Information Technology equipment-Immunity characteristics-Limit +A2:2003 And methods of measurement MBAS/NZS CISPR22:2006 Electromagnetic compatibility-requirements for radio disturbance Class B characteristics of information technology equipment BCE marking C € Manufacturer/Importer 14 7 { | / LC Signature : ŒUll ÎLE à Name : Albert Y eh : Position Title : Vice President (Stamp) Date : 2008/10/1

Before you use this Product This AirLive product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following. Legal Caution Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes. Heed the safety precautions Be sure to follow the general safety precautions and the “Operation Notice.” In case of a breakdown In case of system breakdown, discontinue use and contact your authorized AirLive dealer. In case of abnormal operation + Ifthe unit emits smoke or an unusual smell, - If water or other foreign objects enter the cabinet, or + If you drop the unit or damage the cabinet: 1 Disconnect the cable and the connecting cables. 2 Contact your authorized AirLive dealer or the store where you purchased the product. Operation Notice - Operating or storage location Avoid operating or storing the camera in the following locations: + Extremely hot or cold places (Operating temperature: 0 °C to +50 °C [32 °F to 122°F]) + Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters) + Close to sources of strong magnetism + Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters + Locations subject to strong vibration or shock Ventilation To prevent heat buildup, do not block air circulation around the device. Transportation When transporting the camera, repack it as originally packed at the factory or in materials of equal quality. Cleaning + Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry. + Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface. i AïrLive POE-200CAM User's Manual

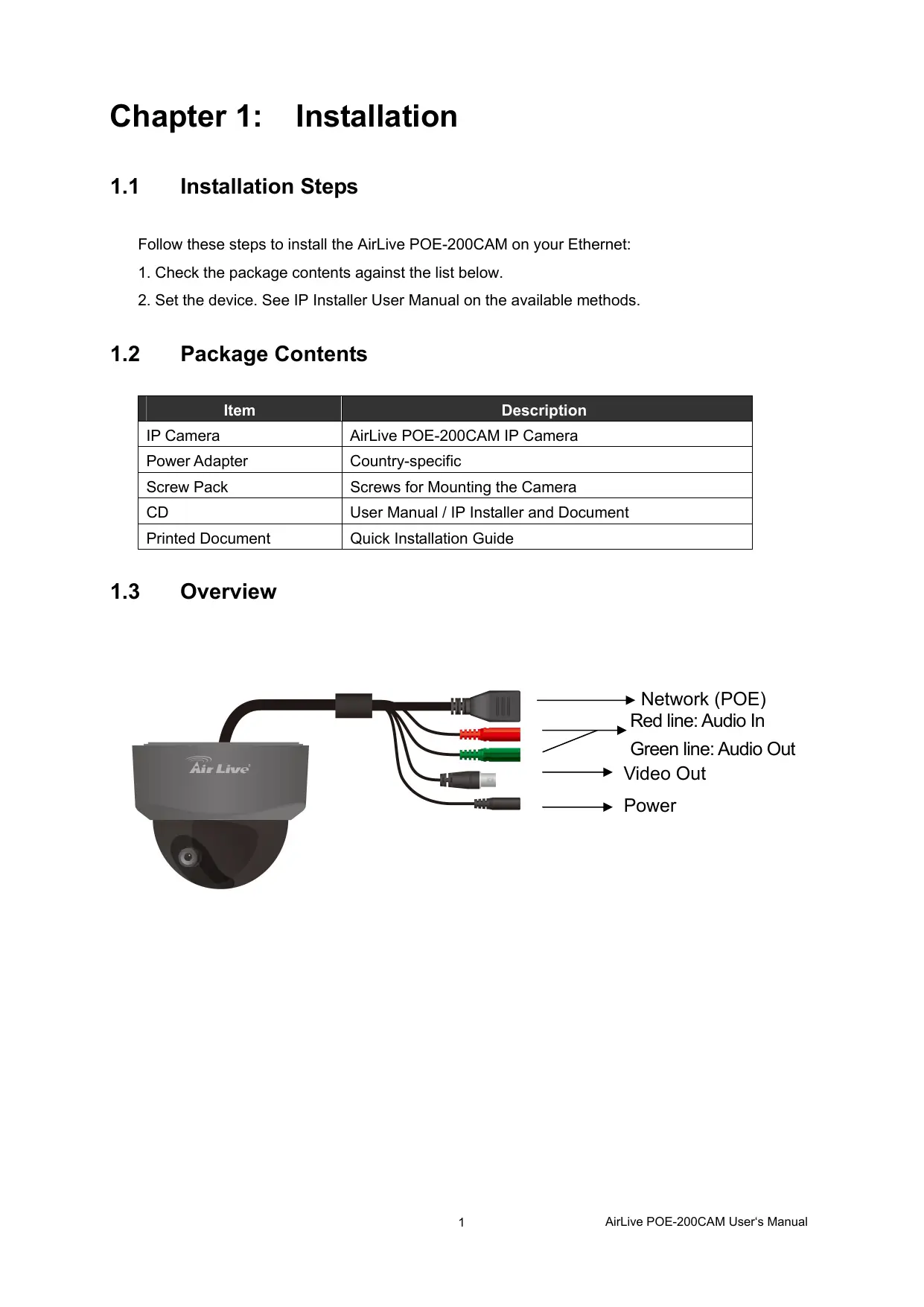

Chapter 1: Installation

1.1 Installation Steps

1.2 Package Contents.

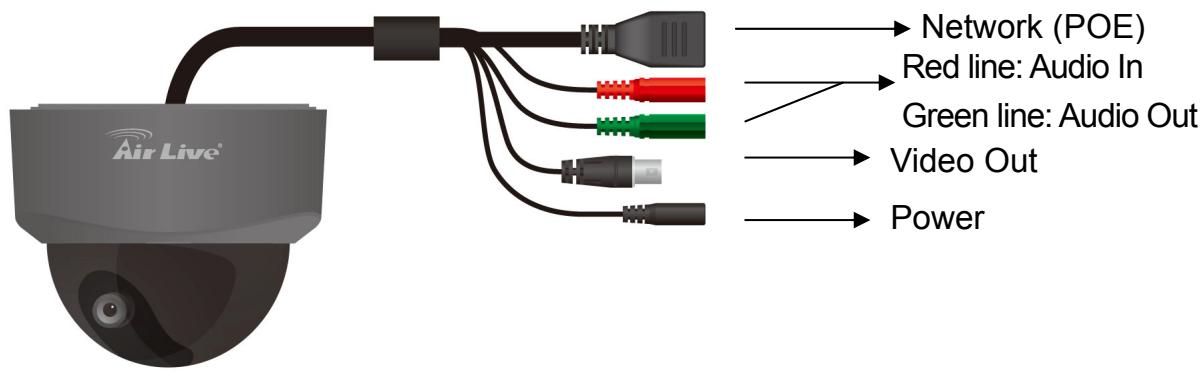

1.3 OVervieW..nnnnn nn rrnrrrrnrnnerrsnrnnenneneenennenesnenneeenesneeenenneeenesneeenesnensnenennee 1

Chapter 2: Using IP Camera via Mobile Phone 2

3.2 Initial accessing the IP camera .

3.3 Configuration of Main Menu... 8

3.3.2 Client Setting.

Follow these steps to install the AirLive POE-200CAM on your Ethernet:

1. Check the package contents against the list below.

2. Set the device. See IP Installer User Manual on the available methods.

Chapter 2: Using IP Camera via Mobile Phone

To use IP cameras via mobile phones, please make sure your RTSP is set to “ON”. (Default is “ON”) To change the settings of IP cameras, please see “Settings” for details.

2.1 3G Mobile Phone viewing

For 3G mobile phone viewing, type “rtsp://<IP>:<PORT>/video.3gp” into your 3G web browser. <IP> is the IP address of your IP camera, <PORT> is the RTSP port of your IP camera (Default value is 8554.) Example: rtsp://100.10.10.1:8554/video.3gp Note: + You can also use RTSP clients (RealPlayer, MPlayer, Windows Media Player, Quicktime.….etc.) to view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player’'s URL

2.2 2.5G Mobile Phone viewing

For 2.5G mobile phone viewing, type “<IP>/mobile.wml” into your 2.5G web browser. <IP> is the IP address of your IP camera. AïirLive POE-200CAM User's Manual 2

System Requirement To use the product normally, we strongly recommend your computer follows our minimum system requirement (Computer level is lower than this might cause some problems) Using IP Camera via Web Browser Item Requirements CPU Pentium 4 1600MHZ (or equivalent AMD) Graphic Card 64MB RAM graphic cards (or equivalent on-board graphic cards) RAM 512MB Operating System Windows 98, ME (Please see Note) Windows 2000, 2003, XP, Vista Web Browser Internet Explorer 6 or later Note: - If you're using Windows 98 or ME, please install IP Installer before using WEB UI to ensure the system runs normally. -lf you can't view the recorded video file (missing video decoder), please install Xvid codec while installing Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. You'll need to download Xvid codec 1.0 from the internet. AïirLive POE-200CAM Users Manual

1. Insert CD into your PC/Laptop.

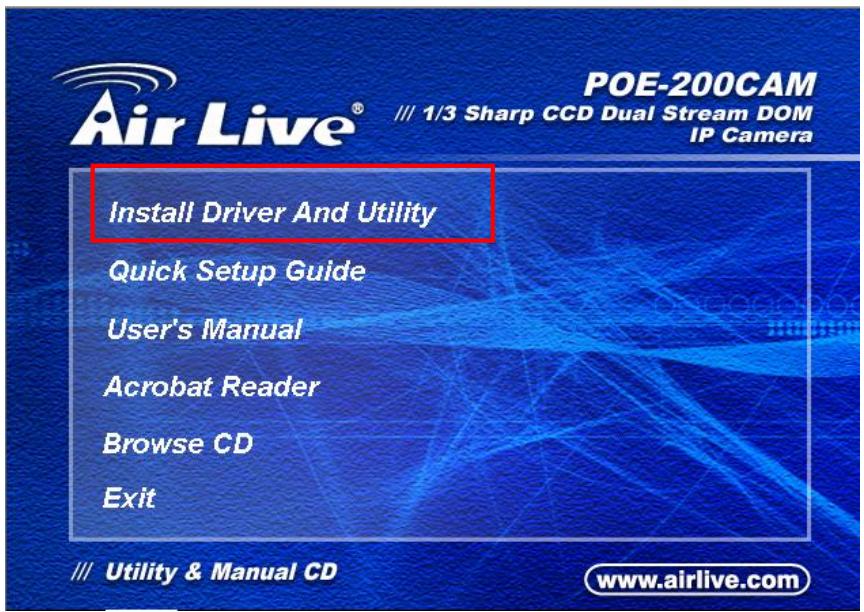

2. Auto Run Screen then shows up, click “setup wizard” to install the configuration tool software

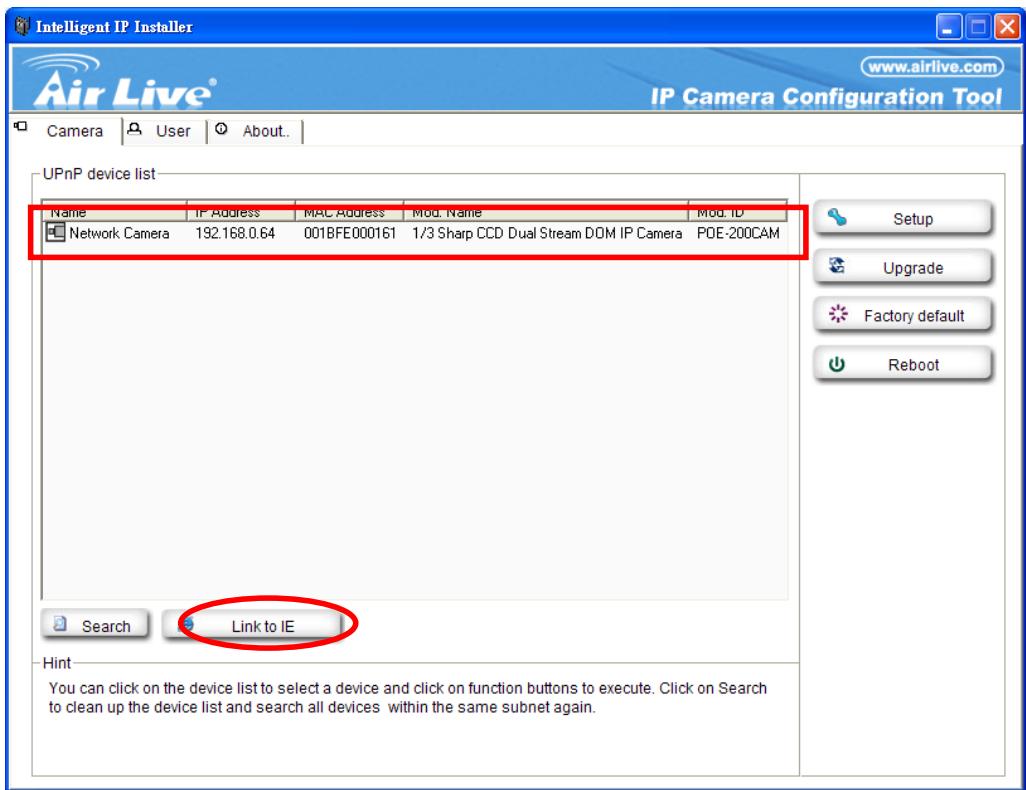

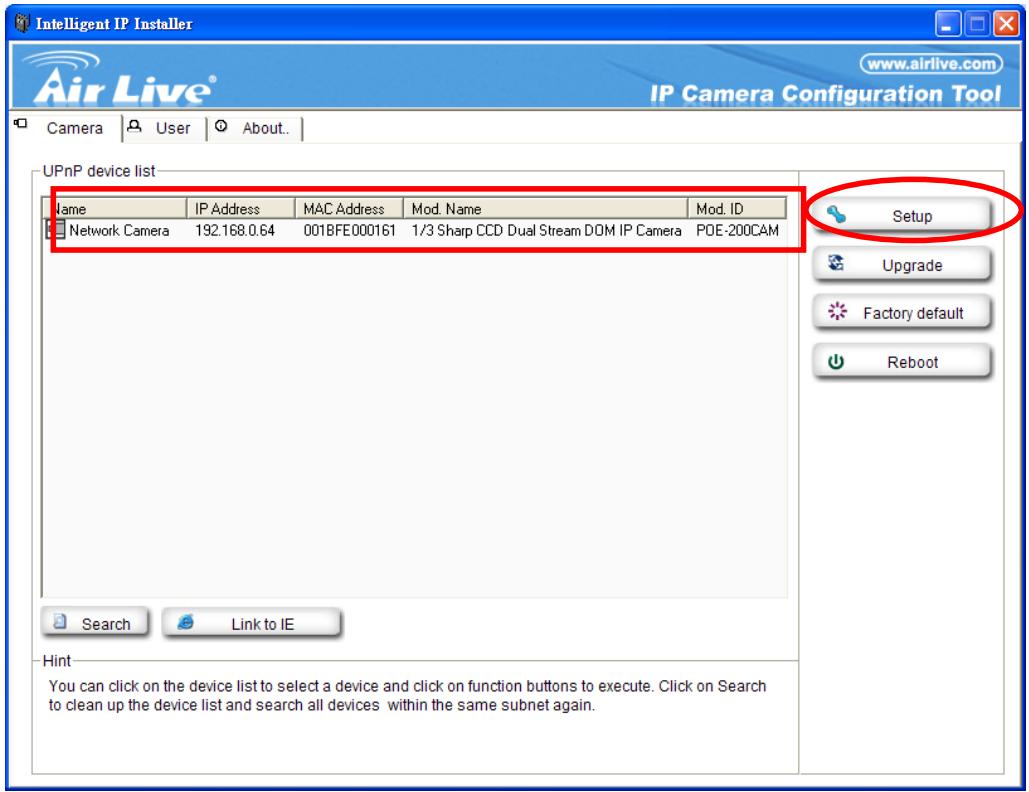

À atoligont IP Jastarer —-UPnP device list . Ifthe IP is not in your IP segment, select the founded IP Camera and click “Setup” Note that the text color of the listed IP Camera is red ifit is not in same the IP segment with your PC. Camera Configura 9 comen [2 use [O at. | Hebioik Cane 192.158.0.64 == TiPaues [Macau [Mod dame el CT D G0'BFEOODIET 1/2 ha CCD Due Sven DOMIP Carre PDE-20ŒAN LHint You can cickonthe device list to selecta device and click on function buttons to execute. Click on Search to ciean up ine device IS and Search all deACeS Min ne same subnel Again. 2° Search & _Liktole © upgrade 3 _ Factor defaut Reboat

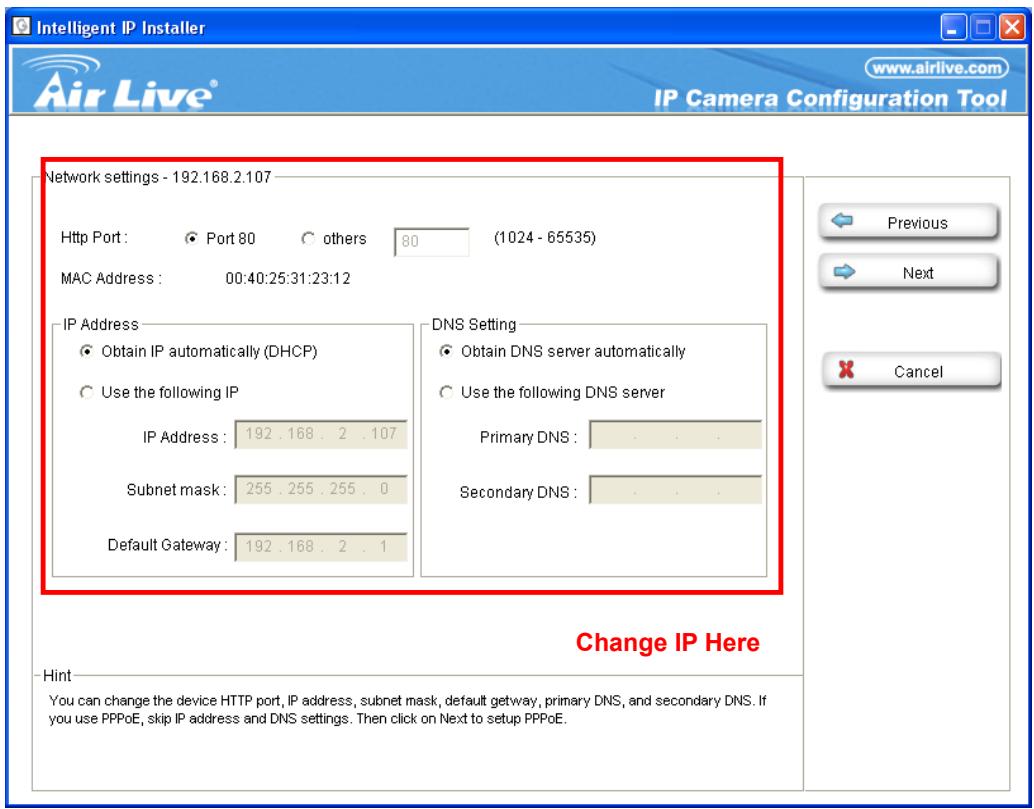

8. Atthe end of the setup instruction, the IP Camera Reboots

9. Click the Search button to search again

10. Click “Link to IE” to proceed.

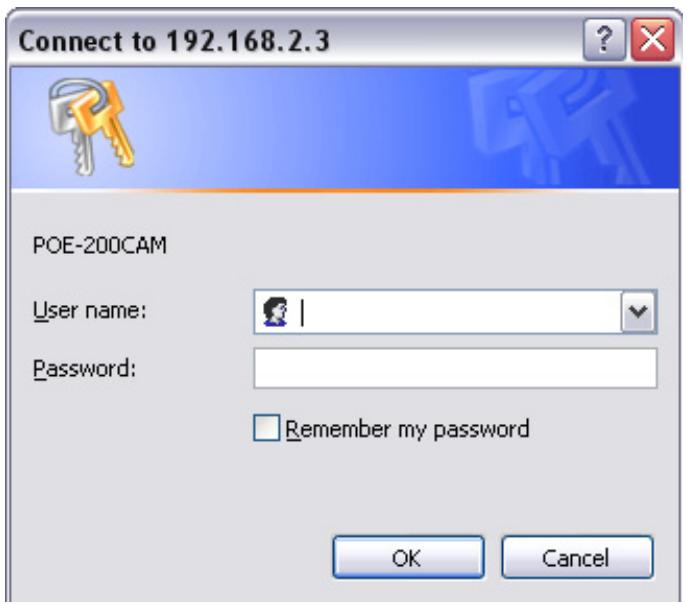

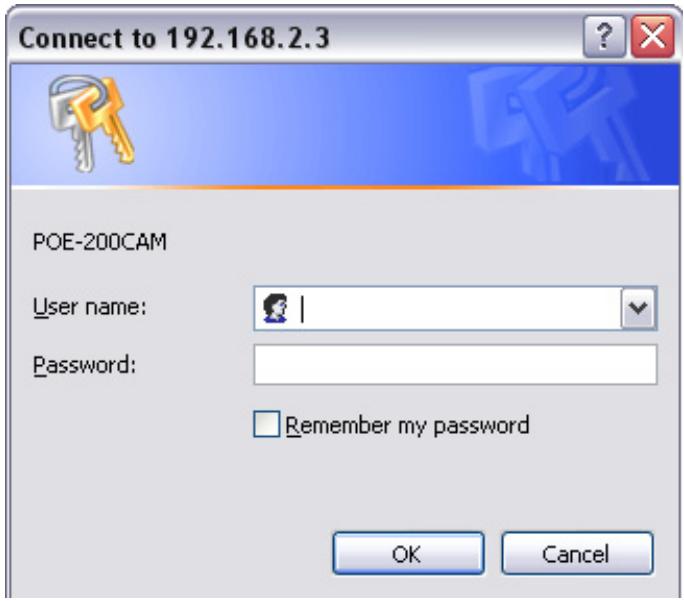

11. The tool launch your Internet Explorer and prompts up the login dialog

Connect to 192.168.2.3 (2JE3 POE-200CAM User name: g kw] Password: [ ClRemember my password Ca Cas

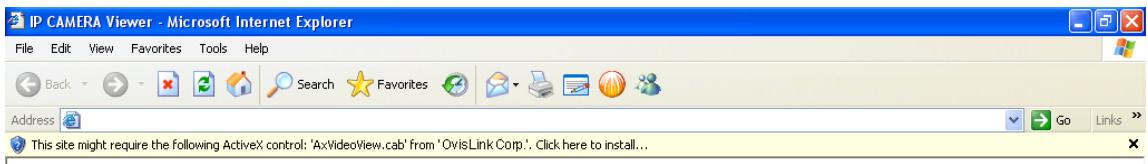

13. After a successful login, the browser asks for ActiveX installation.

Me EH Von Fo Toe Hp # @:=- 0-h 1 @| Ps rm QG. BE @3%3 aéoss[ De we” D rs ste might regure he 'oleuina Acte contra agceeen. cab from" OvisLink Der! Cik here to instal. x

14. Install the ActiveX, and the browser shows the video stream.

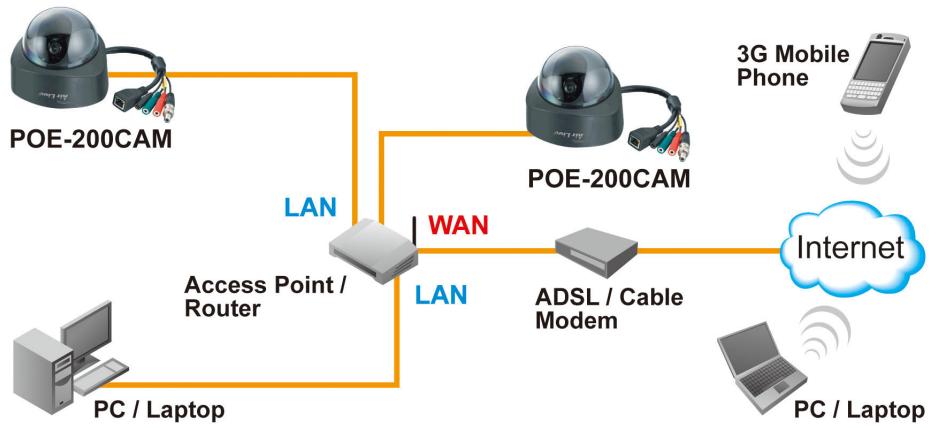

Note: If you need a public IP for your Router, please contact your ISP for the service. 3G Mobile A Phone POE-200CAM POE-200CAM | WAN Access Point / Router LAN ADSL / Cable Modem , PC / Laptop PC / Laptop

3.2 Initial accessing the IP camera

1. Start your web browser, and enter the IP address or host name of the AIRLIVE IP camera in the Location / Address

AïirLive POE-200CAM User's Manual 6

field of your browser. Note : - If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web URL.

2. Use the default account “admin” and default password “airlive”.

Note : + The default user name “admin” and the password are set at the factory for the administrator. You can change them in the Account Menu under Setting.

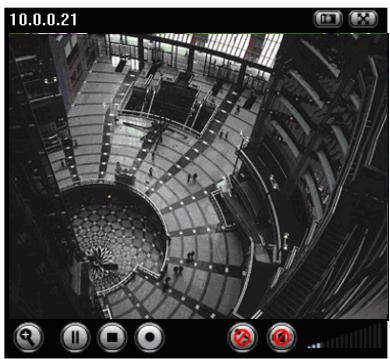

3. The monitor image will be displayed in your browser.

3.3 Configuration of Main Menu

This function is only for the Administrator. Click this button to get into the Basic and Advance settings menu.

3.3.2 Client Setting

L& Client setting Mode: Click the pulldown box to choose between MPEG4 and MJPEG video compression mode. Note : MJPEG streaming is unavailable if RTSP mode is ON. View Size: Select the desired display image resolution to 640X480 or 320X240. Protocol: Select the transferring protocol from TCP, UDP, HTTP and Multicast. AïirLive POE-200CAM User's Manual 8

Video Buffer: Turn the Video Buffer function On/Off. The Video Buffer function makes the streaming more smooth in unsteady network environment, but might cause a little delay in live viewing.

ŒX image setup Brightness You can use the tool bar to optimize video brightness, contrast, and saturation. Contrast Saturation

Snapshot: You can capture a still image shot by the camera and save it in your computer.

1. Press re] , and a snapshot window will appear.

2. Click “Save” to save the picture in your computer.

3. Click “Close” to return to the view page.

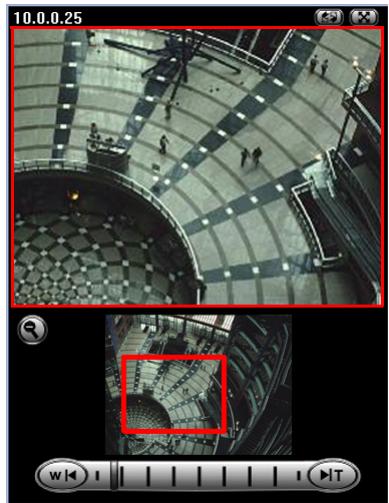

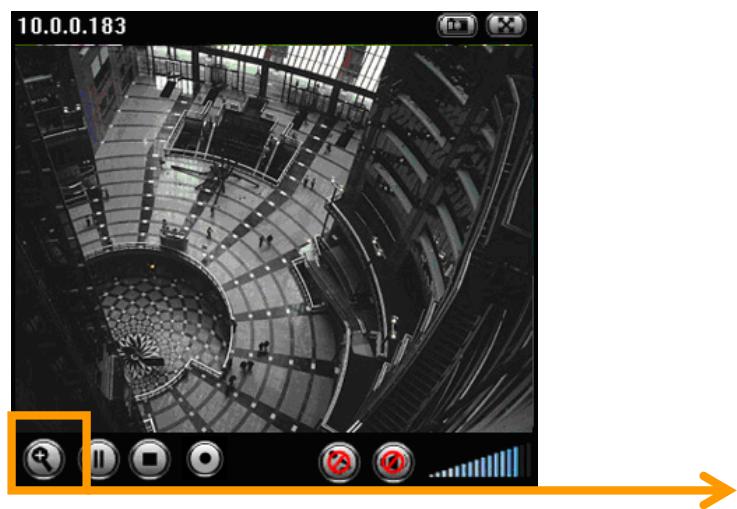

Digital Zoom in / out the image via the monitor window

1. Click @ to display the digital Zoom in window.

2. Pullthe CONS EMATC) to adjust the digital Zoom range, and it will be showed

on the above window.

3. You can use the left click of your mouse to move the to any where on the window.

9 AïrLive POE-200CAM User's Manual

Audio buttons : : Speakers turned on. : Speakers turned off. : Microphone turned on. : Microphone turned off. sil : Volume control bar. Note : . It means the sp: s of your computer are turned on to transmit the sounds from the connected IP camera(s). Similarly, means you can broadcast to the connected IP camera(s) via the Ethernet using your microphone. Video play buttons: : # : Pause the current video ® : Play the video. © : Stop the current video. [O) : Record the current video. AïirLive POE-200CAM User's Manual 10

Click the “Basic” folder to display the sub folders, including System, Camera, Network, and Security.

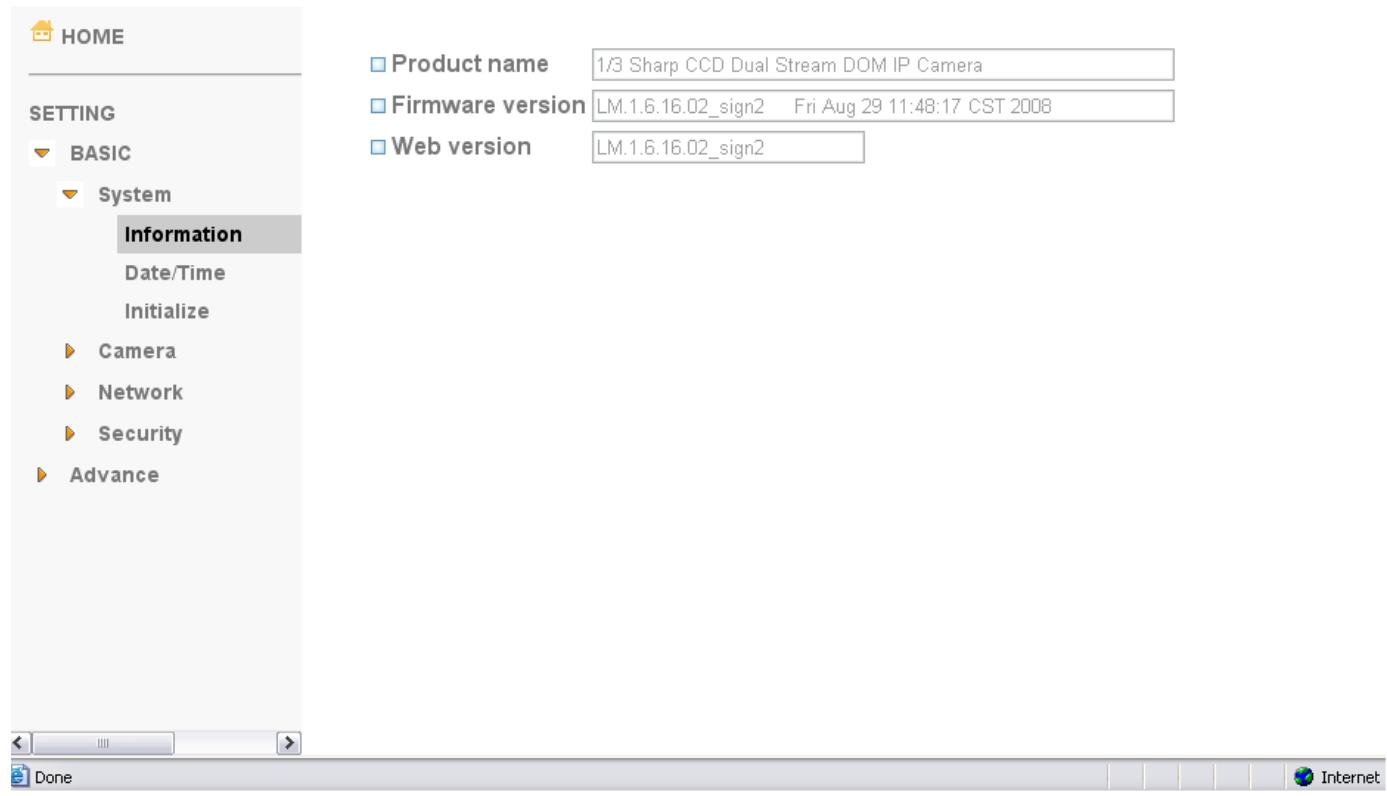

Information The Information page provides you with product factory information, including Product name, Firmware version, and Web version. S HOME SETTING Y BASIC Y System Information Date/Time Initialize D Camera > Network D Security b Advance Done O Product name DFirmware version ü Web version @ intemet AïirLive POE-200CAM Users Manual

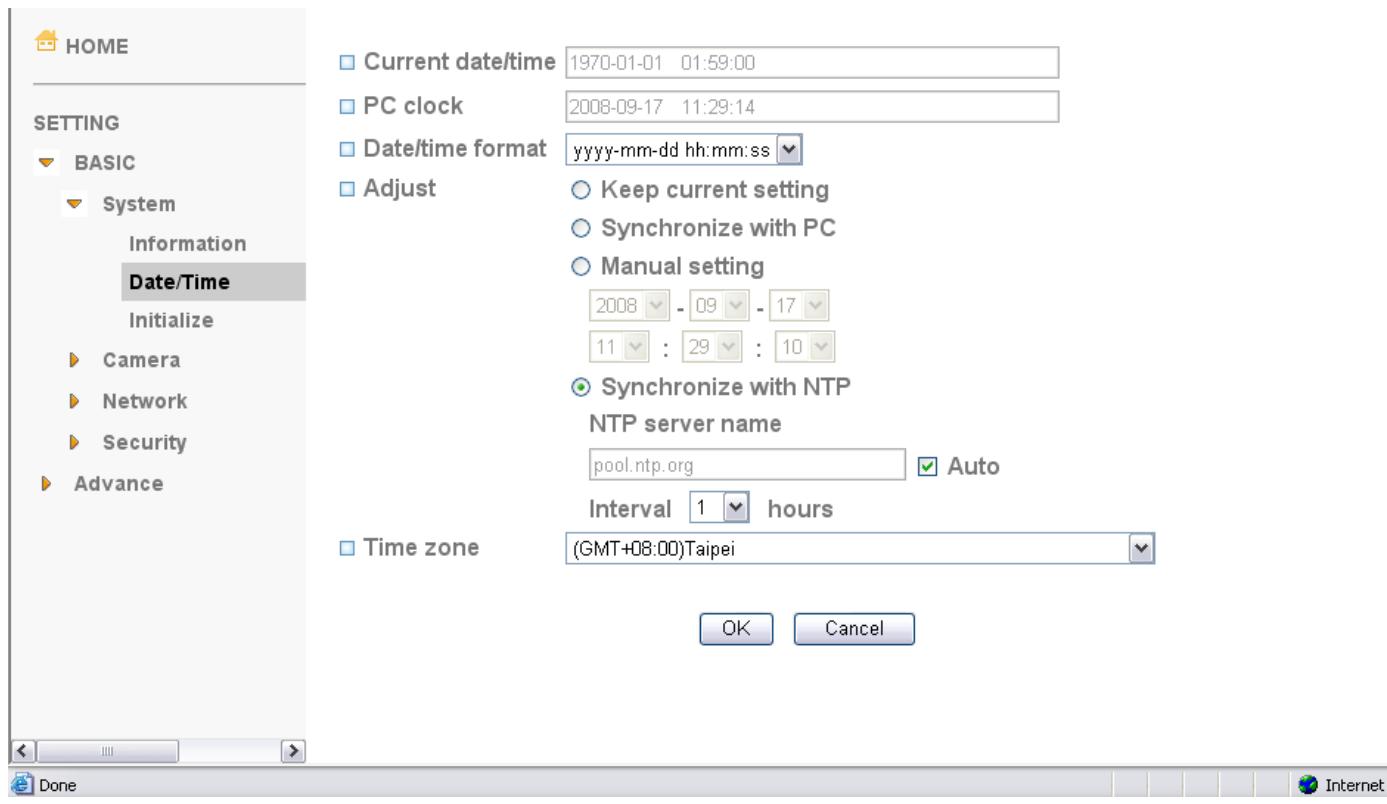

Day & Time S HOME D Current dateltime o PC clock SETTING + BASIC D Dateltime format |yyyy-mm-dd hh:mm:ss | ver O Adjust © Keep current setting © Synchronize with PC Information ‘ Date/Time © Manual setting Initialize D Camera » Network © Synchronize with NTP NTP server name D Security Auto > Advance Interval [1 [x] hours on Time zone [(GMT+08:00)Taipei H &] u > 2 @ tem Current date & time : This displays the current date and time of the device. PC clock : This displays the date and time of the monitoring PC clock. Date & time format : Click the pulldown box to select among different time display formats, including yyyy-mm-dd hh:mmiss (year-month-day hour:minute:second), mm-dd-yyyy hh:mm':ss (month-day-year hour:minute:second), and dd-mm-yyyy hh:mm:ss (day-month-year hour:minute:second). Adjust : Select one of four time adjusting modes. Keep current setting : Select this mode to keep the current date and time of the device. Synchronize with PC : Select this mode to make the date and time of the device the same as the monitoring PC. Manual setting : Select this mode to manually adjust the date & time of the device. Synchronize with NTP : Specify the NTP server name and the Refresh Interval to synchronize the date and time of the device with those of the time server, known as the NTP (Network Time Protocol) server. Note: - The NTP server (Network Time Protocol) is the time server which is an Internet standard protocol (built on top of TCP/IP) that assures accurate synchronization to the millisecond of computer clock times in a network of computers. NTP server name : Type the host name or IP address of the NTP server, up to 64 characters. Time zone : Select the time zone and time difference from Greenwich Mean Time in the area where the device is installed from the pulldown box. AïrLive POE-200CAM User's Manual 12

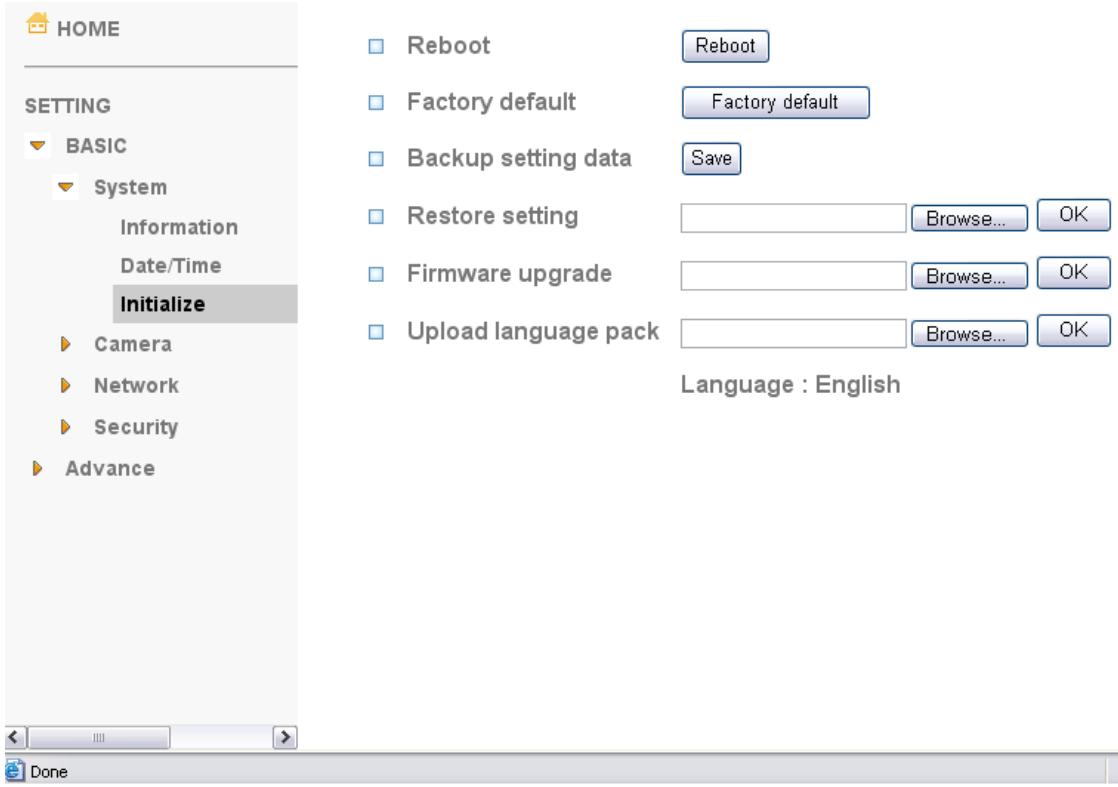

Initialize É HOME D Reboot SETTING D Factory default Factory default MST D Backup setting data Y System rm D Restore setting Catane o_ Firmware upgrade Initialize b Camera D Upload language pack b Network Language : English D» Security » Advance al u > El Done @ internet Reboot : Click this button to reboot the device. A confirmation dialogue will appear. Click OK to proceed. It takes about two minutes to reboot the device. Factory default : Click this button to reset the device to the factory default settings. À confirmation dialogue will appear. Click OK to proceed, the network indicator on the device will start to blink. After completing adjustments to the default settings, the device will reboot automatically. Do not turn off the device until the device reboots. Backup setting data : Save the setting data of the device to a file. Click Save, and follow the instructions on the browser to save the setting data file to your specified location. Restore setting : Load the saved setting data of the device. Click Browse and select the file in which the setting data is stored. Click OK, and the device is adjusted according to the loaded data and restarted. Firmware update : Upgrade the device software. Click Browse and select the file for upgrading. À confirmation dialogue will appear. Click OK to start upgrading. The device will reboot upon completion. Note: + Use only upgrade files that are special for this device. Problems may occur otherwise. + Do not turn off the device power or disconnect the network until the upgrading is completed. Upload language pack : Upgrade the device language pack. Click Browse and select the file for upgrading. A confirmation dialogue will appear. Click OK to start upgrading. The upgrade is applied immediately. The default language is “English” 13 AïrLive POE-200CAM User's Manual

RTSP port O 554 © [8554 (1024 - 65535) SETTING Viewer authentication © On © Off v BASIC ORTP Unicast streaming » System Portrange (5000 |(1024-65532)- (7229 |(1027 -65535) one Muiticast streaming © On © Of General Multicast address [228.001 A Video port © Auto © [800 (1024 - 65535) Computer vi —… Audio port © Auto © (000 | (1024-65535) Mobile view Time-To-Live [15 (1 to 255) MJPEG > Network [Image Size |704x480 |w > Security O Frame rate [30[»] fps , 0 Quality Advance © Auto © Fixed quality © Fixed bitrate di kbps [Ra u > Ælone @ internet Computer View RTSP (If RTSP mode is ON) RTSP port: Specify the transmission port number of RTSP streaming video. Default value is 554. Viewer authentication: If the viewer authentication is ON, users viewing through RTSP will be requested to key-in username and password. RTP (If RTSP mode is ON) Unicast streaming: Unicast streaming Video/Audio port range: Specify the transmission port range of RTP streaming video. RTP will select a port randomly from the range. Multicast streaming: Multicast address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data. Specify an even number from 1024 to 65534. Time-To-Live: Set the maximum TTL that multicast can pass through. 15 AïrLive POE-200CAM User's Manual

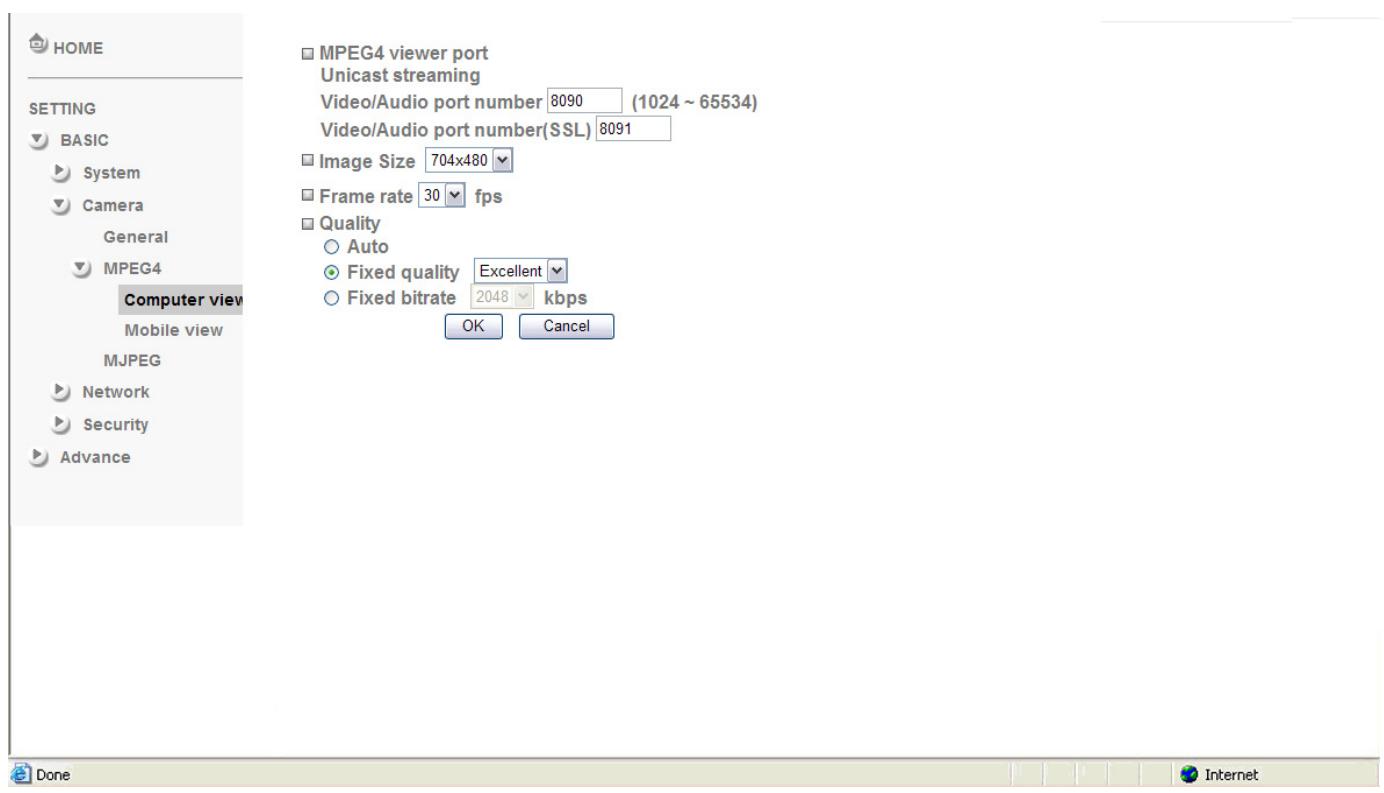

ÔHouE 5 MPEGA viewer port Unicast streaming sermne Video/Audio port number 0% | (1024- 65534) Video/Audio port number(S SL) |8091 Y Basic ») system U image Size [709400 be Y Camera B Frame rate [50[] fps un G Quality eee © Auto D mpeoa © Fixed quality ‘Computer viev © Fixed bitrate kbps Mobile view MPEG ?) Network ?) Security *) Advance Æl0ore @ internet MPEG viewer port (If RTSP mode is OFF) Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 8090. Specify an even number from 1024 to 65534. Image Size : Specify the image size the network camera transmits. You can choose among 704 x 480, 352 x 240 and 176 x 120 for NTSC mode and 704 x 576, 352 x 288 and 176 x 144 for PAL mode. Frame rate : Set the frame rate of the MPEG4 image. Selectable values are 5, 10, 15, 20, 25, 30 fps. The unit “fps” stands for “frames sent per second”. Quality Auto : The quality and bitrate will be automatically decided according to the frame rate. Fixed Quality : The selectable values are Medium, Standard, Good, Detailed and Excellent. Fixed Bitrate : Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 128, 256, 384, 512, 768, 1024, 1280, 1536 and 2048 kbps. Note : + The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be different according to the image size, the shooting scene or the network condition. AïirLive POE-200CAM User's Manual 16

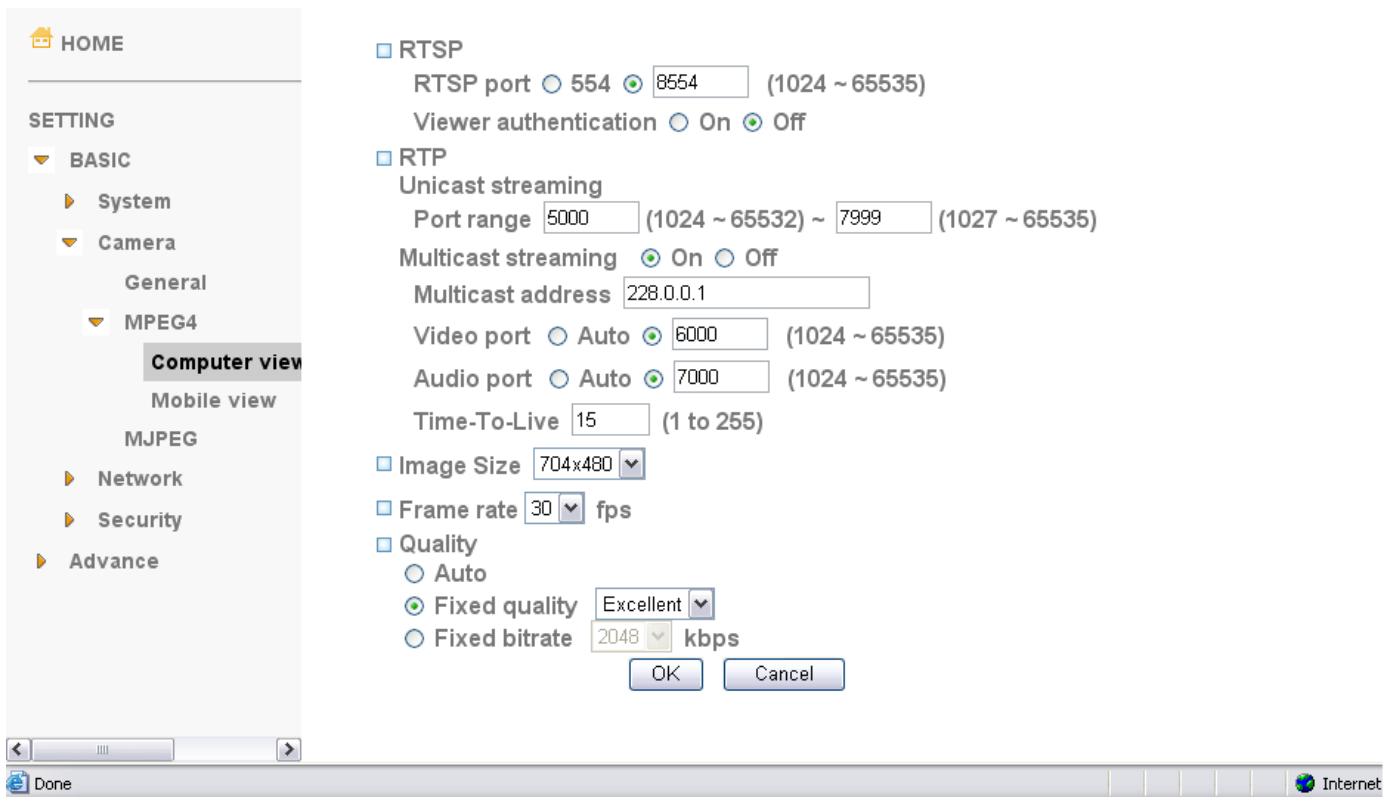

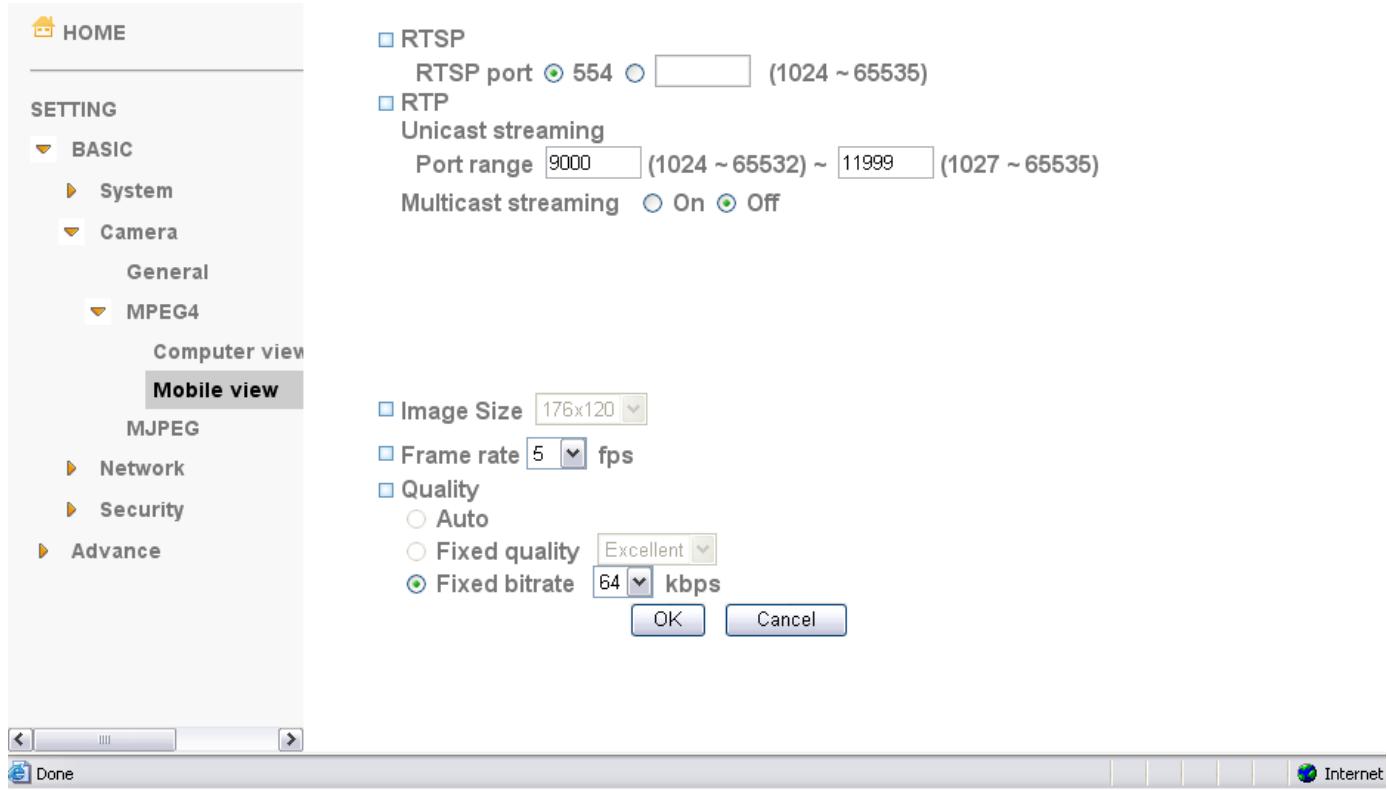

RTSP port © 554 © (1024 - 65535) SETTING DRTP Unicast streaming v BASIC Portrange [2000 |(1024-65532)- [11999 |(1027 -65535) D Su Multicast streaming © On © Of Y Camera General Y MPEG4 Computer view Mobile view [ Image Size MJPEG » Network O Frame rate[5 [v] fps 0 Quality » Security Auto > Advance Fixed quality [Exceler © Fixed bitrate |64|M] kbps fl ï > Æloone @ terme RTSP (If RTSP mode is ON) RTSP port: Specify the transmission port number of RTSP streaming video. Default value is 8554. RTP (If RTSP mode is ON) Unicast streaming: Unicast streaming Video/Audio port range: Specify the transmission port range of RTP streaming video. RTP will select a port randomly from the range. Multicast streaming: Multicast address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data. Itis initially set to 10000 and 11000. Specify an even number from 1024 to 65534. Time-To-Live: Set the maximum TTL that multicast can pass through. Image Size: The Image size of Mobile view is fixed at 176x120. Frame rate : Set the frame rate of the MPEG4 image. Selectable values are 5, 10, 15, 20 fps. The unit “fps” stands for “frames sent per second”. Quality 17 AïrLive POE-200CAM Users Manual

Fixed Bitrate : Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 32, and 16kbps.. AïirLive POE-200CAM User's Manual 18

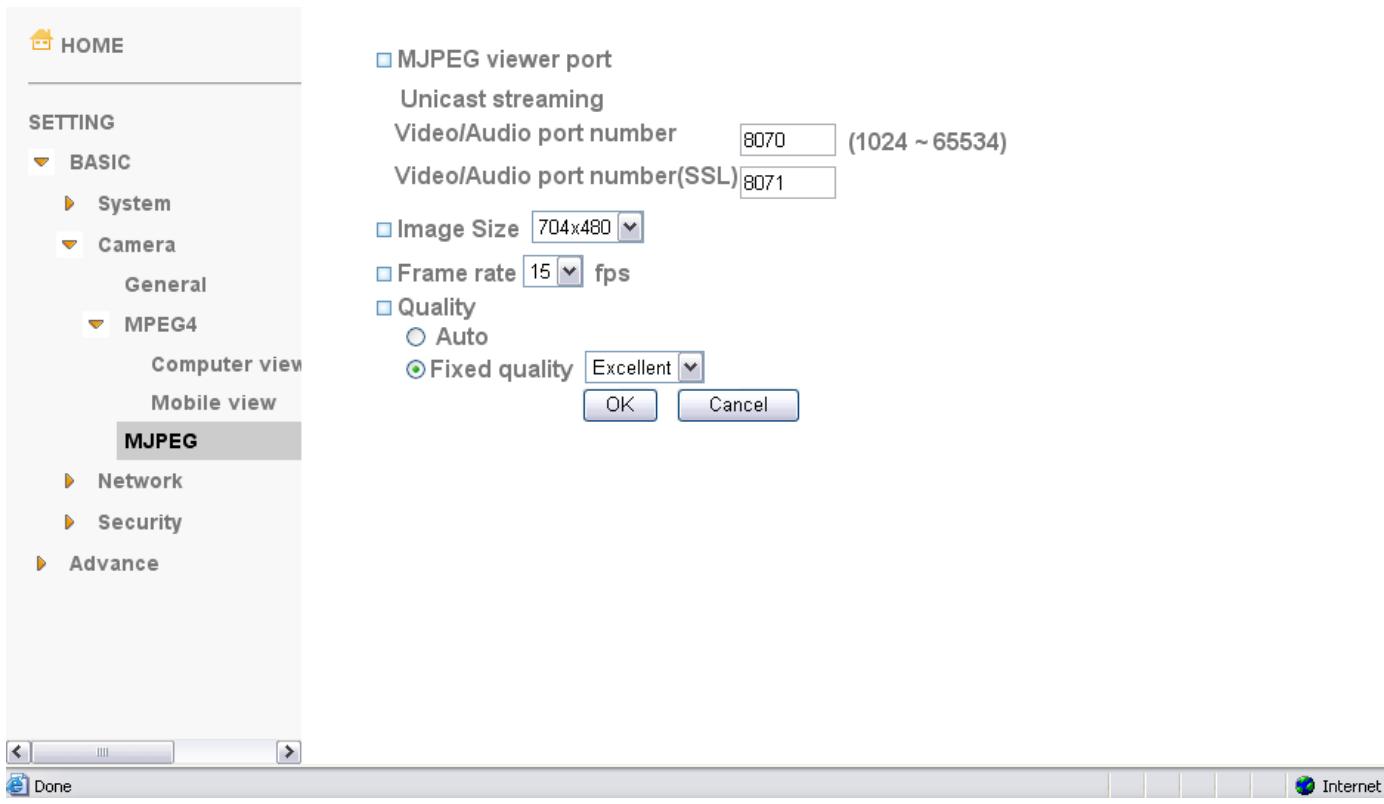

MJPEG É HOME SETTING Y BASIC » System Y Camera General Y MPEG4 Computer view Mobile view MJPEG » Network » Security b Advance Œ ï > D MJPEG viewer port Unicast streaming Video/Audio port number 8070 Video/Audio port number(SSL) 9971 Image Size oFrame rate |15[] fps 0 Quality © Auto ©Fixed quality | Excellent |M, (1024 - 65534) Ælnone Note : @ terme + MJPEG settings are unavailable if the RTSP mode is ON, which means the MJPEG streaming is closed. MJPEG viewer port Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 8070. Specify an even number from 1024 to 65534. Note : + Unicast streaming : Specify the transmission port number of the video data and audio data used when UDP (Unicast) is selected with the TCP/UDP transmission switching icon in the main viewer. Image Size : Specify the image size the network camera transmits. You can choose among 704 x 480, 352 x 240 and 176 x 120 for NTSC mode and 704 x 576, 352 x 288 and 176 x 144 for PAL mode. Frame rate: Set the frame rate of the MJPEG image. Selectable values are 5, 10, 15 fps. The unit “fps” stands for “frames sent per second”. Quality Auto : The quality will be automatically decided. Fixed quality : The selectable values are Medium, Standard, Good, Detailed and Excellent.

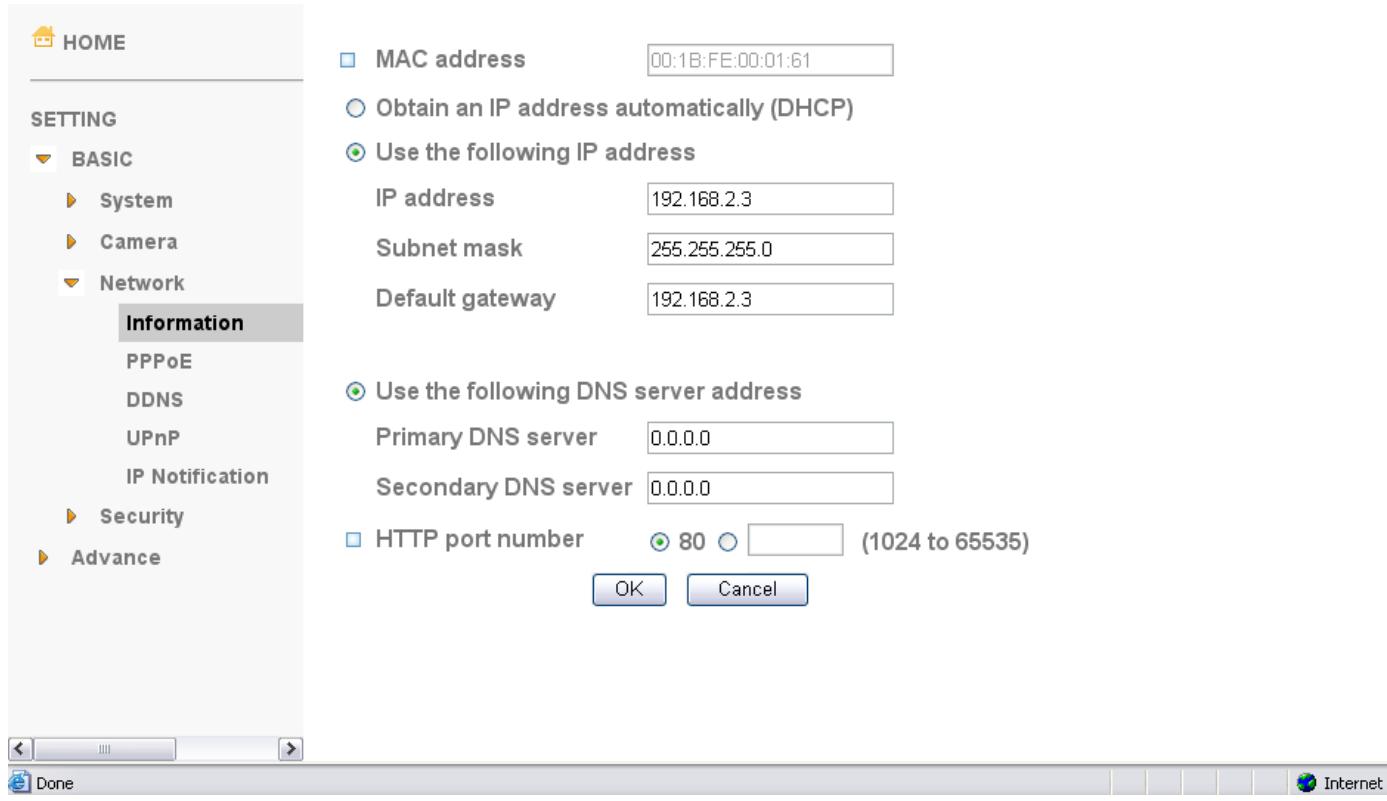

Information S HOME ü MAC address SETTING © Obtain an IP address automatically (DHCP) v BASIC © Use the following IP address D» System IP address 192.168.2.3 b Camera Subnet mask 255.255.255 0 M PTE Default gateway 192.168.2.3 Information PPPOE DDNS © Use the following DNS server address UPnP Primary DNS server [0.000 IP Notification Secondary DNS server [0000 D» Security © HTTP port number © 80 © (1024 to 65535) » Advance [ea ù > Ælone @ internet MAC address : Display the MAC address of the device. Obtain an IP address automatically (DHCP) : If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server. Note : + When you set Obtain an IP address automatically (DHCP), make sure that the DHCP server is working on the network. Use the following IP address : Select this when a fixed IP address is set. IP address : Enter the IP address of the device. Subnet mask : Enter the subnet mask. Default gateway : Enter the default gateway. Use the following DNS server address : Select this when you set the fixed address as the IP address of DNS server. Primary DNS server : Enter the IP address of the primary DNS server. Secondary DNS server : Enter the IP address of the secondary DNS server, if necessary. HTTP port number : Select 80 in general situations. If you want to use a port number other than 80, select the text box and enter a port number between 1024 and 65535. Note : + When you have set the HTTP port number to a number other than 80 on the Network setting page or in AïrLive POE-200CAM User's Manual 20

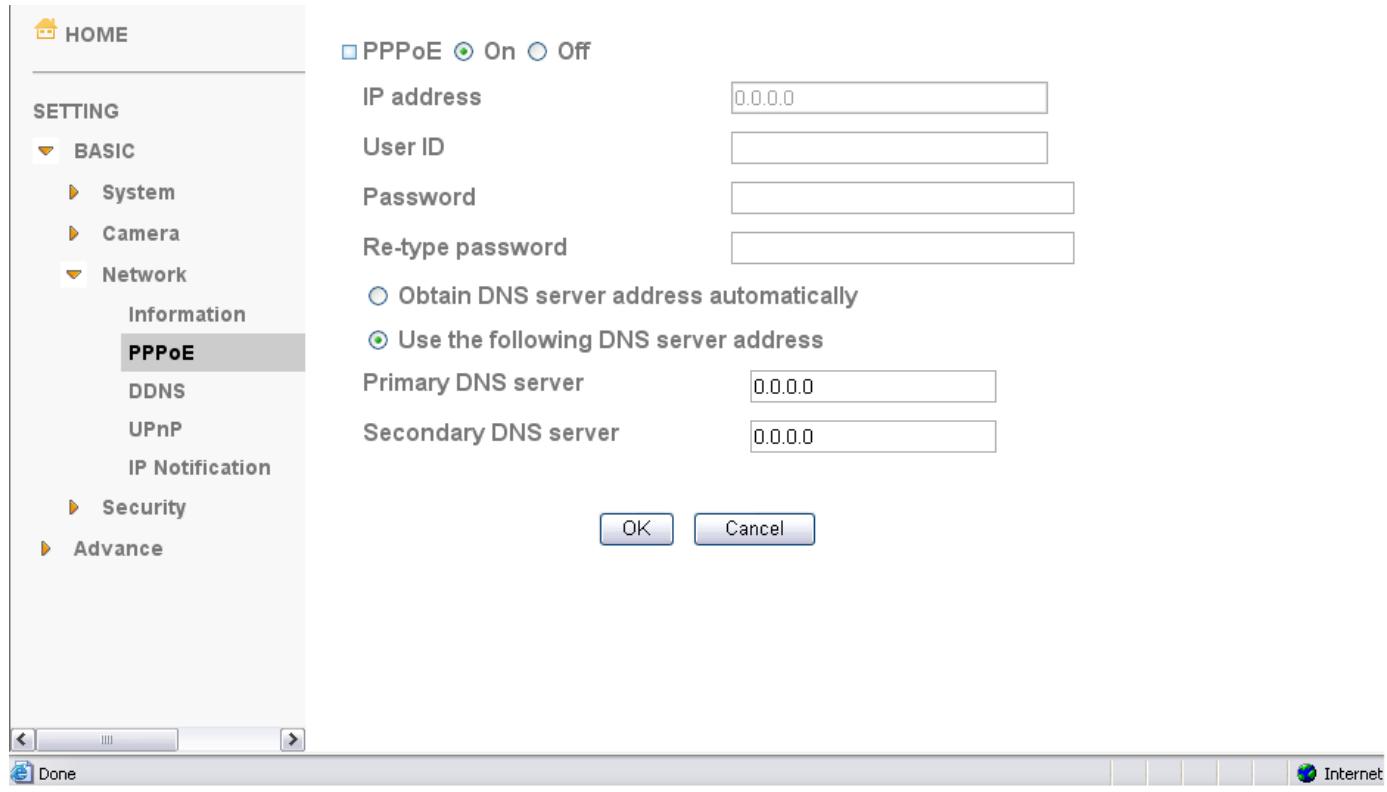

the Setup Program, access the device by typing the IP address of the device on the web browser as follows: Example: when HTTP port number is set to 2000 > http://192.168.1.100:2000/ PPPOE Use this when you connect the device through PPPOE (Point -to- Point Protocol over Ethernet). PPPOE connection is the protocol that is widely used in xDSL (digital affiliate line such as ADSL, VDSL or SDSL) as the authentication and connection system. É HOME D PPPoE © On © Off TO IP address v BASIC User ID b System Password D une Re-type password Y Network | : © Obtain DNS server address automatically Information CC © Use the following DNS server address DORE Primary DNS server 000.0 UPnP Secondary DNS server 0000 IP Notification b Security Cancel b Advance &] m > Æloone @ internet IP address : The IP address obtained at the PPPOE connecting with network. User ID : Enter the user ID for authentication necessary for PPPOE connections. Type it up to 64 characters. Password : Enter the password for authentication necessary for PPPOE connections. Type it up to 32 characters. Re-type password : Re-type the password to confirm. Obtain DNS server address automatically : Select this to obtain the address of DNS server automatically. Use the following DNS server address : Select this when you set the fixed address as the IP address of DNS server. Primary DNS server : Enter the IP address of the primary DNS server. Secondary DNS server : Enter the IP address of the secondary DNS server. DDNS 21 AïrLive POE-200CAM User's Manual

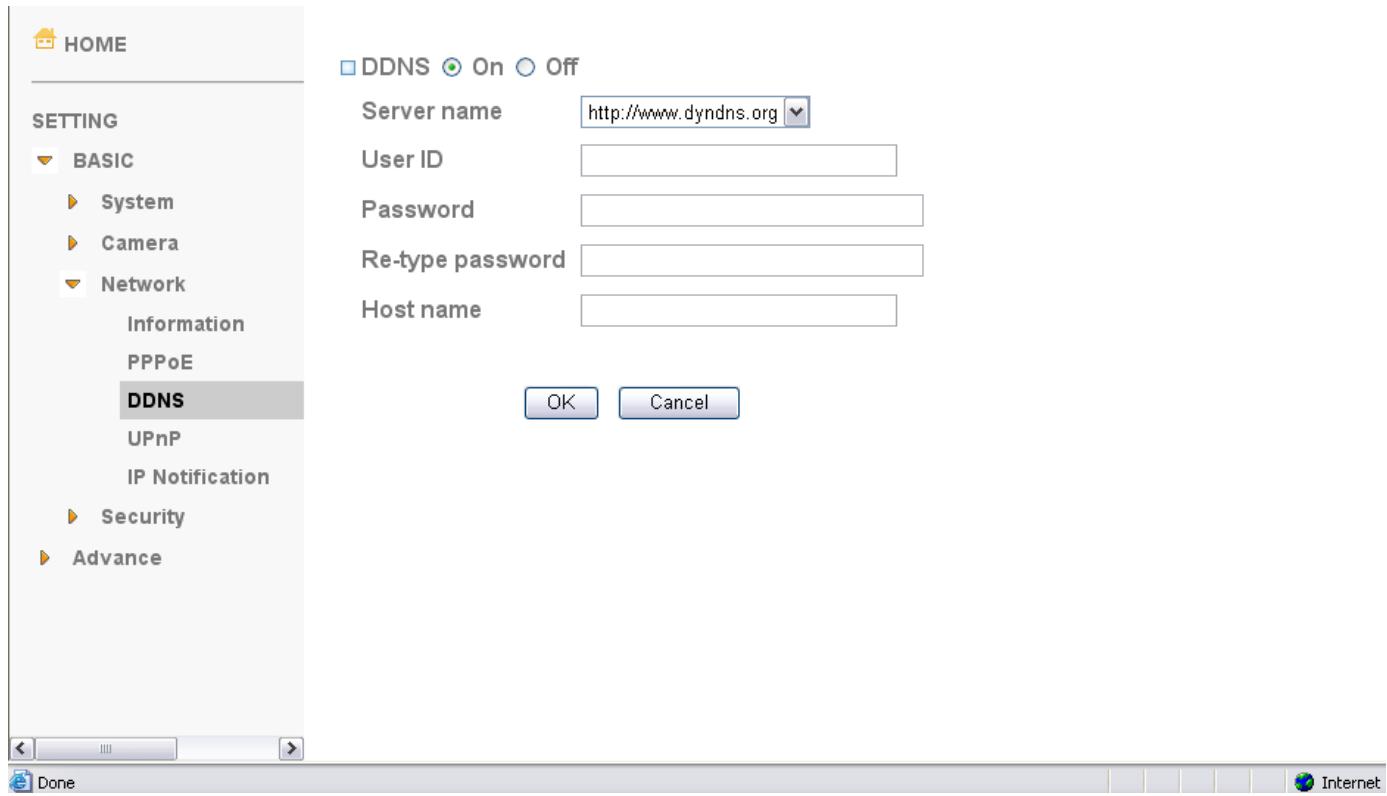

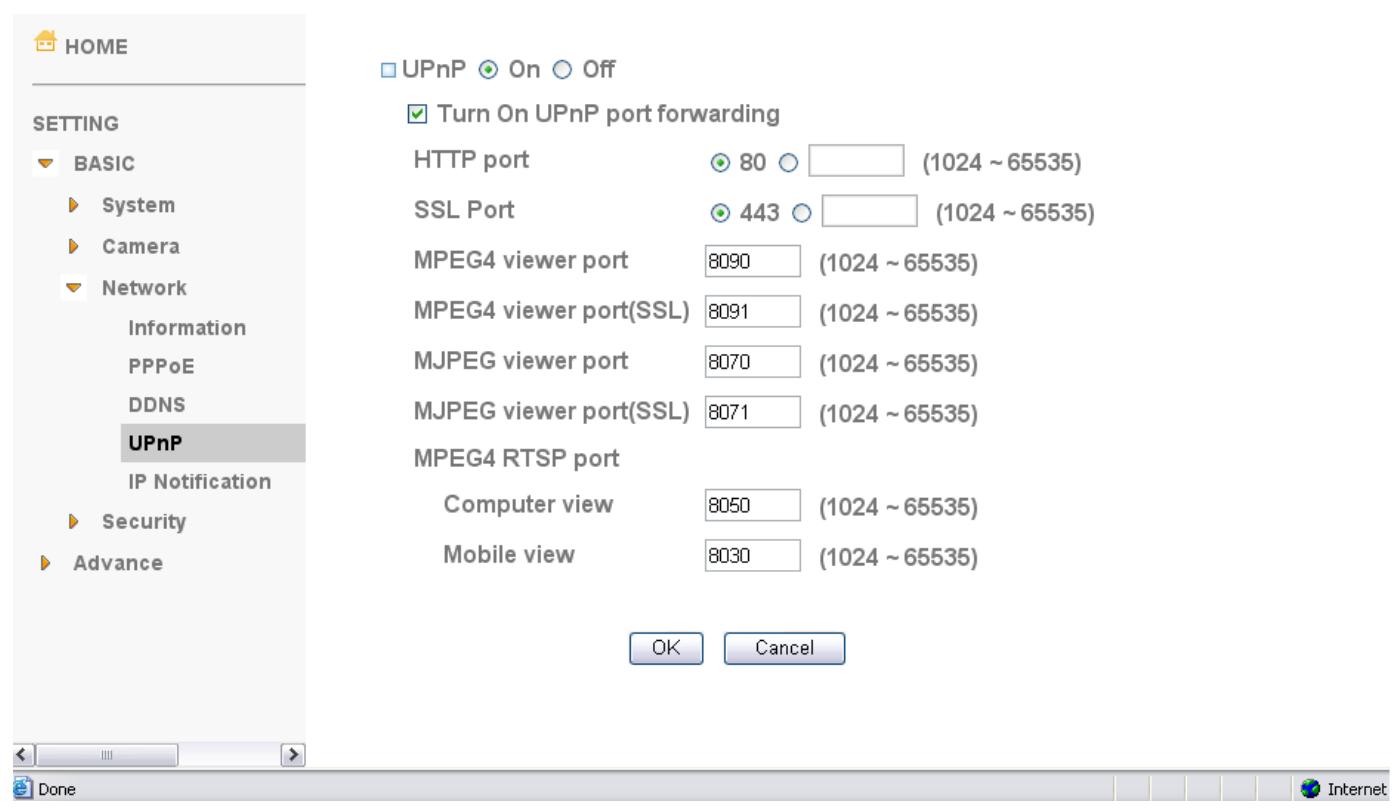

É HOME DDDNS © On © Of SETTING Server name http:fiveww. dynans.org [de] v BASIC User ID D SA Password > Camera Re-type password + Network Host name Information PPPOE UPnP IP Notification » Security » Advance <] D E Ælvone @ meet Server name : Choose the DDNS Server from the list. User ID : Enter the user ID for authentication necessary for DDNS connections. Type it up to 64 characters. Password : Enter the password for authentication necessary for DDNS connections. Type it up to 32 characters. Re-type password : Re-type the password to confirm. Host name : Enter the host name that is registered to the DDNS server. Note : + When you want to use DDNS function, you need to register an account in DDNS server first. UPnP The device includes support for UPnP, which is enabled by default. If also enabled on your computer, the device will automatically be detected and a new icon will be added to “My Network Places.” It provides port forwarding for opening a port in a router or firewall in a private network in order to let a party from the outside world contact a user inside. AïirLive POE-200CAM User's Manual 22

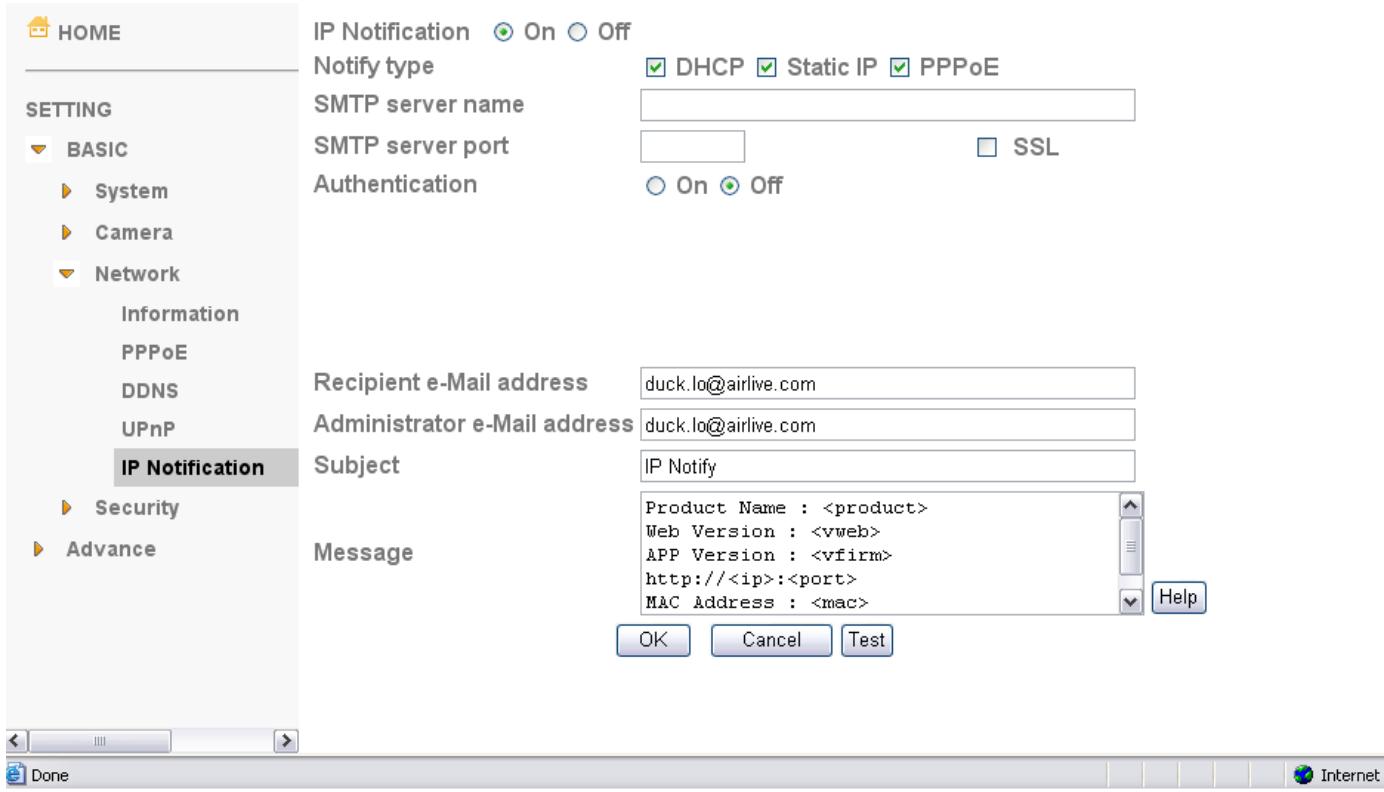

IP Notification When network notify type is set to On, you can send an e-mail notification of the completion of the network setting. S HOME IP Notification © On © Off Notify type DHCP M Static IP M PPPOE SETTING SMTP server name Y BASIC SMTP server port O SSL b System Authentication © On © Off b Camera Y Network Information PPPOE ED Recipient e-Mail address [ducklo@airive.com UPnP Administrator e-Mail address |duck.lo@aiive.com IP Notification Subject IP Notify b Security Product Name : <product> a] Web Version : <vweb> b Advance Message APP Version : <vfirm> L http://<ip>:<port> MAC Address : <mac> ral u > Done @ terme Notify type : Select type of DHCP, Static IP and PPPOE will notify. SMTP server name : Type the SMTP server name up to 64 characters, or the IP address of the SMTP server. Authentication : Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. SMTP: Select if SMTP authentication is necessary when an e-mail is sent. POP before SMTP: Select if POP before SMTP authentication is necessary when an e-mail is sent. Note : + When you set to On, be sure to select either or both SMTP or/and POP before SMTP. POP server name : It is necessary when the POP before SMTP is selected in Authentication. Type the POP (receiving mail) server name up to 64 characters, or type the IP address of the POP server. This setting is necessary when the SMTP server which sends e-mails performs authentication using the POP user account. User name, Password : Type the user name and Password of the user who has the mail account. This setting is necessary when the SMTP server which sends e-mails performs authentication. Recipient e-mail address : Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient E-mail addresses. Admi istrator e-mail address : Type the Administrator e-Mail address up to 64 characters. This address is used AïirLive POE-200CAM User's Manual 24

for reply mail and sending system messages from the SMTP server. Subject : Type the subject/title of the e-Mail up to 64 characters. With respect to mail which is sent according to the IP notification. Message Type the text of the E-mail up to 384 characters. Default value provides network information including IP, Port, MAC, Model, Firmware Version and Web Version. 25 AïrLive POE-200CAM User's Manual

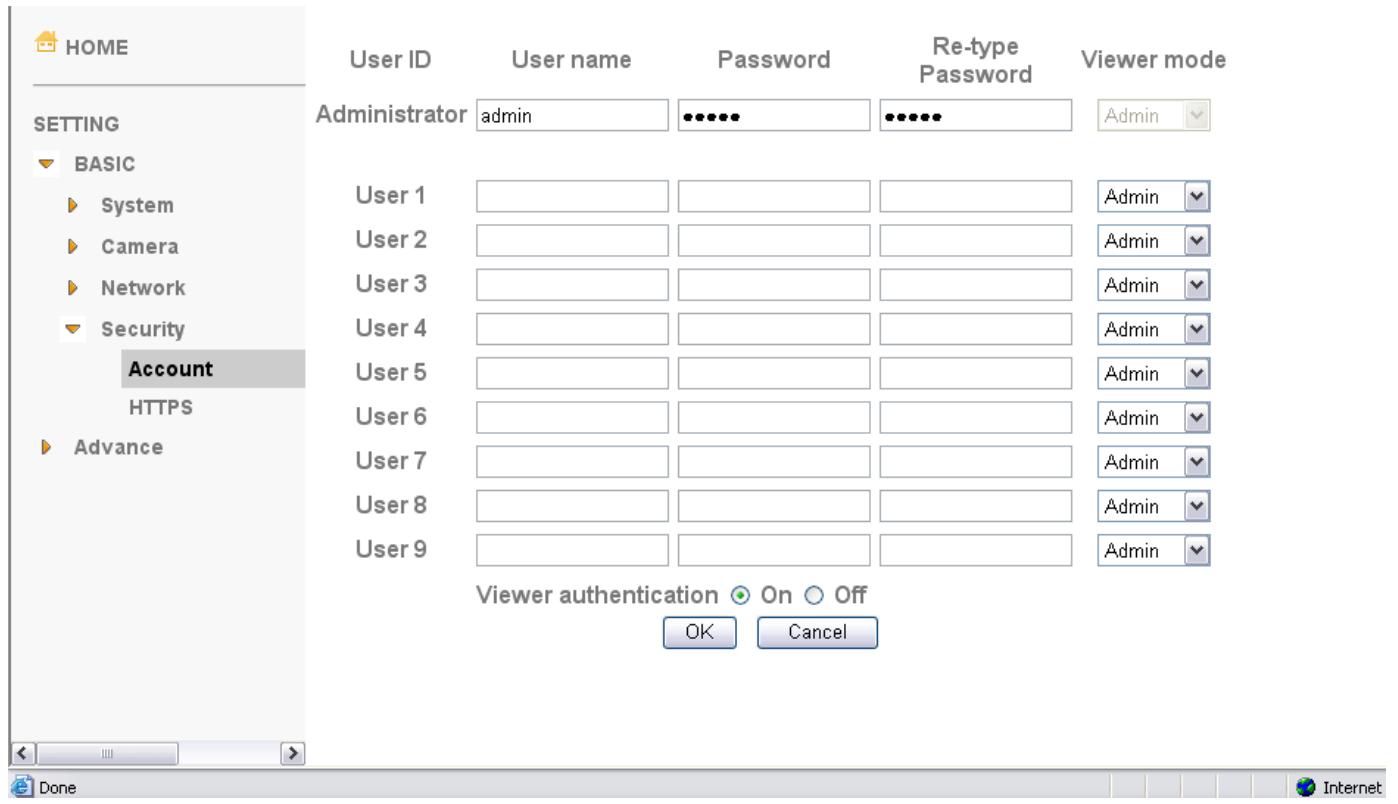

Account The device default account and password setting is “admin/airlive”. That means everyone might access the device including the configuration as long as the IP address is known. It is necessary to assign a password if the device is intended to be accessed by others. Use this menu to set the user names and passwords of Administrator and up to 9 different users (User 1 to User 9), and the access right of each user. & HOME User ID User name Password ReHyPe Viewer mode Password SETTINC Administrator [admin ee ee..e vw BASIC » System User1 [Admin [x] D Em User2 Admin [M » Network User 3 Admin | Y Security User 4 [Admin [ne] Account User5 Admin [x] But User 6 Admin [x] » Advance User7 Admin Le User8 [Admin [] User9 [Admin [e] Viewer authentication © On © Off < n ] > Ælvone @ mtemet User name : Set a user name between 5 and 16 characters. Password : Set a password between 5 and 16 characters. Re-type password : Re-type the password to confirm. Viewer Mode : Set a user to Admin, Operator or Viewer mode. Viewer authentication : Allows any viewer direct access to Live View. HTTPS HTTPS is a URI scheme used to indicate a secure HTTP connection. It is syntactically identical to the http:// scheme normally used for accessing resources using HTTP. Using an https: URL indicates that HTTP is to be used, but with a different default TCP port (443) and an additional encryption/authentication layer between the HTTP and TCP. You can use the IP camera through HTTPS easily by using https:// instead of http://. AïirLive POE-200CAM User's Manual 26

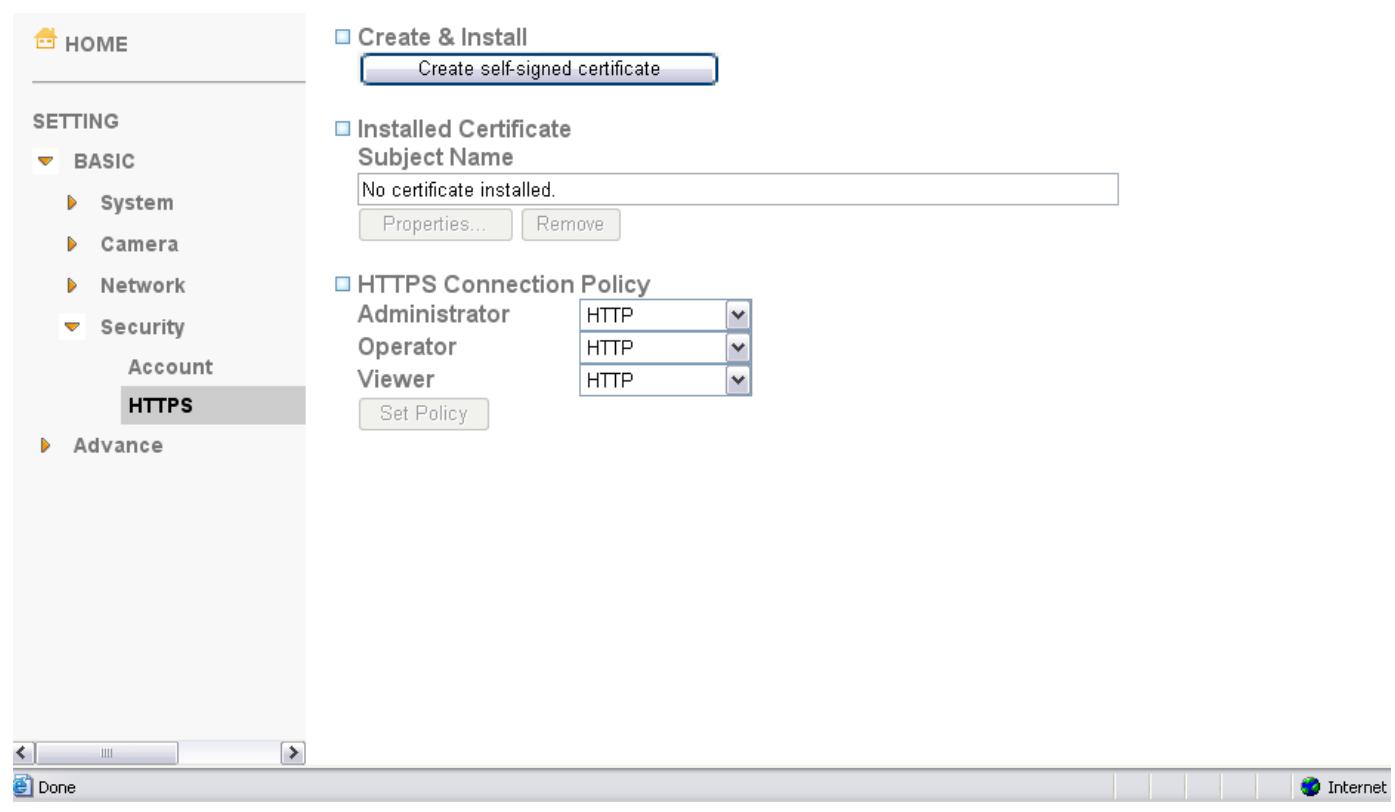

© HOME O Create & Install Create sel£signed certificate CuuDo ü installed Certificate v BASIC Subject Name » System No certificate installed b Camera b Network D'HTTPS Connection Policy … + Security Administrator HTTP v Operator HTTP v Account Viewer HTTP lu] HTTPS a Poly » Advance ra! 1 Done @ internet To use the HTTPS encryption, please set up “Create self-signed certificate” for the first time you use the HTTPS function, then set up the connection policy for different users, and click “Set Policy” to apply the settings. Create & Install: Create a self-signed certificate for HTTPS to recognize. Installed Certificate: Display or remove the properties of the installed certificate. HTTPS Connection Policy: Set HTTPS connection policy for different level of users.

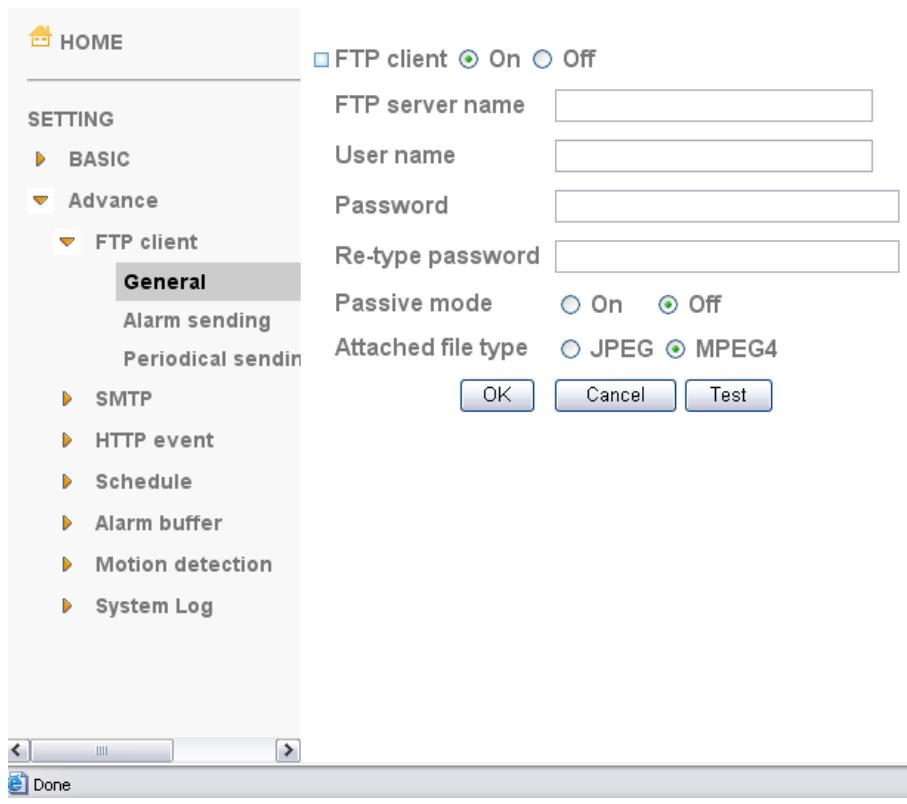

Use this menu to set Up for capturing and sending images to an FTP server. By using FTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server. FTP client setting menu is composed of two tabs, General, Alarm sending and Periodical sending. General HOME OFTP client © On © Of SETTING FTP server name » BASIC User name Y Advance Password + FTP client Re-type password General Passive mode OOn ©of Alarm sending Periodical sendin Attachedfiletype © JPEG © MPEG4 SMTP Cancel HTTP event Schedule Alarm buffer Motion detection System Log &] u ] > Done @ irternet FTP client function : To activate the FTP client function, select On. The FTP client setting page appears. When you do not wish to use the FTP client function, select Off. Note : - The frame rate and operability on the main viewer may decrease while a file is being transmitted by the FTP client function. FTP server name : Type the FTP server name to upload still images up to 64 characters, or the IP address of the FTP server. User name : Type the user name for the FTP server. Password : Type the password for the FTP server. Retype password : To confirm the password, type the same characters as you typed in the Password box. Passive mode : Set whether you use the passive mode of FTP server or not when connecting to FTP server. AïrLive POE-200CAM User's Manual 28

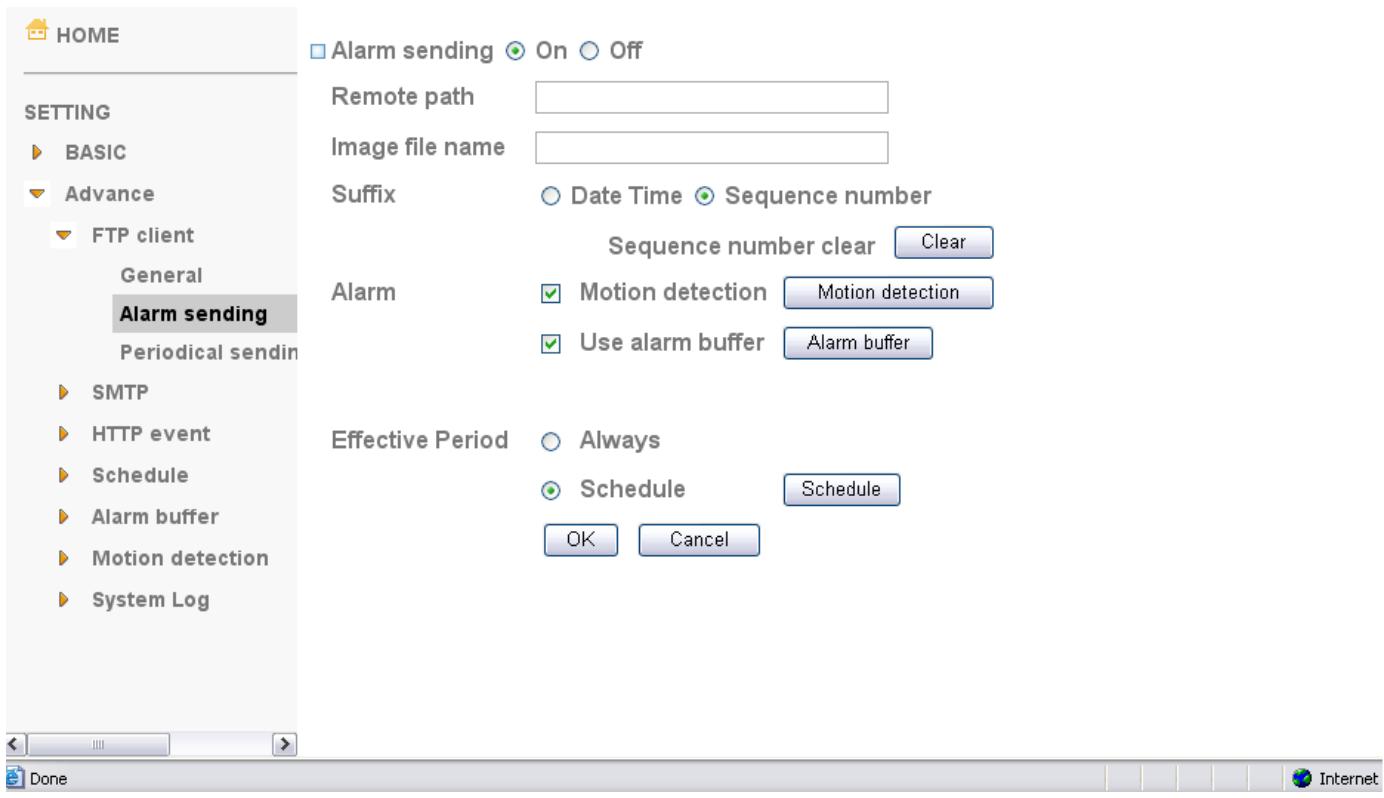

Select On to connect to FTP server using the passive mode. Attached file type : Set attached file type to MJPEG or MPEG.4 Alarm sending Set to forward the image and audio file to the specified FTP server linked with the alarm detection by the external sensor input or by the built-in motion detection function. Select On to send the image and audio file to FTP server linked with the alarm detection. S HOME D Alarm sending © On © Off Remote path SETTING > BASIC Image file name Y Advance Suffix © Date Time © Sequence number + FTPclient Sequence number clear General Alarm Motion detection Alarm sending Earctcslten an Use alarm buffer (LAlam buñer > SMTP » HTTPevent Effective Period © Always Schedul 7 Seneaute © Schedule Schedule D Alarm buffer > Motion detection Ceres) D System Log ral ï > Done. @ iiernet Remote path : Type the path to the destination in FTP server up to 64 characters. Image file name : Type the file name you want to assign to the images when sending to the FTP server. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underscore) for naming. Suffix : Select a suffix to add to the file name: Date & time: The date & time suffix is added to the Image file name. The date/time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name. Sequence number: A consecutive number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name. Motion Detection : Click it on for using Motion Detection function as a sensor. You can set the motion detection function page. Note : + Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. Alarm Buffer : Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded. Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm 29 AïrLive POE-200CAM User's Manual

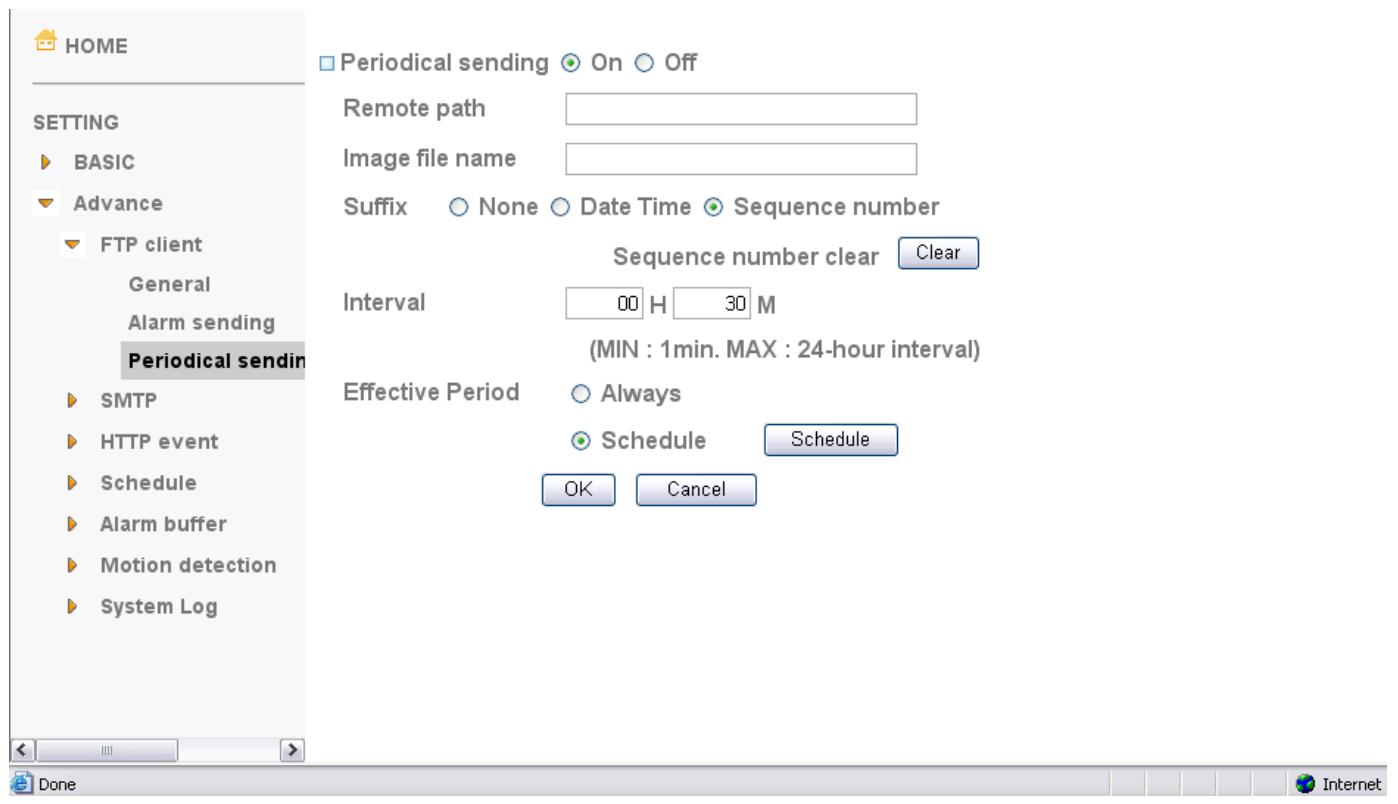

Buffer — Alarm buffer setting Menu on page. Effective period : Set the period when the periodical sending is effective. Always : The periodical sending is always effective. Schedule : You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. Periodical sending You can set to send an image file to FTP server periodically by selecting On to send the image file to FTP server linked with setting period. S HOME üPeriodical sending © On © Off serve Remote path » BASIC Image file name Y Advance Suffix © None © Date Time © Sequence number + FTP client Sequence number clear General Interval 00 H 3 M {MIN : 1min. MAX : 24-hour interval) Alarm sending Periodical sendin D dn Effective Period © Always » HTTPevent © Schedule Schedule » Schedule b Alarm buffer » Motion detection D System Log &] ï >» Æl Done @ internet Remote path : Type the remote path up to 64 characters. Image file name : Type the file name of the image sent to FTP server up to 10 alphanumeric characters, - (hyphen) and _ (under score). Suffix : Select a suffix to be added to the file name sent to FTP server. None : The name of the sent file will be the Image file name. Date & time : The date & time suffix is added to the Image file name. The date & time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name. Sequence number : À consecutive number is added to the Image file name. Sequence number clear : Click Clear and the suffix of the sequence number returns to 1. Interval : Set the periodical sending is effective interval. Min value is 1 min and Max value is 24 hour. AïirLive POE-200CAM User's Manual 30

Effective period : Set the period when the periodical sending is effective. Always : The periodical sending is always effective. Schedule : You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 34)

Set the SMTP menu when you want to send an image via e-mail. By using Mail (SMTP) function, you can send a mail with attached image which has been shot linked with the external sensor input or with the built-in motion detection function. The image file can also be sent periodically. E-Mail (SMTP) setting menu is composed of three tabs, General, Alarm sending and Periodical sending.

Select On when you use the SMTP function. The common setting options are displayed below. If you do not wish to use the e-Mail (SMTP) function, select Off and click OK. HOME Ue-Mail (SMTP) © On © Of SETTING SMTP server name > BASIC SMTP server port D ssL v Advance Authentication © On O off » FTPclient EH SMTP M POP before SMTP Y SMTP POP server name General User name Alarm sending Password Periodical sendin Recipient e-Mail address b HTTP event b Schedule b Alarm buffer » Motion detection Administrator e-Mail address b System Log Attached file type © JPEG © MPEG4 Subject Message Cancel

Æloone @ item 31 AïrLive POE-200CAM User's Manual

+ During transmission of an image file via mail, the frame rate and operation performance of the monitor image of the main viewer decline. + While the camera video mode is set to MPEG4, the image of the composite video signal output from the video output connector of the camera may be distorted during mail transmission. + You cannot send an audio file by using the mail sending function. SMTP server name : Type the SMTP server name up to 64 characters, or the IP address of the SMTP server. Authentication : Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. SMTP: Select if SMTP authentication is necessary when an e-mail is sent. POP before SMTP: Select if POP before SMTP authentication is necessary when an e-mail is sent. Note : + When you set to On, be sure to select either or both SMTP or/and POP before SMTP. POP server name : It is necessary when the POP before SMTP is selected in Authentication. Type the POP (receiving mail) server name up to 64 characters, or type the IP address of the POP server. This setting is necessary when the SMTP server which sends e-mails performs authentication using the POP user account. User name, Password : Type the user name and Password of the user who has the mail account. This setting is necessary when the SMTP server which sends e-mails performs authentication. Recipient e-mail address : Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient E-mail addresses. Administrator e-mail address : Type the Administrator e-Mail address up to 64 characters. This address is used for reply mail and sending system messages from the SMTP server. Attached File Type: Select to attach the file as JPEG or MPEG. Subject : Type the subject/itle of the e-Mail up to 64 characters. With respect to mail which is sent according to the alarm detection when Alarm sending of the alarm tab is set to On, the characters standing for the sensor type added to the subject. Message : Type the text of the E-mail up to 384 characters. (A line break is equivalent to 2 characters.) AïirLive POE-200CAM User's Manual 32

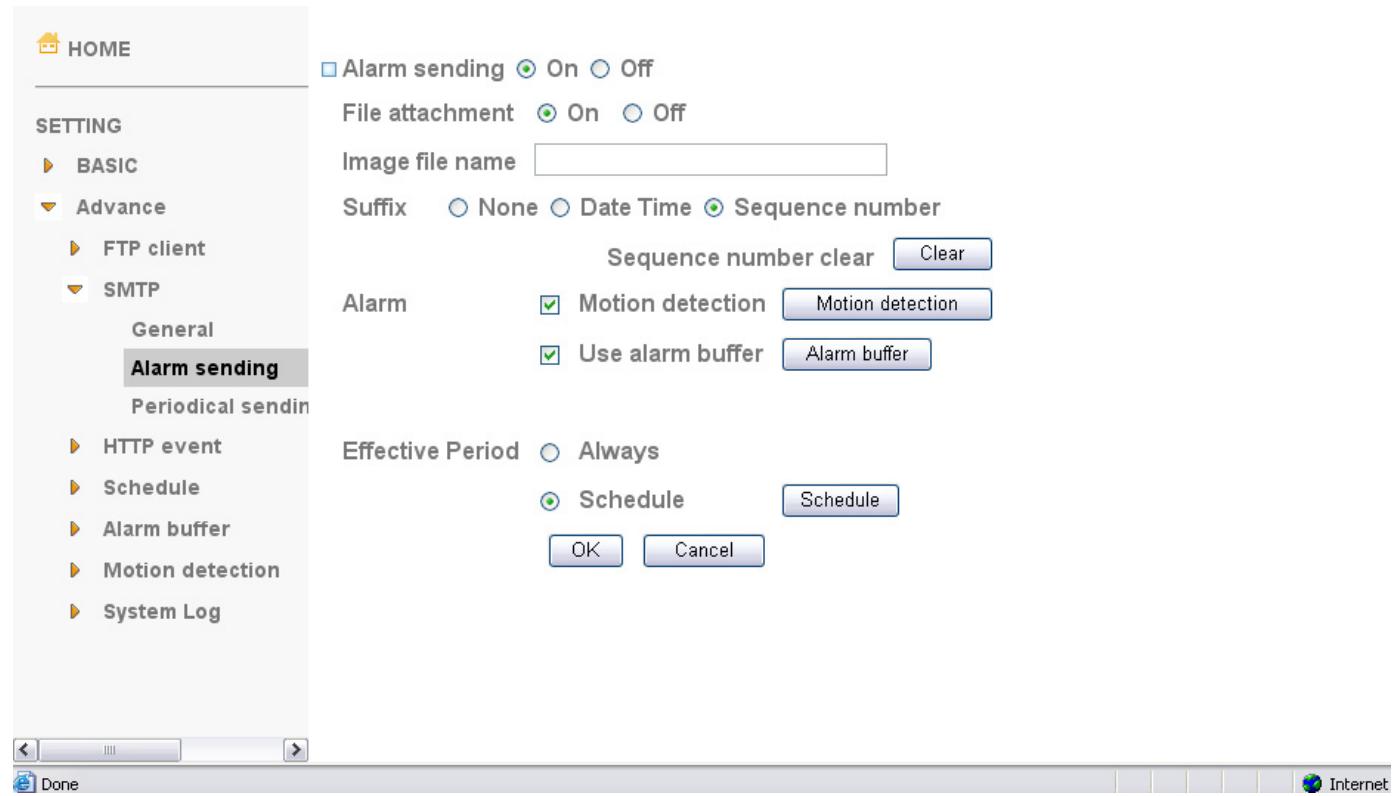

Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. É HOME . D Alarm sending © On © Off SETTING File attachment © On © Of b BASIC Image file name % Advance Suffix © None O Date Time © Sequence number » FTPciient Sequence number clear v SMTP ; Alarm Motion detection General Alarm sending Use alarm buffer Periodical sendin » HTTP event Effective Period © Always »)SREnaqUe © Schedule Schedule b Alarm buffer » Motion detection » System Log & T > Ælvone @ internet Alarm sending : Select On to set to send mail with connection to the alarm detection. File attachment : Set whether an image file is attached to the mail sent or not. When On is selected, the image file made by the settings below is attached. When Off is selected, only the message is sent. Image file name : Type the file name you want to assign to the image to attach a mail. You can use up to 10 alphanumeric, - (hyphen) and _ (underscore) for naming. Suffix : Select a suffix to add to the file name: None: No suffix is added. The Image file name is assigned to the image to be sent via an e-Mail. Date & time: The date & time suffix is added to the Image file name. The date/time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name. Sequence number: A consecutive number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name. Motion Detection : Click it on for using Motion Detection function as a sensor. You can set the motion detection function page. Note : + Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. Alarm Buffer : Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded. Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm 33 AïrLive POE-200CAM Users Manual

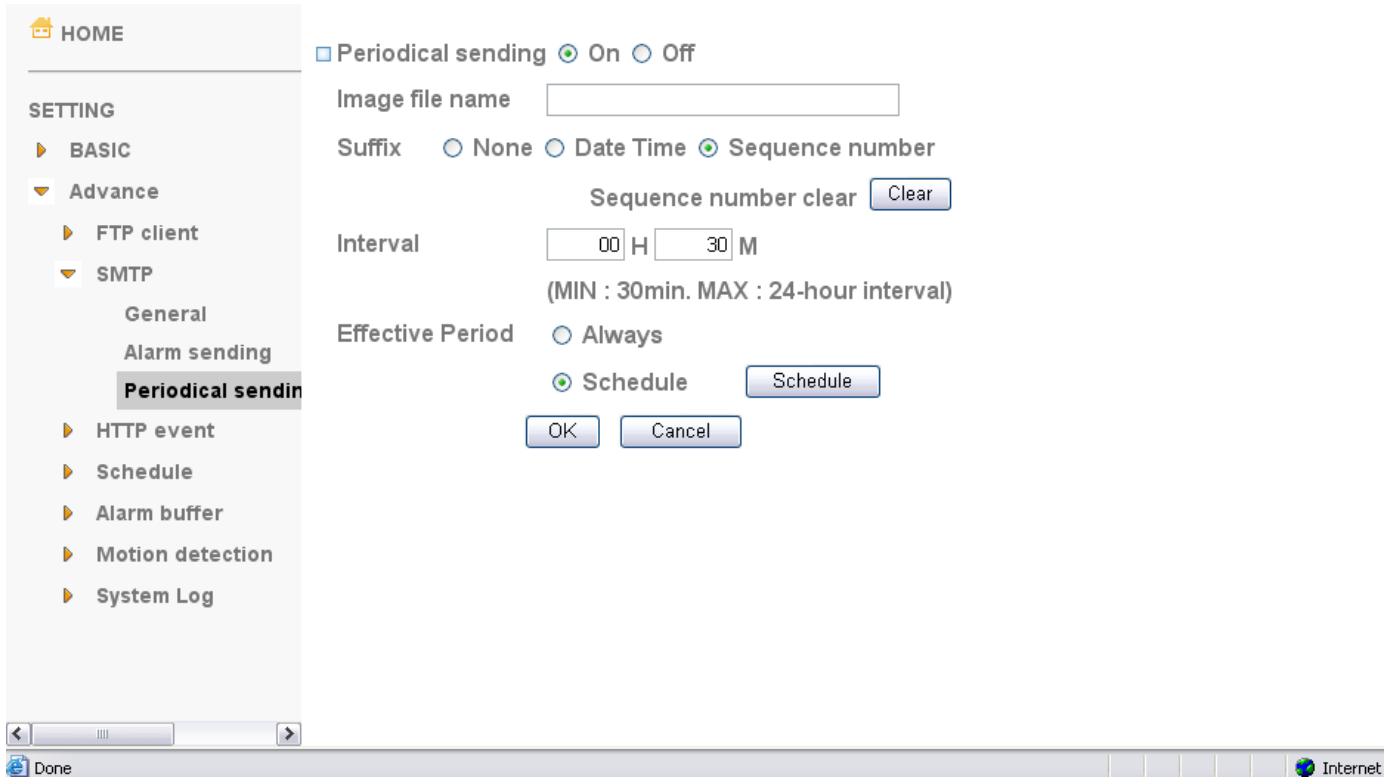

You can set to send an image file by SMTP server periodically by selecting On to send the image file by SMTP server linked with setting period. É HOME . . uPeriodical sending © On © Off semne Image file name » BASIC Suffix © None © Date Time © Sequence number Y Advance Sequence number clear DUC Interval cH| 30m Y SMTP {MIN : 30min. MAX : 24-hour interval) General Effective Period © Always Alarm sending Periodical sendin © Schedule » HTTP event > Schedule » Alarm buffer > Motion detection > System Log [EaI 1 > Ælvone @ mternet Image file name : Type the file name of the image sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score). Suffix : Select a suffix to be added to the file name sent by SMTP. None : The name of the sent file will be the Image file name. Date & time : The date & time suffix is added to the Image file name. The date & time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name. Sequence number : À consecutive number is added to the Image file name. Sequence number clear : Click Clear and the suffix of the sequence number returns to 1. Interval : Set the periodical sending is effective interval. Min value is 30 min and Max value is 24 hour. Effective period : Set the period when the periodical sending is effective. Always : The periodical sending is always effective. Schedule : You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 34) AïirLive POE-200CAM User's Manual 34

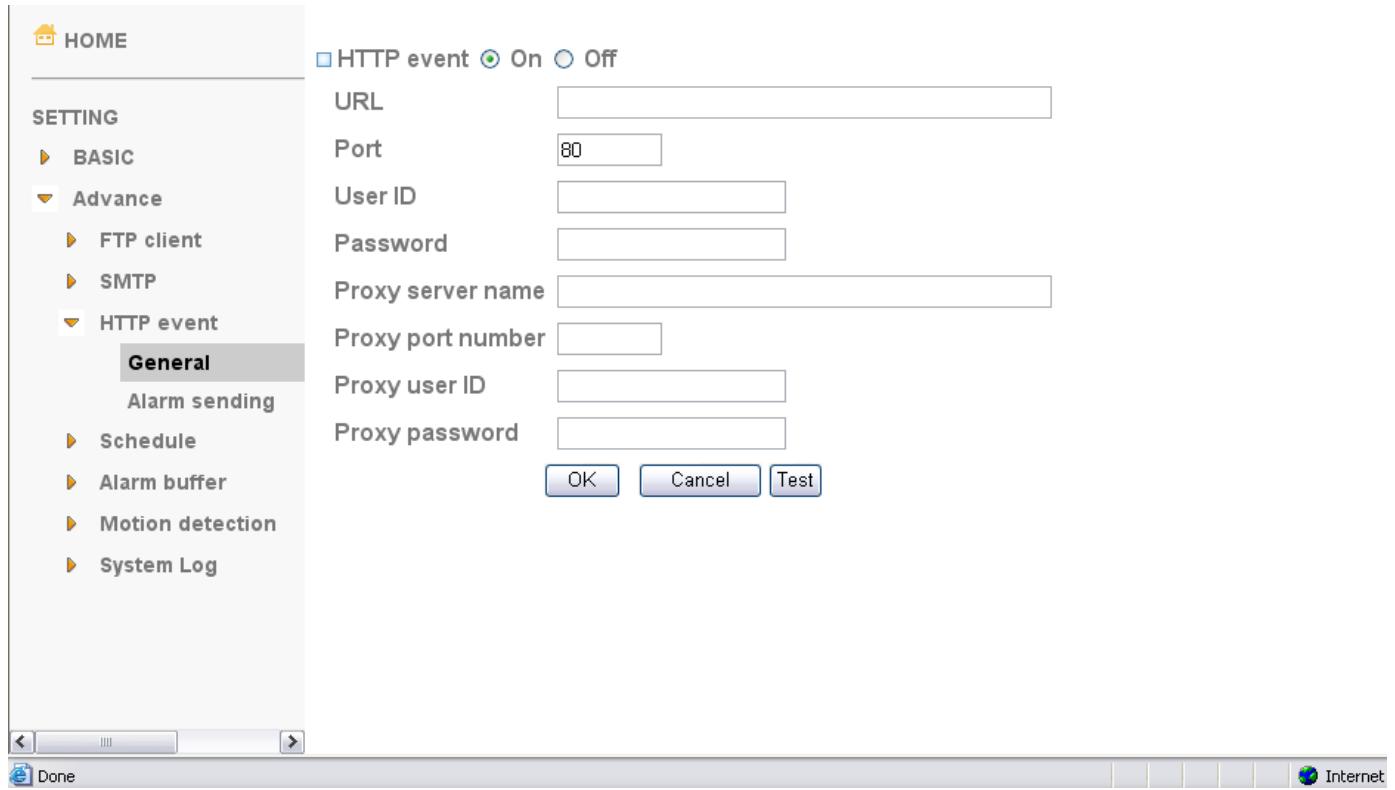

Use this menu to set up for capturing and sending images to an HTTP server. By using HTTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to HTTP server. HTTP client setting menu is composed of two tabs, General and Alarm sending.

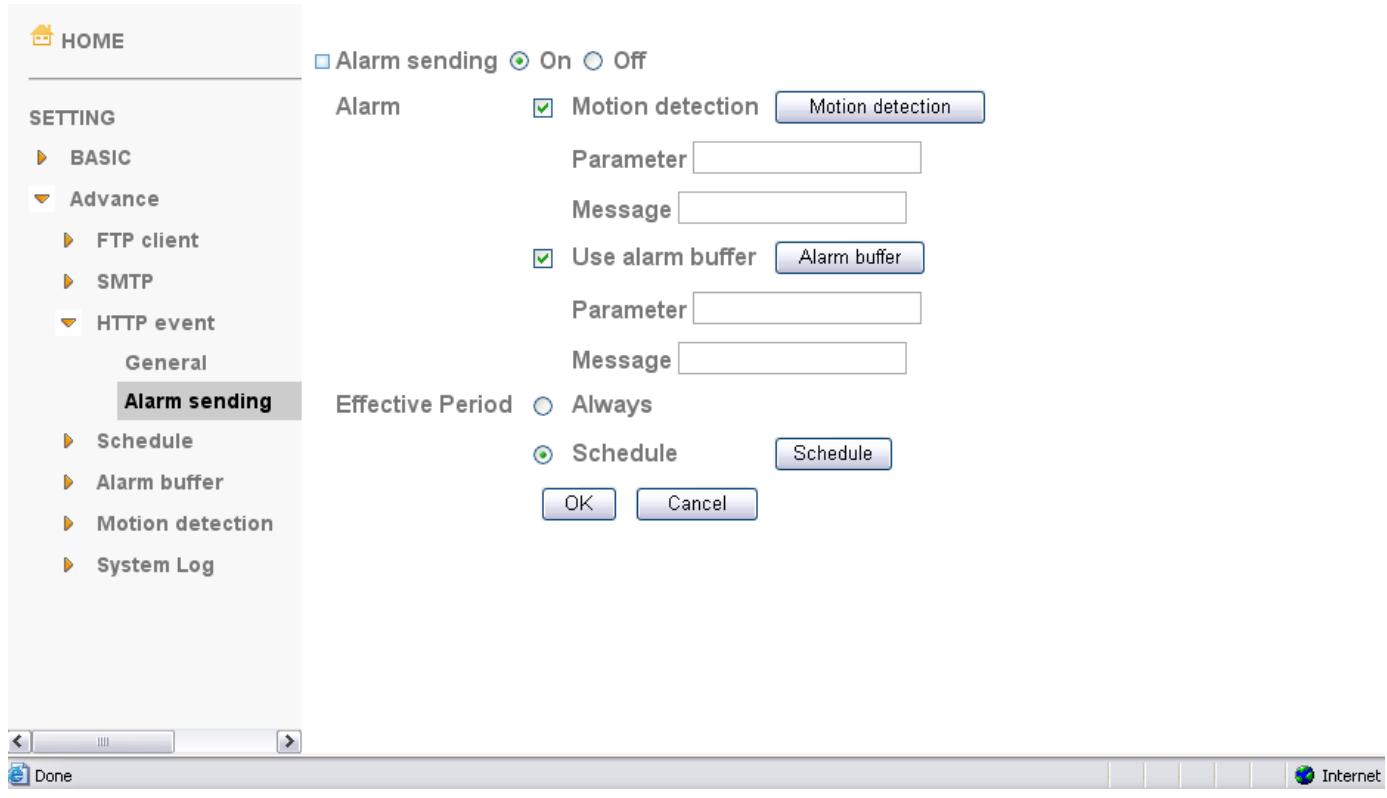

Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. S HOME D'Alarm sending © On © Of SETTING Alarm Motion detection b BASIC Parameter Y Advance Message D FTP client Use alarm buffer > SMTP + HTTP event Parameter General Message Alarm sending Effective Period © Always D SH © Schedule Schedule b Alarm buffer Cancel b Motion detection b System Log Fa 1 > Done @ internet Alarm sending : Select On to set to send mail with connection to the alarm detection. Motion Detection : Click it on for using Motion Detection function as a sensor. You can set the motion detection function page. Note : + Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. Alarm Buffer : Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded. Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm Buffer — Alarm buffer setting Menu on page. Effective period : Set the period when the periodical sending is effective. Always : The periodical sending is always effective. Schedule : You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AïirLive POE-200CAM User's Manual 36

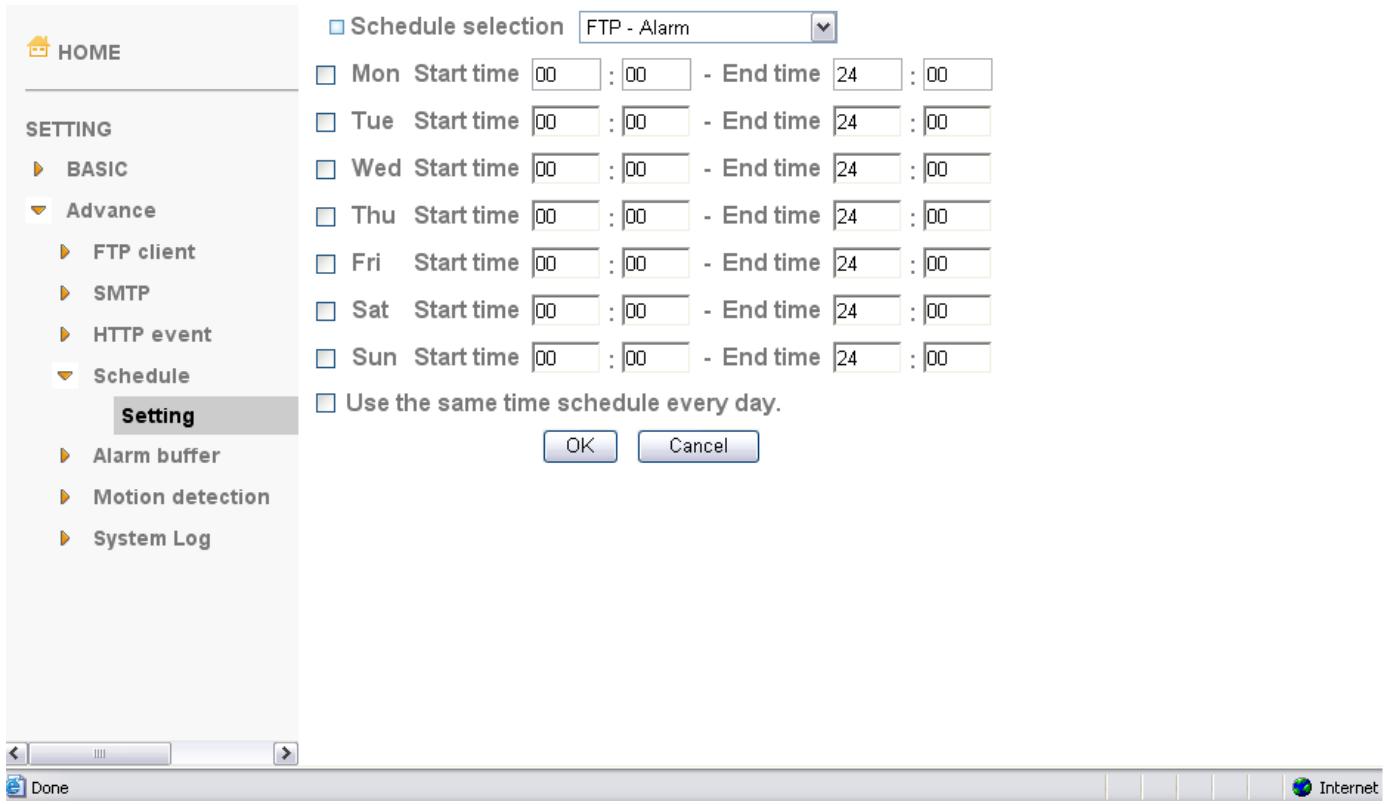

When you click Schedule on the Advanced mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Alarm out setting menu and so on. Example: When setting e-Mail (SMTP) (the alarm sending) in the Schedule setting menu. on Schedule selection [FTP - Alam a] S HOME E Mon Starttime (oo |:l00 ]-Endtime [24 ]|:{00 SETTING O Tue Starttime (00 :[00 -Endtime Pa [0 b BASIC D Wed Starttime [0 : oo - Endtime 24 : oo Y Advance O Thu Starttime [oo :[00 - Endtime 24 :f00 D GwGITuS D Fri Starttime [00 :f00 -Endtimef24 [00 b SMTP DO Sat Starttime [oo [00 - Endtime 24 :f00 b HTTPevent ED Sun Starttime [oo {00 - Endtime P4 :f00 v Schedule I] Use the same time schedule every day. Cancel Setting b Alarm buffer b Motion detection D System Log ral ï ] > Done @ internet Setting Schedule selection Select the list box to specify the schedule you want to set. e-Mail (SMTP) - Alarm, e-Mail (SMTP) — Periodical, FTP - Alarm, FTP - Periodical, HTTP event — Alarm, Alarm output — Alarm or Alarm output — Timer, can be selected. Mon (Monday) to Sun (Sunday) The time period on the right of the checked day is the effective period of the schedule. Start time, End time Specify the Start time and the End time. Use the same time schedule every day When this is checked, the Start time and End time set to Mon (Monday) are applied to all days. In this case, the Start time and End time of the other days than Mon (Monday) cannot be input. 37 AïrLive POE-200CAM User's Manual

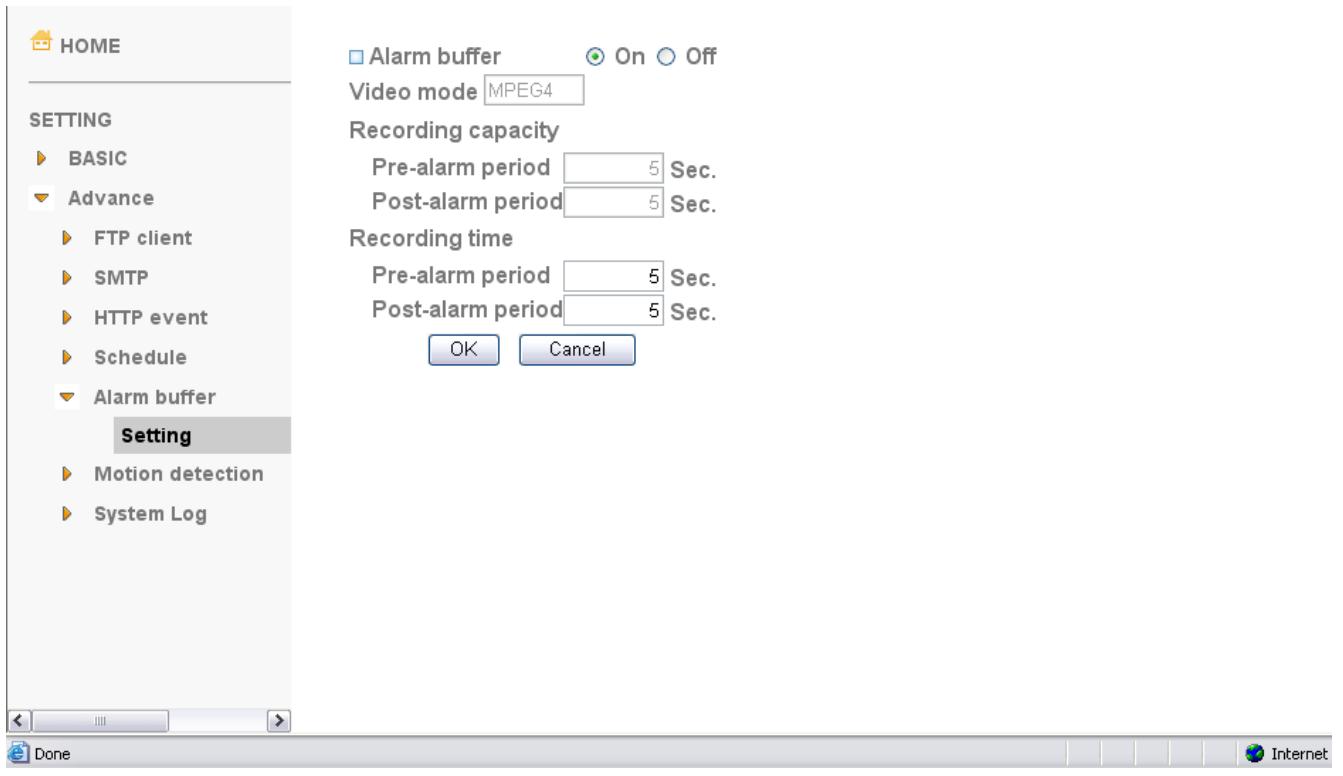

You can set the Pre-alarm image and audio (the image and audio before the alarm detection) and the Post - alarm image and audio. These can be set when Alarm sending FTP client setting menu or Image memory setting menu is set to On, and besides when Use alarm buffer is selected. S HOME OI Alarm buffer © On © of Video mode ET Recording capacity D ENR Pre-alarm period Sec. + Advance Post-alarm period Sec > FTP client Recording time » SMTP Pre-alarm period 5\Sec. D Po Post-alarm period 5 Sec. Cancel » Schedule + Alarm buffer Setting » Motion detection System Log (er > Ælvone @ nnternet Setting Alarm buffer: To activate the Alarm buffer function, select On. The basic setting options are displayed below. When you do not use the Alarm output function, select Off. Recording capacity Pre-alarm period : Display the maximum recording capacity of image/audio before the alarm detection. Post-alarm period : Display the maximum recording capacity of image/audio after the alarm detection. Recording time Set the recording time for the Pre-alarm image/audio and Post alarm image/audio. Pre alarm period : Type it with recording time of the image/audio before the alarm detection. Post alarm period : Type it with recording time of the image/audio after the alarm detection. Note : - The value of Recording capacity differs depending on Image size, Bitrate (for MPEG4) and Image quality (for MPEG4 and MJPEG) in the camera setting menu. AirLive POE-200CAM User's Manual 38

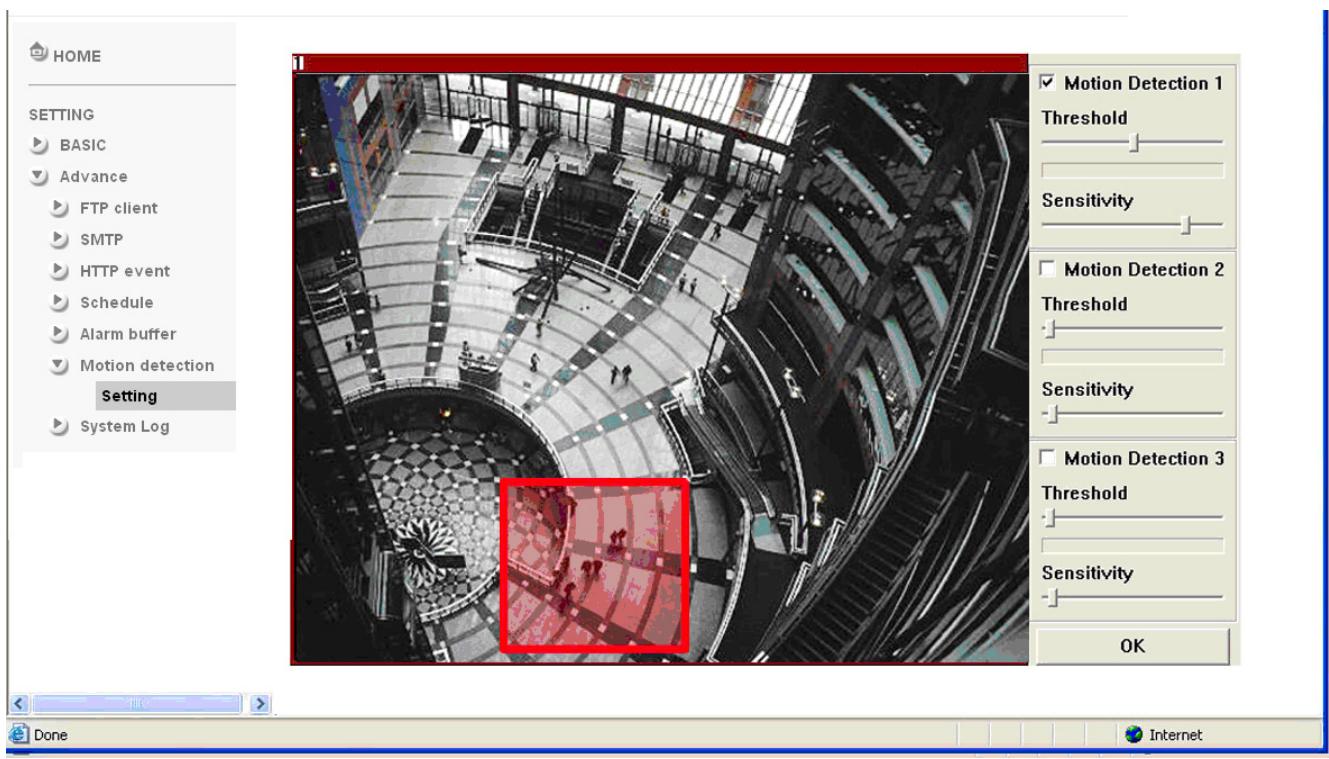

When you click Motion Detection on the Advance mode menu, the Motion Detection setting menu appears. There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially. Motion Detection function can support to FTP, SMTP and Alarm output for capturing and sending images or starting alarm output. À HOME N Motion Detection 1 SETTING Threshold >) BASIC — Y Advance ») FTP cent Sensitivity ») sure us ») HTTP event T° Motion Detection 2 ?) Schedule Threshold >) Alarm buffer 3

Eire @ meet Click it On when you use the Motion Detection function and detecting zone appears for adjusting and moving. The common setting options are displayed below. If you do not wish to use the Motion Detection function, click it Off and press OK. Motion Detection 1:Click it on for using Motion Detection 1 function as a sensor. You can adjust and move the detecting zone by using mouse. Motion Detection 2:Click it on for using Motion Detection 2 function as a sensor. You can adjust and move the detecting zone by using mouse. Motion Detection 3: Click it on for using Motion Detection 3 function as a sensor. You can adjust and move the detecting zone by using mouse. Threshold: You can use the tool bar to set up-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Sensitivity : You can use the tool bar to set down-limit value. When detecting zone signals are over setting value, it would carry on assigned work. 39 AirLive POE-200CAM Users Manual

Carry out the following steps :

1. Click On to Motion Detection 1 choose one of eight orders.

2. Adetecting zone 1 appears and use mouse to adjust and move the zone boundaries and position.

3. Use tool bar to set Threshold and Sensitivity value.

4. Follow the steps to set the other Motion Detection.

5. Click the OK to save the setting.

Note : - Be careful! Motion Detection function don't work with Patrol function at same time. AirLive POE-200CAM User's Manual 40
