PLATINUM FURNITURE FLAT PANEL TV STAND-PFFP2 - TV Stand SANUS - Free user manual and instructions

Product Type	TV Cabinet with Integrated Wall Mount
Brand	SANUS
Model	PLATINUM FURNITURE FLAT PANEL TV STAND-PFFP2
TV Compatibility	Flat screens 30 to 50 inches
Maximum Load Capacity	59 kg
Materials	Steel, tempered glass, plastic
Number of Glass Shelves	2 glass shelves included
Mounting Type	Floor standing, central column with sliding bracket
Assembly Required	Yes, tool included (Allen key)
Adjustable Height	Yes, the bracket can slide on the column
Safety Locks	Security bolts to lock the TV
Maintenance	Clean with a soft, dry cloth. Avoid abrasive products.
Safety	Do not exceed the maximum load. Use the provided safety bolts.
Spare Parts	Available on request from Sanus Systems customer service
Customer Service (USA)	1-800-359-5520
Customer Service (Europe)	31 (0) 20 5708938
Website	www.sanus.com

Frequently Asked Questions - PLATINUM FURNITURE FLAT PANEL TV STAND-PFFP2 SANUS

Which TVs are compatible with this cabinet?

The cabinet is designed for flat-screen TVs from 30 to 50 inches. Ensure the weight does not exceed 59 kg and that the VESA standard is compatible (screws provided for M4, M5, M6, M8).

What is the maximum weight capacity?

The mount can support a TV weighing up to 59 kg. Never exceed this limit to avoid any risk of tipping.

What tools are needed for assembly?

An Allen key (included) and a Phillips screwdriver are required. All screws and washers are included in the box.

How to fix the column to the base?

Use M12x40 bolts (front) and M8x35 bolts (rear) with corresponding washers. Tighten M12 bolts with a wrench and M8 with a Phillips screwdriver. Also insert two M6x20 bolts at the rear.

How to install the glass shelves?

Place the glass shelf washer on the shelf, slide the assembly into the shelf bracket, then fasten with 1/4-20 Allen screws and plastic washers. Tighten firmly to stabilize the shelf.

How to mount the monitor brackets on the TV?

Determine the appropriate screw diameter (M4, M5, M6, or M8) by testing by hand. Use the corresponding lock washers and flat washers, then screw into the threaded inserts on the TV. For curved screens, use spacers.

How to attach the TV to the fixing bracket?

Hang the monitor brackets onto the fixing bracket, then insert the security bolts into the threaded holes at the bottom of the brackets. Tighten the bolts until they press against the back of the fixing bracket.

How to adjust the height of the TV?

The fixing bracket can slide on the column. Loosen the M8 Allen screws on the fixing bracket, slide to the desired height, then retighten. Ensure the bracket is securely fastened before hanging the TV.

How to clean and maintain the cabinet?

Use a soft, dry cloth to dust. For glass shelves, a non-abrasive glass cleaner can be used. Avoid any harsh chemicals that could damage the finish.

Where to find spare parts?

Contact Sanus Systems customer service at 1-800-359-5520 (USA) or 31 (0) 20 5708938 (Europe). Spare parts are shipped directly for products purchased from an authorized dealer.

USER MANUAL PLATINUM FURNITURE FLAT PANEL TV STAND-PFFP2 SANUS

International Assembly Instructions for model PFFP2

SANUS SYSTEMS

THE UNION OF FORM AND FUNCTION

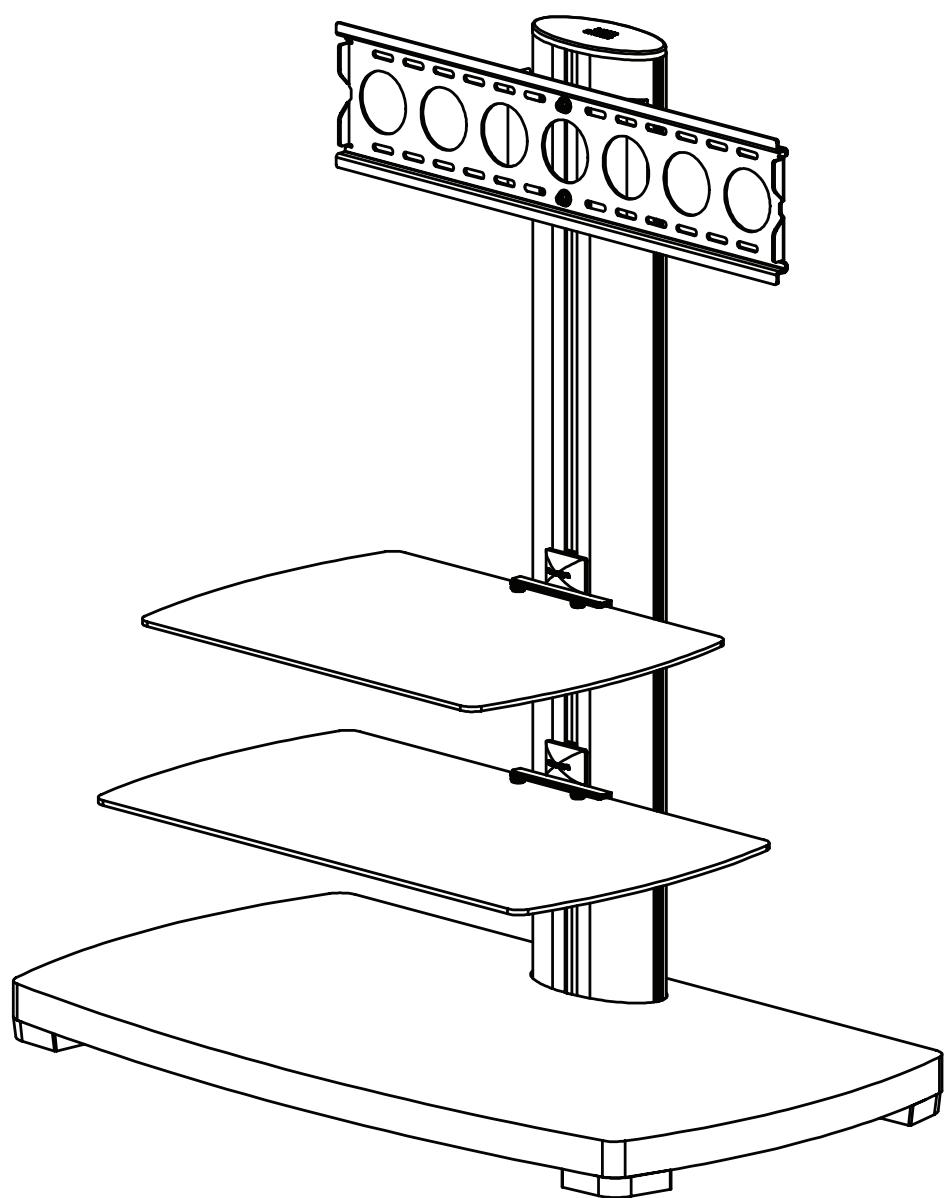

Assembly Instructions for Sanus Systems Platinum Furniture Model: PFFP2

Thank you for choosing Sanus Systems Platinum Furniture. The PFP2 is designed to support a 30” to 50” flat panel television up to 130 lbs. If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts. Check carefully to make sure none of the parts are missing or defective. Never use defective parts. Replacement parts for products purchased from an authorized dealer will be shipped directly to you. Please call Sanus Systems before returning products to the retail store where you purchased them.

Required Tools: Wrench or Socket Set, Phillips Screw Driver

Parts: Some parts not shown at same scale*

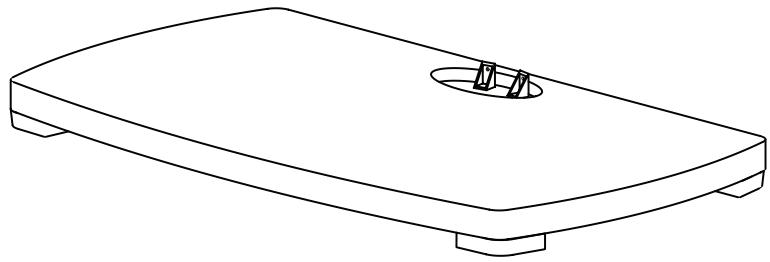

(1) Base - a

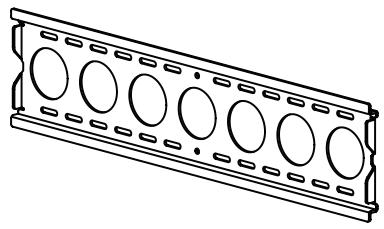

(1) Wall Bracket - b

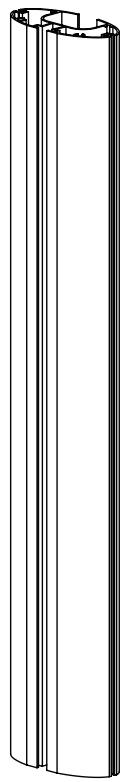

(1) Pillar - g

(1) Large Glass Shelf - c

(1) Right Monitor Bracket - e

(1) Small Glass Shelf - d
(1) Left Monitor Bracket - f

(2) Shelf Bracket - k*

(1) Wall Plate - h*

(2) Wall Bracket Spacer - i*

(2) Shelf Plate - j*

(2) Glass Shelf Washer - 1*

(2) Shelf Bracket Cap - m*

(1) Top Cap - n*

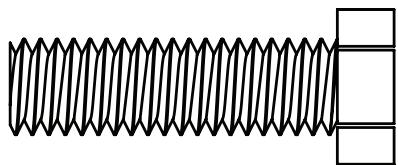

Hardware: All hardware shown as actual size

(2) M6 x 20 Bolt - o

(2) M8 x 35 Bolt - p

(2) M12 x 40 Bolt - q

(6) M8 Allen Bolt - r

(4) 1/4-20 Allen Bolt - s

(2) Safety Bolt - t

(8) M8 Washer - u

(6) Spring Washer - v

(4) Plastic Washer - w

(2) M12 Washer - x

TV Mounting Hardware:

(4) M4 x 12 Bolt - y

(4) M5 x 12 Bolt - z

(4) M6 x 12 Bolt - aa

(4) M8 x 16 Bolt - bb

(4) M4 x 30 Bolt - cc

(4) M6/M8 Spacer - nn

Step 1: Secure Pillar to Base

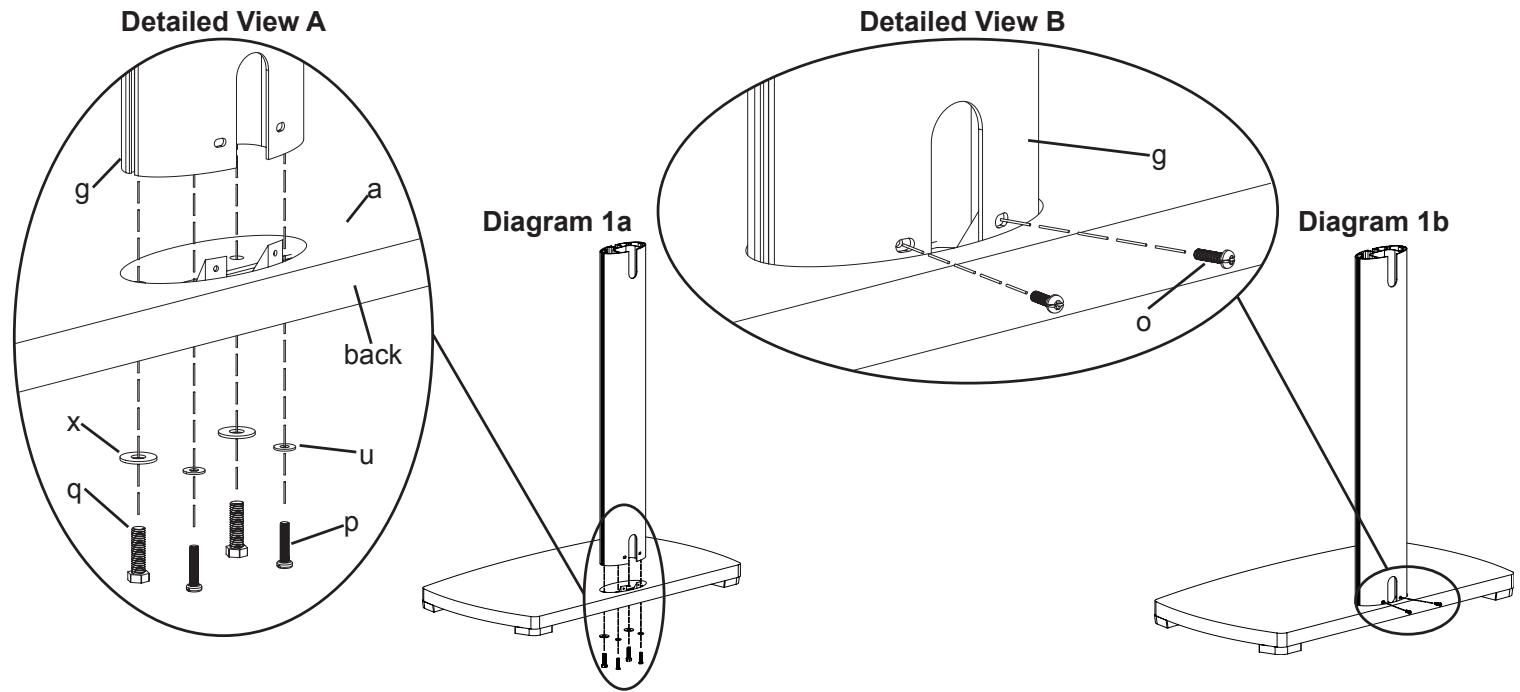

Attach the Pillar (g) to the Base (a) by placing each M12 x 40 Bolt (q) through an M12 Washer (x), each M8 x 35 Bolt (p) through an M8 Washer (u). Then thread each Bolt up through the Base and into the Pillar as shown in Diagram 1a. The M12 x 40 Bolts should be threaded into the front two holes of the Pillar, while the M8 x 35 Bolts should be threaded into the back two holes of the Pillar. Tighten the M12 x 40 Bolts with a wrench, and tighten the M8 x 35 Bolts with a Phillips screw driver. Proceed to insert two M6 x 20 Bolts (o) into the holes on the back of the Pillar as seen in Diagram 1b. Tighten the M6 x 20 Bolts with a Phillips screw driver.

Step 2: Shelf Bracket Assembly

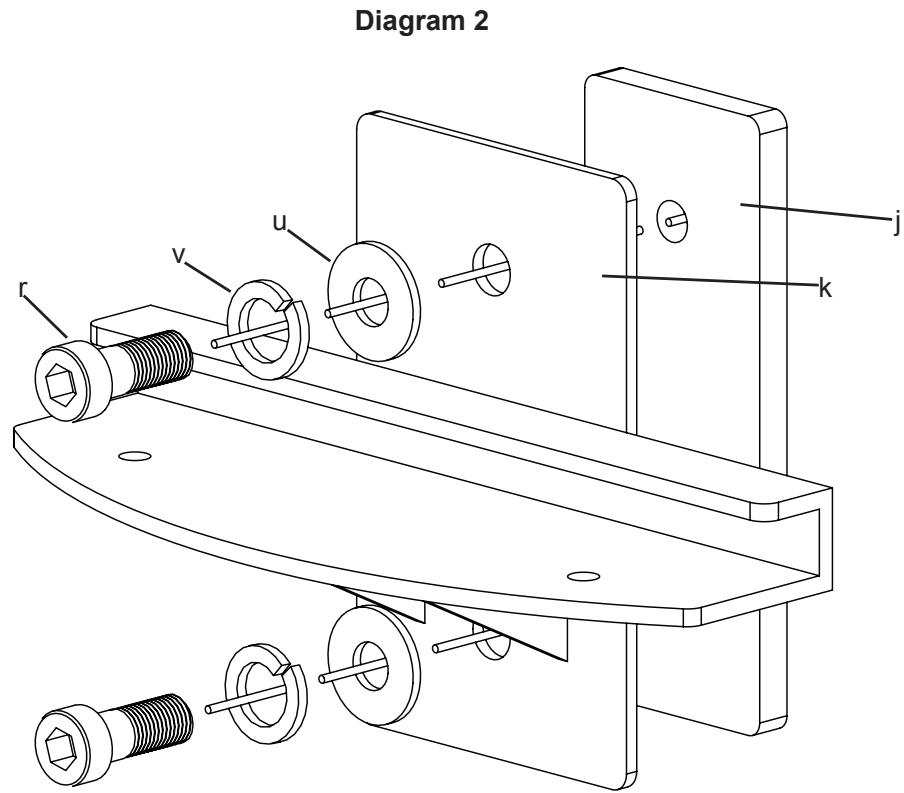

Thread an M8 Allen Bolt (r) through a Spring Washer (v), an M8 Washer (u), the Shelf Bracket (k), and into the Shelf Plate (j). See Diagram 2 for assistance. Loosely tighten the M8 Allen Bolt into the Shelf Plate with an Allen Key (oo). Leave approximately a 1/8 gap between the Shelf Bracket and the Shelf Plate for Step 4. Repeat process for 2nd Shelf Bracket.

Step 3: Wall Bracket Assembly

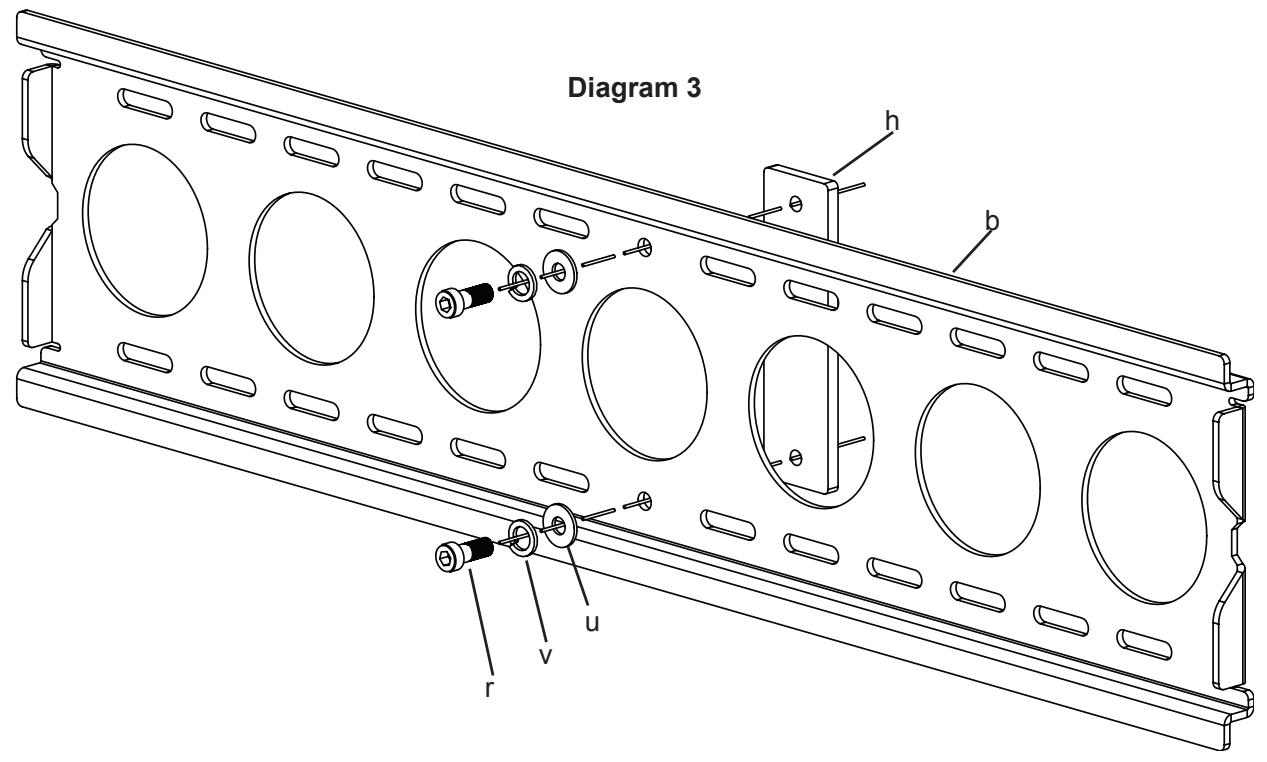

Thread an M8 Allen Bolt (r) through a Spring Washer (v), an M8 Washer (u), through the middle hole in the Wall Bracket (b), and into the Wall Plate (h) as seen in Diagram 3. Loosely tighten the M8 Allen Bolt into the Wall Plate with an Allen Key (oo). Leave approximately a 1/8 gap between the Wall Bracket and the Wall Plate for Step 5.

Step 4: Add Shelf Bracket to Pillar

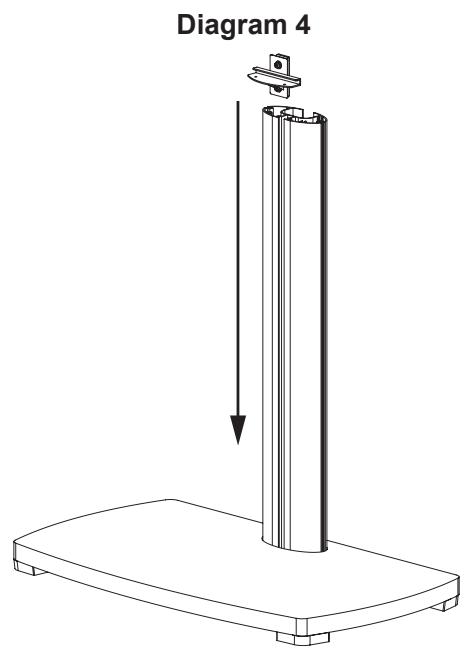

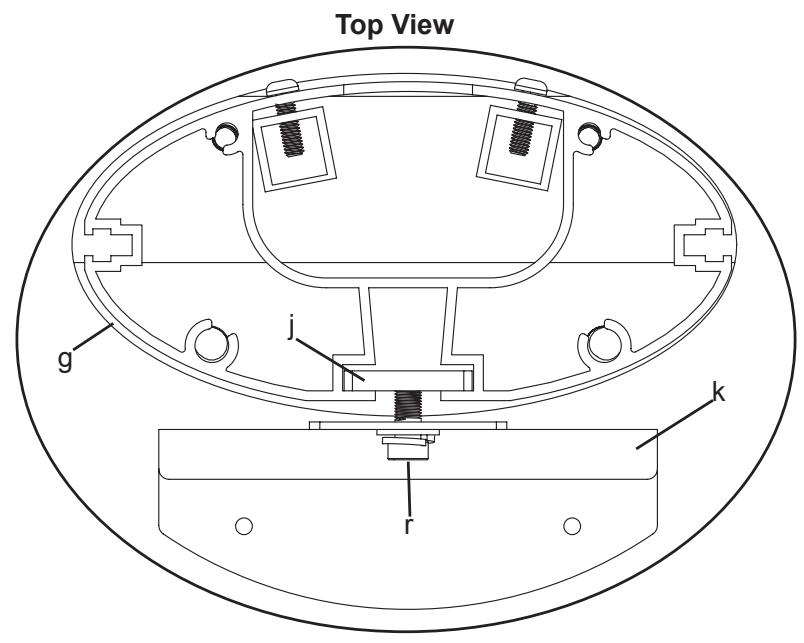

Add the Shelf Bracket Assembly to the Pillar (g) by sliding it down from the top to the desired position on the Pillar. Make sure the Shelf Plate (j) fits into the channel in the Pillar. See the Top View of Diagram 4 for assistance. Once you have the Shelf Bracket Assembly in place, proceed to tighten the M8 Allen Bolts (r) with an Allen Key (oo) so the Shelf Bracket Assembly is firmly in place. Repeat the process for the second Shelf Bracket.

Note: Make Sure The M8 Allen Bolts Are Tight!

Step 5: Add Wall Bracket

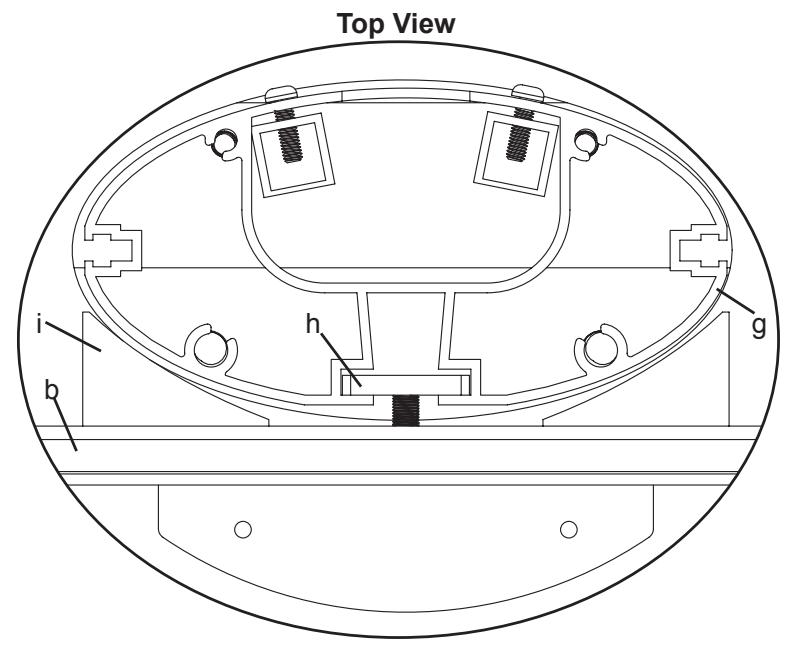

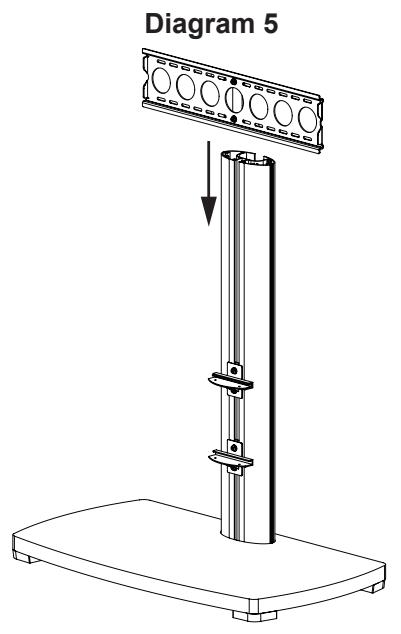

Slide the Wall Bracket Assembly down into place on the Pillar (g). Make sure the Wall Plate (h) fits into the channel in the Pillar as seen in the Top View of Diagram 5. Once the Wall Bracket Assembly is in the desired position, tighten the M8 Allen Bolts (r) with an Allen Key (oo) so the Wall Bracket Assembly is attached to the Pillar. Attach the Wall Bracket Spacers (i) to the Wall Bracket (b) by sliding the Wall Bracket Spacers from the side so the plastic tabs into the correct oval holes on the Wall Bracket. See the Top View of Diagram 5. You may have to loosen the M8 Bolts in the Wall Bracket to have enough space to fit the Wall Bracket Spacers in between the Wall Bracket and the Pillar.

Note: Make Sure The M8 Allen Bolts Are Tight!

Step 6: Add the Glass Shelves

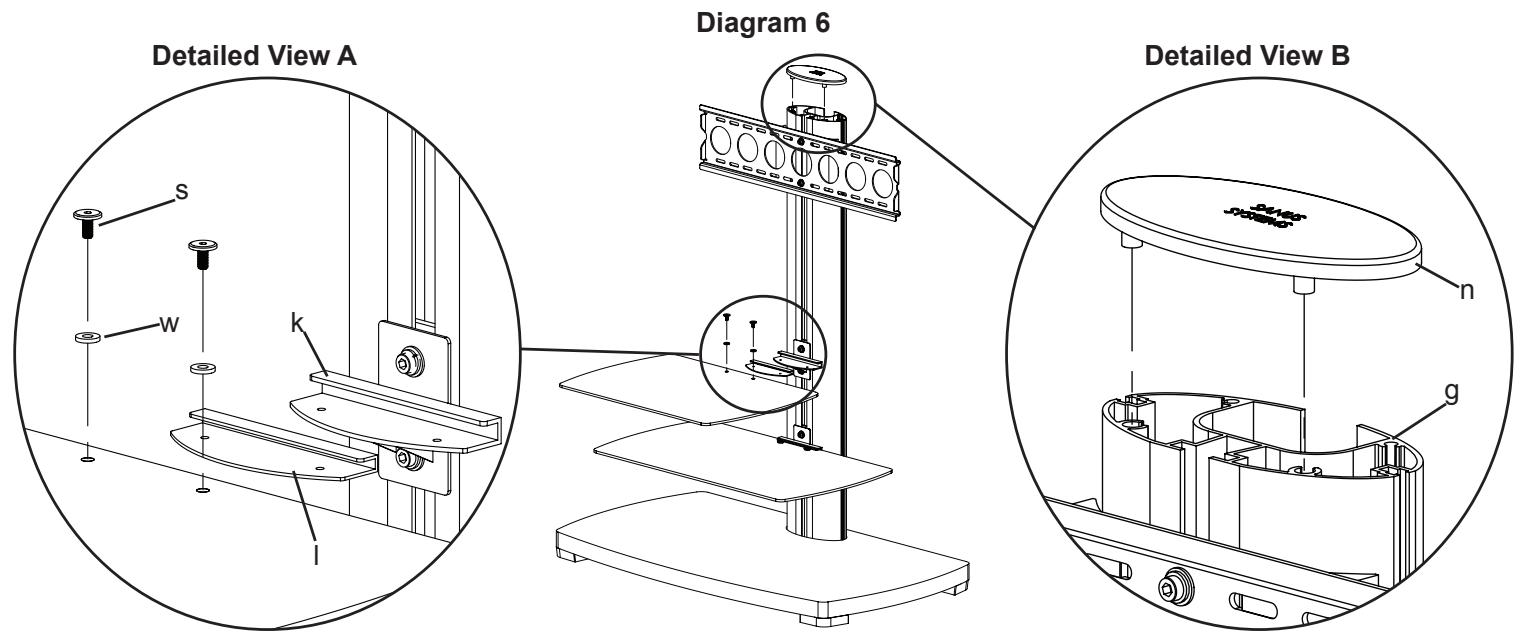

Take the Glass Shelf Washer (l) and insert it onto the Glass Shelf (c,d). Make sure the holes in the Glass Shelf Washer and the Glass Shelf are aligned. Slide the Glass Shelf assembly into the Shelf Bracket (k). Thread each 1/4-20 Allen Bolt (s) down through a Plastic Washer (w), the Glass Shelf and into the Shelf Bracket assembly. Tighten the 1/4-20 Allen Bolts firmly so the Glass Shelf is secured to the Shelf Bracket. See Detailed View A of Diagram 6 for assistance. Repeat the process for the other Glass Shelf.

Next, add the Top Cap (n) to the top of the Pillar (g) by lining up the two plastic dowels on the bottom of the Top Cap with the corresponding pattern on the top of the Pillar as seen in Detailed View B of Diagram 6. Press down firmly on the Top Cap to make sure it is in place.

Note: The smaller Glass Shelf is typically installed above the larger Glass Shelf.

Step 7: Mounting Monitor Brackets to a television with a flat back

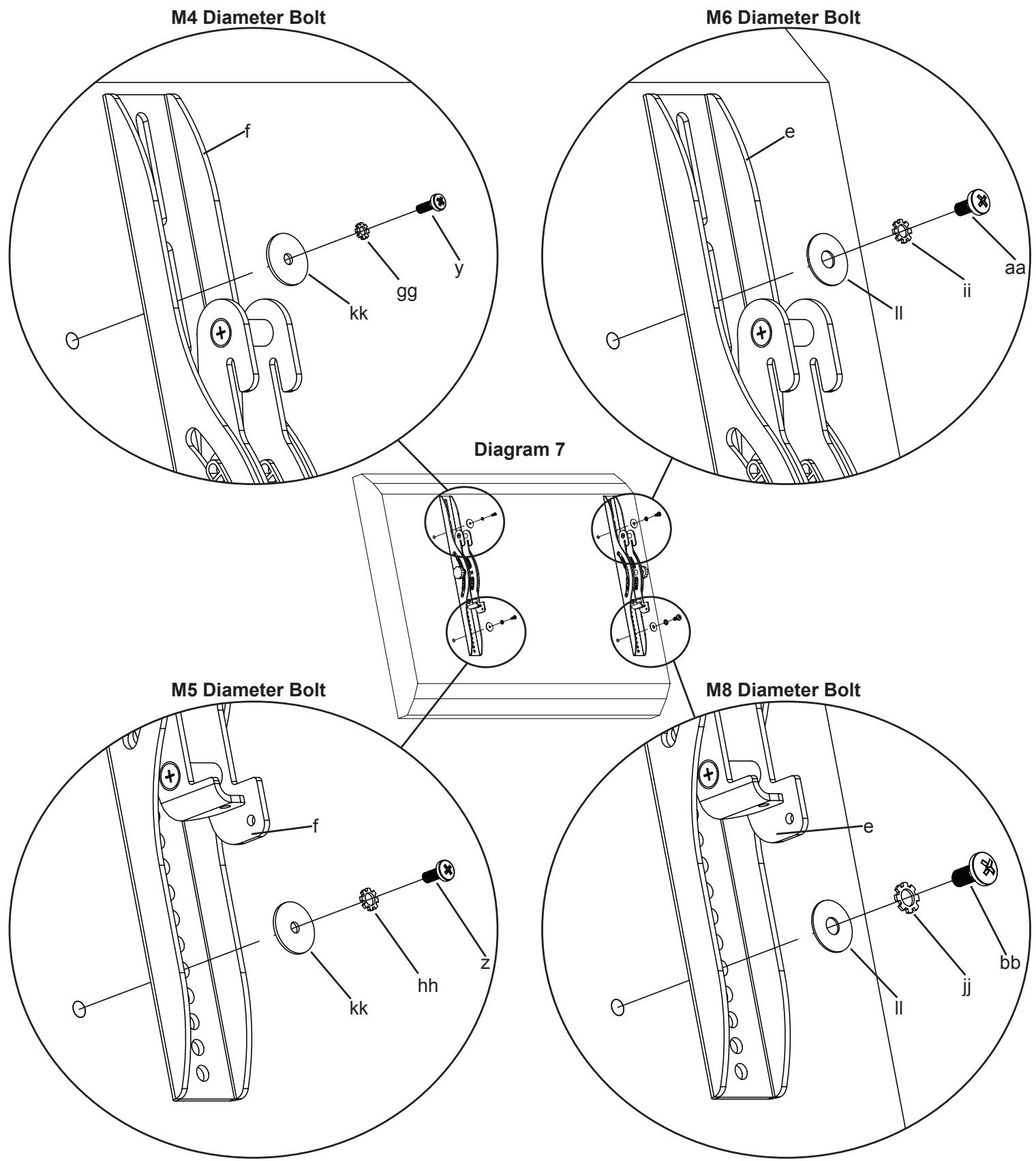

First, determine the diameter of the Bolt (y,z,aa,bb) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately! Once you have determined the correct diameter, see the appropriate Diagram below. You will thread the Bolt through the appropriate Lock Washer (gg,hh,ii,jj), a Washer (kk,ll), the Monitor Bracket (e,f), and finally into the TV. Make sure the Monitor Brackets are vertically centered and level with each other. See the appropriate Diagram below.

Note: For televisions with a curved back, or an obstruction near the threaded insert see Step 8.

Step 8: Mounting Monitor Brackets to a television with a curved back or an obstruction near the threaded insert

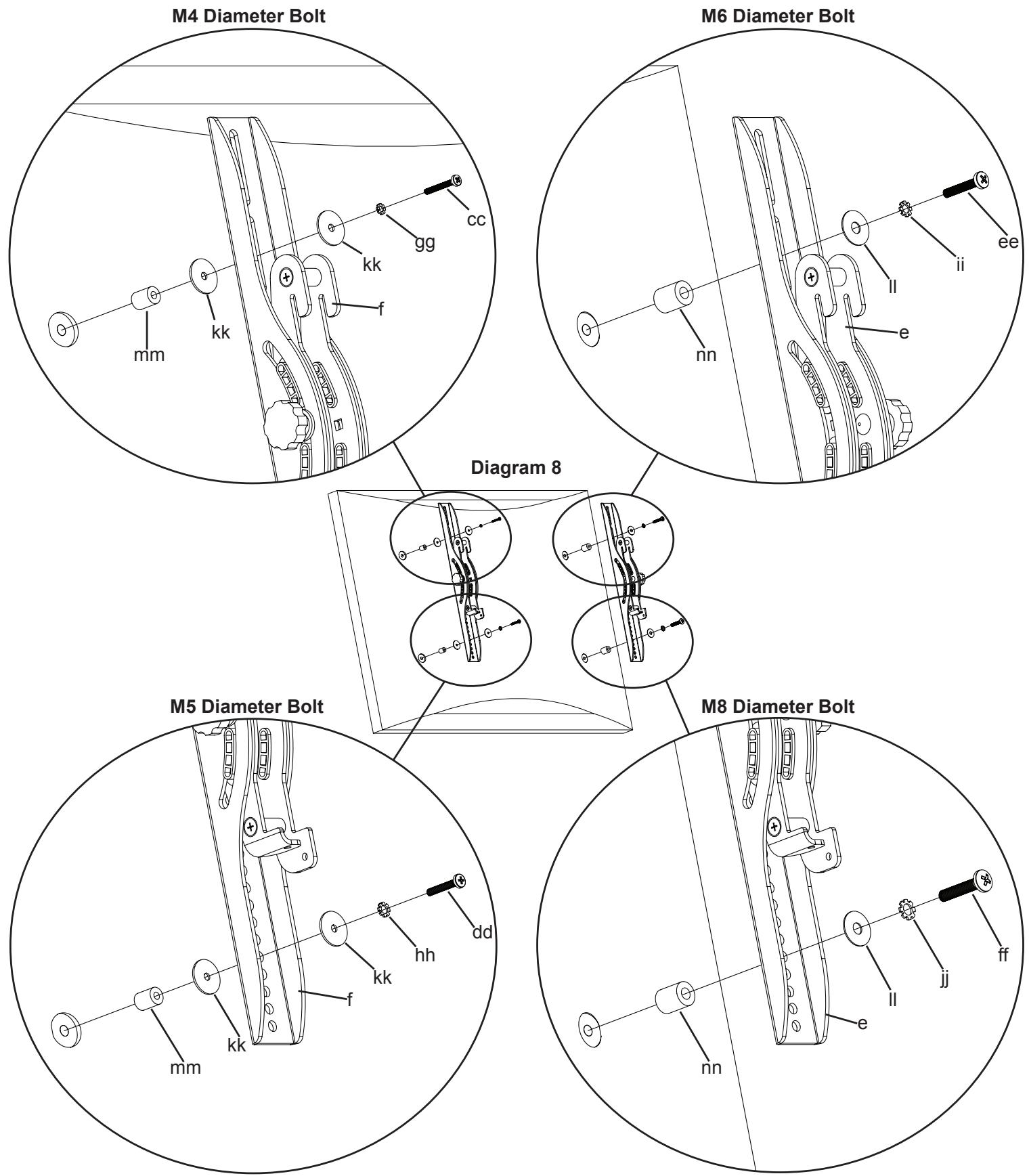

First, determine the diameter of the Bolt (cc,dd,ee,ff) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately! Once you have determined the correct diameter, see the appropriate Diagram below. You will thread the Bolt through the appropriate Lock Washer (gg,hh,ii,jj), a Washer (kk,ll), the Monitor Bracket (e,f), a Spacer (mm,nn) and finally into the TV. Make sure the Monitor Brackets are vertically centered and level with each other. See the appropriate Diagram below.

Step 9: Hang TV and Safety Bolt

Warning: Lifting the television may require two people!

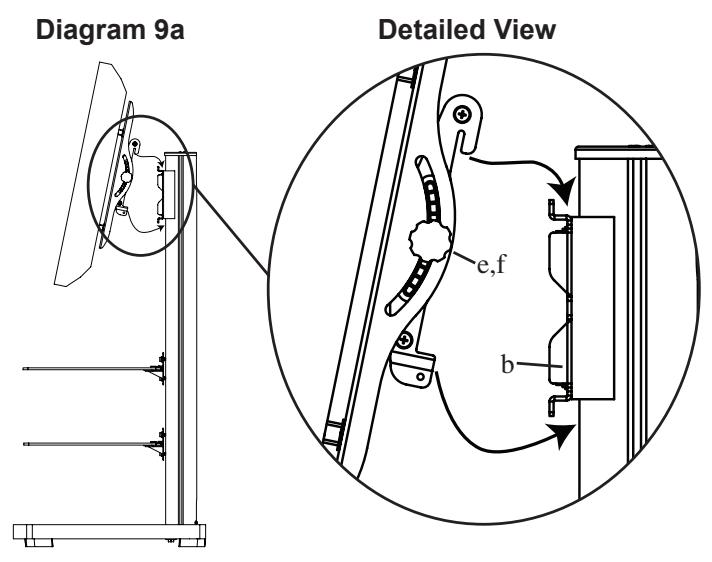

To hang the TV onto the Wall Bracket (b) first hook the Monitor Brackets (e,f) over the top of the Wall Bracket, then let the bottom of the Monitor Brackets rotate in under the bottom of the Wall Bracket as shown in the Detailed View of Diagram 9a.

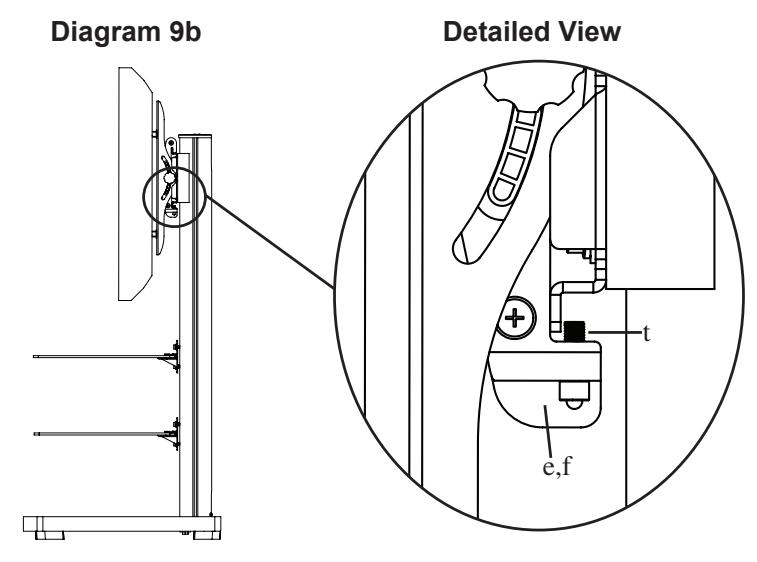

Insert the Safety Bolts (t) into the threaded holes in the bottom of the Monitor Brackets (e,f) and tighten them with the Allen Key (oo) so that they sit behind the bottom tab on the Wall Bracket (b) as shown in the Detailed View of Diagram 9b. Finally set the tension of the knobs on the Monitor Brackets and you are free to adjust your new flat panel TV.

Step 10: Shelf Bracket Cap

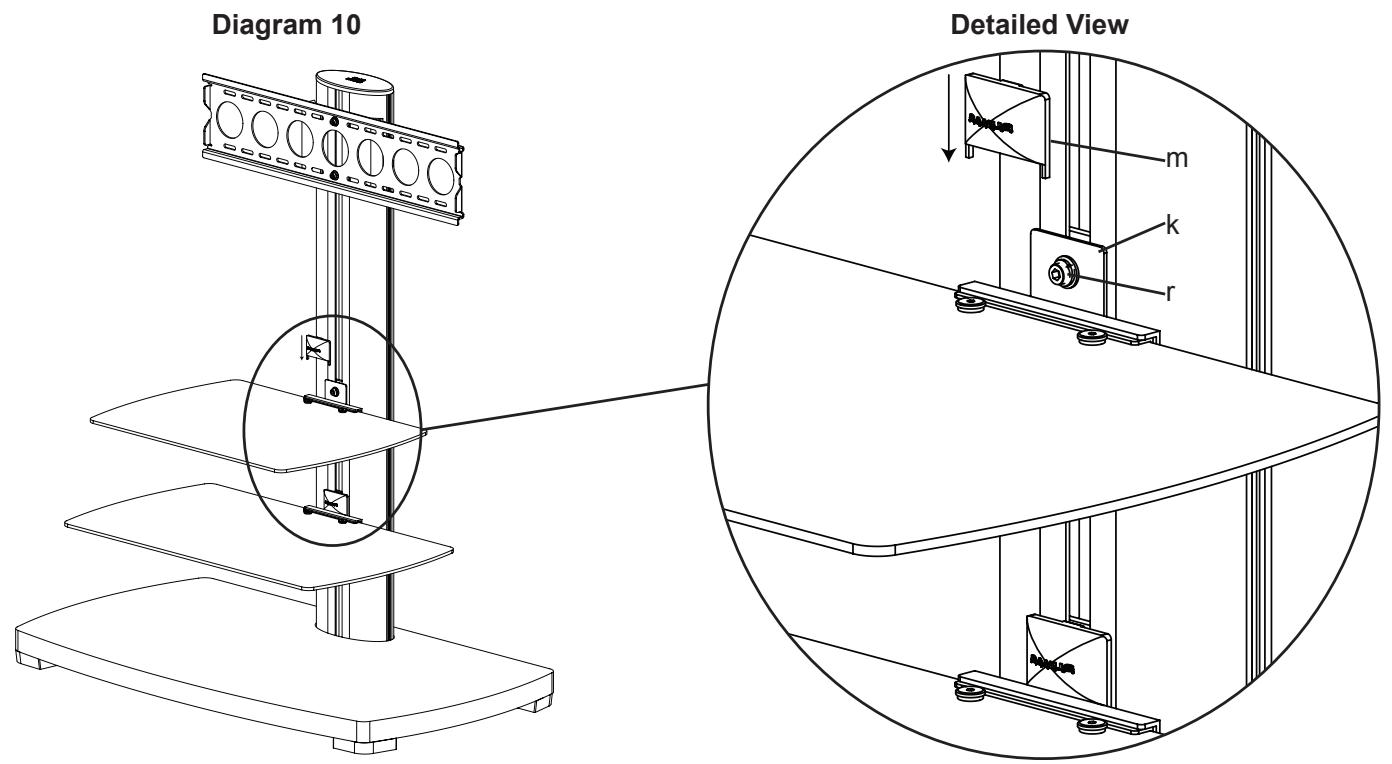

Place the Shelf Bracket Cap (m) over the Shelf Bracket (k) so it hides the M8 Allen Bolt (r) as shown in Diagram 10.
