USER MANUAL MCE6000 DIRT DEVIL

• Please read these instruction carefully before using your Easy Steamer™.
• Let us help you put your cleaner together or answer any questions, call: 1-800-321-1134 (USA) 1-800-661-6200 (Canada) website: www.dirtdevil.com

For quick reference, please record your vacuum information below.

Model #:
Mfg. Code:
(Mfg. code located on the lower backside of cleaner)

CONGRATULATIONS

You are now the proud owner of the Dirt Devil® Easy Steamer™ Deep Cleaner. We trust your new purchase will bring you many years of satisfaction.

Our company designed and developed this product with you in mind. The Dirt Devil® Easy Steamer™ Deep Cleaner is the lightest full size upright carpet cleaner available due to its Featherlite® design. The large 1 gallon solution reservoir makes cleaning easier with fewer fill-ups.

We are very proud of our products and hope that you are equally satisfied with their quality and performance.

Thank you for your support of Dirt Devil® products.

Visit our website at www.dirtdevil.com

TABLE OF CONTENTS

Safety Instructions.. Page 3

Feature Descriptions......Page 4

How To Assemble.. Page 5

Preparing Carpet.. Page 6

How To Operate.. Page 7

Remove and Replace Solution Reservoir...... Page 7

Carpet Cleaning.. Page 7

Emptying and Cleaning Dirty Water Tank.. Page 8

Belt or Brushroll Removal and Replacement...... Page 9

Troubleshooting Guide.. Page 10

LIMITED WARRANTY

To the consumer, Royal Appliance Mfg. Co. warrants this vacuum cleaner to be free of defects in material or workmanship commencing upon the date of the original purchase. Refer to your vacuum cleaner carton for the length of warranty and save your original sales receipt to validate start of warranty period.

If the vacuum cleaner should become defective within the warranty period, we will repair or replace any defective parts free of charge. The complete machine must be delivered prepaid to any ROYAL® Authorized Sales & Warranty Service Station. Please include complete description of the problem, day of purchase, copy of original sales receipt and your name, address and telephone number. If you are not near a Warranty Station, call the factory for assistance at USA: 1-800-321-1134 / CANADA: 1-800-661-6200. Use only genuine Royal® replacement parts.

The warranty does not include unusual wear, damage resulting from accident or unreasonable use of the vacuum cleaner. This warranty does not cover belts, brushes, bags, filters, bulbs or fan damage. This warranty does not cover unauthorized repairs. This warranty gives you specific legal rights and you may also have other rights. (Other rights may vary from state to state in the USA).

IMPORTANT SAFETY INSTRUCTIONS

When you use an appliance, basic precautions should be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
• ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS.
  DO NOT LEAVE CLEANER UNATTENDED WHEN PLugged IN.
• OCCAsIONALL RMOVE BRUSH AND CLEAN DEBRIS FROM END CAPS TO KEEP BRUSH ROTATING SMOOTHLY.
  WARNING - FULLY ASSEMBLE CLEANER BEFORE OPERATING.

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Connect to a properly grounded outlet only. See Grounding Instructions.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors. Electrical shock could occur.
• Do not immerse. To reduce the risk of electric shock - use indoors only, and use only on carpet moistened by cleaning process.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center for inspection. Call 1-800-321-1134 for the nearest service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dirty water reservoir in place.
• Turn off all controls before unplugging.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Keep the Easy Steamer™ cleaner on the floor.
• Do not use an extension cord with this Easy Steamer™.
• Store the Easy Steamer™ indoors. Put the Easy Steamer™ away after use to prevent tripping accidents.
• Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the cleaner plate.
• Use only Dirt Devil® Carpet & Rug Shampoo.

SAVE THESE INSTRUCTIONS

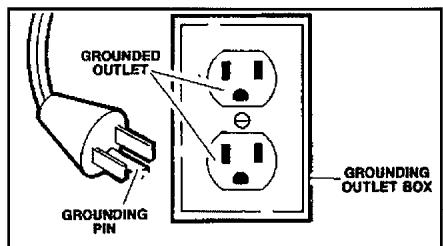

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance — if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-volt circuit and has a grounding attachment plug that looks like the plug illustrated in the sketch. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance.

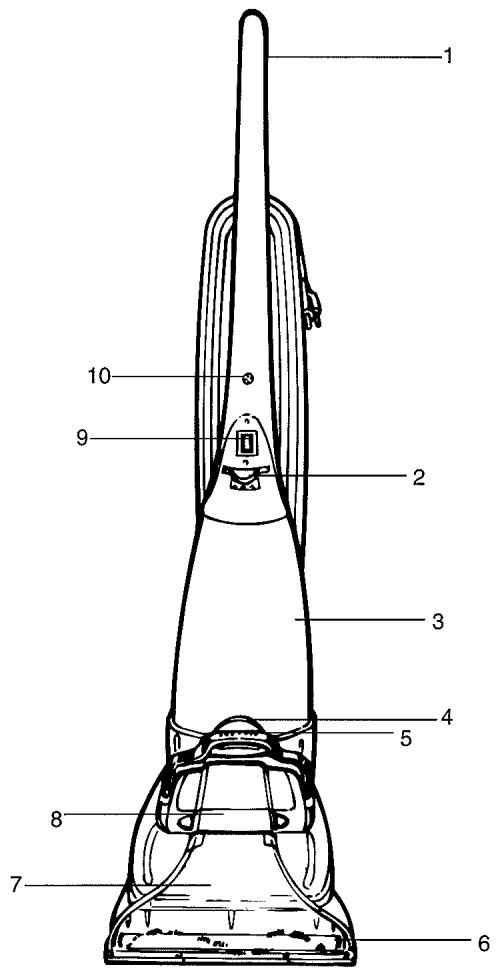

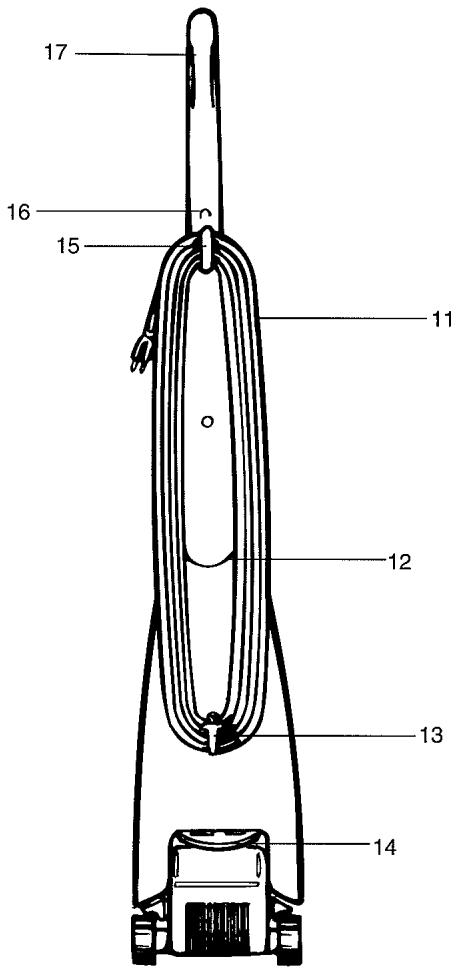

Front View

Front View

1. Non-Slip Grip Handle
2. Clean Solution Reservoir Latch
3. Clean Solution Reservoir
4. Dirty Water Tank Latch
5. Dirty Water Tank Handle
6. Brushroll
7. Dirty Water Tank
8. Dirty Water Tank Lid
9. Power On/Off Switch
10. Upper Handle Screw

Back View

Back View

1. Power Cord
2. Carrying Handle
3. Quick Cord Release
4. Handle Release Pedal
5. Cord Hook
6. Cord Clip
7. Solution Spray Trigger

Diagram 1

Diagram 2

HOW TO ASSEMBLE: TOOLS REQUIRED: PHILLIPS SCREWDRIVER

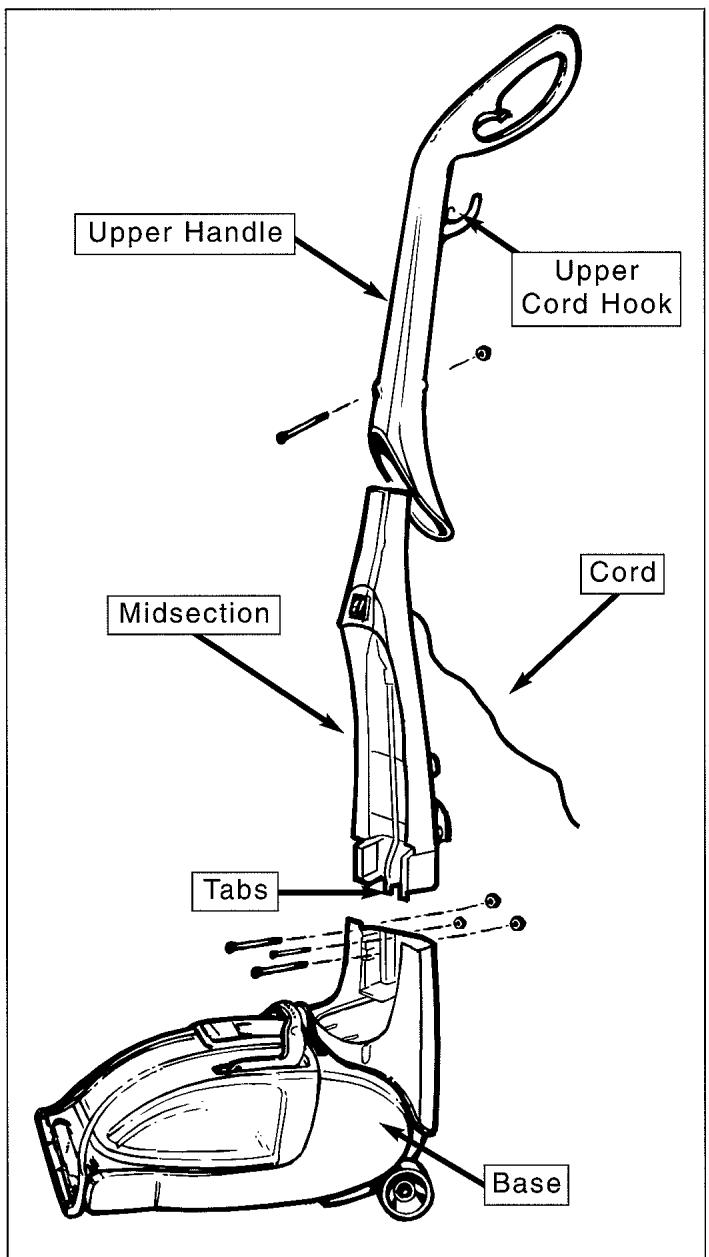

1. Stand base in upright position. Push midsection onto base by aligning tabs on the backside of midsection with the pockets on the backside of base (Diagram 1).
2. Place the 2 large nuts into recesses located on the back of the left and right sides of the base. Place the 1 small nut into recess located in the middle back of the base. While holding nut in place, insert screw through front of midsection and tighten.

NOTE: Make sure the power cord is out of the way to avoid pinching.

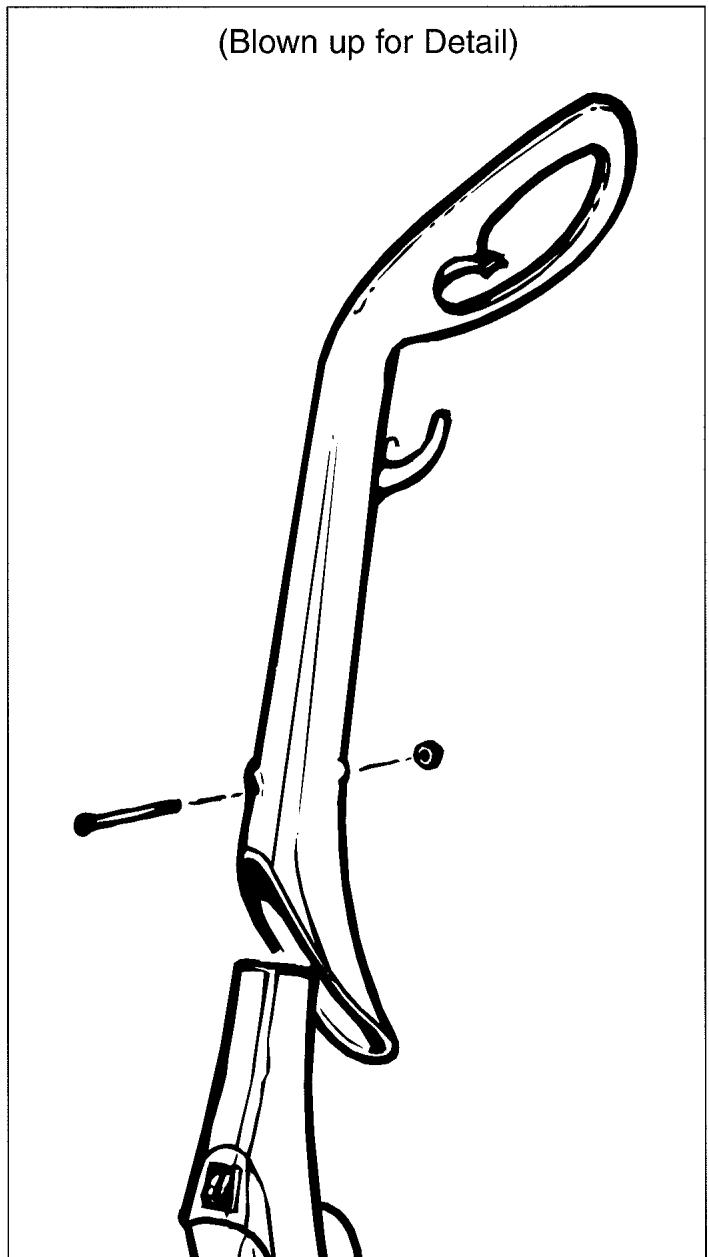

1. Slide upper handle down onto unit. Place nut into recess in back of upper handle. While holding nut in place, insert screw through front of upper handle and tighten (Diagram 2).
2. Route cord above upper cord hook and snap into cord clip on upper handle.

PREPARING THE CARPET:

IMPORTANT: DO NOT USE THE EASY STEAMER™ AS A DRY VACUUM.

1. Vacuum carpet thoroughly. Use a Dirt Devil® vacuum cleaner with a revolving brushroll for best results.
2. Remove as much furniture from the room as possible. If unable to remove the furniture, place plastic or foil under and around the legs until the carpet has dried completely.

CHECK FOR COLOR FASTNESS:

Before cleaning carpet, test for color fastness. Dampen a white cloth with solution. Test a small area in a closet. Gently rub the cloth over the area. Check each color for color bleeding. If the cloth remains clean, it should be safe to clean the carpet.

HELPFUL HINTS FOR CLEANING CARPET:

1. Do not oversaturate carpet with cleaning solution while using Easy Steamer™.
2. For heavily soiled areas, additional applications may be necessary.
3. Allow plenty of time to dry carpet thoroughly.
4. Wipe cleaning solution from woodwork and wood to prevent any damage.
5. Try not to walk on carpet until it is completely dry.
6. After carpet is thoroughly dry, vacuum the carpet using a cleaner with a revolving brushroll.
7. Before cleaning, determine where you will start and end, making sure not to walk over previously cleaned areas.

AFTER CLEANING:

• Allow carpet to dry completely. Try not to walk on the carpet until it is dry.
  If you need to walk on the carpet, place white towels on the areas you want to walk.
• If the carpet is not dry and the furniture must be placed back in the room, use plastic or foil under the furniture to prevent staining the carpet.
• Thoroughly clean the dirty water tank with hot tap water. See page 8.

WARNING:

DO NOT STORE EASY STEAMER™ IN GARAGE OR AREA WHERE UNIT COULD FREEZE.

HOW TO OPERATE

HOW TO OPERATE

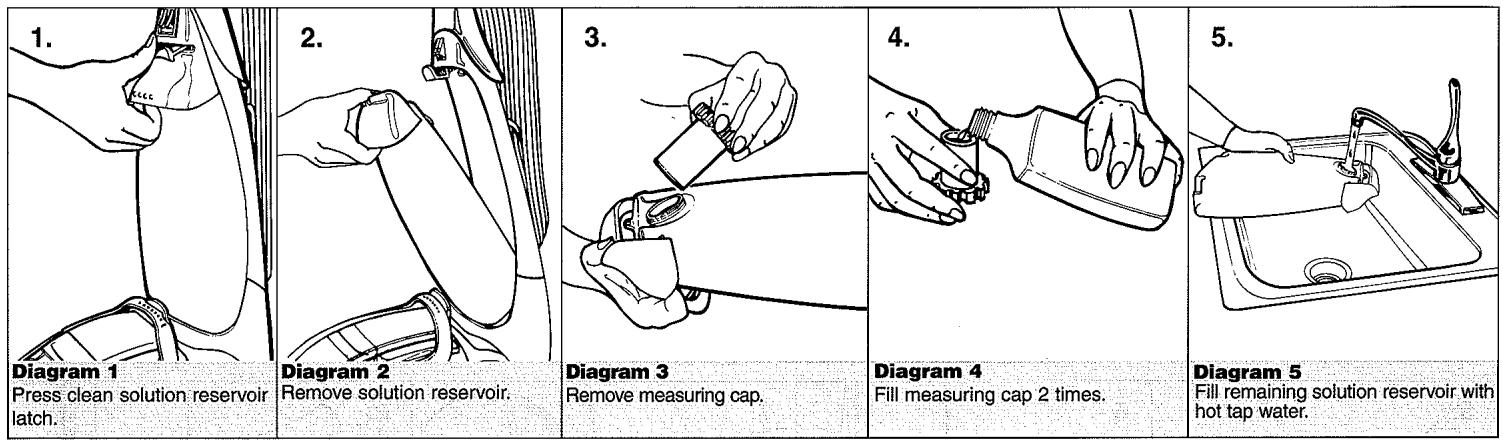

REMOVE AND REPLACE SOLUTION RESERVOIR:

1. Grasp solution reservoir under handle and press clean solution reservoir latch (Diagram 1).
2. Tilt solution reservoir away from cleaner and remove (Diagram 2).
3. Unscrew measuring cap from back side of solution reservoir (Diagram 3). Fill measuring cap with solution 2 times (approximately 4 oz.) (Diagram 4). Fill remaining solution reservoir with hot tap water (Diagram 5). Replace measuring cap.

NOTE: Use only Dirt Devil® Carpet & Rug Shampoo. Using other cleaning solutions may cause excessive foaming. Excessive foam will cause the float to shut off the vacuum prematurely. Using other cleaning solutions will void your warranty.
4. Place bottom of solution reservoir into cleaner and rotate top into position until the lever snaps into place (Diagram 6).

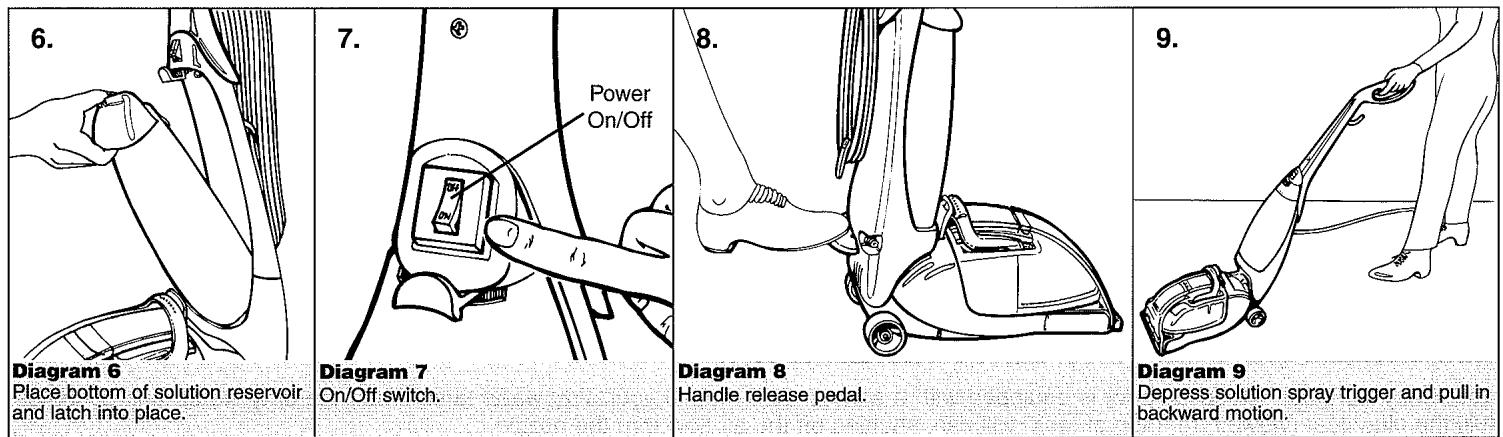

CARPET CLEANING

NOTE: Never leave unit unattended with power on. Turn OFF when emptying and filling reservoir. Do NOT oversaturate the carpet.
IMPORTANT: FOR BEST CLEANING RESULTS USE STEADY, MODERATE FORWARD AND BACKWARD MOTION.

1. Plug cord into electrical outlet.
2. Turn power on (Diagram 7).
3. Step on handle release pedal (Diagram 8), to put unit in cleaning position.
4. While depressing solution spray trigger, pull unit in backward motion (Diagram 9). Release trigger and push unit forward in same path to remove dirty water and solution from carpet. (For heavily soiled areas, repeat if necessary) (See page 8).
5. When dirty water reaches the max fill line on dirty water tank, empty dirty water.

IMPORTANT: IF THE SOUND OF THE MOTOR CHANGES TO A HIGH PITCH, THIS INDICATES THE DIRTY WATER TANK IS FULL AND MUST BE EMPTIED. A VISUAL INDICATOR IS WHEN THE BLUE FLOAT HAS RISEN TO THE TOP OF THE DIRTY WATER TANK.

EMPTYING AND CLEANING DIRTY WATER TANK

Diagram 1 Depress latch to remove dirty water tank.

Diagram 2 Pull dirty water tank out of base.

Diagram 3 Remove dirty water tank lid.

Diagram 4 Empty dirt water.

Diagram 5 Rinse off filter cage.

Diagram 6 Lift front base of cleaner off carpet.

Diagram 7 Place dirty water tank in base while holding base of cleaner off of carpet.

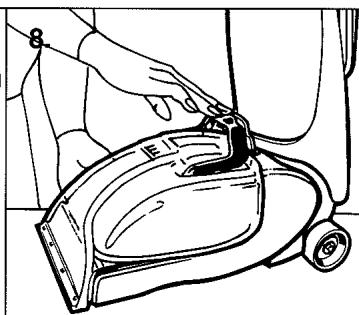

Diagram 8 Push handle down until it latches.

EMPTYING AND CLEANING DIRTY WATER TANK:

Your Easy Steamer™ Deep Cleaner is equipped with a shut off valve within your dirty water tank. When the dirty water tank becomes full, the blue float (viewed from top of tank) will rise, shutting off the air flow thru the nozzle.

NOTE: The float in your Easy Steamer™ is the blue piece in the dirty water tank lid, and will shut off the suction when the dirty water tank is full. For best results, use smooth, steady motion keeping the nozzle flat against the carpeting. Tipping the cleaner and breaking the seal of the nozzle and carpeting will cause the float to rise and shut off the suction. Once the float is activated, empty the dirty water tank. If the dirty water tank does not appear full, turn the power switch off and wait for the float to settle and reset. If the float repeatedly shuts off the suction, empty the dirty water tank. For best results, use only Dirt Devil® Carpet & Rug Shampoo. Other Solutions may generate excessive foam which will cause the float to rise prematurely and shut off the suction. Use two capfuls (4 ounces) of Dirt Devil® Carpet & Rug Shampoo per fill up of the clean water reservoir. A higher concentration of shampoo may cause excessive foaming.

NOTE: You will hear a noticeable change in the pitch of the cleaner. This indicates a need to empty the dirty water tank.

WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING.

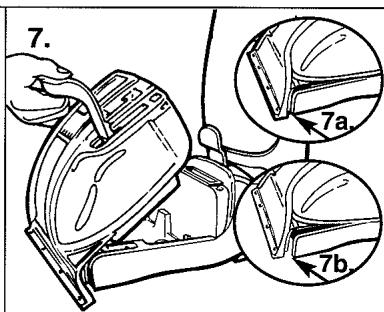

EMPTYING DIRTY WATER TANK:

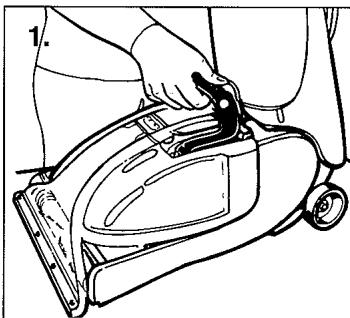

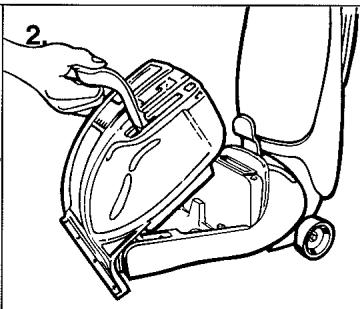

1. Grasp top of dirty water tank handle and push latch to release (Diagram 1).
2. Grasp handle and pull tank out of base (Diagram 2).

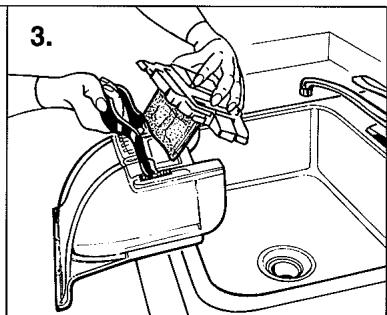

3. Remove dirty water tank lid (Diagram 3).

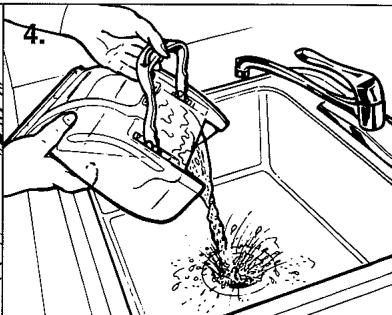

4. To empty dirty water tank, grasp handle with one hand and nozzle with the other and empty into sink (Diagram 4).
5. Replace dirty water tank lid.

CLEANING DIRTY WATER TANK:

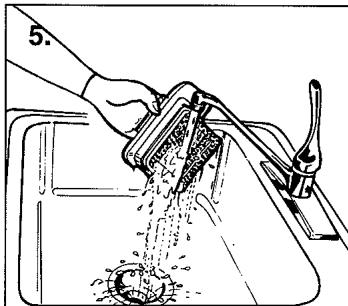

1. Rinse dirty water tank and filter with hot tap water (Diagram 5).
2. Wipe and let dry thoroughly before storing to prevent mildew from forming.

NOTE: Do not use any chemicals when cleaning.

PLACING DIRTY WATER TANK IN BASE OF CLEANER:

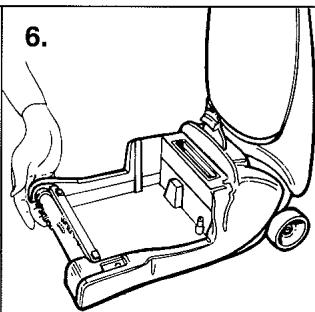

1. Lift front base of cleaner off carpeting with one hand (Diagram 6).
2. Grasp handle and hook front of dirty water tank into base of cleaner, making sure front of dirty water tank is resting on the base (Diagram 7). The Dirty Water Tank has 3 tabs on the underside which MUST latch into the underside of the base of the cleaner. It is very important to lift the base of the cleaner off of the carpeting and hook the nozzle to the base so that the nozzle is flush with the base of the cleaner (Diagram 7a). Failure to install the Dirty Water Tank correctly (Diagram 7b), will result in poor dirty water pickup. The Dirty Water Tank will need to be emptied once or twice per fill up of the Clean Water Tank.
3. While making sure the front of the dirty water tank is resting on the base, place the rear of the tank into the base of the cleaner. Push handle down until it latches (Diagram 8).

NOTE: Do not store cleaner with solution in reservoir or dirty water in dirty water tank. Mineral deposits and mildew can form which will affect the performance of your Easy Steamer".

BELT OR BRUSH REMOVAL & REPLACEMENT

BELT OR BRUSH REMOVAL & REPLACEMENT: TOOL REQUIRED: PHILLIPS SCREWDRIVER

WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG CLEANER BEFORE CHANGING BELT OR BRUSHROLL.

BELT STYLE: 7

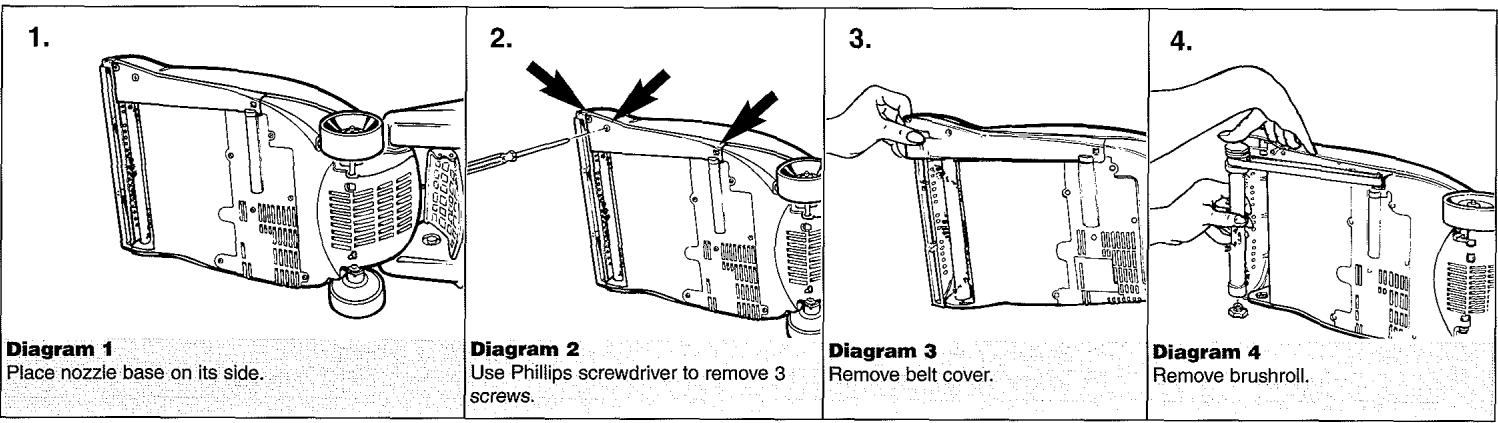

TO REMOVE BELT:

1. Flip cleaner on its side to expose nozzle base (Diagram 1).
2. To remove belt cover, use Phillips screwdriver to remove the two screws. Arrows (Diagram 2) show location of screws.
3. Grasp belt cover near brushroll and lift out (Diagram 3).
4. Grasp brushroll with one hand, using other hand to keep tension on belt when removing (Diagram 4).
5. Lift up when pulling out.

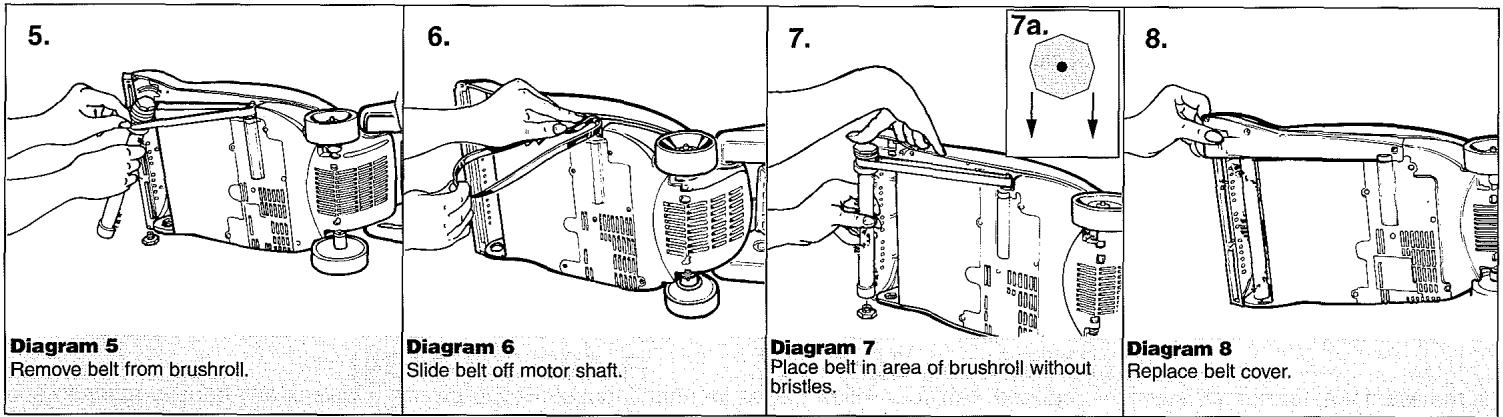

6. Remove belt (Diagram 5). Dispose of old belt.

NOTE: Endcaps are removable. Be sure to put back in place before reinserting brushroll.

TO REPLACE BELT:

1. Place belt on motor shaft (Diagram 6), then slip brushroll through belt. Place belt in area of brushroll without bristles.
2. With belt in place, pull and slide brushroll into nozzle (Diagram 7), making sure that the brushroll end caps are in the correct orientation (Diagram 7a).

IMPORTANT: ROTATE BRUSHROLL MANUALLY TO MAKE SURE BELT IS NOT TWISTED OR PINCHED.

1. Replace belt cover by inserting end furthest from brushroll first (Diagram 8). Then place front of belt cover into position. Secure by replacing the two screws and snapping into place.

TROUBLE SHOOTING GUIDE

WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING
Problem	Possible Reasons	Possible Solutions
Cleaner won't run	1. Power cord not firmly plugged into outlet. 2. Blown fuse or tripped breaker. 3. Needs service.	1. Plug power cord in firmly. 2. Check fuse or breaker. Replace fuse/reset breaker. 3. Take to service center or call 1-800-321-1134.
Cleaner won't pick-up or low suction	1. Dirty water tank door not installed. 2. Dirty water tank is not installed correctly. 3. Dirty water tank is full. 4. Brushroll worn. 5. Broken or worn belt. 6. Dirty water passage clogged.	1. Insert dirty water tank door. 2. Review Dirty Water Tank Removal and Replacement-Pg. 8. 3. Empty Dirty Water Tank-Pg. 8. 4. Replace brushroll-Pg. 9. 5. Replace belt-Pg. 9. 6. Clean Dirty Water Tank-Pg. 8.
Water escaping from cleaner	1. Dirty water tank is full. 2. Dirty water tank is not installed correctly. 3. Solution reservoir not installed properly.	1. Empty Dirty Water Tank-Pg. 8. 2. Review Dirty Water Tank Removal and Replacement-Pg. 8. 3. Review Solution Reservoir Installation-Pg. 7.
Cleaner won't dispense solution	1. Solution reservoir not installed properly. 2. Needs service.	1. Review Solution Reservoir Installation-Pg. 7. 2. Take to service center or call 1-800-321-1134.

ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZATION SERVICE REPRESENTATIVE CUSTOMER SERVICE (1-800-321-1134)

In the event that further assistance is required, see your Yellow Pages for an authorized Royal Dealer. Costs of any transportation to and from any place of repair are to be paid by the owner. The service parts used in this unit are easily replaced and readily available from an authorized Royal Dealer or retailer. Always identify your cleaner by the model number and manufacturing code when requesting information or ordering replacement parts. (The model number appears on the back of the cleaner.)

PLEASE PRINT CLEARLY

Name

Address

City

State Zip Code

Daytime Phone No.

USA Residents only: Make check or money order payable to:

Royal Appliance Mfg. Co.

7005 Cochran Road

Glenwillow, OH 44139

Attn. Quick Parts

METHOD OF PAYMENT

Check or Money Order MasterCard VISA Discover

Card No. Expiration Date (required):

Signature Telephone Number

Call 1-800-321-1134 with any questions about ordering parts.

PART NUMBER	DESCRIPTION	QTY.	COST EACH	TOTAL
1-700912-044	64 oz. Solution		15.00
3-400615-001	Style #7 Belt		2.50
1-700320-600	Brush Roll Assembly		16.00
Subtotal AL, AZ, CA, CO, CT, FL, GA, ID, IL, IN, KS, MA, MD, MI, MN, MO, NE, NV, NJ, NY, NC, OH, OK, PA, TN, TX, WA, WI Residents Add Local Sales Tax Shipping & Handling Add 3.00** (**)AK and HI residents Add5.00) TOTAL

Dirt Devil

MANUAL DEL PROPIETARIO

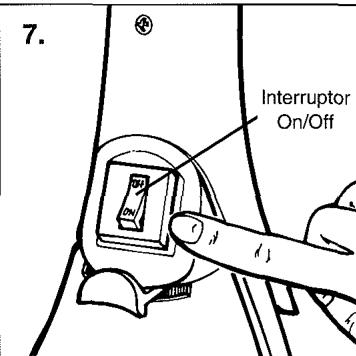

Diagrama 7 Interruptor On/Off.

Royal Appliance Mfg. Co.

7005 Cochran Road

Glenwillow, OH 44139

Attn. Quick Parts

METODO DE PAGO

NUMERO DE PARTE	DESCRIPCION	CANT.	COSTO C/U	TOTAL
1-700912-044	Solutión 64 Onz.		15.00
3-400615-001	Banda Estilo No. 7		2.50
1-700320-600	Ensamblado Cepillo Rotatorio		16.00
table a:	SubtotalResidentes de AL, AZ, CA, CO, CT, FL,GA, ID, IL, IN, KS, MA, MD, MI, MN, MO,NE, NV, NJ, NY, NC, OH, OK, PA, TN, TX,WA, WIAñadan el Impuesto Local de VentaPor Envío y Manejo Añadan 3.00**(**Residentes de AK y HI Añadan5.00)TOTAL

Cheque o Giro MasterCard VISA Discover

Royal Appliance Mfg. Co.

7005 Cochran Road

Glenwillow, OH 44139

Attn. Quick Parts

MÉTHODE DE PAIEMENT
