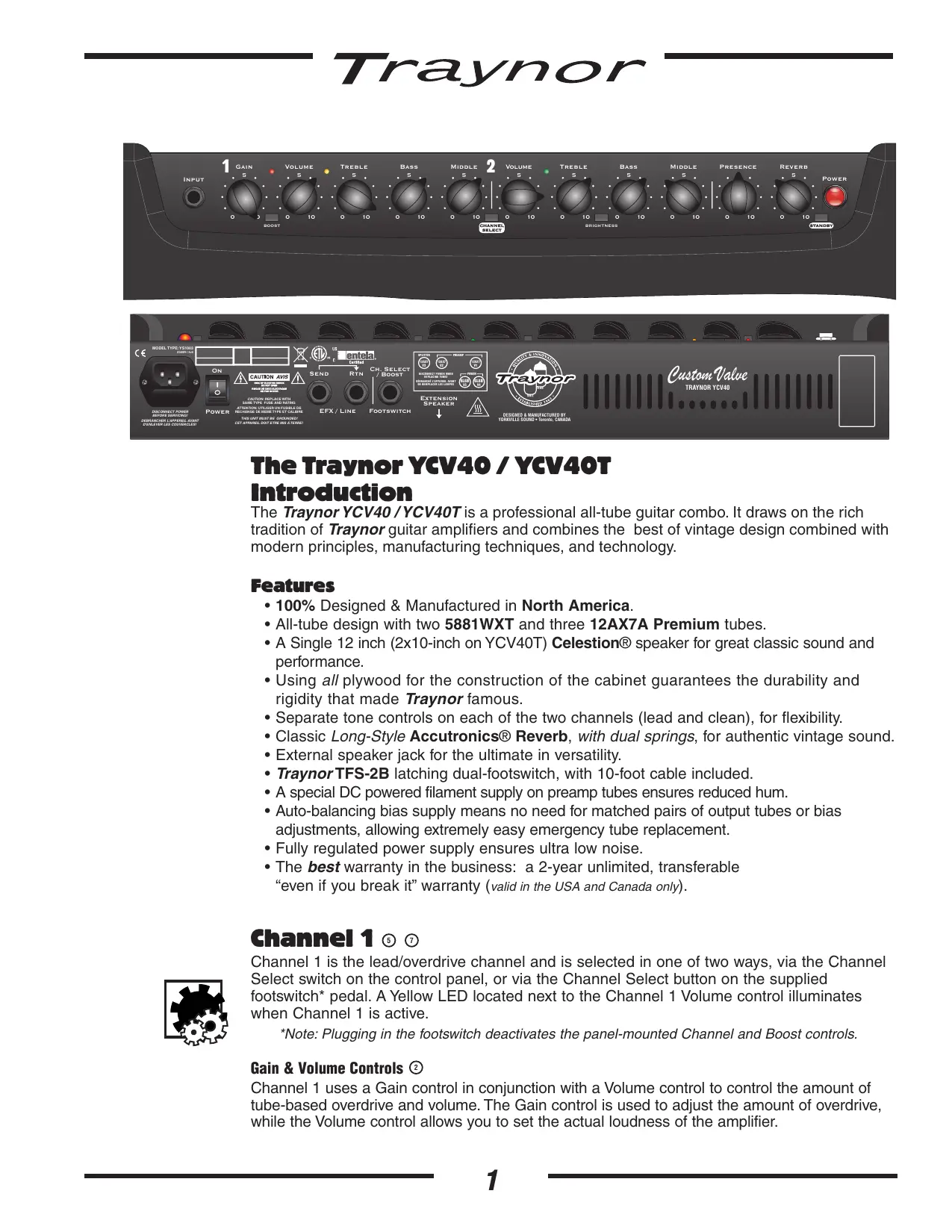

The Traynor YCV40 / YCV40T is a professional all-tube guitar combo. It draws on the rich tradition of Traynor guitar amplifiers and combines the best of vintage design combined with modern principles, manufacturing techniques, and technology.

Features

• 100% Designed & Manufactured in North America.
• All-tube design with two 5881WXT and three 12AX7A Premium tubes.
• A Single 12 inch (2x10-inch on YCV40T) Celestion® speaker for great classic sound and performance.
• Using all plywood for the construction of the cabinet guarantees the durability and rigidity that made Traynor famous.
• Separate tone controls on each of the two channels (lead and clean), for flexibility.
• Classic Long-Style Accutronics® Reverb, with dual springs, for authentic vintage sound.
• External speaker jack for the ultimate in versatility.
• Traynor TFS-2B latching dual-footswitch, with 10-foot cable included.
• A special DC powered filament supply on preamp tubes ensures reduced hum.
• Auto-balancing bias supply means no need for matched pairs of output tubes or bias adjustments, allowing extremely easy emergency tube replacement.
• Fully regulated power supply ensures ultra low noise.
• The best warranty in the business: a 2-year unlimited, transferable "even if you break it" warranty (valid in the USA and Canada only).

Channel 1 ⑤ ⑦

Channel 1 is the lead/overdrive channel and is selected in one of two ways, via the Channel Select switch on the control panel, or via the Channel Select button on the supplied footswitch* pedal. A Yellow LED located next to the Channel 1 Volume control illuminates when Channel 1 is active.

*Note: Plugging in the footswitch deactivates the panel-mounted Channel and Boost controls.

Gain & Volume Controls ②

Channel 1 uses a Gain control in conjunction with a Volume control to control the amount of tube-based overdrive and volume. The Gain control is used to adjust the amount of overdrive, while the Volume control allows you to set the actual loudness of the amplifier.

Traynor

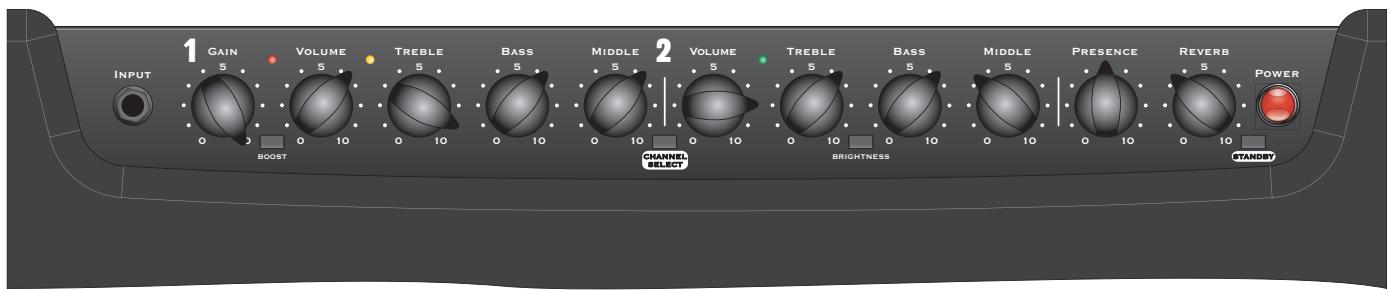

Chassis Layout

Top

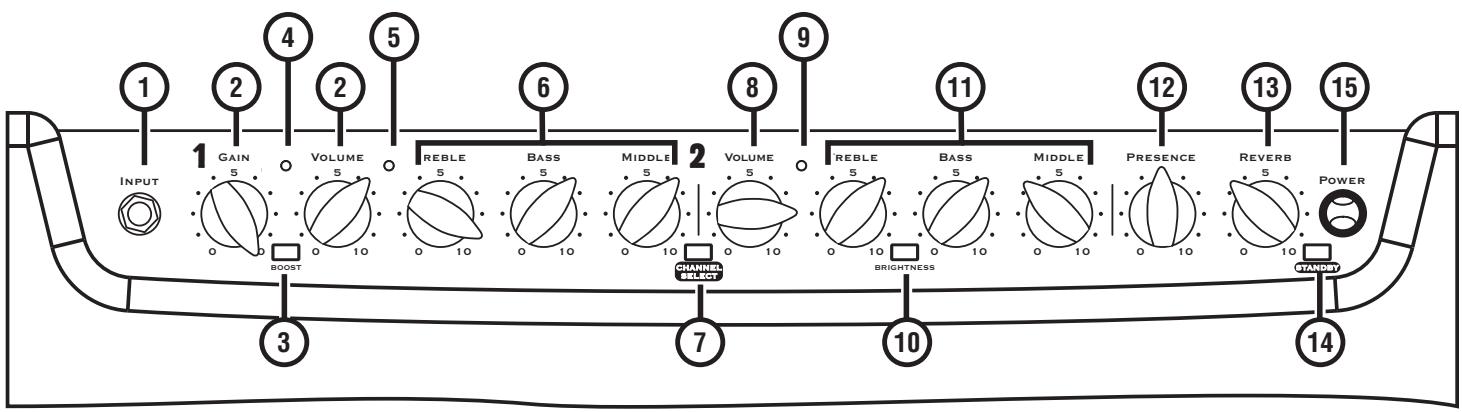

① Input jack - 1/4 inch phone jack.
② Channel 1 Gain & Volume Controls.
③ Channel 1 Boost Switch - Activates the boost circuitry.
④ Boost LED - Illuminated Red when the boost is active.
⑤ Channel 1 Indicator LED - Illuminates Yellow when active.
⑥ Channel 1 Tone Controls - Treble, Bass, and Middle.
⑦ Channel Select Switch - Channel 1 is optimized for lead, Channel 2 for clean sound
Channel 2 Volume Control.
Channel 2 Indicator LED - Illuminates Green when active.
Channel 2 Brightness Switch - Add sparkle to your clean sound.
① Channel 2 Tone Controls - Treble, Bass, and Middle.
Presence Control - Adding that cutting edge in your lead or clean sound.
13 Reverb Control – Adjusts the Accutronics® reverb level for both channels.
① Standby Switch - Activates standby mode to keep the tubes warm while the amp is not in use.
^15 Power Indicator Jewel - Illuminates Red when in Active mode, and Yellow when in Standby mode.

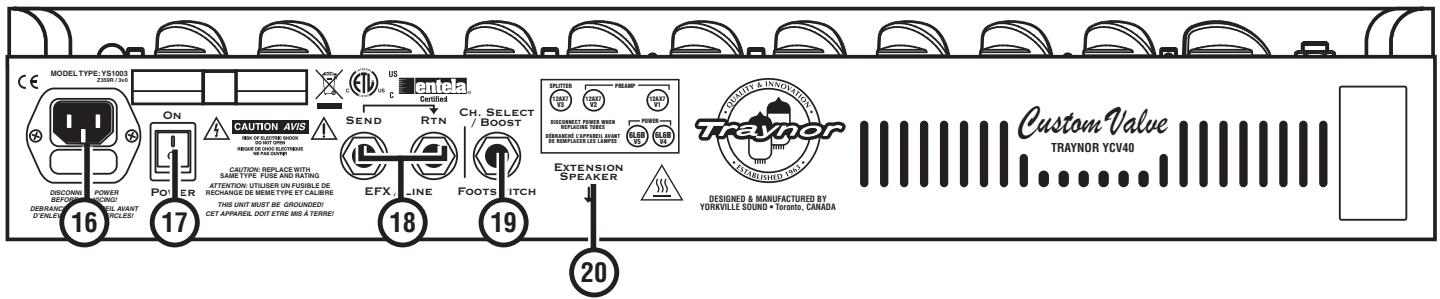

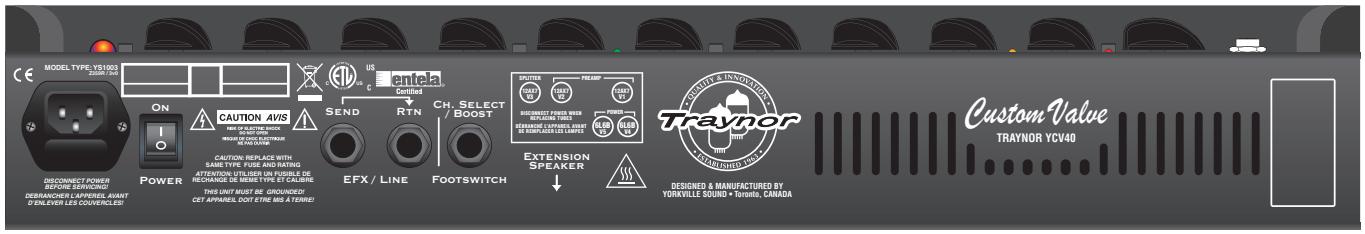

Rear

Fuse and Power Cord
⑦ Power Switch.
Send / Rtn (Efx/Line) jacks - 1/4 inch phone Input and Output jacks.
Channel Select Footswitch jack - uses a 1/4 inch TRS standard latching dual-footswitch.
Extension Speaker jack -1/4 inch phone jack.

Boost Switch ③ ④

A boost circuit is included to help you achieve 'a-bit-more' overdrive for leads. The boost can be selected via the front panel switch or through the supplied footswitch pedal. A Red LED illuminates to indicate when the boost is active.

Channel 1 Tone Controls ⑥

The Treble, Bass, and Middle tone controls are used to help you shape your sound. They are post-gain and pre-volume. These are active only when Channel 1 is selected.

Channel 2 ⑥ ⑨ ⑩

Channel 2 is the clean channel and thus has no Gain control. In other respects the layout is the same as that of Channel 1, with independent Volume and Treble, Bass, and Middle tone controls. When channel 2 is active the green LED located next to the Channel 2 Volume control is illuminated.

Brightness Switch 10

Channel 2 includes a Brightness switch that activates a circuit to provide additional treble boost to help make your tone sparkle.

Master Controls

Presence Control

The rotary Presence control is part of the Master Control and adjusts the amount of edge or presence (upper midrange) on your overall sound.

Reverb Control 13

The Master Control section also includes a rotary Reverb control that adjusts the overall reverb level for both channels. The YCV40/YCV40T is equipped with a long-style Accutronics® dual-spring reverb for authentic vintage reverb.

Standby Switch & Indicator 14 15

This switch controls the high voltage power being supplied to the tubes. This mode effectively keeps the tubes warmed up when the amp is not in use. The large, jewel indicator on the front panel glows Red when the amp is fully powered-up and changes to Yellow when the high voltage circuit has been turned off. Putting the amp into Standby mode (i.e. during set breaks) shuts off the amplifier output stage and effectively increases tube life by reducing wear on the tubes.

EFX / LINE Send & Return Jacks 18

The Send and Rtn jacks of the YCV40/YCV40T allow convenient use of an external effect unit. Simply connect a 1/4 inch phone cable to the Send jack of the YCV40/YCV40T and then connect this cable to the Input of your effects unit. To send the processed signal back to the YCV40, connect the output of the effects unit to the Rtn jack of the YCV40/YCV40T.

The 1/4 inch TRS Send jack can be used as part of an effects loop in conjunction with the Rtn jack. It can also be used as a direct line out (preamp-out). The -10dBu output is ideal for most guitar effects pedals and professional signal processors. You can also use this output to slave the YCV40/YCV40T with another guitar amplifier by plugging into the Rtn jack of the slave amplifier.

The 1/4 inch TRS Rtn jack can be used as your return jack for your effects loop. It accepts an input signal that is passed to the power amplifier, so it can be used as a power amp in. The Master Control section regulates the signal, so you can add Reverb as well as Presence.

Footswitch Jack 19

Connecting a footswitch to the 1/4 inch TRS Footswitch jack deactivates the control panel mounted Channel Select and Boost switches. These functions are then activated exclusively by the pedal. The included footswitch features dual-latching switches, each with a separate LED indicator.

The switching is accomplished with internal relays so there is no audible noise flowing through the footswitch cable. Footswitch-induced noise is never an issue. The YCV40/YCV40T is compatible with most aftermarket latching dual-footswitch pedals.

External Speaker Jack/s 29

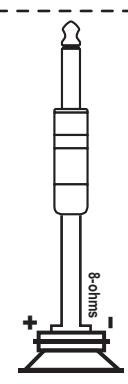

These under-the-chassis mounted 1/4 inch jacks allow convenient connection of an 8-ohm external speaker cabinet. If you disconnect the internal 12 inch Celestion® speaker (2x10 inch on YCV40T), you can connect up to two 8-ohm external cabinets.

Replacement Tube Selection & Bias

This amplifier features Yorkville's auto-balancing / auto-matching tube biasing technology. As a result, when the time comes to replace the tubes in your Yorkville amplifier, there is no need to pay a premium for a matched set – nor does the bias need to be adjusted when you use a different brand. We make no claims as to which brands of tubes might sound best, but with auto-balancing / auto-matching, you are free to experiment without any need for concern that the amplifier or tubes will be distressed. Please note that auto-balancing / auto matching cannot fully compensate for different types of tubes - 6L6/5881s versus 6CA7/ EL34s, for example.

Please note that although auto-balancing / auto matching allows you the freedom to select unmatched tubes from a variety of manufacturers, it may not be able to fully compensate for the use of a non-equivalent model or part number of tube - 6L6/5881s versus 6CA7/EL34s, for example. Use of non-equivalent tubes may result in unpredictable performance.

Specifications

Electronics

Vacuum Tubes

2x5881WXT (alt 6L6B)

3 x 12AX7 (alt 7025A)

DC powered filament supply on preamp tubes

Bias Supply

Autobalancing

Power Output

40 Watts RMS

Speaker

YCV40: 12 inch Celestion® speaker

YCV40T: 2x10 inch Celestion® speakers

Channels

one lead & one clean channel

at Impedance:

1 Meg ohm

Tone Controls

Separate tone controls on both channels

(Treble, Bass, & Middle)

Presence and Reverb on Master Section

Reverb

Accutronics® long-reverb with dual-springs

Power Supply

Fully regulated

Connectors

Input Jack

1/4 inch phone jack

Send Jack

Balanced 1/4 inch TRS

Return Jack

(Tip-positive / Ring-negative / Sleeve-ground)

Speaker Jacks

Unbalanced 1/4 inch phone jack, 10kohms

Footswitch Jack

Two 1/4 inch phone jacks

1/4 inch TRS, accepts a standard,

latching dual-footswitch & connecting cable

Cabinet

Cabinet Construction

all plywood

Covering

Leatherette

Grille

Perforated 18 gauge painted steel

with silver cloth covering

Dimensions (WxHxD)

23.0 inch x 18.5 inch x 9.0 inch

58.4 x 46.9 x 22.8 cm

Weight

45 lbs (20.4 kg)

Power Requirements

120V

60Hz 1.0A

230V

50Hz 0,5A

Warranty

Two-year, unlimited (even if you break it!)

transferable warranty*

(valid in USA and Canada only)

Footswitch Included

Two button (Channel Select / Boost)

with separate LED indicators

Traynor YCV40 / YCV40T

Introduction

Grille acier point, jauge 18, perforé recouvert

YCV40 Speaker Configuration
12-inch Speaker
YS#7080

YCV40 Speaker Configuration

Traynor

Two Year Warranty

Unlimited Warranty

Your Traynor two year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge.

Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes, bulbs or batteries beyond 90 days of original purchase. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.
