USER MANUAL 8162 BREIL

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

① Hour hand
② Minute hand
③ Chronograph hand (1/5e second)
④ Calendar
⑤ Day indicator
(6) Continuous second hand
⑦ 30 minutes totalizer

Button A
Button 8
Crown

Crown operation

(0) Normal position : free
(1) First click : date setting
(2) Second click : time setting

Button operation

A Start/Stop the chronograph
⑧ Chronograph reset button

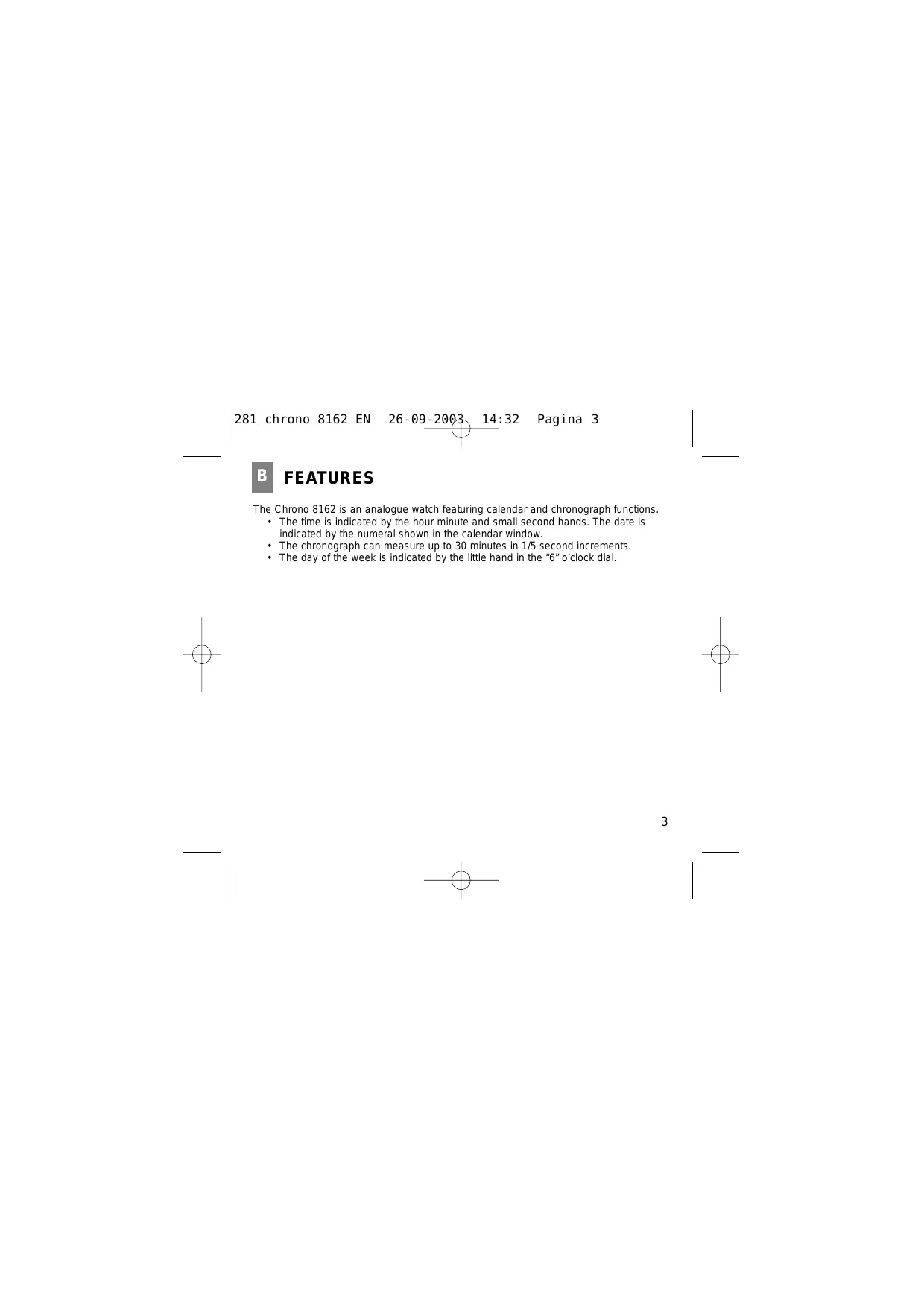

FEATURES

The Chrono 8162 is an analogue watch featuring calendar and chronograph functions.

• The time is indicated by the hour minute and small second hands. The date is indicated by the numeral shown in the calendar window.
• The chronograph can measure up to 30 minutes in 1/5 second increments.
  The day of the week is indicated by the little hand in the "6" o'clock dial.

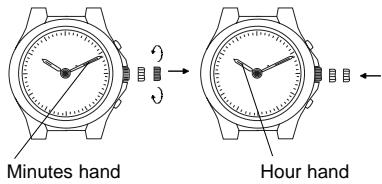

TIME SETTING

1. Pull the crown all the way out to the second click (2). Turn the crown to set the hour and minute hands.
2. Push the crown back in to the normal position when the time signal sounds and the small second hand will begin working.

1. Pull the crown out to the first click (1).

2. Turn the crown clockwise to set the date.

3. Do not set the date between 9.00 P.M. and 1.00 A.M. as the date may not change properly.

4. Once the date has been set, push the crown back in to the normal position.

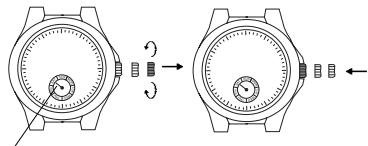

How to correct the day

1. Pull the crown all the way out to the second click (2).
2. Rotate anti-clockwise the crown and therefore the second and minute hands until setting the day.

Day indicator

E

CHRONOGRAPH

• The chronograph can measure up to 30 minutes in 1/5 second increments.

Chronograph operation

1) Press button to start the chronograph.
2) Press button ⑧ to stop the chronograph measurement and reset the hands.

Chronograph minute hand (30 minutes totalizer)

Chronograph second hand

Setting the chronograph hands

If the chronograph hands do not return to "0" position when the chronograph is reset or the battery is replaced, perform the procedure below to reset them to "0".

Chronograph minute hand

Chronograph second hand

1) Press A and B simultaneously.
2) Press button to reset the chronograph second hand to "0".
3) Press ⑧ to reset the chronograph minute hand to "0".
4) Press again A and B simultaneously to confirm this procedure.

N.B.: to reset the chronograph quicker don't release the buttons while pressing them.

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.		Swimming, etc.
A	-	-	NO		NO
B	WATER RESISTANT 30M (3ATM)	WATER RESISTANT	YES		NO
C	WATER RESISTANT 50M (5ATM)	WATER RESISTANT	YES		YES
D	WATER RESISTANT 100M (10ATM)	WATER RESISTANT	YES		YES
E	WATER RESISTANT 200M (20ATM) or more	WATER RESISTANT	YES		YES
"WATER RESISTANT" may sometimes be abbreviated to "WATER RESIST"

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.

in water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	No water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving.
YES	YES	Suitable for scuba diving.
* Always keep the crown in its normal position. * Full tighten crown screw lock.

• Contact with water may cause a deterioration in the quality of some leather straps.
• As internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up.

This phenomenon is purely temporary and should not create any problems.

However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances. Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergent, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass.

Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Cleaning the watch strap:

Metal bands: use a toothbrush and soapy warm to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an Authorised Assistance Centre once every two years.

Keep batteries out of the reach of children

If a battery is accidentally swallowed, consult a doctor immediately.

TECHNICAL DATA

Movement:

Type:

Loss/gain (monthly rate):

Crystal oscillator frequency:

Useable temperature range:

Display modes:

Calendar:

Chronograph:

Battery:

Battery life:

Cal. 8162/220

Analogue quartz watch, with multi-display

Less than 20 seconds at normal

temperature range (5^ - 35^)

32.768 Hz (Hertz, cycles/sec)

-10^ to +60^

Analogue

Date display

Measures in 1/5 second increments up to

30 minutes

One SR 927 W battery

Approx. 2 years

• In order to improve the product, the technical specifications may be modified without prior notice.
