4T13 - Wristwatch BREIL - Free user manual and instructions

Product type	Quartz wristwatch
Brand	BREIL
Model	4T13
Movement	Quartz (battery)
Power source	Button cell battery (type not specified)
Display	Hands (hours, minutes, seconds on some models)
Functions	Time, minute, second, date (on some models)
Time setting	By crown in position 1 or 2
Date setting	By crown in position 1 (depending on model)
Water resistance	Water resistant (level varies by model, indicated on case back)
Shock resistance	Daily use and sports without direct impact
Magnetic resistance	Up to 60 Gauss
Case material	Not specified (likely stainless steel or alloy)
Crystal material	Not specified (mineral or sapphire depending on model)
Strap	Metal, plastic, or rubber (depending on model)
Maintenance	Clean with soft cloth; metal strap: toothbrush and soapy water; plastic/rubber strap: water; plastic strap: alcohol
Precautions	Avoid pulling out crown in wet environment; avoid solvents, strong magnetic fields, extreme temperatures
Periodic inspection	Recommended every 1 to 2 years by an authorized service center
Battery safety	Keep batteries out of reach of children
Repairability	Spare parts available from manufacturer or authorized service center

Frequently Asked Questions - 4T13 BREIL

How to set the time on my BREIL 4T13 watch?

Pull the crown to position (1) (or (2) if the watch has a date function). Turn the crown to set the hands to the desired time. Push the crown back to position (0) to start the watch.

How to set the date on some models?

Pull the crown to position (1). Turn it to set the date. Push the crown back to position (0).

Is my watch water resistant?

Water resistance depends on the model. Check the indication on the case back: 'WATER RESISTANT', 'WATER RESISTANT 50M', etc. Never pull out the crown underwater.

What to do if the watch fogs up?

If the fogging is temporary, no problem. If it persists, contact an authorized service center.

How to clean the metal strap?

Wash dirty areas with a toothbrush dipped in warm soapy water. Rinse and dry.

Can I wear my watch while swimming?

It depends on the water resistance level. 'WATER RESISTANT 50M' (5 bar) watches are suitable for swimming, but not for diving. Check the indication.

Is the watch anti-magnetic?

Yes, up to 60 Gauss. Strong magnetic fields (such as those from household appliances) do not affect the watch, but intense exposure may temporarily alter accuracy.

What battery does the watch use?

The watch uses a button cell battery. The exact type is not specified in the manual; consult an authorized repairer for replacement.

Can I replace the battery myself?

It is recommended to have the battery replaced by an authorized service center to avoid damaging the water resistance.

How to maintain my watch for long life?

Regularly clean the case and strap, avoid strong impacts, chemicals, and extreme temperatures. Have the watch inspected every 1 to 2 years by a professional.

USER MANUAL 4T13 BREIL

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

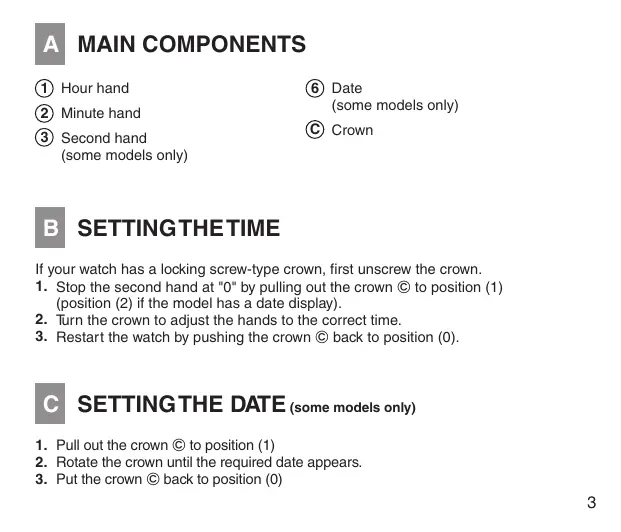

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

① Hour hand
② Minute hand
③ Second hand (some models only)

(6) Date (some models only)
Crown

B SETTINGTHETIME

If your watch has a locking screw-type crown, first unscrew the crown.

1. Stop the second hand at "0" by pulling out the crown © to position (1) (position (2) if the model has a date display).
2. Turn the crown to adjust the hands to the correct time.
3. Restart the watch by pushing the crown back to position (0).

C SETTING THE DATE (some models only)

1. Pull out the crown © to position (1)
2. Rotate the crown until the required date appears.
3. Put the crown back to position (0)

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use in
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	-	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5bar)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10bar)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20bar) or more	WATER RESISTANT	YES	YES
The words “WATER RESISTANT” may sometimes be abbreviated to “WATER RESIST”.

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.
• Contact with water may cause a deterioration in the quality of some leather straps.

Water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	Not water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving
YES	YES	Suitable for scuba diving
*Always keep the crown in its normal position. *Fully tighten crown screw lock.

• As the internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up. This phenomenon is purely temporary and should not create any problems. However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports such as golf and baseball. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances.

Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergents, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass.

Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Keeping the watch clean also keeps shirt cuffs clean.

Cleaning the watch strap.

Metal bands: use a toothbrush and soapy warm water to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an authorised assistance centre once every 12 months or two years.

If your watch is fitted with a quartz movement

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Keep batteries out of the reach of children

In order to improve the product, the technical specifications may be modified without prior notice.

INDEX

A PIECES PRINCIPALES 9
B COMMENT REGLER L'HEURE 9
C COMMENT REGLER LA DATE 9
PRECAUTIONS D'UTILISATION ET INFORMATIONS UTILES 10

A PIECES PRINCIPALES
