Product type	Quartz analog wristwatch
Brand	BREIL
Model	5Y20
Movement	Quartz
Power	Battery
Display	Analog (hour, minute, second hands)
Date	Yes (on some models)
Water resistance	Up to 200 m (20 bar) depending on model
Shock resistance	Daily use and non-contact sports
Magnetic resistance	Up to 60 Gauss
Glass material	Mineral
Case material	Stainless steel
Strap	Metal, plastic, rubber, or leather depending on model
Case dimensions	Approximately 40 mm diameter
Weight	Approximately 80 g
Metal strap care	Wash with warm soapy water and a toothbrush
Plastic/rubber strap care	Wash with water, avoid solvents
Leather strap care	Wipe with a soft dry cloth, inside with alcohol
Periodic inspection	Every 1 to 2 years by an authorized center
Warranty	Yes, present the certificate

Frequently Asked Questions - 5Y20 BREIL

How to set the time on my BREIL 5Y20 watch?

Pull the crown to position 1 (if your watch has a locking screw, unscrew it first). Turn the crown to set the hands to the desired time. Then push the crown back to position 0. To stop the second hand, pull the crown to position 1 exactly at 0 seconds.

How to set the date on my BREIL 5Y20 watch?

Pull the crown to position 1. Turn it to set the date. Then push the crown back to position 0. Caution: do not set the date between 8 PM and 2 AM to avoid damaging the mechanism.

What do the water resistance ratings on my BREIL watch mean?

Water resistance is indicated by 'WATER RESISTANT' followed by a depth in meters or bars. The higher the value, the more water-resistant the watch. For example, 50 m (5 bar) allows swimming, 200 m (20 bar) allows diving. See the instruction manual for more details.

Can I swim with my BREIL 5Y20 watch?

It depends on the model. Check the water resistance indication on the dial or case. If it says 'WATER RESISTANT 50M' or higher, you can swim. If it simply says 'WATER RESISTANT' without a number, it is splash-resistant but not suitable for swimming.

What to do if fog appears under the glass of my watch?

Temporary fog after a temperature change is normal and will disappear on its own. If it persists, it indicates moisture ingress. Consult your retailer or an authorized service center promptly.

How to clean the leather strap of my BREIL watch?

Gently wipe the outer side with a soft dry cloth. For the inner side (skin side), use a cloth slightly dampened with alcohol. Avoid wetting the leather excessively.

Can my BREIL watch be exposed to magnetic fields?

It is anti-magnetic up to 60 Gauss, protecting it from common household appliances. In case of exposure to a very strong field (like a powerful speaker), operation may be temporarily affected.

How long does the battery of the BREIL 5Y20 watch last?

The battery usually lasts 2 to 3 years. When the watch runs slow or stops, it's time to replace it. Have it replaced by an authorized center to ensure water resistance.

Can I wear my BREIL watch while playing golf or baseball?

Yes, it withstands shocks and vibrations from daily use and non-contact sports. However, avoid very violent shocks (falls, impacts) that could damage it.

How to maintain my watch to ensure its longevity?

Keep it clean: wipe the glass with a soft cloth, clean the case and strap according to the material. Avoid chemicals (solvents, mercury). Have the watch inspected every 1 to 2 years by an authorized center.

USER MANUAL 5Y20 BREIL

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

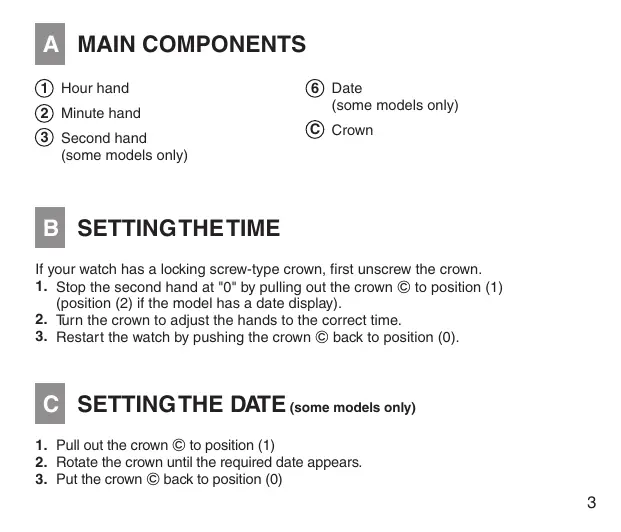

① Hour hand
② Minute hand
③ Second hand (some models only)

(6) Date (some models only)
Crown

B SETTINGTHETIME

If your watch has a locking screw-type crown, first unscrew the crown.

1. Stop the second hand at "0" by pulling out the crown © to position (1) (position (2) if the model has a date display).
2. Turn the crown to adjust the hands to the correct time.
3. Restart the watch by pushing the crown back to position (0).

C SETTING THE DATE (some models only)

1. Pull out the crown © to position (1)
2. Rotate the crown until the required date appears.
3. Put the crown back to position (0)

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use in
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	-	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5bar)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10bar)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20bar) or more	WATER RESISTANT	YES	YES
The words “WATER RESISTANT” may sometimes be abbreviated to “WATER RESIST”.

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.
• Contact with water may cause a deterioration in the quality of some leather straps.

Water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	Not water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving
YES	YES	Suitable for scuba diving
*Always keep the crown in its normal position. *Fully tighten crown screw lock.

• As the internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up. This phenomenon is purely temporary and should not create any problems. However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports such as golf and baseball. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances.

Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergents, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass.

Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Keeping the watch clean also keeps shirt cuffs clean.

Cleaning the watch strap.

Metal bands: use a toothbrush and soapy warm water to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an authorised assistance centre once every 12 months or two years.

If your watch is fitted with a quartz movement

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Keep batteries out of the reach of children

In order to improve the product, the technical specifications may be modified without prior notice.
